Greenlee EHP700L User manual

INSTRUCTION MANUAL
Read and understand all of the instructions and
safety information in this manual before operating
or servicing this tool.
Register this product at www.greenlee.com
52062054 REV 2 © 2013 Greenlee Textron Inc. 9/13
EHP700L
Battery-powered Pump

EHP700L Battery-powered Pump
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
2
Description
The Greenlee EHP700L Battery-powered Pump is a
dual-stage pump that develops a maximum of 700 bar
(10,000 psi). This pump is intended to provide hydraulic
power for remote cutting, punching, and crimping tools.
This pump has a factory-set internal pressure relief
valve.
Fill unit with hydraulic oil before
operating pump.
Failure to ll unit with oil will result in
damage to the pump.
Safety
Safety is essential in the use and maintenance of
Greenlee tools and equipment. This instruction manual
and any markings on the tool provide information for
avoiding hazards and unsafe practices related to the
use of this tool. Observe all of the safety information
provided.
Purpose of this Manual
This manual is intended to familiarize all personnel with
the safe operation and maintenance procedures for the
Greenlee EHP700L Battery-powered Pump.
Keep this manual available to all personnel.
Replacement manuals are available upon request at no
charge at www.greenlee.com.
Do not discard this product or throw away!
For recycling information, go to www.greenlee.com.
All specications are nominal and may change as design
improvements occur. Greenlee Textron Inc. shall not be liable for
damages resulting from misapplication or misuse of its products.
KEEP THIS MANUAL
Table of Contents
Description .................................................................... 2
Safety ............................................................................ 2
Purpose of this Manual ................................................. 2
Important Safety Information .....................................3–5
Identication.................................................................. 6
Specications................................................................ 6
Features of the Pump.................................................... 7
Setup ............................................................................. 7
Operation....................................................................8–9
Maintenance................................................................ 10
Troubleshooting........................................................... 11
Illustrations and Parts Lists ....................................12–18
Main ....................................................................12–13
Motor ....................................................................... 13
Release Lever .......................................................... 14
Pump Housing Unit.................................................. 15
Pump Housing Cap Unit.......................................... 15
Pump Housing Cap ................................................. 15
Relief Valve .............................................................. 16
Piston Pump ............................................................ 16
Reservoir Assembly ................................................. 17
Battery Plate ............................................................ 17
Control Unit.............................................................. 18

EHP700L Battery-powered Pump
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
3
IMPORTANT SAFETY INFORMATION
SAFETY
ALERT
SYMBOL
This symbol is used to call your attention to hazards
or unsafe practices which could result in an injury or
property damage. The signal word, dened below,
indicates the severity of the hazard. The message
after the signal word provides information for pre-
venting or avoiding the hazard.
Immediate hazards which, if not avoided, WILL result
in severe injury or death.
Hazards which, if not avoided, COULD result in
severe injury or death.
Hazards or unsafe practices which, if not avoided,
MAY result in injury or property damage.
Read and understand all of the
instructions and safety information
in this manual before operating or
servicing this tool.
Failure to observe this warning will
result in severe injury or death.
Do not connect the pump to any system or system
component other than those supplied by Greenlee.
Other manufacturers’ components may not with-
stand the maximum pressure and may fail. Nearby
personnel can be injured by ying components and
hydraulic oil.
Failure to observe this warning will result in severe
injury or death.
Do not alter the internal high-pressure relief valve
setting. Altering this setting will change the maximum
pressure the pump can develop, which can cause a
component failure. Nearby personnel can be injured
by ying components and hydraulic oil.
Failure to observe this warning will result in severe
injury or death.
Do not use this pump in a hazard-
ous environment. Hazards include
ammable liquids, gases, or other
materials. Using this pump in a
hazardous environment can result in
a re or explosion.
Failure to observe this warning will
result in severe injury or death.
When punching thin sheet metals and soft materials
such as plastics, the operator must stop the pump
manually. Automatic shut off may not work.
Failure to observe this warning will result in severe
injury or death.

EHP700L Battery-powered Pump
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
4
IMPORTANT SAFETY INFORMATION
Electric shock hazard:
• Do not expose power tools to rain.
• Do not immerse the pendant switch
in water or other liquid.
• Do not crimp, cut, or punch live
cables or conductors. Before start-
ing to work, make sure there are no
live lines in the work area.
Failure to observe these warnings
could result in severe injury or death.
Skin injection hazard:
• Do not use hands to check for
leaks.
• Depressurize hydraulic system
before servicing or disconnecting
the hose.
High pressure oil easily punctures
skin, causing serious injury, gangrene,
or death. If injured, seek medical help
immediately to remove oil.
Wear eye protection when using this
tool.
Failure to wear eye protection could
result in serious eye injury from ying
debris or hydraulic oil.
Inspect pump, hoses, couplers, and ttings for wear
or damage. Replace worn, damaged, or missing com-
ponents with Greenlee replacement parts. Worn or
damaged components can fail, resulting in injury.
Failure to observe this warning could result in severe
injury or death.
Fill unit with hydraulic oil before
operating pump.
Failure to ll unit with oil will result in
damage to the pump.
• Do not use hose or cord to pull, lift, or carry the
equipment. Misuse will damage the hose or cord.
• To avoid accidental start-up, turn the program
selection switch to position 7 before transporting
the tool.
Failure to observe these precautions may result in
injury or property damage.
Make sure all hose ttings are properly seated before
starting the pump. Incomplete connections may
not allow the accessory’s ram to retract after the
hydraulic operation is nished.

EHP700L Battery-powered Pump
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
5
IMPORTANT SAFETY INFORMATION
Cutting hazard:
• Remove battery before changing
dies, adapters, or jaws.
• Keep hands away from the head
when in operation.
Failure to observe these warnings
could result in severe injury or death.
Do not dispose of batteries in a re. They will vent
fumes and may explode.
Failure to observe this warning could result in severe
injury from harmful fumes or burns from ying
debris.
Inspect tool and blades before use. Replace any
worn or damaged parts. A damaged or improp-
erly assembled tool can break and strike nearby
personnel.
Failure to observe this warning could result in severe
injury or death.
• Do not use this tool for continuous use. After 100
cycles, allow the tool to cool for 15 minutes.
• Do not secure this tool in a vise.
• This tool may be used in damp or wet environ-
ments; however, air-drying is recommended before
use if the tool becomes soaked. Damage may
result when the tool is operated prior to thorough
drying when electrical components are soaked.
• Use this tool for the manufacturer’s intended
purpose only.
Failure to observe these precautions may result in
injury or property damage.
Do not allow anything to contact the battery
terminals.
• Do not immerse the batteries in liquid. Liquid may
create a short circuit and damage the battery.
If batteries are immersed, contact your service
center for proper handling.
• Do not place the battery into a pocket, tool pouch,
or tool box with conductive objects. Conductive
objects may create a short circuit and damage the
battery.
• Do not place a battery on moist ground or grass.
Moisture may create a short circuit and damage
the battery.
Failure to observe these precautions may result in
injury or property damage.
• Do not store the battery at more than 122 °F
(50°C) or less than –4 °F (–20 °C). Damage to the
battery can result.
• Do not use another manufacturer’s charger. Other
manufacturers’ chargers may overcharge and
damage the battery.
• Do not attempt to open the battery. It contains no
user-serviceable parts.
Failure to observe these precautions may result in
injury or property damage.
Use all appropriate and applicable personal safety
equipment as required such as safety shoes, hard
hat, and safety glasses. Follow all safety rules and
regulations for the job.
Failure to comply may result in personal injury or
property damage.
Do not perform any service or maintenance other
than as described in this manual. Injury or damage
to the tool may result.
Failure to observe this precaution may result in injury
and property damage.
Note: Keep all decals clean and legible, and replace
when necessary.

EHP700L Battery-powered Pump
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
6
Identification
Specifications
Dimensions
Length ...............................................................................................14.0" (356 mm)
Width...................................................................................................6.5" (165 mm)
Height................................................................................................11.5" (292 mm)
Weight.....................................................................................................10.8 lb (4.9 kg)
Reservoir Capacity ................................................................................. 0.80 qt (0.76 l)
Maximum Operating Pressure........................................................10,000 psi (700 bar)
Operating Temperature Range ....................................10 °F to 104 °F (-12°C to 40 °C)
Dual-Stage Pumping Action
Rapid Advance.............................................................................................0.9 l/min
At Full Pressure ............................................................................................0.3 l/min
1. 3/8" Female Coupler
2. Program Selection Switch
3. LED Display
4. LED (red)
5. Forward and Return Switch
6. Oil Plug (on back)
8A
8B
9
10
2
3
4
5
6
7
11
1
7. Battery Lock
8A. Battery (active)
8B. Battery (storage)
9. Pendant Switch Socket
10. Storage Compartment
11. Emergency Stop Button

EHP700L Battery-powered Pump
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
7
SetupFeatures of the Pump
• This pump is equipped with a brake, which stops the
forward motion of the piston/dies when the trigger is
released.
• The unit is equipped with a double piston pump,
which is characterized by a rapid approach of the dies
toward the connector and a slow crimping motion.
• All tool functions can be controlled by the rocker
trigger, resulting in easy handling.
• The pump is equipped with a microprocessor, which
indicates service intervals and low battery charges. It
also performs internal checks, sending out acoustical
and optical warning signals in case of a detected fault.
• The pump can be operated and transported in all
positions without any oil leakages.
• This tool is equipped with a circuit board, incorporat-
ing several important features to inform the user about
the current status of the unit.
• Before operating the pump, the charging level of the
battery should be tested. A low charging level can be
detected by the LCD display.
• The pressure units may be displayed in bar or psi.
To change the units, set the selection switch to 7,
depress the pendant toggle three times, and then hold
the toggle switch to change the display.
Hydraulic Connection
1. Clean all couplers, threaded ttings, ports, and the
area around all ports.
2. Remove any dust caps from couplers.
3. Hand-tighten all couplings rmly (until all threads are
fully engaged). Do not use tools.

EHP700L Battery-powered Pump
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
8
Operation
Inspect pump, hoses, couplers, and ttings for wear
or damage. Replace worn, damaged, or missing
components with Greenlee replacement parts. Worn
or damaged components can fail, resulting in injury.
Failure to observe this warning could result in severe
injury or death.
Electric shock hazard:
This tool is not insulated. When
using this unit near energized
electrical lines, use proper personal
protective equipment.
Failure to observe this warning
could result in severe injury or death.
Wear eye protection when operating
or servicing this tool.
Failure to wear eye protection could
result in serious eye injury from
ying debris or hydraulic oil.
Cutting hazard:
• Remove battery before changing
dies, adapters, or jaws.
• Keep hands away from the head
when in operation.
Failure to observe these warnings
could result in severe injury or death.
Skin injection hazard:
• Do not use hands to check for
leaks.
• Depressurize hydraulic system
before servicing or disconnecting
the hose.
High pressure oil easily punctures
skin, causing serious injury, gangrene,
or death. If injured, seek medical help
immediately to remove oil.
Electric shock hazard: The owner of this tool must
be certain that all users of this tool are trained in the
applicable safety codes and standards as well as in
the safe use of this tool and its accessories.
Failure to observe this warning could result in severe
injury or death.
• Do not use this tool for continuous use. After
100cycles, allow the tool to cool for 15 minutes.
• Do not secure this tool in a vise. This tool is
designed for hand-held operation.
• Use this tool for the manufacturer’s intended
purpose only.
Failure to observe these precautions may result in
injury or property damage.
Procedure for depressurizing the hydraulic system:
1. Disconnect the pump from the power source.
2. Press down on the manual release shaft and
allow the ram to retract fully.
3. Disconnect the hose slowly to release any
trapped pressure.

EHP700L Battery-powered Pump
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
9
Operation (cont’d)
Charging the Battery
Read the instructions supplied with the battery charger.
LED Indicator (red)
This tool is equipped with a special circuit board incor-
porating several important features to inform the user
about the current status of the unit. The LED signals in
the following cases:
What happens Signal What it means
Flashing light for 2seconds Battery is inserted in tool.
Constant light for 20seconds
at end of cycle
Battery charge is below
17V at beginning of cycle.
Tool will not start, and
constant light for 20seconds
when trigger is released
Battery charge is below
16V at beginning of cycle.
Tool will stop, and constant
light for 20seconds after
trigger is released
Battery voltage drops
below 13V during cycle.
Tool will stop, and flashing
light for 20seconds when
trigger is released
Motor current exceeds
20A during cycle.
Circuit has become too hot.
Flashing light and audible
alert for 3 seconds after cycle
Serious error—Crimping
pressure has not been
reached while motor was
running.
Flashing light and audible
alert for 1 second after cycle
Error—Required crimping
pressure has not been
reached. Operator has
interrupted crimping cycle
manually while motor was
not running.
Operating Procedure
1. Connect the male coupling of the hydraulic hose to
the female coupling of the pump.
2. Select the correct working unit for the intended
application.
3. Connect the tool head to the pump via the hydraulic
hose.
• Do not operate the pump without a working unit.
• Before operating the pump, check the oil level and
adjust if necessary.
Failure to observe these precautions may result in
injury or property damage.
4. Connect the pendant switch, which the pump
recognizes through a special coding. The built-in
trigger will be deactivated accordingly.
5. Plug the battery (and spare battery, if using) into the
socket.
6. The pump is now ready to operate, and the LCD
display is activated.
7. Select the program for the intended application by
turning the selection knob or the data function.
8. Initiate the working cycle by activating the advance
function of the forward and return switch.
Note: The retraction button of the forward and return
switch is always active and can be actuated at any time
and in any program.

EHP700L Battery-powered Pump
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
10
Maintenance
Wear eye protection when operating
or servicing this tool.
Failure to wear eye protection could
result in serious eye injury from
ying debris or hydraulic oil.
Skin injection hazard:
Do not use hands to check for oil
leaks. Oil under pressure easily
punctures skin. If injured, seek
medical attention immediately to
remove oil.
Failure to observe this warning
could result in serious injury, gan-
grene, or death.
Do not use solvents or ammable
liquids to clean the tool body.
Solvents or ammable liquids could
ignite and cause serious injury or
property damage.
Cutting hazard:
• Remove battery before changing
dies, adapters, or jaws.
• Keep hands away from the head
when in operation.
Failure to observe these warnings
could result in severe injury or death.
Relief valve adjustments must be done by an
authorized service center.
Daily
Before use:
1. Inspect the tool for wear or damage, such as cracks,
gouges, or chips.
2. Inspect the tool for damage or leaks.
After use:
1. Use a damp cloth and mild detergent to clean the
housing. Allow the housing to dry.
2. Store the tool in a cool, dry place.
3. If necessary, recharge the batteries. Refer to the
instructions supplied with the battery charger.
Monthly
1. Thoroughly clean all surfaces.
2. Check the oil level.
Annually or After 10,000 Cycles
1. Replace the hydraulic oil.
2. Send the tool to a Greenlee Authorized Service
Center for inspection.
Checking the Hydraulic Fluid Level
The pump has an oil plug with inspection glass, which
can be used to determine the proper oil level. If the oil
level is too low, the reservoir must be lled.
The following hydraulic oils are suitable for a tempera-
ture range of 10 °F to 104 °F (-12°C to 40 °C):
• Hydraulic oils based on Ester: Rivolta S.B.H. 11, Shell
Naturell HF-E 15.
• Mineral oils: Shell Tellus T 15, AVIA HVI 15, Mobil DTE
11, NUTO H 15, Rando HD-Z15, Agip OSO 15, BP
Energol HLP 15.
• Other equivalent oils.

EHP700L Battery-powered Pump
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
11
Problem Possible Cause Probable Remedy
Tool is inoperative. Dirt, contaminants, etc., in
tool.
Clean tool.
Tool battery contacts
damaged.
Reform contacts.
Tool components worn or
damaged.
Return tool to a Greenlee Authorized Service Center.
Motor is inoperative. Low or uncharged battery. Try known charged battery. Inoperative battery may be
discharged or may have reached life expectancy.
Broken switch components. Return tool to a Greenlee Authorized Service Center.
Motor runs but tool will
not complete a cycle.
Oil level low. Return tool to a Greenlee Authorized Service Center.
Air in hydraulic system. Start pump and hold retract button simultaneously.
Run for approximately 10 seconds, and then attempt
to cut. If unsuccessful, return tool to a Greenlee
Authorized Service Center.
Cold oil. Start pump and hold retract button simultaneously to
warm oil. Store tool in warm area.
Dies stop during
operation.
Oil level low. Return tool to a Greenlee Authorized Service Center.
Air in hydraulic system. Start pump and hold retract button simultaneously.
Hold for approximately 10 seconds.
LED glows for 20
seconds.
Battery charge low. Charge or replace battery.
Tool loses oil. Damaged internal seal. Return tool to a Greenlee Authorized Service Center.
Troubleshooting
Before You Begin
1. Make sure that the battery is charged. Recheck
the battery after several minutes to make sure the
battery is holding its charge.
2. Use a nonflammable contact cleaner or pencil
eraser to clean the electrical contacts on the battery
and tool.
3. Reinstall the battery and check the tool again.

EHP700L Battery-powered Pump
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
12

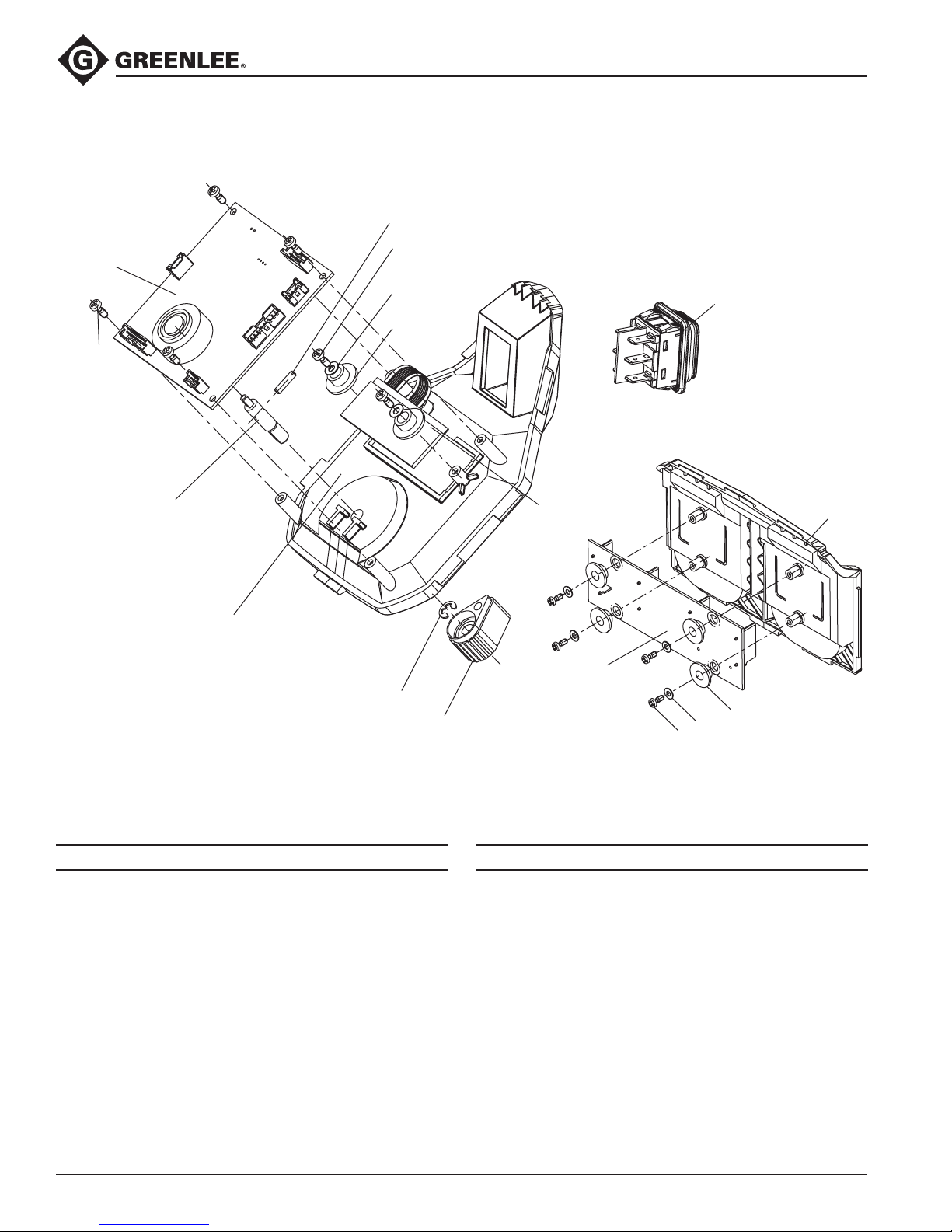

Illustration—Main
32
23
11
7
4
24
25
26
27
28
29
30
31
2
3
22
21 20
18
9
15 16 14 16 13
16
17
All housing screws
screwed in completely.
T = 2.5 Nm max.
T = 8 Nm max.
12
32
19
1
10
Screws M6x8
T = 10 Nm
8
Screw M5x50
T = 5.5 Nm
T = 8 Nm
T = 100 Nm
T = 20 Nm
T = 1.5 Nm max.
34

EHP700L Battery-powered Pump
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
13
Parts List—Main
52061920 Pump, battery-powered
1 52062197 Housing assembly, green......................1
2 52049231 Motor and gearbox ...............................1
3 52062196 Relief lever assembly ............................1
4 52062195 Pump housing unit................................1
5 52060714 Pump housing cap unit.........................1
6 52062231 Pump housing cap................................1
7 52066578 Relief valve assembly ...........................1
8 52062180 Reservoir assembly...............................1
9 52024191 Piston pump..........................................1
52064015 Control assembly (includes 10, 11)
10 Battery plate .........................................1
11 Control unit ...........................................1
52064485 Relief button kit (includes 12–18)
12 Relief button..........................................1
13 Screw, M6-1.0 socket head cap...........1
14 Spring ...................................................1
15 Nut ........................................................1
16 Washer..................................................3
17 Washer..................................................1
18* Screw....................................................1
19 52062199 Reservoir cover.....................................1
20* Screw....................................................1
21 52062203 Electromagnet.......................................1
22 52062202 Mounting plate......................................1
23* Screw....................................................2
24† O-ring, 28.17 x 3.53 NB70....................1
25† Ring, backup-piston .............................1
26 52062193 Fitting, 90°.............................................1
27 52060735 Cover ....................................................1
28* Screw....................................................1
Key Part No. Description Qty
29 52062228 Adapter .................................................1
30 52062194 Coupler, 3/8 female...............................1
31 52062241 Coupler cap ..........................................1
32 52062237 Decal kit ................................................1
33 52062243 Remote control .....................................1
34 Seal .......................................................1
52062236 Circuit board
52062242 Wire harness
52062240 Carrying strap
52063309 Foot switch
52047087 120 VAC corded adapter
52047088 230 VAC corded adapter
52049189 18 V, 3 Ah lithium-ion battery
52049201 120 VAC, 18 V charger
52049202 230 VAC, 18 V charger
52049204 12 VDC, 18 V charger
52054992 Li (18 V) to NiCd, NiMH (12 V)
charger adapter
52057878 Biodegradable hydraulic uid (1 qt)
50177079 Hydraulic hose, 10' x 1/4" with
3/8" and 1/4" male couplers
50058509 Hydraulic hose, 10' x 1/4" with
3/8" male and 3/8" female couplers
52063307 Hydraulic hose, 6' x 1/4" with
3/8" and 1/4" male couplers
52063308 Hydraulic hose, 6' x 1/4" with
3/8" male and 3/8" female couplers
† 52062238 Seal kit (includes items marked with † )
* 52062239 Fastener kit (includes items
marked with * )
Key Part No. Description Qty

EHP700L Battery-powered Pump
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
14

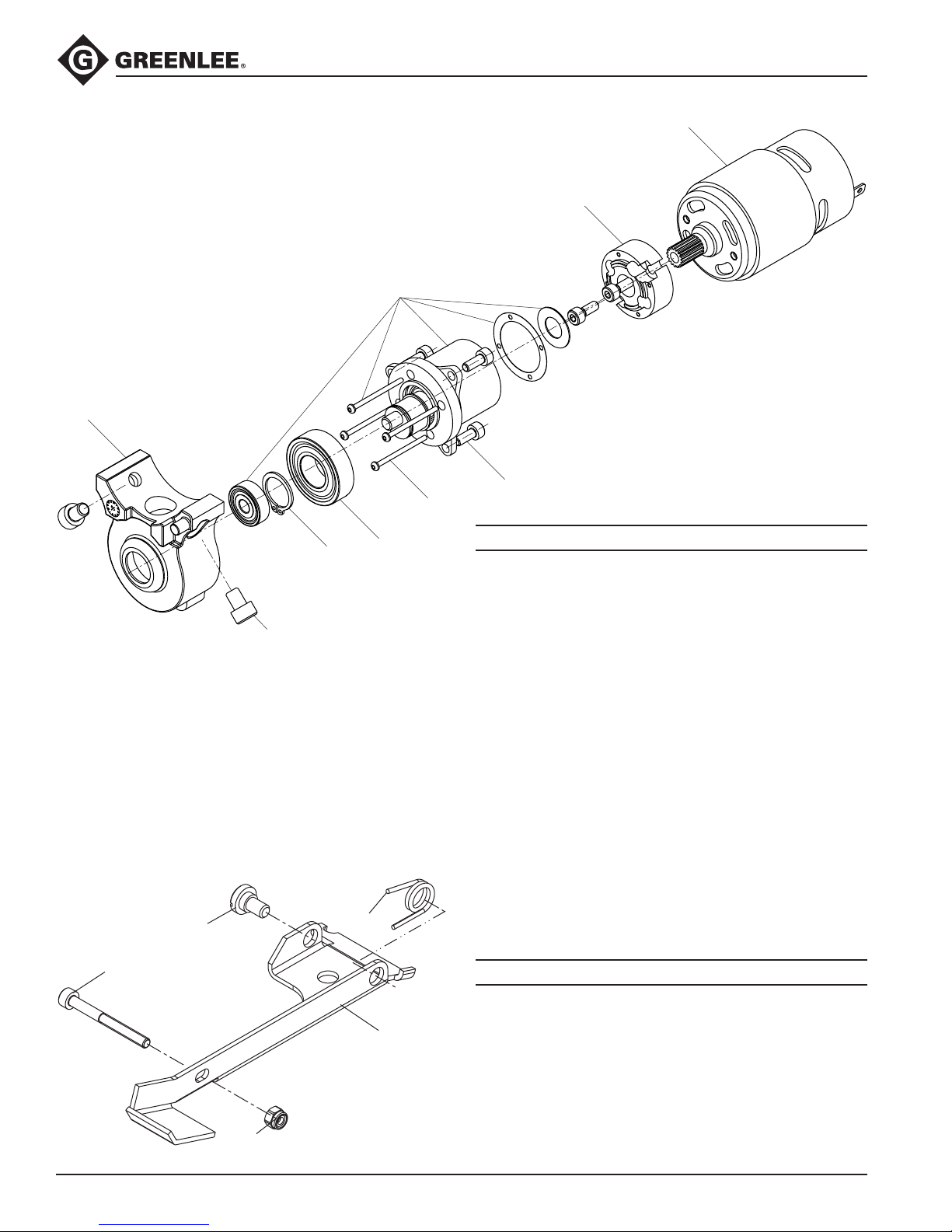

Illustration and Parts List—Motor
Illustration and Parts List—Release Lever
Key Part No. Description Qty
1
7
2
8
4
3
5
6
9
2
T = 1.5 Nm max.
5
T = 1.5 Nm max.
4
1
3
52062196 Release lever unit
1 Release lever.........................................1
2 Screw....................................................1
3 Compression spring..............................1
4 Bolt........................................................1
5 Nut ........................................................1
Key Part No. Description Qty
52049231 Motor gearbox unit
1 52055064 Motor and pinion...................................1
2 Gearbox with eccentric.........................1
3* Retaining ring........................................1
4 Grooved ball bearing ............................1
5* Screw....................................................2
6 Eccentric case ......................................1
7 Flange ...................................................1
8* Screw....................................................5
9* Gear box screw.....................................4
* 52062239 Fastener kit (includes items
marked with * )

EHP700L Battery-powered Pump
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
15
1
7
4 T = 2 Nm
6 T = 12 Nm
T = 12 Nm
3
2
5
8
T = 5.5 Nm
8
7
6
5
4
3
2
1
4
T = 2 Nm
1
2
3

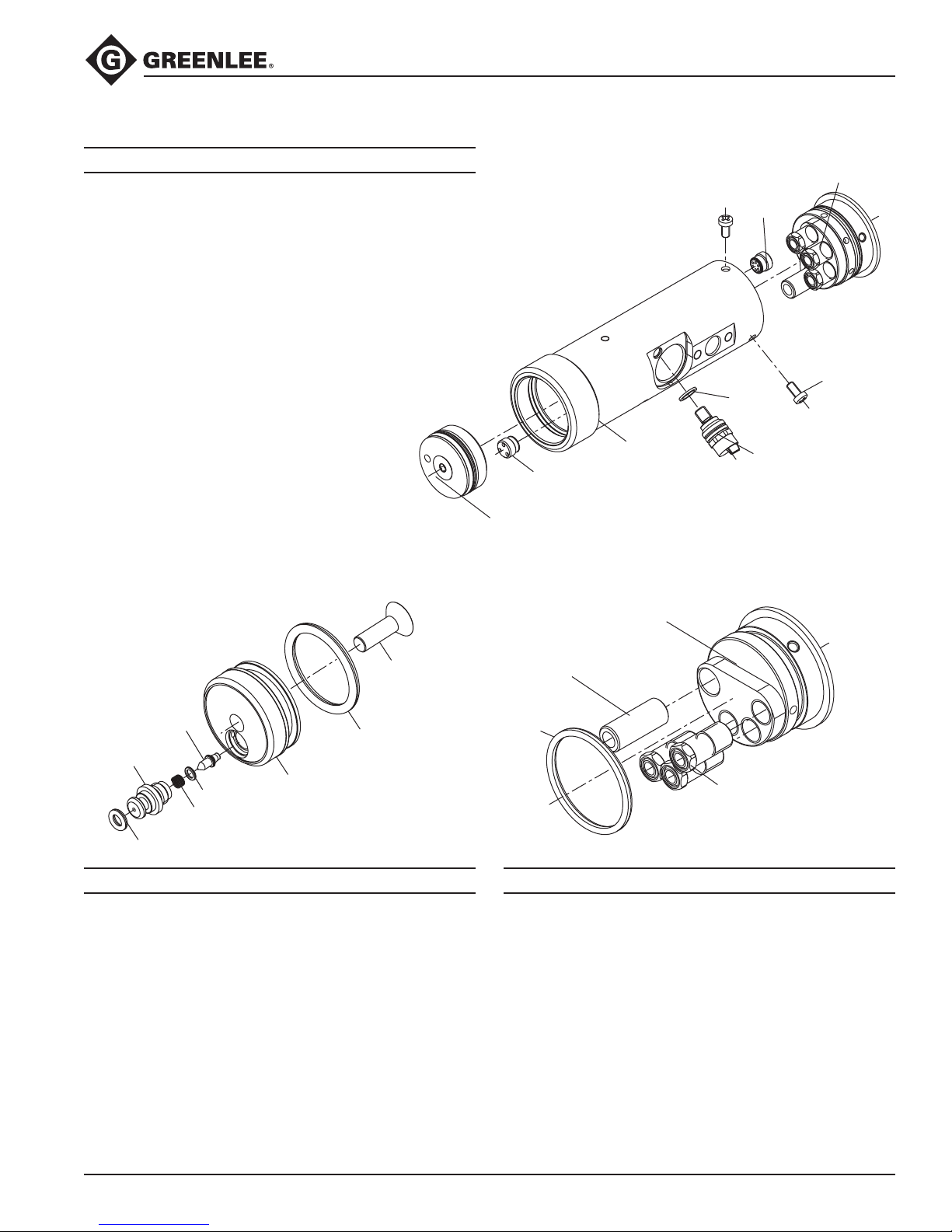

Illustration and Parts List—Pump Housing Unit
Illustration and Parts List—
Pump Housing Cap Unit
Illustration and Parts List—
Pump Housing Cap
52060714 Pump housing cap unit
1* Screw....................................................1
2† O-ring, 28.17 x 3.53 NB70....................1
3 Valve housing........................................1
4 Needle valve .........................................1
5* Washer..................................................1
6* Spring ...................................................1
7 Valve seat..............................................1
8† O-ring....................................................1
† 52062238 Seal kit (includes items marked with † )
* 52062239 Fastener kit (includes items
marked with * )
52062231 Pump housing cap
1 Cap .......................................................1
2 52062234 Sleeve ...................................................1
3† Seal ring................................................1
4 52046666 Filter ......................................................3
† 52062238 Seal kit (includes items marked with † )
Key Part No. Description Qty Key Part No. Description Qty
52062195 Pump housing unit
1 52060714 Pump housing cap unit.........................1
2 52062231 Pump housing cap................................1
3 50109162 Bushing, threaded.................................1
4* Screw....................................................3
5† Seal .......................................................1
6 52049205 Sensor...................................................1
7 Pump housing.......................................1
8 50109308 Bushing, threaded.................................1
† 52062238 Seal kit (includes items marked with † )
* 52062239 Fastener kit (includes items
marked with * )
Key Part No. Description Qty

EHP700L Battery-powered Pump
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
16
Illustration and Parts List—Relief Valve
Illustration and Parts List—Piston Pump
52024191 Piston pump unit
1 Pump piston..........................................1
2 Screw plug............................................1
3† Piston seal ............................................1
4† Washer..................................................1
5 Pump piston..........................................1
6 Valve stem.............................................1
7 Spring ...................................................1
† 52062238 Seal kit (includes items marked with † )
Key Part No. Description Qty
1
2
3
6
7
8
10
9
5
4
52066578 Relief valve unit
1† Seal .......................................................1
2 50053630 Valve seat..............................................1
3 Needle valve .........................................1
4 Plunger..................................................1
5 Washer..................................................3
6 Compression spring..............................1
7† O-ring....................................................1
8 Pressure relief valve..............................1
9† O-ring....................................................1
10 Screw....................................................1
† 52062238 Seal kit (includes items marked with † )
Key Part No. Description Qty
7
6
5
43
2
1

EHP700L Battery-powered Pump
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
17

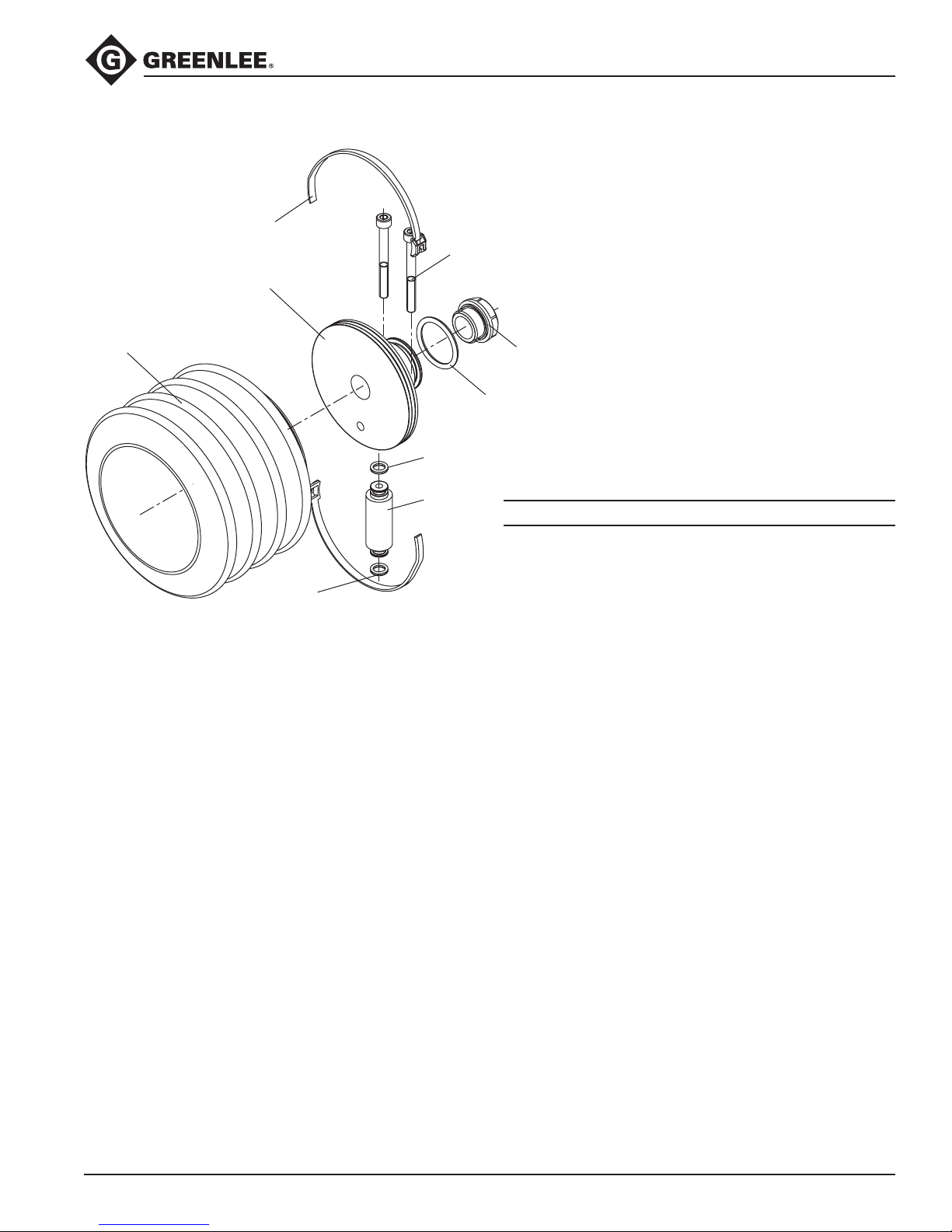

Illustration and Parts List—Reservoir Assembly
52062180 Reservoir assembly
1 52062217 Reservoir...............................................1
2† Seal .......................................................2
3 Reservoir shaft......................................1
4 52055861 Clamp (10 pack)....................................2
5* Bolt, shoulder........................................2
6† O-ring....................................................1
7 Adapter .................................................1
8 Reservoir plate......................................1
† 52062238 Seal kit (includes items marked with † )
* 52062239 Fastener kit (includes items
marked with * )
Key Part No. Description Qty
7
T = 10 Nm max.
6
2
3
2
1
4
5
8

EHP700L Battery-powered Pump
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
18
Illustration and Parts List—Control Assembly
52064015 Control assembly
1 Front panel............................................1
2 Control shaft .........................................1
3* Screw....................................................6
4 Board ....................................................1
5* Pin.........................................................1
6* Washer..................................................2
7* Standoff ................................................2
8 Knob .....................................................1
9 LCD display ..........................................1
Key Part No. Description Qty
10 Switch ...................................................1
11* Retaining ring........................................1
12 Contact cover .......................................1
13 Contact board.......................................1
14* Screw....................................................4
15* Washer..................................................4
16* Standoff ................................................4
* 52062239 Fastener kit (includes items
marked with * )
Key Part No. Description Qty
3
T = 1.5 Nm max.
4
5
3
7
610
9
2
1
11
13
12
16
15
14
T = 1.5 Nm
8

EHP700L Battery-powered Pump
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
19

4455 Boeing Drive • Rockford, IL 61109-2988 • USA • 815-397-7070
An ISO 9001 Company • Greenlee Textron Inc. is a subsidiary of Textron Inc.
USA Tel: [phone]
Fax: [phone]
Canada Tel: [phone]
Fax: [phone]
International Tel: [phone]
Fax: [phone]
www.greenlee.com
