GREENLIGHT LIGHTING rev120MKII User manual

eee ddd ggg
rev120MKII
GREENLIGHTLIGHTING
USERMANUAL V1.0

INTRODUCTION
Thank you for purchasing Greenlight Lighting’s REV120MKII.
The REV120mkII is the most advanced moving spot luminaire in its
class, on the market to date. Featuring dual gobo wheels, electronic
iris, focus, prism and it’s luminus LED engine, REV120mkII gives you
a wide range of options in creating stunning aerial effects and images
to enhance your future lighting designs.
This manual covers the important information on installation,
setup and maintenance.
Please read through this manual and keep it in a safe place
for your future reference.
REV120MKII is made from a high temperature ABS plastic shell and
cast alloy frame. The fixture is designed and manufactured following
strict CE standards, complying with the international standard DMX512
protocol and features a state of the art CBM360w Luminus chip
operating at 120watts, producing a very even field of light with superior
output.
Please carefully unpack the fixture and check the following accessories
are inside
1 PowerCon Cable
1 Signal Cable 2 Omega Clamps
1 Safety Chain
sss
REV120mkII
REV120mkII
SPECIFICATIONS
Luminus CBM-360w 90W white LED
50,000 hour lifespan
16 bit resolution PAN/TILT
540°pan 270°tilt
P/T auto correction
Color wheel with 7 colors plus open
with variable speed colour scroll
7 Rotating gobos (4 Glass/3 Metal)plus Open
with variable speed gobo scoll
9 fixed gobos plus open
1 Rotating 3-facet prism
Electronic linear iris
2 meter to infinite electronic focusing
15 degree beam angle
0-100% linear dimmer
1-18FPS high speed electronic strobe
15 DMX channels
DMX512, master/slave and audio modes
Blue LCD display interface
45°C max ambient temperature
55dB at 1metre
Input Voltage
AC90-AC260VÂC 50-60Hz
Physical Dimensions
203x301x444mm
Net Weight: 11kg
Gross Weight: 12.5kg

111
222
333
PPPIII 333
NNN
PPPIII 222
NNN
111222000
Ω
REV120mkII
SETUP AND INSTALLATION
OVERHEAD RIGGING
SECURE A SUITABLY RATED
RIGGING CLAMP(2) TO THE
OMEGA BRACKET WITH AN
M10 BOLT, 3 FLATS AND 1
SPLIT WASHER.
WITH YOUR FIXTURE STILL IN
ITS CASE, ATTACH OMEGA
CLAMPS(1) TO BASE USING
THE FOUR 1/4 TURN QUICK
LOCKS(4) IN A CLOCKWISE
DIRECTION.
ATTACH A SUITABLY RATED
SAFETY WIRE TO IT’S AN-
CHOR POINT(3).
HANG YOUR LIGHT AND AT-
TACH YOUR SAFETY WIRE
AROUND THE FIXTURES
MOUNTING POINT.
TIGHTEN YOUR CLAMPS.
NEVER ATTEMPT TO RIG THIS LIGHT UNLESS YOU ARE COMPENTANT TO DO SO.
ALWAYS ENSURE YOUR MOUNTING POINTS ARE SAFE AND ADEQUATELY RATED
TO PREVENT INJURIES AND POTENTIAL LOSS OF LIFE.
NEVER ATTACH SAFETY WIRES TO HANDLES, ALWAYS USE THE ANCHOR POINT.
CHECK WITH A LICENSED RIGGER FIRST BEFORE HANGING ANYTHING!
REV120mkII setup and installation
DATA AND POWER
CONNECT YOUR REV’S TOGETHER WITH A SHIELDED
XLR CABLE IN SERIES, AND TERMINATE THE LAST
FIXTURE USING A 120ohm RESISTOR ACROSS PINS
TWO AND THREE ON A MALE XLR PLUG.
TO POWER YOUR REV SIMPLY TWIST AND CLICK
YOUR POWERCON CONNECTION AND PLUG INTO A
SUITABLY RATED MAINS POWER SOURCE.
UP TO 16 UNITS CAN BE LINKED FROM ONE ‘MASTER’
POWERED UNIT USING THE WHITE POWERCON INPUT
TO LINK TO THE SUBSEQUENT UNITS.
terminator plug diagram
CONTINUED OVER PAGE

REV120mkIII
1) Check screws and ensure they have not come
loose during transit.
2) Check power supply cables prior to powering up
unit and ensure no damage is evident.
Don’t use faulty power cables!
3) Rigging and installation of the REV should only be
done with a competantly skilled person with all safety
devices attached to ensure safe use.
4) Fixture installation must always be secured with a
secondary safety device.
5) Never stand directly below the device when
mounting, removing or servicing the fixture.
AFTER UNPACKING YOUR rev
BEFORE YOU RIG or POWER ON UNIT!!
REV120mkII

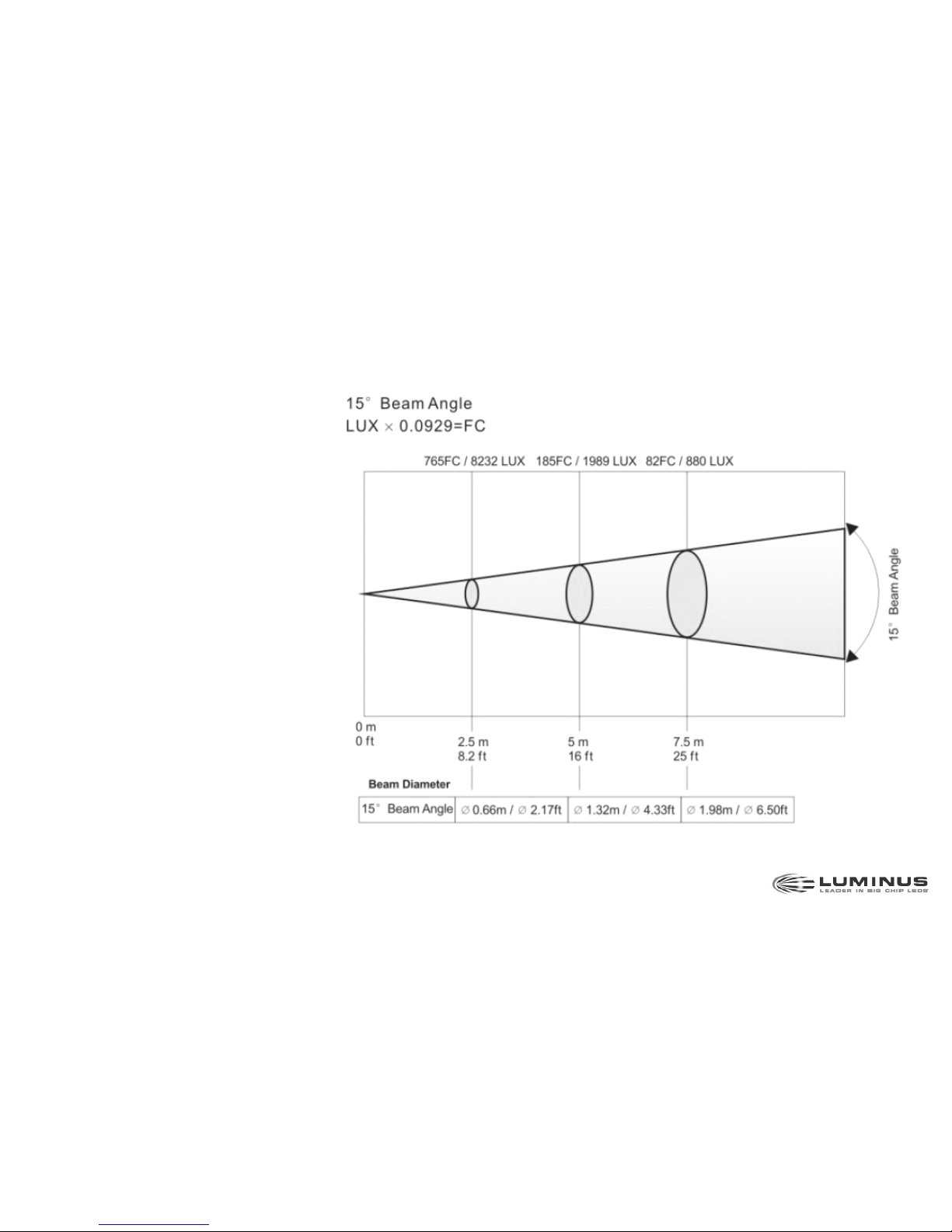

PHOTOMETRIC DATA

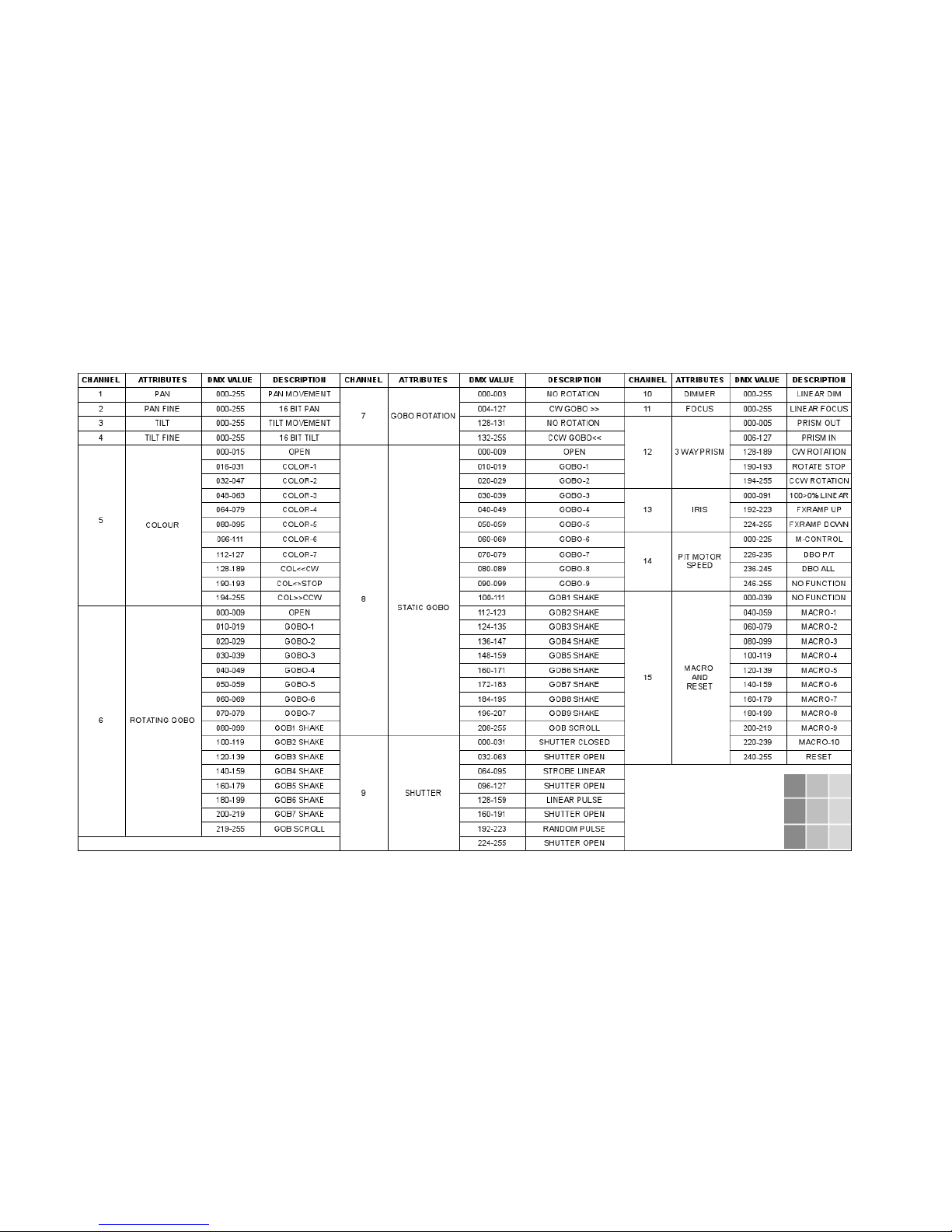

DMX TABLE
REV120mkII

Thisdeviceissensitiveto sudden temperature changes,ifthisoccurs,leavethelightpowered off for a minimumof60
minutesbefore switchingon to minimise thechancesofdamagebycondesnsation withintheunit.
Before use offixture,checkthat all power distribution equipment andcables are in acceptablecondition andratedfor the
current requirements ofall theconnecteddevices.
ThisdeviceMUST beearthedto prevent electrical shockandelectrocution
and only be usedwithinit’sratedvoltageand frequency.
Offsite power generatorsshouldbevoltage testedprior to poweringfixture to avoiddamagecausedbyover/under current.
Always power downlightbetween useto increasethemovingcomponentslifespan suchasexhaustfansand electronic
andmechanical drivecomponents.
Donot expose thefixture to rain or moisture.
Avoidlookingdirectlyinto thelightsource.
Strobingeffects may cause epilepticseizures peoplewithsuchacondition should beaware.
Ensure power isdisconnectedfrom fixture before cleaningandservice.
Keepmore than 50cmproximitybetween wallsandceilingsto ensure adequate airflow.
REV120mkII MAINTENANCE and SERVICE
Inorder to keepyourREV in good condition and extendis lifespan
We suggest you adopt a regular cleaningroutine to ensure your
investment keepsrunningaswell asitdidthedayyoupurchasedit.
SUGGESTED MAINTENANCE ROUTINE
Usea free lint-free moistcloth with a mild detergent when neccesary.
Do not use alcohol or solvent based cleaners.
Inpsect and clean theintake fans to ensure adequate airflow into unit every week.
Useavacuumcleaner withacomputer cleaningattachment andan oilfree
paintbrushto brushawayexcess dustbuild up-we recommend using a brush with camel hair.
Haveadetailedelectrical checkby an approvedelectrical engineer everysixmonths.
There are no user serviceable parts inside the device
SAFETY PRECAUTIONS AND CAre
