OPERATOR’S MANUAL

INTRODUCTION.
Congratulations with the purchase of your MAREDO®. To ensure the safe and long lasting operation of the
MAREDO machine, you and anyone using the machine, should read and understand this user’s manual.
Also ensure that you understand and practice the safety rules, as described in this manual.
This MAREDO machine is delivered accomplished by a guarantee against material and assembly errors.
This guarantee applies for a period of 12 months, as from the date of purchase.
IMPORTANT NOTE
The required (hydraulic) power depends on the working depth, soil conditions, working speed etc. The
condition of the triplex greensmower and the ambient temperature determine the available capacity.
Everybody should check the greensmower during work if it isn’t overloaded by checking the heat built up
and take the correct measurements .
MAREDO DOES NOT TAKE ANY LIABILITY FOR GREENSMOWER DAMAGES.
MAX. ENGINE REVS : 75% OF MAXIMUM.
MAX GROUND SPEED: 4 KMH/ 2.5 MPH.
SAFETY INSTRUCTIONS
1. Never disconnect or shortcut any of the safety devices.
2. Every MAREDO user must be fully informed and understand the safe use of the MAREDO machine.
3. Inspect the ground, where the MAREDO machine is to be applied. Remove loose obstacles, avoid
uneven areas.
4. Drive carefully during work and during transport.
5. Ensure that other people are standing at least 4 mtr./ 12 ft away from the MAREDO machine during
work and transportation.
6. Use appropriate clothing. Wear strong shoes with steel enforced toe caps, long trousers, gloves, tie up
long hair and use protection glasses for the eyes.
7. Never overload the MAREDO. This is visible when the head starts to vibrate or behave unstable.
8. Check the MAREDO minimal once a week, to ensure there are no loose bolts and nuts. Check for
damages too and repair them.
9. The MAREDO may never be used without protection covers and safety decals.
10. Use only original MAREDO spare parts, in order to ensure the safe operation of the machine.
11. Never use the MAREDO in the dark, in heavy rains, on frozen grounds, stony conditions and/ or on
slopes steeper than 30 degrees.
12. Maintain a log book of the repairs.
13. Be aware that changes made at the MAREDO, releases MAREDO from CE regulations. You should
homologate the machines yourself 4 mtr/ 12 ft 4 mtr/ 12 ft

TECHNICAL SPECIFICATIONS
•Model : GT 230- 045
•Working width : 520 mm/ 21” per head
•Working depth : 5 -25 mm/ 0.25- 1.0”.
•Hole spacing : 0- 45 x 45 mm/ 0- 1.77 x 1.77”
•Driving speed : 0.5- 4,0 km/h / 0.3- 2,5 mph
•Weight : 48 Kg/ 120 lbs per head.
TIPS / RECOMMENDATIONS
1. Do not use the corer unit in wet conditions. The tines may clog and your turf damaged.
2. Clean the unit regularly with air or low pressurized water. DON’T USE HIGH PRESSURIZED WATER.
The water can enter the bearings causing them to seize.
3. Use the trolley to move the heads easily to you triplex. Next connect the head to your triplex. In some
cases you need to raise the head and remove the trolley, before you can mount the hydraulic motor.
4. Be careful with tightening the hydraulic motor bolts. Do it evenly and do not over tighten. The ears of the
hydraulic motor may crack.
5. Raise the heads and see if they stay in the right position and does not hit anything. If it does, make some
adjustments till if fits well.
6. Be sure that the heads do have enough ground clearance. Otherwise the tines can hit the ground during
transport, causing the rubbers to crack.
7. Make your first test run outside the green. Play with the engine throttle and the driving speed, if the holes
do not look nice. Continue till you are satisfied.
8. Be sure that the hydraulic motor speed setting of the triplex is set at its maximum. Next use only 70-80%
of the max engine rev’s . NOTE: AT THE MOMENT YOU HEAR A SMALL HAMMERING NOISE, YOUR
ENGINE/ REEL RPM’S ARE TOO HIGH AND/ OR YOUR RUBBERS ARE WORN.
9. If the hole edge is damaged, play with the groundspeed. You also may need to adjust your working depth.
Or you may need to remove your core collector (scraper) at the back. On weak turf, this scraper can hurt
the hole edges.
10. Be careful with dropping the units on a hard (concrete) floor. Put something (trolley or rubber carpet)
underneath to protect the tines against folding. Damage to the heads may occur.
11. Check bolts and nuts regularly. Re-tighten if necessary.
12. The core collector has a limited capacity. Make short passes, if you want to collect all the cores to one
side of the green.
13. The hole spacing in drive direction is set by the ground speed. Play with the groundspeed to get the
right spacing and the correct hole.
14. Do not over-tighten the tine secure bolts, as the threaded holes get damaged.
15. START AND STOP PROCEDURE: Set the engine throttle at appr. 60%. Drop the heads and move
forwards. Increase throttle till 75% of max revs. At the end of the pass STOP MOVING FORWARDS
and raise the heads. If you don’t stop, the tines may FOLD BACKWARDS (especially TORO) and
damage the rubbers or the turf.
16. You can make curves with the heads during work, BUT DO NOT MAKE TIGHT CURVES. Damage to
the units and green may appear.

17. The opening of the hollow tines should face to the rear of the machine, otherwise the hole edge get
damaged.
18. CHECK THE (HYDRAULIC) DRIVE OF THE GREENSMOWER REGULARLY. DO NOT OVERHEAT
THE (HYDRAULIC) DRIVE. MAREDO IS NOT RESPONSIBLE FOR DAMAGES TO THE
GREENSMOWER.
FIRST SETUP
The heads are standard delivered with the motor connection at the Right Hand side. We can easily swop this
to the Left Side by removing the clutch parts and mount them at the other side of the machine (swop the side
weights at the same time). Be sure you mount them in exact the same position as before (do not mirror them).
Next, we need a parts kit to mount the head to your triplex greensmower. Maredo has several kits available.
Each kit comes with its own mounting instructions and partslist.
MAINTENANCE

IMPORTANT NOTES

PARTS LISTING FOR DYNA-CORER

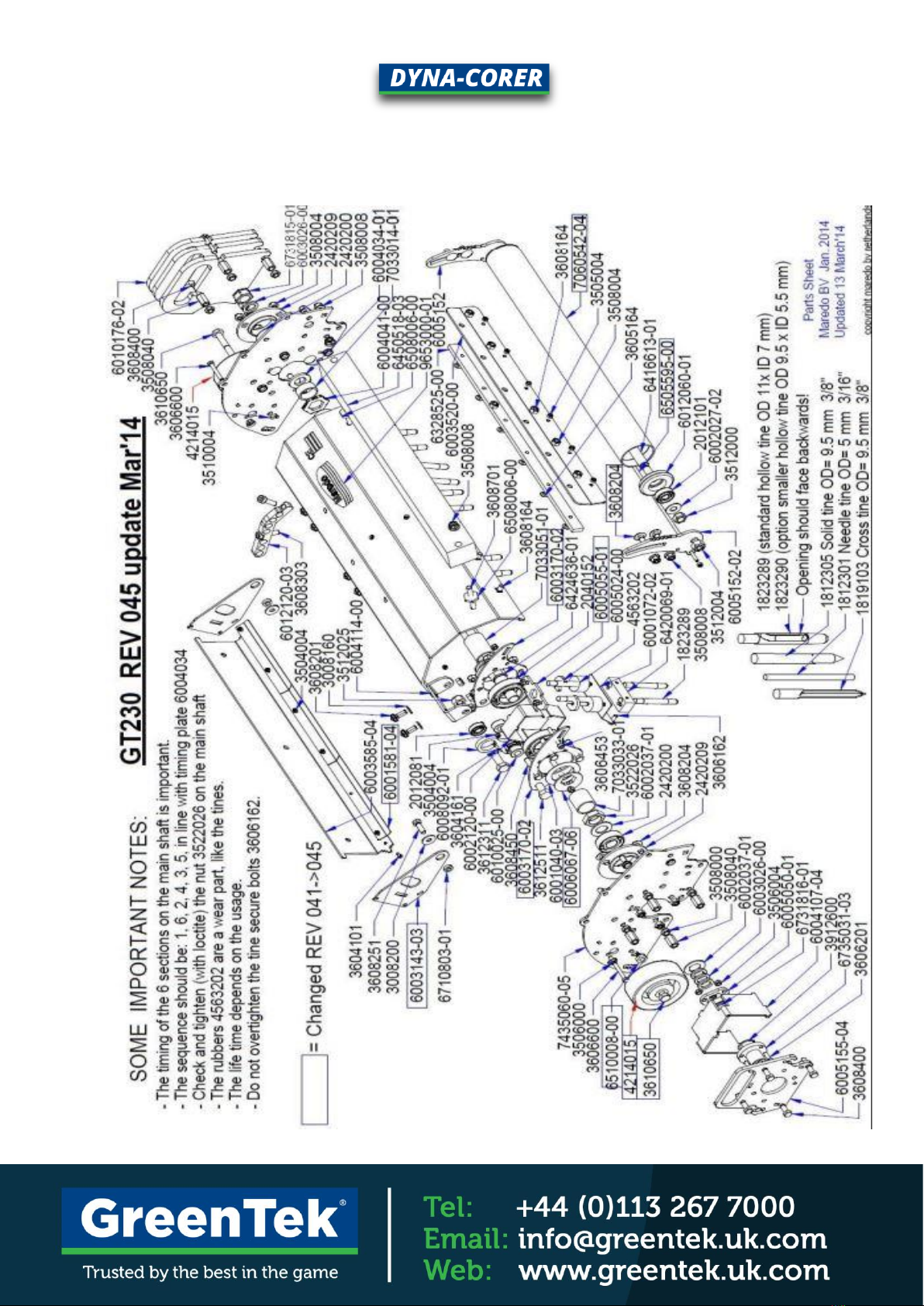

PARTS DIAGRAM FOR DYNA-CORER

EU DECLARATION
We, MAREDO, Rijksstraatweg16, 3956CR. Leersum, Holland, hereby declare fully on our authority, that
the product MAREDO GT 230, with serial number as indicated on the machine and in this manual, to which
this declaration applies, has been manufactured in line with NEN-EN –ISO14121-1:2007, according to the
stipulations of The Machine Directive 2006/42/EG.
Marinus Reincke Maredo BV Holland.
