GreenWorks Tools GPW1704 User manual
1 Description......................................... 4
1.1 Purpose.............................................................. 4
1.2 Product overview...............................................4
2 General power tool safety
warnings.............................................4
3 Electrical safety warnings.................4
4 Pressure washer safety warnings..... 4
5 Servicing of a double-insulated
appliance............................................ 5
6 Extension cords..................................5
7 Child safety........................................ 5
8 Proposition 65....................................5
9 Symbols on the product.................... 5
10 Risk levels...........................................6
11 Installation......................................... 6
11.1 Electrical connection......................................... 6
11.2 Unpack the machine.......................................... 6
11.3 Install the spray wand........................................6
11.4 Install the high pressure hose.............................7
12 Operation........................................... 7
12.1 Connect the water supply to the machine..........7
12.2 Use the gun........................................................ 7
12.3 Change the nozzle..............................................7
12.4 Install the detergent tank....................................8
12.5 Start the machine............................................... 8
12.6 Stop the machine............................................... 8
13 Maintenance.......................................9
13.1 Nozzle maintenance...........................................9
14 Remove the nozzle............................. 9
15 Clean the nozzle.................................9
16 Transportation and storage..............9
16.1 Move the machine............................................. 9
16.2 Store the machine.............................................. 9
17 Troubleshooting...............................10
18 Technical data.................................. 11
19 Limited warranty............................ 11
20 Exploded view..................................12
3
English EN
1 DESCRIPTION
1.1 PURPOSE
The machine is used to used to clean vehicles, boats,
buildings, porches, decks, patios, and driveways.
For domestic use only, not for professional use, and for
operation at temperature above 32°F (0°C).

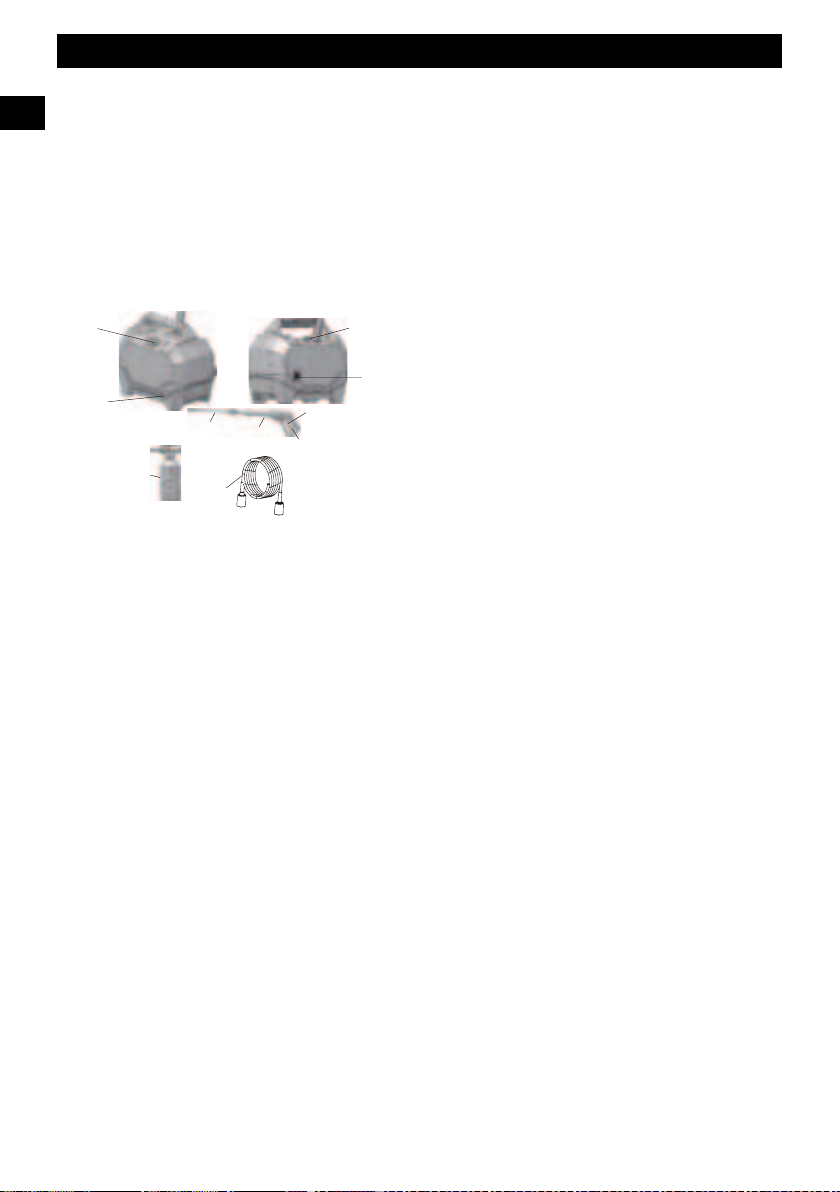

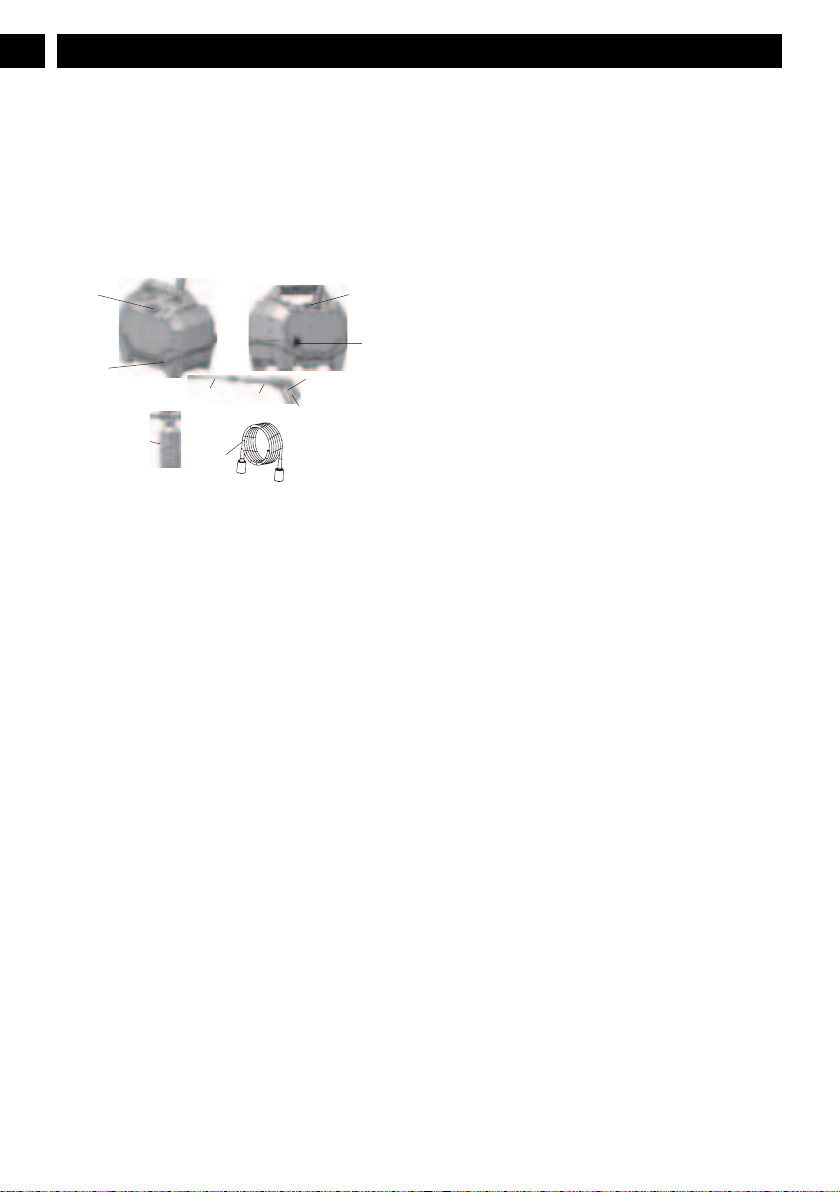

1.2 PRODUCT OVERVIEW
1Power switch
2Water outlet
3Nozzle
4Water inlet
5Spray wand
6Gun
7Gun Trigger
8Trigger safety button
9Detergent tank
10 High pressure hose
2 GENERAL POWER TOOL
SAFETY WARNINGS
• The machine is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety. Children should be supervised to ensure
that they do not play with the appliance.
• Learn the machine's applications and limitations as well
as the specified potential hazards related to this tool by
studying this manual.
• Never operate the machine with any guard or cover
removed or damaged.
• Do not operate the product while under the influence of
drugs, alcohol, or any medication.
• Do not wear loose clothing, gloves, neckties, or jewelry.
They can get caught and draw you into moving parts.
• Rubber gloves and non-skid footwear are recommended
when working outdoors. Also wear protective hair
covering to contain long hair. Wear footwear that will
protect your feet and improve your grip on slippery
surfaces.
• Don't overreach or stand on unstable support. Keep
proper footing and balance at all times.
• Check the work area before each use. Remove all objects
such as rocks, broken glass, nails, wire, or string which
can be thrown or become entangled in the machine.
• Avoid dangerous environments. Don’t expose to rain.
Keep work area well lit.
• Before starting any cleaning operation, close doors and
windows. Clear the area to be cleaned of debris, toys,
outdoor furniture, or other objects that could create a
hazard.
• Don’t use the appliance within range of persons unless
they wear protective clothing.
3 ELECTRICAL SAFETY
WARNINGS
• Disconnect from the electrical power supply before
carrying out user maintenance.
• Use only extension cords that have watertight
connections and are intended for outdoor use. Use only
extension cords having an electrical rating not less than
the rating of the product. Examine extension cord before
using and replace if damaged. Do not abuse extension
cord and do not pull on any cord to disconnect. Keep cord
away from heat and sharp edges. Always disconnect the
extension cord from the receptacle before disconnecting
the product from the extension cord.
• Do not use the appliance if a supply cord or important
parts of the appliance are damaged, e.g. safety devices,
high pressure hoses, trigger gun.
• Inadequate extension cords can be dangerous.
• To reduce the risk of electrocution, keep all connections
dry and off the ground. Do not touch plug with wet hands.
• Do not abuse the cord. Never use the cord to carry the
product or to disconnect the plug from an outlet. Keep
cord away from heat, oil, sharp edges, or moving parts.
Replace damaged cords immediately. Damaged cords
increase the risk of electric shock.
• Inspect extension cords periodically and replace if
damaged. Keep handles dry, clean, and free from oil or
grease.
4 PRESSURE WASHER SAFETY
WARNINGS
• Read all the instructions before using the product.
• To reduce the risk of injury, close supervision is
necessary when a product is used near children.
• Know how to stop the product and bleed unit pressure
quickly. Be thoroughly familiar with the controls.
• Stay alert – watch what you are doing.
• Do not operate the product when fatigued or under the
influence of alcohol or drugs.
• Keep operating area clear of all persons.
• Do not overreach or stand on unstable support. Keep
good footing and balance at all times.
• Follow the maintenance instructions specified in the
manual.
4
English
EN

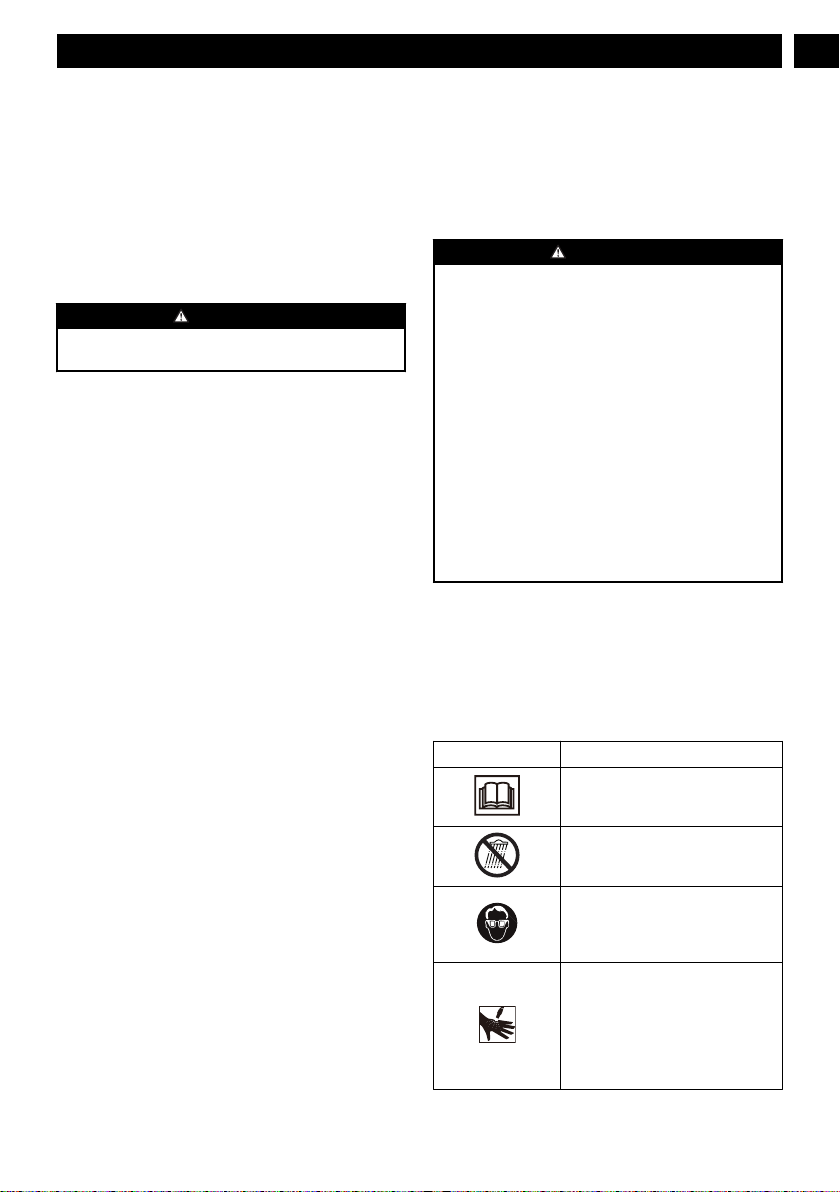

• This product is provided with a ground fault circuit
interrupter built into the power cord plug. if replacement
of the plug or cord is needed, use only identical
replacement parts.
• Risk of injection or injury– Do not direct discharge
stream at persons.
• Keep the motor away from flammables and other
hazardous materials.
• Keep product dry, clean, and free from oil and grease.
Always use a clean cloth when cleaning. Never use brake
fluids, gasoline, petroleum-based products, or any
solvents to clean product.
WARNING
To reduce the risk of electrocution, keep all connections dry
and off the ground. Do not touch plug with wet hands.
5 SERVICING OF A DOUBLE-
INSULATED APPLIANCE
• In a double-insulated product, two systems of insulation
are provided instead of grounding. No grounding means
is provided on a double-insulated product, nor should a
means for grounding be added to the product. Servicing a
double-insulated product requires extreme care and
knowledge of the system, and should be done only by
qualified service personnel. Replacement parts for a
double-insulated product must be identical to the parts
they replace. A doubleinsulated product is marked with
the words “DOUBLE INSULATION” or “DOUBLE
INSULATED.”
6 EXTENSION CORDS
• Use only extension cords that are intended for outdoor
use. These extension cords are identified by a marking
“Acceptable for use with outdoor appliances; store
indoors while not in use.” Use only extension cords
having an electrical rating not less than the rating of the
product. Do not use damaged extension cords. Examine
extension cord before using and replace if damaged. Do
not abuse extension cord and do not yank on any cord to
disconnect. Keep cord away from heat and sharp edges.
Always disconnect the extension cord from the receptacle
before disconnecting the product from the extension cord.
7 CHILD SAFETY
Tragic accidents can occur if the operator is not aware of the
presence of children.
• Keep children out of the working area and under the
watchful care of a responsible adult.
• Do not allow children under the age of 14 to operate this
machine. Children who are 14 years of age and older
must read and understand the operating instructions and
safety rules in this manual and must be trained and
supervised by a parent.
• Stay alert, and turn the machine off if a child or any other
person enters the working area.
• Use extreme care when approaching blind corners,
doorways, shrubs, trees, or other objects that may obscure
your view of a child who may run into the path of the
machine.
8 PROPOSITION 65
WARNING
This product contains a chemical known to the state of
California to cause cancer, birth defects or other
reproductive harm. Some dust created by power sanding,
sawing, grinding, drilling, and other construction activities
contains chemicals known to cause cancer, birth defects or
other reproductive harm. Some examples of these chemicals
are:
• Lead from lead-based paints;
• Crystalline silica from bricks and cement and other
masonry products;
• Arsenic and chromium from chemically treated lumber.
Your risk of exposure to these chemicals varies depending
on how often you do this type of work. To reduce your
exposure to these chemicals, work in a well-ventilated area,
and work with approved safety equipment, such as dust
masks that are specially designed to filter out microscopic
particles.
Save these instructions.
9 SYMBOLS ON THE PRODUCT
Some of the following symbols may be used on this tool.
Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the
tool better and safer.
Symbol Explanation
To reduce the risk of injury, user must
read and understand operator’s man-
ual before using this product.
Do not expose the product to rain or
moist conditions.
Always wear safety goggles or safety
glasses with side shields and, as nec-
essary, a full face shield when operat-
ing this product.
To reduce the risk of injection or in-
jury, never direct a water stream to-
wards people or pets or place any
body part in the stream. Leak ing ho-
ses and fittings are also capable of
causing injection injury. Do not hold
hoses or fittings.
5
English EN
