GRI DPA-10 User manual

GEORGE RISK INDUSTRIES, INC.
G.R.I. PLAZA
KIMBALL, NE 69145
TOLL-FREE 1-800-445-5218
TOLL-FREE 1-800-523-1227
[phone]
FAX [phone]
E-MAIL: [email protected]
WEB SITE: www.grisk.com
U.L. LISTED
POOL ALARM
.Monitors Entry To Pool/Spa Areas
.Listed per U.L. 2017
.Microprocessor Controlled
.Battery Operated
.Low Battery Indicator
.Exceeds Operational Requirements of
Model Barrier Codes
Application:

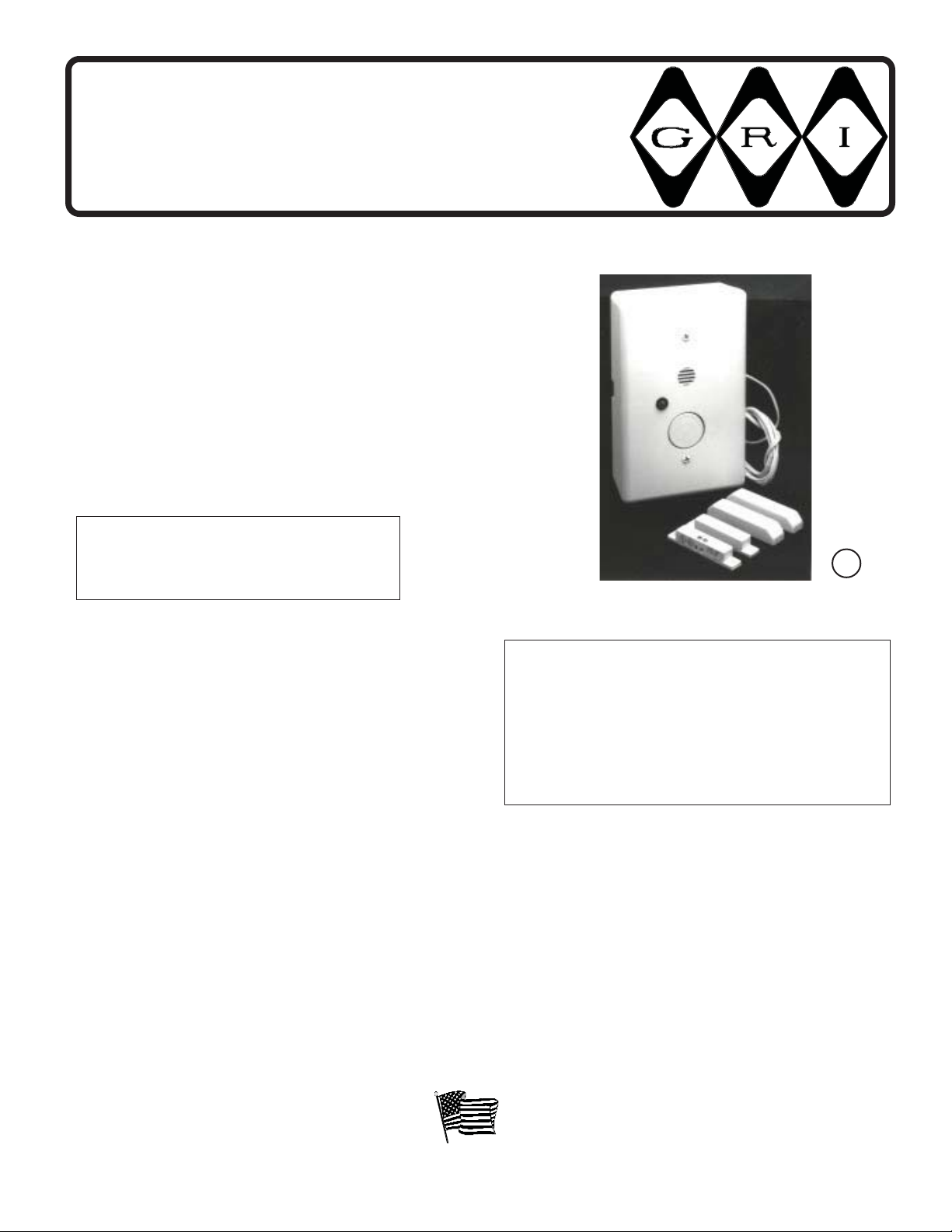

The GRI DPA-10 Series is designed as an aid to detect
unsupervised access to a pool/spa area by a small child.
Monitoring a door or window with a magnetic reed
switch(es), the DPA-10 Series will sound an alarm should
anyone too small to manage the adult pass through fea-
ture attempt entrance to the pool/spa area. For maxi-
mum protection all moveable openings should be protected
in such a manner by the GRI DPA-10 Series. The self
contained surface mounted alarm may easily be mounted
to the wall of an existing structure.
DPA-10
CLOSED LOOP
SPECIFICATIONS:
Battery Type 9 VoltAlkaline Duracell
Model MN1604
Typical Battery Life Approximately 3 to 6 months
Low Battery Mode 8.5 V DC
Mounting Height Ref. Local Code
Sounder volume 85 dB at 10 Ft. (3.5 M)
Switch Closed Loop
Description:
The GRI DPA-10 uses a microprocessor to monitor the CLOSED LOOP magnetic reed switch(es), shunt/cancel
button, and battery voltage and provides the timing options. Model DPA-10 is set to alarm instantly if the protected
door is opened before pressing the shunt/cancel button. Model DPA-10D is set to an initial seven second delay. In
which case, the unit will wait 7 seconds upon door opening before alarming. In all cases, depressing the shunt/
cancel button will provide a maximum 15 second window of alarm deactivation and automatically reset upon
expiration.
The GRI DPA-10 Series operate on a 9 volt battery. U.L. requires that a Duracell alkaline battery Model MN1604
be used.
MADE IN U.S.A.
PART NUMBERS
DPA-10 Instant On
DPA-10D Seven Second Delay
U
LISTED
L
®

GEORGE RISK INDUSTRIES, INC.
G.R.I. PLAZA
KIMBALL, NE 69145
TOLL-FREE 1-800-445-5218
TOLL-FREE 1-800-523-1227
[phone]
FAX [phone]
E-MAIL: [email protected]
WEB SITE: www.grisk.com
U.L. LISTED
POOL ALARM
Installation:
Remove the DPA-10 from the surface mount case. A knockout is pro-
vided on the back of the case for wire exit. Attach the surface mount
case directly to the wall or it may be mounted to cover a single gang
electrical box. Attach the 36 inch lead which extends from the Alarm to
the door sensor. Connect the Duracell MN1604 alkaline 9 volt battery.
The alarm will beep once during power up indicating a successful diag-
nostics test. Lay the battery in the bottom of the case and reassemble the
DPA-10 with the button toward the bottom of the case and the sounder
above. Secure with the two screws provided.
To maintain maximum sounder volume, a low battery mode will be initi-
ated. Should the voltage drop below 8.5 volts, the low battery mode will
be triggered and the unit will sound 1 beep approximately every 10 sec-
onds. The battery must be replaced at this time. It is recommended to
replace the battery at least once annually.
WARRANTY:
One year warranty against workmanship, material and factory defects.
BA-145 Rev E 4/12/2005
WARNING: THIS IS NOT A LIFE SAVING DEVICE.
N/O
SCREEN DOOR
Wiring Diagram
Shunt/Cancel
Sounder
LED
N/O
Door
Sw.
Batt
+ -
Door
Sw.
X
X
Shunt/Cancel
Sounder
LED
Surface
Switch
Surface
Magnet
Figure 2
1/2”
When the alarm is sounding, it can only be turned off by pressing the cancel button. If the door is still open 15
seconds after the cancel button is pressed, the alarm will sound again and continue until the door is closed and the
button is pressed. The LED will flash once every 10 seconds to provide a visual indication that the unit is working
correctly. It will flash in rapid succession to visually indicate the unit is in the alarm mode.
MADE IN U.S.A.
3.38” W x 5.41” H x 1.56” D
