Grizzly T32338 User manual

2
MODEL T32338
4-GALLON 2.5 HP PORTABLE
AIR COMPRESSOR
OWNER'S MANUAL
(For models manufactured since 12/20)
MODEL T32338
4-GALLON 2.5 HP PORTABLE AIR COMPRESSOR
Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]
Product Dimensions:
Weight.............................................................................................................................................................................. 82 lbs.
Width (side-to-side) x Depth (front-to-back) x Height ..................................................................................19 x 19 x 19-1/2 in.
Footprint (Length x Width) .........................................................................................................................................16 x 15 in.
Shipping Dimensions:
Type ................................................................................................................................................................... Cardboard Box
Content.......................................................................................................................................................................... Machine
Weight.............................................................................................................................................................................. 83 lbs.
Length x Width x Height.....................................................................................................................................20 x 19 x 20 in.
Electrical:
Power Requirement ........................................................................................................................ 120V, Single-Phase, 60 Hz
Full-Load Current Rating...................................................................................................................................................... 14A
Minimum Circuit Size ........................................................................................................................................................... 20A
Connection Type..................................................................................................................................................... Cord & Plug
Power Cord Included ............................................................................................................................................................Yes
Power Cord Length............................................................................................................................................................72 in.
Power Cord Gauge ....................................................................................................................................................... 14 AWG
Plug Included ........................................................................................................................................................................Yes
Included Plug Type ..............................................................................................................................................................5-15
Switch Type ..................................................................................................................Pressure Switch w/Motor Reset Button
Motors:
Main
Horsepower......................................................................................................................................................................2.5 HP
Phase.................................................................................................................................................................... Single-Phase
Amps.................................................................................................................................................................................... 14A
Speed.........................................................................................................................................................................3450 RPM
Type ......................................................................................................................................... TEFC Capacitor-Start Induction
Power Transfer ................................................................................................................................................................. Direct
Bearings............................................................................................................................. Shielded & Permanently Lubricated
Centrifugal Switch/Contacts Type..................................................................................................................................External
Main Specifications:
Operation Information
Compressor Style..............................................................................................................................................Horizontal
Pump Type ...................................................................................................................................................... One-Stage
Max. Airflow/Delivery (at 40 PSI) ..................................................................................................................... 7.6 SCFM
Max. Airflow/Delivery (at 90 PSI) ..................................................................................................................... 6.2 SCFM
Cut-Out Pressure .................................................................................................................................................125 PSI
Cut-In Pressure ......................................................................................................................................................95 PSI
Duty Cycle ................................................................................................................................................................50/50
Tank Size .................................................................................................................................. 4.2 Gallons (Twin Stack)
Number of Cylinders........................................................................................................................................................2
Pump Lubrication .....................................................................Grizzly Model T28041 or Equivalent Air Compressor Oil
Drain Valve Type...............................................................................................................................................Ball Valve
Roll Cage.....................................................................................................................................................................Yes
Regulator.....................................................................................................................................................................Yes
Output Port Information
Connection Type ........................................................................................................................................Quick-Coupler
Connection Size ................................................................................................................................................. 1/4" NPT
Number of Connections...................................................................................................................................................2
Hose Included .............................................................................................................................................................. No

1： IMPORTANT SAFETY INSTRUCTIONS
● BEFORE STARTING COMPRESSOR, PULL SAFETY VALVE RING TO MAKE SURE
THE VALVE MOVES FREELY. THE SAFETY VALVE IS FACTORY-INSTALLED TO
PROTECT THE AIR RECEIVER FROM DAMAGE, SHOULD MALFUNCTION OCCUR
IN THE PRESSURE SWITCH. SWITCH IS FACTORY SET AT A SPECIFIC LIMIT FOR
YOUR PARTICULAR MODEL, AND SHOULD NEVER BE TAMPERED WITH.
ADJUSTMENT BY USER WILL AUTOMATICALLY VOID WARRANTY.
IMPROPER OPERATION OR MAINTENANCE OF THIS PRODUCT COULD RESULT IN SERIOUS INJURY
AND PROPERTY DAMAGE。
READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE INSTALLING OR USING YOUR AIR
COMPRESSOR UNIT. IT CONTAINS VALUABLE INFORMATION THAT WILL HELP YOU IN SAFELY
RECEIVING, INSTALLING, USING, AND MAINTAINING YOUR UNIT. KEEP THIS BOOKLET IN A SAFE
PLACE FOR FUTURE REFERENCE。
43
1-4： RISK OF BURNS
● HOT SURFACES CAN CAUSE SERIOUS INJURY. NEVER TOUCH ANY EXPOSED
METAL PARTS ON COMPRESSOR DURING OR IMMEDIATELY AFTER OPERATION;
TOUCHING THESE AREAS MAY CAUSE SEVERE BURNS.
● DO NOT REACH AROUND PROTECTIVE SHROUDS OR ATTEMPT MAINTENANCE
UNTIL UNIT HAS BEEN ALLOWED TO COOL.
1-1： RISK OF FIRE
● DO NOT SPRAY COMBUSTIBLE OR FLAMMABLE LIQUID IN A CONFINED AREA;
SPRAY AREA MUST BE WELL-VENTILATED.
● DO NOT SMOKE WHILE SPRAYING OR SPRAY WHERE SPARK OR FLAME IS
PRESENT.
● KEEP COMPRESSOR AT LEAST 12-18 INCHES AWAY FROM SPRAYING AREA
AND ALL EXPLOSIVE VAPORS.
1-2： RISK OF ELECTRICAL SHOCK
● DISCONNECT COMPRESSOR FROM ELECTRICAL SUPPLY CIRCUIT BEFORE
SERVICING.
● DO NOT EXPOSE COMPRESSOR TO RAIN OR OPERATE IN A WET AREA.
● NEVER USE THE AIR COMPRESSOR WITHOUT CONNECTION TO A PROPERLY
GROUNDED OUTLET WITH THE SPECIFIED VOLTAGE AND FUSE PROTECTION.
● THE COMPRESSOR MUST BE LOCATED A MINIMUM OF 12-18 INCHES FROM
ANY SOURCE OF POTENTIALLY EXPLOSIVE VAPORS.
● IMPROPER GROUNDING CAN RESULT IN ELECTRICAL SHOCK.
1-3： RISK OF EXPLOSION
●DRAIN TANK DAILY; CONDENSED WATER WILL CAUSE RUSTING
AND RISK OF TANK RUPTURE OR EXPLOSION.
● DO NOT REPAIR, MODIFY OR WELD TANK. RETURN TO
AUTHORIZED SERVICE CENTER IF REPLACEMENT IS REQUIRED.
● DO NOT ADJUST REGULATOR TO RESULT IN OUTPUT PRESSURE
GREATER THAN MARKED MAXIMUM PRESSURE OF ATTACHMENT
TOOL.
● PRESSURE SWITCH IS SET AT THE FACTORY FOR OPTIMUM PERFORMANCE
OF YOUR PARTICULAR MODEL. NEVER BYPASS OR REMOVE PRESSURE
SWITCH, AS SERIOUS DAMAGE TO EQUIPMENT OR PERSONAL INJURY
COULD RESULT FROM TOO HIGH OF PRESSURE.
1-5： RISK OF BREATHING
● DO NOT USE COMPRESSED AIR FOR BREATHING. WHEN SPRAYING, USE
RESPIRATOR/LUNG PROTECTION IN A WELL-VENTILED AREA.
● COMPRESSOR AIR FROM THE UNIT MAY CONTAIN POISONOUS VAPORS WHICH
ARE NOT SUITABLE TO INHALE AND COULD BE HARMFUL TO YOUR HEALTH.
● WORK IN AN AREA WITH GOOD CROSS-VENTILATION.
1-6： RISK FROM MOVING PARTS
● UNIT STARTS AUTOMATICALLY; DO NOT OPERATE WITH GUARDS OR COVERS
REMOVED OR BROKEN.
● ANY REPAIRS REQUIRED ON THE PRODUCT SHOULD BE PERFORMED BY
AUTHORIZED SERVICE CENTER PERSONNEL.
● DO NOT TOUCH MOVING PARTS.
1-7： RISK FROM FLYING OBJECTS
● ALWAYS WEAR ANSI Z87.1-APPROVED SAFETY GLASSES WITH SIDE SHIELDS
WHEN USING THE AIR COMPRESSOR. ALWAYS WEAR PROPER SAFETY
EQUIPMENT WHILE USING THE COMPRESSOR.
● DO NOT DIRECT AIR STREAM TOWARD ANY PARTS OF THE BODY OR AT OTHER
PEOPLE.
● UNPLUG POWER CORD AND DRAIN ALL AIR PRESSURE FROM TANK BEFORE
SERVICING AND AFTER EACH USE.
1-8： RISK OF PROPERTY DAMAGE WHEN TRANSPORTING COMRPESSOR
● ALWAYS PLACE COMPRESSOR ON A PR OTECTIVE MAT WHEN TRANSPORTING
TO PROTECT AGAINST DAMAGE TO VEHICLE FROM LEAKS.
● NEVER OPERATE COMPRESSOR ON A ROOF OR OTHER ELEVATED POSITION.
● ALWAYS OPERATE COMPRESSOR IN A STABLE POSITION TO PREVENT
ACCIDENTAL MOVEMENT OF THE UNIT.

2
： GENERAL DESCRIPTION OF AIR COMPRESSOR
To compress air, the piston moves up and down in the cylinder. During the down-stroke, air is
drawn in through the inlet valve. The discharge valve remains closed. On the up-stroke of the
piston, air is compressed. The inlet valve closes and compressed air is forced out through the
discharge valve, through the check valve and into the air receiver tank. Working air is not
available until the compressor has raised the air receiver pressure above that required at the air
service connection. The air inlet filter openings must be kept clear of obstructions.
Your air compressor can be used for operating paint spray guns, air tools, caulking gun, grease
guns, air brushes, sandblasters; inflating tires and plastic toys; and spraying weed killer,
insecticides, etc. An air regulator is usually necessary for most of these applications.
3： INSPECTION
Each air compressor is carefully factory-tested and inspected before shipment. Every attempt is
made to ensure safe and complete shipment of our products. It is the responsibility of the
receiver of the goods to ensure the products has been shipped in full and have arrived in
suitable condition to avoid expenses being incurred to correct such problems. With improper
handling, damage may result in transit and cause problems in compressor operation.
4： GENERAL REQUIREMENTS
It is your responsibility to ensure air compressor is installed correctly, as well as maintained and
serviced on a regular basis. Information has been included in this booklet outlining the
suggested air compressor maintenance schedules and a troubleshooting guide. It is important
that you read this information and keep it in a safe place for future reference.

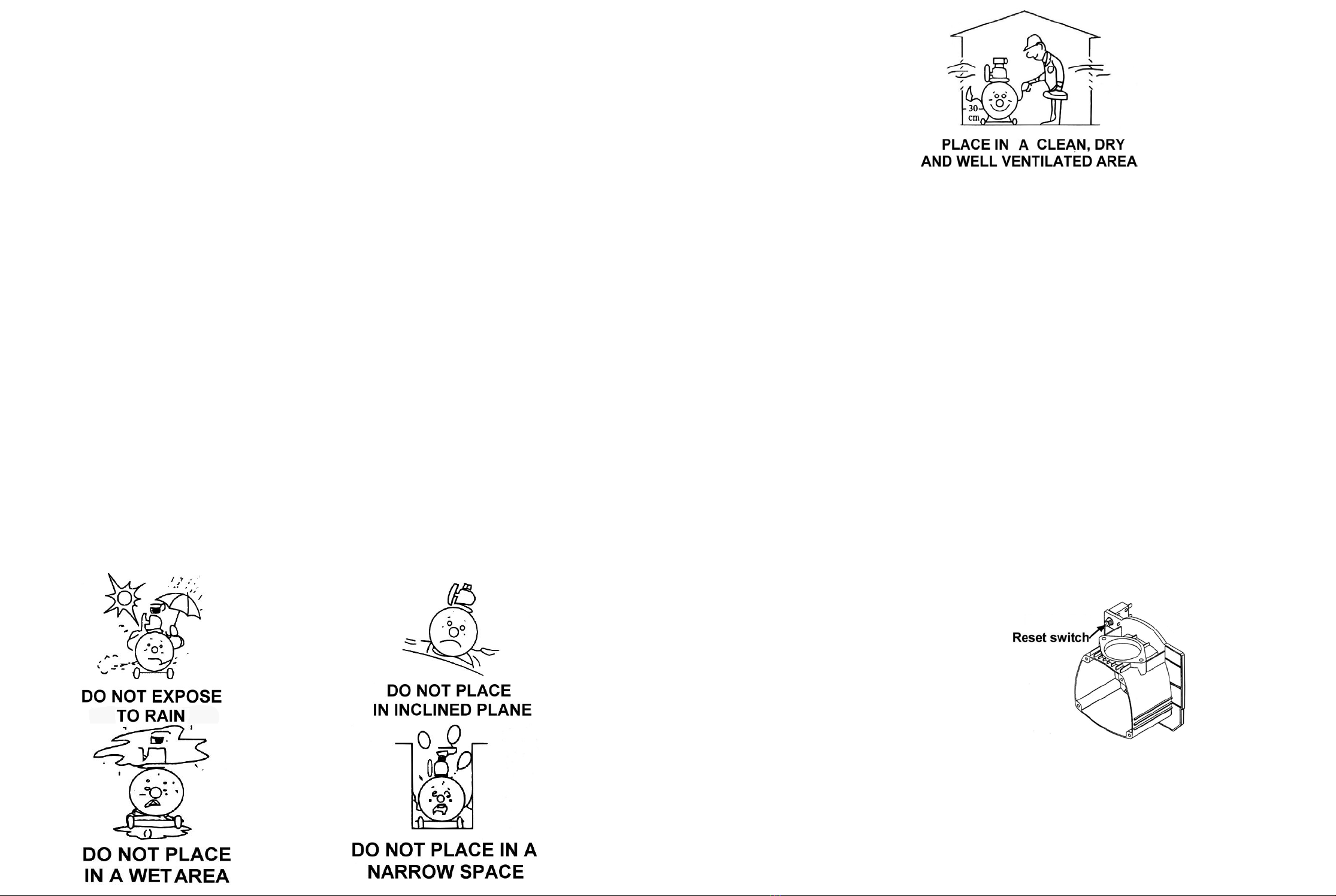

5： INSTALLATION
5-1： MECHANICAL
Place the compressor in a clean, dry, and well-ventilated area. The compressor should be
located 12-18 inches from a wall or any other obstruction that would interfere with the air flow at
intake/output points. Place the air compressor on a firm and level surface. The air compressor
is designed with heat dissipation fins that allow for proper cooling. Keep the fins and other parts
that collect dust or dirt clean. A clean compressor runs cooler and provides longer service.
Allow room for easy access to the air compressor for maintenance and service work.
6
5-2： ELECTRICAL
It is your responsibility to ensure that the air compressor is electrically connected in a safe and
correct manner. Any electrical work should be carried out by a competent electrician and
installed in a way which meets all applicable codes and regulations.
Failure to connect the air compressor correctly to your building's electrical services may result
in serious personal injury or damage to the equipment.
Please note that under normal conditions, the air compressor will operate intermittently. Should
it be necessary to service the air compressor, ensure the power source has been shut down.
This must be done to prevent personal injury or damage to the unit.
If the power supply cord is damaged, it must be replaced by the manufacturer or a suitable
qualified person in order to avoid a hazard.
5-2-1：MOTOR
Wiring must be done in a manner that full voltage nameplate ± 10% is available at the
motor terminals during startup. Use of an incorrect electrical motor for your particular
building service will result in premature motor failure and is not covered by
compressor warranty.
5-2-2：RESET SWITCH
Ensure that all guards and shrouds are in place before pressing reset switch to restart the
motor. If the motor shuts down because of overload, wait 10-15 minutes so the motor can
cool down, then press the reset switch to restart motor. The reset switch button is located on
the motor housing.
5-2-3：PRESSURE SWITCH
The pressure switch located on the compressor unit acts as a pilot device, activating the coil
on the magnetic starter. The pressure switch cut-in/cut-out setting has been preset at the
factory, do not tamper with the settings. Never bypass or remove this switch, as serious
damage to equipment or personal injury could result from too high of air pressure. Consult
your local distributor or service center should the switch not be operating properly.
5

6
：COMPRESSOR LUBRICATION
5-2-3-1：This pressure switch turns the compressor
ON and OFF . It is operated manually, but
when it is in the “ON” position, it allows the compressor to start up or shut down
automatically, without warning, upon air demand. Always set this switch to “OFF”
when the compressor is not in use and before unplugging compressor.
Do not add or change oil while the compressor is in operation. Use the recommended SAE10-30W
non-detergent oil only.
6-1： FILLING THE OIL
6-1-1： Remove the oil fill plug.
6-1-2： Slowly pour the proper oil into the pump crankcase.
6-1-3：
5-2-4：AIR PRESSURE REGULATOR
The air pressure regulator enables operator to adjust line pressure to the tool in use. Never
exceed maximum working pressure of the tool. To adjust pull up on knob and turn right to
increase pressure or left to decrease pressure.
5-2-5：GROUNDING INSTRUCTIONS
Do not modify the plug that has been provided if it does not fit the available outlet. The
correct outlet should be installed by a qualified electrician. The plug must be plugged into an
outlet that is properly installed and grounded in accordance with all local codes. If these
grounding instructions are not completely understood, or if it is in doubt as to whether the
compressor is properly grounded, have the installation checked by a qualified electrician.
5-2-5-1：This product is for use on a 20A circuit. A cord with a grounding plug, as shown above,
must be used. Make sure that the product is connected to an outlet having the
same configuration as the plug. No adapter should be used with this product.
5-2-6：EXTENSION CORDS
The use of any extension cord will cause some drop in voltage and loss of power. For
optimum performance, plug the compressor power cord directly into a grounded wall
socket. Do not use an extension cord unless absolutely necessary. It is better to use a
long air hose to reach area where work is being performed. If use of an extension cord can
not be avoided, refer to the following guidelines before using::
Use only 3-wire extension cord. Make sure your extension cord is in good condition. Be sure
gauge is sufficient to carry the current the unit will draw. The smaller the gauge, the heavier
the cord.
8
6-2：CHANGE THE OIL
Change oil after the first 8 hours of compressor operation, then change oil after every 300
working hours or 3 months (whichever comes first).
6-2-1：Remove the oil drain plug and allow oil to drain out.
6-2-2： Replace the oil drain plug, then use a sealing compound or Teflon tape to avoid leakage.
7： INITIAL START-UP PROCEDURE
Do not attempt to operate the air compressor unit without first checking the oil level in the pump
and adding oil as required. Serious damage may result from use without oil.
7-1：Check to see that nuts and bolts are all snug, as some fasteners may become loose in transit.
7-2： Check that proper oil type and level is correct (see above for proper compressor lubrication).
7-3： Check that compressor is on a strong, stable, level base.
7-4： Check that oil breather is clean.
7-5： Check that air filter is clean.
7-6： Do not place any materials on or against the belt guard or the compressor unit itself. Placing
materials there will limit the cooling of the air compressor and could lead to premature
failure.
7-7： Turn the compressor
ON .
7-8： Open the air receiver outlet valve and start the unit. Ensure air is escaping to atmosphere. Allow
7-9: After running the compressor for twenty minutes, close the valves and allow the unit to reach
maximum operating pressure. Ensure that the compressor shuts down at the preset maximum
pressure and the head pressure is released through the pressure switch.
7-10： Check the air compressor and piping systems for leakages and correct as required.
7- 11 ： Shut
of
f of all power to the air compressor before attempting any repair or maintenance.
7
Always keep oil level between “Up Level” and “Low Level" marks on the oil dipstick or
on the red circle on the sight glass.
6-2-3： Refill with the recommended oil to the proper level.
7-12： Stop the compressor and check the oil level in the crankcase. Add oil as required.
7-13： Your compressor is ready for use.
the unit to operate for a minimum of twenty minutes in this no-load condition to lubricate
bearings and piston.

9
Before doing any maintenance or adjustments to your air compressor, the following safety
precautions should be taken:
A： DISCONNECT ELECTRICAL POWER.
B： DRAIN AIR RECEIVER OF AIR PRESSURE.
8： MAINTENANCE CHECKLIST
8-1： Daily Checklist
8-1-1： Check oil level.
8-1-2： Drain condensation from air receiver tank.
8-1-3： Check for any unusual noise or vibration.
8-1-4： Be sure all nuts and bolts are tight.
8-2： Weekly Checklist
8-2-1： Clean air filter by opening air filter cap. Replace air filter if necessary.
8-2-2： Check oil level and fill up if necessary.
8-3： Quarterly or 300 Hour Checklist
8-3-1： Change compressor oil and filter element.
8-3-2： Check safety valve.
8-3-3： Check pressure switch to ensure compressor head unloads whenever motor
shuts down.
8-3-4： Clean and blow off pump fins and motor.
8-3-5： Inspect air system for leaks by applying soapy water to all joints. Tighten
joints if leakages are observed。
9： STORAGE - WHEN YOU HAVE FINISHED USING THE AIR COMPRESSOR：
9-1： Set the pressure switch to “OFF” and unplug the power cord.
9-2： Be sure to drain the water from the air tank.
9-3： Protect the electrical cord and air hose from damage.
9-4： Store the air compressor in a clean and dry location.
10
10： TROUBLESHOOTING：
CONDITION CAUSE CORRECTIVE ACTION
Compressor does not
start.
1： Loose electrical connection.
2： Motor overheated.
1： Check wiring connection.
2： Press reset button or wait for
automatic reset.
Low pressure. 1： Air leak in safety valve.
2： Loose tube fittings.
3： Restricted air filter.
4： Defective check valve.
1： Pull upward on safety valve
ring. If condition persists,
replace valve.
2： Tighten fittings.
3： Clean or replace.
4： Replace safety valve.
Safety valve releasing on
air receiver tank.
1： Defective pressure switch or
2： Defective safety valve.
1：Check for proper adjustment and
if problem persists,
replace pressure switch.
2： Replace safety valve.
Oil discharge and
excessive carbon
formation or appearance
of water and oil in the air
lines.
1： Improper oil viscosity.
2：Oil in crankcase overfilled.
3： Restricted air intake filter.
4： Carbon exhaust valves.
5： Worn valves.
6： Worn piston rings.
7： High ambient temperature
8： High percentage of running
time.
1： Replace oil with SAE10W-30
non-detergent compressor oil.
2： Drain oil and fill to proper level.
3： Clean or replace filter.
4： Clean or replace.
5： Replace valve assembly.
6： Replace piston ring.
7： Install a moisture separator and/or
dryer, followed by an oil filter.
8： Check for air leakage. If no leaks
are found you may require an
additional compressor unit as
your air demand is too much
for existing unit.
Excessive noise. 1： Loose valve.
2： Noisy only during start up.
3： Piping loose.
4： Unit not installed level.
5： Improper grade of oil in
crankcase.
6： Carbon or foreign material on
piston.
7： Worn bearings.
1： Inspect valve for damage; replace
2：Adjust belt to correct tension.
3： Tighten as required.
4： Ensure that unit is mounted level.
5： Replace oil with SAE10W-30
non-detergent compressor oil.
6： Clean piston. Check cylinder
walls for scoring.
7： Replace main bearings.
improper adjustment.
and/or humidity.
as required.

Compressor over heating.
1： Undersized unit for air
requirements.
2： Compressor location.
3： Air leaks in the system.
4： Restricted air filter.
5： Improper grade or level of oil.
6： Worn, or damaged valve, or
7： Carbon build up at after-cooler.
1： Use unit with larger capacity.
2： See installation section.
3： Fix leaks.
4： Clean or replace filter.
5： Replace with SAE10W-30
non-detergent compressor oil.
6： Clean, repair, or replace valves.
7： Clean or replace.
Pressure switch release
does not function or
leaks air when unit is
operating or not
operating.
1： Pressure switch may be
2： Check valve may be dirty or
faulty.
1： Clea, repair, or replace
pressure switch.
2： Clean, repair, or replace check
valve.
Water in air receiver tank. 1：Condensation in the air
receiver.
1：Drain daily or install an
automatic drain.
Oil leaks or appearance
of oil on the
compressor.
1： Oil spilled when filling.
2： Crankcase overfilled.
3： Improper grade of oil.
4： Leak at oil fill plug.
5： Oil leak at gasket, cap screw,
6： Loose valve plugs.
7： Loose side or end plate.
8： Oil seal leak.
9： Scratch or burn on crankshaft.
1： Wipe unit clean.
2： Drain oil and fill to proper level.
3： Replace with proper SAE10W-30
4： Tighten or replace oil fill plug
and/or O-ring.
5： Replace gaskets as required.
Use thread or gasket sealant
on all cap screw threads.
6： Tighten valve plug.
7： Tighten plates.
8： Replace oil seal.
9： File or sand with emery cloth.
12
11
dirty or faulty.
head, cylinder, or crankcase.
non-detergent compressor oil.
11： PARTS：
carbon build-up on valve.
REF DESCRIPTION QTY REF DESCRIPTION QTY REF DESCRIPTION QTY
1CYLI NDER HEAD 1 24 CRANKSHAFT 1 47 UNLOADING TUBE ASSEMBLY 1/4" 1
2CYLNDER HEAD GASKET 1 25 CRANKCASE 1 48 SAFETY VALVE 1
3INLET/EXHAUST VALVE SEAT 2 26 CRANKCASE GASKET 1 49 PRESSURE SWITCH SUNNY SP-204 1
4INLET/EXHAUST VALVE GASKET 1 27 CRANKCASE COVER 1 50 STRAIN RELIEF TYPE-1 1/4" 2
5INLET/EXHAUST VALVE PLATE 2 28 OIL SIGHT GAUGE 1 51 PLUG 1/4" NPT 2
6CAP SCREW M6-1 X 35 4 29 OIL DRAIN PLUG 1 52 REGULATOR 1
7LOCK WASHER 6MM 8 30 MOTOR COVER 1 53 PRESSURE GAUGE 2
8ELBOW FITTING 90-DEG 1/2" NPT 1 31 CAP SCREW M6-1 X 16 5 54 UNIVERSAL COUPLER 1/4" NPT 2
9EXHAUST TUBE ASSEMBLY 1 32 MOTOR FAN 1 55 PHLP HD SCR M5-.8 X 8 3
10 AIR FILTER ASSEMBLY 1 33 OIL FILL ASSEMBLY 1 56 ELBOW FITTING 90-DEG 1/4", 3/8" NPT 2
11 AIR FILTER ELEMENT 1 34 MOTOR 2.5HP 120V 1-PH 1 57 UNLOADI NG TUBE 1
12 VALVE SEAT GASKET 1 35 OIL GAUGE GASKET 1 58 RUBBER HANDLE G RI B 1
13 CYLI NDER 1 36 CAP SCREW M6-1 X 20 4 59 ROLL CAGE TUBE PLUG 2
14 HEX NUT M8 -1 . 25 6 37 MOTOR OVERLOAD SWITCH RONG FENG 20A 1 60 ELBOW FITTING 90-DEG 1/4", 3/8" NPT 1
15 LOCK WASHER 8MM 6 38 CENTRI FUGAL SWI TCH 3 450 1 61 BALL DRAIN VALVE 1
16 STUD 2 39 S CAPACITOR 300M 125V 1 62 HEX BOLT M8-1.25 X 20 4
17 CYLINDER GASKET 1 40 R CAPACITOR 50M 250V 1 63 TANK FOOT ASSEMBLY 4
18 COMPRESSI ON RI NG 2 41 CAPACITOR COVER 2 64 FLAT WASHER 8 X 22 X 1MM 4
19 OI L CO NTROL RI NG 1 42 MOTOR CORD 14G 3W 28" 1 65 HEX BOLT M8-1.25 X 25 4
20 PISTON 1 43 POWER CORD 14G 3W 72" 5-15P 1 66 RUBBER COVER 2
21 PISTON PIN 1 44 AI R TANK 1 67 BASE PLATE 1
22 SNAP RING 12.7MM 2 45 CHECK VALVE 1
23 CONNECTI NG ROD 1 46 ELBOW REDUCER FITTING 1/4", 1/8" NPT 1
1
24
47
2
48
3
49
4
50
5
28
51
6
29
52
753
8
31
54
955
10
33
56
11
57
12
35
58
13
59
14
37
60
15
61
16
39
62
17
40
63
18
41
64
19
42
65
20
43
66
21
67
22
23
27
26
22
18
5
3
25
30
32
34
36
38
44
45
46
7
14
15
How to contact us: To order parts, or for other services and inquiries, contact us
by phone at [phone] or email [email protected].
