MODEL G0533
3HP DRY SPRAY BOOTH
OWNER'S MANUAL
COPYRIGHT © DECEMBER, 2005 BY GRIZZLY INDUSTRIAL, INC. REVISED APRIL, 2007 (BL).
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#BL5685 PRINTED IN TAIWAN
Safety Label Placement
The safety labels on this machine warn and indicate how to protect the operator or bystander from
machine hazards. The machine owner MUST maintain the original label location and readability.
If a label is removed or becomes unreadable, REPLACE the label before using the machine. For
new labels, contact Grizzly Industrial Inc. at (570) 546-9663 or [email protected].
Table of Contents
INTRODUCTION ............................................................................................................................... 2
Foreword .................................................................................................................................... 2
Contact Info ................................................................................................................................ 2
Data Sheet ................................................................................................................................. 3
Identification ............................................................................................................................... 5
SECTION 1: SAFETY ....................................................................................................................... 6
Safety Instructions for Machinery ............................................................................................... 6
Additional Safety Instructions for Dry Spray Booths .................................................................. 8
SECTION 2: CIRCUIT REQUIREMENTS ........................................................................................ 9
SECTION 3: SET UP ...................................................................................................................... 10
Set Up Safety ........................................................................................................................... 10
Items Needed for Set Up ......................................................................................................... 10
Unpacking ................................................................................................................................ 10
Inventory ................................................................................................................................... 11

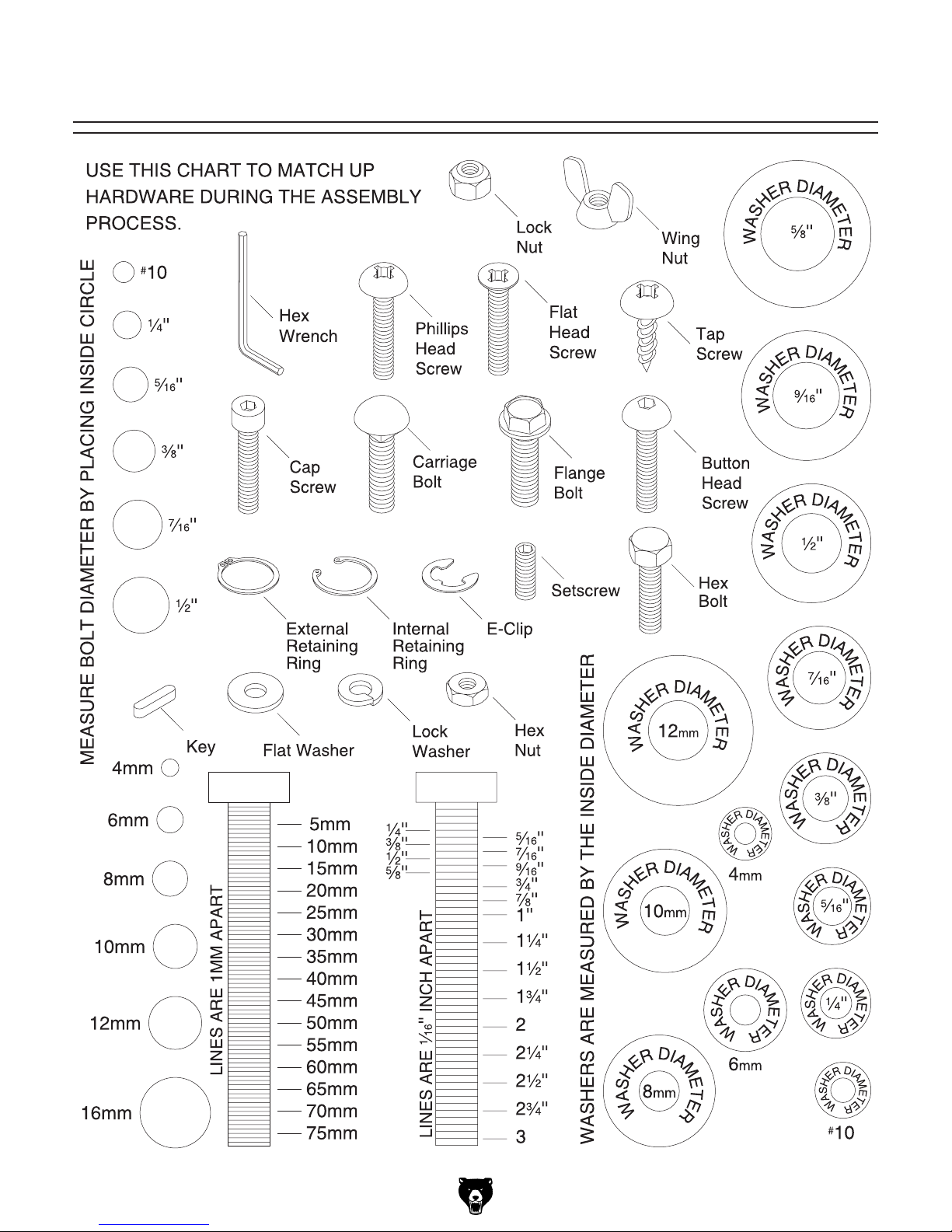

Hardware Recognition Chart .................................................................................................... 12
Site Considerations .................................................................................................................. 13
Exhaust Fan ............................................................................................................................. 13
Outlet ........................................................................................................................................ 14
Support Bar .............................................................................................................................. 14
Curtains .................................................................................................................................... 14
Work Table ............................................................................................................................... 15
Filters ........................................................................................................................................ 16
Ducting ..................................................................................................................................... 16
Air Filter Indicator ..................................................................................................................... 17
SECTION 4: OPERATIONS ........................................................................................................... 18
Operation Safety ...................................................................................................................... 18
Filter Indicator .......................................................................................................................... 18
SECTION 5: MAINTENANCE ........................................................................................................ 20
Schedule .................................................................................................................................. 20
Exhaust Fan and Motor ............................................................................................................ 20
Ducting ..................................................................................................................................... 20
Air Filter Indicator ..................................................................................................................... 20
Interior Booth Walls .................................................................................................................. 20
Exhaust Filters ......................................................................................................................... 20
SECTION 6: SERVICE ................................................................................................................... 21
About Service ........................................................................................................................... 21
Troubleshooting ........................................................................................................................ 21
G0533 Wiring Diagram ............................................................................................................. 22
Parts Breakdown ...................................................................................................................... 23
Parts List .................................................................................................................................. 24
Safety Label Placement and Parts List .................................................................................... 25
WARRANTY AND RETURNS ........................................................................................................ 26
-2- G0533 3HP Dry Spray Booth
If you have any comments regarding this manual,
please write to us at the address below:
Grizzly Industrial, Inc.
C/O Technical Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069
We stand behind our machines. If you have any
service questions or parts requests, please call or
write us at the location listed below.
Grizzly Industrial, Inc.
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone: (570) 546-9663
Fax: (800) 438-5901
E-Mail: [email protected]
Web Site: http://www.grizzly.com
Foreword
INTRODUCTION
Contact Info
We are proud to offer the Model G0533 3HP Dry
Spray Booth. This machine is part of a grow-
ing Grizzly family of fine machinery. When used
according to the guidelines set forth in this manu-
al, you can expect years of trouble-free, enjoyable
operation and proof of Grizzly’s commitment to
customer satisfaction.
We are pleased to provide this manual with
the Model G0533. It was written to guide you
through assembly, review safety considerations,
and cover general operating procedures. It repre-
sents our effort to produce the best documenta-
tion possible.
The specifications, drawings, and photographs
illustrated in this manual represent the Model
G0533 as supplied when the manual was pre-
pared. However, owing to Grizzly’s policy of con-
tinuous improvement, changes may be made at
any time with no obligation on the part of Grizzly.
For your convenience, we always keep current
Grizzly manuals available on our website at www.
grizzly.com. Any updates to your machine will be
reflected in these manuals as soon as they are
complete. Visit our site often to check for the lat-
est updates to this manual!
G0533 3HP Dry Spray Booth -3-
Data Sheet
-4- G0533 3HP Dry Spray Booth
G0533 3HP Dry Spray Booth -5-

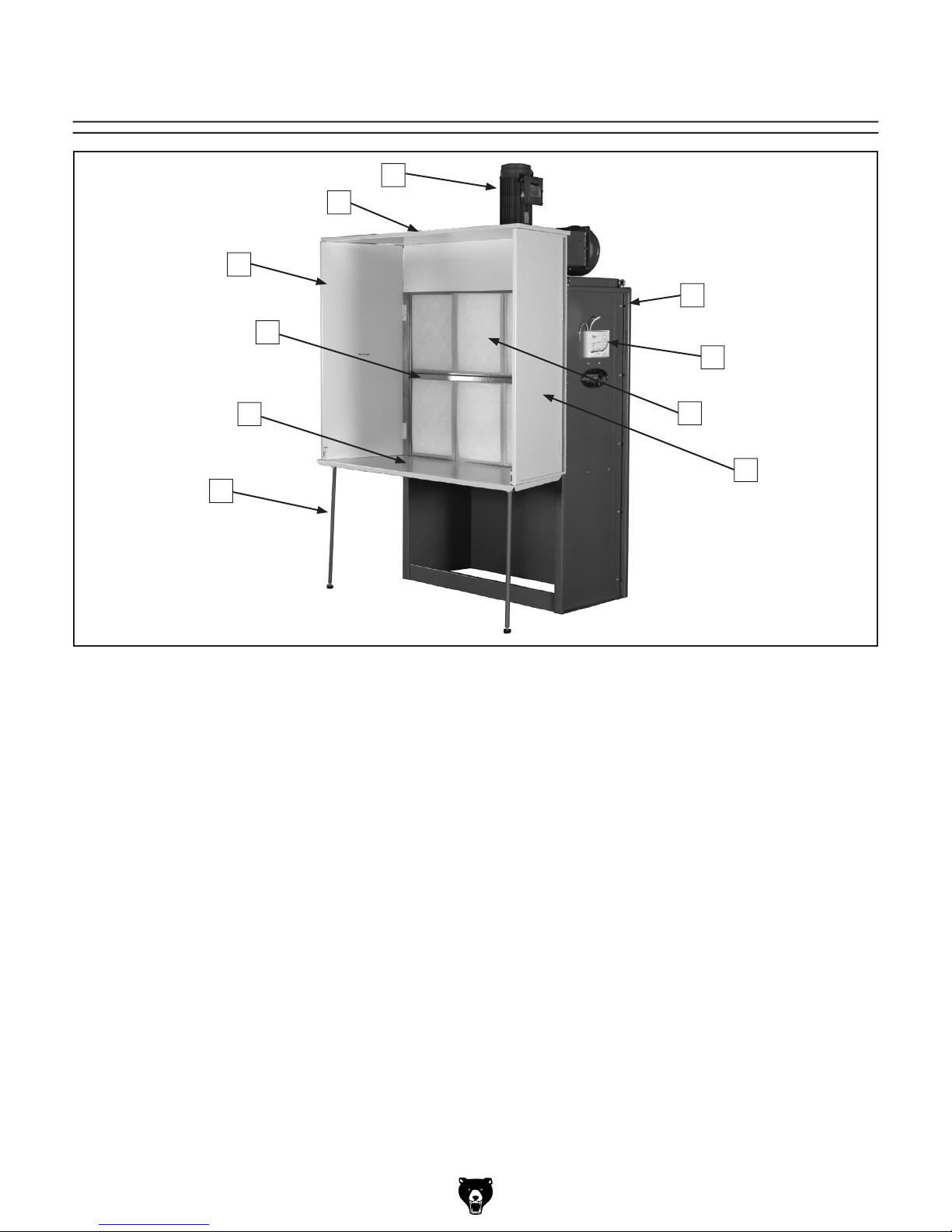

Figure 1. G0533 Identification.
A. Spray Booth Frame
B. Air Filter Indicator
C. First Stage Filter
D. Right Curtain
E. Work Table Leg
F. Work Table
G. Support Bar
H. Left Curtain
I. Top Curtain
J. Motor
Identification
H
I
J
A
B
C
D
E
F
G
-6- G0533 3HP Dry Spray Booth
4. ALWAYS USE HEARING PROTECTION
WHEN OPERATING MACHINERY.
Machinery noise can cause permanent
hearing damage.
5. WEAR PROPER APPAREL. DO NOT
wear loose clothing, gloves, neckties, rings,
or jewelry which may get caught in moving
parts. Wear protective hair covering to con-
tain long hair and wear non-slip footwear.
6. NEVER OPERATE MACHINERY WHEN
TIRED, OR UNDER THE INFLUENCE OF
DRUGS OR ALCOHOL. Be mentally alert
at all times when running machinery.
1. READ THROUGH THE ENTIRE MANUAL
BEFORE STARTING MACHINERY.
Machinery presents serious injury hazards
to untrained users.
2. ALWAYS USE ANSI APPROVED
SAFETY GLASSES WHEN OPERATING
MACHINERY. Everyday eyeglasses only
have impact resistant lenses, they are
NOT safety glasses.
3. ALWAYS WEAR AN ANSI APPROVED
RESPIRATOR WHEN OPERATING
MACHINERY THAT PRODUCES DUST.
Wood dust is a carcinogen and can cause
cancer and severe respiratory illnesses.
For Your Own Safety, Read Instruction
Manual Before Operating this Machine
The purpose of safety symbols is to attract your attention to possible hazardous conditions. This
manual uses a series of symbols and signal words which are intended to convey the level of
importance of the safety messages. The progression of symbols is described below. Remember
that safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures.
Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.
Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.
This symbol is used to alert the user to useful information about
proper operation of the machine.
NOTICE
Safety Instructions for Machinery
SECTION 1: SAFETY
G0533 3HP Dry Spray Booth -7-
7. ONLY ALLOW TRAINED AND PROP-
ERLY SUPERVISED PERSONNEL TO
OPERATE MACHINERY. Make sure
operation instructions are safe and clearly
understood.
8. KEEP CHILDREN AND VISITORS AWAY.
Keep all children and visitors a safe dis-
tance from the work area.
9. MAKE WORKSHOP CHILD PROOF. Use
padlocks, master switches, and remove
start switch keys.
10. NEVER LEAVE WHEN MACHINE IS
RUNNING. Turn power OFF and allow all
moving parts to come to a complete stop
before leaving machine unattended.
11. DO NOT USE IN DANGEROUS
ENVIRONMENTS. DO NOT use machin-
ery in damp, wet locations, or where any
flammable or noxious fumes may exist.
12. KEEP WORK AREA CLEAN AND WELL
LIT. Clutter and dark shadows may cause
accidents.
13. USE A GROUNDED EXTENSION CORD
RATED FOR THE MACHINE AMPERAGE.
Undersized cords overheat and lose power.
Replace extension cords if they become
damaged. DO NOT use extension cords
for 230V machinery.
14.
ALWAYS DISCONNECT FROM POWER
SOURCE BEFORE SERVICING
MACHINERY. Make sure switch is in
OFF
position before reconnecting.
15. MAINTAIN MACHINERY WITH CARE.
Keep blades sharp and clean for best and
safest performance. Follow instructions for
lubricating and changing accessories.
16. MAKE SURE GUARDS ARE IN PLACE
AND WORK CORRECTLY BEFORE
USING MACHINERY.
Safety Instructions for Machinery
17. REMOVE ADJUSTING KEYS AND
WRENCHES. Make a habit of checking for
keys and adjusting wrenches before turn-
ing machinery ON.
18. CHECK FOR DAMAGED PARTS
BEFORE USING MACHINERY. Check
for binding and alignment of parts, broken
parts, part mounting, loose bolts, and any
other conditions that may affect machine
operation. Repair or replace damaged
parts.
19. USE RECOMMENDED ACCESSORIES.
Refer to the instruction manual for recom-
mended accessories. The use of improper
accessories may cause risk of injury.
20. DO NOT FORCE MACHINERY. Work at
the speed for which the machine or acces-
sory was designed.
21. SECURE WORKPIECE. Use clamps or
a vise to hold the workpiece when practi-
cal. A secured workpiece protects your
hands and frees both hands to operate the
machine.
22. DO NOT OVERREACH. Keep proper foot-
ing and balance at all times.
23. MANY MACHINES WILL EJECT THE
WORKPIECE TOWARD THE OPERATOR.
Know and avoid conditions that cause the
workpiece to "kickback."
24. ALWAYS LOCK MOBILE BASES
(IF USED) BEFORE OPERATING
MACHINERY.
25. BE AWARE THAT CERTAIN DUST MAY
BE HAZARDOUS to the respiratory sys-
tems of people and animals, especially
fine dust. Make sure you know the hazards
associated with the type of dust you will be
exposed to and always wear a respirator
approved for that type of dust.
-8- G0533 3HP Dry Spray Booth
Additional Safety Instructions for Dry Spray
Booths
No list of safety guidelines can be complete.
Every shop environment is different. Always
consider safety first, as it applies to your
individual working conditions. Use this and
other machinery with caution and respect.
Failure to do so could result in serious per-
sonal injury, damage to equipment, or poor
work results.
Like all machines there is danger associ-
ated with the Model G0533. Accidents are
frequently caused by lack of familiarity or
failure to pay attention. Use this machine
with respect and caution to lessen the pos-
sibility of operator injury. If normal safety
precautions are overlooked or ignored, seri-
ous personal injury may occur.
1. CODES AND STANDARDS. Follow all
local electrical, safety, and fire codes,
National Fire Protection Association codes,
the National Electrical Code, and the
Occupational Safety and Health Act. Install
your spray booth according to NFPA 33
and NEC 2005 standards.
2. EXHAUST FAN. Before using the spray
booth, turn the exhaust fan ON and make
sure it is operating correctly.
3. BOOTH INTERLOCK. A booth interlock,
which disables spraying devices unless the
exhaust fan is operating, may be required
by local codes.
4. RESPIRATOR. Use an OSHA-approved
paint spray respirator when spraying in the
booth.
5. FILTER PAD REPLACEMENT. Do not
operate the spray booth when the air filter
indicator indicates the filter pad needs to be
replaced.
6. FLAMMABLE MATERIAL DISPOSAL.
Safely and properly dispose used filters or
paint-contaminated items.
7. DUCTING EXHAUST. Do not operate the
spray booth unless exhaust air has been
properly ducted away from the work area to
the outdoors using 20 gauge spiral welded
or 18 gauge rolled galvanized steel ducts,
lapped in the direction of the air flow, and
using steel fasteners only.
8. RECIRCULATING EXHAUST. Do not
place the exterior exhaust vent near air
conditioning intakes, windows, or anything
else that may recirculate exhaust indoors.
9. VOC REDUCTION. This spray booth is
designed to only remove particulate matter.
Additional optional equipment or coating
reformulation will be necessary to reduce
volatile organic compounds.
10. FIRE PROTECTION. This spray booth
must be protected by an approved auto-
matic fire protection system in accordance
with Chapter 7 of NFPA 33.
G0533 3HP Dry Spray Booth -9-
Serious personal injury could occur if you
connect the machine to the power source
before you have completed the set up pro-
cess. DO NOT connect the machine to the
power source until instructed to do so.
230V Single-Phase
Grounding
In the event of an electrical short, grounding
reduces the risk of electric shock. The outlet must
be properly installed and grounded. All electrical
connections must be made in accordance with
local codes and ordinances.
Amperage Draw
The Model G0533 motor draws the following
amps under maximum load:
Motor Draw at 230V .............................. 13 Amps
Circuit Requirements
We recommend connecting this machine to a
dedicated circuit with a verified ground, using the
circuit breaker size given below. Never replace a
circuit breaker with one of higher amperage with-
out consulting a qualified electrician to ensure
compliance with wiring codes. If you are unsure
about the wiring codes in your area or you
plan to connect your machine to a shared cir-
cuit, you may create a fire hazard—consult a
qualified electrician to reduce this risk.
230V Circuit Breaker ............................. 20 Amps
Connection Type
We recommend that you hardwire the dry spray
booth directly to your circuit breaker. The ON/
OFF switch must be installed a minimum of 10
feet from the booth unless specified for hazard-
ous locations per NFPA 33 and NEC 2005.
It is the customer's responsibility to install wiring
and a switch in the G0533. Because of the fire/
explosion hazard potential of spray booths, you
MUST have a qualified electrician connect the
switch to the motor and hardwire the switch to a
power source per NFPA 33 and NEC regulations,
SECTION 2: CIRCUIT REQUIREMENTS
Electrocution or fire could
result if this machine is
not grounded correctly
or if your electrical con-
figuration does not com-
ply with local and state
codes. Ensure compliance
by checking with a quali-
fied electrician!
Your Shop Circuit Capacity
Always check to see if the wires in your circuit
are capable of handling the amperage draw from
your machine, as well as any other machines that
could be operating on the same circuit. If you are
unsure, consult a qualified electrician.
as well as all local and state regulations governing
spray booths. Consult your local fire department
for more information.
A fire/explosion could
occur if electrical compo-
nents on this machine are
not connected correctly.
A qualified electrician
MUST connect the switch
to the motor and hardwire
the switch to the power
source per NFPA 33 and
NEC regulations!
-10- G0533 3HP Dry Spray Booth
The Model G0533 was carefully packed when it
left our warehouse. If you discover the machine
is damaged after you have signed for delivery,
please immediately call Customer Service at
(570) 546-9663 for advice.
Save the containers and all packing materials for
possible inspection by the carrier or its agent.
Otherwise, filing a freight claim can be difficult.
When you are completely satisfied with the con-
dition of your shipment, you should inventory the
contents.
Wear safety glasses dur-
ing the entire set up pro-
cess!
This machine presents
serious injury hazards
to untrained users. Read
through this entire manu-
al to become familiar with
the controls and opera-
tions before starting the
machine!
Unpacking
Set Up Safety
SECTION 3: SET UP
The Model G0533 is a
heavy machine (491.7
lbs. shipping weight). DO
NOT over-exert yourself
while unpacking or mov-
ing your machine—get
assistance.
The following items are needed to complete the
set up process, but are not included with your
machine:
DESCRIPTION Qty
• Assistants ................................................... 2
• Hoist ........................................................... 1
• Safety Glasses (for each person) .............. 1
• Phillips Head Screwdriver .......................... 1
• Open-End Wrench 7⁄16" ............................... 1
• Open-End Wrench 1⁄2" ................................ 1
• Ducting (length as needed, Page 16) ........ 1
• Switch and Wiring .....(As per NFPA 33 and
NEC regulations)
Items Needed for
Set Up
G0533 3HP Dry Spray Booth -11-
Inventory
After all the parts have been removed from the
crate, you should have the following items:
Box 1 (Figure 2) Qty
A. Spray Booth ................................................ 1
B. Curtain (Right) ............................................ 1
C. Connector Bars .......................................... 2
D. Air Filter Indicator (Manometer) ................. 1
E. Support Bar ................................................ 1
F. Work Table ................................................. 1
G. First Stage Filters ....................................... 6
H. Second Stage Filters .................................. 6
I. Third Stage Filters ...................................... 6
J. Outlet .......................................................... 1
K. Exhaust Fan ............................................... 1
L. Curtain (Left) .............................................. 1
M. Curtain (Upper) ........................................... 1
N. Curtain Brace (Left) .................................... 1
O. Curtain Brace (Right) ................................. 1
Hardware and Tools (Not Shown)
• Hex Bolts 5⁄16"-18 x 1" (Exhaust Fan, Outlet) 18
• Flat Washers 5⁄16" (Exhaust Fan, Outlet) ..... 28
• Inlet Gasket (Exhaust Fan) ............................ 1
• Outlet Gasket (Outlet) .................................. 1
• Hex Nuts 5⁄16"-18 (Outlet) ............................. 10
• Flat Hd Screws 1⁄4"-20 x 5⁄8"
(Support Bar, Curtains, Work Table) ........... 16
• Hex Nuts 1⁄4"-20
(Support Bar, Curtains, Work Table) ........... 16
• Flat Washers 1⁄4"
(Support Bar, Curtains, Work Table) ........... 16
• Hex Bolts 5⁄16"-18 x 3⁄4" (Curtains) .................. 8
• Tubing (Manometer) ...................................... 2
• Tubing Connector Fitting (Manometer) .......... 1
• Plastic Clip (Manometer) ............................... 1
• Tap Screw M4 x 12 (Manometer) .................. 1
• Tap Screws M4 x 45 (Manometer) ................ 2
• Red Gauge Oil (Manometer) ......................... 1
• Arrow Labels (Red and Green) ..................... 2
In the event that any nonproprietary parts are
missing (e.g. a nut or a washer), we would be
glad to replace them, or for the sake of expedi-
ency, replacements can be obtained at your local
hardware store.
F
K
H
G
D
C
M
B
E
I
J
A
L

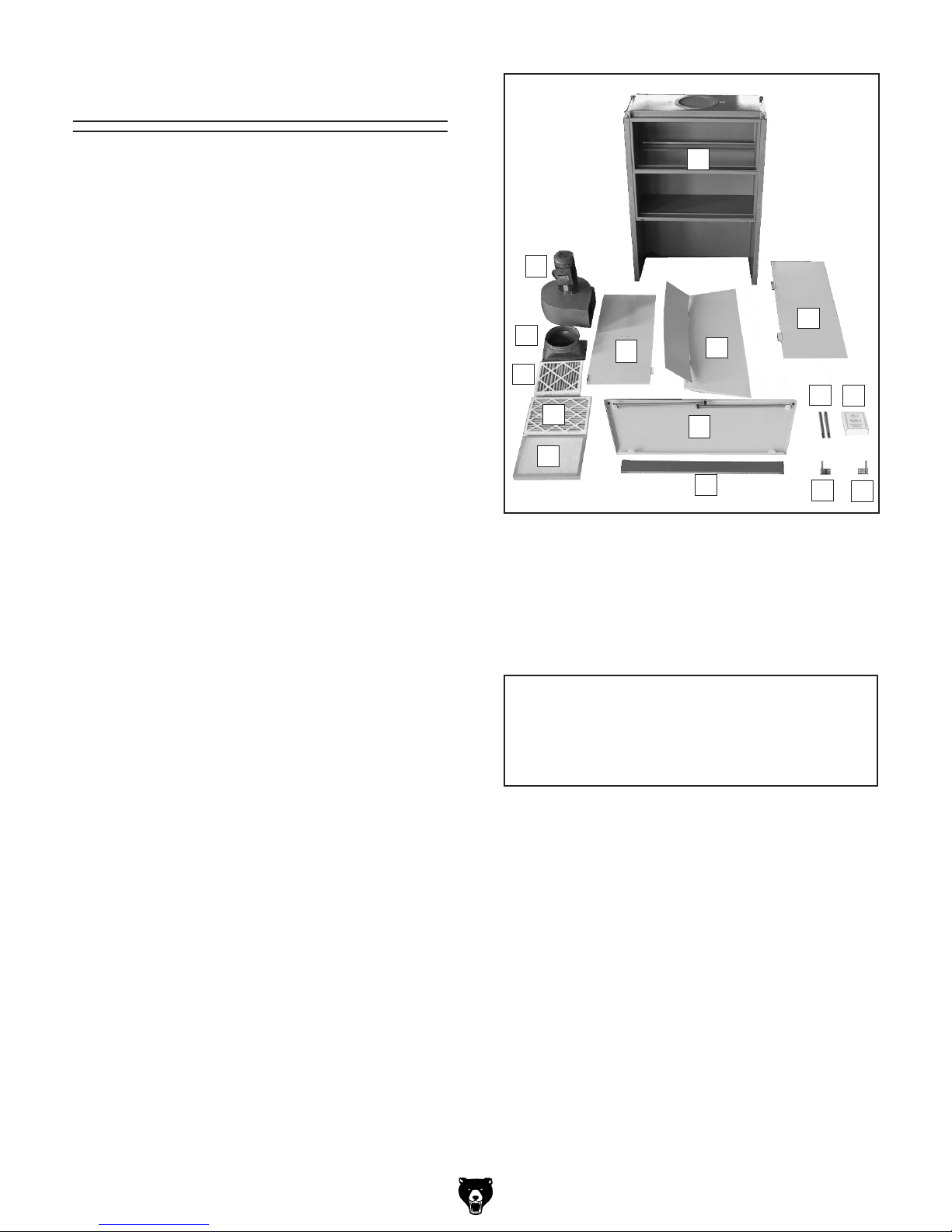

Figure 2. G0533 Inventory.
NOTICE
Some parts listed in the inventory may already
be installed on the machine. Check the machine
before assuming parts are missing.
NO
-12- G0533 3HP Dry Spray Booth
Hardware Recognition Chart
G0533 3HP Dry Spray Booth -13-
Components and Hardware Needed: Qty
Exhaust Fan Housing .........................................1
Hex Bolts 5⁄16"-18 x 1" .........................................8
Flat Washers 5⁄16" ................................................8
Inlet Gasket ........................................................1
To install the exhaust fan housing:
1. Place the inlet gasket over the exhaust fan
inlet.
Exhaust Fan
Figure 3. Minimum working clearances (top
view).
Floor Load
Refer to the Machine Data Sheet for the weight
and footprint specifications of your machine.
Some floors may require additional reinforcement
to support both the machine and operator.
Working Clearances
Consider existing and future needs, size of mate-
rial to be processed through each machine, and
space for auxiliary stands, work tables or other
machinery when establishing a location for your
new machine. Make a note of the exhaust fan
location. (See Safety on Page 8.) See Figure 3
for the minimum working clearances.
Unsupervised children and
visitors inside your shop
could cause serious per-
sonal injury to themselves.
Lock all entrances to the
shop when you are away and
DO NOT allow unsupervised
children or visitors in your
shop at any time!
Site Considerations
52"
63"
The exhaust fan is very
heavy. You MUST have
assistance when mov-
ing, lifting or mounting
the exhaust fan onto the
spray booth.
2. With the help of two strong assistants, or
using a hoist, place the exhaust fan housing
over the inlet gasket.
3. Rotate the exhaust fan housing so the outlet
port is aimed toward the back of the spray
booth.
4. Align the gasket and exhaust fan mounting
holes, and fasten with eight 5⁄16"-18 x 1" hex
bolts and flat washers as shown in Figure 4.
Figure 4. Installing exhaust fan onto spray
booth.
-14- G0533 3HP Dry Spray Booth
Outlet
Components and Hardware Needed: Qty
Outlet ..................................................................1
Hex Bolts 5⁄16"-18 x 1" ....................................... 10
Flat Washers 5⁄16" ..............................................20
Hex Nuts 5⁄16"-18 ...............................................10
Outlet Gasket .....................................................1
To install the exhaust fan outlet:
1. Place the outlet gasket and outlet over the
exhaust fan, and secure with (10) 5⁄16"-18 x 1"
hex bolts, 20 flat washers, and 10 hex nuts
as shown in Figure 5.
Figure 5. Installing outlet.
Support Bar
Components and Hardware Needed: Qty
Support Bar ........................................................1
Flat Head Screws 1⁄4"-20 x 5⁄8" ............................4
Flat Washers 1⁄4" .................................................4
Hex Nuts 1⁄4"-20 ..................................................4
To install the support bar:
1. Place the support bar between the lower right
and left edges of the spray booth (Figure 6),
and fasten each side with two 1⁄4"-20 x 5⁄8" flat
head screws, two flat washers, and two hex
nuts.
Figure 7. Installing left curtain.
Curtains
Components and Hardware Needed: Qty
Curtain (Left, Top, Right) ....................................3
Connector Bars ..................................................2
Curtain Braces (Left and Right) .........................2
Flat Washers 1⁄4" .................................................8
Hex Nuts 1⁄4"-20 ..................................................8
Flat Head Screws 1⁄4"-20 x 5⁄8" ............................8
Hex Bolts 5⁄16"-18 x 3⁄4" ........................................8
To install the curtains:
1. Fasten the hinges (Figure 7) of the left cur-
tain to the front left side of the spray booth,
each with two 1⁄4"-20 x 5⁄8" flat head screws,
flat washers and hex nuts.
Figure 6. Support bar installed.
Support Bar
G0533 3HP Dry Spray Booth -15-

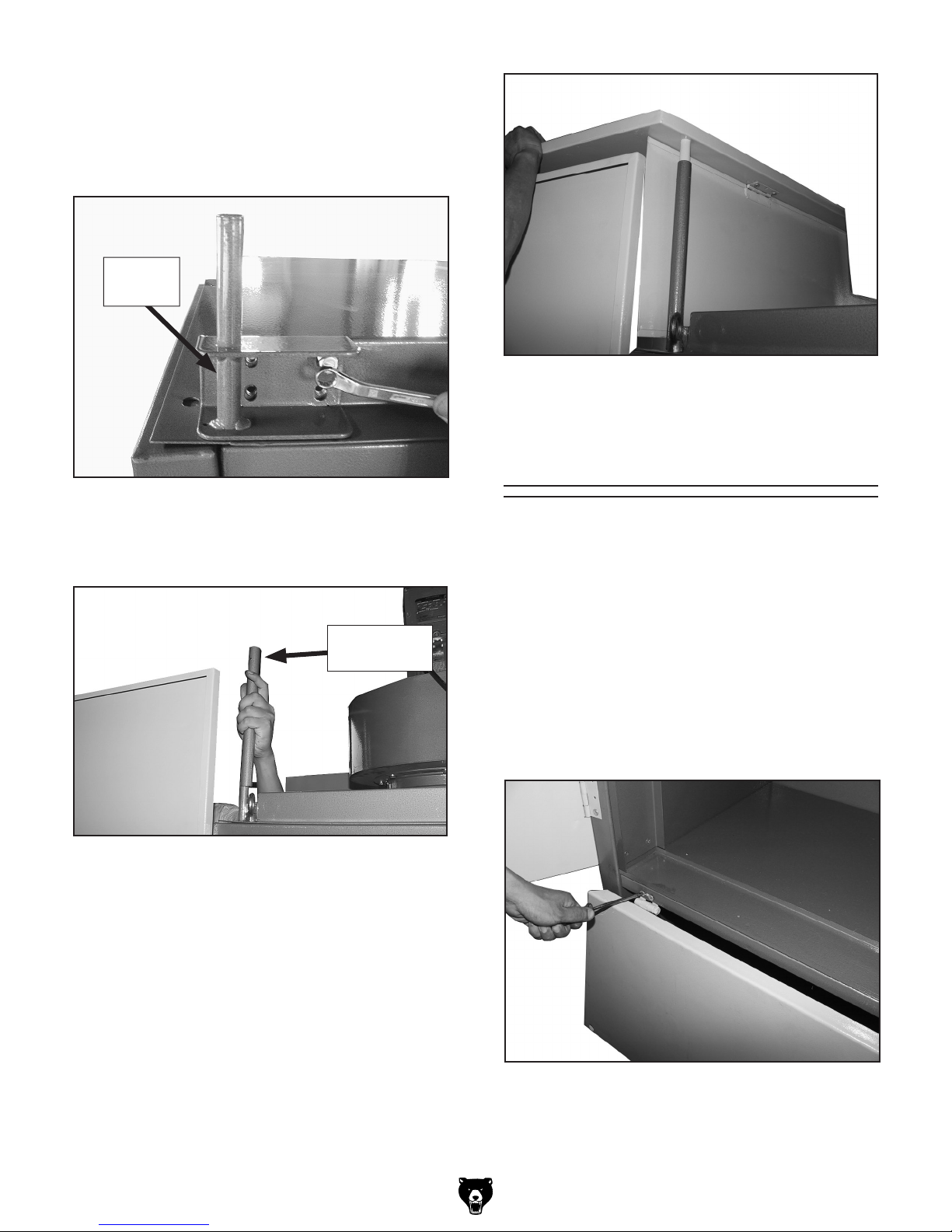

Figure 9. Inserting connector bar.
5. Insert the sockets on the top curtain into the
connector bars as shown in Figure 10.
Figure 10. Top curtain attached to connector
bar.
2. Repeat Step 1 with the right curtain.
3. Fasten each curtain brace to the top cover
with four 5⁄16"-18 x 3⁄4 hex bolts as shown in
Figure 8.
Connector
Bar
Figure 11. Installing table.
Work Table
Components and Hardware Needed: Qty
Work Table .........................................................1
Flat Washers 1⁄4" .................................................4
Hex Nuts 1⁄4"-20 ..................................................4
Flat Head Screws 1⁄4"-20 x 5⁄8 .............................4
To install the work table:
1. Fasten each of the work table hinges to the
spray booth with two 1⁄4"-20 x 5⁄8" flat head
screws, flat washers, and hex nuts as shown
in Figure 11.
Figure 8. Installing curtain brace.
4. Insert a connector bar into the socket on each
curtain brace as shown in Figure 9.
Curtain
Brace
-16- G0533 3HP Dry Spray Booth
2. Make sure the work table opens and closes
smoothly.
3. Reach under the work table and fully extend
the two support legs.
4. Lock the latches on the bottom of each cur-
tain into the work table.
Figure 12. Third stage filters (only three shown).
2. Install six second-stage filters above and
below the middle brace along the inner rails,
as shown in Figure 13.
Filters
Components and Hardware Needed: Qty
30 Micron First Stage Filters ..............................6
10 Micron Second Stage Filters .........................6
5 Micron Third Stage Filters ...............................6
To install the filters:
1. Install the six third stage filters into the filter
case as shown in Figure 12.
Figure 14. First stage filters.
Figure 13. Second-stage filters.
3. Install six first stage filters (Figure 14) along
the outer rails.
Ducting
The G0533 dry spray booth must be vented to
the outside of your shop or building using 12"
metal spiral wound ducting or 18 gauge rolled
galvanized steel ducts in accordance with NFPA
33 guidelines.
Filter
Case
Middle
Brace
Inner
Rail
Outer
Rail
Third Stage
Filters
G0533 3HP Dry Spray Booth -17-
Air Filter Indicator
Components and Hardware Needed: Qty
Air Filter Indicator (Manometer) ..........................1
Tubing Connector Fitting ....................................1
Tubing .................................................................2
Plastic Clip ..........................................................1
Tap Screw M4 x 12 .............................................1
Tap Screws M4 x 45 ...........................................2
To install the air filter indicator:
1. Mount the manometer to the side of the spray
booth by threading the M4 x 45 tap screws
into the pre-drilled holes (Figure 15).

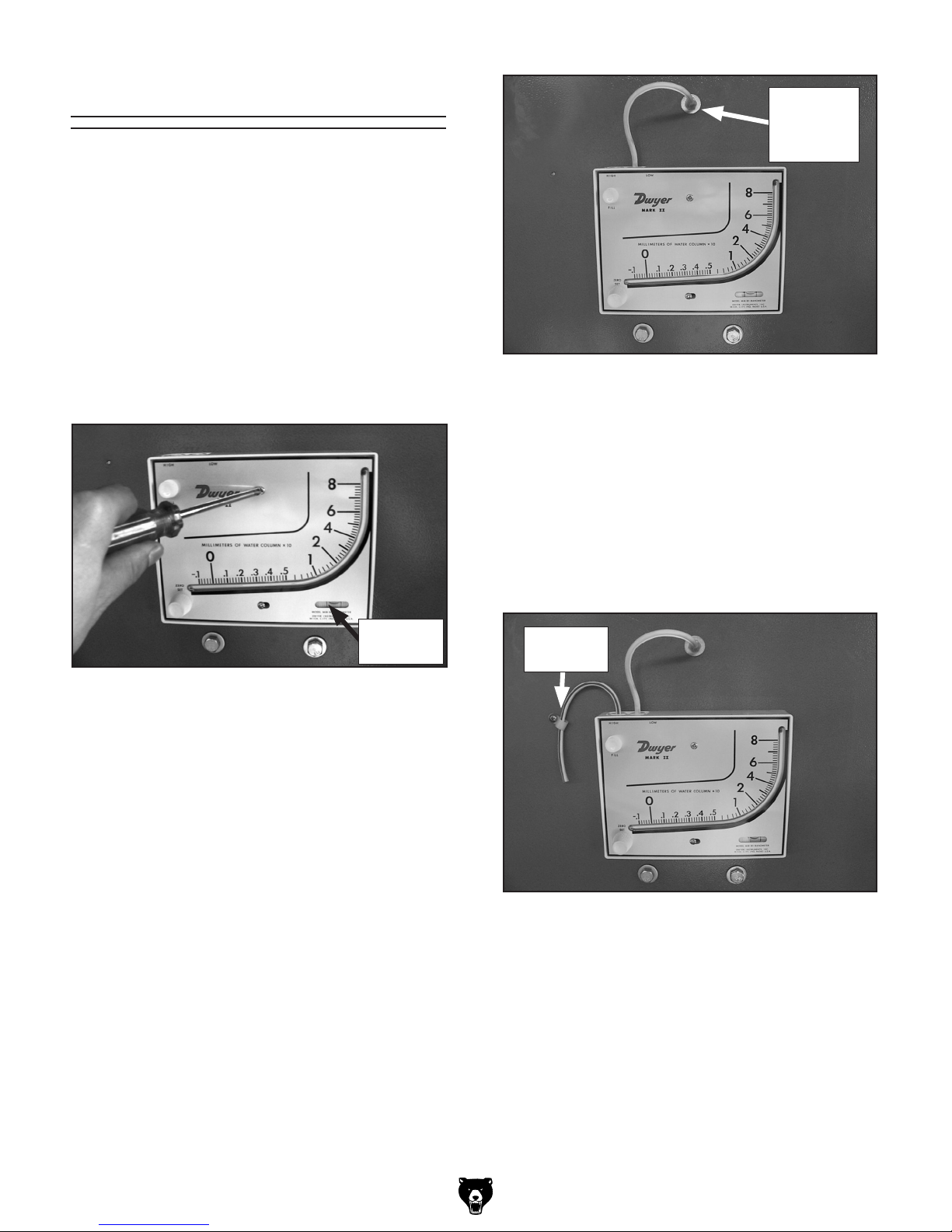

Figure 16. Tubing installed onto spray booth
chamber.
Figure 15. Mounting manometer to spray booth.
Figure 17. Tubing secured with clip.
2. Adjust the manometer so the built-in level
reads level (Figure 15).
3. Install a tubing connector fitting in the larger
pre-drilled hole on the side of the booth near
the manometer as shown in Figure 16.
4. Run tubing from the low pressure side (-) of
the manometer to the tubing connector fitting
as shown in Figure 16.
5. Install tubing into the high pressure side (+) of
the manometer and secure it with the plastic
clip and an M4 x 12 tap screw as shown in
Figure 17.
Tubing
Connector
Fitting
Plastic
Clip
Built-in
Level
-18- G0533 3HP Dry Spray Booth
Damage to your eyes, lungs, and ears could
result from using this machine without
proper protective gear. Always wear safety
glasses, a respirator, and hearing protection
when operating this machine.
Loose hair and cloth-
ing could get caught in
machinery and cause seri-
ous personal injury. Keep
loose clothing and long
hair away from moving
machinery.
Operation Safety
SECTION 4: OPERATIONS
NOTICE
If you have never used this type of machine
or equipment before, WE STRONGLY REC-
OMMEND that you read books, trade maga-
zines, or get formal training before begin-
ning any projects. Regardless of the con-
tent in this section, Grizzly Industrial will
not be held liable for accidents caused by
lack of training, neglect or misuse.
Filter Indicator
NOTICE: Never operate the spray booth without
all of the air filters installed!
To fill the air filter indicator (manometer):
1. Turn the spray booth OFF!
2. DISCONNECT THE POWER!
3. Check to make sure the manometer body is
level. Adjust as needed.
4. Rotate the zero adjustment knob counter-
clockwise (Figure 18) until it stops, then turn
it clockwise three turns.
Figure 18. Air filter indicator controls.
Plug
Zero Adjustment Knob
5. Remove the plug (Figure 18) and fill the
chamber with the included red gauge oil until
the fluid level reaches zero on the indicator.
Minor fluid level adjustments can be made
using the zero adjustment knob.
Note: Only use Dwyer® red gauge oil to fill
the manometer. If you need additional oil,
order Grizzly part number P0533062.
