Grizzly H8226 User manual
COPYRIGHT © SEPTEMBER, 2007 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#JM9939 PRINTED IN CHINA

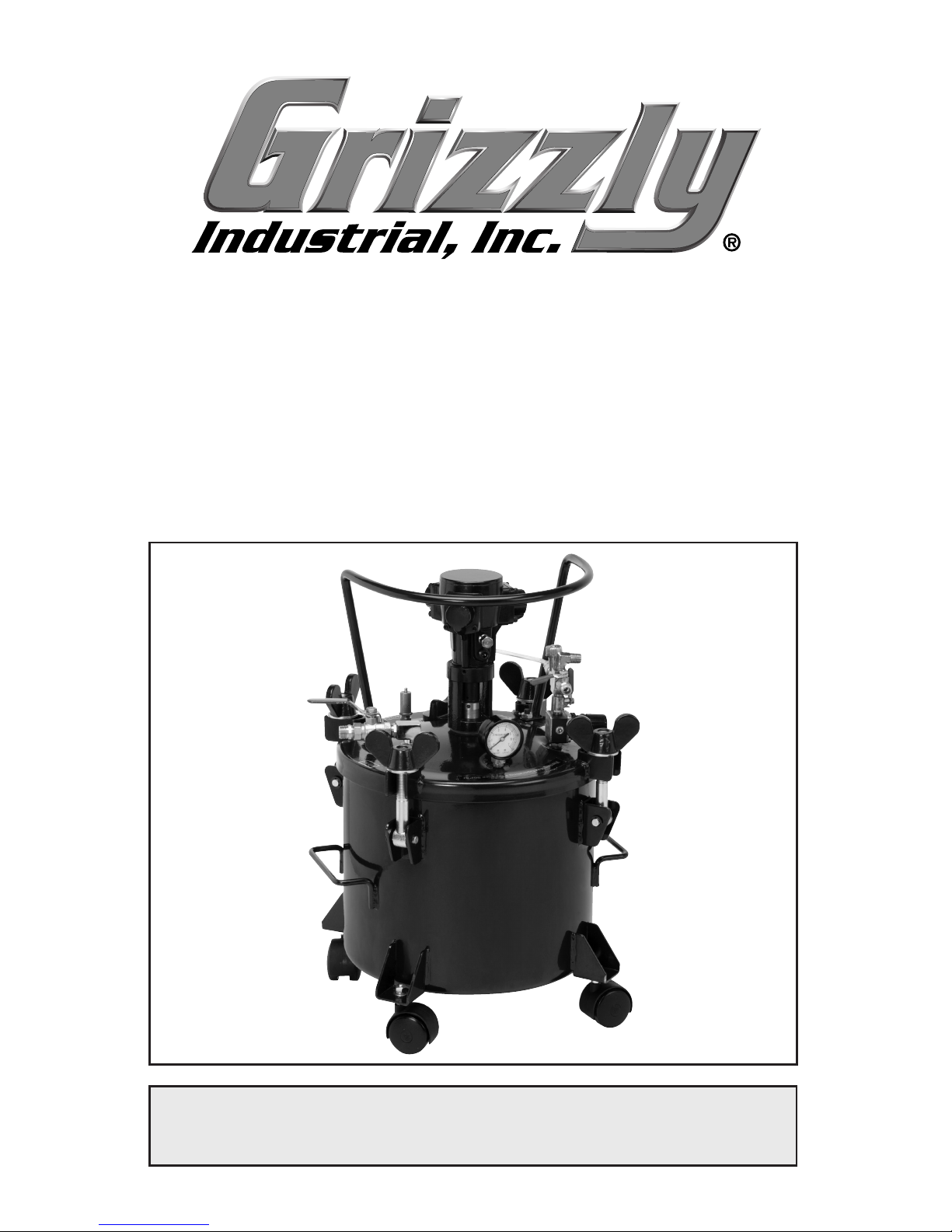

MODEL H8226
5 GALLON AUTOMATIC MIXING
PAINT TANK
INSTRUCTION MANUAL
-1-Model H8226 5 Gallon Automatic Mixing Paint Tank
Safety Instructions for Pneumatic Tools
1. READ THIS MANUAL. This tool may
cause personal injury if used incor-
rectly. This manual contains proper
safety and operating instructions that
must be followed to reduce this risk.
2. WEAR EYE PROTECTION. This
tool may throw small fragments dur-
ing operation, which may cause seri-
ous eye injury. Always wear ANSI
approved safety glasses or face shield
to reduce your risk from this hazard.
3. WEAR A RESPIRATOR. This tool
may produce fine dust during oper-
ation, which can cause respiratory
injury if inhaled. Always wear a respi-
rator NIOSH approved for the type of
material being processed.
For Your Own Safety Read Instruction Manual
Before Operating This Equipment
The purpose of safety symbols is to attract your attention to possible hazardous
conditions. This manual uses a series of symbols and signal words which
are intended to convey the level of importance of the safety messages. The
progression of symbols is described below. Remember that safety messages by
themselves do not eliminate danger and are not a substitute for proper accident
prevention measures.
Indicates a potentially hazardous situation which, if
not avoided, MAY result in minor or moderate injury.
It may also be used to alert against unsafe practices.
Indicates a potentially hazardous situation which, if
not avoided, COULD result in death or serious injury.
Indicates an imminently hazardous situation which,
if not avoided, WILL result in death or serious injury.
This symbol is used to alert the user to useful
information about proper operation of the equipment.
SAFETY
NOTICE
4. WEAR HEARING PROTECTION.
Operating this tool for prolonged time
periods may damage your hearing.
Your risk depends on length and fre-
quency of use. To reduce your risk of
this hazard, wear hearing protection.
5. MAINTAIN SAFETY GUARDS. Your
tool may be equipped with safety
guards or other structural compo-
nents designed to reduce the risk of
injury during operation. Never modify
or operate this tool with any guards or
components removed or damaged.
6. KEEP CHILDREN AWAY. Prevent
children from injury by keeping them
away from this tool. Disconnect and
lock the tool away when not in use.
Model H8226 5 Gallon Automatic Mixing Paint Tank -2-
7. AVOID ENTANGLEMENTS. Do not
wear loose clothing, gloves, neck-
ties, rings, bracelets, or other jewel-
ry, which may get caught in moving
parts, when operating this tool. Wear
a protective hair covering to contain
long hair.
8. USE CORRECT AIR PRESSURE.
Exceeding the maximum PSI rating
of this tool may cause unpredictable
operation or bursting.
9. DISCONNECT AIR PRESSURE
before servicing, changing accesso-
ries, or moving to another location.
Never leave this tool unattended
when connected to air.
10. SECURE TOOLING. Always verify
tooling is secure before operation.
11. SHARP SURFACES. DO NOT
place hands near the tooling sur-
faces when in operation.
12. REMOVE ADJUSTING KEYS AND
WRENCHES AFTER USE. These
tools become dangerous projectiles
if left on the tool when it is started.
13. AVOID FLAMMABLES. Do not use
this tool around any flammables that
may be ignited by sparks.
14. SECURE WORK. Use clamps or a
vise to hold work when practical. It is
safer than using your hand and frees
both hands to operate tool.
15. MAINTAIN TOOLS WITH CARE.
Keep tools lubricated and clean
for best and safest performance.
Follow instructions for lubricating
and changing accessories.
16. DO NOT FORCE TOOL. It will do
the job better and safer at the rate
for which it was designed.
17. CHECK FOR DAMAGED PARTS
BEFORE USING. Check for bind-
ing and alignment of parts, broken
parts, part mounting, loose bolts,
and any other conditions that may
affect operation. Repair or replace
damaged parts before operating.
18. USE GOOD LIGHTING. Keep work
area well lighted. Dark work areas
increase risk of accidental injury.
19. AVOID UNINTENTIONAL OPERA-
TION. Always disconnect air when
not in use, and do not carry tool with
hand on trigger.
20. USE THE RECOMMENDED
ACCESSORIES. Consult owner’s
manual for recommended acces-
sories. Using improper accessories
may increase the risk of injury.
21. NEVER ALLOW UNTRAINED
USERS TO USE THIS TOOL WHILE
UNSUPERVISED.
22. IF YOU ARE UNSURE OF THE
INTENDED OPERATION, STOP
USING TOOL. Seek formal training
or research books or magazines that
specialize in pneumatic tools.
23. BE AWARE OF HOSE LOCATION.
Hoses can easily become a tripping
hazard when laid across the floor in
a disorganized fashion.
24. DO NOT USE UNDER THE
INFLUENCE OF DRUGS OR
ALCOHOL, OR WHEN TIRED.
-3-Model H8226 5 Gallon Automatic Mixing Paint Tank
No list of safety guidelines is complete, because every work environment is
different. Always consider safety first and use common sense. Failure to use this
tool with caution and respect could result in serious personal injury.
1. READ THIS MANUAL. This manual
contains proper operating instructions
for this paint tank.
2. DESIGN MODIFICATIONS. Do not
modify the tank design or construction.
Drilling into the tank or weld attach-
ments, or altering its design, could
weaken the tank.
3. CLEANING AND MAINTENANCE.
Clean and dry the tank and lid accord-
ing to the instructions in this manual.
Make sure all ports are free of hard-
ened paint or other materials that could
prevent free movement of air. Improper
cleaning could allow pressure to rise to
dangerous levels.
4. REACTIVE CHEMICALS. Do not use
acids, caustic solutions, or halogenated
hydrocarbon solvents. These chemi-
cals can attack the lid gasket and
safety valve seal, compromising the
ability of the tank to hold pressure.
5. SAFETY VALVE MODIFICATIONS.
Never adjust the safety valve to change
its pressure setting or defeat its func-
tion. Tampering with the safety valve
could allow tank pressure to rise to
dangerous levels.
Additional Safety Instructions for Paint Tanks
6. REMOVING LID. Do not try to remove
the lid while the tank is under pres-
sure, or you could cause an explosion.
Follow the instructions in this manual
for relieving pressure in the tank before
removing the lid.
7. LID CLAMPS. Overtightening the lid
clamps could cause them to weaken
and fail, resulting in the lid propelling
violently from the tank. Only tighten the
clamps by hand. Do not use tools to
tighten them.
8. NON-STANDARD COMPONENTS.
Substituting non-standard components
could weaken the tank or cause com-
ponent failure. Only use components
provided with your tank.
9. ATTACHMENTS. Make sure equip-
ment connected to the tank has a high-
er pressure rating than the regulated
air pressure in the tank. Attachments
with a pressure rating lower than the
adjusted tank pressure could explode,
resulting in serious personal injury.
Model H8226 5 Gallon Automatic Mixing Paint Tank -4-
INTRODUCTION
Specifications
Foreword
The specifications, details, and
photographs in this manual represent
the Model H8226 as supplied when the
manual was prepared. However, owing to
Grizzly’s policy of continuous improvement,
changes may be made at any time with no
obligation on the part of Grizzly.
If you have any comments regarding this
manual, please write to us at the following
address:
Grizzly Industrial, Inc.
C/O Technical Documentation
P.O. Box 2069
Bellingham, WA 98227-2069
E-Mail: manuals@grizzly.com
Most importantly, we stand behind our
tools. If you have any service questions or
parts requests, please call or write us at
the location listed below.
Grizzly Industrial, Inc.
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone: (570) 546-9663
Fax: (800) 438-5901
E-Mail: techsupport@grizzly.com
Web Site: http://www.grizzly.com
Material Capacity.........................5 Gallons
Operating Pressure ...................20–30 PSI
Maximum Operating Pressure..........50 PSI
Rotate Method.................Automatic Mixing
Weight...............................................44 lbs
-5-Model H8226 5 Gallon Automatic Mixing Paint Tank
Inventory
SETUP

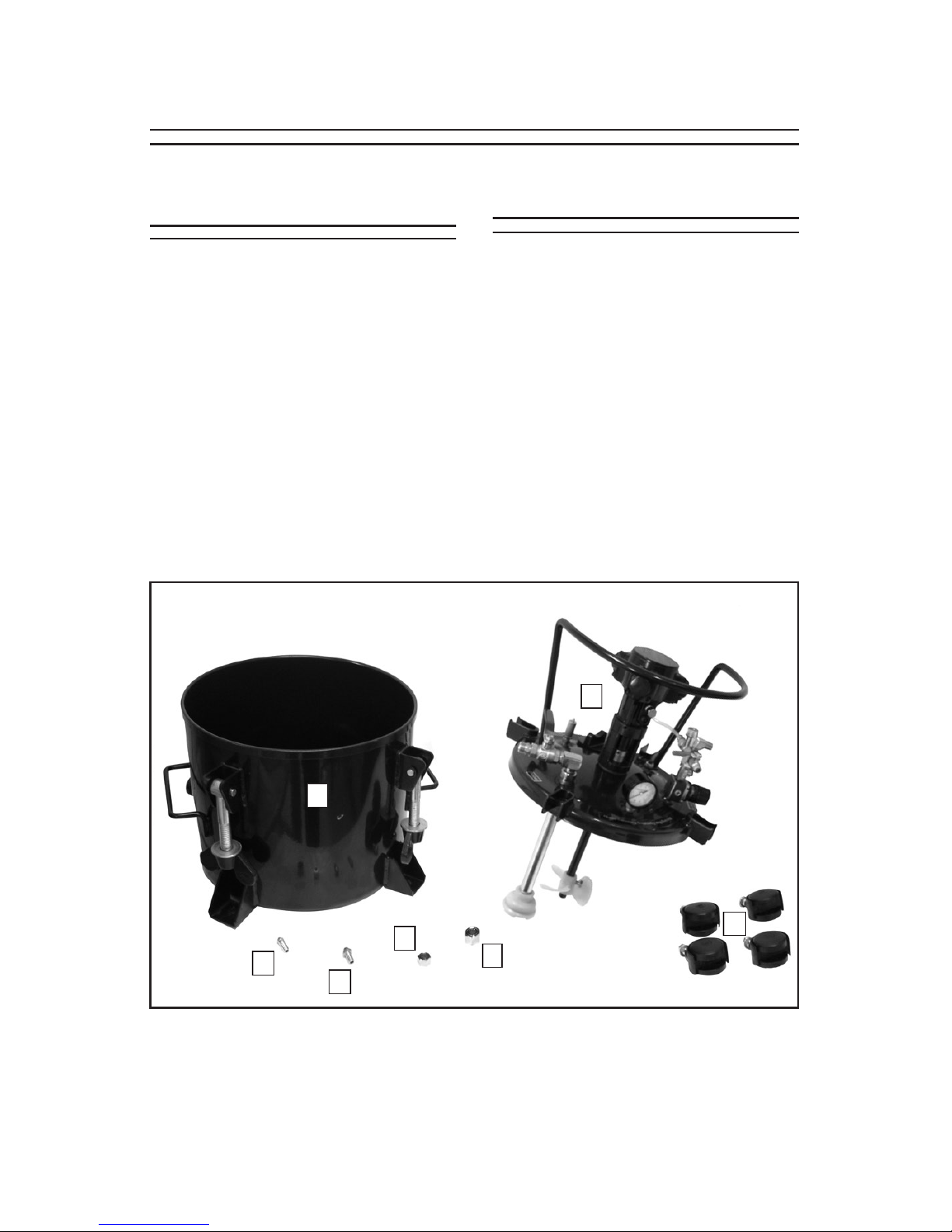

Figure 1. Model H8226 Inventory.
F
E
B
C
D
G
Your paint tank was carefully packaged for
safe shipping. If you discover any damage
after you have signed for delivery, immedi-
ately call Customer Service at (570) 546-
9663 for advice.
Save the containers and all packing materi-
als for possible inspection by the carrier or
its agent. Otherwise, filing a freight claim
can be difficult.
When you are completely satisfied with
the condition of the shipment, you should
inventory the contents.
Unpacking
H8226 Inventory .................................. Qty
A. Paint Tank 5 Gallon ............................ 1
B. Lid Assembly ...................................... 1
C. Barbed Compression Hose Fitting .... 1
D. Machined Compression Hose Fitting 1
E. Compression Nut 1/4" NPT ................. 1
F. Compression Nut 3/8" NPT ................. 1
G. Casters ............................................... 4
A
Model H8226 5 Gallon Automatic Mixing Paint Tank -6-
Tank Assembly
To assemble the paint tank:
1. Attach the casters to the bottom of the
paint tank.
2. Connect a 1/4 NPT air supply hose (not
included), to the inlet fitting on the regu-
lator (Figure 2).
3. Connect the machined compression
hose fitting and the 3/8" NPT compres-
sion nut to the fluid outlet adaptor.
4. Connect the material hose (not includ-
ed), to the fluid outlet adapter.
5. Connect the barbed compression hose
fitting and the 1/4" NPT compression
nut to the outlet fitting.
6. Attach the atomization air hose (not
included), to the air outlet fitting on the
regulator.
Regulator Assembly
Fluid Outlet Adapter
Inlet Fitting
Outlet Fitting
Lift Handle
Figure 2. Lid assembly identification.
Pump Assembly
Figure 3. Paint tank connect to air compressor and spray gun.
Install a pressure regulator (not included),
between the tank regulator assembly
(Figure 3) and the spray gun.
Figure 3 depicts the paint tank connected
to a compressed air system with a filter/
regulator unit and a spray gun.
The filter/regulator unit will protect your
tool from damaging water build-up, and
allow you to adjust and maintain regulated
air pressure. If you plan on installing a
filter/regulator unit in your compressed
air system, always follow the connection
instructions that come with the unit.
Safety Valve
Pressure Gauge
-7-Model H8226 5 Gallon Automatic Mixing Paint Tank
The pressure regulator on the paint tank
controls the amount of pressure applied to
the paint in the paint tank. It also controls
the pressure of paint delivered to the spray
gun.
The following are operating guidelines for
internal and external spray guns:
Internal Mix Guns: Use higher tank
pressures up to the full amount of air
pressure being delivered to the spray gun.
However, do not exceed 45 PSI at the
spray gun or in the paint tank.
External Mix Guns: Use lower tank
pressures—approximately 12 PSI for most
external mix guns. Start with the tank at
"zero" pressure and increase pressure
gradually until the correct spray pattern is
achieved.
Tank Regulator
Do not exceed the 50 PSI maximum
operating pressure on your paint tank.
Exceeding the maximum pressure
may cause the tank to explode,
causing serious personal injury.
This pressure tank is not designed for
use with highly abrasive, corrosive,
or rust inducing materials. If such
materials are used, frequently and
thoroughly clean all components to
reduce the need to replace parts.
EXPLOSION HAZARD! DO NOT
smoke or have any source of flame
or spark near spraying. Vapors will
explode if ignited.
RESPIRATORY HAZARD! Always use
a NIOSH approved respirator when
using spray equipment. Failure to
protect your lungs can lead to respi-
ratory illness and nervous system
damage. Spraying some paints and
varnishes may require a supplied air
respirator system.
TOXIC FUMES! Always use an
approved spray booth or well ven-
tilated area when spraying. NEVER
spray in a confined space where
toxic fumes and flammable vapors
can accumulate to deadly levels.
Model H8226 5 Gallon Automatic Mixing Paint Tank -8-
OPERATIONS
Read the manual before operation.
Become familiar with this tool, its
safety instructions, and its operation
before beginning any work. Serious
personal injury may result if safety
or operational information is not
understood or followed.
Like all tools there is potential danger
when operating this tool. Accidents
are frequently caused by lack of
familiarity or failure to pay attention.
If normal safety precautions are
overlooked or ignored, serious
personal injury may occur.
To use your paint tank:
1. Thoroughly mix and strain your paint
to remove undissolved particles that
could block the flow of material to the
gun.
2. Pour paint into the tank.
3. Place the lid assembly on the tank and
evenly hand tighten the lid clamp but-
terfly nuts.
4. Adjust the regulator at your air com-
pressor to 50 PSI.
5. Fully turn the paint tank regulator knob
counterclockwise to shut OFF the tank
regulator.
6. Connect the paint tank to the air com-
pressor.
7. Adjust the paint tank to 20 PSI on the
tank gauge. Normal operating tank
pressure is 20–30 PSI. Using trial and
error, adjust the paint tank as neces-
sary between this range for optimum
results.
8. Adjust the regulator at the spray gun.
9. Start by testing the spray gun at a low
setting, then increase the air pressure
as needed for satisfactory results.
Tank Setup
-9-Model H8226 5 Gallon Automatic Mixing Paint Tank
CLEANING AND LUBRICATION
3. Turn the tank regulator knob coun-
terclockwise until you no longer feel
spring tension.
4. Loosen the butterfly nuts on the tank lid
(Figure 4), tip the clamps back, and tilt
the tank lid to one side.
5. Loosen the spray gun air cap retaining
ring about three turns, then turn ON the
air supply.
6. Cover the cap with a cloth and pull
the trigger to force the material back
through the hose and into the tank.
7. Empty and clean the tank of all paint,
and fill it with solvent.
8. Replace the lid, tighten the clamps,
and spray the gun until it sprays clean
solvent.
Note: Check with local laws regarding
this practice. If you are spraying on a
regular basis, spraying solvents into
the air may be illegal. A cabinet style
spray gun cleaner may be required.
9. Use solvent to thoroughly rise all parts
that came in contact with the material,
then dry with compressed air or let air
dry.
10. Make sure all the fittings on the tank
and regulator, valve, and material hose
are free of hardened material that
could prevent free movement of air.
Proper cleaning is the best way to ensure
trouble free performance from your paint
tank. If your tank is not thoroughly cleaned,
damage and poor operation will result.
Problems caused by improper cleaning will
not be covered by the warranty. Clean the
tank immediately after each use.
To clean your paint tank:
1. DISCONNECT AIR SUPPLY FROM
TANK!
EXPLOSION HAZARD! Removing the
lid while the tank is pressurized could
result in lid being thrown violently
from tank, causing serious personal
injury. Always shut off air pressure
at source and bleed off all pressure
in tank before removing lid.
2. Bleed out all tank pressure by loosen-
ing the pressure release valve (Figure
4) until air stops hissing out.
Figure 4. Pressure Release Valve.
Pressure Release Valve
Clamp
Butterfly Nut
Model H8226 5 Gallon Automatic Mixing Paint Tank -10-
Troubleshooting
Symptom Possible Cause Solution
Air escaping from
port on regulating
cap.
1. Broken or damaged dia-
phragm in tank regulator.
1. Replace tank regulator.
Pressure dropping
slowly on regulator.
1. Dirty or worn valve seat in
regulator.
2. Loose air fittings leaking air.
1. Replace tank regulator.
2. Tighten loose air fittings or
remove and re-install with
new Teflon tape.
Fluid or air leak at
lid gasket.
1. Defective lid gasket.
2. Wing screw loose.
3. Dirt or foreign object between
gasket and rim.
1. Replace lid gasket.
2. Tighten wing screws.
3. Clean rim and gasket.
Paint tends to settle
rapidly in tank.
1. Paint not mixed or thinned suf-
ficiently.
1. Mix or thin paint according
to manufacturer's instruc-
tions.
Gauge not register-
ing air pressure.
1. Air pressure turned OFF.
2. Defective pressure gauge.
1. Turn air pressure ON.
2. Replace pressure gauge.
Safety valve pop-
ping off.
1. Tank pressure too high.
2. Defective safety valve.
1. Reduce tank pressure to
20-30 PSI (See Page 8).
2. Replace safety valve.
-11-Model H8226 5 Gallon Automatic Mixing Paint Tank
H8226 PARTS LIST
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PH8226001 PUMP ASSEMBLY 29 PW08M FLAT WASHER 16MM
2 PH8226002 HANDLE 30 PH8226030 LID SEALING WASHER
3 PH8226003 BUTTERFLY NUT 31 PH8226031 SPECIAL T-BOLT
4 PH8226004 ASSEMBLY COVER 32 PEC10M E-CLIP 9MM
5 PH8226005 ASSEMBLY TANK BODY 33 PH8226033 GROOVED HDLESS CLEVIS PIN 9 X 40
6 PH8226006 CASTER 34 PB06M HEX BOLT M8-1.25 X 12
9 PH8226009 MATERIAL VALVE 35 PH8226035 PROPELLER
10 PH8226010 MATERIAL VALVE CONNECTOR 36 PH8226036 REGULATOR AIR INLET CONNECTOR
11 PH8226011 COMPRESSION NUT 3/8" NPT 37 PH8226037 AIR DIVERTER
12 PH8226012 MACHINED HOSE FITTING 38 PH8226038 STEM PIN
13 PH8226013 BARBED HOSE FITTING 39 PH8226039 STEM SEALING WASHER
14 PH8226014 COMPRESSION NUT 1/4" NPT 40 PH8226040 MATERIAL OUTLET ELBOW
15 PH8226015 GAUGE 41 PH8226041 MATERIAL OUTLET CONNECTOR
16 PH8226016 AIR VALVE BODY 42 PH8226042 MATERIAL HOSE
17 PH8226017 AIR INLET SEAT 43 PH8226043 FILTER SEAT
18 PH8226018 INPUT HOSE CONNECTOR 44 PH8226044 FILTER WASHER
19 PH8226019 AIR REGULATOR ASSEMBLY 45 PH8226045 FILTER NET
20 PH8226020 SWITCH ASSEMBLY 46 PH8226046 FILTER SPRING
21 PH8226021 AIR INLET CONNECTOR 47 PH8226047 DEPRESSURIZE LABEL
22 PH8226022 HOSE CONNECTOR 48 PH8226048 MAXIMUM PRESSURE LABEL
23 PH8226023 HOSE 49 PH8226049 SAFETY VALVE LABEL
24 PH8226024 SAFETY VALVE 50 PH8226050 PRESSURE RELEASE VALVE LABEL
25 PH8226025 PRESSURE RELEASE VALVE 51 PLABEL-12A READ MANUAL LABEL-VERT
26 PH8226026 SEALING WASHER 52 PH8226052 WARNING ID LABEL H8226
27 PN11M HEX NUT M35-1.5 53 PLABEL-43 RESPIRATOR/GLASSES LABEL
28 PH8226028 ROCKER
Other manuals for H8226
1
Table of contents
Other Grizzly Paint Sprayer manuals
Grizzly
Grizzly H7670 User manual
Grizzly
Grizzly T23092 User manual
Grizzly
Grizzly H8225 User manual
Grizzly
Grizzly H8115 User manual
Grizzly
Grizzly H7668 User manual
Grizzly
Grizzly 2 1/4 Gallon Paint Tank H6330 User manual
Grizzly
Grizzly T23092 User manual
Grizzly
Grizzly H6331 User manual
Grizzly
Grizzly 385 000 Assembly instructions
Grizzly
Grizzly H7666 User manual
Grizzly
Grizzly G0532 Quick start guide
Grizzly
Grizzly H8226 User manual
Grizzly
Grizzly G0533 User manual
Grizzly
Grizzly H7666/H7667 User manual
Grizzly
Grizzly G0532 User manual
Grizzly
Grizzly Model H8222 User manual
Grizzly
Grizzly G5354 User manual
Grizzly
Grizzly G5357 User manual
Grizzly
Grizzly H7673 User manual
Grizzly
Grizzly H7669 User manual
Popular Paint Sprayer manuals by other brands
Milwaukee
Milwaukee M4910-20 Operator's manual
Gardena
Gardena 867 operating instructions
Electro Spray
Electro Spray 3WBJ-8M11 operating instructions
Fimco
Fimco LG-10-EC owner's manual
Graymills
Graymills Tempest T-10 Operation and maintenance instructions
Graco
Graco SaniSpray HP ProPack 25T781 Operation - repair - parts
