Grizzly H7949 User manual

COPYRIGHT © DECEMBER, 2006 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#JC8623 PRINTED IN TAIWAN
MODEL H7949/H7950/H7951
INSTRUCTION MANUAL
H7949 21/2"
COIL NAILER
H7950 23/4"
COIL NAILER
H7951
ROOFING NAILER

Safety Instructions For Pneumatic Tools
1. KEEP ALL SAFETY DEVICES IN
PLACE and in working order.
2. REMOVE ADJUSTING KEYS AND
WRENCHES. Form habit of check-
ing to see that keys and adjusting
wrenches are removed from tool
before operation.
3. KEEP WORK AREA CLEAN.
Cluttered areas and benches invite
accidents.
4. DO NOT USE IN DANGEROUS
ENVIRONMENT. Do not use pneu-
matic tools in damp or wet loca-
tions, or where any flammable or
noxious fumes may exist. Keep
work area well lighted.
5. KEEP CHILDREN AND VISITORS
AWAY. All children and visitors
should be kept at a safe distance
from work area.
6. MAKE WORKSHOP CHILD
PROOF by locking your shop and
shutting off air valves.
7. DO NOT FORCE TOOL. It will do
the job better and safer at the rate
for which it was designed.
8. USE THE RIGHT TOOL. Do not
force tool or attachment to do a job
for which it was not designed.
9. DO NOT USE UNDER THE
INFLUENCE OF DRUGS OR
ALCOHOL.
For Your Own Safety Read Instruction Manual
Before Operating This Equipment
The purpose of safety symbols is to attract your attention to possible hazard-
ous conditions. This manual uses a series of symbols and signal words which
are intended to convey the level of importance of the safety messages. The
progression of symbols is described below. Remember that safety messages by
themselves do not eliminate danger and are not a substitute for proper accident
prevention measures.
Indicates a potentially hazardous situation which, if
not avoided, MAY result in minor or moderate injury.
It may also be used to alert against unsafe practices.
Indicates a potentially hazardous situation which, if
not avoided, COULD result in death or serious injury.
Indicates an imminently hazardous situation which, if
not avoided, WILL result in death or serious injury.
This symbol is used to alert the user to useful infor-
mation about proper operation of the equipment.
SAFETY
NOTICE

H7949/H7950/H7951 Nailer -1-
10. USE PROPER AIR HOSE for the
tool. Make sure your air hose is in
good condition and is long enough to
reach your work without stretching.
11. WEAR PROPER APPAREL. Do not
wear loose clothing, gloves, neck-
ties, rings, bracelets, or other jew-
elry which may get caught in moving
parts. Non-slip footwear is recom-
mended. Wear a protective hair cov-
ering to contain long hair.
12. ALWAYS USE ANSI APPROVED
SAFETY GLASSES. Also use a
face or dust mask if cutting operation
is dusty. Everyday eyeglasses only
have impact resistant lenses, they
are NOT safety glasses.
13. ALWAYS WEAR ANSI APPROVED
HEARING PROTECTION.
14. SECURE WORK. Use clamps or a
vise to hold work when practical. It is
safer than using your hand and frees
both hands to operate tool.
15. MAINTAIN TOOLS WITH CARE.
Keep tools lubricated and clean
for best and safest performance.
Follow instructions for lubricating
and changing accessories.
16. REDUCE THE RISK OF
UNINTENTIONAL STARTING. Do
not carry tool with hand on trig-
ger and always disconnect from air
when not in use.
17. DISCONNECT TOOLS before ser-
vicing, changing accessories, or
moving to another location.
18. DO NOT OVERREACH. Keep
proper footing and balance at all
times.
19. USE THE RECOMMENDED
ACCESSORIES. Consult owner’s
manual for recommended acces-
sories. The use of improper acces-
sories may cause risk of injury.
20. CHECK FOR DAMAGED PARTS
BEFORE USING. Check for bind-
ing and alignment of parts, broken
parts, part mounting, loose bolts,
and any other conditions that may
affect machine operation. Repair or
replace damaged parts.
21. NEVER LEAVE UNATTENDED
TOOL CONNECTED TO AIR.
Disconnect the air hose and do not
leave tool until it is relieved of any
built up pressure.
22. NEVER ALLOW UNTRAINED
USERS TO USE THIS TOOL
WHILE UNSUPERVISED.
23. IF YOU ARE UNSURE OF THE
INTENDED OPERATION, STOP
USING THE TOOL. Seek formal
training or research books or maga-
zines that specialize in pneumatic
tools.
Safety Instructions For Pneumatic Tools

H7949/H7950/H7951 Nailer
-2-
1. HAND INJURIES: Do not place
your hands near the nail point
of entry. A nail can deflect and
tear through the surface of the
workpiece, puncturing your hand
or fingers.
2. COMBUSTIBLE GASES: Never
connect the nailer to pressur-
ized oxygen or other combustible
gases as a power source. Only
use filtered, lubricated, and regu-
lated compressed air.
3. SAFE HANDLING: Never point
the nailer at others! Do not keep
the trigger pulled when loading
fasteners, carrying, or holding tool.
Carry the nailer only by the handle,
never by any other part. Do not
carry the nailer by the air hose.
Disconnect the nailer from the air
hose when going up and down
ladders.
4. AIR HOSE: Make sure your air
hose is designed for the tool in
use, is in good condition, and is
long enough to reach your work
without stretching. However, an
overly long air hose in the work
area may be a tripping hazard.
Additional Safety Instructions for Nailers
5. COMPRESSED AIR RATING: Do
not connect the nailer to compressed
air that exceeds 120 PSI.
6. CHECK VALVE: Do not use a check
valve or any other fitting that allows
air to remain in the tool.
7. CLEANING: Never use gasoline or
other flammable liquids to clean the
nailer; vapors in the nailer may ignite
by a spark and cause the nailer to
explode.
8. OPERATING QUESTIONS: If you
are not sure about the intended
operation, stop using the nailer.
Seek formal training or research
sources that specialize in pneumatic
tools.
9. MAINTENANCE: Always disconnect
air from the nailer when servicing or
installing nails. During adjustments
or maintenance, a nailer connected
to air may fire accidentally, causing
serious personal injury.

H7949/H7950/H7951 Nailer -3-
Operating this nailer can propel
objects into the air, causing imme-
diate eye damage. To protect your-
self, always wear American National
Standards Institute (ANSI) approved
safety glasses or goggles when oper-
ating this equipment. In addition, the
intensity of sound made by this nailer
at discharge can reach 90 decibels.
To protect your hearing, always wear
ANSI approved ear protection when
operating this nailer.
Never point this nailer at yourself or
another person! Always pay attention
to the direction this nailer is pointed.
Use this tool with respect and caution
to lessen the possibility of operator or
bystander injury. Ignoring this warning
may result in serious personal injury.
Nailer accidents routinely happen
while moving the gun to another loca-
tion, such as up ladders, to another
room, or even another job site. Always
disconnect the gun immediately after
use and never transport the gun while
connected to the air—even if the air
compressor is disconnected from its
power source!
No list of safety guidelines can be
complete. Every shop environment is
different. Always consider safety first,
as it applies to your individual working
conditions. Use this and other tools
with caution and respect. Failure to
do so could result in serious personal
injury, damage to equipment or poor
work results.
Read the manual before operation.
Become familiar with these nailers,
their safety instructions, and opera-
tion before beginning any work.
Serious personal injury may result if
safety or operational information is
not understood or followed.

H7949/H7950/H7951 Nailer
-4-
INTRODUCTION
If you have any comments regarding this
manual, please write to us at the following
address:
Grizzly Industrial, Inc.
C/O Technical Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069
Email: [email protected]
Most importantly, we stand behind our
tools. If you have any service questions or
parts requests, please call or write us at
the location listed below.
Grizzly Industrial, Inc.
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone: [phone]
Fax: [phone]
E-Mail: [email protected]
Web Site: http://www.grizzly.com
We are proud to offer the Grizzly Model
H7949/H7950/H7951 Nailer. This nailer
is part of a growing Grizzly family of fine
pneumatic tools. When used according
to the guidelines in this manual, you can
expect years of trouble-free, enjoyable
operation and proof of Grizzly’s commit-
ment to customer satisfaction.
The specifications and photographs in this
manual represent Model H7949/H7950/
H7951 as supplied when this manual was
prepared. However, owing to Grizzly’s pol-
icy of continuous improvement, changes
may be made at any time with no obliga-
tion on the part of Grizzly.
Foreword
Contact Info
Nail Type ..................Flat Wire Welded Coil
Nail Length .................................. 11/2"–21/2"
Magazine Capacity .............. 250–400 Nails
Weight .............................................5.5 lbs.
Air Inlet ..........................................1/4" NPT.
Operating Pressure ................. 70–110 PSI
Model H7949
Specifications
Model H7951
Specifications
Nail Type ..................Flat Wire Welded Coil
Nail Length .................................. 11/2"–23/4"
Magazine Capacity .............. 250–400 Nails
Weight .............................................6.2 lbs.
Air Inlet ..........................................1/4" NPT.
Operating Pressure ................. 70–110 PSI
Model H7950
Specifications
Nail Type ..................Flat Wire Welded Coil
Nail Length .................................... 3/4"–13/4"
Magazine Capacity .............. 250–400 Nails
Weight .............................................5.5 lbs.
Air Inlet ..........................................1/4" NPT.
Operating Pressure ................. 70–110 PSI

H7949/H7950/H7951 Nailer -5-
SETUP
Figure 1. Model H7949/H7950/H7951 inventory.
Unpacking
Your Model H7949/H7950/H7951 left our
warehouse in a carefully packed box. If
you discover the nailer is damaged after
you have signed for delivery, please imme-
diately call Customer Service at (570) 546-
9663 for advice.
Save the containers and all packing mate-
rials for possible inspection by the car-
rier or its agent. Otherwise, filing a freight
claim can be difficult.
When you are completely satisfied with
the condition of the shipment, you should
inventory the equipment.
Inventory
After you open the nailer box, you should
find the following.
Model H7949/H7950/H7951 Inventory
(Figure 1)
A. Nailer .................................................. 1
B. Nailer Case ........................................ 1
C. O-Rings .............................................. 2
D. Pneumatic Tool Oil ............................ 1
E. Hex Wrenches 4, 5mm .............1 Each
F. Interchangeable Nose Tips (not
shown) ............................................... 3
B
C
D
A
E

H7949/H7950/H7951 Nailer
-6-
Compressed Air
System
The Model H7949/H7950/H7951 is
designed to be operated at 70–110 PSI
using clean, dry, regulated, compressed
air. DO NOT exceed 120 PSI.
Before using your new nailer, set the air
pressure on your regulator to the mini-
mum PSI for your model.
An in-line filter/lubricator/regulator unit,
depicted in Figure 2, can be installed and
should be located as close to the nailer
as possible.
This filter/lubricator/regulator unit will pro-
tect your tool from damaging water build-
up, allow you to adjust and maintain con-
stant air pressure to your tool, and save
you the inconvenience of manually lubri-
cating your tool every time you use it.
Quick
Connector
Quick
Coupler
Air Hose Quick
Coupler
Quick
Connector
Lubricator
Filter
Regulator
Air
Compressor
Your
Tool
Figure 2. Typical filter/lubricator/regulator installation order.
Check the current Grizzly catalog for avail-
ability of this unit. If you plan on install-
ing a filter/lubricator/regulator unit in your
compressed air system, always follow the
connection instructions that come with
the unit.
Exceeding the maximum permissible
operating pressure may damage the
seals, gaskets and hammer mecha-
nism of your nailer. DO NOT allow
your air compressor to exceed the
recommended pressure when con-
nected to this nailer or serious per-
sonal injury may result!

H7949/H7950/H7951 Nailer -7-
Testing Safety Nose
Mechanism
A safety mechanism (bump fire) on the
nose of the nailer protects against acci-
dental firing. This mechanism is activated
when nails are loaded into the magazine.
The nailer will not fire when the trigger
is pulled until the safety nose is fully
depressed.
Before you use your nailer for the first
time, check the safety nose mechanism
to ensure proper function.
5. Without pressing the trigger, depress
the safety nose mechanism against a
scrap piece of wood that is clean and
free of any knots, nails, or other foreign
objects.
— If the nailer does not fire, then the
safety nose mechanism is working
correctly.
— If the nailer does fire when you
depress the safety nose, immedi-
ately disconnect the nailer from the
air supply and call Grizzly Technical
Support at [phone] for help.
6. Without depressing the safety nose,
point the nailer in a safe direction, and
pull the trigger.
— If the nailer does not fire, then the
safety nose mechanism is working
correctly.
— If the nailer does fire when the
trigger is pulled, without the safety
nose mechanism being depressed,
immediately disconnect the nailer
from the air supply and call Grizzly
Technical Support at (570) 546-
9663 for help.
The safety mechanism is a mechanical
device that can fail. Never rely on this
mechanism as an excuse to point the
nailer at yourself or any bystanders.
Serious injury may occur.
To verify that the safety nose is working
correctly:
1. DISCONNECT NAILER FROM THE
AIR SUPPLY!
2. Insert a coil of nails in the magazine
(see Page 8 for instructions).
3. Make sure the trigger and the safety
nose mechanism move up and down
without sticking.
4. Connect the nailer to the air supply.
Point the nailer away from you and
others when connecting the air supply.
The nailer can cycle and discharge a
nail when the air supply is connected.
Ignoring this warning may result in
serious personal injury.

H7949/H7950/H7951 Nailer
-8-
OPERATIONS
Model H7949/H7950
Loading Nails
Use nails meeting the specifications listed
for your nailer on Page 4 of this manual.
To load nails in your nailer:
1. DISCONNECT NAILER FROM THE
AIR SUPPLY!
Point the nailer away from you and
others when connecting the air supply.
The nailer can cycle and discharge a
nail when the air supply is connected.
Ignoring this warning may result in
serious personal injury.
2. Pull the magazine open from the cover
tab as shown in Figure 3.
Figure 3. Opening the magazine: Model
H7949/H7950.
Magazine
Cover Tab
3. Press the adjusting pin inside the
magazine and slide the plate up or
down until the plate position matches
the nail length as shown in Figure 4.
Note: The plate must be set at the
proper height or the nails will not feed
smoothly into firing position.
Figure 4. Positioning the magazine plate.
Adjusting
Pin
Magazine
Plate
4. Place the nail coil into the magazine
and uncoil enough nails to reach the
driving hole as shown in Figure 5.
Figure 5. Loading nails in the magazine.
Driving
Hole
Nail Length
Marks

H7949/H7950/H7951 Nailer -9-
5. Put the first nail into the driving hole
and the second nail between the two
pawls of the feeder as shown in Figure
6.
Figure 6. Putting the nails in firing
position.
Feeder
Pawls
6. Close and latch the magazine cover.
Model H7951
Loading Nails
Use nails meeting the specifications listed
for your nailer on Page 4 of this manual.
To load nails in your nailer:
1. DISCONNECT NAILER FROM THE
AIR SUPPLY!
Point the nailer away from you and
others when connecting the air supply.
The nailer can cycle and discharge a
nail when the air supply is connected.
Ignoring this warning may result in
serious personal injury.
2. Unlatch the cover lock, as shown in
Figure 7, and pull the magazine cover
open.
Figure 7. Unlatching the magazine cover
lock: Model H7951.
Magazine
Cover Lock
Figure 8. Positioning the magazine plate.
Magazine
Plate
Adjusting
Pin
Nail Length
Marks
3. Press the adjusting pin inside the mag-
azine and slide the plate up or down
until the plate position matches the nail
length (Figure 8).
4. Place a coil of nails in the magazine,
position the first nail in the pawls of
the feeder as shown in Figure 9, then
close and latch the magazine cover.
Figure 9. Putting the nails in firing
position.
5. Close and latch the magazine cover.
Feeder
Pawls

H7949/H7950/H7951 Nailer
-10-

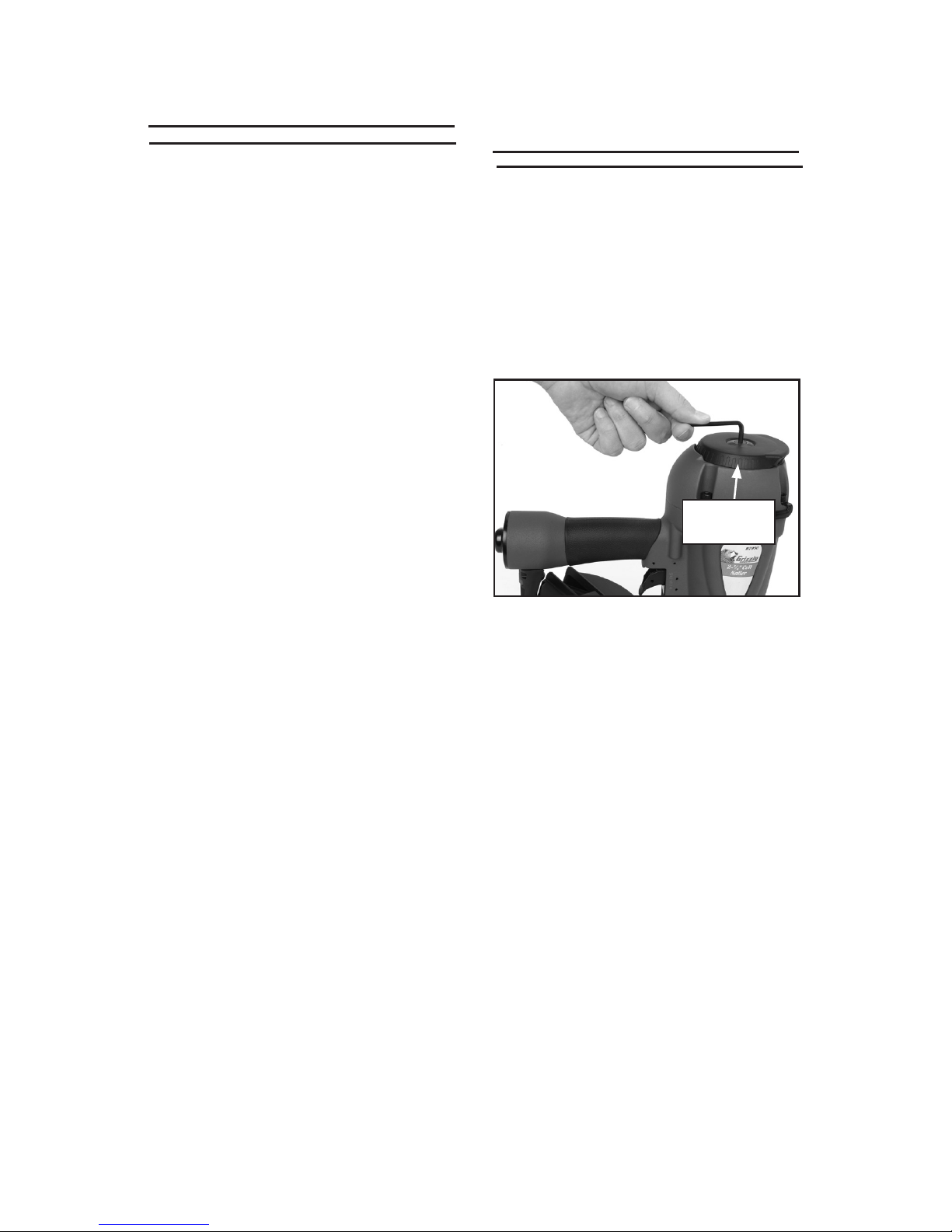

Rotating Exhaust
Cover
The exhaust cover rotates as needed to
direct the exhaust away from you.
To rotate the exhaust cover:
1. Use the 4mm hex wrench to loosen the
exhaust cover cap screw as shown in
Figure 10.
Figure 10. Loosening the exhaust cap
screw.
2. Rotate the exhaust cover by hand to
aim the exhaust port in the desired
direction.
3. Tighten the exhaust cover cap screw.
Unloading Nails
To remove unused nails:
1. DISCONNECT NAILER FROM THE
AIR SUPPLY!
2. Point the nailer away from you and all
bystanders.
3. Open the magazine cover (as shown
on Page 8) and lift the nails from maga-
zine.
4. Close the magazine cover to keep
the magazine assembly clean until the
nailer is reloaded.
Exhaust
Cap Screw

H7949/H7950/H7951 Nailer -11-
Using the Nailer
Before you operate your nailer, place five
to six drops of air tool oil into the quick
connect fitting where the nailer connects
to the air supply.
To operate your nailer:
1. Connect the air supply to the quick
connect fitting on your nailer.
2. To test for proper nail penetration, hold
the nailer perpendicular to the surface
of a piece of clean scrap wood that is
thick enough for the length of nails you
have loaded.
3. Depress the safety nose mechanism
against your workpiece.
Note: Deflection is caused when
grain irregularities, knots or foreign
objects inside the wood cause the
nail to change its path, resulting in
the nail puncturing the surface of the
workpiece.
Besides damaging your workpiece,
deflection can cause injury if your free
hand is securing the workpiece in the
location that the nail deflects.
5. Pull the trigger.
— If the nail penetrates the wood to the
depth you want, continue with your
intended operations.
— If the nail either went too far or not
far enough, adjust the depth of fire
by following the procedures listed on
Page 12.
4. Before pulling the trigger, make sure
your free hand and other body parts
are positioned out of the way of a
potential path of a nail in case of
deflection (illustrated below in Figure
11).
Figure 11. Example of nail deflection.
Read the manual before operation.
Become familiar with these nailers,
their safety instructions, and opera-
tion before beginning any work.
Serious personal injury may result if
safety or operational information is
not understood or followed.

H7949/H7950/H7951 Nailer
-12-

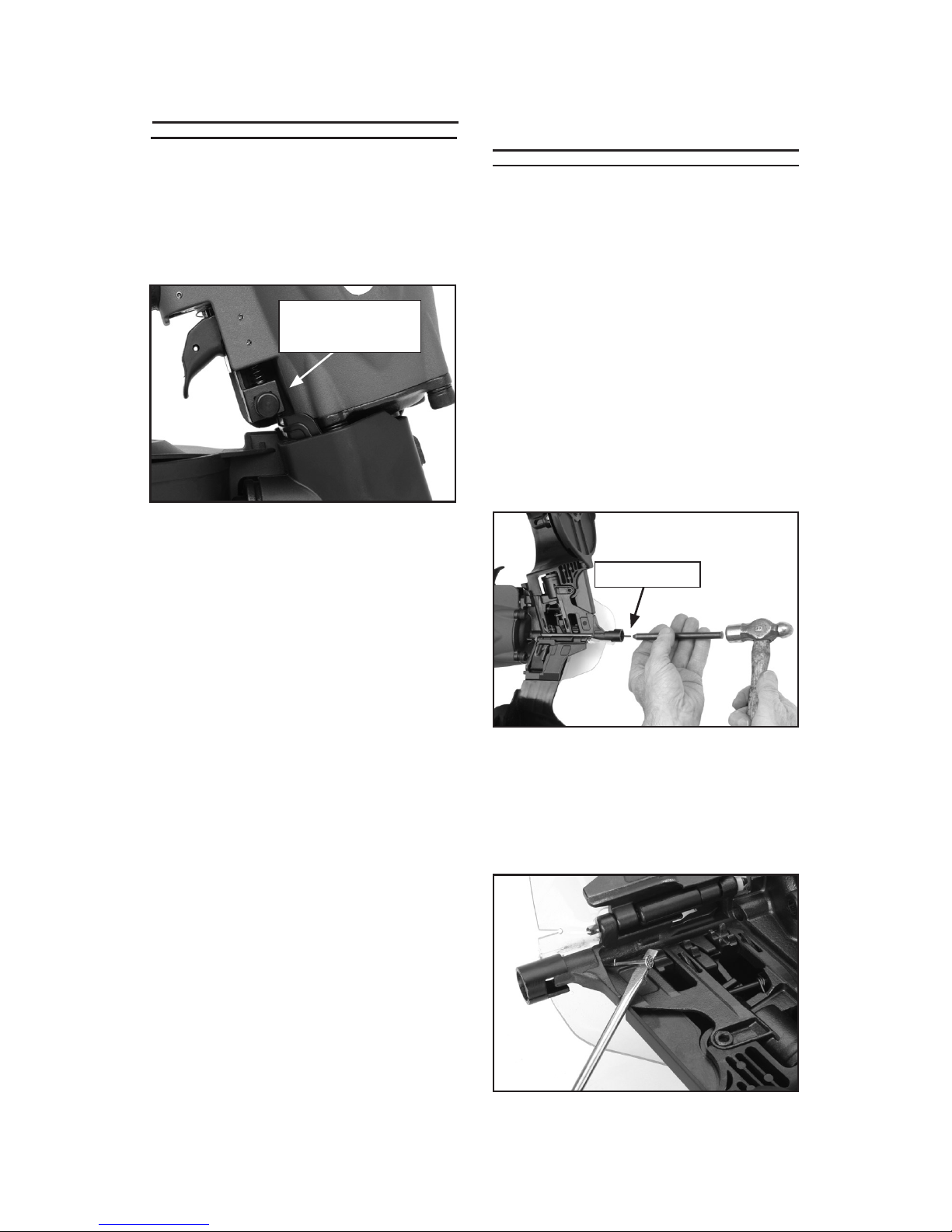

A jammed nail must be cleared before the
nailer is used again.
To clear a jammed nail from the dis-
charge area:
1. DISCONNECT NAILER FROM THE
AIR SUPPLY!
2. Remove all nails from the magazine.
3. Use a steel rod and hammer to tap the
jammed nail back into the magazine
driving hole as shown in Figure 13.
Clearing Jammed
Nails
Figure 13. Tapping a jammed nail back
into the magazine driving hole.
Figure 12. Depth adjustment knob.
Adjusting Depth
To adjust the nail depth:
Adjusting the depth of nail penetration is
done by turning the adjustment knob locat-
ed near the trigger as shown in Figure 12.
4. Use a screwdriver to pry the jammed
nail out of the driving hole as shown in
Figure 14.
Depth Adjustment
Knob
1. DISCONNECT NAILER FROM THE
AIR SUPPLY!
2. Turn the depth adjustment knob to
increase or decrease nail penetration:
— If you want to increase the nail
depth, then turn the adjusting knob
counterclockwise.
— If you want to decrease the nail
depth, then turn the adjusting knob
clockwise.
3. Connect the nailer to the air supply,
test the nail depth, and repeat this
entire procedure if necessary until the
nail depth is satisfactory.
Figure 14. Prying a jammed nail from the
driving hole.
Jammed Nail

H7949/H7950/H7951 Nailer -13-
Replacing
Pistons/O-Rings
If you need to replace piston parts in your
nailer, you can purchase a piston repair kit
from Grizzly: call 1-800-523-4777.
The Piston Repair Kit part number for
Model H7949 is PH7949103; the Piston
Repair Kit part number for Model H7950
is PH7950103; the Piston Repair Kit part
number for Model H7951 is PH7951104.
Refer to the parts breakdown during this
procedure to identify parts and their loca-
tions inside the nailer.
4. Push the top of the piston down with
your finger as far as it will go; this will
push the piston driver into the nose of
the nailer.
5. Insert a stiff rod or wire of the same
diameter as your nails into the dis-
charge area of the nose and use it
to push the piston driver up until the
piston head clears the top of the cyl-
inder. (Be careful not to scratch the
discharge area or the piston cylinder.)
6. Grip the piston head by hand and
remove the piston assembly from the
cylinder.
7. Clean all metal parts with an auto-
motive grade solvent. Clear all ports
and blow the solvent away with com-
pressed air.
8. Replace any part that shows damage
of heavy wear. Relubricate the tool.
9. Apply a thin film of the nailer lubricat-
ing oil on the new O-ring and place
it on the new piston. Install any other
parts included in the piston repair kit.
10. Insert the new piston in the cylinder.
With the magazine cover open, gently
push the piston down to make sure the
piston driver moves freely into the driv-
ing hole.
Note: DO NOT force the piston into
the cylinder! If the piston 'hangs' in the
cylinder, double check the fit between
piston and O-ring and imake sure the
cylinder is clean.
11. Make sure that the cap gasket is in
place, then secure the cap to the nailer
body by tightening the 4 cap screws.
To replace a piston and O-ring(s):
1. DISCONNECT NAILER FROM THE
AIR SUPPLY!
2. Remove all nails from the magazine.
3. Remove the four screws that secure
the nailer cap and remove the cylinder
cap.
Always disconnect the air supply
from the nailer whenever servicing!
During maintenance, a nailer con-
nected to air may fire accidentally,
causing serious personal injury!

H7949/H7950/H7951 Nailer
-14-
CLEANING & LUBRICATING
Cleaning
Use an automotive grade solvent such as
Sprayway C-60® (G2544 in the Grizzly
catalog) to clean the nose assembly of the
nailer. Always be sure that the nailer is dry
before using it again.
Do not allow dust, chips, or sand into the
air connectors or into the body of the nail-
er; this may result in leaks and damage to
the nailer and the air couplings.
Lubricating
Special pneumatic tool oil has been
included with your new Grizzly nailer to
help maintain its useful life. Place two to
six drops of oil in the nailer air inlet (as
shown in Figure 15) every 2 hours of
continuous use.
Wipe off any excess oil near the nailer
exhaust to avoid dust build-up. When
the oil that was included with your nailer
has been completely used, replace with
Grizzly Model G2820 Pneumatic Tool Oil.
An efficient alternative to oiling your tool
by hand is to install a lubricator in your air
compressor line. If your air compressor
line already has a lubricator, then regular
lubrication of your nailer will not be neces-
sary. Just make sure there is always oil in
the lubricator.
Figure 15. Lubricating the nailer at the
air inlet.
Never use gasoline to clean this tool.
Use extreme caution when using any
solvent cleaner. Always clean the tool
in a well-ventilated area and never if
sparks or open flames are present.
Remember that electrical machinery
can produce sparks during normal
operation. Ignoring this warning can
cause serious personal injury or even
death!

H7949/H7950/H7951 Nailer -15-
H7949 PARTS BREAKDOWN












































 
 
 

























































H7949/H7950/H7951 Nailer
-16-
H7949 PARTS LIST
PAGE 1 OF 2
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PFH55M FLAT HD CAP SCR M6-1 X 20 40 PH7949040 STEPPED PIN
2 PH7949002 FRONT BRACKET 41 PH7949041 O-RING
3 PH7949003 EXHAUST COVER 42 PH7949042 FEED PISTON
4 PH7949004 EXHAUST FILTER 43 PH7949043 O-RING
5 PH7949005 EXHAUST FILTER PLATE 44 PH7949044 SPRING
6 PSB38M CAP SCREW M5-.8 X 25 45 PH7949045 SPRING
7 PH7949007 CAP 46 PH7949046 FEED PISTON STOP
8 PH7949008 SPRING 47 PH7949047 SPRING COLLAR
9 PH7949009 WASHER 48 PH7949048 O-RING
10 PH7949010 O-RING 49 PH7949049 STEPPED PIN
11 PH7949011 PISTON HEAD VALVE 50 PH7949050 RATCHET
12 PH7949012 O-RING 51 PH7949051 SPRING
13 PH7949013 SEAL 52 PH7949052 DOOR
14 PH7949014 PLAIN WASHER 53 PH7949053 NAIL SUPPORT
15 PH7949015 PISTON STOPPER 54 PH7949054 SPRING
16 PH7949016 O-RING 55 PH7949055 SET SHAFT
17 PH7949017 PISTON 56 PH7949056 SLIDE ROD
18 PH7949018 DRIVER 57 PH7949057 MAGAZINE
19 PH7949019 CYLINDER 58 PSBS09M BUTTON HD CAP SCR M5-.8 X 12
20 PH7949020 O-RING 59 PSB15M CAP SCREW M5-.8 X 20
21 PH7949021 CYLINDER RING 60 PLN02M LOCK NUT M5-.8
22 PH7949022 COLLAR 61 PH7949061 MAGAZINE COVER
23 PH7949023 O-RING 62 PRP42M ROLL PIN 3 X 20
24 PH7949024 GASKET 63 PH7949063 RUBBER INSERT
25 PH7949025 BODY 64 PH7949064 SAFETY LEVER
26 PH7949026 PAD 65 PH7949065 DUST COVER
27 PH7949027 O-RING 66 PW03M FLAT WASHER 6MM
28 PH7949028 BOTTOM BUMPER 67 PSBS06M BUTTON HD CAP SCR M5-.8 X 12
29 PH7949029 O-RING 68 PH7949068 NOSE COVER
30 PH7949030 NOSE 69 PH7949069 PALLET TIP
31 PSB02M CAP SCREW M6-1 X 20 70 PH7949070 SIDING TIP
32 PH7949032 STEPPED PIN 71 PH7949071 DECKING TIP
33 PH7949033 RETAIN RUBBER 72 PRP97M ROLL PIN 3 X 30
34 PH7949034 RETAIN RUBBER 73 PH7949073 TRIGGER VALVE CAP
35 PH7949035 CHECK PAWL 74 PH7949074 O-RING
36 PH7949036 SPRING 75 PH7949075 PLUNGER
37 PH7949037 STEPPED PIN 76 PH7949076 SPRING
38 PH7949038 PROTECTOR 77 PH7949077 O-RING
39 PH7949039 FEED PAWL 78 PH7949078 O-RING

H7949/H7950/H7951 Nailer -17-
H7949 PARTS LIST
PAGE 2 OF 2
REF PART # DESCRIPTION REF PART # DESCRIPTION
79 PH7949079 PILOT VALVE 92 PH7949092 CONTACT TRIP BLOCK
80 PH7949080 O-RING 93 PH7949093 ADJUSTING BOLT
81 PH7949081 BALL PIN 94 PH7949094 COVER
82 PH7949082 TRIGGER VALVE HOUSING 95 PH7949095 O-RING
83 PH7949083 O-RING 96 PH7949096 RUBBER GRIP
84 PH7949084 O-RING 97 PH7949097 ADJUSTING NUT
85 PH7949085 TRIGGER PLATE 98 PH7949098 NAILER CASE
86 PH7949086 TRIGGER 100 PH7949100 INCLUDED PNEUMATIC OIL
87 PRP98M ROLL PIN 3 X 16 101 PAW04M HEX WRENCH 4MM
88 PH7949088 SLIDE SHAFT 102 PAW05M HEX WRENCH 5MM
89 PH7949089 SPRING 103 PH7949103 PISTON REPAIR KIT
90 PH7949090 TRIP GUIDE 104 PH7949104 MACHINE LABEL
91 PH7949091 SPRING

H7949/H7950/H7951 Nailer
-18-
H7950 PARTS BREAKDOWN




































 









 
 
 




















































