Groen AH-30 User manual

888-994-7636, fax [phone]
unifiedbrands.net
This manual provides information for:
MODELS AH-30 Export
STEAM JACKETED
KETTLE WITH STANDARD
ELECTRONIC IGNITION
· Self-Contained
· Gas Heated
· Floor Mounted
· Stationary
OPERATOR MANUAL
IMPORTANT INFORMATION, KEEP FOR OPERATOR
PART NUMBER 172032, REV. B (06/22)
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE.
READ, UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND
WARNINGS CONTAINED IN THIS MANUAL.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
POST IN A PROMINENT LOCATION
Instructions to be followed in the event user smells gas.
This information shall be obtained by consulting your
local gas supplier. As a minimum, turn off the gas and
call your gas company and your authorized service agent.
Evacuate all personnel from the area.
WARNING
Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death.
Read the installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
NOTIFY CARRIER OF DAMAGE AT ONCE
It is the responsibility of the consignee to inspect the container upon receipt of
same and to determine the possibility of any damage, including concealed dam-
age. Unied Brands suggests that if you are suspicious of damage to make a
notation on the delivery receipt. It will be the responsibility of the consignee to le
a claim with the carrier. We recommend that you do so at once.
Manufacture Service/Questions 888-994-7636.
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.

2 OM-AH-30
IMPORTANT - READ FIRST - IMPORTANT
WARNING: IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTENANCE CAN
CAUSE PROPERTY DAMAGE, INJURY OR DEATH. READ THE INSTALLATION, OPERATING AND
MAINTENANCE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING OR SERVICING THIS
EQUIPMENT.
WARNING: THE UNIT MUST BE INSTALLED BY PERSONNEL QUALIFIED TO WORK WITH GAS AND
ELECTRICITY.
WARNING: UNIT MUST BE INSTALLED IN ACCORDANCE WITH ALL APPLICABLE CODES.
CAUTION: TO AVOID DAMAGING PARTS OF THE BURNER SYSTEM UNDERNEATH THE KETTLE, LIFT THE
UNIT ONLY BY THE RING BENEATH THE OUTER PORTION OF THE BODY.
WARNING: DO NOT ATTACH THE UNIT TO A TYPE “B” VENT. IT COULD CAUSE FIRE OR PROPERTY DAMAGE.
WARNING: DO NOT CONNECT ANY PIPING TO THE SAFETY VALVE. IT MUST BE FREE TO VENT STEAM AS
NEEDED. TO AVOID BURNS FROM THE VENTED STEAM THE VALVE DISCHARGE SHOULD POINT
DOWN. IMPROPER INSTALLATION WILL VOID WARRANTY.
WARNING: FAILURE TO PERIODICALLY CHECK SAFETY VALVE OPERATION COULD RESULT IN PERSONAL
INJURY AND/OR DAMAGE TO EQUIPMENT.
WARNING: WHEN TESTING, AVOID EXPOSURE TO THE STEAM BLOWING OUT OF THE SAFETY VALVE.
DIRECT CONTACT COULD RESULT IN SEVERE BURNS.
DANGER: ELECTRICALLY GROUND THE UNIT AT THE TERMINAL PROVIDED. FAILURE TO GROUND THE
UNIT COULD RESULT IN ELECTROCUTION AND DEATH.
CAUTION: BE SURE ALL OPERATORS READ, UNDERSTAND AND FOLLOW THE OPERATING INSTRUCTIONS,
CAUTIONS AND SAFETY INSTRUCTIONS CONTAINED IN THIS MANUAL.
CAUTION: DO NOT OVER FILL THE KETTLE WHEN COOKING, HOLDING OR CLEANING. KEEP LIQUIDS
A MINIMUM OF 2-3” (5-8 CM) BELOW THE KETTLE BODY RIM TO ALLOW CLEARANCE FOR
STIRRING, BOILING AND SAFE PRODUCT TRANSFER.
CAUTION: KEEP FLOORS IN FRONT OF KETTLE WORK AREA CLEAN AND DRY. IF SPILLS OCCUR, CLEAN
IMMEDIATELY TO AVOID SLIPS OR FALLS.
WARNING: KEEP WATER AND SOLUTIONS OUT OF CONTROLS AND BURNERS. NEVER SPRAY OR HOSE
DOWN THE CONTROL CONSOLE, ELECTRICAL CONNECTIONS, ETC.
CAUTION: MOST CLEANERS ARE HARMFUL TO THE SKIN, EYES, MUCOUS MEMBRANES AND CLOTHING.
TAKE PRECAUTIONS: WEAR RUBBER GLOVES, GOGGLES OR FACE SHIELD AND PROTECTIVE
CLOTHING. CAREFULLY READ WARNINGS AND FOLLOW DIRECTIONS ON CLEANER LABELS.
NOTICE: NEVER LEAVE A SANITIZER IN CONTACT WITH STAINLESS STEEL SURFACES LONGER THAN 10
MINUTES. LONGER CONTACT CAN CAUSE CORROSION AND PITTING.
WARNING: TO AVOID INJURY, READ AND FOLLOW ALL PRECAUTIONS STATED ON THE LABEL OF THE
WATER TREATMENT COMPOUND.
WARNING: BEFORE REPLACING ANY PARTS, DISCONNECT THE UNIT FROM THE ELECTRIC POWER SUPPLY
AND CLOSE THE MAIN GAS VALVE. ALLOW FIVE MINUTES FOR GAS TO VENT.
CAUTION: USE OF ANY REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED BY AUTHORIZED
DISTRIBUTORS CAN CAUSE OPERATOR INJURY AND DAMAGE TO THE EQUIPMENT, AND WILL
VOID ALL WARRANTIES.

OM-AH-30 3
WARNING: KEEP AREA AROUND KETTLE FREE AND CLEAR OF ALL COMBUSTIBLE MATERIALS. FAILURE TO
DO SO COULD RESULT IN FIRE OR PROPERTY DAMAGE.
CAUTION: HEATING AN EMPTY KETTLE MAY CAUSE THE RELEASE OF STEAM FROM THE SAFETY VALVE.
CAUTION: UNIT WEIGHS 720 LB (327 KG). FOR SAFE HANDLING, INSTALLER SHOULD OBTAIN HELP AS
NEEDED, OR EMPLOY APPROPRIATE MATERIALS HANDLING EQUIPMENT (SUCH AS A FORKLIFT,
DOLLY, OR PALLET JACK) TO REMOVE THE UNIT FROM THE SKID AND MOVE IT TO THE PLACE
OF INSTALLATION.
WARNING: THIS UNIT IS DESIGNED FOR COMMERCIAL USE. NEVER USE HOME OR RESIDENTIAL
GRADE GAS CONNECTIONS. THEY DO NOT MEET COMMERCIAL GAS CODES AND COULD BE
HAZARDOUS.
IMPORTANT: SERVICE PERFORMED BY OTHER THAN FACTORY AUTHORIZED PERSONNEL WILL VOID
WARRANTIES.
IMPORTANT - READ FIRST - IMPORTANT

4 OM-AH-30
Important Operator Warnings .....................................................page 2-3
References ................................................................................... page 4
Equipment Description ............................................................... page 5-6
Inspection and Unpacking ........................................................... page 7
Installation .................................................................................. page 8-9
Initial Start-Up .............................................................................. page 10
Operation ............................................................................... page 11-12
Sequence of Operation .............................................................. page 13
Cleaning .................................................................................. page 14-15
Maintenance ........................................................................... page 16-17
Troubleshooting ...................................................................... page 18-19
Parts List ................................................................................. page 20-25
Electrical Schematic .................................................................... page 26
Service Log ................................................................................. page 27
CSA AMERICA INC
8501 East Pleasant Valley Road
Cleveland, Ohio 44131
ANSI Z83.11
NSF INTERNATIONAL
798 N. Dixboro Rd.
P.O. Box 130140
Ann Arbor, Michigan 48113-0140
NSF/ANSI 4
NATIONAL FIRE PROTECTION ASSOCIATION
60 Battery March Park
Quincy, Massachusetts 02269
NFPA/70 The National Electrical Code
NFPA/54 Installation Gas Appliances & Piping
AMERICAN NATIONAL STANDARDS INST., INC
1430 Broadway
New York, New York 10018
Z223.1-1984 National Fuel Gas Code
Z21.30 Installation of Gas Appliances & Piping
Table of Contents
References

OM-AH-30 5

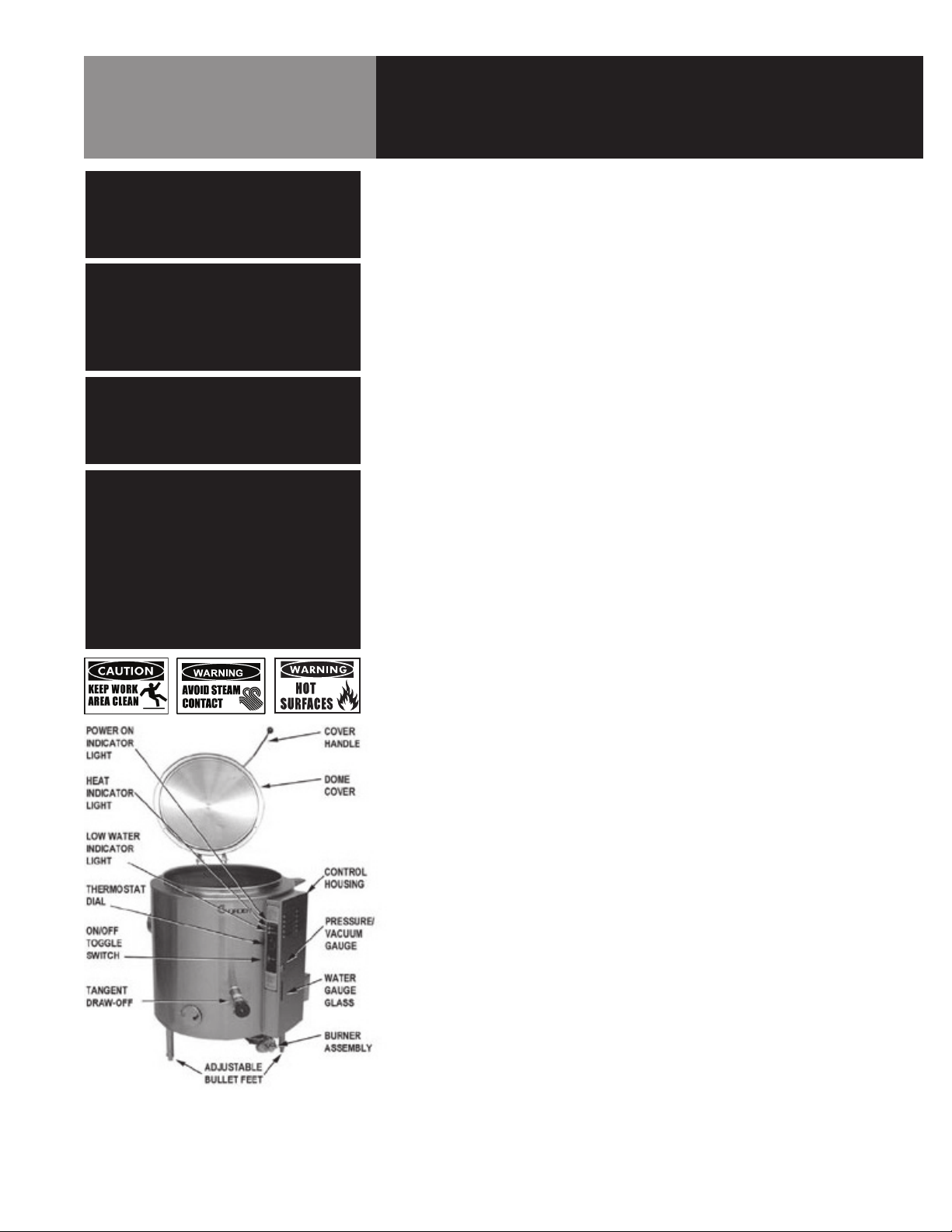

AH-30 steam kettles are stainless steel, floor mounted kettles with a self-contained
steam source heated by gas. A closed steam jacket covers the lower portion of the
kettle. Heat from the gas burner boils water in the jacket to produce steam under
pressure. To ignite the burners, the kettle uses electronic spark ignition.
The kettle is stationary (non-tilting). Liquids can be removed through the tangent
draw-off valve.
Exposed surfaces are stainless steel. Insulated sheathing protects the kettle body, and
a housing encloses the controls. Three tubular legs support the unit. Bullet feet adjust
to level the kettle.
The cover for the 30-gallon kettle is equipped with a counterbalancing spring actuator
that holds the cover in either the fully-open or closed position.
Controls provided include the ON/OFF switch, to control electric power for the unit, and
the thermostat, to set the cooking temperature. The automatic controls and a brief
description of each are as follows.
1. Gas pressure regulator: Protects the unit from high pressure in the gas supply
line.
2. Automatic gas valves: Allow gas into the burners as needed.
3. Pressure limit switch: Turns off the burner when jacket pressure reaches 27 PSI.
Lights the burner when pressure drops to 22 PSI.
4. Safety valve: Lets steam out of the jacket if the steam pressure exceeds 30 PSI.
5. Low-water cutoff: Turns off the burner if the water level in the jacket gets too
low for safe operation.
Instruments also are provided to show what is happening inside the unit. These are:
1. Water level sight glass: Indicates whether there is enough water in the steam
jacket.
2. Pressure/vacuum gauge: Shows steam pressure, and whether too much air has
entered the jacket.
3. Heating indicator light: Indicates that the kettle is being heated.
4. Power on indicator light: Glows when the unit is turned on.
5. Low water indicator light: Lights to show that jacket water needs to be
replenished.
Equipment Description

6 OM-AH-30
The kettle body is welded into one piece and has a rim reinforced by a rectangular bar.
The interior and exterior of the kettle is polished to a 180 emery grit finish. The unit is
ASME shop inspected and registered with the National Board for working pressures up
to 30 PSI.
The standard 2 inch tangent draw-off is a 316 stainless steel, compression disc valve.
A removable strainer with 1/4 inch holes keeps pieces of product from entering the
draw-off during cooking.
The jacket is filled at the factory with water containing rust inhibitors. The kettle can
operate at steam pressures up to 30 PSI, which provide temperatures of 150°F (65°C)
to approximately 270°F (135°C). This range allows warming, simmering, boiling, or
braising.
For the kettle, options include:
1. Solid disc strainer or strainer with 1/8 inch perforations
2. Water fill faucets
3. Basket inserts
4. Kettle brush kit
5. Gallon etch marks
6. Flanged feet
Equipment Description
Kettle
Capacity
Jacket
Capacity
Kettle
Inside
Diameter
Kettle
Depth Overall Width Front-to- Back Rim Height
30 Gallon
(113 liter)
7 Gallon
(26.5 liter)
26 inches
(660 mm)
22 inches
(559 mm)
38-1/4 inches
(972 mm)
45 inches
(1143 mm)
42 inches
(1067 mm)
Ignition FIRING RATE, BTU/HOUR
Propane Gas
Spark 85,000

OM-AH-30 7
Inspection & Unpacking
CAUTION
SHIPPING STRAPS ARE UNDER TENSION
AND CAN SNAP BACK WHEN CUT. TAKE
CARE TO AVOID PERSONAL INJURY OR
DAMAGE TO THE UNIT BY STAPLES LEFT
IN THE WALLS OF THE CARTON.
The unit arrives completely assembled, except for the TDO valve and flue gas
converter, which are usually packed separately and shipped inside the kettle.. The unit
is strapped on a skid in a heavy box. Inspect the box carefully for damage. Open the
container and check the unit for hidden damage. Report shipping damage or shipment
errors to the delivery agent.
Write down the model number, serial number, and installation date for your unit at the
top of the Maintenance and Service Log at the back of this manual. Keep the manual
with the unit.
To remove the kettle from the box, cut any straps from around the box. Detach the box
sides from the skid. Pull the box up off the unit, taking care to avoid damage or injury
from any staples left in the box walls. When installation is to begin, cut the straps
holding the kettle to the skid, and lift the kettle straight up off the skid. Examine the
packing materials to make sure no loose parts are discarded with the materials.
Once the kettle is unpacked, the tangent draw-off valve is easily attached, as shown
below. The large nut which attaches the valve to the kettle should be hand tightened
only.
CAUTION
UNIT WEIGHS FROM 468 LBS (212 KG)
TO 1120 LBS (508 KG). FOR SAFE
HANDLING, INSTALLER SHOULD OBTAIN
HELP AS NEEDED AND USE MATERIAL
HANDLING EQUIPMENT TO REMOVE THE
UNIT FROM THE SKID AND MOVE IT TO
ITS PLACE OF INSTALLATION.
WARNING
INSTALLATION OF THE KETTLE MUST
BE DONE BY A CERTIFIED ELECTRICIAN
OR AUTHORIZED REPRESENTATIVE
QUALIFIED TO WORK WITH ELECTRICITY.
IMPROPER INSTALLATION CAN RESULT
IN INJURY TO PERSONNEL AND/OR
DAMAGE TO EQUIPMENT.

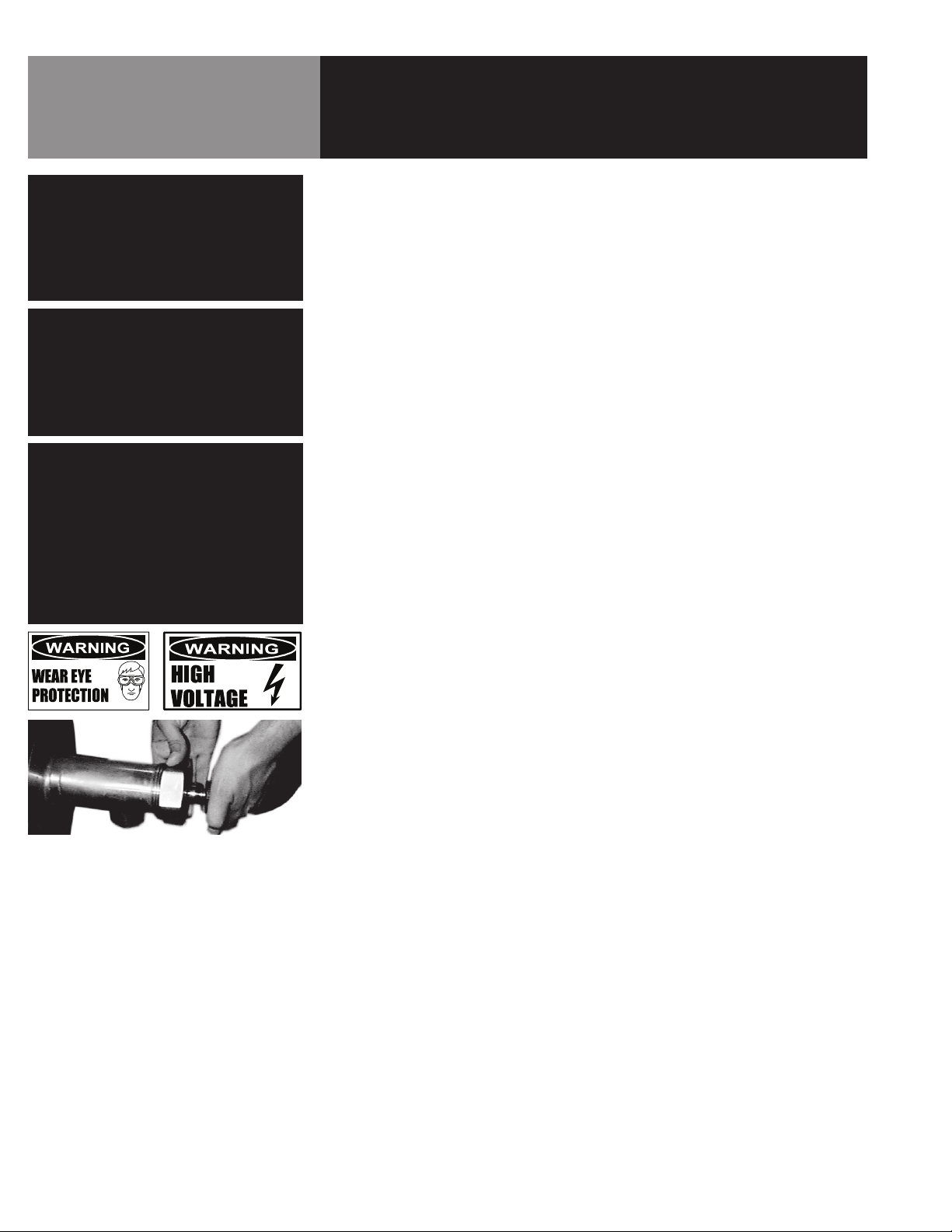

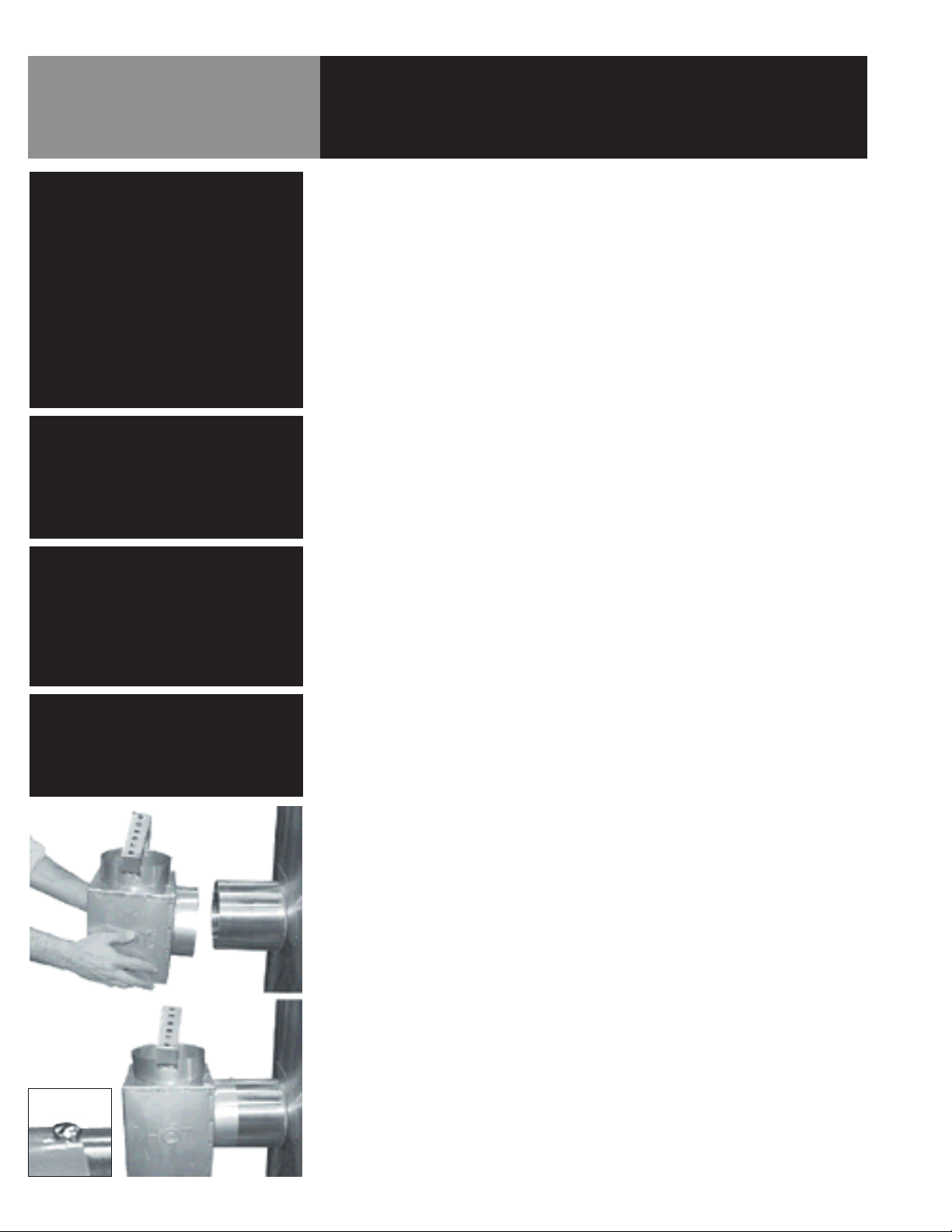

Assemble and attach the tangent draw-off
valve after the kettle is unpacked.

8 OM-AH-30
The unit should be installed in a ventilated room for efficient performance. Items which
may obstruct or restrict the flow of air for combustion and ventilation must be removed.
The area directly around the appliance must be cleared of all combustible materials.
1. Installation requires connection with gas and electrical services. See items 8 to 14
for details.
2. To protect the unit from damage, leave it on the shipping pallet until the time of
installation. When installation is to begin, cut the straps holding the kettle, and hoist
the kettle straight up off the skid.
3. Install the unit with a minimum clearance to combustible and non-combustible
construction of six inches at the sides and six inches between the draft diverter
and the wall. Also leave enough room for cleaning, maintenance, and service.
4. The draft diverter shipped with the kettle is the correct height and shape to give
maximum performance. Install the draft diverter as shown on the figures at left.
Securely fasten the screw to attach draft directly. Do not change the diverter in
any way. Install the unit under a ventilation hood, or vent the flue directly to a
masonry chimney. Put a hood at least several inches above the upper end of the
draft diverter. Do not rest hood supports on the diverter. Installation of a ventilating
hood should comply with local codes and/or ANSI/NFPA-96 Latest Edition. Also,
local codes may require that the kettle be electrically interlocked to shut off the gas
supply and prevent the operation of the unit if the exhaust fan is not operating or
if the fire suppression system is activated. Failure to follow these instructions can
cause bodily injury and/or property damage.
5. To level the unit, adjust leg length by turning the bullet feet.
6. Make sure the water level is correct in the jacket, by confirming that the level
is between the marks on the gauge glass. If the water level is low, follow the
instructions under “Jacket Filling” in the “Maintenance” Section of this manual.
7. To protect personnel from steam coming out of the safety valve, the open end of
the elbow at the outlet must be directed down. If it is not, turn the elbow to the
correct position.
8. Provide 115 VAC, 60 HZ, 1 PH, 15 AMP electrical service for standard unit. Use 1/2
inch waterproof conduit and waterproof connections. Observe local codes and/
or The National Electrical Code in accordance with ANSI/NFPA 70 - latest edition.
AN ELECTRICAL GROUND IS REQUIRED. The electrical schematic is located on the
inside of the service panel.
In Canada, provide electrical service in accordance with the Canadian Electrical
Code, CSA C22.1 Part 1 and/or local codes.
9. The internal gas lines of the unit were cleaned and closed off with a gas cock
before the unit was shipped from the factory. Free all external gas lines of lint, dirt,
metal chips, sealant, grease, oil, and other contaminants, before you connect the
lines to the kettle.
10. Connect the gas cock of the kettle to the gas service main with 3/4 inch IPS line or
approved equivalent.
Installation
WARNING
THIS PRODUCT MUST BE INSTALLED
BY A LICENSED PLUMBER OR GAS
FITTER WHEN INSTALLED WITHIN THE
COMMON WEALTH OF MASSACHUSETTS.
IMPROPER INSTALLATION CAN CAUSE
INJURY TO PERSONNEL AND/OR DAMAGE
TO THE EQUIPMENT. THIS UNIT IS FOR
COMMERCIAL USE. NEVER USE HOME OR
RESIDENTIAL GRADE GAS CONNECTIONS.
THEY DO NOT MEET GAS CODES AND
COULD BE HAZARDOUS.
NOTICE
TO AVOID DAMAGING PARTS OF THE
BURNER SYSTEM UNDERNEATH THE
KETTLE, LIFT THE UNIT ONLY BY THE
RING BENEATH THE OUTER
PORTION OF THE BODY.
CAUTION
DO NOT CONNECT ANY PIPING TO THE
PRESSURE RELIEF SAFETY VALVE.
IT MUST BE FREE TO VENT STEAM
AS NEEDED. ELBOW SHOULD POINT
DOWN TOWARD FLOOR. IMPROPER
INSTALLATION WILL VOID WARRANTY!
DANGER
ELECTRICALLY GROUND THE UNIT
AT THE TERMINAL PROVIDED. FAILURE TO
GROUND UNIT COULD RESULT IN
ELECTROCUTION AND DEATH.

OM-AH-30 9
11. Installation must conform with local codes, or in the absence of local codes, with
the National Fuel Gas Code, ANSI Z 223.1-1988 (or latest edition). The unit should
be installed in an adequately ventilated room with a provision for adequate air
supply. The best ventilation will utilize a vent hood and exhaust fan with no direct
connection between the vent duct and the flue. Do NOT obstruct the flue or vent
duct after installation.
In Canada, the installation must conform to the CAN/CGA B149 Installation Codes
for Gas Burning Appliances and Equipment and/or local codes.
12. Adequate space for proper service and operation is required. No NOT block any
air intake spacings to the combustion chamber or obstruct the air flow by piling or
stacking anything near the kettle.
13. After the kettle has been connected to the gas supply, all gas line joints must be
checked for leaks. DO NOT USE A FLAME TO CHECK FOR LEAKS. A thick soap
solution or other suitable leak detector should be employed.
14. For a unit on casters, complete connection to the gas supply with connectors that
comply with the standard for connectors for moveable gas appliances, ANSI Z21.69
- latest edition. Restrain movement of the unit by attaching a cable or chain to the
eyelet (provided at the back of the frame) and anchoring the cable or chain to the
wall or floor. Make the length and location of the cable such that the unit cannot
pull on the gas connection while the cable is connected.
15. The appliance and its individual shutoff valve must be disconnected from the gas
supply piping system during any pressure testing of that system at test pressures
in excess of 1/2 PSIG (3.48 kPa). The appliance must be isolated from the gas
supply piping system by closing its individual manual shutoff valve during any
pressure testing of the gas supply piping system at test pressures equal to or less
than 1/2 PSIG (3.48 kPa).
16. Check the following points to confirm that your kettle has been installed properly.
Any mechanical, electrical, or gas type change must be approved by the Food
Service Engineering Department.
a. Enough room between the kettle and nearby objects for cleaning and service.
b. Minimum clearance of 6 inches from sides and 6 inches from draft diverter.
c. Unit vented to a hood or chimney (not attached to a vent).
d. Kettle level.
e. Correct amount of water in the jacket.
f. Pressure relief safety valve outlet pointed down.
g. Connected with a waterproof, 115 volt, 15 AMP supply of electric power in
accordance with electrical codes.
h. Gas lines cleaned before connection.
i. Gas connected with 3/4 inch pipe or equivalent.
j. Gas line joints checked for leaks.
k. No obstruction to air supply or venting.
Installation

10 OM-AH-30
After kettle has been installed, the installer should test to ensure that it is operating
correctly.
. DIRECT SKIN CONTACT
1. Remove all literature and packing materials from inside and outside of the unit.
2. Install the TDO valve.
3. Put a small amount of water into the kettle.
4. Verify that kettle water level is normal and that kettle is holding vacuum in
jacket. Correct if not.
5. Make sure the supplies of gas and electric power are on.
6. Follow the “Start Kettle Heating” instructions in the Operation section of this
manual. Begin heating the water at the highest thermostat setting. The indicator
light should come on and heating should continue until the water boils.
7. To turn off the unit, follow “To Stop Kettle Heating” in the Operation section.
If the kettle functions as described, if is read for use. If the unit does not operate as
designed, contact authorized Service Agent.
Initial Start-Up
IMPORTANT
BE SURE ALL OPERATORS READ,
UNDERSTAND AND FOLLOW THE
OPERATING INSTRUCTIONS, CAUTIONS
AND SAFETY INSTRUCTIONS CONTAINED
IN THIS MANUAL.
WARNING
AVOID ALL DIRECT CONTACT WITH HOT
SURFACES. DIRECT SKIN CONTACT COULD
RESULT IN SEVERE BURNS.
AVOID ALL DIRECT CONTACT WITH HOT
FOOD OR WATER IN THE KETTLE. DIRECT
CONTACT COULD RESULT IN SEVERE BURNS.

OM-AH-30 11
Operation
A. Controls
1. Manual gas valve which controls the supply of gas from the main line to
the unit.
2. On-Off (toggle) switch. This switch turns the control circuit power supply on
or off.
3. Thermostat dial, which turns the thermostat on or off, and sets the kettle
operating temperature.
4. Indicator Lights to alert operator of unit conditions:
a. Power On Indicator - shows that the unit is turned on
b. Heat Indicator - indicates that main gas is on to produce steam in the
kettle jacket.
c. Low Water indicator - shows that jacket water is low
d. Unit gas pressure regulator adjustment - located behind the access
door in the kettle skirt.
B. Operating Instructions
1. To Start Kettle
a. CHECK THE WATER LEVEL IN THE JACKET EVERY DAY. The level should
be at the middle of the sight glass. If the level is low, see Jacket
Filling in the Maintenance section of this manual

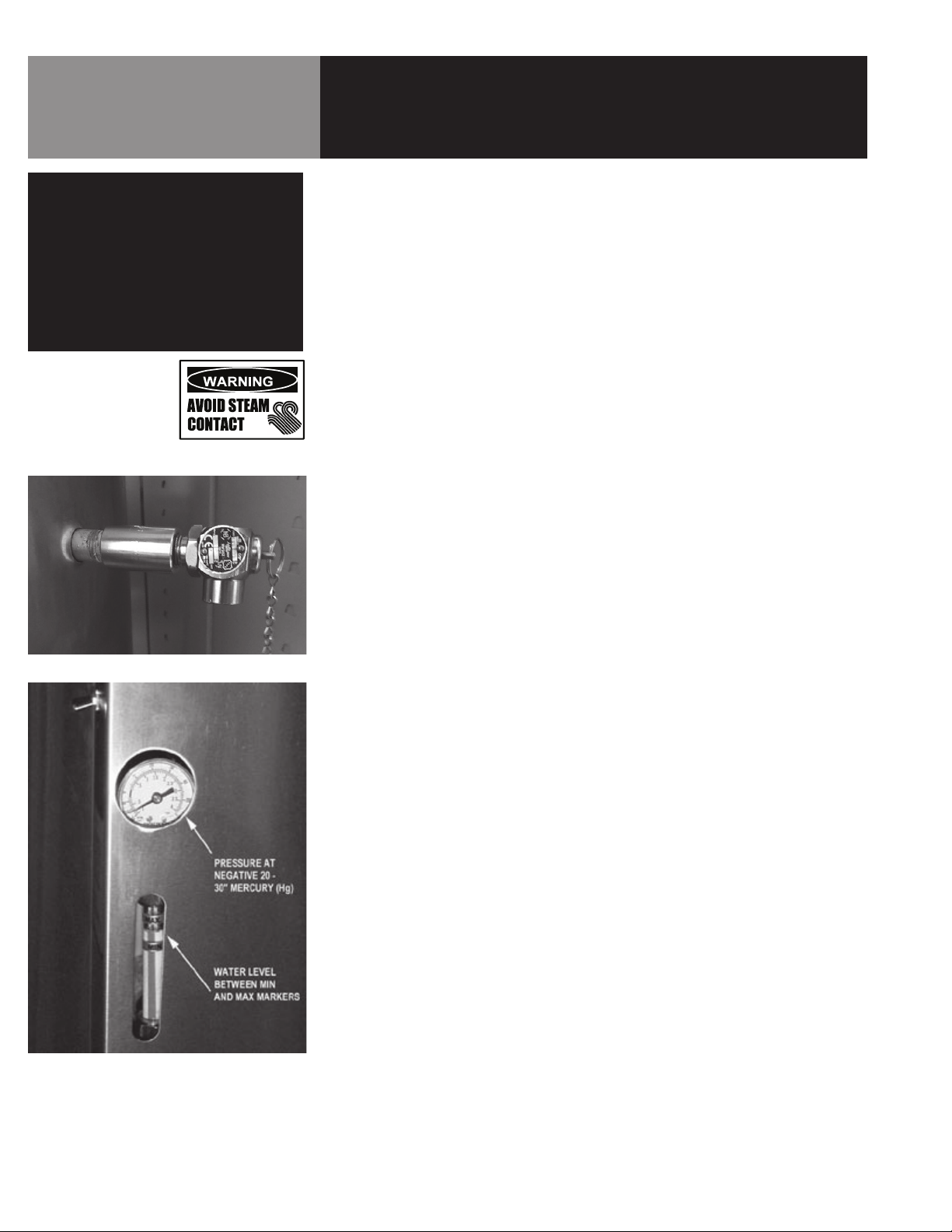

b. Check the pressure/vacuum gauge. If the gauge does not show 20
to 30 inches of vacuum (i.e. a reading of 20 to 30 below zero), see
Jacket Vacuum in the Maintenance section of this manual.
c. DO NOT attempt to light any burner with a flame.
d. Open main supply gas valve (handle in line with the pipe).
e. Turn the toggle switch to ON. For 90 seconds, or until it succeeds, the
electronic ignition control will attempt to light the pilot.
f. Once the pilot is lit, turn the thermostat to the desired setting.
g. If the pilot does not light, turn it off and wait five minutes. At that time
follow the instructions for starting once again.
h. If the unit repeatedly fails to light, contact an authorized Service
Agency for assistance.
WARNING
ANY POTENTIAL USER OF THE EQUIPMENT
MUST BE TRAINED IN SAFE AND CORRECT
OPERATING PROCEDURES.
WARNING
KEEP AREA AROUND KETTLE FREE AND
CLEAR OF ALL COMBUSTIBLE MATERIALS.
DO NOT ATTEMPT TO LIGHT ANY
BURNER WITH A FLAME.
CAUTION
HEATING AN EMPTY KETTLE MAY
CAUSE THE RELEASE OF STEAM FROM
THE SAFETY VALVE.
WARNING
AVOID ALL DIRECT CONTACT WITH
HOT FOOD OR WATER IN THE KETTLE.
DIRECT CONTACT COULD RESULT IN
SEVERE BURNS. TAKE CARE TO AVOID
CONTACT WITH HOT KETTLE BODY OR HOT
PRODUCT. WHEN ADDING INGREDIENTS,
STIRRING OR TRANSFERRING PRODUCT
TO ANOTHER CONTAINER.

12 OM-AH-30
CAUTION
DO NOT OVERFILL THE KETTLE WHEN
COOKING, HOLDING OR CLEANING.
KEEP LIQUIDS AT LEAST 2-3” (5-8 cm)
BELOW THE KETTLE BODY RIM TO
ALLOW CLEARANCE FOR STIRRING,
BOILING PRODUCT AND SAFE TRANSFER.
Operation
2. To Stop Kettle Heating
a. Turn the thermostat dial to OFF.
b. Turn the toggle switch OFF.
c. For a prolonged shut-down:
1) Follow the procedure above.
2) Disconnect the unit’s electrical power.
3. To Relight Kettle
a. Close main gas supply valve.
b. Set ON/OFF switch to OFF.
c. Set thermostat to OFF.
d. Wait five minutes, then proceed as directed under To Start Kettle.
4. If electric power fails, do not attempt to operate the unit. When power is
restored, proceed as directed in To Start Kettle.
5. Basket Insert
a. An optional kettle basket insert set will assist in cooking water-boiled
products including eggs, potatoes, vegetables, shell fish, pasta and
rice. The nylon mesh liners must be used when cooking product
smaller than the mesh size of the basket, which is approximately 1/4”
(6 mm). This incudes rice and small pasta shapes.
b. Tips for use:
1) Allow for water displacement by the baskets and product to be
cooked. This may mean only filling the kettle half full of water.
Test the basket and product displacement with the kettle OFF,
and with cold water in the kettle.
2) Load baskets on a level, stable work surface.
3) Lift the loaded baskets with both hands. Get help from another
person if the basket is too heavy for safe handling.
4) Slowly lower product into the kettle.
5) When removing baskets with cooked product, lift basket straight
up, ensuring bottom of basket clears the rim and pouring lip of
the kettle. Wear protective oven mitts and protective apron. If
basket is too heavy for individual to lift and safely move, get
help from another person.
6) Allow hot water to fully drain from product, before moving
basket away from the kettle.
7) Remove product immediately from basket into another
container, being sure to avoid contact with hot product and hot
basket OR place basket with food on stable, flat surface, setting
it inside a solid steamer or bake pan, to catch any remaining hot
water draining from product.

OM-AH-30 13
Sequence of Operation
The following “action-reaction” outline is provided to help understand how the kettle
works.
1. When the power switch is turned on, it starts the spark igniter and opens the
automatic valve for the pilot burner. The spark ignites a pilot flame, which heats
the sensor. The sensor then sends a signal to turn off the spark. The flame
thereafter acts as a standing pilot until the power is turned off.
2. If the pilot flame is not sensed within 90 seconds after spark begins, a timer
shuts down the entire operation. To attempt a second trial for ignition, turn off
the power switch. Check the gas supply valves and wait five minutes before
trying again by switching power on. If you cannot establish a pilot flame in
four tries, close all valves, turn off the power, and contact an authorized Service
Agency.
3. When the operator sets a temperature on the thermostat, it causes the automatic
valve to admit gas to the main burner, where it is ignited by the pilot flame.
When the kettle reaches the set temperature, the thermostat switch opens. This
stops the signal to the gas control valve and shuts off gas to the main burner.
The pilot flame stays lit.
4. When the kettle cools below the set temperature, the thermostat switch closes
and start another cycle. On and off cycling continues and maintains the kettle at
the desired temperature. This action is indicated by the Heat Indicator light.
The kettle has the following safety features in addition to the 90-second ignition timer:
1. Low water cutoff relay that will shut off gas supplies to all burners until the
jacket water level is corrected.
2. High limit pressure switch, set to open at about 26 PSI and to shut down the
burners until jacket pressure is decreased.
3. Pressure relief safety valve, which will release steam if jacket pressure exceeds
30 PSI.
4. Gas pressure regulator built into the gas control valve.

14 OM-AH-30
Cleaning
A. Suggested Cleaning Supplies
1. A high quality detergent and sanitizer, or a combination cleaning-
sanitizing agent.
2. Kettle brushes in good condition.
3. Spray Degreaser.
4. De-limer/De-scaler.
5. A high quality stainless steel cleaner.
B. Precautions
Before any cleaning operation, shut off the kettle by turning the thermostat dial
to “OFF”, the ON/OFF switch to OFF, and shut off all electric power to the unit at
a remote switch, such as the circuit breaker.
C. Procedure
1. Clean food contact surfaces as soon as possible after use, preferably while
the kettle is still warm. If the unit is in continuous use, clean and sanitize
inside and outside at least once every 24 hours.
2. Scrape and flush out large amounts of food residues. Be careful not to
scratch the kettle with metal implements. Close the draw-off.
3. Prepare a solution of the detergent/cleaning compound as instructed by the
supplier. Clean the unit thoroughly. A cloth moistened with cleaning solu-
tion can be used to clean controls, housing, electrical conduit, etc.
4. Rinse the kettle thoroughly with hot water. Then drain completely.
5. Disassemble the tangent draw-off valve. Clean the draw-off port and each
valve part with a brush.
6. Rinse the kettle and draw-off valve parts thoroughly with hot water, then
drain completely.
7. When you reassemble the draw-off valve, HAND-TIGHTEN the nut which
holds it in place.
8. As part of the daily cleaning program, clean soiled external and internal
surfaces. Remember to check the sides of the unit and control housing.
9. To remove burned-on foods, use a brush, sponge, cloth, plastic or rubber
scraper, or plastic wool along with the cleaning solution. To reduce effort
required in washing, let the detergent solution sit in the kettle for a few
minutes and soak into the residue. Do NOT use abrasive materials or metal
tools that might scratch the surface. Scratches make the surface harder to
clean and provide places for bacteria to grow. Do not use steel wool, which
will leave particles in the surface and cause eventual corrosion and pitting.
10. The outside of the unit may be polished with a recognized stainless steel
cleaner.
WARNING
KEEP WATER AND SOLUTIONS OUT OF
CONTROLS AND ELECTRICAL EQUIPMENT.
DO NOT USE A HIGH PRESSURE HOSE TO
CLEAN THE CONTROL CONSOLE,
ELECTRICAL CONNECTIONS, ETC.
CAUTION
NEVER LEAVE A CHLORINE SANITIZER
IN CONTACT WITH STAINLESS STEEL
SURFACES FOR LONGER THAN 30
MINUTES. LONGER CONTACT CAN
CAUSE CORROSION.
CAUTION
MOST CLEANERS ARE HARMFUL TO THE
SKIN, EYES, MUCOUS MEMBRANES AND
CLOTHING. PRECAUTIONS SHOULD BE
TAKEN TO WEAR RUBBER GLOVES,
GOGGLES OR FACE SHIELD AND
PROTECTIVE CLOTHING. CAREFULLY
READ THE WARNINGS AND FOLLOW
LABEL DIRECTIONS.
When attaching the draw-off
valve, just hand-tighten the nut.

OM-AH-30 15
11. When the equipment needs to be sanitized, use a sanitizing solution
equivalent to one that supplies 200 parts per million chlorine. Obtain
advice on the best sanitizing agent from your supplier of sanitizing
products. Following the suppliers instructions, apply the sanitizing agent
after the unit has been cleaned and drained. Rinse off the sanitizer
thoroughly.
12. It is recommended that each piece of equipment be sanitized just before
use.
13. If there is difficulty removing mineral deposits or a film left by hard water
or food residues, clean the kettle thoroughly and then use a deliming
agent, in accordance with the manufacturer’s directions. Rinse and drain
the unit before further use.
14. If cleaning problems persist, contact your cleaning product supplier for
assistance. The supplier has a trained technical staff with laboratory
facilities to serve you.
Cleaning
CAUTION
NEVER LEAVE A CHLORINE SANITIZER
IN CONTACT WITH STAINLESS STEEL
SURFACES FOR LONGER THAN 30
MINUTES. LONGER CONTACT CAN
CAUSE CORROSION.
Use a brush, sponge, cloth, plastic or
rubber scraper, or plastic wool to clean.
Don’t use metal implements
or steel wool when cleaning.

16 OM-AH-30
Maintenance
NOTICE: Contact an authorized representative when repairs are required.
A Maintenance & Service Log is provided at the back of this manual. Each time
maintenance is performed on your kettle, enter the date on which the work was done,
what was done, and who did it. Keep this manual on file and available for operators to
use. Periodic inspection will minimize equipment down time and increase the efficiency of
operation. The following points should be checked:
A. Jacket Vacuum/Removing Air from Jacket
When the kettle is cold, a positive pressure reading on the pressure/vacuum gauge
or a reading near zero indicates that there is air in the jacket. Air in the jacket acts as
an insulator, and slows kettle heating.
To remove air:
1. Start the unit. (Be sure there is water or product in the kettle when heating).
2. When the pressure/vacuum gauge reaches a positive pressure reading of 5
PSI, release the trapped air and steam by pulling up or out on the safety
valve lever or ring for about 1 second. Repeat this step, then let the pull ring
or valve lever snap back into the closed position.
3. If there is little discharge (mostly air), and the pressure gauge drops back to 0
PSI, allow the pressure to build back to 5 PSI and repeat the procedure.
4. Once steam has been vented from the jacket as described in 2, remove the hot
water from the kettle and replace it with cold. This will condense steam in the
kettle jacket, and the pressure gauge should show a reading of 20 to 30 inches
mercury (Hg) below zero. If it does not, or if the vacuum is leaking down,
contact an authorized service agency.
B. Test Pressure Relief Safety Valve
Test the pressure relief safety valve at least twice each month. With the kettle
operating at 5 PSI (105 kPa), pull the test lever and let it snap back to its closed
position. If there is little discharge (mostly air), and the pressure gauge drops back
to 0 PSI, allow the pressure to build back to 5 PSI and repeat the procedure. (Tip:
Using a will screwdriver or other implement to pull the ring help you avoid contact
with the steam.)
C. Jacket Filling
Every day, before you turn on the unit, make sure the water level is approximately
in the center of the water gauge glass. The jacket was filled at the factory with the
proper amount of treated water, and is air-tight, but over time steam may be vented
and water lost.
From time to time, you may need to restore the water to its proper lever either
because it was lost as venting steam or by draining. If you are replacing water lost
as steam, use distilled water. If you are replacing treated water that ran out of the
jacket, prepare more treated water as directed in Water Treatment Procedure on next
page.
WARNING
WHEN USING THE EQUIPMENT OR
TESTING, AVOID ANY EXPOSURE TO THE
STEAM BLOWING OUT OF THE SAFETY
VALVE. SEVERE BURNS CAN RESULT
ON EXPOSED SKIN. FAILURE TO CHECK
SAFETY VALVE OPERATION PERIODICALLY
COULD RESULT IN PERSONAL INJURY
AND/OR DAMAGE TO EQUIPMENT.

OM-AH-30 17
Maintenance
C. Jacket Filling
Every day, before you turn on the unit, make sure the water level is approximately
in the center of the water gauge glass. The jacket was filled at the factory with the
proper amount of treated water, and is air-tight, but over time steam may be vented
and water lost.
From time to time, you may need to restore the water to its proper lever either
because it was lost as venting steam or by draining. If you are replacing water lost
as steam, use distilled water. If you are replacing treated water that ran out of the
jacket, prepare more treated water as directed in Water Treatment Procedure on next
page.
Allow the kettle to cool completely. The procedure will be easier with the kettle
under vacuum (pressure gauge reading below zero).
1. Remove pressure gauge with open-ended wrench or cresent wrench.
2. Position a funnel in the opening and fill it with properly treated water.
3. Pull the pressure relief while filling to allow water to be sucked into the jacket
and air to vent.
4. Check water level in the jacket to ensure that it is between minimum and
maximum marks on glass.
5. Apply teflon tape to pressure gauge threads in a clockwise pattern, then install.
6. Reestablish the jacket vacuum as described above. If the pressure gauge does
not show a negative reading of 20 to 30 inches mercury (Hg).
D. Water Treatment
1. Fill a mixing container with the amount of water required. Use only distilled water.
2. Following instructions apply to Water Treatment Kit.
a. Hang a strip of pH test paper on the rim of the container, with about 1
inch of the strip below the surface of the water.
b. Stir the water continuously while you slowly add water treatment
compound until a color between indicating a pH of 10.5 and 11.5 is
reached. (Shown on the pH test kit chart.) Judge the pH by frequently
comparing the test strip with the color chart provided in the kit.
c. Use a measuring cup to add the compound so that you may record the
exact amount used.
d. The amount may be used again if the same water sources and
compound are used in the future. However, it is best to check the pH
each time treated water is prepared.
WARNING
TO AVOID INJURY, READ AND FOLLOW ALL
PRECAUTIONS STATED ON THE LABEL OF
THE WATER TREATMENT COMPOUND.
Kettle
Capacity
Jacket
Capacity
30 Gallon
(113 liter)
7 Gallon
(26.5 liter)

18 OM-AH-30
Troubleshooting
Your kettle is designed to operate smoothly and efficiently if properly maintained. However, the following is a list of checks to make
in the event of a problem. Wiring diagrams are furnished inside the service panel and in this manual. If an item on the list is
followed by x, the work should be done by a qualified service representative.
SYMPTOM WHO WHAT TO CHECK
X indicates items which must be performed by an authorized technician.
Kettle continues heating
after it reaches the desired
temperature.
User a. Thermostat dial setting.
Auth Service
Rep Only
b. Thermostat calibration.
c. Thermostat operation. The thermostat should click when the
dial is rotated above and below the setting for the
temperature of the kettle. X
Kettle stops heating before
it reaches the desired
temperature.
User a. Thermostat dial setting.
Auth Service
Rep Only
b. Thermostat calibration. X
c. Thermostat operation. Thermostat should click when the
dial is rotated above and below the setting for the
temperature of the kettle. X
Safety valve pops open. User a. For air in the jacket. See “Jacket Vacuum” in the Maintenance section.
b. Thermostat dial setting.
Auth Service
Rep Only
c. For defective thermostat. The thermostat should click when the dial
is rotated to settings above and below the temperature of the kettle. If
defective, replace. X
d. For defective safety valve. If the valve pops at pressures below 29
PSI, replace. X
Burners will not light. User a. That the main gas supply valve is open. (handle is in line with the gas
pipe).
b. Gas supply to the building.
Auth Service
Rep Only
c. Thermostat operation. The thermostat should click when the dial is
rotated to settings above and below the temperature of the kettle. X
System does not produce
a spark.
Auth Service
Rep Only
a. AC voltage between terminals on secondary side of transformer with
unit power turned on. If it is not 24 Volt, replace the transformer. X
b. That the high tension cable is firmly attached and in good condition. If
cracked or brittle, replace. X
c. Pilot burner ceramic insulator for crack or break. X
d. Pilot spark gap. Regap. X
Spark is present but the
pilot will not light.
Auth Service
Rep Only
a. That the pilot valve is securely connected to terminals. X
b. For 24 VAC at terminals PV and PV/MV. If 24V is not present, replace
the ignition control module. X
b. That gas pressure is at least 3.5” W.C.(8.7818 􀀁b).􀀁
c. For gas at the pilot. If it is not flowing:
(1) Check the pilot gas line for kinks and obstructions. X
(2) Clean orifice, if necessary. X
(3) Check magnetic operator for pilot valve on gas valve. Repair or
replace as necessary. X
d. That the pilot spark gap is located in the pilot gas stream. If not,
adjust or replace the pilot burner. X
e. For drafts. Shield the pilot burner, if necessary. X
WARNING
USE OF ANY REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED BY AN AUTHORIZED SUPPLIER/DISTRIBUTOR
WILL VOID ALL WARRANTIES AND COULD INJURE THE OPERATOR OR DAMAGE THE EQUIPMENT.

OM-AH-30 19
Troubleshooting
SYMPTOM WHO WHAT TO CHECK
X indicates items which must be performed by an authorized technician.
Pilot lights, but main
burner will not come on
and spark does not stay
on.
Auth Service
Rep Only
a. For 24 V between terminals MV and PV/MV while pilot is burning. If
24V is not present, replace the ignition control module. X
b. That gas pressure is at least 3.5” W.C.(8.7818 􀀁b). X
c. Electrical connections of the main valve to terminals, to assure that
they are securely attached. Check magnetic operator for main valve on
gas valve. Repair or replace as necessary. X
Pilot lights, but main
burner will not come on,
the spark stays on.
Auth Service
Rep Only
a. Check for bad burner ground. If necessary, repair with high
temperature wire. X
b. Pilot burner ceramic insulator for cracks. X
c. That cable is not grounded out. If it is, correct the ground-out
condition or replace cable. X
d. For proper gas pressure. X
e. Clean pilot assembly, or replace if necessary. X
f. Tighten all mechanical and electrical connections. X
g. If the pilot flame is weak, increase pilot orifice size. X
h. Replace ignition control module. X
Main burner comes on but
will not stay on.
Auth Service
Rep Only
a. Check burner ground for bad wire or connection. Replace if necessary
with high temperature wire. X
b. Check for low gas supply pressure. If necessary, replace ignition
control module. X

20 OM-AH-30
Parts List
Stationary Gas Kettle
Key Description Part No.
AHARDWARE ASM 30-GALLON
SPARK IGNITION 117095
BRACKET, GAS MANIFOLD 1/8 X
1 X 15-3/4” LG 002006
NAMEPLATE CLASS II 1” X
4-1/2” LONG 003479
HINGE, SPRING LOADED 18 GA
X 1 X 1-1/4” 004114
CLAMP BAR PIPE 1/4” X 1 X
4-1/2” LG WITH STUD 004568
DOOR INSULATED PILOT LIGHT
ASSEMBLY 008201
PLATE, CAUTION 1-3/8 X 2-1/4” 008350
CHAIN SINGLE, JACK LINK #16
600” LONG 009009
SCREW, SHEET METAL PAN HD
#12 X 1/2” LG 008769
BRACKET, FAUCET MOUNTING
16 GA X 4-3/4” 009054
DIVERTER, DRAFT 6”,
30-GALLON 012474
NUT HEX KEPS 1/4”-20 W/
SHAKEPROOF WASHER 012940
NAMEPLATE, LARGE 055450
LABEL, WARRANTIES VOID 059201
LABEL, WARNING 093614
B COVER POWER AID ASSEMBLY 047693
C POT INNER ASSEMBLY -
D TDO KIT -
NUT, WING #10-24 FOR 1-1/2”
& 2” 009028
HANDLE, 3” DIA SANITARY &
TDO VALVE 127452
STRAINER ASSEMBLY 9” DIA,
1/4” HOLES FOR 2” 009044
HANDLE, SANITARY 170061
