Grohe F-digital User manual

grohe.com Page 1
Grohe Ltd.
Blays House
Wick Road
Engleeld Green
Egham, Surrey
TW20 0HJ
Tel. [phone]
Fax [phone]
E-mail: [e-mail]
For more information on our award-winning designs
go to www.grohe.co.uk
10/2012 - Copyright by GROHE
GROHE
F-DIGITAL
USER MANUAL
Follow us

UNIDOMO®
www.unidomo.de
04621- 30 60 89 0
[email protected]
Mo.-Fr. 8:00-17:00 Uhr
a member of DAIKIN group
  
  
  

grohe.com Page 3
GROHE
F-DIGITAL
Precision control, the perfect temperature and the luxury of starting your shower with a single touch;
GROHE F-digital will change your perception of basin mixers and showers. The collection hails a new era in
bathroom design and technology by introducing a range of hybrid products, which combine the best
of wireless digital technology with highly-intuitive press and turn operation.
Experience comfort like never before, with intelligent features such as the warm-up mode and memory
function. Amplify your GROHE SPA™ bathing experience with GROHE F-digital: Wireless Control.
Right on the Button.
SAFETY INFORMATION
Before using your digital shower, it is important that you understand how to operate the digital controller
and digital diverter and that they are maintained in accordance with the instructions given in this manual.
Skin conditions and sunburn can increase your sensitivity to hot water. The skin of children and the elderly
is also more sensitive than that of an adult.

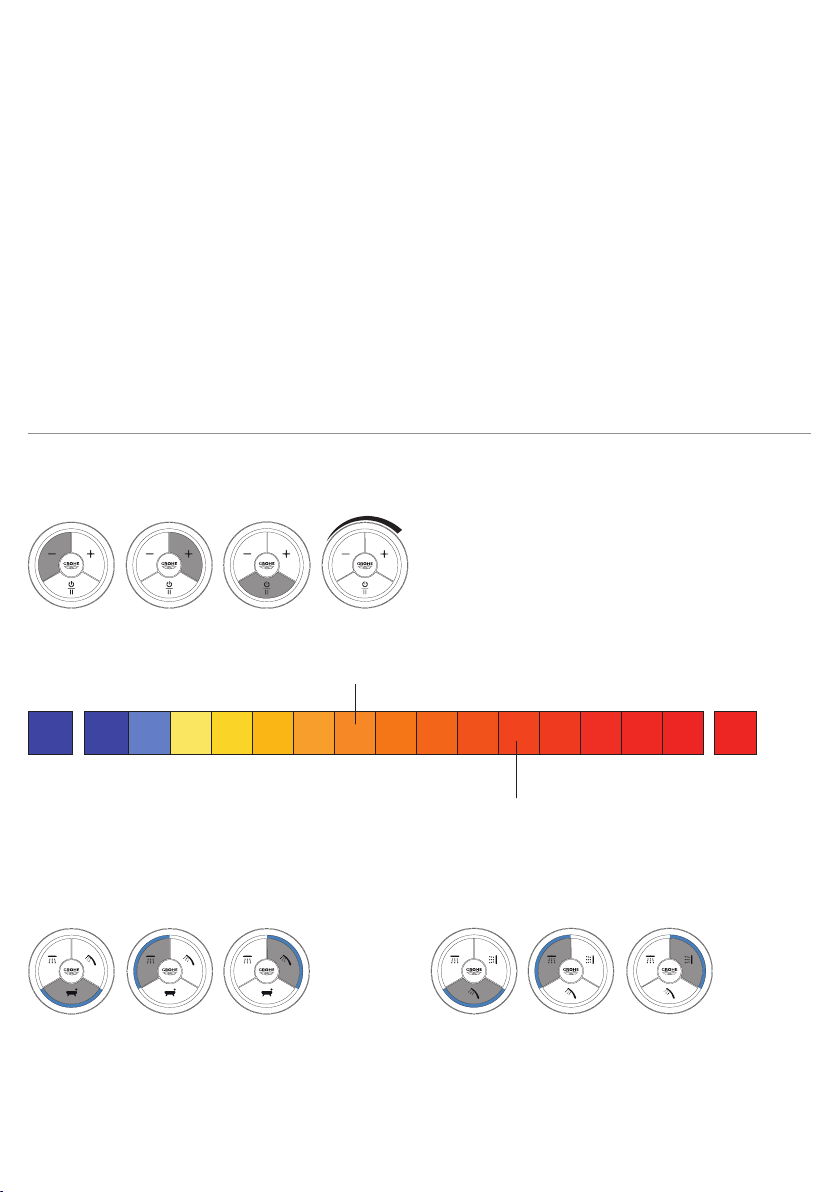

SHOWERBATH
Press the specic symbol to activate/deactivate
the desired outlet.
The illuminated segment indicates the chosen
water outlet.
The outlets can be selected separately or in parallel.
DIGITAL DIVERTER
SELECTION OF WATER OUTLETS
DIGITAL CONTROLLER
SELECTION OF WATER FLOW & TEMPERATURE
Bath spout
Decrease
Temperature
Increase
Temperature
Hand showerHead shower Head shower
Hand shower
Power/Pause Water Flow
Adjustment
Side shower

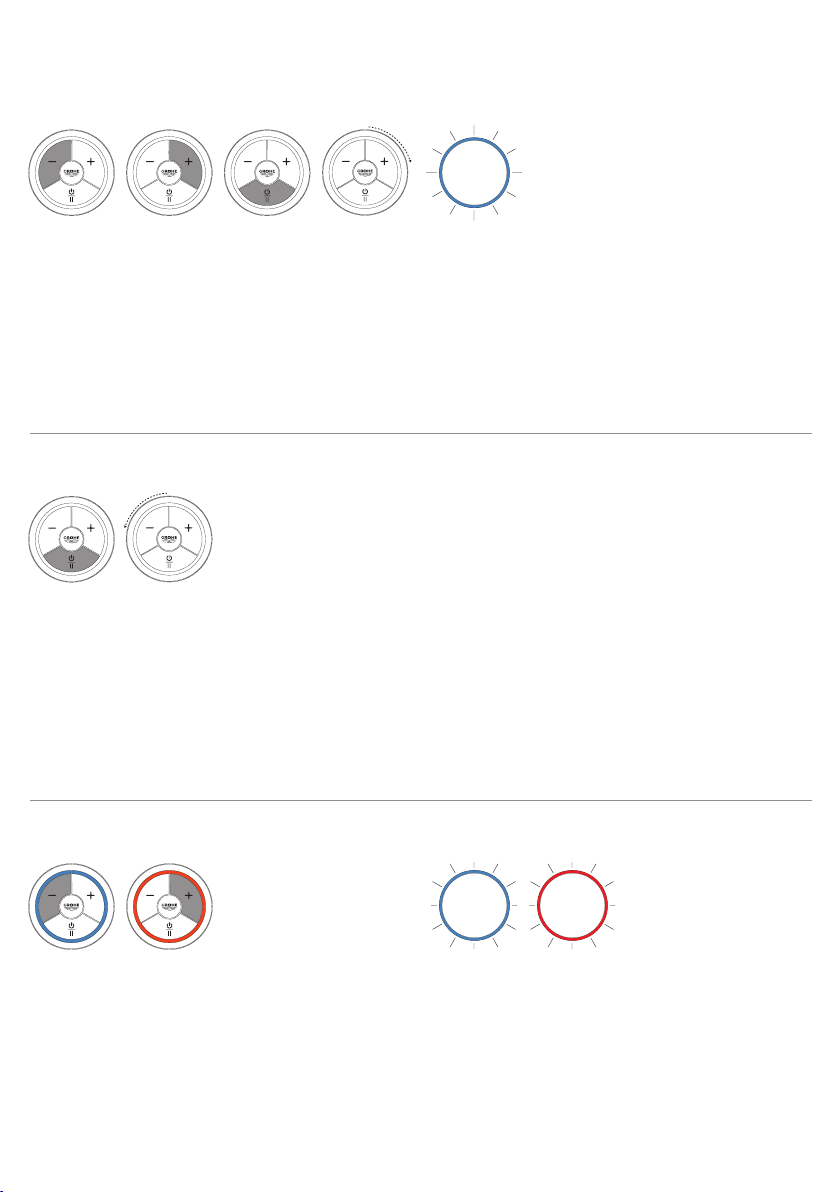

DIGITAL CONTROLLER
Press “-” or “+” or “power/pause”
or turn the outer ring clockwise.
Current temperature is displayed by the
illuminated ring colour.
Press “power/pause” or turn the outer ring
counter-clockwise until the water ow stops.
Fittings switch off automatically according
to set timing. To adjust the timer, see page 6.
POWER ON
POWER OFF
TEMPERATURE ADJUSTMENT
Press “-” to decrease temperature.
Press “+” to increase temperature.
Water temperature is indicated by the illuminated
ring colour. If the Min./Max. temperature is selected,
the illuminated ring ashes three times (only basin
and sink mixers).
3x 3x
Min. Max.
464442403836342823
SafeStop (bath & shower)
TEMPERATURE
35 37 39 41 43 45min. max.
SafeStop (basin & sink mixers)

grohe.com Page 3
GROHE
F-DIGITAL
Precision control, the perfect temperature and the luxury of starting your shower with a single touch;
GROHE F-digital will change your perception of basin mixers and showers. The collection hails a new era in
bathroom design and technology by introducing a range of hybrid products, which combine the best
of wireless digital technology with highly-intuitive press and turn operation.
Experience comfort like never before, with intelligent features such as the warm-up mode and memory
function. Amplify your GROHE SPA™ bathing experience with GROHE F-digital: Wireless Control.
Right on the Button.
SAFETY INFORMATION
Before using your digital shower, it is important that you understand how to operate the digital controller
and digital diverter and that they are maintained in accordance with the instructions given in this manual.
Skin conditions and sunburn can increase your sensitivity to hot water. The skin of children and the elderly
is also more sensitive than that of an adult.
SHOWERBATH
Press the specic symbol to activate/deactivate
the desired outlet.
The illuminated segment indicates the chosen
water outlet.
The outlets can be selected separately or in parallel.
DIGITAL DIVERTER
SELECTION OF WATER OUTLETS
DIGITAL CONTROLLER
SELECTION OF WATER FLOW & TEMPERATURE
Bath spout
Decrease
Temperature
Increase
Temperature
Hand showerHead shower Head shower
Hand shower
Power/Pause Water Flow
Adjustment
Side shower
DIGITAL CONTROLLER
Press “-” or “+” or “power/pause”
or turn the outer ring clockwise.
Current temperature is displayed by the
illuminated ring colour.
Press “power/pause” or turn the outer ring
counter-clockwise until the water ow stops.
Fittings switch off automatically according
to set timing. To adjust the timer, see page 6.
POWER ON
POWER OFF
TEMPERATURE ADJUSTMENT
Press “-” to decrease temperature.
Press “+” to increase temperature.
Water temperature is indicated by the illuminated
ring colour. If the Min./Max. temperature is selected,
the illuminated ring ashes three times (only basin
and sink mixers).
3x 3x
Min. Max.
464442403836342823
SafeStop (bath & shower)
TEMPERATURE
35 37 39 41 43 45min. max.
SafeStop (basin & sink mixers)

grohe.com Page 5

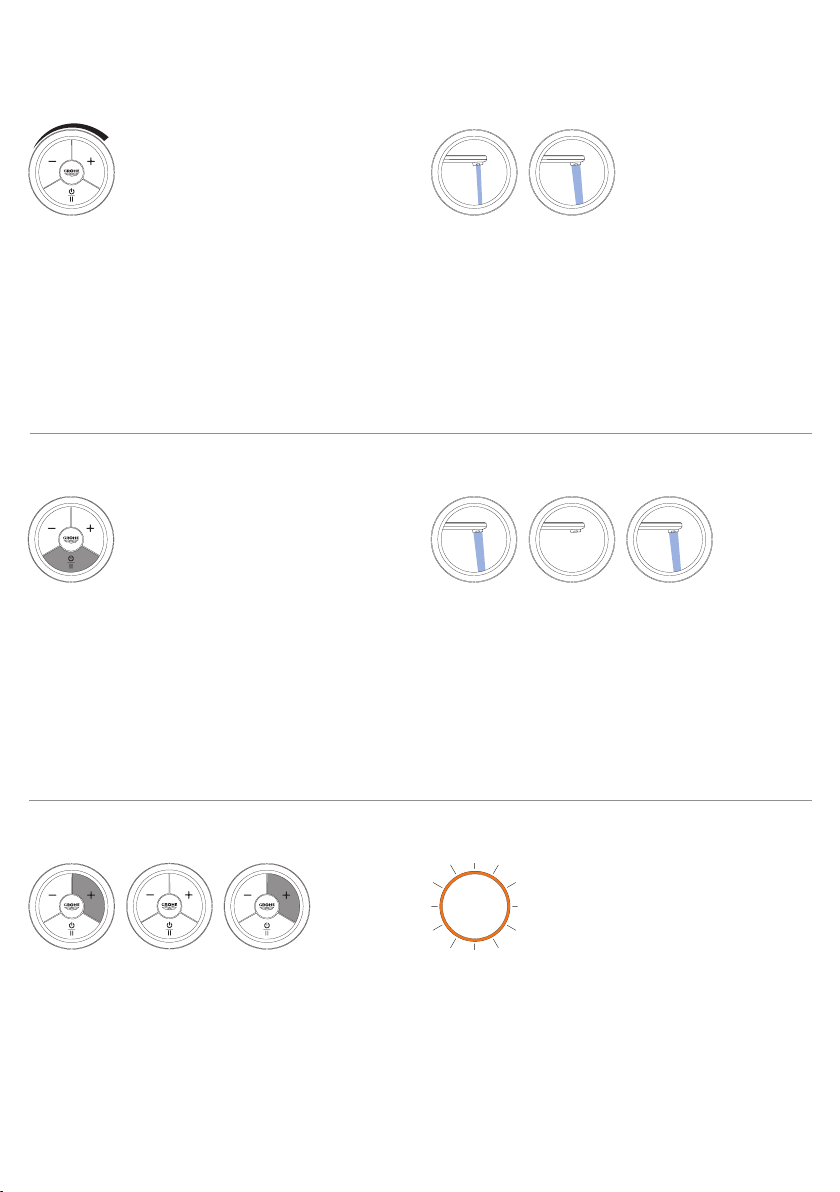

Turn outer ring clockwise to increase the water ow
or counter-clockwise to decrease it.
WATER FLOW ADJUSTMENT
Press “power/pause” while the water is running.
If pressed again within 30 sec water ow will
re-start with the same ow rate and temperature.
PAUSE FUNCTION
SAFESTOP FUNCTION
Your preferred combination of temperature and
owrate can be saved and recalled every time the
faucet or shower is switched on.
Press and hold “power/pause” for 2-4 sec while
the water is running.
Conrmation is indicated by the illuminated ring
and a short interruption of the water ow.
For safety reasons, the max. temperature
which can be saved is 40° C (bath and shower)
or 42° C (basin and sink mixers).
MEMORY FUNCTION
2-4 sec
A safety lock is set at 38° C (bath and shower) or
42°C (only basin and sink mixers) to protect from
scalding.
To further increase the temperature press “+”
for 1 sec, release and press “+” again for 1 sec.
The safety lock is indicated by ashing of
illuminated ring - colour according to SafeStop
temperature.
The SafeStop lock can be adjusted to max. 40° C
(only bath and shower).
1 sec 1 sec
° C
3x
The Warm-Up Mode indicates when the pre-set
temperature is reached (only bath and shower).
Press and hold “power/pause” for 2-4 sec
to start the shower with “Warm-Up Mode”.
By activating the Warm-Up the illuminated ring
ashes three times.
When the pre-set temperature is reached the
illuminated ring ashes and the water ow stops.
Press “power/pause” or “-” or “+” again to start
the shower.
The function stops automatically after 2 minutes.
WARM-UP MODE
2-4 sec
Prevents accidental switch-on during the cleaning
process by blocking all operating units.
Press and hold “power/pause” and “-” for
2-4 sec while the Digital Controller is switched
off to activate the “Cleaning Service Mode”.
Conrmation that the Cleaning Service Mode
is activated/deactivated is indicated by the
illuminated ring.
Automatic un-lock after 2 min or press and hold
“power/pause” and “-” for 2-4 sec.
CLEANING SERVICE MODE
2-4 sec 2-4 sec
3x
3x 3x

grohe.com Page 5
Turn outer ring clockwise to increase the water ow
or counter-clockwise to decrease it.
WATER FLOW ADJUSTMENT
Press “power/pause” while the water is running.
If pressed again within 30 sec water ow will
re-start with the same ow rate and temperature.
PAUSE FUNCTION
SAFESTOP FUNCTION
Your preferred combination of temperature and
owrate can be saved and recalled every time the
faucet or shower is switched on.
Press and hold “power/pause” for 2-4 sec while
the water is running.
Conrmation is indicated by the illuminated ring
and a short interruption of the water ow.
For safety reasons, the max. temperature
which can be saved is 40° C (bath and shower)
or 42° C (basin and sink mixers).
MEMORY FUNCTION
2-4 sec
A safety lock is set at 38° C (bath and shower) or
42°C (only basin and sink mixers) to protect from
scalding.
To further increase the temperature press “+”
for 1 sec, release and press “+” again for 1 sec.
The safety lock is indicated by ashing of
illuminated ring - colour according to SafeStop
temperature.
The SafeStop lock can be adjusted to max. 40° C
(only bath and shower).
1 sec 1 sec
° C
3x
The Warm-Up Mode indicates when the pre-set
temperature is reached (only bath and shower).
Press and hold “power/pause” for 2-4 sec
to start the shower with “Warm-Up Mode”.
By activating the Warm-Up the illuminated ring
ashes three times.
When the pre-set temperature is reached the
illuminated ring ashes and the water ow stops.
Press “power/pause” or “-” or “+” again to start
the shower.
The function stops automatically after 2 minutes.
WARM-UP MODE
2-4 sec
Prevents accidental switch-on during the cleaning
process by blocking all operating units.
Press and hold “power/pause” and “-” for
2-4 sec while the Digital Controller is switched
off to activate the “Cleaning Service Mode”.
Conrmation that the Cleaning Service Mode
is activated/deactivated is indicated by the
illuminated ring.
Automatic un-lock after 2 min or press and hold
“power/pause” and “-” for 2-4 sec.
CLEANING SERVICE MODE
2-4 sec 2-4 sec
3x
3x 3x

grohe.com Page 7

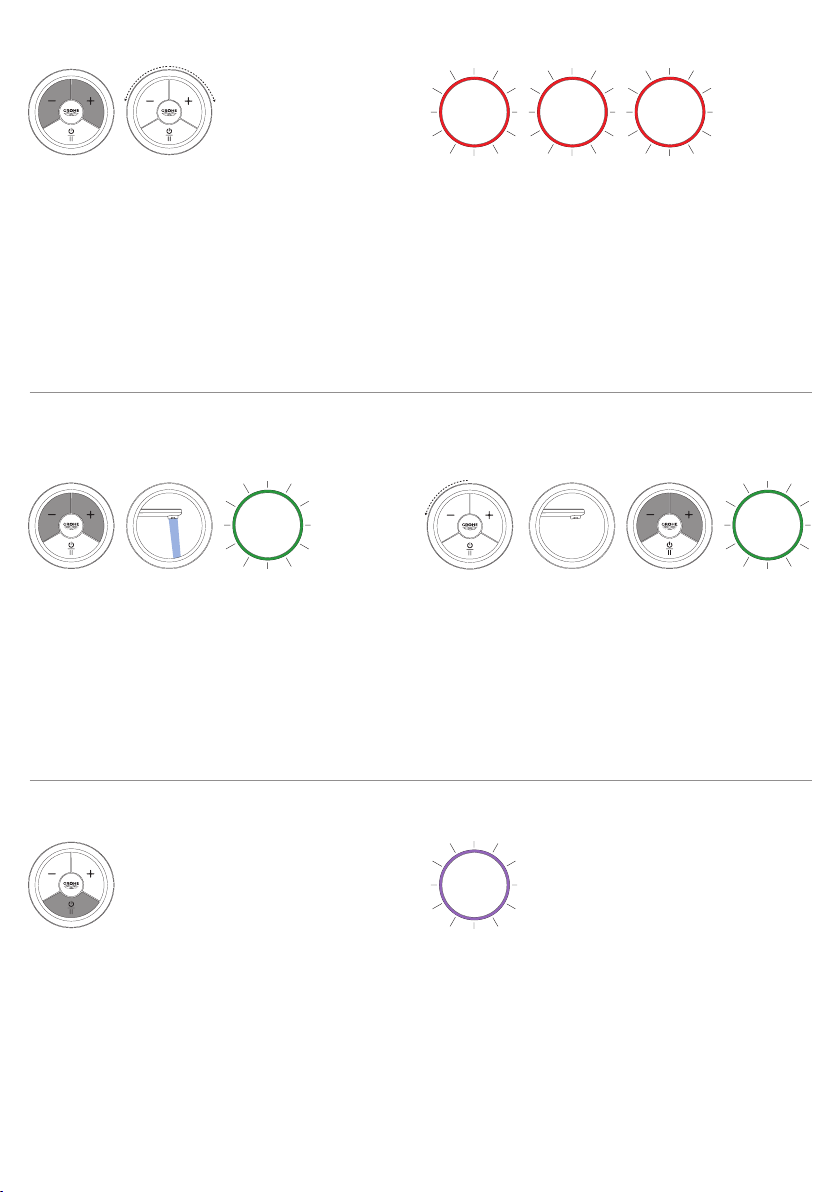

ENTER AND SELECT THE FUNCTION MENU
2-4 sec
The “Function Menu” contains the following
submenu
F1 – “Automatic lling/safety shut-off”
F2 – “Calibration”
F3 – “Controller & Diverter Log-On”
F2 and F3 are for use by a Service Engineer only.
Press and hold “+” and “-” for 2-4 sec to enter
the “Function Menu” while the Digital Controller
is switched off. Turn the outer ring to select the
specic function.
Timeout function ensures menu drop out
after 3 min.
CHANGE AND SAVE SETTING OF F1
AUTOMATIC FILLING/SAFETY SHUT-OFF
The time after the faucet/shower switches off
automatically can be changed.
Enter the function menu and select F1 as
described above. Press “+” and “-” to conrm.
The timer and water ow start automatically after
conrmation.
Turn the outer ring to select the outlet (only bath
and shower) and conrm with “+” and “-”.
CHANGE AND SAVE THE SETTING
Turn the outer ring counter-clockwise to stop the
timer. To re-start the timer, turn the outer ring
clockwise. Press “+” and “-” to save and leave
the menu.
All digital ttings are adjusted to the following parameter
Cold water supply: 15° C I Hot water supply: 65° C I Pressure: 3 bar
FACTORY SETTINGS (DEFAULT)
CONTACT GROHE
Digital basin mixer Digital sink mixer Digital bath & shower
Flow rate 3/4 of max. volume 3/4 of max. volume 3/4 of max. volume
Temperature 23° C 23° C 37° C
Max. Temperature 56° C 56° C 46° C / US: 42° C
SafeStop 42° C 42° C 38° C
Automatic lling/
safety shut-off 1 min. 1 min. 20 min.
CARE INSTRUCTIONS
Please read the following care instructions because
damage to the surface and underlying material
resulting from improper treatment is not covered
by warranty.
Do not use any abrasive sponges or scouring
agents for cleaning. We also advise you not to use
cleaning agents containing solvent or acid, limescale
removers, household vinegar and cleaning agents
with acetic acid in them. They are aggressive to the
surface and will leave your fitting dull and scratched.
As the formulations of commercially available
cleaning agents frequently change, we cannot
guarantee they will provide the gentle care our
fittings deserve.
Clean the fitting with a little soap and a moist cloth
only, then simply rinse off and wipe dry. You can
avoid lime spots by drying the fitting each time it is
used. If lime deposits do occur, remove them with
GrohClean, our environmentally-friendly cleaning
liquid. GrohClean is specially formulated to clean the
surface of our fittings gently. GrohClean is available
from your supplier.
technicalsupport[email protected]
Low battery capacity is indicated by a shorter display duration of the illuminated ring.
Battery type: 3x CR2450 (3V)
Only use new batteries of same make and type. Do not use rechargeable batteries.
REPLACING THE BATTERIES
Make sure the control
unit is dry before
removing.
Pull the Digital Control
Unit to remove it from
the xation plate.
Use a coin to turn the
back plate.
Remove the back plate. Replace all batteries.
F1
1x
F2
2x
F3
3x
3x
1x
LEAVE THE FUNCTION MENU
Press and hold “power/pause” for 2-4 sec
to leave the function menu.
Indication by illuminated ring if function menu has
been left.
2-4 sec
1x

grohe.com Page 7
ENTER AND SELECT THE FUNCTION MENU
2-4 sec
The “Function Menu” contains the following
submenu
F1 – “Automatic lling/safety shut-off”
F2 – “Calibration”
F3 – “Controller & Diverter Log-On”
F2 and F3 are for use by a Service Engineer only.
Press and hold “+” and “-” for 2-4 sec to enter
the “Function Menu” while the Digital Controller
is switched off. Turn the outer ring to select the
specic function.
Timeout function ensures menu drop out
after 3 min.
CHANGE AND SAVE SETTING OF F1
AUTOMATIC FILLING/SAFETY SHUT-OFF
The time after the faucet/shower switches off
automatically can be changed.
Enter the function menu and select F1 as
described above. Press “+” and “-” to conrm.
The timer and water ow start automatically after
conrmation.
Turn the outer ring to select the outlet (only bath
and shower) and conrm with “+” and “-”.
CHANGE AND SAVE THE SETTING
Turn the outer ring counter-clockwise to stop the
timer. To re-start the timer, turn the outer ring
clockwise. Press “+” and “-” to save and leave
the menu.
All digital ttings are adjusted to the following parameter
Cold water supply: 15° C I Hot water supply: 65° C I Pressure: 3 bar
FACTORY SETTINGS (DEFAULT)
CONTACT GROHE
Digital basin mixer Digital sink mixer Digital bath & shower
Flow rate 3/4 of max. volume 3/4 of max. volume 3/4 of max. volume
Temperature 23° C 23° C 37° C
Max. Temperature 56° C 56° C 46° C / US: 42° C
SafeStop 42° C 42° C 38° C
Automatic lling/
safety shut-off 1 min. 1 min. 20 min.
CARE INSTRUCTIONS
Please read the following care instructions because
damage to the surface and underlying material
resulting from improper treatment is not covered
by warranty.
Do not use any abrasive sponges or scouring
agents for cleaning. We also advise you not to use
cleaning agents containing solvent or acid, limescale
removers, household vinegar and cleaning agents
with acetic acid in them. They are aggressive to the
surface and will leave your fitting dull and scratched.
As the formulations of commercially available
cleaning agents frequently change, we cannot
guarantee they will provide the gentle care our
fittings deserve.
Clean the fitting with a little soap and a moist cloth
only, then simply rinse off and wipe dry. You can
avoid lime spots by drying the fitting each time it is
used. If lime deposits do occur, remove them with
GrohClean, our environmentally-friendly cleaning
liquid. GrohClean is specially formulated to clean the
surface of our fittings gently. GrohClean is available
from your supplier.
[email protected]
Low battery capacity is indicated by a shorter display duration of the illuminated ring.
Battery type: 3x CR2450 (3V)
Only use new batteries of same make and type. Do not use rechargeable batteries.
REPLACING THE BATTERIES
Make sure the control
unit is dry before
removing.
Pull the Digital Control
Unit to remove it from
the xation plate.
Use a coin to turn the
back plate.
Remove the back plate. Replace all batteries.
F1
1x
F2
2x
F3
3x
3x
1x
LEAVE THE FUNCTION MENU
Press and hold “power/pause” for 2-4 sec
to leave the function menu.
Indication by illuminated ring if function menu has
been left.
2-4 sec
1x

grohe.com Page 1
Grohe Ltd.
Blays House
Wick Road
Engleeld Green
Egham, Surrey
TW20 0HJ
Tel. [phone]
Fax [phone]
E-mail: [e-mail]
For more information on our award-winning designs
go to www.grohe.co.uk
10/2012 - Copyright by GROHE
GROHE
F-DIGITAL
USER MANUAL
Follow us
