Grundfos CRE User manual

CRE, CRIE, CRNE, SPKE, MTRE, BMS
E-pumps with MGE Model K motor
Safety instructions and other important information
CRE, CRIE, CRNE, SPKE, MTRE,
BMS
Safety instructions
Other languages
http://net.grundfos.com/qr/i/92898130
GRUNDFOS INSTRUCTIONS

CRE, CRIE, CRNE, SPKE, MTRE, BMS
English (GB)
Safety instructions................................................6
Български (BG)
Инструкции за безопасност .......................................21
Čeština (CZ)
Bezpečnostní pokyny ............................................38
Deutsch (DE)
Sicherheitshinweise .............................................54
Dansk (DK)
Sikkerhedsanvisninger............................................72
Eesti (EE)
Ohutusjuhised .................................................87
Español (ES)
Instrucciones de seguridad........................................102
Suomi (FI)
Turvallisuusohjeet ..............................................119
Français (FR)
Consignes de sécurité ...........................................134
Ελληνικά (GR)
Οδηγίες ασφαλείας .............................................151
Hrvatski (HR)
Sigurnosne upute ..............................................168
Magyar (HU)
Biztonsági utasítások ...........................................183
Italiano (IT)
Istruzioni di sicurezza ...........................................200
Lietuviškai (LT)
Saugos nurodymai .............................................217
Latviešu (LV)
Drošības instrukcijas ............................................233
Nederlands (NL)
Veiligheidsinstructies ............................................249
Polski (PL)
Zasady bezpieczeństwa..........................................266
3
Table of contents

Português (PT)
Instruções de segurança .........................................283
Română (RO)
Instrucţiuni de siguranţă..........................................300
Srpski (RS)
Sigurnosna uputstva ............................................316
Русский (RU)
Указания по технике безопасности .................................332
Svenska (SE)
Säkerhetsinstruktioner...........................................350
Slovensko (SI)
Varnostna navodila .............................................366
Slovenčina (SK)
Bezpečnostné pokyny ...........................................381
Türkçe (TR)
  .............................................398
Українська (UA)
Інструкція з техніки безпеки ......................................415
中文 (CN)
安全指导 ....................................................432
日本語 (JP)
安全上の注意 .................................................445
한국어 (KO)
안전지침 ....................................................460
Қазақша (KZ)
Сақтық шаралары .............................................475
Norsk (NO)
Sikkerhetsinstruksjoner ..........................................492
(AR) 
  ...................................................507
Íslenska (IS)
Öryggisleiðbeiningar ............................................521
4CRE, CRIE, CRNE, SPKE, MTRE, BMS
Table of contents

Appendix A..................................................536
Appendix B..................................................537
China RoHS .................................................542
中国 微功率短距离设备声明 .......................................543
Declaration of conformity .......................................544
Declaration of conformity .......................................548
Declaration of conformity .......................................552
Declaration of conformity .......................................553
Declaration of conformity .......................................554
Declaration of conformity .......................................556
5
Table of contents

English (GB) Safety instructions
1. Original safety instructions
These safety instructions give a quick overview of the
safety precautions to be taken in connection with any
work on this product. Observe these safety
instructions during handling, installation, operation,
maintenance, service and repair of this product.
These safety instructions are a supplementary
document, and all safety instructions will appear
again in the relevant sections of the installation and
operating instructions. Keep these safety instructions
at the installation site for future reference.
2.2 Hazard statements
The symbols and hazard statements below may
appear in Grundfos installation and operating
instructions, safety instructions and service
instructions.
DANGER
Indicates a hazardous situation which, if
not avoided, will result in death or serious
personal injury.
WARNING
Indicates a hazardous situation which, if
not avoided, could result in death or
serious personal injury.
CAUTION
Indicates a hazardous situation which, if
not avoided, could result in minor or
moderate personal injury.
The hazard statements are structured in the following
way:
SIGNAL WORD
Description of the hazard
Consequence of ignoring the warning
• Action to avoid the hazard.
2.3 Notes
The symbols and notes below may appear in
Grundfos installation and operating instructions,
safety instructions and service instructions.
Observe these instructions for explosion-
proof products.
A blue or grey circle with a white graphical
symbol indicates that an action must be
taken.
A red or grey circle with a diagonal bar,
possibly with a black graphical symbol,
indicates that an action must not be taken
or must be stopped.
If these instructions are not observed, it
may result in malfunction or damage to the
equipment.
Tips and advice that make the work easier.
3.2 Intended use of the product
Only use the product according to the specifications
stated in the installation and operating instructions.

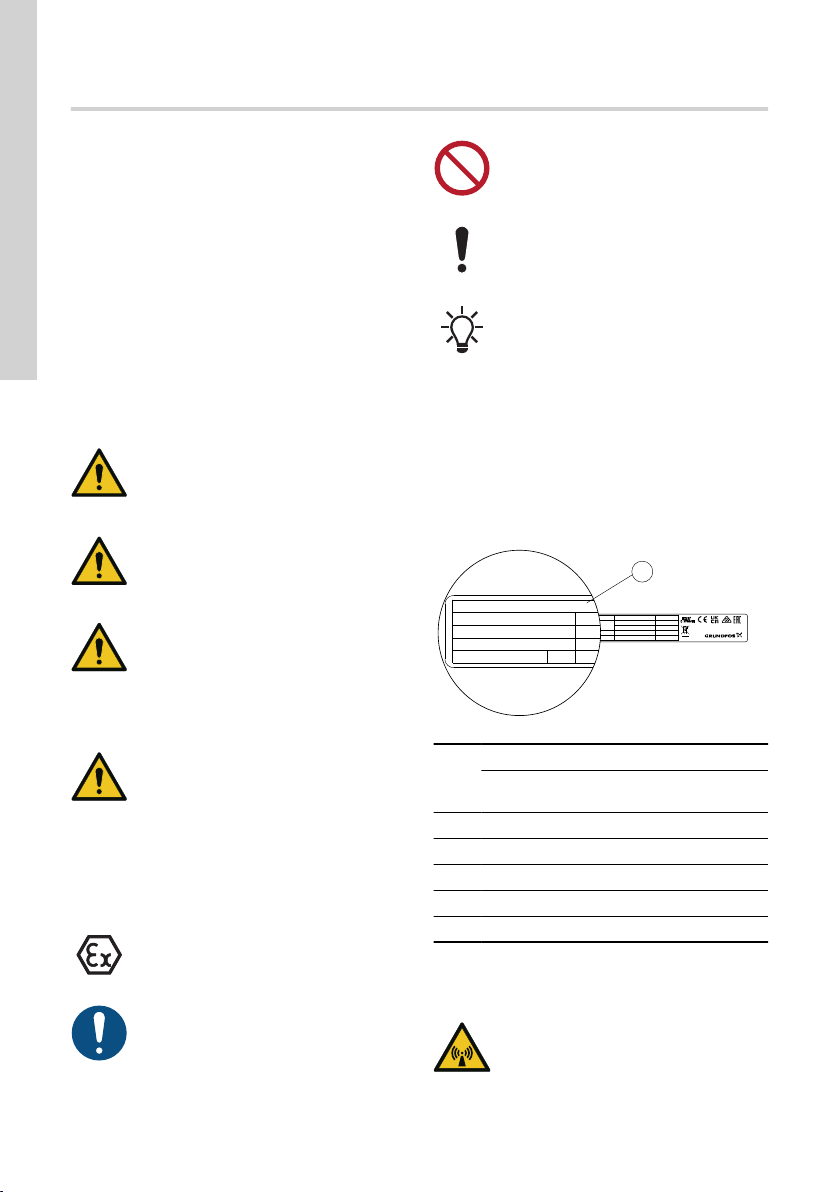

3.3.2 Identification of the motor model
Identify the motor by means of the nameplate on the
terminal box.
Model K
Env.
PF:
Tam
DE:
NDE:
Wgt: kg
Type:Type:MGE160A 2-FF300-KA
P.N.: -V OUTPUT Variant
V
Hz
A
P2: PB:
FM:
HMI:
CIM:
kW
rpm
%
n:
PDS Eff
xxxv:
98100448
IE5
IES2 Made in Hungary
DK-8850 Bjerringbro Denmark
KA
TM083907
Motor
[kW]
3 × 380-480 V 3 x 400-480 V
1450-2200
rpm
2900-4000
rpm
3500-4000
rpm
11 • - -
15 • • -
18.5 • • -
22 • • -
26 - - •
3.4 Radio module
CAUTION
Radiation
Minor or moderate personal injury
‐Locate the product at a minimum
distance of 20 cm from any body parts.
Human tissue may be heated by RF
energy.
6
English (GB)

Installers and end users must be provided
with these installation and operating
instructions and operating conditions for
satisfying RF exposure compliance.
The product incorporates a class 1 radio module for
remote control. You can use the module anywhere in
the EU without restrictions.
For installation in the USA and Canada, see the
appendix.
Via the built-in radio module, the product can
communicate with other MGE motors.
The product contains a class 1 radio.
Grundfos will support the product with
security updates for at least 2 years from
production of the unit.
3.5 Bluetooth
The product incorporates a Bluetooth (BLE) module
for remote control. You can use the module anywhere
in the EU without restrictions.
For installation in the USA and Canada, see the
appendix.
Via the built-in Bluetooth module, the product can
communicate with Grundfos GO.
The product contains a Bluetooth (BLE)
module. Grundfos will support the product
with security updates for at least 2 years
from production of the unit.
Bluetooth information
Frequency of operation 2400 - 2483.5 MHz
Modulation type GFSK
Data rate 2 Mbps
Transmit power 5 dBm EIRP with internal
antenna
GLoWpan information
Frequency of operation 2405-2480 MHz
Modulation type GP O-QPSK
Data rate 1 Mbps
Transmit power 5 dBm EIRP with internal
antenna
3.6 Battery
A Li-ion battery is fitted in the FM310 and
FM311 functional modules.
The Li-ion battery complies with the Battery Directive
(2006/66/EC). The battery does not contain mercury,
lead or cadmium.
WARNING
Intoxication or risk of chemical burn
Death or serious personal injury
‐The battery can cause severe or fatal
injuries in 2 hours or less if it is
swallowed or placed inside any part of
the body. In such an event, seek
medical attention immediately.
• The replacement or servicing of
batteries must be carried out by a
qualified person.
• The battery contained within this
product, whether new or used, is
hazardous and is to be kept away from
children.
3.7 Safe Torque Off (STO) function
Safe Torque Off (STO) is a safety function with the
purpose to stop the motor from turning, without
actively braking it. It follows the definition by
EN61800-5-2.
For instructions on how to activate and operate the
Safe Torque Off (STO) function, read these
installation and operating instructions.
QR92916582
Safe Torque Off
Installation and operating instructions
http://net.grundfos.com/qr/i/92916582
3.7.1 Identification of the Safe Torque Off (STO)
function
The version of the Safe Torque Off (STO) function is
marked on the nameplate, after the product version
number.
The Safe Torque Off (STO) functionality is only
available for MGE, MLE motors having an STO
version number.
The Safe Torque Off (STO) version number is shown
below as Szz, where zz marks the version. For
product without STO the zz segment will be blank.
TM084339
The Safe Torque Off (STO) safety function cannot be
retrofitted to older motors.
7
English (GB)

4.1 Transporting the product
WARNING
Falling objects
Death or serious personal injury
‐Secure the product during transport to
prevent it from tilting or falling down.
CAUTION
Back injury
Minor or moderate personal injury
‐Use lifting equipment.
CAUTION
Crushing of feet
Minor or moderate personal injury
‐Wear safety shoes when moving the
product.
4.3 Lifting the product
WARNING
Falling objects
Death or serious personal injury
‐Use lifting equipment rated for the
weight of the product.
‐Attach lifting equipment to the motor
eyebolts to lift the entire product.
‐Wear personal protective equipment.
‐Keep a safe distance to the product
during lifting operations.
‐Follow the lifting instructions for the
product.
WARNING
Back injury
Death or serious personal injury
‐Use lifting equipment and follow local
regulations when lifting the product.
Observe local regulations concerning limits
for manual lifting or handling. Calculate the
total weight of the pump with motor by
adding the weights stated on the pump
and motor nameplates.
Do not lift the product by the terminal box.
Note that typically the center of gravity of
the pump is close to the motor.
For lifting instructions, see the related
installation and operating instructions for
the pump.
5.1 Installing the product outdoors or in areas
with high humidity
WARNING
Fire hazard
Death or serious personal injury
‐In high humidity environments where
condensation can occur, connect the
product permanently to the mains
supply and activate the standstill
heating function.
To maintain the cURus mark, additional
requirements apply to the equipment. See
the appendix concerning installation in the
USA and Canada.
Do not expose the product to UV radiation.
If you install the product outdoors or in areas with a
high humidity, take the following action to avoid
condensation on the electronic components.

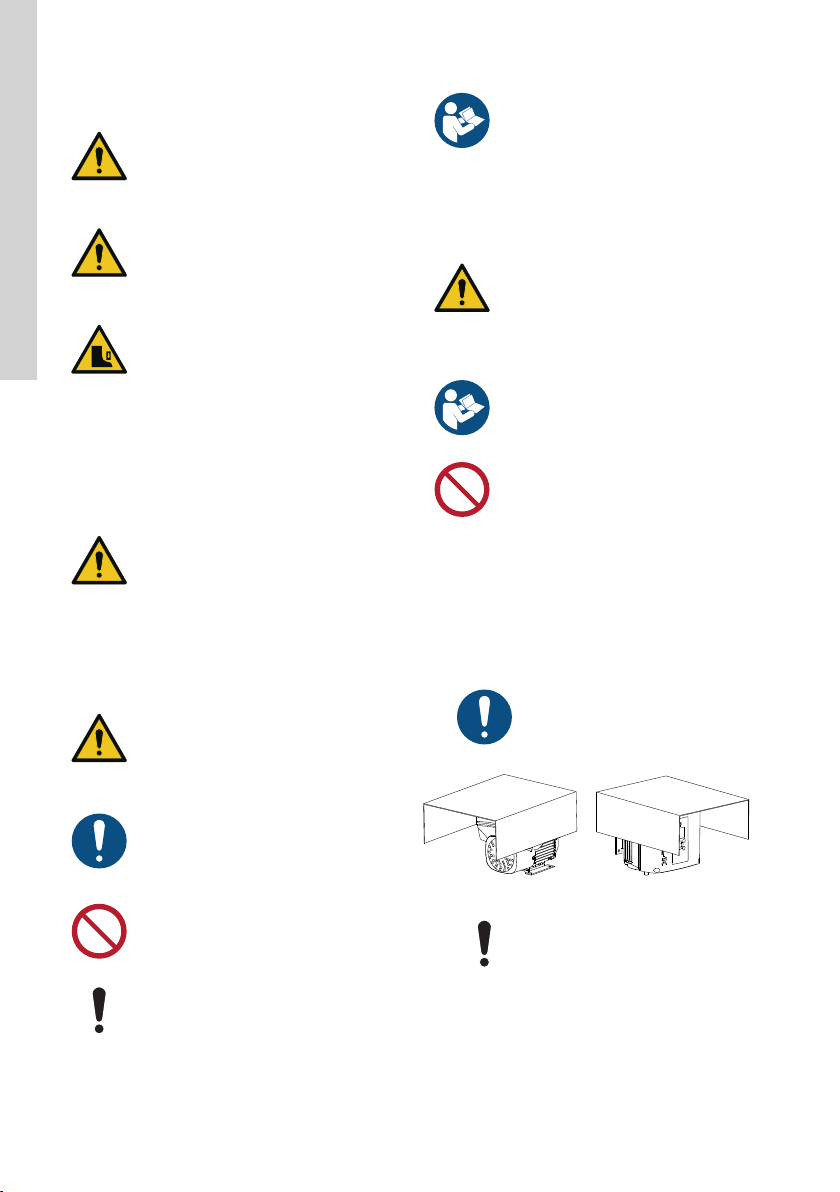

• Provide the product with a suitable cover.
The cover must be large enough to ensure that
the product is not exposed to direct sunlight, UV
radiation, rain or snow. Grundfos does not supply
covers.
When fitting a cover to the product,
observe the instructions for adequate
cooling.
TM053496
• Open the drain holes in the product.
When you open the drain hole, the
enclosure class of the motor will be
lower than standard.
• Connect the product permanently to the mains
supply. In areas with a high humidity, activate the
built-in standstill heating function.
8
English (GB)

If you install the motor in moist
surroundings or areas with a high humidity,
ensure that the bottom drain hole is open.
As a result, the motor becomes self-
venting, allowing water and humid air to
escape. When you open the drain hole,
the enclosure class of the motor will be
lower than standard.
5.3.1 Cooling the motor
• Install the motor allowing a distance of minimum
50 mm (D) between the end of the fan cover and
the wall or another fixed object.
D
TM082853
Model K
• Position the product with sufficient space around.
• Make sure that the temperature of the cooling air
does not exceed 50 °C.
• Keep cooling fins and fan blades clean.
6.1 Mounting the product
WARNING
Crushing of feet
Death or serious personal injury
‐Fasten the pump securely to a solid
and even foundation according to the
specifications in the installation and
operating instructions for the pump.
‐Follow the lifting instructions.
CAUTION
Radiation
Minor or moderate personal injury
‐Locate the product at a minimum
distance of 20 cm from any body parts.
Human tissue may be heated by RF
energy.
Installation-related work on the product
must only be performed by qualified
persons.
For lifting instructions, see the related
installation and operating instructions for
the pump.
To maintain the cURus mark, additional
requirements apply to the equipment.
6.1.2 Changing the position of the operating panel
WARNING
Electric shock
Death or serious personal injury
‐Switch off the power supply to the
product including the power supply for
the signal relays. Wait at least 5
minutes before you make any
connections in the terminal box.
7. Electrical connection
WARNING
Electric shock
Death or serious personal injury
‐Switch off the power supply to the
product including the power supply for
the signal relays. Wait at least 5
minutes before you make any
connections in the terminal box.Make
sure that the power supply cannot be
switched on accidentally.
‐Check that the supply voltage and
frequency correspond to the values
stated on the nameplate.
‐Connect the pump to an external
power switch close to the pump and to
a motor-protective circuit breaker.
Make sure you can lock the power
switch in OFF position (isolated). Type
and requirements as specified in EN
60204-1, 5.3.2.
CAUTION
Sharp element
Minor or moderate personal injury
‐When installing the wiring in the
terminal box, wear protective gloves to
avoid cutting your hands on sharp
edges.
9
English (GB)

If the power cable is damaged, it must be
replaced by the manufacturer, the
manufacturer's service partner or a
similarly qualified person.
The user or the installer is responsible for
correct earthing and protection according
to local regulations.
All electrical connections must be carried
out by qualified persons.
7.3 Protection against electric shock, indirect
contact
WARNING
Electric shock
Death or serious personal injury
‐Connect the product to protective earth
and provide protection against indirect
contact in accordance with local
regulations.
Protective-earth conductors must have a yellow and
green (PE) or yellow, green and blue (PEN) colour
marking.

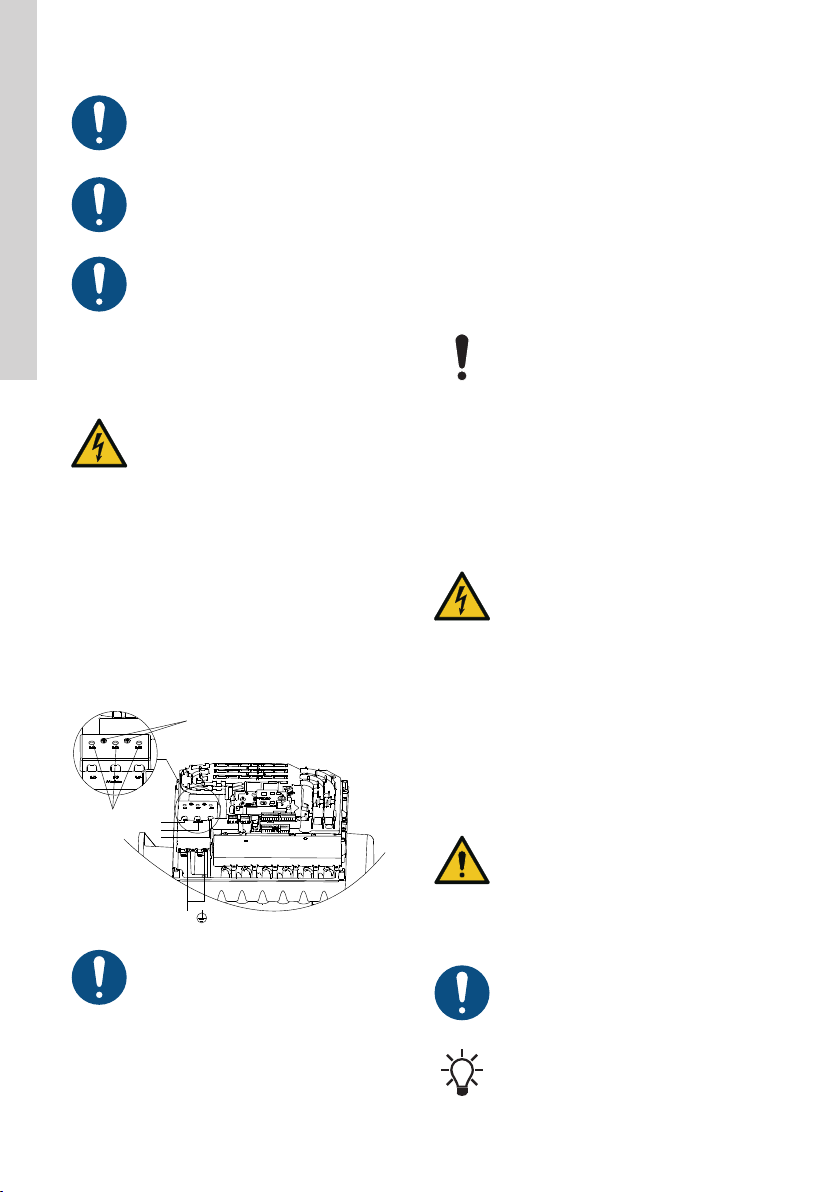

7.4 Cover for the power cables
Model K is equipped with a cover for the power
cables.
The cover is attached to the insulation cover with 2
screws (2) and is equipped with 3 voltage measuring
holes (1) for the respective phases (L1, L2, L3).
1
2
PE
L2
L1
L3
TM084098
The cover for the power cables must be
installed before switching on the product.
7.5 Protection against power supply voltage
transients
The product is protected against power supply
voltage transients in accordance with EN 61800-3.
7.6 Motor protection
The product incorporates thermal protection against
slow overloading and blocking. No external motor
protection is required.
The product includes load and speed sensitive motor
overload protection with thermal memory retention.
7.7.2 Cable glands
See the list of cable gland sizes in relation to motor
sizes in the section on other technical data.
It is recommended to use a cable gland M20 or M40
as applicable with IP 66 rating and suitable for cable
strain relief.
After installation, all M20 openings must
be closed by means of the delivered blind
plugs to maintain the IP 55/66 rating.
7.7.3 Cable cross-section
WARNING
Electric shock
Death or serious personal injury
‐Switch off the power supply to the
product including the power supply for
the signal relays. Wait at least 5
minutes before you make any
connections in the terminal box.
‐Follow the wiring diagrams and local
regulations.
‐Use branch-circuit protection fuses.
‐Comply with local regulations as to
cable cross-sections.
‐Use the recommended fuse size.
‐Connect the cables to terminals by
applying the recommended tightening
torque.
WARNING
Fire hazard
Death or serious personal injury
‐Comply with local regulations as to
cable cross-sections.
‐Use the recommended fuse size.
‐Connect the cables to terminals by
applying the recommended tightening
torque.
Make sure that the cables are secured
with cable glands providing strain relief.
Recommended cable type: H07RN-F.
10
English (GB)

7.7.3.1 Cable cross-section data for MGE motors
3 × 380-480 V, 50/60 Hz, Model K
Speed
[rpm]
Power P2
[kW]
Supply voltage
[V]
Nominal
current
[A]
Cable cross-
section
[mm2]
Cable cross-
section
[AWG]
1450-2200
11 3 × 380-480 20.2 - 16.4 6 10
15 3 × 380-480 26.7 - 21.8 6 8
18.5 3 × 380-480 33.2 - 26.9 10 8
22 3 × 380-480 39.2 - 31.5 10 8
2900-4000
15 3 × 380-480 26.7 - 22 6 8
18.5 3 × 380-480 33 - 27.8 10 8
22 3 × 380-480 39.2 - 31.5 10 8
3 x 400-480 V, 50/60 Hz, Model K
Speed
[rpm]
Power P2
[kW]
Supply voltage
[V]
Nominal
current
[A]
Cable cross-
section
[mm2]
Cable cross-
section
[AWG]
3500-4000 26 3 x 400-480 43.8 - 37.6 16 6
7.7.4 Conductors
Conductor types
Model K: Use stranded copper conductors only.
Conductor temperature ratings
Model K: Use minimum 75 °C copper conductors.
7.7.5 Three-phase connections
The cables in the terminal box must be as short as
possible. However, the separated protective-earth
conductor must be so long that it is the last one to be
disconnected in case the cable is inadvertently pulled
out of the cable entry.
To maintain the cURus mark, additional
requirements apply to the equipment. See
the appendix concerning installation in the
USA and Canada.
Model K: To avoid loose connections, ring terminals
must be used. Ensure that ring terminals are short
enough to stay within the terminal cover.
Check that the supply voltage and frequency
correspond to the values stated on the nameplate.

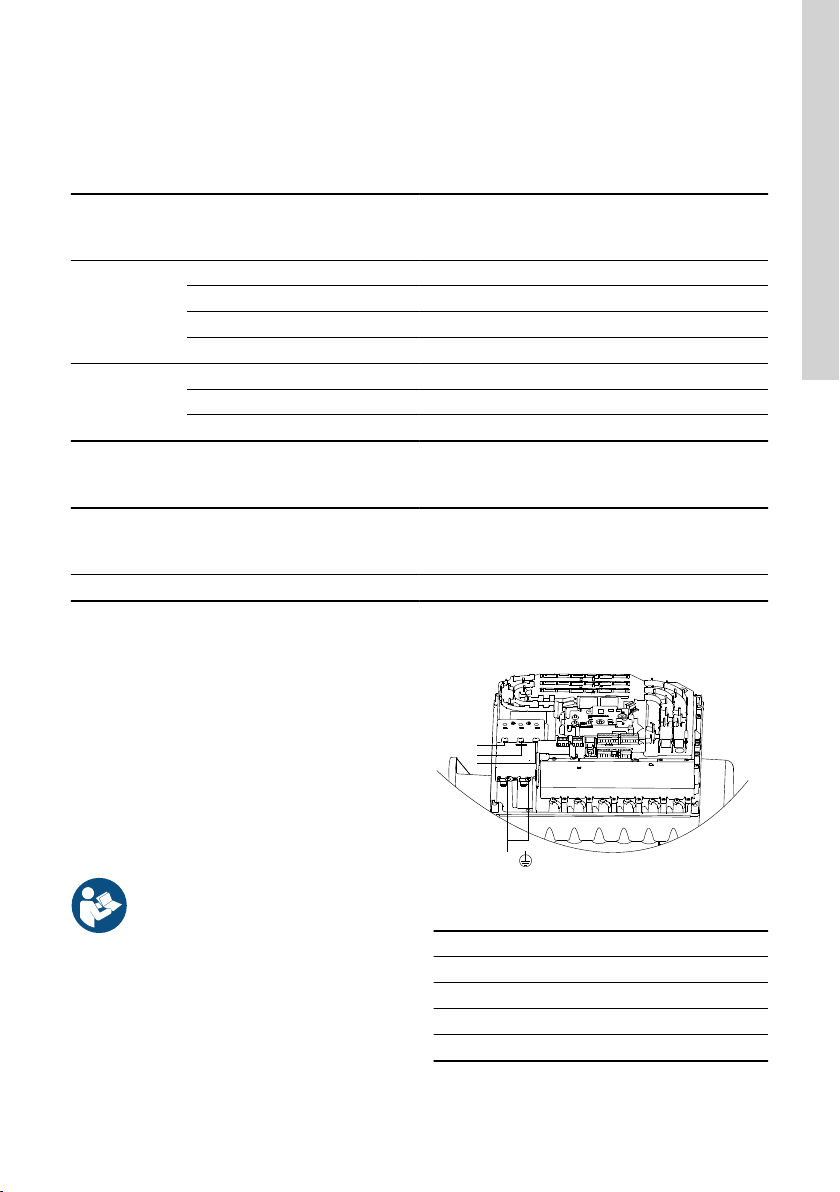

Power supply connection on a three-phase
product
PE
L2
L1
L3
TM082860
Model K
Pos. Description
L1 Phase 1
L2 Phase 2
L3 Phase 3
PE Protective earth
11
English (GB)

7.8.1 Residual-current circuit breakers
WARNING
Electric shock
Death or serious personal injury
‐This product can cause a DC current in
the protective-earth conductor. If a
residual current-operated protective
(RCD) or monitoring (RCM) device is
used for protection in case of direct or
indirect contact, only an RCD or RCM
of Type B is allowed on the supply side
of this product.
The residual-current circuit breaker must be marked.
TM066230
Take into account the total leakage current of all the
electrical equipment in the installation.
This product may cause a direct current in the
protective-earth conductor.
Connection example for three-phase supply
The figure shows an example of a mains-connected
three-phase motor with a main switch, a backup fuse
and a residual-current circuit breaker, type B.
L1
L2
L3
L2
L1
L3
PE
1
TM069815
Pos. Description
1 Residual-current circuit breaker, type B
L1 Phase 1
L2 Phase 2
L3 Phase 3
PE Protective earth
7.8.2 Overvoltage and undervoltage protection
Overvoltage and undervoltage may occur in case of
unstable power supply or a faulty installation. The
product stops if the voltage falls outside the
permissible voltage range. The product restarts
automatically when the voltage is within the
permissible voltage range. The product requires no
additional protection relay.
The product is protected against transients
from the power supply according to EN
61800-3. In areas with high lightning
intensity, we recommend external lightning
protection.
Overvoltage category:
The product is approved for Overvoltage category III
rating.
7.8.3 Overload protection
The motor-current protection settings are fixed for
each motor variants. The settings ensure that the
motor is protected against overtemperature in all
operating states with regard to supply voltage and
shaft load, including a blocked shaft.
The motors are current controlled and will respond by
reducing the speed if the shaft load increases more
than 10 % of the nominal load.
If the shaft load forces the speed down to minimum
speed, the motor shuts down.
A sudden increase in the motor current caused by a
fault where the peak of the motor current is increased
60 % above nominal will cause the motor to shut
down within 0.5 ms.
The product requires no additional protection.
7.8.4 Overtemperature protection
The motor is thermally protected by a temperature
measurement in the drive. It can handle the lack of
airflow over the motor in case the fan cover is
blocked. It also means that the protection has a built-
in memory retention.
The time from start to shutdown due to
overtemperature is therefore always longer when
starting at a motor temperature close to the ambient
temperature compared with restarting after a
shutdown due to overtemperature.
7.8.5 Protection against phase unbalance
Phase unbalance on the power supply must be
minimised. The three-phase motor must be
connected to a power supply with a quality
corresponding to IEC 60146-1-1, class C. This also
ensures long life of the components.
7.8.6 Short-circuit current
The product's electronic power output short-circuit
protection circuitry meets the requirements of IEC
60364-4-41:2005/AMD1:-, Clause 411.
Model K: Suitable for use on a circuit capable of
delivering not more than 5000 rms symmetrical
amperes, 400 V maximum when protected by gG
fuses. See the section on fuse sizes.
12
English (GB)

7.9 Functional modules
The functional modules are different types of add-on
boards containing various types of input and output
terminals for the user to connect different types of
sensors, for example switches and relays.
The product can only contain one functional module
at the time.
The following functional modules are available:
• FM110
• FM310
• FM311 3)
3) Without Bluetooth (BLE).
The selection of module depends on the application
and the required number of inputs and outputs.

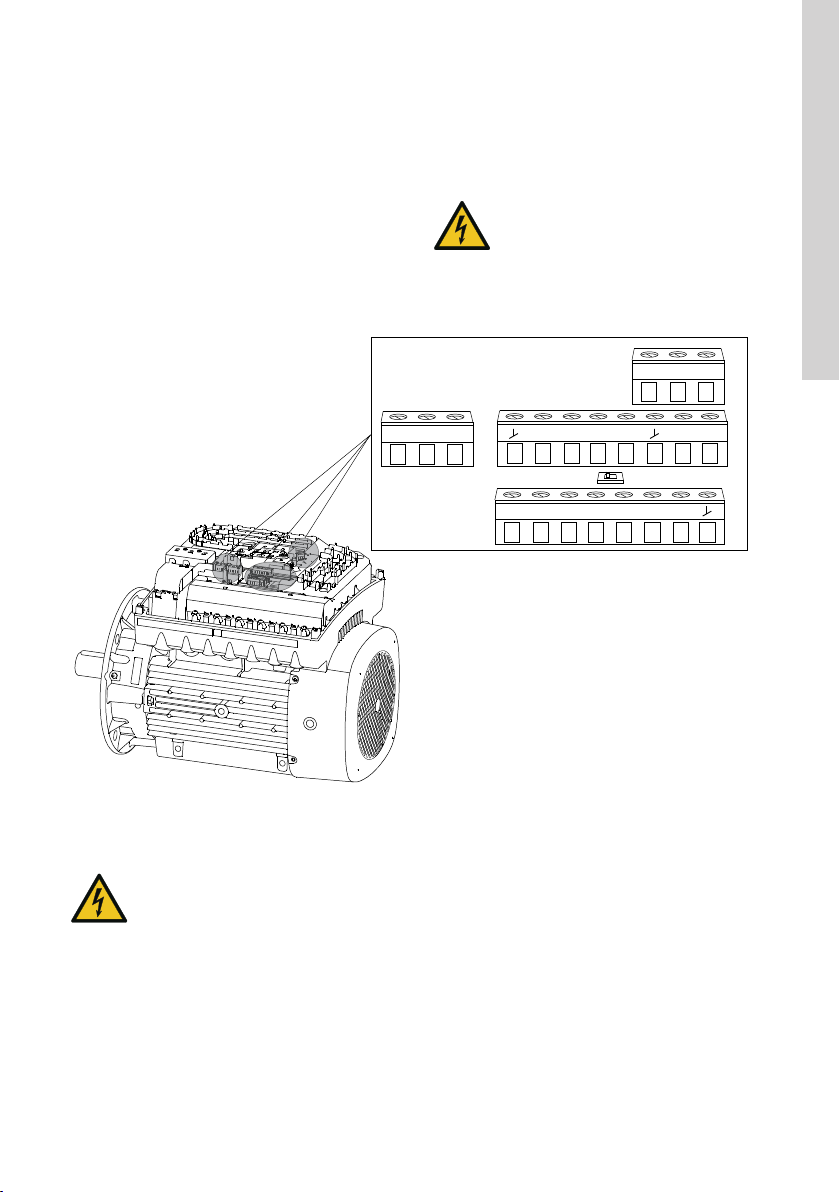

7.9.1 Functional module, FM110
WARNING
Electric shock
Death or serious personal injury
‐Make sure that the wires to be
connected to the connection groups
below are separated from each other
by reinforced insulation in their entire
lengths.
NC C1 NO DI3 24V AI2 5V TX RX
OFF ON
AY B AI1 DI1 24V 5V
S24 ST1 ST2
TM082861
7.9.2 Functional module, FM310 and FM311
WARNING
Electric shock
Death or serious personal injury
‐Make sure that the wires to be
connected to the connection groups
below are separated from each other
by reinforced insulation in their entire
lengths.
The inputs and outputs are internally separated from
the power supply-conducting parts by reinforced
insulation and galvanically separated from other
circuits. All control terminals are supplied with safety
extra-low voltage (SELV), ensuring protection against
electric shock.
Cables for the relays and the Ethernet cable must be
rated at least 250V/2A.
The relays are approved for overvoltage category II,
whether power is supplied from a transformer or the
power supply.
13
English (GB)

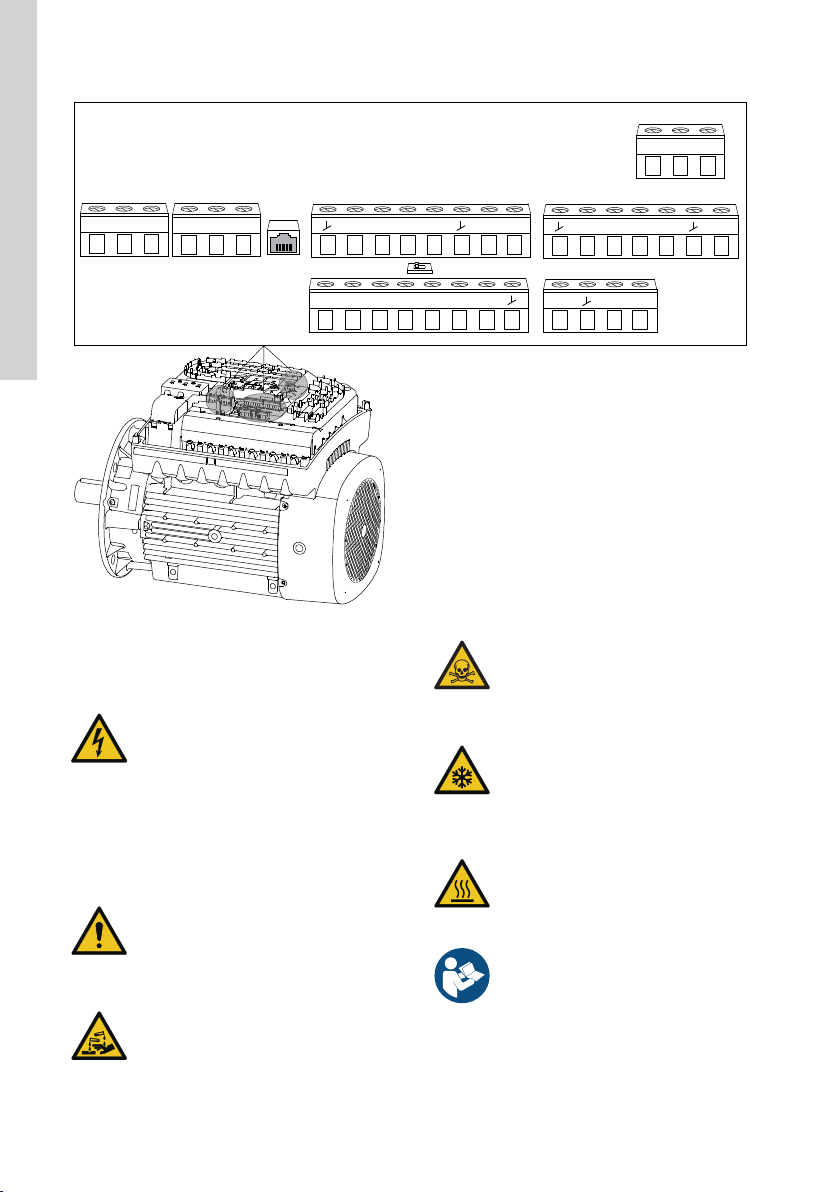

NC C1 NO NC C2 NO
RJ45
DI3 24V AI2 5V TX RX DI4 PT2 PT1 LT1 LT2
S24 ST1 ST2
AO1 AI3 DI2
OFF ON
AY B AI1 DI1 24V 5V
TM082862
7.13 Installing a communication interface module
WARNING
Electric shock
Death or serious personal injury
‐Switch off the power supply to the
product including the power supply for
the signal relays. Wait at least 5
minutes before you make any
connections in the terminal box. Make
sure that the power supply cannot be
switched on accidentally.
8. Starting up the product
WARNING
Rotating parts
Death or serious personal injury
‐Make sure to install the coupling
guards before powering on the
product.
WARNING
Corrosive liquids
Death or serious personal injury
‐Wear personal protective equipment.
WARNING
Toxic liquids
Death or serious personal injury
‐Wear personal protective equipment.
CAUTION
Cold surface
Minor or moderate personal injury
‐Make sure that no one can accidentally
come into contact with cold surfaces.
Wear protective gloves.
CAUTION
Hot surface
Minor or moderate personal injury
‐Do not touch the product while it is
running.
Follow the startup instructions for the
pump. See the related installation and
operating instructions for the pump.
14
English (GB)

9.1 User interfaces
WARNING
Hot surface
Death or serious personal injury
‐Touch only the buttons on the
operating panel. The product may be
very hot.
WARNING
Electric shock
Death or serious personal injury
‐If the operating panel is cracked or
perforated, replace it immediately.
Contact the nearest Grundfos sales
company.
You can change the settings by means of the
following user interfaces:
• HMI 100 operating panel
• HMI 101 operating panel5)
• HMI 200 operating panel
• HMI 201 operating panel5)
• HMI 300 operating panel
• HMI 301 operating panel5)
• Grundfos GO application.
5) HMI without a radio module.
All settings are saved if the power supply is switched
off.
9.5 Grundfos GO
CAUTION
Radiation
Minor or moderate personal injury
‐Locate the product at a minimum
distance of 20 cm from any body parts.
Human tissue may be heated by RF
energy.
Installers and end users must be provided
with these installation and operating
instructions and operating conditions for
satisfying RF exposure compliance.
The product is designed for wireless communication
with Grundfos GO using Bluetooth (BLE).
Grundfos GO enables you to set functions and gives
you access to status overviews, technical product
information and current operating parameters.
TM082930
11. Servicing the product
WARNING
Electric shock
Death or serious personal injury
‐Switch off the power supply to the
product including the power supply for
the signal relays. Wait at least 5
minutes before you make any
connections in the terminal box.Make
sure that the power supply cannot be
switched on accidentally.
‐Tighten the cable glands to the
recommended torques.
‐For measuring power supply voltage,
use the measuring points accessible
through the holes on the cover for
power cables.
‐Follow the instructions in the service
instructions for the motor. If parts are
damaged, order new service kits.
‐Connect the motor to protective earth
and provide protection against indirect
contact in accordance with local
regulations.
‐After servicing the motor, a dielectric
strength test must be performed.
Alternatively, a megger can be used at
500 VDC.
15
English (GB)

WARNING
Rotating parts
Death or serious personal injury
‐Stay clear of the product after
switching on power, as the shaft can
rotate immediately.
‐Do not start up and run the motor if
there is no pump connected to it.
‐Install the coupling guards securely to
the pump with the screws intended for
this purpose.
‐Tighten the coupling screws to the
correct torque.
WARNING
Magnetic field
Death or serious personal injury
‐Do not handle the motor or rotor if you
have a pacemaker.
WARNING
Crushing of hands
Death or serious personal injury
‐Follow the instructions in the service
instructions for the motor.
‐Wear protective gloves when servicing
the product.
‐Be careful when handling magnetised
parts to avoid personal injury.
WARNING
Falling objects
Death or serious personal injury
‐Follow the lifting instructions for the
product.
‐Use lifting equipment rated for the
weight of the product.
WARNING
Back injury
Death or serious personal injury
‐Use lifting equipment and follow local
regulations when lifting the product.
WARNING
Crushing of feet
Death or serious personal injury
‐Wear safety shoes.
‐When lifting the motor, attach lifting
equipment to the eye bolts fitted to the
motor. When lifting the terminal box,
attach lifting equipment to the eye bolts
or lifting brackets fitted to the terminal
box.
WARNING
Hot surface
Death or serious personal injury
‐Do not touch the product while it is
running. Allow surfaces to cool before
servicing.
WARNING
Intoxication or risk of chemical burn
Death or serious personal injury
‐The battery can cause severe or fatal
injuries in 2 hours or less if it is
swallowed or placed inside any part of
the body. In such an event, seek
medical attention immediately.
• The replacement or servicing of
batteries must be carried out by a
qualified person.
• The battery contained within this
product, whether new or used, is
hazardous and is to be kept away from
children.
CAUTION
Sharp element
Minor or moderate personal injury
‐When servicing the product, wear
protective gloves to avoid cutting your
hands on sharp edges.
CAUTION
Cold surface
Minor or moderate personal injury
‐Make sure that no one can accidentally
come into contact with cold surfaces.
Wear protective gloves.
Do not remove the rotor from the motor.
16
English (GB)

11.1.1 Cleaning the product
WARNING
Electric shock
Death or serious personal injury
‐Switch off the power supply to the
product including the power supply for
the signal relays. Make sure that the
power supply cannot be switched on
accidentally.
‐Check that the terminal box cover is
intact before spraying water or
chemicals on the product.
‐Cleaning must be done with non-
aggressive materials to avoid damage
to surfaces and labels.
‐Make sure that the air inlets are kept
clean and free of residuals.
Do not expose the product to high-
pressure water jets.
To clean the motor, follow the procedure below:
1. Let the motor cool down first to avoid
condensation.
2. Spray it with cold water, and use only non-
aggressive cleaning materials.
12. Taking the product out of operation
WARNING
Electric shock
Death or serious personal injury
‐Switch off the power supply and make
sure that it cannot be accidentally
switched on. The power supply must
be switched off for at least five minutes
before you start working on the
product.
WARNING
Back injury
Death or serious personal injury
‐Use lifting equipment and follow local
regulations when lifting the product.
The lifting eyes on the motor can be used
for lifting the pump as well.
For lifting instructions, see the related
installation and operating instructions for
the pump.
13. Fault finding
WARNING
Electric shock
Death or serious personal injury
‐Switch off the power supply before you
start any work on the product.
‐Make sure that the power supply
cannot be switched on accidentally.
For information on fault finding,
see the related installation and operating
instructions for the pump.
14.1.1 Installation altitude
The installation altitude is the height above sea level
of the installation site.
Products installed up to 1000 m above sea level can
be loaded 100 %.
The motors can be installed up to 3500 m above sea
level.
Products installed more than 1000 m
above sea level must not be fully loaded
due to the low density and consequent low
cooling effect of the air.
The motor output power (P2) in relation to the altitude
above sea level is shown in the graph.
0
60
80
90
70
100
P2[%]
500 1000 1500 2000 2500 3000 3500 X
TM085127
Pos. Description
P2 Motor output power [%]
X Altitude [m]
14.1.3.1 Ambient temperature during storage and
transportation
Description Temperature
Minimum -30 °C
Maximum 60 °C
17
English (GB)

14.1.3.2 Ambient temperature during operation
Model K
Description 3 × 380-480 V
Minimum -20 °C
Maximum 50 °C
13)
13) 26 kW MGE motors are rated for a maximum value of
40 °C.
14.1.4 Humidity
Description Percentage
Maximum humidity (non-condensing) 95 %
If the humidity is constantly high and above 85 %,
open the drain holes in the drive-end flange to vent
the motor.
If you install the motor in moist
surroundings or areas with high humidity,
ensure that the bottom drain hole is open.
As a result, the motor becomes self-
venting, allowing water and humid air to
escape. When you open the drain hole,
the enclosure class of the motor will be
lower than standard.
14.1.5 Pollution degree
The product is approved for Pollution degree 3 rating.
14.2 Technical data, three-phase motors
WARNING
Electric shock
Death or serious personal injury
‐Use the recommended fuse size.
Supply voltage
• 3 × 380-480 V -10 % / +10 %, 50/60 Hz, PE
• 3 × 400-480 V -10 % / +10 %, 50/60 Hz, PE
Check that the supply voltage and frequency
correspond to the values stated on the nameplate.
Recommended size of fuse
You can use standard as well as quick-blow or slow-
blow fuses.
For recommended size of fuses see the
appendix concerning installation in the
USA and Canada.
3 × 380-480 V, Model K
Motor size
[kW]
Recommended
[A]
Maximum
[A]
Fuse
type
11 35 63 gG
15 50 80 gG
18.5 60 80 gG
22 70 80 gG
3 x 400-480 V, Model K
Motor size
[kW]
Recomme
nded
[A]
Maximum
[A] Fuse type
26 80 80 gG
14.2.1 Leakage current (AC)
The leakage currents are measured without any load
on the shaft and in accordance with EN
61800-5-1:2007.
WARNING
Electric shock
Death or serious personal injury
‐If the leakage current is greater than
3.5 mA, use a PE cable with a
minimum cross-section of at least 10
mm2, or use 2 separate PE cables with
the same cross section as the power
cable.
3 × 380-480 V, 50/60 Hz, Model K
Speed
[rpm]
Power
[kW]
Mains voltage
[V]
Leakage current (IL)
[mA]
1450-2200 11-22 ≤ 400 3.5 < IL < 20
> 400 3.5 < IL < 30
2900-4000 15-22 ≤ 400 3.5 < IL < 20
> 400 3.5 < IL < 30
18
English (GB)

3 × 400-480 V, 50/60 Hz, Model K
Speed
[rpm]
Power
[kW]
Mains voltage
[V]
Leakage current (IL)
[mA]
3500-4000 26 ≤ 400 3.5 < IL < 20
> 400 3.5 < IL < 30
14.4.3 Enclosure class
Standard: IP55.
Optional: IP66.
The IP rating can be found on the product's nameplate:
OUTPUT Variant
V
Hz
A
P2: PB:
FM:
HMI:
CIM:
kW
rpm
%
n:
PDS Eff
xxxv:Made in Hungary
DK-8850 Bjerringbro, Denmark
98100448
IE5
IES2
Type:
P.N.:
DE:
-V
kg
NDE:
Wt:
P.C.:
Type: IP:
U in:
f in:
I1/1:
CL:
˚C
˜
TM084099
14.4.4 Insulation class
311 °F (155 °C).
14.4.8 Torques
Torques for terminals
Terminal
Recommended
torque
[Nm]
L1, L2, L3 2.2
PE 6
NC, C1, C2, NO 0.5
DI1, DI2, DI3,
DI4, AI1, AI2, AI3, AO1,
PT1, PT2, LT1,
LT2, GND, 24V, 5V, TX, RX, A,
Y, B, S24, ST1, ST2
0.5
Torques for other parts
Part designation
Recommended
torque
[Nm]
Control box, upper part 6.5 - 7
Cover for mains 1.0 - 1.3
Cable glands:
M20/M40 1 - 1.5
14.5 Accessories
The following are the communication interface
modules intended for use with the product:
Protocol Communication
interface module
GENIbus CIM 50
LON (Single) CIM 100
PROFIBUS DP CIM 150
Modbus CIM 200
BACnet CIM 300
Ethernet CIM 500
LON (Multi) CIM 110
19
English (GB)

Installing a communication interface module not listed
above might affect the compliance level of the
product.
14.6 Applicable standards
Standard
UL 61800-5-1, Adjustable Speed Electrical Power Drive Systems - Part 5-1: Safety Requirements - Electrical,
Thermal and Energy, Edition 1, Revision Date 02/11/2021
CSA C22.2 No. 274, Adjustable Speed Drives, Edition 2, Issue Date 04/2017
EN/IEC 61800-5-1, Adjustable Speed Electrical Power Drive Systems - Part 5-1: Safety Requirements -
Electrical, Thermal and Energy, IEC 61800-5-1:2007+AMD1:2016
UL 60730-1, Automatic Electrical Controls - Part 1: General Requirements, Edition 5, Revision Date
10/18/2021
CAN/CSA E 60730-1, Automatic Electrical Controls - Part 1: General Requirements, Edition 5, AMD 2,
Revision Date 10/2021
UL 1004-1, Rotating Electrical Machines - General Requirements, Edition 2, Revision Date 11/05/2020
UL 1004-3, Thermally Protected Motors, Edition 2, Revision Date 01/31/2018
UL 1004-7, Electronically Protected Motors, Edition 3, Issue Date 06/21/2018
CSA C22.2 No. 100, Motors and Generators, Edition 7, Revision Date 04/2017
CSA C22.2 No. 77, Motors with Inherent Overheating Protection, Edition 8, Revision Date 02/2015
EN/IEC 60034-1, Rotating Electrical Machines - Part 1: Rating and Performance, Edition 14, Issue Date
02/2022
15. Disposing of the product
The crossed-out wheelie bin symbol
on a product means that it must be
disposed of separately from household
waste. When a product marked with
this symbol reaches its end of life, take
it to a collection point designated by
the local waste disposal authorities.
The separate collection and recycling
of such products will help protect the
environment and human health.
17. Document quality feedback
To provide feedback about this document, scan the
QR code using your phone’s camera or a QR code
app.
FEEDBACK_92898130
Click here to submit your feedback
20
English (GB)
