Grundfos CRN 95-8 User manual

CR, CRN 95-255
50/60 Hz IEC
Installation and operating instructions
CR, CRN 95-255
Installation and operating instructions
Other languages
http://net.grundfos.com/qr/i/99078486
GRUNDFOS INSTRUCTIONS

CR, CRN 95-255
English (GB)
Installation and operating instructions ..................................5
Български (BG)
Упътване за монтаж и експлоатация.................................33
Čeština (CZ)
Montážní a provozní návod ........................................66
Deutsch (DE)
Montage- und Betriebsanleitung .....................................96
Dansk (DK)
Monterings- og driftsinstruktion .....................................129
Eesti (EE)
Paigaldus- ja kasutusjuhend.......................................158
Español (ES)
Instrucciones de instalación y funcionamiento...........................189
Suomi (FI)
Asennus- ja käyttöohjeet .........................................217
Français (FR)
Notice d'installation et de fonctionnement..............................247
Ελληνικά (GR)
Οδηγίες εγκατάστασης και λειτουργίας................................278
Hrvatski (HR)
Montažne i pogonske upute .......................................310
Magyar (HU)
Telepítési és üzemeltetési utasítás ..................................341
Italiano (IT)
Istruzioni di installazione e funzionamento .............................372
Lietuviškai (LT)
Įrengimo ir naudojimo instrukcija ....................................403
Latviešu (LV)
Uzstādīšanas un ekspluatācijas instrukcija .............................434
Nederlands (NL)
Installatie- en bedieningsinstructies ..................................465
Polski (PL)
Instrukcja montażu i eksploatacji....................................496
3
Table of contents

Português (PT)
Instruções de instalação e funcionamento .............................527
Română (RO)
Instrucţiuni de instalare şi utilizare...................................558
Srpski (RS)
Uputstvo za instalaciju i rad .......................................588
Svenska (SE)
Monterings- och driftsinstruktion ....................................618
Slovensko (SI)
Navodila za montažo in obratovanje .................................647
Slovenčina (SK)
Návod na montáž a prevádzku .....................................677
Türkçe (TR)
Montaj ve kullanım kılavuzu .......................................708
Українська (UA)
Інструкції з монтажу та експлуатації ................................736
中文 (CN)
安装和使用说明书 ..............................................767
Norsk (NO)
Installasjons- og driftsinstruksjoner ..................................793
Íslenska (IS)
Uppsetningar- og notkunarleiðbeiningar...............................823
(AR) ةيبرعلا
    .............................................853
Appendix A..................................................880
4CR, CRN 95-255
Table of contents

English (GB) Installation and operating instructions
Original installation and operating instructions
Table of contents
1. General information ............. 5
1.1 Hazard statements .............. 5
1.2 Notes ..................... 6
1.3 Safety information for the motor ....... 6
2. Receiving the product............ 6
2.1 Transporting the product ........... 6
2.2 Unpacking the product ............ 6
2.3 Inspecting the product ............ 6
2.4 Lifting the product ............... 6
3. Installing the product ............11
3.1 Mechanical installation ............11
3.2 Electrical connection .............18
4. Starting up the product ...........19
4.1 Startup procedure...............20
4.2 Shaft seal run-in................21
5. Product introduction ............21
5.1 Identification..................21
5.2 Intended use of the product .........23
5.3 Operating the product.............23
6. Servicing the product ............24
6.1 Contaminated pumps .............25
6.2 Service documentation ............25
6.3 Maintaining the product............25
7. Taking the product out of operation ....26
7.1 Frost protection ................26
7.2 Taking the product permanently out of
operation ...................26
8. Fault finding the product ..........28
8.1 The motor does not run when started. ....28
8.2 The motor-protective circuit breaker trips
immediately when the power supply is
switched on...................28
8.3 The motor-protective circuit breaker trips
occasionally...................28
8.4 The motor-protective circuit breaker has
not tripped, but the pump does not run. . ..28
8.5 The pump performance is not constant. . ..29
8.6 The pump runs, but gives no water. .....29
8.7 The pump runs backwards when
switched off...................29
8.8 Leakage in the shaft seal. ..........29
8.9 Noise. .....................29
9. Technical data ................30
9.1 Operating conditions .............30
9.2 Dimensions and weights ...........31
9.3 Electrical data .................31
9.4 Sound pressure level .............31
10. Disposing of the product ..........32
1. General information
These installation and operating instructions describe
Grundfos CR, CRN 95 to 255.
Sections 1-4 give the information necessary to be
able to unpack, install and start up the product in a
safe way.
Sections 5-10 give important information about the
product, as well as information on service, fault
finding and disposal of the product.
Read this document before you install the
product. Installation and operation must
comply with local regulations and accepted
codes of good practice.
1.1 Hazard statements
The symbols and hazard statements below may
appear in Grundfos installation and operating
instructions, safety instructions and service
instructions.
DANGER
Indicates a hazardous situation which, if
not avoided, will result in death or serious
personal injury.
WARNING
Indicates a hazardous situation which, if
not avoided, could result in death or seri-
ous personal injury.
CAUTION
Indicates a hazardous situation which, if
not avoided, could result in minor or mod-
erate personal injury.
The hazard statements are structured in the following
way:
SIGNAL WORD
Description of the hazard
Consequence of ignoring the warning
• Action to avoid the hazard.
5
English (GB)

1.2 Notes
The symbols and notes below may appear in
Grundfos installation and operating instructions,
safety instructions and service instructions.
Observe these instructions for explosion-
proof products.
A blue or grey circle with a white graphical
symbol indicates that an action must be
taken.
A red or grey circle with a diagonal bar,
possibly with a black graphical symbol, in-
dicates that an action must not be taken or
must be stopped.
If these instructions are not observed, it
may result in malfunction or damage to the
equipment.
Tips and advice that make the work easier.
1.3 Safety information for the motor
Read the safety information specific for the
motor in the instructions for the motor
which are supplied with the pump.
2. Receiving the product
2.1 Transporting the product
WARNING
Falling objects
Death or serious personal injury
‐Keep the product in a stable and fixed
position during transportation.
‐Wear personal protective equipment.
2.2 Unpacking the product
WARNING
Falling objects
Death or serious personal injury
‐Keep the product in a stable position
during unpacking.
‐Wear personal protective equipment.
2.3 Inspecting the product
Before you install the product, do the following:
1. Check that the product is as ordered.
2. Check that no visible parts have been damaged.
If parts are damaged or missing, contact your local
Grundfos sales company.
2.4 Lifting the product
WARNING
Falling objects
Death or serious personal injury
‐Do not use the motor eyebolts to lift the
entire pump if the pump is fitted with a
motor of another make than Grundfos
MG and MGE.
‐Follow the lifting instructions.
‐Use lifting equipment which is ap-
proved for the weight of the product.
‐Persons must keep a safe distance to
the product during lifting operations.
‐Wear personal protective equipment.
6
English (GB)

The following sections describe various lifting
situations and the lifting instructions which must be
followed in order to obtain safe lifting of the product:
• Position of lifting brackets: See section Position of
lifting brackets.
• Lifting the motor with or without the motor stool.
See section Lifting the motor off the pump.
• Horizontal lift: See section Lifting the product in
horizontal position.
• Raising or laying down the product: See section
Raising or laying down the product.
• Vertical lift: See section Lifting the product in
vertical position.
• Lifting of CRE pumps: See section Lifting of
pumps fitted with MGE motors.
Related information
2.4.1 Position of lifting brackets
2.4.2 Lifting the motor off the pump
2.4.4 Lifting the product in horizontal position
2.4.5 Raising or laying down the product
2.4.6 Lifting the product in vertical position
2.4.3 Lifting of pumps fitted with MGE motors

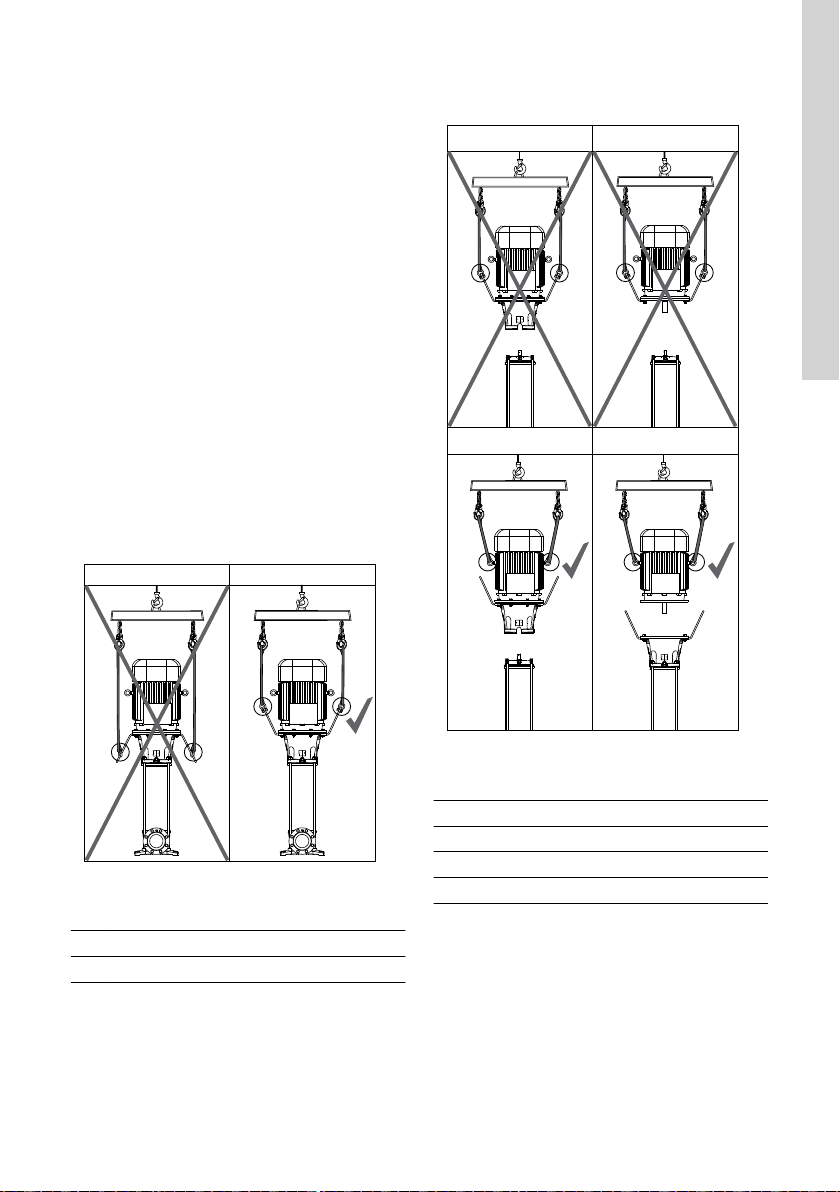

2.4.1 Position of lifting brackets
A B
TM072254
Position of lifting brackets
A: Incorrect position of lifting brackets.
B: Correct position of lifting brackets.
2.4.2 Lifting the motor off the pump
C D
A B
TM072255
Lifting the motor
A: Incorrect lifting of motor with motor stool.
B: Incorrect lifting of motor without motor stool.
C: Correct lifting of motor with motor stool.
D: Correct lifting of motor without motor stool.
7
English (GB)

2.4.3 Lifting of pumps fitted with MGE motors
When lifting a pump fitted with a motor that
contains an integrated frequency convert-
er, make sure that the terminal box does
not come into contact with the lifting equip-
ment. See fig. Lifting of pumps fitted with
MGE motors.
stop
stop
AB
TM072290
Lifting of pumps fitted with MGE motors
A: Incorrect lifting of pump with MGE motor.
B: Correct lifting of pump with MGE motor.
2.4.4 Lifting the product in horizontal position
TM068773
Horizontal lift of pumps with 5.5 kW Grundfos MG
and MGE* motors
* See also section Lifting of pumps fitted with MGE
motors
TM068774
Horizontal lift of pumps with 7.5 - 22 kW Grundfos
MG and MGE* motors
* See also section Lifting of pumps fitted with MGE
motors
TM068627
Horizontal lift of pumps with 5.5 - 200 kW motors of
other makes than Grundfos MG and MGE
8
English (GB)

TM068775
Horizontal lift of pumps without motor
Related information
2.4.3 Lifting of pumps fitted with MGE motors
2.4.5 Raising or laying down the product
TM068744
Raising or laying down pumps with 5.5 kW
Grundfos MG and MGE* motors
* See also section Lifting of pumps fitted with MGE
motors
TM068743
Raising or laying down pumps with 7.5 - 22 kW
Grundfos MG and MGE* motors
* See also section Lifting of pumps fitted with MGE
motors
TM068742
Raising or laying down pumps with 5.5 - 200 KW
motors of other makes than Grundfos MG and MGE
TM068745
Raising or laying down pumps without motor
Related information
2.4.3 Lifting of pumps fitted with MGE motors
9
English (GB)

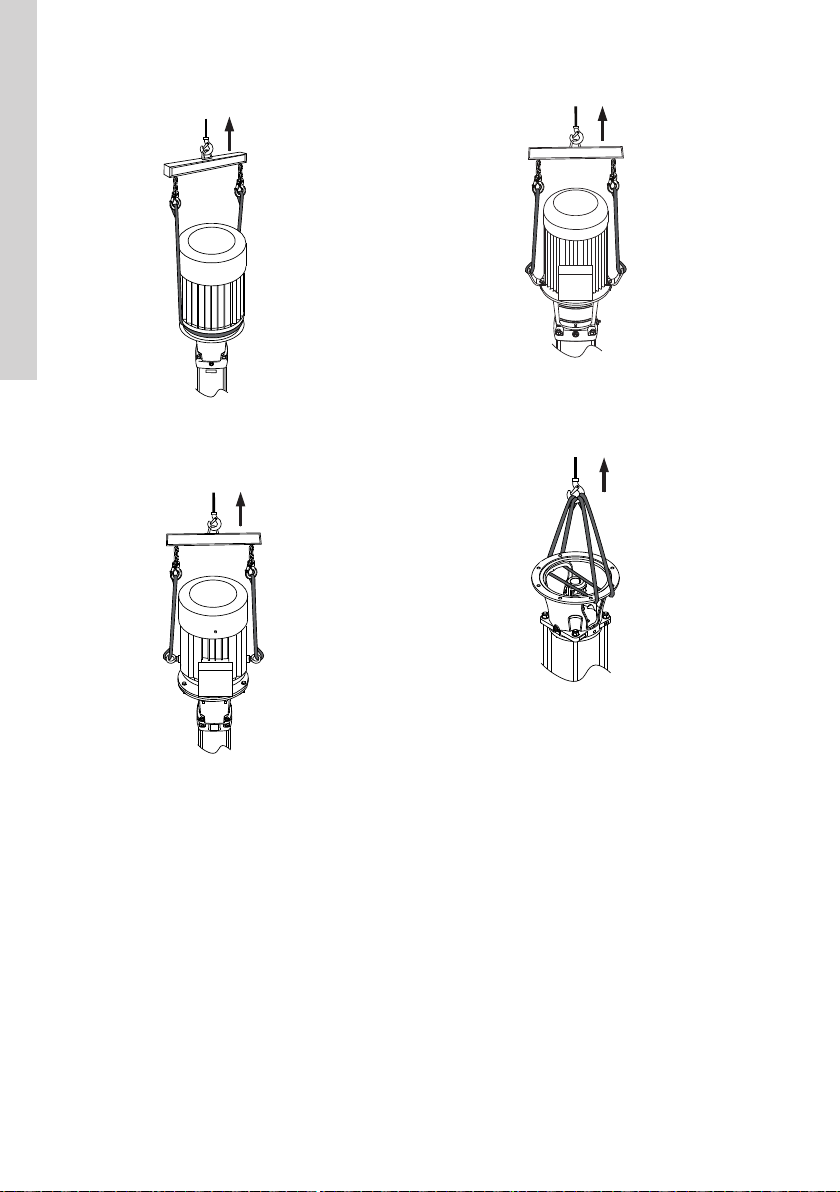

2.4.6 Lifting the product in vertical position
TM068597
Vertical lift of pumps with 5.5 kW Grundfos MG and
MGE motors
TM068598
Vertical lift of pumps with 7.5 - 22 kW Grundfos MG
and MGE motors
TM068599
Vertical lift of pumps with 5.5 - 200 KW motors of
other makes than Grundfos MG and MGE
TM068162
Vertical lift of pumps without motor
10
English (GB)

3. Installing the product
DANGER
Falling objects
Death or serious personal injury
‐Fasten the pump securely to a solid
and even foundation according to the
specifications stated in the installation
and operating instructions.
3.1 Mechanical installation
WARNING
Contamination when pumping drinking
water
Death or serious personal injury
‐Before the pump is used for supplying
drinking water, flush the pump thor-
oughly with clean water.
‐Do not use the pump for drinking water
if the internal parts have been in con-
tact with particles or substances not
suitable for water intended for human
consumption.
3.1.1 Lifting the product
WARNING
Falling objects
Death or serious personal injury
‐Do not use the motor eyebolts to lift the
entire pump if the pump is fitted with a
motor of another make than Grundfos
MG and MGE.
‐Follow the lifting instructions.
‐Use lifting equipment which is ap-
proved for the weight of the product.
‐Persons must keep a safe distance to
the product during lifting operations.
‐Wear personal protective equipment.
For lifting instructions, see section Lifting the product.
Related information
2.4 Lifting the product
3.1.2 Drive-end motor bearing
Make sure to use the correct type of drive-end (DE) motor bearing for the bare-shaft pump. Please check the
specific pump range and pump version stated on the nameplate and select the corresponding DE bearing.
DE bearing
CR 1-64 pump range
DE bearing
CR 95-255 pump range
Pump version1)
Deep-groove ball
bearing
(62/63xx)
Angular contact
bearing
(73xx)
Deep-groove ball
bearing
(62/63xx)
Angular contact
bearing
(73xx)
A Standard pump 0.37 - 3 kW 4-45 kW 75-200 kW 5.5 - 55 kW
T
Pump with thrust
handling device
(THD)2) - - - Not allowed
ZPump with bearing
flange2) 0.37 - 45 kW Not allowed 5.5 - 200 kW Not allowed
1) Refer to the codes for pump version described in the section on type key.
2) Factory product variants (FPV).
Related information
5.1.2 Type key
11
English (GB)

3.1.3 CRN 95, 125, 155 high-pressure range
The pump sizes listed below are only to be
used with soft starter or frequency convert-
er.
50 Hz 60 Hz
CRN 95-8 CRN 95-5
CRN 95-9 CRN 95-6-1
CRN 95-10 CRN 95-7
CRN 95-11 CRN 125-7
CRN 95-12 CRN 125-8
CRN 125-11 CRN 125-9-3
CRN 125-12 CRN 155-5
CRN 155-8 CRN 155-6-3
CRN 155-9 CRN 155-6
CRN 155-10 CRN 155-7-3
CRN 155-11-1 CRN 155-7
- CRN 155-8-3
3.1.4 Motors for Variable Frequency Drive (VFD)
To avoid bearing current when operating the pump
with VFD, Grundfos recommends using an isolated
bearing system for the following motor sizes:
• 2-pole motors: ≥45 kW
• 4-pole motors: ≥37 kW
Some installations may require protection
at lower motor power due to either insuffi-
cient grounding, liquid influencing the
grounding of the motor, or the combination
of motor brand and frequency converter.
3.1.5 Installation guidelines
The pump must be secured to a horizontal, plane and
solid foundation with bolts through the holes in the
base plate. When installing the pump, be aware of the
information below in order to avoid damaging the
pump.
12
English (GB)

Illustration Information
1
TM069134
Arrows on the pump base plate show the direction of flow of liquid
through the pump.
2
TM069156
These dimensions are stated in Figure C:
• port-to-port lengths
• dimensions of the base plate
• pipe connections
• diameter and position of anchor bolts.
3
TM070783
The pump can be installed vertically and horizontally. If you wish to install
a pump horizontally, it must be ordered with support brackets fitted from
factory and a foot-mounted motor.
3a
TM057705
Additional support. As the centre of gravity of the pump is relatively high,
we recommend that pumps installed on ships, in areas with risk of earth
quake or in systems which can be moved, are equipped with an addition-
al support bracket. You can fit the bracket from the motor stool to the
bulkhead of the ship, a rigid wall in a building or to a rigid part.
4
TM020116
To minimise possible noise from the pump, we recommend that you fit ex-
pansion joints on either side of the pump.
Build a foundation and carry out mechanical installation as described in
section Foundation.
Fit isolating valves on either side of the pump to avoid draining the sys-
tem if the pump needs to be removed for cleaning, repair or replacement.
Always protect the pump against backflow by means of a non-return
valve.
5
TM020114
Install the pipes so that air pockets do not occur.
6
TM020115
Fit a vacuum valve close to the pump if the installation has one of these
characteristics:
• The outlet pipe slopes downwards away from the pump.
• There is a risk of siphon effect.
• Protection against backflow of unclean liquids is needed.
Related information
3.1.6 Foundation
13
English (GB)

3.1.6 Foundation
WARNING
Falling objects
Death or serious personal injury
‐Keep the product in a stable and fixed
position before installing it.
‐Make sure that the foundation is suita-
ble for the weight of the product.
We recommend that you install the pump on a
concrete foundation which is heavy enough to provide
permanent and rigid support for the entire pump. The
foundation must be capable of absorbing any
vibration, normal strain or shock. The concrete
foundation must have an absolutely level and even
surface.
Place the pump on the foundation, and fasten it. The
base plate must be supported on the whole area.
The following instruction applies when mounting the
pump in both vertical and horizontal position. Place
the pump on the foundation, and fasten it. See fig.
Correct installation.
TM040342
Correct installation
f
h
Lf
Lf
Wf
TM068985
Foundation, vertical mounting
The recommended length and width of the foundation
are shown in fig. Foundation, vertical mounting. Note
that for pumps with motor size below or equal to 30
kW, the length and width of the foundation must be
200 mm larger than the base plate.
For pumps with motor size equal to 37 kW or above,
the length and width must always be 1.5 x 1.5 (Lf x
Wf) m.
L
hW
f
Lf
ff
TM070574
Foundation, horizontal mounting
The foundation length and width must always be 200
mm larger than the length and width of the pump. See
fig. Foundation, horizontal mounting.
The mass of the foundation must be at least 1.5 times
the total mass of the pump. The minimum height of
the foundation (hf) can then be calculated:
hf = Mpump × 1.5
Lf × Wf × δconcrete
The density (δ) of concrete is usually taken as 2200
kg/m3.
In installations where noiseless operation is
particularly important, we recommend that you use a
foundation with a mass up to 5 times that of the
pump.
The foundation must be provided with anchor bolts for
fixing the base plate. See fig. Bolt in foundation.
TM034589
Bolt in foundation
When the anchor bolts are in position, place the
pump on the foundation. Then align the base plate
using shims, if necessary, so that it is completely
horizontal. See fig. Alignment with shims.
14
English (GB)

1
TM040362
Alignment with shims
Pos. Description
1 Shims
3.1.7 Vibration dampening
Elimination of noise and vibrations is best achieved
by means of a concrete foundation, vibration dampers
and expansion joints.
If you use vibration dampers, install them under the
foundation. For pumps with motor size below or equal
to 30 kW, you can use vibration dampers as shown in
fig. Pump on vibration dampers.
For pumps with motor size equal to 37 kW or above,
you can use a Sylomer® plate as shown in fig. Pump
on Sylomer® plate.
1
2
1
TM067999
Pump on vibration dampers
Pos. Description
1 Expansion joints
2 Vibration dampers
1
2
1
TM068000
Pump on Sylomer® plate
Pos. Description
1 Expansion joints
2Sylomer® plate
3.1.8 Outdoor installation
When the pump is installed outdoors, we recommend
that you provide the motor with a rain cover. We also
recommend that you open one of the drain holes in
the motor flange.
15
English (GB)

3.1.9 Tightening torques
WARNING
Flange gasket blowout
Death or serious personal injury
‐Tighten flange bolts according to the
specified torque values.
WARNING
Falling objects
Death or serious personal injury
‐Tighten the base plate anchor bolts ac-
cording to the specified torque values.
The tables show the recommended torques for base
plate anchor bolts and flange bolts.
The bolt quality must be minimum class 5.8 except for
CR, CRN 95 with optional small base plate which
must be minimum class 8.8.
CR, CRN Base plate anchor bolts
Bolt size Torque [Nm]
95 with op-
tional small
base plate
M12
(Ø14 free hole) 65
95 M16
(Ø18 free hole) 100
125-155 M20
(Ø22 free hole)
901
1902
185-255 M24
(Ø26 free hole) 130
1 Applies for pumps fitted with motors up to and including 55 kW.
2 Applies for pumps fitted with motors of 75 kW and up.
CR, CRN
Flange bolts
(DIN/EN, JIS, ANSI)
Bolt size Torque [Nm]
95 M16 30
M20 90
125-155 M20 90
M24 230
185-255
M20 90
M24 230
M27 300
16
English (GB)

3.1.10 Flange forces and torques
If not all loads reach the maximum permissible value stated in the tables below, one of these values may exceed
the normal limit. Contact Grundfos for further information.
TM040346
Flange forces and torques
Y-direction: Inlet or outlet
Z-direction: Direction of chamber stack
X-direction: 90 ° from inlet or outlet
The following tables represent the values that apply according to the material quality.
Force limits for CR pumps
Flange, DN
[mm] CR Force, Y-direction [N]
Force, Z-direction
[N]
Force, X-direction
[N]
100 95 1256 1013 1125
150 125 and 155 1875 1519 1688
200 185, 215 and 255 2513 2025 2250
Force limits for CRN pumps
Flange, DN
[mm] CRN Force, Y-direction [N]
Force, Z-direction
[N]
Force, X-direction
[N]
100 95 2513 2025 2250
150 125 and 155 3750 3038 3375
200 185, 215 and 255 5025 4050 4500
Torque limits for CR pumps
Flange, DN
[mm] CR Torque, Y-direction [Nm]
Torque, Z-direction
[Nm]
Torque, X-direction
[Nm]
100 95 375 475 625
150 125 and 155 625 775 1000
200 185, 215 and 255 900 1075 1375
17
English (GB)

Torque limits for CRN pumps
Flange, DN
[mm] CRN Torque, Y-direction [Nm]
Torque, Z-direction
[Nm]
Torque, X-direction
[Nm]
100 95 750 950 1250
150 125 and 155 1250 1550 2000
200 185, 215 and 255 1800 2150 2750
3.2 Electrical connection
Follow the instructions for the motor when
carrying out the electrical connections.
The electrical connection must be carried out by an
authorised electrician in accordance with local
regulations.
WARNING
Electric shock
Death or serious personal injury
‐Before starting any work on the prod-
uct, make sure that the power supply
has been switched off and that it can-
not be accidentally switched on.
‐Connect the pump to an external main
switch close to the pump and to a mo-
tor-protective circuit breaker or a CUE
frequency converter. Make sure you
can lock the main switch in OFF posi-
tion (isolated). Type and requirements
as specified in EN 60204-1, 5.3.2.
WARNING
Electric shock
Death or serious personal injury
‐Connect the pump to the same protec-
tive-earth (PE) potential as the motor if
both motor bearings are of the insula-
ted type such as ceramic bearings.
3.2.1 Maximum absorbed current
Some motors can absorb a maximum cur-
rent which is larger than the full load cur-
rent I1/1 stated on the nameplate. See the
table below.
Motor type according to the
nameplate
Upper limit for
absorbed current
• Motors marked with both of
the below:
- full load current I1/1
- maximum current Imax
Imax
• Grundfos MMG-G motors
• Grundfos MMG-E motors 1.1 x I1/1
• Motors marked only with the
below:
- full load current I1/1
I1/1
18
English (GB)

4. Starting up the product
WARNING
Corrosive liquids
Death or serious personal injury
‐Wear personal protective equipment.
WARNING
Toxic liquids
Death or serious personal injury
‐Wear personal protective equipment.
CAUTION
Hot or cold liquid
Minor or moderate personal injury
‐Wear personal protective equipment.
‐Pay attention to the direction of the
vent hole when you fill the pump with
liquid and vent it.
‐Make sure that no persons are hurt by
the escaping liquid.
Fill the pump with liquid and vent it before
you start the pump.
Pay attention to the direction of the vent
hole during liquid filling and venting. Make
sure that the escaping liquid does not
cause damage to the motor or other com-
ponents.
Vent valve, standard and an optional solution with
hose connection
TM058098 TM051160
19
English (GB)

4.1 Startup procedure
1. Close the isolating valve on the outlet side of the
pump and open the isolating valve on the inlet
side.
TM066882
2. Remove the priming plug from the pump head and
slowly fill the pump with liquid. Replace the
priming plug and tighten securely.
TM066883
3. See the correct direction of rotation of the pump
on the motor fan cover.
TM066884
4. Start the pump and check the direction of rotation.
TM066885
5. Vent the pump by means of the vent valve in the
pump head. At the same time, open the outlet
isolating valve a little.
TM066886
6. Continue to vent the pump. At the same time,
open the outlet isolating valve a little more.
TM066887
7. Close the vent valve when a steady stream of
liquid runs out of it.
TM066888
8. Completely open the outlet isolating valve.
TM072337
20
English (GB)
