Grundfos NBE 100-160/160-142BSASF1AESBAQERW1 User manual

NB, NBG, MTB
Installation and operating instructions
NB NBG MTB
Installation and operating instructions
(all available languages)
http://net.grundfos.com/qr/i/QR96483177
GRUNDFOS INSTRUCTIONS

NB, NBG, MTB
English (GB)
Installation and operating instructions ..................................5
Български (BG)
Упътване за монтаж и експлоатация.................................44
Čeština (CZ)
Montážní a provozní návod ........................................89
Deutsch (DE)
Montage- und Betriebsanleitung ....................................130
Dansk (DK)
Monterings- og driftsinstruktion .....................................174
Eesti (EE)
Paigaldus- ja kasutusjuhend.......................................214
Español (ES)
Instrucciones de instalación y funcionamiento...........................254
Suomi (FI)
Asennus- ja käyttöohjeet .........................................297
Français (FR)
Notice d'installation et de fonctionnement..............................337
Ελληνικά (GR)
Οδηγίες εγκατάστασης και λειτουργίας................................378
Hrvatski (HR)
Montažne i pogonske upute .......................................422
Magyar (HU)
Telepítési és üzemeltetési utasítás ..................................463
Italiano (IT)
Istruzioni di installazione e funzionamento .............................504
Lietuviškai (LT)
Įrengimo ir naudojimo instrukcija ....................................545
Latviešu (LV)
Uzstādīšanas un ekspluatācijas instrukcija .............................586
Nederlands (NL)
Installatie- en bedieningsinstructies ..................................627
Polski (PL)
Instrukcja montażu i eksploatacji....................................670
3
Table of contents

Português (PT)
Instruções de instalação e funcionamento .............................714
Română (RO)
Instrucţiuni de instalare şi utilizare...................................756
Srpski (RS)
Uputstvo za instalaciju i rad .......................................797
Svenska (SE)
Monterings- och driftsinstruktion ....................................838
Slovensko (SI)
Navodila za montažo in obratovanje .................................878
Slovenčina (SK)
Návod na montáž a prevádzku .....................................919
Türkçe (TR)
Montaj ve kullanım kılavuzu .......................................959
Українська (UA)
Інструкції з монтажу та експлуатації ...............................1001
中文 (CN)
安装和使用说明书 .............................................1047
日本語 (JP)
取扱説明書...................................................1084
Macedonian (MK)
Упатства за монтирање и ракување ...............................1122
(AR) ةيبرعلا
    ............................................1167
Shqip (SQ)
Udhëzimet e instalimit dhe funksionimit ..............................1205
4NB, NBG, MTB
Table of contents

English (GB) Installation and operating instructions
Original installation and operating instructions
Table of contents
1. General information ............. 5
1.1 Hazard statements .............. 5
1.2 Notes ..................... 6
2. Product introduction ............ 6
2.1 Product description .............. 6
2.2 Identification.................. 7
3. Receiving the product............14
3.1 Performance test ...............14
3.2 Transporting the product ...........14
3.3 Inspecting the product ............14
3.4 Storage after delivery .............14
4. Installing the product ............15
4.1 Mounting of motor on bare shaft pumps . ..15
4.2 Location ....................18
5. Mechanical installation ...........20
5.1 Lifting the product ...............20
5.2 Installation positions .............21
5.3 Foundation of NB, NBG, MTB pump
without base frame ..............21
5.4 Foundation of NB, NBG pump with base
frame .....................22
5.5 Pipes .....................26
5.6 Vibration damping...............27
5.7 Expansion joints................27
5.8 Measuring instruments ............28
5.9 Condensation cover..............28
6. Electrical connection ............29
6.1 Motor protection................29
6.2 Cable entry and screwed connection, MG
motor .....................29
6.3 Synchronous motors .............30
6.4 Frequency converter operation ........30
7. Startup ....................31
7.1 Flushing the pipe system ...........31
7.2 Priming the product ..............31
7.3 Checking the direction of rotation ......32
7.4 Starting up the pump .............32
7.5 Shaft seal run-in period ............33
7.6 Number of motors starting or stopping ....33
7.7 Reference readings of monitoring
equipment ...................33
8. Storing the product .............34
9. Servicing the product ............34
9.1 Contaminated products ............34
9.2 Service kits ..................34
10. Maintaining the product...........34
10.1 Maintenance of the pump...........34
10.2 Maintaining the mechanical shaft seals . ..34
10.3 Maintaining the motor.............35
10.4 Lubricationof motor bearings .........35
10.5 Applying sealant to plugs ...........35
11. Taking the product out of operation ....35
11.1 Protecting the pump during periods of
inactivity and frost...............35
12. Fault finding the product ..........36
13. Technical data ................39
13.1 Operating conditions .............39
13.2 Electrical data .................41
13.3 Sound pressure level .............42
14. Disposing of the product ..........43
1. General information
Read this document before you install the
product. Installation and operation must
comply with local regulations and accepted
codes of good practice.
1.1 Hazard statements
The symbols and hazard statements below may
appear in Grundfos installation and operating
instructions, safety instructions and service
instructions.
DANGER
Indicates a hazardous situation which, if
not avoided, will result in death or serious
personal injury.
WARNING
Indicates a hazardous situation which, if
not avoided, could result in death or
serious personal injury.
CAUTION
Indicates a hazardous situation which, if
not avoided, could result in minor or
moderate personal injury.
The hazard statements are structured in the following
way:
SIGNAL WORD
Description of the hazard
Consequence of ignoring the warning
• Action to avoid the hazard.
5
English (GB)

1.2 Notes
The symbols and notes below may appear in
Grundfos installation and operating instructions,
safety instructions and service instructions.
Observe these instructions for explosion-
proof products.
A blue or grey circle with a white graphical
symbol indicates that an action must be
taken.
A red or grey circle with a diagonal bar,
possibly with a black graphical symbol,
indicates that an action must not be taken
or must be stopped.
If these instructions are not observed, it
may result in malfunction or damage to the
equipment.
Tips and advice that make the work easier.
2. Product introduction
2.1 Product description
NB, NBG, MTB are non-self-priming, single stage,
centrifugal volute pumps with axial inlet port and
radial outlet port.
NB pumps comply with EN 733.
NBG pumps comply with ISO 2858.
2.1.1 Pumped liquids of NB, NBG
NB, NBG pumps are suitable for clean, thin, non-
explosive liquids without solid particles or fibres. The
pumped liquid must not attack the pump materials
chemically.
2.1.2 Pumped liquids of MTB
DANGER
Flammable material
Death or serious personal injury
‐The pump must not be used for the
pumping of inflammable liquids, such
as diesel fuel, petrol or similar liquids.
MTB pumps are suitable for industrial machine tool
applications, such as:
• machining centres
• cooling systems
• grinding machines
• lathes
• parts cleaning systems.
MTB pumps are designed specifically for the transfer
of liquids containing solid particles. The pumps are
capable of pumping liquids with particles up to 20 mm
in size and a weight percentage of up to 1.5 wt%.
When pumping abrasive particles, a reduced life of
pump parts can be expected.
6
English (GB)

2.2 Identification
2.2.1 Nameplate
4
6
H m
n min -1
%
MEI
ηp
(in.)
HzType/Model f DK-8850 Bjerringbro, Denmark
9987276 1
Ver.
Q
p/t
Imp. Dia.
0.70 60
NBG 125-100-315/334AAEF2BESBQQEUX4
B96704505P220430001
16/120
13.15
Made in Hungary
51.47
82.4
1780
m3/h
bar/°CMAX
245.8
1
11
5
3
2
9
78
12 10
PEl :0.95
CL
TM056006
Example of NB, NBG nameplate
4
6
H m
n min -1
%
MEI
ηp
(in.)
HzType/Model f DK-8850 Bjerringbro, Denmark
9987276 1
Ver.
Q
p/t
Imp. Dia.
-.-- 50
MTB 65-200/199AFABQQV
A96580752P218120001
16/90
Made in Hungary
42.1
7.83
2930
m3/h
bar/°CMAX
60.0
1
11
5
3
2
9
78
12 10
PEL :NA
CL
--.-
TM032218
Example of MTB nameplate
Legend
Pos. Description
1 Type designation
2Identification code (take NB, NBG nameplate
as example)
B Service model
96704505 Product number
P2 Production site code
2015 Production year and week
(YYWW)
0001 Serial number
3 Nominal flow rate
4 Nominal pump head
5 Pressure rating and maximum temperature
6 Hydraulic efficiency at best efficiency point
7 Minimum efficiency index
8 Frequency
Pos. Description
9 Actual impeller diameter
10
Drinking water approval
or Pump Energy Index (PEI)
PEICL: constant load
PEIVL: variable load
11 Country of origin
12 Rated pump speed
7
English (GB)

2.2.2 Type key, NB, NBG
Example 1: NBE 100-160/160-142BSASF1AESBAQERW1
Example 2: NBGE 200-150-315.2/317ACAEF3KFSDAQFYW1
Example 3: NBG 100-65-200/219SAAEF2KESBQQEKX4
Example 4: NB 80-200/222VAXEF1BESBQQEWX2
Pos. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
Example 1 NBE 100 -160 /160-142 B S AS F 1 A E S BAQE R W 1
Example 2 NBGE 200 -150 -315.2 /317 A C AE F 3 K F S DAQF Y W 1
Example 3 NBG 100 -65 -200 /219 S A AE F 2 K E S BQQE K X 4
Example 4 NB 80 -200 /222 V A XE F 1 B E S BQQE W X 2
Pos. Explanation
1 Type range
2 Nominal diameter of inlet port (DN)
3 Nominal diameter of outlet port (DN)
4 Nominal impeller diameter [mm]
5 Actual impeller diameter [mm]
6
Impeller type
'blank': Closed impeller, cylindrical trim. If one dimension is shown, the impeller has a cylindrical trim,
for example 317
'blank': Closed impeller, conical trim. If two dimensions are shown, the impeller has a conical trim, for
example 160-142
S: Semi-open impeller
V: Super vortex impeller
7
Hydraulic version
A: 1st version
B: 2nd version
C: 3rd version
D: 4th version
8
Sensor version
'blank': Pump without sensor
C: Without built-in sensor, one cable and one pressure sensor are supplied with the pump.
S: Pump with built-in differential-pressure sensor, Series 2000
9
Code for pump version; the codes may be combined
A: Basic version
B: Oversize motor
C: Without motor
D: Pump housing with feet
(+E): With ATEX approval, certificate or test report, the second character of the code for pump version
is an E
F: Design with base frame
(+S): With support blocks, the second character of the pump version code is an S
X: Special version; used in case of further customisation than already listed
8
English (GB)

Pos. Explanation
10
Code for pipe connection
E: Table E flange
F: DIN flange
G: ANSI flange
J: JIS flange
11
Flange pressure rating (PN - rated pressure)
1: 10 bar
2: 16 bar
3: 25 bar
4: 40 bar
5: Other pressure rating
12
Code for materials
Code Pump housing Impeller Wear ring Shaft
A EN-GJL-250 EN-GJL-200 Bronze/brass 1.4301/1.4308
B EN-GJL-250 Bronze CuSn10 Bronze/brass 1.4301/1.4308
C EN-GJL-250 EN-GJL-200 Bronze/brass 1.4401
D EN-GJL-250 Bronze CuSn10 Bronze/brass 1.4401
E EN-GJL-250 EN-GJL-200 EN-GJL-250 1.4301/1.4308
F EN-GJL-250 Bronze CuSn10 EN-GJL-250 1.4301/1.4308
G EN-GJL-250 EN-GJL-200 EN-GJL-250 1.4401
H EN-GJL-250 Bronze CuSn10 EN-GJL-250 1.4401
I 1.4408 1.4408 1.4517 1.4462
J 1.4408 1.4408 Carbon-graphite-filled
PTFE (Graflon®)1.4462
K 1.4408 1.4408 1.4517 1.4401
L 1.4517 1.4517 1.4517 1.4462
M 1.4408 1.4517 1.4517 1.4401
N 1.4408 1.4408 Carbon-graphite-filled
PTFE (Graflon®)1.4401
P 1.4408 1.4517 Carbon-graphite-filled
PTFE (Graflon®)1.4401
R 1.4517 1.4517 Carbon-graphite-filled
PTFE (Graflon®)1.4462
S EN-GJL-250 1.4408 Bronze/brass 1.4401
T EN-GJL-250 1.4517 Bronze/brass 1.4462
U 1.4408 1.4517 1.4517 1.4462
W 1.4408 1.4517 Carbon-graphite-filled
PTFE (Graflon®)1.4462
Z 1.4469 1.4469 1.4410 1.4410
X Special version
9
English (GB)

Pos. Explanation
13
Rubber parts in pump
E: EPDM
F: FXM (Fluoraz®)
K: FFKM (Kalrez®)
M: FEPS (PTFE-sheathed silicone O-ring)
O: HNBR
V: FKM (Viton®)
14 Shaft seal arrangement
S: Single seal
15 Shaft seal in pump
Letter code for mechanical shaft seal and shaft seal rubber parts. See Letter codes for shaft seals.
16 Code for rated motor power [kW]. See Codes for rated motor power.
17 Code for phase and voltage [V] or other information. See Codes for phase and voltage or other
information.
18 Code for speed variant [rpm]. See Codes for speed variant.
10
English (GB)

Example 1: NBE
100-160/160-142BSASF1AESBAQERW1 shows an
NBE 100-160 pump with these characteristics:
• 160-142 mm closed impeller, conical trim
• hydraulic version B
• with built-in differential-pressure sensor
• pump with support blocks
• DIN flange to EN 1092-2 pipe connection
• 10 bar flange pressure rating
• cast iron pump housing, EN-GJL-250
• cast iron impeller, EN-GJL-200
• bronze/brass wear ring
• stainless steel shaft, EN 1.4301/1.4308
• EPDM O-rings for pump cover
• single shaft seal arrangement
• BAQE shaft seal
• 30 kW motor, not for sale in North America, 2-
pole, 50 Hz.
Example 2: NBGE
200-150-315.2/317ACAEF3KFSDAQFYW1 shows
an NBGE 200-150-315.2 pump with these
characteristics:
• 317 mm closed impeller, cylindrical trim
• hydraulic version A
• without built-in sensor, one cable and one
pressure sensor are supplied with the pump.
• pump with ATEX approval
• DIN flange to EN 1092-2 pipe connection
• 25 bar flange pressure rating
• stainless steel pump housing, EN 1.4408
• stainless steel impeller, EN 1.4408
• stainless steel wear ring, EN 1.4517
• stainless steel shaft, EN 1.4401
• FXM O-rings for pump cover
• single shaft seal arrangement
• DAQF shaft seal
• motor size outside DOE scope, not for sale in
North America, 2-pole, 50 Hz.
Example 3: NBG
100-65-200/219SAAEF2KESBQQEKX4 shows an
NBG 100-65-200 pump with these characteristics:
• 219 mm semi-open impeller
• hydraulic version A
• basic version
• with ATEX approval, certificate or report
• DIN flange to EN 1092-2 pipe connection
• 16 bar flange pressure rating
• stainless steel pump housing, EN 1.4408
• stainless steel impeller, EN 1.4408
• stainless steel wear ring, EN 1.4517
• stainless steel shaft, EN 1.4401
• EPDM O-rings for pump cover
• single shaft seal arrangement
• BQQE shaft seal
• 4 kW (3.7 hp) motor, US DOE regulated motor,
4-pole, 60 Hz.
Example 4: NB
80-200/222VAXEF1BESBQQEWX2 shows an NB
80-200 pump with these characteristics:
• 222 mm super vortex impeller
• hydraulic version A
• PWIS-free certificate included
• DIN flange to EN 1092-2 pipe connection
• 10 bar flange pressure rating
• cast iron pump housing, EN-GJL-250
• bronze CuSn10 impeller
• bronze/brass wear ring
• stainless steel shaft, EN 1.4301/1.4308
• EPDM O-rings for pump cover
• single shaft seal arrangement
• BQQE shaft seal
• 90 kW motor, US DOE regulated motor, 2-pole,
60 Hz..
11
English (GB)

Letter codes for shaft seals
Pos. 15 in NB, NBG type key example.
Code
examp
le
Description Code explanation
B Shaft seal type
A: O-ring seal with fixed
driver
B: Rubber bellows seal
D: O-ring seal, balanced
H: Cartridge seal,
balanced
Q
Material of
rotating seal
face
A: Carbon, metal-
impregnated with
antimony which is not
approved for potable
water
B: Carbon, resin-
impregnated
Q: Silicon carbide
QMaterial of
stationary seal
A: Carbon, metal-
impregnated with
antimony which is not
approved for potable
water
Q: Silicon carbide
E
Material of
secondary seal
and other
rubber and
composite parts,
except the wear
ring
E: EPDM
V: FKM (Viton®)
F: FXM (Fluoraz®)
K: FFKM (Kalrez®)
X: HNBR
U: Dynamic O-rings in
FFKM and static O-rings
in PTFE
For a thorough description of shaft seal types and
materials, see the data booklet "NB, NBG, NK, NKG,
NBE, NBGE, NKE, NKGE - Custom-built pumps
according to EN 733 and ISO 2858".
Codes for rated motor power
Pos. 16 in NB, NBG type key example.
Code Description
[hp] [kW]
A 0.16 0.12
B 0.25 0.18
C 0.33 0.25
D 0.5 0.37
E 0.75 0.55
F 1 0.75
G 1.5 1.1
H 2 1.5
I 3 2.2
J 4 3
K5 (5.51) 3.7 (41)
L 7.5 5.5
M 10 7.5
N 15 11
O 20 15
P 25 18.5
Q 30 22
R 40 30
S 50 37
T 60 45
U 75 55
V 100 75
W 125 90
XBare shaft
pump
Y> 2002> 1502
1 150 110
2 175 132
3 200 150
421531603
525031853
1 Value in bracket is for the standard IEC motor size.
Value outside bracket is for the motor size according
to NEMA standards.
12
English (GB)

2 Used for pumps where the pump shaft input power
exceeds 200 hp (150 kW) and is not regulated under
the DOE pump rule.
3 Special cases with power sizes above 200 hp (150
kW) which are still regulated under the DOE pump
rule. For example: Pump has a P2 value of 198 hp
(147.6 kW) in its duty point (in DOE scope) but
customer wants the 215 hp (160 kW) motor instead of
the 200 hp (150 kW). The pump is in scope of the
DOE regulation and requires a PEI value and a motor
code.
Codes for phase and voltage or other information
Pos. 17 in NB, NBG type key example.
Code Description
AE-motor (ECM1), 1 x 200-240 V
BE-motor (ECM1), 3 x 200-240 V
CE-motor (ECM1), 3 x 440-480 V
DE-motor (ECM1), 3 x 380-500 V
VIntended for use with external VFD
only, asynchronous motor
W Not for sale in North America
XNo motor or US DOE regulated motor
(CC marked motor)
Y Out of DOE scope
Z E-motor, asynchronous motor
1ECM: Electronically Commutated Motor.
Codes for speed variant
Pos. 18 in NB, NBG type key example.
Code Description
A1450-2200 RPM, E-motor (ECM1)
B2900-4000 RPM, E-motor (ECM1)
C4000-5900 RPM, E-motor (ECM1)
1 2-pole, 50 Hz (Asynchronous motor)
2 2-pole, 60 Hz (Asynchronous motor)
3 4-pole, 50 Hz (Asynchronous motor)
4 4-pole, 60 Hz (Asynchronous motor)
5 6-pole, 50 Hz (Asynchronous motor)
6 6-pole, 60 Hz (Asynchronous motor)
7 8-pole, 50 Hz (Asynchronous motor)
8 8-pole, 60 Hz (Asynchronous motor)
1ECM: Electronically Commutated Motor.
13
English (GB)

2.2.3 Type key, MTB
Example of type key: MTB 65-200/199A-F-ABQQE
Pos. 1 2 3 4 5 6 7 8
Code MTB 65 -200 /199 A F A BQQV
Pos. Description
1 Pump type
2 Nominal diameter of outlet port (DN)
3 Pump housing size [mm]
4 Actual impeller diameter [mm]
5Code for pump version
A: Basic version
6Code pipe connection
F: DIN flange
7Code for materials
A: Cast iron
8
Code for shaft seal and rubber pump parts
B: Rubber bellows seal
Q: Silicon carbide (SiC)
E: EPDM
V: FKM
The example describes an MTB 65-200 pump with an
actual impeller diameter of 199 mm, of the basic
version, with DIN flanges, made of cast iron and with
a BQQV shaft seal.
The pump is fitted with FKM O-rings as standard.
3. Receiving the product
3.1 Performance test
The pumps are tested 100 % before leaving the
factory. The test includes a function test where the
pump performance is measured to ensure that the
pump meets the requirements of relevant standards.
Test certificates are available from Grundfos
3.2 Transporting the product
WARNING
Overhead load
Death or serious personal injury
‐Pay attention to the pump weight, and
take precautions to prevent personal
injury if the pump topples or falls by
accident.
• Always transport the pump in the specified
position.
• Securely fasten the pump to prevent damage to
the shaft and shaft seal caused by excessive
vibrations and knocks.
• Do not lift the pump by the shaft.
3.3 Inspecting the product
• Confirm that the product received is in accordance
with the order.
• Confirm that the voltage, phase and frequency of
the product match the voltage, phase and
frequency of the installation site. See
Identification.
• Check the product for defects or damages
immediately upon receipt. Any accessory ordered
will be packed in a separate container and
shipped with the product.
• If any equipment is damaged in transit, report it
immediately to the carrier's agent. Make complete
notations on the freight bill.
3.4 Storage after delivery
The contractor must inspect the equipment on
delivery and make sure it is stored so as to avoid
corrosion or damage. See Storing the product.
14
English (GB)

4. Installing the product
4.1 Mounting of motor on bare shaft pumps
4.1.1 Mounting of motor on pump housing without
feet
The pumps are supplied with a transport bracket
protecting the shaft seal during transport. When you
mount the motor, follow the instructions and drawings
as below.
1. Remove the coupling guard and loosen the set
screws in the shaft.
TM053327
2. Place the pump on the motor.
TM033906
3. Fit and tighten the motor screws to the correct
torque. See below.
• M8: 20 ± 4 Nm
• M10: 40 ± 8 Nm
• M12: 70 ± 15 Nm
• M16: 145 ± 30 Nm
• M20: 150 ± 30 Nm
• M24: 200 ± 40 Nm
TM033907
4. Remove the nut, washer and transport bracket.
TM033908
5. Press down the threaded pipe to ensure that the
shaft is in bottom position.
TM033909
15
English (GB)

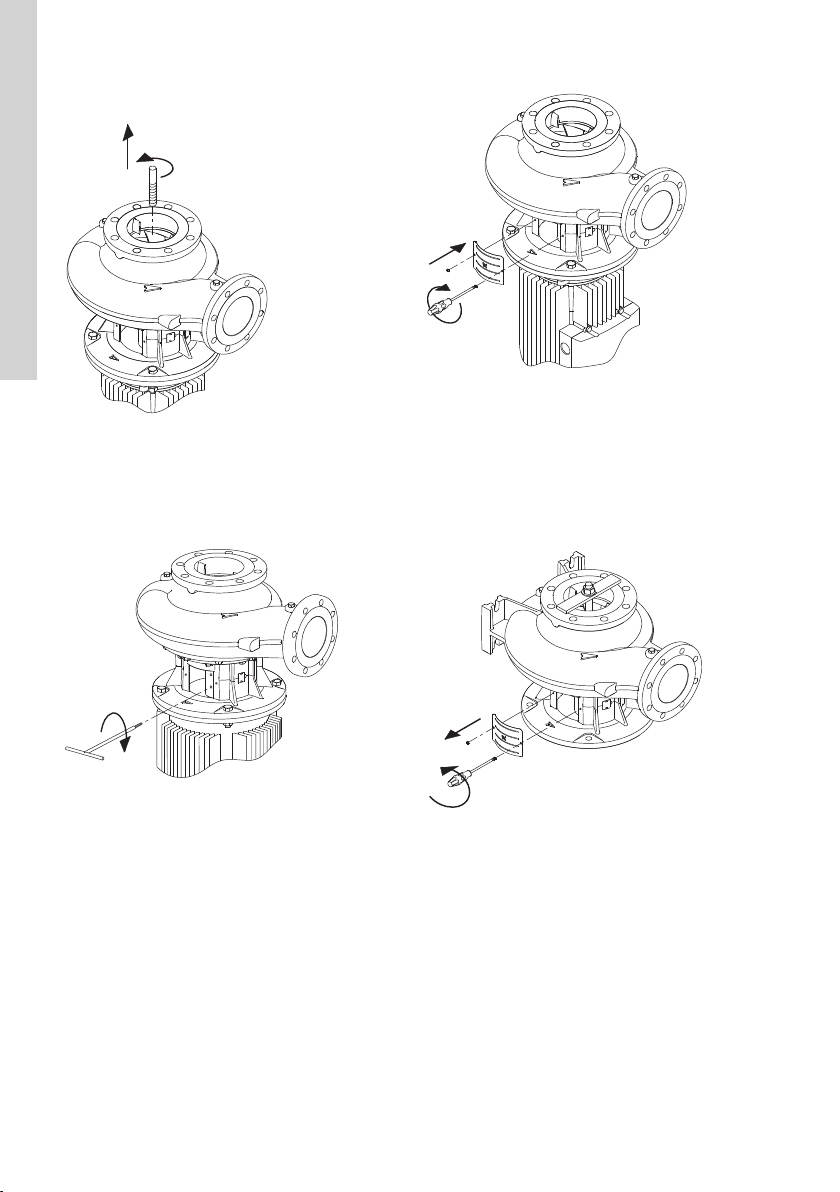

6. Remove the threaded pipe.
TM033910
7. Apply Loctite 243 to the threads of the set screws.
Tighten the set screws to the correct torque.
• M5: 6 ± 2 Nm
• M6: 8 ± 2 Nm
• M8: 15 ± 3 Nm
TM033911
8. Fit the coupling guard. Tighten the screws to the
correct torque.
• M5 x 10 mm: 6 ± 2 Nm
TM033912

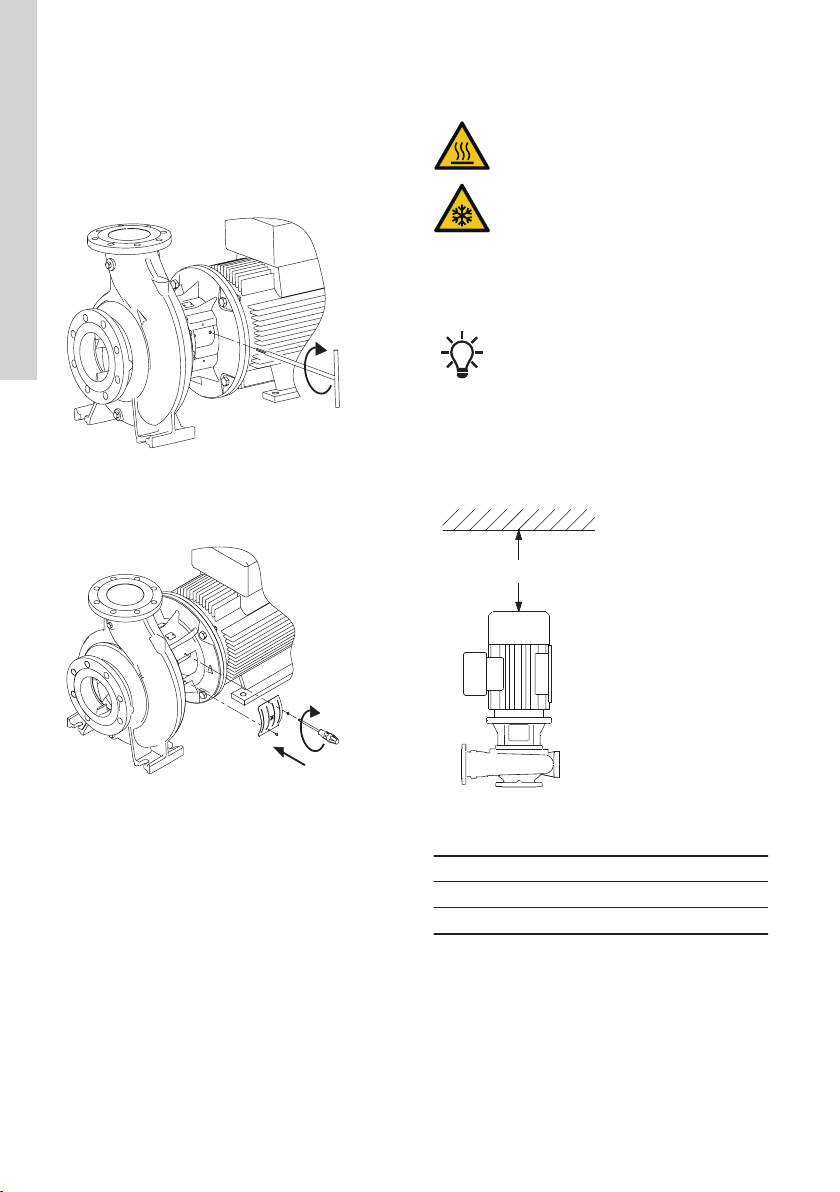

4.1.2 Mounting of motor on pump housing with
feet
The pumps are supplied with a transport bracket
protecting the shaft seal during transport. When you
mount the motor, follow the instructions and drawings
as below.
1. Remove the coupling guard and loosen the set
screws in the shaft.
TM033913
16
English (GB)

2. Place the pump at the end of the motor and push
the parts together.
TM033905
3. Fit and tighten the motor screws to the correct
torque. See below.
• M8: 20 ± 4 Nm
• M10: 40 ± 8 Nm
• M12: 70 ± 15 Nm
• M16: 145 ± 30 Nm
• M20: 150 ± 30 Nm
• M24: 200 ± 40 Nm
TM033914
4. Remove the nut, washer and transport bracket.
TM033915
5. Press down the threaded pipe to ensure that the
shaft is in bottom position.
TM033916
6. Remove the threaded pipe.
TM033917
17
English (GB)

7. Apply Loctite 243 to the threads of the set screws.
Tighten the set screws to the correct torque. See
below.
• M5: 6 ± 2 Nm
• M6: 8 ± 2 Nm
• M8: 15 ± 3 Nm
TM033918
8. Fit the coupling guard. Tighten the screws to the
correct torque. See below.
• M5 x 10 mm: 6 ± 2 Nm
TM033919
4.2 Location
CAUTION
Hot or cold surface
Minor or moderate personal injury
‐When pumping hot or cold liquids,
make sure that no one can accidentally
come into contact with hot or cold
surfaces.
The pump must be sited in a well-ventilated, but frost-
free location.
4.2.1 Vertical installation, NB, NBG
For inspection and repair, allow suitable
clearances for pump or motor removal.
• Pumps fitted with motors up to and including 4 kW
require a 0.3 m clearance above the motor.
• Pumps fitted with motors of 5.5 kW and up require
at least a 1 m clearance above the motor to allow
the use of lifting equipment.
A
TM034128
Clearance above the motor
Motor Minimum clearance, A
0.25 - 4 kW 0.3 m
5.5 - 37 kW 1 m
18
English (GB)

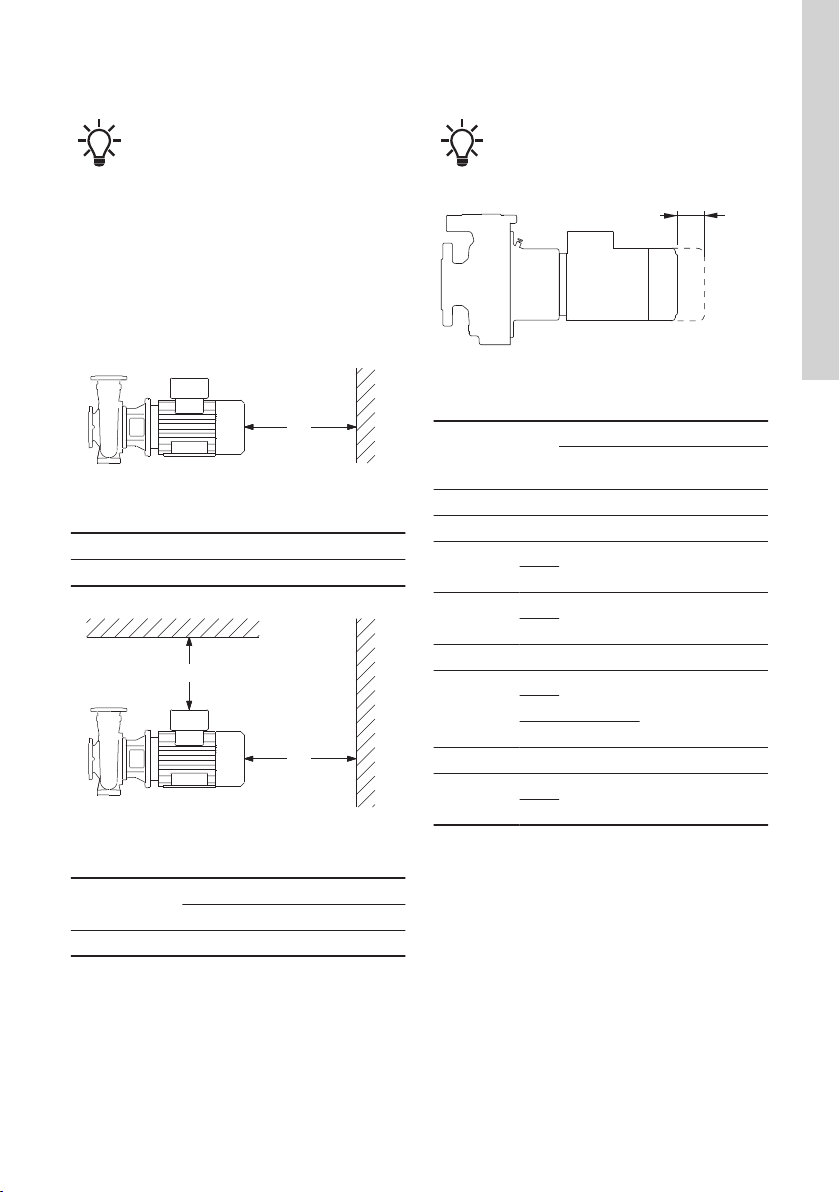

4.2.2 Horizontal installation, NB, NBG
For inspection and repair, allow suitable
clearances for pump or motor removal.
• Pumps fitted with motors up to and including 4 kW
require a 0.3 m clearance behind the motor.
• Pumps fitted with motors of 5.5 kW and up require
a 0.3 m clearance behind the motor and at least a
1 m clearance above the motor to allow the use of
lifting equipment.
• NB pumps with base frame must have the same
clearance as pumps with motors from 5.5 to 200
kW.
A
TM034127
Clearance behind the motor
Motor Minimum clearance, A
0.25 - 4 kW 0.3 m
A
B
TM077156
Clearance behind and above the motor
Motor Minimum clearance
A B
5.5 - 200 kW 0.3 m 1 m
4.2.3 Minimum clearance of MTB
For inspection and repair, allow suitable
clearances for pump or motor removal.
X
TM033547
Motor and pump head removal
Pump P2
[kW]
Minimum clearance, X [mm]
Motor only Motor and pump
head
50 Hz
MTB 50-200 3.0 60 140
MTB 65-160 5.5 80 100
7.5
MTB 65-200 11 100 100
15
60 Hz
MTB 50-200
3.0 60 1404.0
5.5 80
MTB 65-125 7.5 80 100
MTB 65-160 11 110 100
15
19
English (GB)

5. Mechanical installation
The pump must be installed according to
national water regulations and standards.
5.1 Lifting the product
Motors from 4 kW and up are supplied with
lifting eyes which must not be used for
lifting the entire pump unit.
Weight: See label on the packing.
Lift the pumps by means of nylon straps and shackles
or a hook as shown on figures below.
TM033973
Correct lifting of pump without base frame
TM045179
Correct lifting of pump with base frame
TM053309
Correct lifting of pump without motor
TM033972
Incorrect lifting of pump
20
English (GB)
