Grundfos Unilift ap35b User manual

UNILIFT AP35B, AP50B

Installation and operating instructions

UNILIFT AP35B, AP50B

Installation and operating instructions

Other languages

http://net.grundfos.com/qr/i/96004693

GRUNDFOS INSTRUCTIONS

UNILIFT AP35B, AP50B

English (GB)

Installation and operating instructions ..................................5

Български (BG)

Упътване за монтаж и експлоатация.................................18

Čeština (CZ)

Montážní a provozní návod ........................................31

Deutsch (DE)

Montage- und Betriebsanleitung .....................................44

Dansk (DK)

Monterings- og driftsinstruktion ......................................57

Eesti (EE)

Paigaldus- ja kasutusjuhend........................................70

Español (ES)

Instrucciones de instalación y funcionamiento............................83

Suomi (FI)

Asennus- ja käyttöohjeet ..........................................96

Français (FR)

Notice d'installation et de fonctionnement..............................109

Ελληνικά (GR)

Οδηγίες εγκατάστασης και λειτουργίας................................122

Hrvatski (HR)

Montažne i pogonske upute .......................................136

Magyar (HU)

Telepítési és üzemeltetési utasítás ..................................149

Italiano (IT)

Istruzioni di installazione e funzionamento .............................162

Lietuviškai (LT)

Įrengimo ir naudojimo instrukcija ....................................175

Latviešu (LV)

Uzstādīšanas un ekspluatācijas instrukcija .............................188

Nederlands (NL)

Installatie- en bedieningsinstructies ..................................201

Polski (PL)

Instrukcja montażu i eksploatacji....................................214

Table of contents

Português (PT)

Instruções de instalação e funcionamento .............................227

Română (RO)

Instrucţiuni de instalare şi utilizare...................................240

Srpski (RS)

Uputstvo za instalaciju i rad .......................................253

Svenska (SE)

Monterings- och driftsinstruktion ....................................266

Slovensko (SI)

Navodila za montažo in obratovanje .................................279

Slovenčina (SK)

Návod na montáž a prevádzku .....................................292

Türkçe (TR)

Montaj ve kullanım kılavuzu .......................................305

Українська (UA)

Інструкції з монтажу та експлуатації ................................320

中文 (CN)

安装和使用说明书 ..............................................334

Bahasa Indonesia (ID)

Petunjuk pengoperasian dan pemasangan.............................346

Macedonian (MK)

Упатства за монтирање и ракување ................................359

(AR) ةيبرعلا

    .............................................372

Appendix A..................................................384

4UNILIFT AP35B, AP50B

Table of contents

English (GB) Installation and operating instructions

Original installation and operating instructions

Table of contents

1. General Information ............. 5

1.1 Hazard statements .............. 5

1.2 Notes ..................... 6

2. Receiving the product............ 6

2.1 Inspecting the product ............ 6

3. Installation requirements .......... 6

3.1 Location .................... 6

3.2 Mechanical installation ............ 7

3.3 Electrical connection ............. 9

3.4 Checking the direction of rotation ......10

4. Starting up the product ...........10

5. Product introduction ............10

5.1 Intended use .................11

5.2 Pumped liquids ................11

5.3 Identification..................12

6. Servicing the product ............13

6.1 Maintaining the product............13

6.2 Oil .......................13

6.3 Construction..................14

6.4 Service kits ..................14

6.5 Contaminated pumps .............14

7. Fault finding .................15

7.1 The motor does not start ...........15

7.2 The motor protection or thermal relay

trips after a short time of operation ......15

7.3 The pump runs constantly or gives too

little water ...................16

7.4 The pump runs but gives no water ......16

8. Technical data ................17

8.1 Storage temperature .............17

8.2 Operating conditions .............17

8.3 Sound pressure level .............17

9. Disposing of the product ..........17

1. General Information

Read this document before you install the

product. Installation and operation must

comply with local regulations and accepted

codes of good practice.

This appliance can be used by children

aged from 8 years and above and persons

with reduced physical, sensory or mental

capabilities or lack of experience and

knowledge if they have been given

supervision or instruction concerning use

of the appliance in a safe way and under-

stand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not

be made by children without supervision.

1.1 Hazard statements

The symbols and hazard statements below may

appear in Grundfos installation and operating

instructions, safety instructions and service

instructions.

DANGER

Indicates a hazardous situation which, if

not avoided, will result in death or serious

personal injury.

WARNING

Indicates a hazardous situation which, if

not avoided, could result in death or seri-

ous personal injury.

CAUTION

Indicates a hazardous situation which, if

not avoided, could result in minor or mod-

erate personal injury.

The hazard statements are structured in the following

way:

SIGNAL WORD

Description of the hazard

Consequence of ignoring the warning

• Action to avoid the hazard.

English (GB)

1.2 Notes

The symbols and notes below may appear in

Grundfos installation and operating instructions,

safety instructions and service instructions.

Observe these instructions for explosion-

proof products.

A blue or grey circle with a white graphical

symbol indicates that an action must be

taken.

A red or grey circle with a diagonal bar,

possibly with a black graphical symbol, in-

dicates that an action must not be taken or

must be stopped.

If these instructions are not observed, it

may result in malfunction or damage to the

equipment.

Tips and advice that make the work easier.

2. Receiving the product

WARNING

Falling objects

Death or serious personal injury

‐Keep the product in a stable position

during unpacking.

‐Wear personal protective equipment.

2.1 Inspecting the product

Check that the product received is in accordance with

the order.

Check that the voltage and frequency of the product

match voltage and frequency of the installation site.

3. Installation requirements

CAUTION

Toxic material

Minor or moderate personal injury

‐The product will be classified as conta-

minated if it has been used for a liquid

which is injurious to health or toxic.

Wear personal protective equipment.

Installation must be carried out by special-

ly trained persons and according to local

regulations.

According to EN 60335-2-41/A2:2010, this

product with 5 m of mains cable must only

be used for indoor applications.

3.1 Location

Always have at least 3 m free cable above

liquid level. This limits the installation

depth to 7 m for pumps with 10 m cable

and to 2 m for pumps with 5 m cable.

3.1.1 Minimum space

The pit, basin or tank must be sized according to the

relation between the water flow to the pit, basin or

tank and the pump performance.

When the pump is installed in a permanent

installation with a float switch, the minimum

dimensions of the pit, basin or tank must be as shown

in fig. Minimum pit dimensions when the float switch

is set to the minimum free cable length to ensure free

movability of the float switch. The float switch is set to

the minimum free cable length. See section Adjusting

the float switch cable length.

550 mm

600 mm

TM034190

Minimum pit dimensions when the float switch is set

to the minimum free cable length

Related information

3.2.7 Adjusting the float switch cable length

English (GB)

3.2 Mechanical installation

DANGER

Electric shock

Death or serious personal injury

‐Switch off the power supply before

starting any work on the product.

‐Make sure that the power supply can-

not be accidentally switched on.

CAUTION

Sharp element

Minor or moderate personal injury

‐Wear personal protective equipment.

‐Make sure that persons cannot come

into contact with the pump impeller.

Do not install the pump hanging from the

electric cable or the outlet pipe.

3.2.1 Foundation

Place the pump on a plate or on bricks so that the

inlet strainer is free of sludge, mud or similar

materials. See fig. Place the pump on a plate.









































































































































··

····

TM013597

Place the pump on a plate

3.2.2 Lifting the pump

Do not pull or lift the product by the power

cable.

Lift the pump using the pump handle. Do not lift the

pump by the power cable or by the outlet pipe or

hose.

If the pump is installed in a well or tank, lower and lift

it by means of a wire or chain fastened to the pump

handle.

3.2.3 Positioning the pump

The pump can be used in vertical or horizontal

position. See fig. Position of the pump.

During continuous operation, the motor and the pump

inlet must always be completely covered by the

pumped liquid.

During intermittent operation, the motor must always

be half submerged into the pumped liquid.

TM034191

Position of the pump

When the pipe or hose has been connected, place

the pump in its operating position.

Position the pump so that the pump inlet will not be

blocked or partly blocked by sludge, mud or similar

materials.

In the case of permanent installation, the pit must be

cleared of sludge, pebbles, etc. before the pump is

installed.

3.2.4 Pipe connection

For permanent installation, we recommend that you fit

a union, a non-return valve and an isolating valve in

the outlet pipe.

3.2.5 Installation on auto coupling

See figs A and B in the Appendix.

Pumps for permanent installation can be installed on

a stationary auto coupling and operated completely or

partially submerged in the pumped liquid.

1. Drill mounting holes for guide rail bracket on the

inside of the pit and fasten the guide rail bracket

provisionally with two screws.

2. Place the auto coupling base unit on the bottom of

the pit. Use a plumb line to establish the correct

positioning. Fasten with heavy-duty expansion

bolts. If the bottom of the pit is uneven, the auto-

coupling base unit must be supported so that it is

level when being fastened.

3. Assemble the outlet line in accordance with the

generally accepted procedures and without

exposing the line to distortion or tension.

4. Knock the guide rails on to the spigots of the

bottom part of the auto coupling. Bevel the inside

of the guide rails to facilitate installation. The

guide rails must fit tightly on the spigots. We

recommend 3/4" medium size pipes as guide

rails.

5. Adapt the length of the guide rails to fit precisely

the bracket at the top.

English (GB)

6. Unscrew the provisionally fastened guide rail

bracket, fit it on top of the guide rails and finally

fasten it firmly to the pit wall.

The guide rails must not have any axial

play as this would cause noise during

pump operation.

7. Clean out debris from the pit before lowering the

pump into the pit.

8. Fit the auto-coupling half on to the outlet of the

pump. Then slide the guide bar of this coupling

half between the guide rails and lower the pump

into the pit by means of a chain. When the pump

reaches the auto-coupling base unit, the pump will

automatically connect tightly.

9. Hang up the end of the chain on a suitable hook

at the top of the pit.

10. Adjust the length of the motor cable by coiling it

up on a relief fitting, so the cable is not damaged

during operation. Fasten the relief fitting to a

suitable bracket at the top of the pit. Make sure

that the cables are not sharply bent or pinched.

The end of the cable must not be sub-

merged, as water may penetrate

through the cable into the motor.

3.2.6 Free-standing installation

See the appendix for dimensional drawing.

For free-standing installation of the pumps, fit a 90°

elbow to the outlet. The pump can be installed with a

hose or rigid pipe and valves.

In order to facilitate service of the pump, fit a flexible

union or coupling to the outlet pipe for easy

separation.

If a hose is used, make sure that the hose does not

buckle and that the inside diameter of the hose

matches that of the outlet.

If a rigid pipe is used, the union or coupling, non-

return valve and isolating valve must be fitted in the

sequence mentioned, as seen from the pump side.

If the pump is installed in muddy conditions or on

uneven ground, we recommend that you support the

pump on bricks.

3.2.7 Adjusting the float switch cable length

For pumps supplied with a float switch, the difference

in level between start and stop can be adjusted by

changing the free cable length between the float

switch and the pump handle.

• An increased free cable length will result in fewer

starts and stops and a large difference in level.

• A reduced free cable length will result in more

frequent starts and stops and a small difference in

level.

The stop level must be above the pump inlet to

prevent the pump from taking in air.

TM034192

Start and stop levels

Pos. Description

1 Stop

2 Start

3 L

The start and stop levels vary according to the cable

length.

UNILIFT AP B start and stop levels [mm]

Cable length (L)

min. 100 mm

Cable length (L)

max. 300 mm

Start Stop Start Stop

500 300 550 150

Intermittent operation

During intermittent operation, the motor must always

be half submerged into the pumped liquid.

The pump is allowed to run for maximum 5 minutes

per 30 minutes without the motor being submerged in

the liquid.

Continuous operation

During continuous operation, the motor and the pump

inlet must always be completely covered by the

pumped liquid.

English (GB)

3.3 Electrical connection

DANGER

Electric shock

Death or serious personal injury

‐Switch off the power supply before you

start any work on the product.

‐Make sure that the power supply can-

not be switched on accidentally.

DANGER

Electric shock

Death or serious personal injury

‐The installation must be fitted with a re-

sidual-current device (RCD) with a trip-

ping current less than 30 mA.

DANGER

Electric shock

Death or serious personal injury

‐Make sure that the power supply plug

delivered with the product is in compli-

ance with local regulations.

‐The plug must have the same protec-

tive earth (PE) connection system as

the power outlet. If not, use a suitable

adapter if allowed by local regulations.

DANGER

Electric shock

Death or serious personal injury

‐Power cables without a plug must be

connected to a supply disconnecting

device incorporated in the fixed wiring

according to the local wiring rules.

All electrical connections must be carried

out by a qualified person in accordance

with local regulations.

Depending on local regulations, a pump

with minimum 10 m of mains cable must

be used if the pump is used as a portable

pump for different applications.

Make sure that the product is suitable for the supply

voltage and frequency available at the installation

site. Voltage and frequency are marked on the pump

nameplate.

The pump must be connected to an external main

switch. If the pump is not installed close to the switch,

the switch must be of a lockable type.

Three-phase pumps must be connected to an

external motor-protective circuit breaker with

differential release. The rated current of the motor-

protective circuit breaker must correspond to the

electrical data marked on the pump nameplate.

If a level switch is connected to a three-phase pump,

the motor-protective circuit breaker must be

magnetically operated.

Single-phase pumps incorporate thermal overload

protection and require no additional motor protection.

If the motor is overloaded, it will stop auto-

matically. When the motor has cooled to

normal temperature, it restarts automati-

cally.

TM002011

Wiring diagram

Pos. Description

1 Yellow and green

2 Grey

3 Brown

4 Black

NL-

TM1040337

Wiring diagram

Pos. Description

1 Yellow and green

2 Blue

3 Brown

English (GB)

3.4 Checking the direction of rotation

Three-phase pumps only

Check the direction of rotation every time the pump is

connected to a new installation.

1. Position the pump so that you can observe the

impeller.

2. Start the pump for a short period.

3. Observe the rotation of the impeller. The correct

direction of rotation is indicated by an arrow on

the top of the motor (clockwise when seen from

the bottom). If the impeller rotates in the wrong

direction, reverse the direction of rotation by

interchanging two of the phases to the motor.

If the pump is connected to a pipe system, check the

direction of rotation in this way:

1. Start the pump and check the quantity of water or

the pressure.

2. Stop the pump and interchange two of the phases

to the motor.

3. Start the pump and check the quantity of water or

the pressure.

4. Stop the pump.

5. Compare the results taken under points 1 and 3.

The largest quantity of water indicates the correct

direction of rotation.

4. Starting up the product

DANGER

Electric shock

Death or serious personal injury

‐Do not use the pump in swimming

pools, garden ponds or similar places if

there are people in the water.

The pump may be run briefly to check the

direction of rotation without being sub-

merged in the pumped liquid.

1. Before starting the pump, submerge the pump

inlet in the pumped liquid.

2. Open the isolating valve, if fitted, and check the

level switch setting.

5. Product introduction

TM034189

UNILIFT AP35B, AP50B

Pos. Description

1 Handle with clamp

2 Outlet

3 Inlet

4 Level switch

English (GB)

5.1 Intended use

The Grundfos UNILIFT AP pump is a single-stage

submersible pump designed for pumping wastewater.

The pump is capable of pumping water which

contains a limited quantity of solids, however not

stones and similar materials, without being blocked or

damaged.

The pump is available for automatic as well as

manual operation and can be installed in a permanent

installation or used as a portable pump.

Permanent installation can be on a stationary auto

coupling or as a free-standing pump.

Applications UNILIFT

AP35B

UNILIFT

AP50B

Drainage of flooded cellars or

buildings ● ●

Groundwater lowering ● ●

Pumping of water from drain

water collecting pits ● ●

Pumping of water from surface

water pits with inflow from roof

gutters, shafts, tunnels, etc.

● ●

Emptying and filling of swim-

ming pools, ponds, pits etc. ● ●

Pumping of wastewater from

washing machines, baths,

sinks etc. from low-lying parts

of buildings up to sewer level

● ●

Pumping of fibre-containing

wastewater from laundries and

light industries

● ●

Pumping of domestic waste-

water from septic tanks and

sludge treating systems

● ●

Pumping of domestic waste-

water without discharge from

toilet rooms

● ●

Pumping of domestic waste-

water with discharge from toilet

rooms

●*

* UNILIFT AP50B is approved according to EN

12050-1 and can be used for toilet discharge if local

regulations allow the usage of a 50 mm free passage

Vortex pump.

Incorrect application of the pump, for example

resulting in blocking of the pump, and wear are not

covered by the warranty.

5.2 Pumped liquids

The pump is capable of pumping water containing a

limited quantity of spherical particles.

The pump is not suitable for the following liquids:

• Liquids containing long fibres

• inflammable liquids (oil, petrol, etc.)

• aggressive liquids.

Related information

8.1 Storage temperature

English (GB)

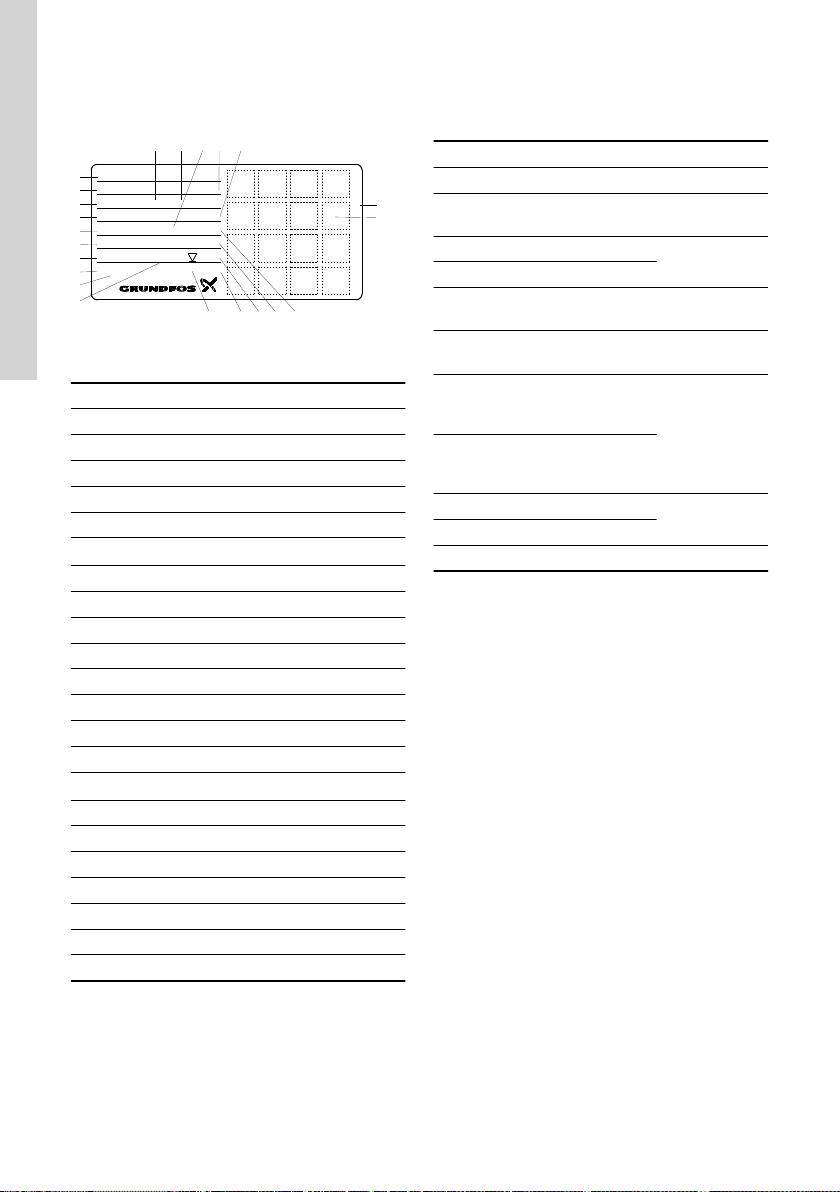

5.3 Identification

5.3.1 Nameplate

MADE IN HUNGARY

DK-8850 Bjerringbro, Denmark

P3 0000

Type: UNILIFT XXXX.XX.XX.XX X

Prod. No: XXXXXXXX

U: XxXXX V

Class: F

Imax: X,XX A

P1: X,X kW

Qmax: XX m3/h

Tmax: XX°C

Cosφ: X,XX

IP 68

N.wght: XX.X kg

n: XXXX min-1

Hmax: XX m : XX m

XXXXXXXX

XX XXXXX-X

XXXXXXXX

~XX Hz± XX %

11 12 13 15

1820 16

TM074469

Nameplate example

Pos. Description

1 Product type

2 Product number

3 Supply voltage [V]

4 Power input [kW]

5 Max. current [A]

6Max. flow rate [m3/h]

7 Max. head [m]

8 Factory code

9 Production code (year and week)

10 Insulation class

11 Voltage tolerance [%]

12 Frequency [Hz]

13 Enclosure class

14 Max. liquid temperature [°C]

15 Speed [min-1]

16 Cosinus phi

17 Net weight [kg]

18 Max. installation depth [m]

19 ID number for Safety Instruction

20 ID number for EN standards

21 Nameplate layout

22 Approvals

5.3.2 Type key

Example: UNILIFT AP35B.50.08.A1.V

Code Explanation Designation

UNILIFT AP Type range

35 Maximum solids

size [mm]

[ ] AP Pump Pump type

B AP Basic

50 Nominal diame-

ter of outlet port

08 Power output,

P2 / 100 [W]

Automatic oper-

ation with float

switch Level control

[ ]

Manual opera-

tion without float

switch

1 Single-phase Motor

3 Three-phase

V Vortex impeller Impeller

English (GB)

6. Servicing the product

DANGER

Electric shock

Death or serious personal injury

‐Switch off the power supply before

starting any work on the product.

‐Make sure that the power supply can-

not be accidentally switched on.

CAUTION

Sharp element

Minor or moderate personal injury

‐Wear personal protective equipment.

CAUTION

Toxic material

Minor or moderate personal injury

‐The product will be classified as conta-

minated if it has been used for a liquid

which is injurious to health or toxic.

‐Wear personal protective equipment.

CAUTION

Biological hazard

Minor or moderate personal injury

‐Flush the product thoroughly with clean

water and rinse the parts in water after

dismantling.

‐Wear personal protective equipment.

If the power cable or the level switch is

damaged, it must be replaced by a service

workshop authorised by Grundfos.

Service must be carried out by specially

trained persons.

Furthermore, all rules and regulations cov-

ering safety, health and environment must

be observed.

1. If the pump has been used for liquids other than

clean water, flush the pump thoroughly with clean

water before carrying out maintenance and

service.

2. Rinse the pump parts in water after dismantling.

6.1 Maintaining the product

• Check the pump and replace the oil once a year. If

the pump is used for pumping liquids containing

abrasive particles or it is operating continuously,

the pump must be checked at shorter intervals.

• If the drained oil contains water or other

impurities, we recommend that you replace the

shaft seal. Contact Grundfos Service.

6.2 Oil

In the case of long operating time or continuous

operation, the oil must be replaced as follows:

Liquid temperature The oil must be replaced af-

ter

20 °C 4500 operating hours

40 °C 3000 operating hours

The pump contains 78 ml non-poisonous oil.

Used oil must be disposed of in accordance with local

regulations.

English (GB)

6.3 Construction

The construction of the pump will appear from the

table below and fig. D in the Appendix.

Pos. Description

50 Pump housing

37a O-ring

49 Impeller

150 Motor with flange

66 Washer

84 Base

67 Lock nut

6 Inlet part

105a Shaft seal

182 Level switch

6.4 Service kits

Service kit Part number

Shaft seal, standard 96429307

Shaft seal, FKM 96429308

Oil 96010646

6.5 Contaminated pumps

CAUTION

Biological hazard

Minor or moderate personal injury

‐Flush the product thoroughly with clean

water and rinse the parts in water after

dismantling.

‐Wear personal protective equipment.

The product will be classified as contaminated if it has

been used for a liquid which is injurious to health or

toxic. If you request Grundfos to service the product,

contact Grundfos with details about the pumped liquid

before returning the product for service. Otherwise,

Grundfos can refuse to accept the product for service.

Any application for service must include details about

the pumped liquid.

Clean the product in the best possible way before you

return it. Costs of returning the product are to be paid

by the customer.

English (GB)

7. Fault finding

DANGER

Electric shock

Death or serious personal injury

‐Switch off the power supply before you

start any work on the product.Make

sure that the power supply cannot be

switched on accidentally.

CAUTION

Sharp element

Minor or moderate personal injury

‐Wear personal protective equipment.

CAUTION

Toxic material

Minor or moderate personal injury

‐The product will be classified as conta-

minated if it has been used for a liquid

which is injurious to health or toxic.

‐Wear personal protective equipment.

7.1 The motor does not start

Cause Remedy

No power supply. Connect the power supply.

The pump was stopped by the float switch. Adjust or replace the float switch.

The fuses have blown. Replace the fuses.

The motor protection or thermal relay has tripped. Wait until the motor protection trips in again or reset the

relay.

The impeller is blocked by impurities. Clean the impeller.

Short circuit in the cable or motor. Replace the defective part.

7.2 The motor protection or thermal relay trips after a short time of operation

Cause Remedy

The liquid temperature is too high. Use another pump type. Contact your local Grundfos

supplier or sales support.

The impeller is blocked or partly blocked by

impurities.

Clean the pump.

Phase failure. Call an electrician.

Too low voltage. Call an electrician.

The overload setting of the motor-protective circuit

breaker is too low.

Adjust the setting.

Incorrect direction of rotation. Reverse the direction of rotation.

Related information

3.4 Checking the direction of rotation

English (GB)

7.3 The pump runs constantly or gives too little water

Cause Remedy

The pump is partly blocked by impurities. Clean the pump.

The outlet pipe or valve is partly blocked by

impurities.

Clean the outlet pipe or valve.

The impeller is not properly fixed to the shaft. Tighten the impeller.

Incorrect direction of rotation. Reverse the direction of rotation.

Incorrect setting of the float switch. Adjust the float switch.

The pump is too small for the application. Replace the pump.

The impeller is worn. Replace the impeller.

Related information

3.4 Checking the direction of rotation

7.4 The pump runs but gives no water

Cause Remedy

The pump is blocked by impurities. Clean the pump.

The outlet pipe or valve is blocked by impurities. Clean the outlet pipe or valve.

The impeller is not properly fixed to the shaft. Tighten the impeller.

There is air in the pump. Vent the pump and the outlet pipe.

The liquid level is too low. The pump inlet is not

completely submerged in the pumped liquid.

Submerge the pump in the liquid or adjust the float

switch.

Pumps with float switch: The float switch does not

move freely.

Adjust the float switch.

Related information

3.2.7 Adjusting the float switch cable length

English (GB)

8. Technical data

8.1 Storage temperature

Down to -30 °C.

8.2 Operating conditions

Minimum liquid temper-

ature 0 °C

Maximum liquid tem-

perature 40 °C

Installation depth Maximum 7 m below liquid

level

pH value 4-10

Density Maximum 1100 kg/m3

Viscosity Maximum 10 mm2/s

Maximum particle size

Max. spherical diameter:

UNILIFT AP35B: 35 mm

UNILIFT AP50B: 50 mm

Technical data See the pump nameplate.

Always have at least 3 m free cable above

liquid level. This limits the installation

depth to 7 m for pumps with 10 m cable

and to 2 m for pumps with 5 m cable.

8.3 Sound pressure level

The sound pressure level of the pump is lower than

the limiting values stated in the EC Council Directive

2006/42/EC relating to machinery.

9. Disposing of the product

This product or parts of it must be disposed of in an

environmentally sound way.

1. Use the public or private waste collection service.

2. If this is not possible, contact the nearest

Grundfos company or service workshop.

The crossed-out wheelie bin symbol

on a product means that it must be

disposed of separately from household

waste. When a product marked with

this symbol reaches its end of life, take

it to a collection point designated by

the local waste disposal authorities.

The separate collection and recycling

of such products will help protect the

environment and human health.

Popular Water Pump manuals by other brands

Berkeley

Berkeley B1-1/2XQBS-11 owner's manual

Glentronics

Glentronics PHCC-1000 Pro Series Instruction manual & safety warnings

T.I.P.

T.I.P. AJ 4 Plus 95/40 operating instructions

Beckett

Beckett CB501ULHTS quick guide

Johnson Pump

Johnson Pump SPX FLOW WPS Series instruction manual

MYERS

MYERS WHR5H Series Installation and service manual

Viking pump

Viking pump 724 Series Technical & service manual

Orion

Orion 12750 user manual

SFA

SFA Sanicubic 1 GR HP 2.0 S Operating & installation manual

SMC Networks

SMC Networks PA5010 Operation manual

OBL

OBL MS-Plus manual

Cardinal Health

Cardinal Health IVAC PCAM Directions for use

Wallenstein

Wallenstein P300 installation instructions

HEISSNER

HEISSNER HFP2500-00 Instructions for use

MATO

MATO pneuMATO 1 operating instructions

Tool Shed

Tool Shed TSPWP manual

Expondo

Expondo UNI_PUMP_06 user manual

Pump House

Pump House PH-5.0L-HDHW installation instructions

Grundfos UNILIFT AP35B User manual

Popular Water Pump manuals by other brands
