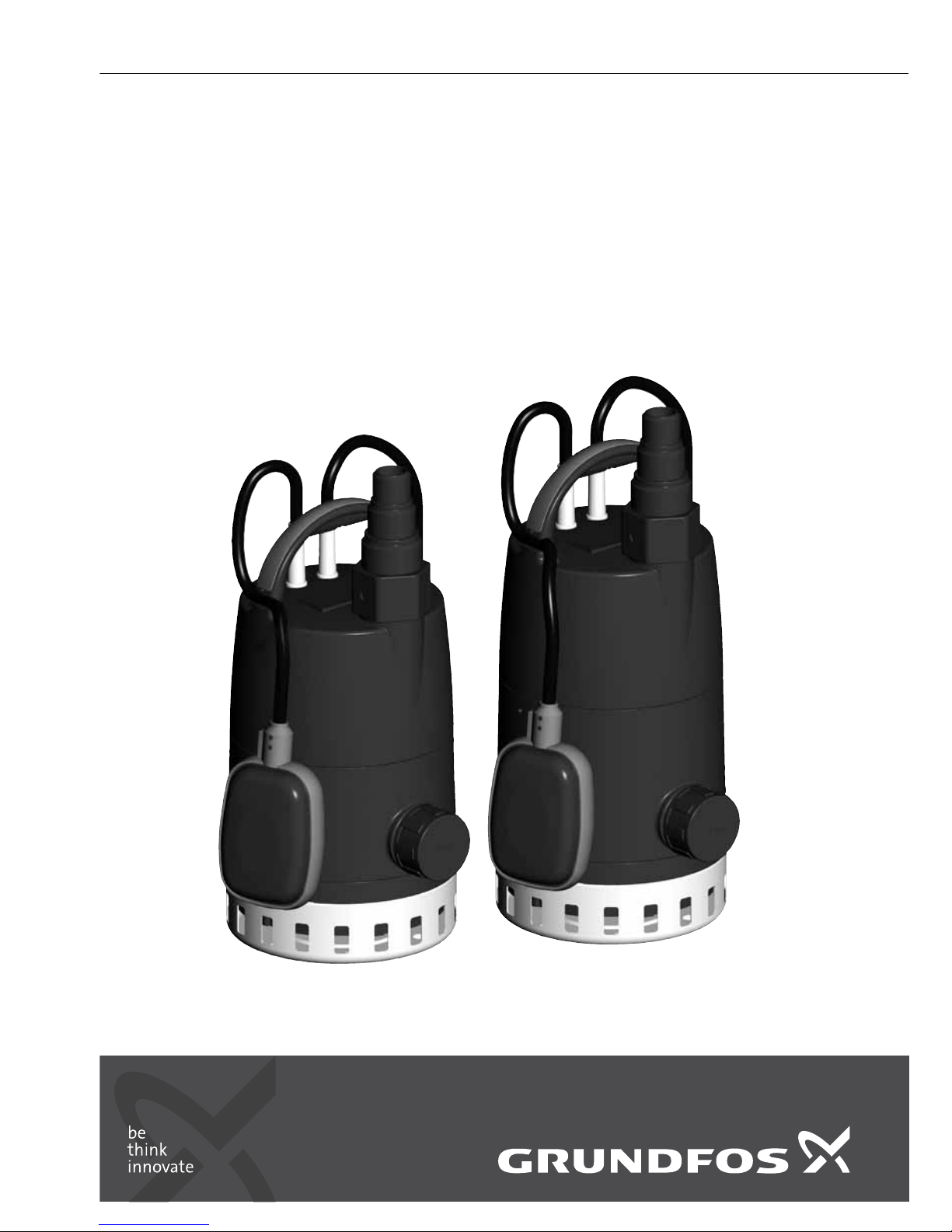

Grundfos Unilift CC 5 User manual

Unilift CC 5, CC 7, CC 9
Installation and operating instructions
50 and 60 Hz
GRUNDFOS INSTRUCTIONS

English (GB)
2
English (GB) Installation and operating instructions
Original installation and operating instructions
These installation and operating instructions
describe Grundfos Unilift CC 5, CC 7 and CC 9.
Sections 1-3 give the information necessary to be
able to unpack, install and start up the product in a
safe way.
Sections 4-8 give important information about the
product, as well as information on service, fault
finding and disposal of the product.
CONTENTS
Page 1. General information
1.1 Symbols used in this document
1.1.1 Warnings against hazards involving risk of
death or personal injury
The text accompanying the three hazard symbols
DANGER, WARNING and CAUTION is structured in
the following way:
1.1.2 Other important notes
1. General information 2
1.1 Symbols used in this document 2
2. Installing the product 3
2.1 Location 3
2.2 Mechanical installation 4
2.3 Electrical connection 6
3. Starting up the product 6
3.1 Venting the product 7
3.2 Manual operation 7
3.3 Automatic operation with float switch 7
3.4 Pumping to low water level 7
3.5 Thermal protection 7
4. Product introduction 8
4.1 Product description 8
4.2 Intended use 8
4.3 Pumped liquids 8
4.4 Identification 8
5. Servicing the product 9
5.1 Maintaining the product 9
5.2 Service kits 9
6. Fault finding the product 10
7. Technical data 11
7.1 Operating conditions 11
7.2 Electrical data 11
7.3 Mechanical data 12
7.4 Dimensions and weights 12
8. Disposing of the product 12
Prior to installation, read this document
and the quick guide. Installation and
operation must comply with local
regulations and accepted codes of good
practice.
This appliance can be used by children
aged from 8 years and above and by
persons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning use
of the appliance in a safe way and
understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not
be made by children without supervision.
DANGER
Indicates a hazardous situation which, if
not avoided, will result in death or serious
personal injury.
WARNING
Indicates a hazardous situation which, if
not avoided, could result in death or
serious personal injury.
CAUTION
Indicates a hazardous situation which, if
not avoided, could result in minor or
moderate personal injury.
SIGNAL WORD
Description of hazard
Consequence of ignoring the warning.
- Action to avoid the hazard.
A blue or grey circle with a white graphical
symbol indicates that an action must be
taken.
If these instructions are not observed, it
may result in malfunction or damage to the
equipment.
Tips and advice that make the work easier.

English (GB)
3
2. Installing the product
2.1 Location
Unilift CC 5, CC 7 and CC 9 pumps are suitable for
both stationary and portable use.

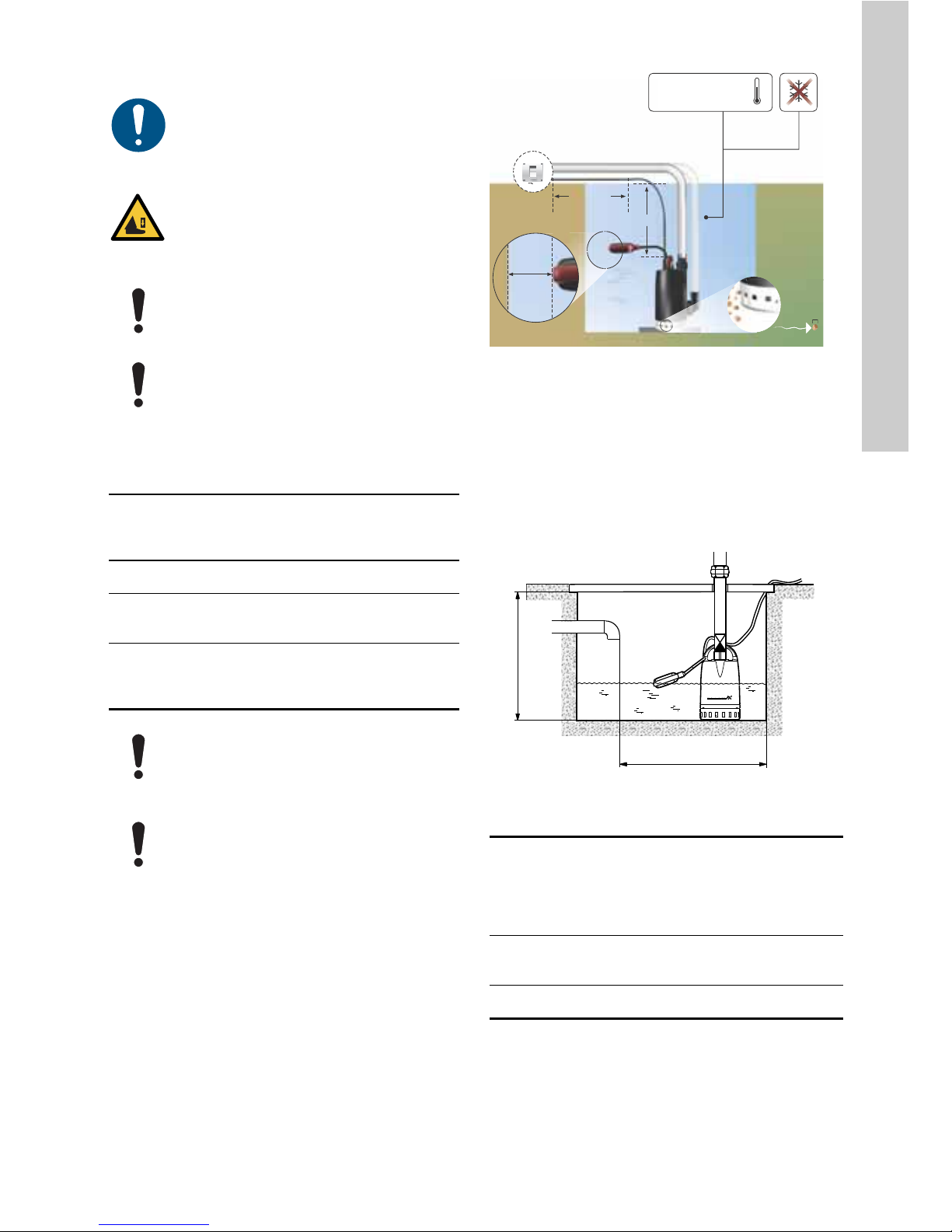

Fig. 1 Location of pump
2.1.1 Minimum space
Pumps installed without float switch require space
that corresponds to the physical dimensions of the
pump.
Minimum space with float switch
Pumps installed with float switch require 5 cm free
space between the float switch and the wall. The free
space ensures free movability of the float switch.
Fig. 2 Minimum pit dimension with float switch
Minimum pit dimension with float switch:
Observe local regulations setting limits for
manual lifting or handling.
CAUTION
Crushing of feet
Minor or moderate personal injury
- Use safety shoes when handling the
pump.
Make sure that the system in which the
pump is incorporated is designed for the
maximum pump pressure.
The pump has been evaluated for use with
water only
Pump type Location
Length of
cable
[m]
Unilift CC 5, 50 Hz Indoors 5
Unilift CC 7, 50 Hz
Unilift CC 9, 50 Hz
Indoors and
outdoors 10
Unilift CC 5, 60 Hz
Unilift CC 7, 60 Hz
Unilift CC 9, 60 Hz
Indoors and
outdoors 10
Unilift CC 5 50 Hz is intended for indoor
use only
Make sure that there are minimum 3 m
free cable above the liquid level. This limits
the maximum installation depth to 7 m for
pumps with 10 m cable and to 2 m for
pumps with 5 m cable.
TM06 9522 2417
TM03 1122 1105
Pump type
Height (H)
[mm]
(top outlet
port)
Height (H)
[mm]
(side
outlet
port)
Width (B)
[mm]
Unilift CC 5
Unilift CC 7 520 350 400
Unilift CC 9 570 400 500
Max. 40 °C / Min. 0 °C
Max. 7 m
Min. 3 m
On
O
O
Min. 5 cm
Max. Ø10mm
Off
B
H

English (GB)
4
Minimum space with lever arm
If supplied with a lever arm, the Unilift CC pump can
be installed in a narrow pit.
The minimum dimensions for a narrow pit are 300 x
350 mm.
Fig. 3 Unilift CC with lever arm
2.2 Mechanical installation
2.2.1 Foundation
Place the pump on a plate or on bricks so that the
inlet strainer is free of silt, mud or similar materials.

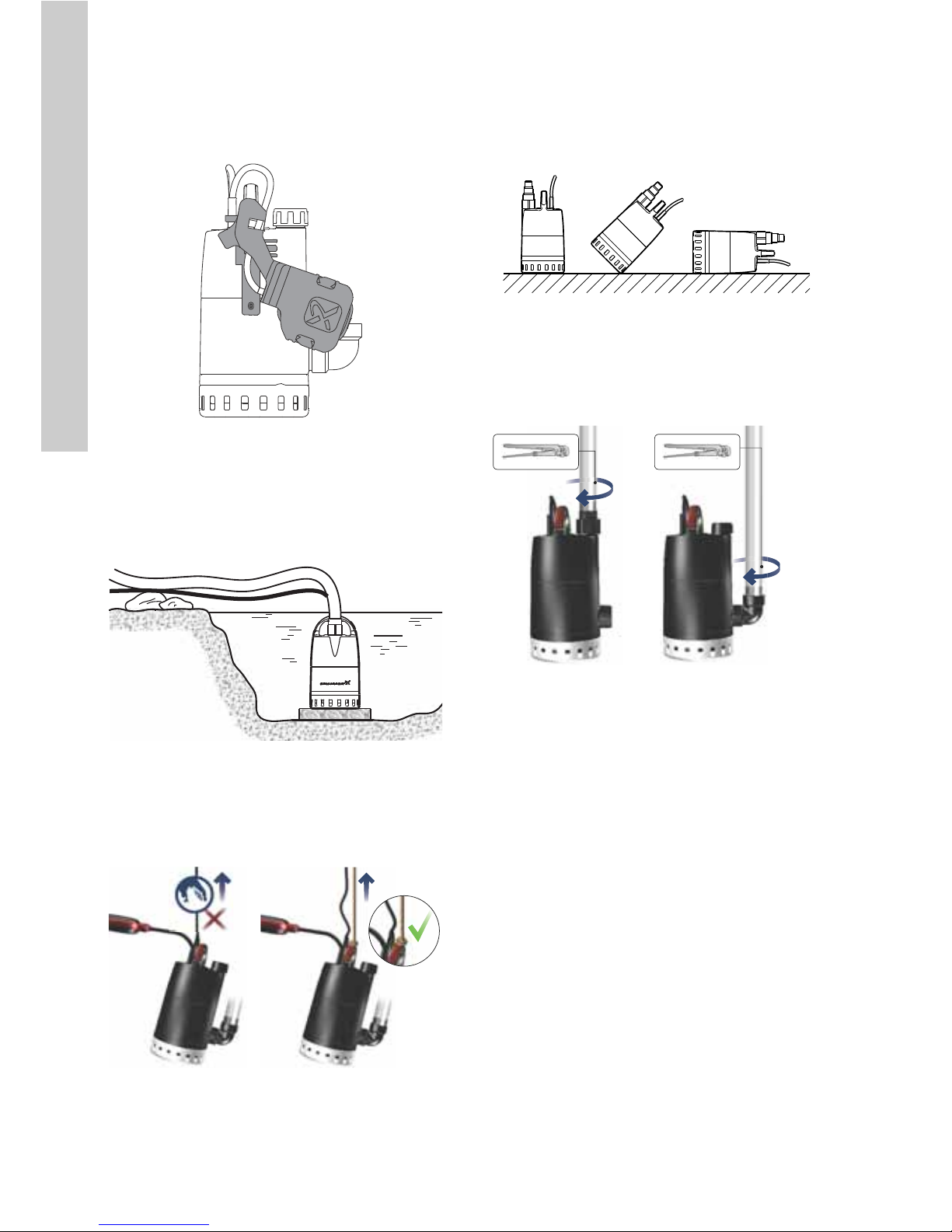

Fig. 4 Pump mounted on a plate
2.2.2 Lifting the product
Lift the pump by the lifting handle. Never lift the
pump by the power cable. Tie a rope to the lifting
handle instead.
Fig. 5 Lifting the pump
2.2.3 Positioning the product
The pump can be placed in three positions: vertical,
tilted or horizontal. The outlet port must always be
the highest point of the pump. During operation, the
inlet strainer must be covered by the pumped liquid
to ensure efficient cooling.
Fig. 6 Pump positions
2.2.4 Connecting the outlet pipe
The outlet pipe can be connected to the pump outlet
port on the top or the side by means of an adapter.
Use the 90 ° adaptor for the side outlet port.
Fig. 7 Connecting the outlet pipe
The adapter enables connection of a pipe or hose
matching 3/4", 1" and 1 1/4" external pipe thread (G).
Cut off the adapter so that it matches the outlet pipe
diameter. If a system gasket is used between the
outlet pipe and the adapter, the cut-off adapter must
have an even and smooth surface.
The approval according to DIN EN 12056-4
stipulates that the outlet pipe from the fixed
installation must be connected directly to the pump
outlet port. If the adapter supplied with the pump is to
be used, cut off the 3/4" and 1" sockets.
TM06 0696 0714
TM03 1123 1105TM06 9521 2417
TM03 1111 1005TM06 9523 2417

English (GB)
5
2.2.5 Connecting the non-return valve
To prevent backflow through the pump when it stops,
fit the non-return valve supplied in the adapter. The
non-return valve is fixed when the adapter is fitted to
the pump top outlet port.

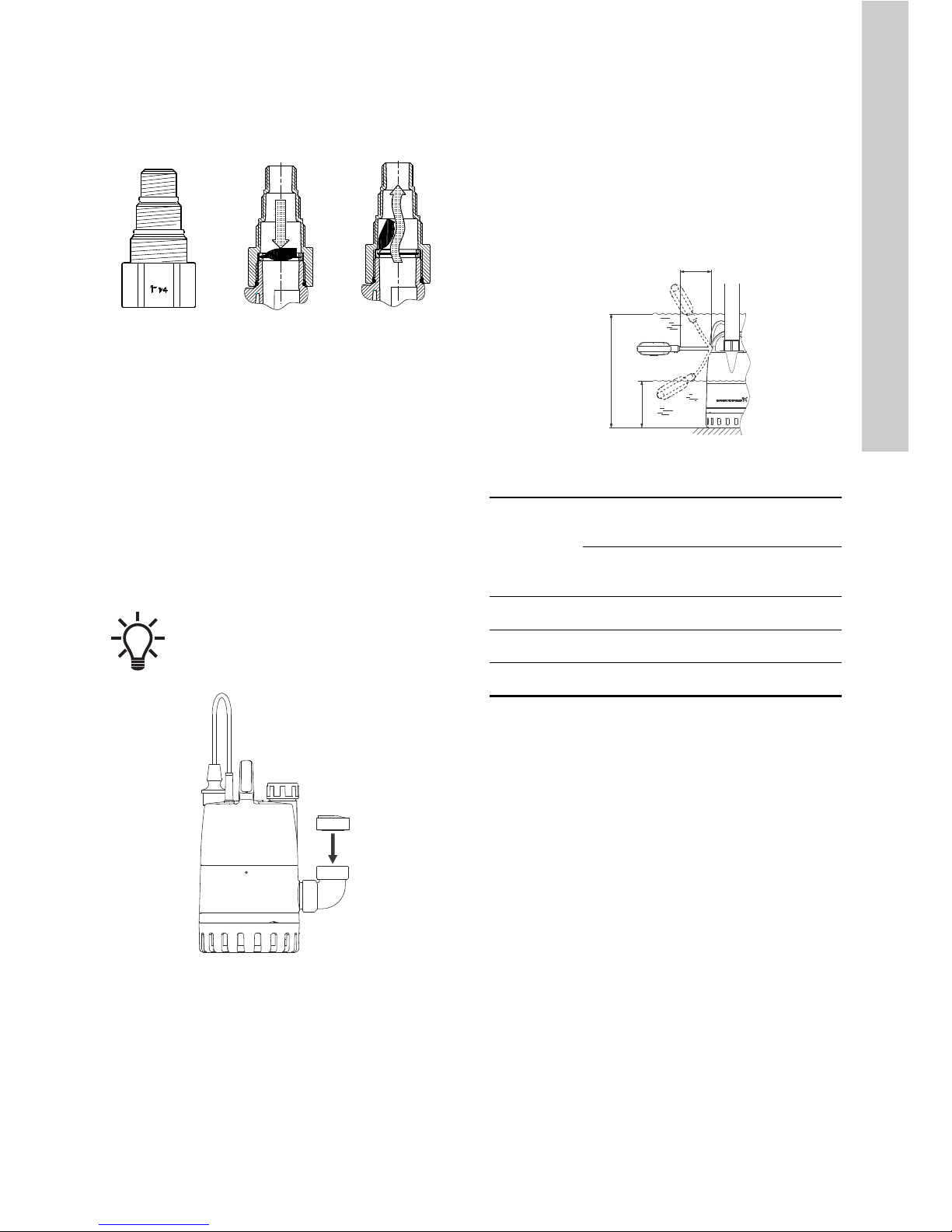

Fig. 8 Adapter position and non-return valve
function
2.2.6 Using the side outlet port
If you want to use the side outlet port, proceed as
follows:
1. Remove the non-return valve and adapter from
the top outlet port.
2. Remove the side plug and screw it on the top
outlet port.
3. Fit the 90 ° bend adapter in the side outlet port.
Use thread sealing tape or similar material.
4. Fit the non-return valve in the vertical part of the
90 ° bend.
5. Connect the outlet line directly to the outlet port.
Fig. 9 Correct position of non-return valve
2.2.7 Adjusting the float switch cable length
To make sure that the float switch can start and stop
the pump, the free cable length must be min. 100
mm and max. 200 mm. Adjust the start and stop level
by changing the free cable length between the float
switch and the lifting handle.
• An increased free cable length results in fewer
starts and stops and a large difference in level.
• A reduced free cable length results in more starts
and stops and a small difference in level.
Fig. 10 Start and stop levels with float switch at
minimum and maximum cable lengths
TM03 0833 0505 TM03 0834 0505
Position the non-return valve in the vertical
part of the 90 ° bend. If positioned in the
horizontal part of the 90 ° bend, the non-
return valve may not function correctly.
TM06 0696 0714
TM03 0829 4209
Pump type
Cable length (L)
min. 100 mm
Cable length (L)
max. 200 mm
Start
[mm]
Stop
[mm]
Start
[mm]
Stop
[mm]
Unilift CC 5 350 115 400 55
Unilift CC 7 350 115 400 55
Unilift CC 9 385 150 435 90
Start
Stop
L

English (GB)
6
2.2.8 Lever arm start and stop levels
Fig. 11 Start and stop levels with lever arm
2.3 Electrical connection
• Check that the supply voltage and frequency of
the installation site correspond to the values
stated on the nameplate.
• Make sure that it is possible to make a good
earth connection.
• Pumps with plug: connect the plug to the power
outlet.
• Pumps without plug: connect the pump
permanently to the fixed wiring as described
below.
3. Starting up the product
TM03 0829 4209
Pump type
Start and stop levels with lever
arm
Start
[mm]
Stop
[mm]
Unilift CC 5 211 89
Unilift CC 7 211 89
Unilift CC 9 247 125
Carry out the electrical connection
according to local regulations.
DANGER
Electric shock
Death or serious personal injury
- Switch off the power supply before
starting any work on the product. Make
sure that the power supply cannot be
accidentally switched on.
DANGER
Electric shock
Death or serious personal injury
- Connect pumps without plug
permanently to the fixed wiring via an
external main switch with a minimum
contact gap of 3 mm in all poles.
Start
Stop
DANGER
Electric shock
Death or serious personal injury
- The pump must be earthed.
- The protective earth of the power outlet
must be connected to the protective
earth of the pump. The plug must
therefore have the same PE connection
system as the power outlet. If not, use a
suitable adapter.
We recommend that you fit the permanent
installation with a residual-current circuit
breaker (RCCB) with a tripping current
less than 30 mA.
DANGER
Electric shock
Death or serious personal injury
- If the pump is used for cleaning or other
maintenance of swimming pools,
garden ponds or similar places, make
sure that the pump is supplied through a
residual-current circuit breaker, RCCB,
with a rated residual operating current
of 30 mA.
WARNING
Flammable material
Death or serious personal injury
- Do not use the pump for flammable
liquids, such as diesel oil, petrol or
similar liquids.
DANGER
Electric shock
Death or serious personal injury
- Do not use the pump in swimming
pools, garden ponds or similar places if
there are people in the water.

English (GB)
7
3.1 Venting the product
The pump is self-venting. A vent valve is built into
the lifting handle. The valve allows air to escape from
the pump in case the free air flow through the outlet
pipe is blocked. Once the pump is vented, the valve
normally closes.
If the pump sucks air or water with a high air content,
the valve may leak a mixture of air and water. This is
no fault but a natural consequence of the opening
and closing of the valve.
Fig. 12 Vent valve
3.2 Manual operation
Start and stop the pump via an external switch.
To eliminate the risk of dry running, check the water
level regularly during operation. This can for instance
be done by means of an external level controller.
In order for the pump to be able to self-prime when
started, the water level must be at least 25 mm.
When the pump sucks water, it can pump down to 20
mm water level.
3.3 Automatic operation with float switch
During automatic operation, the pump will start and
stop, depending on the water level and the float
switch position and cable length.
3.3.1 Forced operation of pump with float switch
If the pump is used to drain water below the stop
level of the float switch, the float switch can be kept
in a higher position by fixing it to the outlet pipe.
During forced operation, the water level must be
checked regularly to prevent dry running.
3.4 Pumping to low water level
The pump can pump down to 3 mm when the inlet
strainer is removed.
These conditions must be fulfilled:
• The inlet strainer must be removed.
• The pump must be placed on an even, horizontal
surface.
• The water must not contain particles which may
block the pump inlet.
• The water level must be minimum 5 mm when the
pump is started.
Fig. 13 Low water level
Removing the inlet strainer
To remove the inlet strainer, insert a screwdriver
between the pump sleeve and the inlet strainer and
turn it.
Fig. 14 Removal of inlet strainer
3.5 Thermal protection
If the pump is running without water, or if it is
otherwise overloaded, the built-in thermal switch will
cut out.
When the motor has cooled to normal temperature, it
will restart automatically.
TM03 1121 1105
TM03 0832 0505TM03 0831 0505

English (GB)
8
4. Product introduction
4.1 Product description
4.1.1 Unilift CC 5, CC 7 and CC 9 pumps
Grundfos Unilift CC 5, CC 7 and CC 9 pumps are
single-stage submersible pumps designed for
manual or automatic operation. The pumps are self-
venting and incorporate a vent valve.
The Unilift CC pumps are available with or without a
float switch. If supplied with a lever arm, the pump
can be installed in a narrow pit.
Pump with float switch
• Automatic start and stop.
• Can pump to low water level during forced
operation when the inlet strainer is removed.
Pump without float switch
• Manual external start and stop.
• Can pump to low water level when the inlet
strainer is removed.

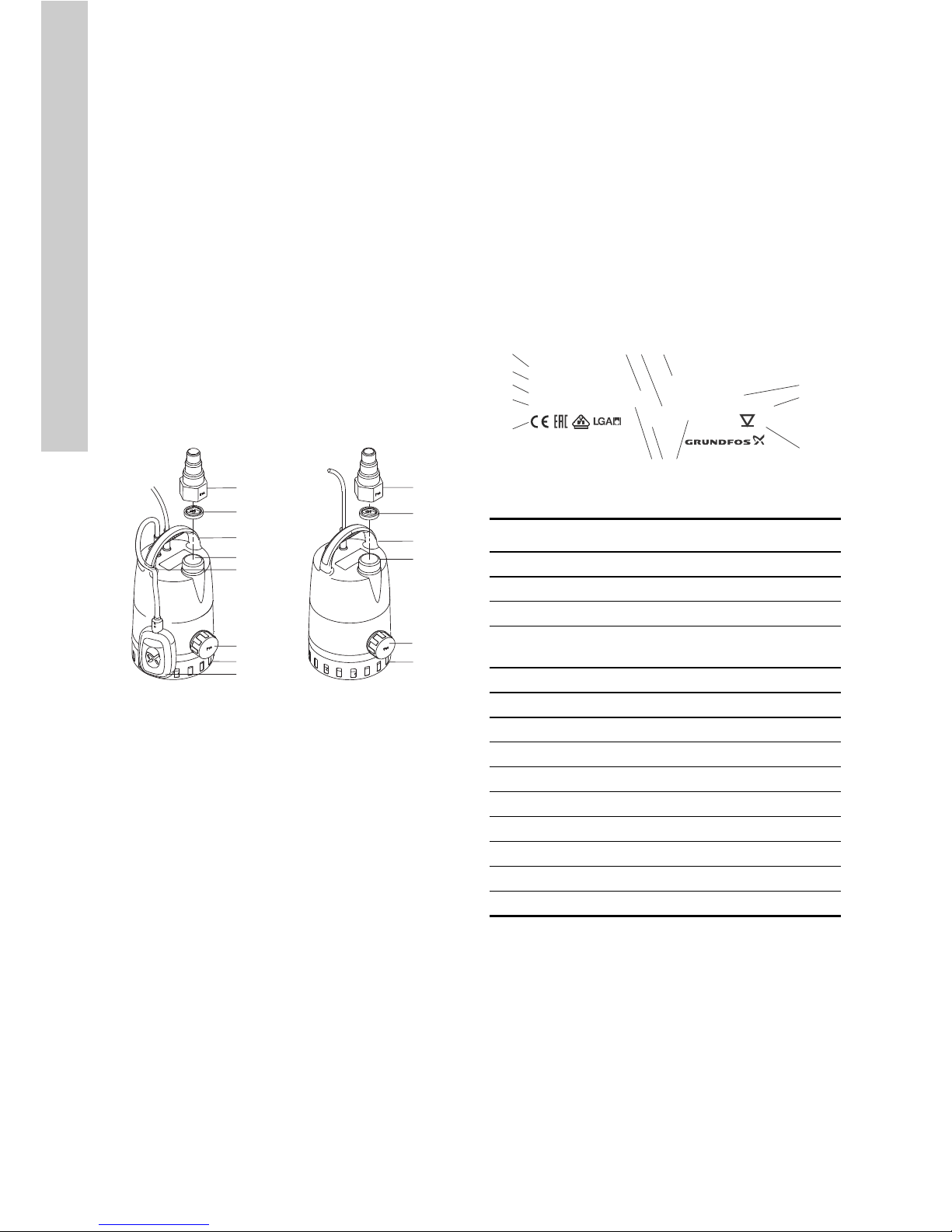

Fig. 15 Pump with and without float switch
1. Adapter
2. Non-return valve
3. Lifting handle
4. Top outlet port
5. Side outlet port and plug
The side outlet port is plugged from factory.
6. Inlet strainer
7. Clamp
8. Float switch.
4.2 Intended use
Grundfos Unilift CC 5, CC 7 and CC 9 pumps are
designed for both stationary and portable use.
Typical applications are pumping rainwater and grey
wastewater from sources such as the following:
• washing machines, baths, sinks, etc. from low-
lying parts of buildings up to sewer level
• cellars or buildings prone to flooding
• drainage wells
• tanks for surface water with inlets from roof
gutters, pits, tunnels, etc.
• swimming pools, ponds or fountains.
Unilift CC 5 is for indoor use only. Unilift CC 7 and
CC 9 are suitable for both indoor and outdoor use.
4.3 Pumped liquids
Grundfos Unilift CC 5, CC 7 and CC 9 pumps are
designed for pumping rainwater and grey wastewater
without fibres.
The pump is not suitable for these liquids:
• liquids containing long fibres
• inflammable liquids (oil, petrol, etc.)
• aggressive liquids.
4.4 Identification
4.4.1 Nameplate
Fig. 16 Example of nameplate
TM03 1102 4209 TM03 1025 0714
1
2
3
4
5
6
8
7
1
2
3
4
5
6
TM06 0896 1314
Pos. Description
1 Pump type
2 Frequency
3 Maximum head
4Maximum liquid temperature during
continuous operation
5 Product number
6 Production code
7 Full-load current
8 Maximum flow rate
9 Motor insulation class
10 Enclosure class
11 Approvals
12 Motor input power
13 Maximum installation depth
14 Supply voltage
Type UNILIFT CC7-A1 DIN EN 12050-2
Made in Italy
P1714117
Model 96280968 P61410 SN0000001-B
U1x220-240V~ 50Hz T max 40°C
7m
Q 10m3/hP1380W Hmax 7m I1/11,8A
Ins.CI.F IP68
0197
96584492 DK - 8850 Bjerringbro, Denmark
13 62
8 9 10
5
14
12
11
4
7
13

English (GB)
9
5. Servicing the product
5.1 Maintaining the product
Under normal operating conditions, the pump is
maintenance-free.
If the pump has been used for liquids other than
clean water, it must be flushed through with clean
water immediately after use.
5.1.1 Procedure
Cleaning the inlet strainer
1. Switch off the power supply to the pump.
2. Drain the pump.
3. Loosen the inlet strainer. Insert a screwdriver
between the pump sleeve and the strainer and
turn the screwdriver.
4. Clean and refit the inlet strainer.
Cleaning the impeller
1. Switch off the power supply to the pump.
2. Loosen the inlet strainer. Insert a screwdriver
between the pump sleeve and the strainer and
turn the screw driver.
3. Remove the bottom part.
Fig. 17 Removal of bottom part
4. Remove and clean the diaphragm.
5. Flush the pump with clean water to remove
possible impurities between the motor and the
pump sleeve. Clean the impeller.
6. Check that the impeller can rotate freely.
7. Assemble the pump in reverse order of
dismantling.
5.2 Service kits
It is possible to replace these parts:
The parts can be ordered from your pump supplier.
If other pump components are damaged or defective,
contact your pump supplier.
DANGER
Electric shock
Death or serious personal injury
- Switch off the power supply before
starting any work on the product. Make
sure that the power supply cannot be
accidentally switched on.
DANGER
Electric shock
Death or serious personal injury
- If the power supply cable is damaged, it
must be replaced by the manufacturer,
his service agent or similarly qualified
persons in order to avoid hazard.
Service must be performed by trained
service staff.
TM03 1112 1005
Service kit Part number
50 Hz
Part number
60 Hz
Impeller, CC5 96578967 97512794
Impeller, CC7 96578968 97512822
Impeller, CC9 96578969 97512824
Non-return valve 96578978
Adapter for outlet
port 96578979
Inlet strainer 96578990
The cable and the float switch must be
replaced by a service workshop authorised
by Grundfos.

English (GB)
10
6. Fault finding the product
DANGER
Electric shock
Death or serious personal injury
- Switch off the power supply before
starting any work on the product. Make
sure that the power supply cannot be
accidentally switched on.
Fault Cause Remedy
1. The pump does
not run.
a) The power supply is switched off. Switch on the power supply.
b) The fuses in the installation are
blown. Replace defective fuses.
c) The pump thermal switch has tripped.
See section 3.5 Thermal protection.
(See also point 2.)
The thermal switch restarts the pump
when the motor has cooled down to
normal temperature.
2. The pump stops
after a short
time of
operation (the
thermal switch
has tripped).
a) The temperature of the pumped liquid
is higher than that stated in section
7. Technical data. The motor is
overheated.
The pump starts automatically after
sufficient cooling.
b) The pump is partly or fully blocked by
impurities. Clean the pump.
c) The water level is too low when the
pump is started. The pump cannot
self-prime. See section 7. Technical
data.
Move the pump to a position with higher
water level, or add water until the pump
starts sucking.
3. The pump runs,
but gives
insufficient
water.
a) The pump is partly blocked by
impurities. Clean the pump.
b) The outlet pipe or hose is partly
blocked by impurities.
The hose may be sharply bent.
Check and clean the non-return valve, if
fitted.
Straighten out the hose.
4. The pump runs,
but gives no
water.
a) The pump is blocked by impurities. Clean the pump.
b) The non-return valve in the outlet
pipe or hose is blocked in closed
position or blocked by impurities.
The hose may be sharply bent.
Check the non-return valve.
Clean or replace the valve, if necessary.
Straighten out the hose.
c) Pumps with float switch: The pump
does not stop because the free cable
length of the float switch is too long.
Reduce the free cable length.

English (GB)
11
7. Technical data
7.1 Operating conditions
7.1.1 Flow rate
7.1.2 Temperature
Thermal protection
7.1.3 Pumped liquid requirements
7.1.4 Inlet level and installation depth
7.2 Electrical data
Pump type Max. head
[m]
Max. flow rate
[m3/h]
Unilift CC 5 5 6
Unilift CC 7 7 10
Unilift CC 9 9 14
Using the horizontal outlet may cause a 5
% drop in performance.
Maximum ambient temperature 40 °C
Liquid temperature 0-40 °C
Operating temperature 0-40 °C
Storage temperature -10 to +50 °C
Pump type Thermal protection
Winding temperature cut-out
Unilift CC 5 160 °C
Unilift CC 7 160 °C
Unilift CC 9 140 °C
At intervals of at least 30 minutes, the
pump is allowed to run at maximum 70 °C
for periods not exceeding two minutes.
Pumped liquid Rainwater and grey wastewater
without long fibres
pH range 4-9 pH
Maximum
particle size ∅10 mm
Pump type
Minimum inlet
level with inlet
strainer
[mm]
Minimum inlet
level without
inlet strainer
[mm]
Unilift CC 5 20 3
Unilift CC 7 20 3
Unilift CC 9 20 3
Pump type
Maximum
installation
depth
[m]
Cable
length
[m]
Unilift CC 5, 50 Hz 2 5
Unilift CC 7, 50 Hz
Unilift CC 9, 50 Hz 710
Unilift CC 5, 60 Hz
Unilift CC 7, 60 Hz
Unilift CC 9, 60 Hz
710
Pump type Supply voltage [V]
50 Hz 1 x 220-240 V, 50 Hz
60 Hz 1 x 115 V, 60 Hz
1 x 230 V, 60 hz
50 Hz Unilift
CC 5
Unilift
CC 7
Unilift
CC 9
Voltage [V] 220-240 220-240 220-240
Current, I 1/1 [A] 1.2 1.8 3.5
Power, P1 [W] 250 380 780
Power factor,
cos φ1/1 0.90 0.98 0.94
60 Hz Unilift
CC 5
Unilift
CC 7
Unilift
CC 9
Voltage [V] 115 230 115 230 115 230
Current, I 1/1 [A] 2.6 1.2 3.4 1.6 6.7 3.1
Power, P1 [W] 270 270 370 370 730 730
Power factor,
cos φ1/1 0.95 0.97 0.95 0.98 0.92 0.95

English (GB)
12
7.3 Mechanical data
7.4 Dimensions and weights

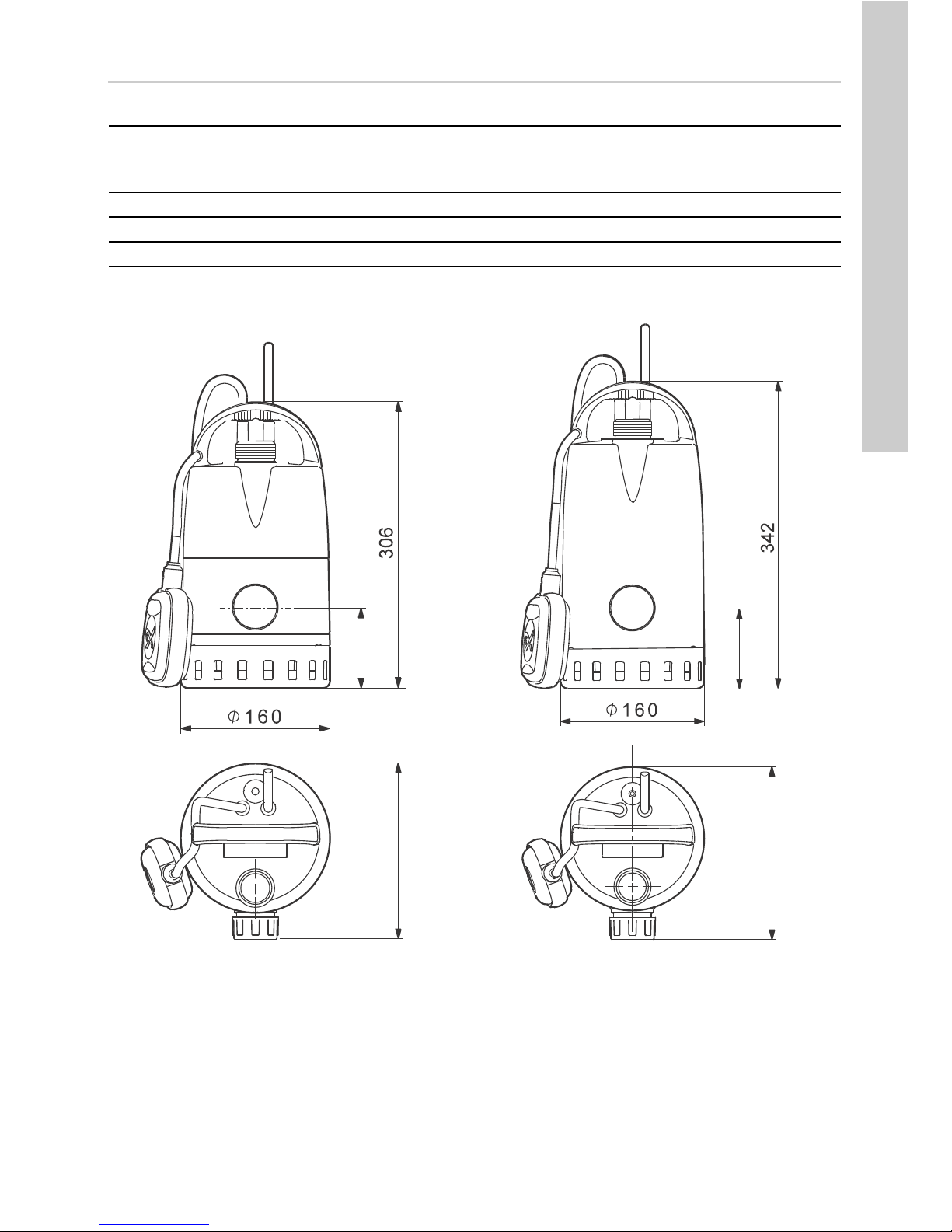

See Appendix.
8. Disposing of the product
This product or parts of it must be disposed of in an
environmentally sound way:
1. Use the public or private waste collection service.
2. If this is not possible, contact the nearest
Grundfos company or service workshop.
See also end-of-life information on
www.grundfos.com/products/product-sustainability/
product-recycling.
Subject to alterations.
Pump type Cable type Insulation
class
CC 5, 50 Hz
CC 7, 50 Hz
H05RN-F
3G0.75 F
CC 9, 50 Hz H07RN-F 3G1 B
CC 5, 60 Hz, 230 V H05RN-F
3G0.75 F
CC 7, 60 Hz, 230 V H07RN-F 3G1 F
CC 9, 60 Hz, 230 V H07RN-F 3G1 B
CC 5, 60 Hz, 115 V
CC 7, 60 Hz, 115 V
CC 9, 60 Hz, 115 V
H07RN-F 3G1 B
Pump type
Capacitor
[μF] [Vc]
Unilift CC 5 4 450
Unilift CC 7 8 450
Unilift CC 9 8 450
Maximum dry running time 1 minute
Airborne noise emitted by pump ≤70 dB(A)
Enclosure class IP68

Appendix
13
Appendix 1
Dimensions and weights
Unilift CC 5 and CC 7 Unilift CC 9
Pump type Weight
[kg]
Dimensions [mm]
Height Width Diameter
Unilift CC 5 4.3 306 185 ∅160
Unilift CC 7 5.75 306 185 ∅160
Unilift CC 9 6.6 342 185 ∅160
TM03 0828 4209
90
185
TM03 0826 4209
90
185

Grundfos companies
Argentina
Bombas GRUNDFOS de Argentina S.A.
Ruta Panamericana km. 37.500 Centro
Industrial Garin
1619 Garín Pcia. de B.A.
Phone: [phone]
Telefax: [phone]
Australia
GRUNDFOS Pumps Pty. Ltd.
P.O. Box 2040
Regency Park
South Australia 5942
Phone: [phone]
Telefax: [phone]
Austria
GRUNDFOS Pumpen Vertrieb
Ges.m.b.H.
Grundfosstraße 2
A-5082 Grödig/Salzburg
Tel.: [phone]
Telefax: [phone]
Belgium
N.V. GRUNDFOS Bellux S.A.
Boomsesteenweg 81-83
B-2630 Aartselaar
Tél.: [phone]
Télécopie: [phone]
Belarus
Представительство ГРУНДФОС в
Минске
220125, Минск
ул. Шафарнянская, 11, оф. 56, БЦ
«Порт»
Тел.: [phone]
Факс: [phone]
E-mail: [email protected]
Bosnia and Herzegovina
GRUNDFOS Sarajevo
Zmaja od Bosne 7-7A,
BH-71000 Sarajevo
Phone: [phone]
Telefax: [phone]
www.ba.grundfos.com
e-mail: [e-mail]
Brazil
BOMBAS GRUNDFOS DO BRASIL
Av. Humberto de Alencar Castelo
Branco, 630
CEP 09850 - 300
São Bernardo do Campo - SP
Phone: [phone]
Telefax: [phone]
Bulgaria
Grundfos Bulgaria EOOD
Slatina District
Iztochna Tangenta street no. 100
BG - 1592 Sofia
Tel. [phone]
Fax. [phone]
email: [e-mail]
Canada
GRUNDFOS Canada Inc.
2941 Brighton Road
Oakville, Ontario
L6H 6C9
Phone: [phone]
Telefax: [phone]
China
GRUNDFOS Pumps (Shanghai) Co. Ltd.
10F The Hub, No. 33 Suhong Road
Minhang District
Shanghai 201106
PRC
Phone: [phone]
Telefax: [phone]
COLOMBIA
GRUNDFOS Colombia S.A.S.
Km 1.5 vía Siberia-Cota Conj. Potrero
Chico,
Parque Empresarial Arcos de Cota Bod.
1A.
Cota, Cundinamarca
Phone: [phone]
Telefax: [phone]
Croatia
GRUNDFOS CROATIA d.o.o.
Buzinski prilaz 38, Buzin
HR-10010 Zagreb
Phone: [phone]
Telefax: [phone]
www.hr.grundfos.com
GRUNDFOS Sales Czechia and
Slovakia s.r.o.
Čajkovského 21
779 00 Olomouc
Phone: [phone]
Denmark
GRUNDFOS DK A/S
Martin Bachs Vej 3
DK-8850 Bjerringbro
Tlf.: [phone]
Telefax: [phone]
E-mail: [email protected]
www.grundfos.com/DK
Estonia
GRUNDFOS Pumps Eesti OÜ
Peterburi tee 92G
11415 Tallinn
Tel: + 372 606 1690
Fax: + 372 606 1691
Finland
OY GRUNDFOS Pumput AB
Trukkikuja 1
FI-01360 Vantaa
Phone: [phone]
France
Pompes GRUNDFOS Distribution S.A.
Parc d’Activités de Chesnes
57, rue de Malacombe
F-38290 St. Quentin Fallavier (Lyon)
Tél.: [phone]
Télécopie: [phone]
Germany
GRUNDFOS GMBH
Schlüterstr. 33
40699 Erkrath
Tel.: [phone]
Telefax: [phone]
e-mail: [e-mail]
Service in Deutschland:
e-mail: [e-mail]
Greece
GRUNDFOS Hellas A.E.B.E.
20th km. Athinon-Markopoulou Av.
P.O. Box 71
GR-19002 Peania
Phone: [phone]
Telefax: +0030-210-66 46 273
Hong Kong
GRUNDFOS Pumps (Hong Kong) Ltd.
Unit 1, Ground floor
Siu Wai Industrial Centre
29-33 Wing Hong Street &
68 King Lam Street, Cheung Sha Wan
Kowloon
Phone: [phone]
Telefax: [phone]
Hungary
GRUNDFOS Hungária Kft.
Park u. 8
H-2045 Törökbálint,
Phone: [phone]
Telefax: [phone]
India
GRUNDFOS Pumps India Private
Limited
118 Old Mahabalipuram Road
Thoraipakkam
Chennai 600 096
Phone: [phone]
Indonesia
PT. GRUNDFOS POMPA
Graha Intirub Lt. 2 & 3
Jln. Cililitan Besar No.454. Makasar,
Jakarta Timur
ID-Jakarta 13650
Phone: [phone]
Telefax: [phone] / 460 6901
Ireland
GRUNDFOS (Ireland) Ltd.
Unit A, Merrywell Business Park
Ballymount Road Lower
Dublin 12
Phone: [phone]
Telefax: [phone]
Italy
GRUNDFOS Pompe Italia S.r.l.
Via Gran Sasso 4
I-20060 Truccazzano (Milano)
Tel.: [phone]
Telefax: [phone] / 95838461
Japan
GRUNDFOS Pumps K.K.
1-2-3, Shin-Miyakoda, Kita-ku,
Hamamatsu
431-2103 Japan
Phone: [phone]
Telefax: [phone]
Korea
GRUNDFOS Pumps Korea Ltd.
6th Floor, Aju Building 679-5
Yeoksam-dong, Kangnam-ku, 135-916
Seoul, Korea
Phone: [phone]
Telefax: [phone]
Latvia
SIA GRUNDFOS Pumps Latvia
Deglava biznesa centrs
Augusta Deglava ielā60, LV-1035, Rīga,
Tālr.: + 371 714 9640, 7 149 641
Fakss: + 371 914 9646
Lithuania
GRUNDFOS Pumps UAB
Smolensko g. 6
LT-03201 Vilnius
Tel: + 370 52 395 430
Fax: + 370 52 395 431

Grundfos companies
Malaysia
GRUNDFOS Pumps Sdn. Bhd.
7 Jalan Peguam U1/25
Glenmarie Industrial Park
40150 Shah Alam
Selangor
Phone: [phone]
Telefax: [phone]
Mexico
Bombas GRUNDFOS de México S.A. de
C.V.
Boulevard TLC No. 15
Parque Industrial Stiva Aeropuerto
Apodaca, N.L. 66600
Phone: [phone]
Telefax: [phone]
Netherlands
GRUNDFOS Netherlands
Veluwezoom 35
1326 AE Almere
Postbus 22015
1302 CA ALMERE
Tel.: [phone]
Telefax: [phone]
E-mail: [e-mail]
New Zealand
GRUNDFOS Pumps NZ Ltd.
17 Beatrice Tinsley Crescent
North Harbour Industrial Estate
Albany, Auckland
Phone: [phone]
Telefax: [phone]
Norway
GRUNDFOS Pumper A/S
Strømsveien 344
Postboks 235, Leirdal
N-1011 Oslo
Tlf.: [phone]
Telefax: [phone]
Poland
GRUNDFOS Pompy Sp. z o.o.
ul. Klonowa 23
Baranowo k. Poznania
PL-62-081 Przeźmierowo
Tel: [phone]
Fax: [phone]
Portugal
Bombas GRUNDFOS Portugal, S.A.
Rua Calvet de Magalhães, 241
Apartado 1079
P-2770-153 Paço de Arcos
Tel.: [phone]
Telefax: [phone]
Romania
GRUNDFOS Pompe România SRL
Bd. Biruintei, nr 103
Pantelimon county Ilfov
Phone: [phone]
Telefax: [phone]
E-mail: romani[email protected]
Russia
ООО Грундфос Россия
ул. Школьная, 39-41
Москва, RU-109544, Russia
Тел. [phone] (495) 737-30-
00
Факс [phone]
E-mail [e-mail]
Serbia
Grundfos Srbija d.o.o.
Omladinskih brigada 90b
11070 Novi Beograd
Phone: [phone]
Telefax: [phone]
www.rs.grundfos.com
Singapore
GRUNDFOS (Singapore) Pte. Ltd.
25 Jalan Tukang
Singapore 619264
Phone: [phone]
Telefax: [phone]
Slovakia
GRUNDFOS s.r.o.
Prievozská 4D
821 09 BRATISLAVA
Phona: [phone]
sk.grundfos.com
Slovenia
GRUNDFOS LJUBLJANA, d.o.o.
Leskoškova 9e, 1122 Ljubljana
Phone: [phone]
Telefax: [phone]
E-mail: [email protected]
South Africa
GRUNDFOS (PTY) LTD
Corner Mountjoy and George Allen
Roads
Wilbart Ext. 2
Bedfordview 2008
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Spain
Bombas GRUNDFOS España S.A.
Camino de la Fuentecilla, s/n
E-28110 Algete (Madrid)
Tel.: [phone]
Telefax: [phone]
Sweden
GRUNDFOS AB
Box 333 (Lunnagårdsgatan 6)
431 24 Mölndal
Tel.: [phone]
Telefax: [phone]
Switzerland
GRUNDFOS Pumpen AG
Bruggacherstrasse 10
CH-8117 Fällanden/ZH
Tel.: [phone]
Telefax: [phone]
Taiwan
GRUNDFOS Pumps (Taiwan) Ltd.
7 Floor, 219 Min-Chuan Road
Taichung, Taiwan, R.O.C.
Phone: [phone]
Telefax: [phone]
Thailand
GRUNDFOS (Thailand) Ltd.
92 Chaloem Phrakiat Rama 9 Road,
Dokmai, Pravej, Bangkok 10250
Phone: [phone]
Telefax: [phone]
Turkey
GRUNDFOS POMPA San. ve Tic. Ltd.
Sti.
Gebze Organize Sanayi Bölgesi
Ihsan dede Caddesi,
2. yol 200. Sokak No. 204
41490 Gebze/ Kocaeli
Phone: +90 - 262-679 7979
Telefax: +90 - 262-679 7905
E-mail: [e-mail]
Ukraine
Бізнес Центр Європа
Столичне шосе, 103
м. Київ, 03131, Україна
Телефон: [phone]
Факс.: [phone]
E-mail: [e-mail]
United Arab Emirates
GRUNDFOS Gulf Distribution
P.O. Box 16768
Jebel Ali Free Zone
Dubai
Phone: [phone]
Telefax: [phone]
United Kingdom
GRUNDFOS Pumps Ltd.
Grovebury Road
Leighton Buzzard/Beds. LU7 4TL
Phone: [phone]
Telefax: [phone]
U.S.A.
GRUNDFOS Pumps Corporation
17100 West 118th Terrace
Olathe, Kansas 66061
Phone: [phone]
Telefax: [phone]
Uzbekistan
Grundfos Tashkent, Uzbekistan The
Representative Office of Grundfos
Kazakhstan in Uzbekistan
38a, Oybek street, Tashkent
Телефон: [phone] / 71 150
3291
Факс: [phone]
Addresses Revised 09.08.2017

www.grundfos.com
96584492 1017
ECM: 1211444
The name Grundfos, the Grundfos logo, and be think innovate are registered trademarks
owned by Grundfos Holding A/S or Grundfos A/S, Denmark. All rights reserved worldwide. © Copyright Grundfos Holding A/S
