Grundfos CM-L Series User manual

CM-L
Installation and operating instructions
GRUNDFOS INSTRUCTIONS
Other languages
http://net.grundfos.com/qr/i/99298152

English (GB)
2
English (GB) Installation and operating instructions
Original installation and operating instructions
These installation and operating instructions
describe Grundfos CM-L.
Sections 1-5 give the information necessary to be
able to unpack, install and start up the product in a
safe way.
Sections 6-11 give important information about the
product, as well as information on service, fault
finding and disposal of the product.
CONTENTS
Page
1. Symbols used in this document
1.1 Hazard statements
The symbols and hazard statements below may
appear in Grundfos installation and operating
instructions, safety instructions and service
instructions.
The hazard statements are structured in the
following way:
1. Symbols used in this document 2
1.1 Hazard statements 2
1.2 Notes 3
2. Receiving the product 3
3. Installing the product 3
3.1 Mechanical installation 3
3.2 Installation of the pump 4
3.3 Pipes 4
3.4 Alternative connection positions 4
3.5 Terminal box positions 5
3.6 Electrical connection 5
4. Starting up the product 6
4.1 Liquid filling 6
5. Handling and storing the product 7
5.1 Lifting the product 7
6. Product introduction 7
6.1 Applications 7
6.2 Pumped liquids 7
6.3 Glycol 7
6.4 Identification 8
7. Maintaining the product 9
7.1 Service documentation 9
8. Taking the product out of operation 9
8.1 Cleaning 9
8.2 Frost protection 9
8.3 Taking the product permanently out of
operation 9
9. Fault finding the product 10
10. Technical data 12
10.1 Enclosure class 12
10.2 Sound pressure level 12
10.3 Ambient temperature 12
10.4 Minimum inlet pressure 12
10.5 Maximum inlet pressure 12
11. Disposal 12
Read this document before installing the
product. Installation and operation must
comply with local regulations and accepted
codes of good practice.
The use of this product requires
experience with and knowledge of the
product.
Persons with reduced physical, sensory or
mental capabilities must not use this
product, unless they are under supervision
or have been instructed in the use of the
product by a person responsible for their
safety.
Children must not use or play with this
product.
DANGER
Indicates a hazardous situation which, if
not avoided, will result in death or serious
personal injury.
WARNING
Indicates a hazardous situation which, if
not avoided, could result in death or
serious personal injury.
CAUTION
Indicates a hazardous situation which, if
not avoided, could result in minor or
moderate personal injury.
SIGNAL WORD
Description of hazard
Consequence of ignoring the warning.
- Action to avoid the hazard.

English (GB)
3
1.2 Notes
The symbols and notes below may appear in
Grundfos installation and operating instructions,
safety instructions and service instructions.
2. Receiving the product
The weight of the product is stated on the packaging.
The pumps are delivered from factory in a packaging
specially designed for manual transport or transport
by forklift truck or a similar vehicle.
3. Installing the product
3.1 Mechanical installation
Before installing the pump, check that the pump type
and parts are as ordered.
Observe these instructions for
explosion-proof products.
A blue or grey circle with a white graphical
symbol indicates that an action must be
taken.
A red or grey circle with a diagonal bar,
possibly with a black graphical symbol,
indicates that an action must not be taken
or must be stopped.
If these instructions are not observed, it
may result in malfunction or damage to the
equipment.
Tips and advice that make the work easier.
CAUTION
Back injury
Minor or moderate personal injury
- Use lifting equipment which is approved
for the weight of the product.
- Use a lifting method suitable for the
weight of the product.
- Do not lift the product by lifting it in the
packaging inlay.
- Wear personal protective equipment.
CAUTION
Crushing of limbs
Minor or moderate personal injury
- Avoid insecure stacking of the product.
DANGER
Electric shock
Death or serious personal injury
- Before starting any work on the product,
make sure that the power supply has
been switched off and that it cannot be
accidentally switched on.
CAUTION
Hot or cold surface
Minor or moderate personal injury
- Make sure that no one can accidentally
come into contact with hot or cold
surfaces.

English (GB)
4
3.2 Installation of the pump
Install the pump on a plane surface using the
mounting holes in the motor base plate and a
minimum of four bolts. Tighten each of the four bolts
to a torque of 10 Nm.
Install the pump so that air pockets are avoided in
the pump housing and pipes.

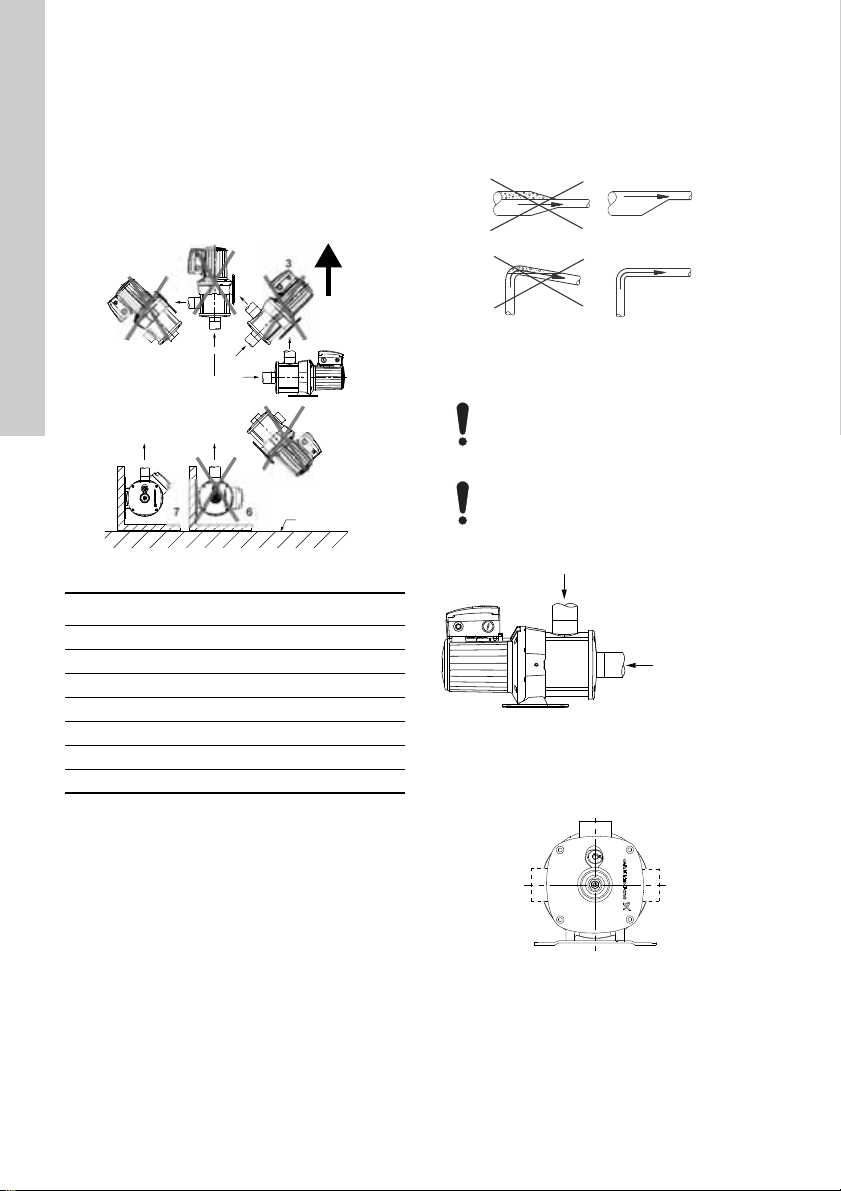

Figure 1and the table below show the permissible
pump positions.
Fig. 1 Pump position
●Mounting in this position is allowed.
❍Mounting in this position is allowed if the terminal
box is set to an angle of 45 ° pointing upwards.
Install the pump so that inspection, maintenance and
service can easily be performed.
Install the pump in a well-ventilated location.
3.3 Pipes
We recommend that you fit isolating valves on either
side of the pump. It is thus not necessary to drain the
system if the pump needs service.
Install the pipes so that air pockets are avoided,
especially on the inlet side of the pump. See fig. 2.
Fig. 2 Pipes
3.3.1 Pipe connection
Fig. 3 Inlet and outlet ports
3.4 Alternative connection positions
The pump is available with various connection
positions on special request. See fig. 4.
Fig. 4 Alternative connection positions
TM06 9531 0919
Pump position CM-L
1-
2-
3-
4●
5-
6-
7❍
1
2
3
4
5
6
7
Up
Floor
TM04 0338 0608
Take care not to damage the pump when
connecting the inlet and outlet pipes.
Torque: 50-60 Nm. The stated torque must
not be exceeded.
The inlet and outlet pipes must be
supported so that stress on the pump inlet
and outlet connections is avoided.
TM06 9532 2517TM06 9533 2517
Outlet port
Inlet port

English (GB)
5
3.5 Terminal box positions
At the bottom close to the pump housing, the stator
housing has two drain holes, 5 x 10 mm, to enable
condensed water to escape. The drain holes must
point downwards. See the arrows in fig. 5. Do not
consider the vent holes in the stator housing as drain
holes.
The possible terminal box positions are shown in fig.
5. The positions apply to mounting in both vertical
and horizontal pipes.
Fig. 5 Terminal box positions
Fig. 6 Standard position
3.5.1 Changing the terminal box position
Change the terminal box position as follows:
1. Remove the four screws holding the pump head.
2. Turn the pump head to the desired position.
3. Refit the four screws.
Do not start the pump until the system has been filled
with liquid and vented. Furthermore, the required
minimum inlet pressure must be available at the
pump inlet. See section 10.4 Minimum inlet
pressure.
To change the nameplate position, ease the outer
edge of the nameplate at the cutout with a
screwdriver, turn the nameplate to the new position,
and push it into place.
3.6 Electrical connection
The electrical connection must be carried out
according to local regulations.
Check that the supply voltage and frequency
correspond to the values stated on the nameplate.
You can use earthing or neutralisation for protection
against indirect contact. You can use a current- or
voltage-operated earth-leakage circuit breaker as
extra protection.
3.6.1 Connections in the standard module
Connect the pump to the power supply via an
external contactor.
Carry out the electrical connection as shown in the
diagram inside the terminal box cover.
3.6.2 Frequency converter operation
CM-L pumps cannot be used with an external
frequency converter.
TM06 9534 2517
Only turn the terminal box to the positions
in fig. 5.
TM06 9535 2517
WARNING
Pressurised system
Death or serious personal injury
- Before dismantling the pump, drain the
system or close the isolating valve on
either side of the pump. The pumped
liquid may be scalding hot and under
high pressure.
When the terminal box position has been
changed, turn the nameplate on the end of
the motor so that the cutout points
downwards. This allows water from a
possible venting to escape.
DANGER
Electric shock
Death or serious personal injury
- Do not make any connections in the
terminal box unless you have switched
off the power supply.
- Connect the pump to earth.
- Connect the pump to an external main
switch with a minimum contact gap of 3
mm in all poles.
DANGER
Electric shock
Death or serious personal injury
- It must be possible to lock the main
switch in the off position. Type and
requirements as specified in EN
60204-1, 5.3.2.

English (GB)
6
4. Starting up the product
Do not start the pump until you have filled the system
with liquid and vented it. Furthermore, the required
minimum inlet pressure must be available at the
pump inlet. See section 10.4 Minimum inlet
pressure.

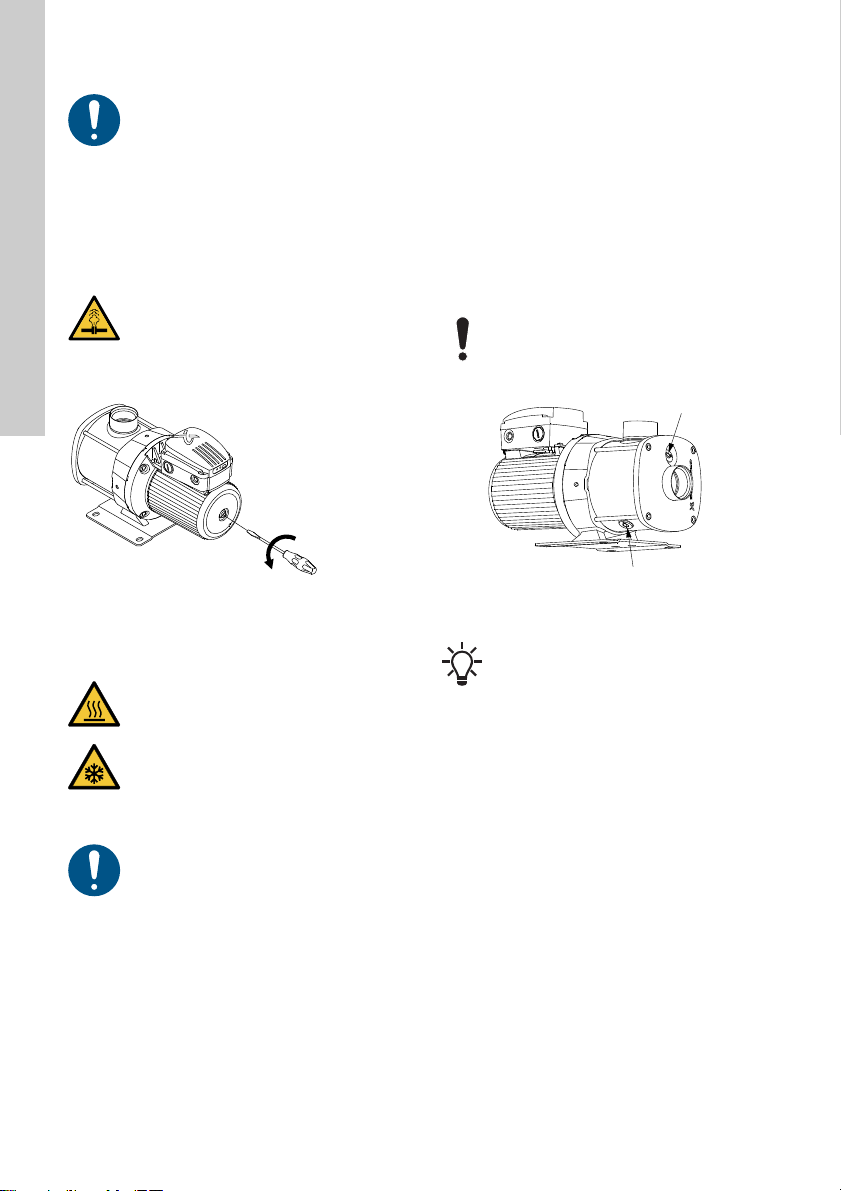

Fig. 7 Loosening the inspection screw
4.1 Liquid filling
1. Close the isolating valve on the outlet side of the
pump.
2. Open the isolating valve in the inlet pipe
completely before starting the pump.
3. Remove the filling plug. See fig. 8.
4. Fill the pump housing and the inlet pipe
completely with liquid until a steady stream of
liquid runs out of the filling hole.
5. Fit and tighten the filling plug.
6. Start the pump and slowly open the outlet
isolating valve while the pump is running. This
ensures venting and pressure buildup during
startup.
Fig. 8 Position of filling hole and drain hole
Do not start the pump until it has been
filled with liquid. See section 4.1 Liquid
filling.
CAUTION
Pressurised system
Minor or moderate personal injury
- If the inspection screw is to be
loosened, make sure that the escaping,
scalding hot liquid does not cause
personal injury or damage to
components.
TM06 9536 2517
CAUTION
Hot or cold liquid
Minor or moderate personal injury
- Wear personal protective equipment.
- Pay attention to the direction of the vent
hole when you fill the pump with liquid
and vent it.
- Make sure that no persons are hurt by
the escaping liquid.
Pay attention to the direction of the vent
hole when you fill the pump with liquid and
vent it. Make sure that the escaping liquid
does not cause damage to the motor or
other components.
Inspection screw
The outlet isolating valve must be opened
immediately after startup of the pump.
Otherwise the temperature of the pumped
liquid may become too high and cause
damage to the equipment.
TM06 9618 2517
If it is difficult for the pump to build up
pressure, it may be necessary to repeat
steps 1to 6.
Drain hole
Filling hole

English (GB)
7
5. Handling and storing the product
5.1 Lifting the product
Install the eye bolts supplied with the pump and
attach correct lifting equipment to these when lifting
the pump. See fig. 9.
Fig. 9 Correct lifting of the pump
6. Product introduction
The pumps are horizontal, multistage centrifugal
pumps with canned rotor.
The pumps are available with stainless steel
hydraulics as standard. Cast-iron hydraulics are
available as an option.
Terminal box modules
CM-L pumps are fitted with a standard module in the
terminal box.
6.1 Applications
CM-L pumps are designed for applications where
leakage cannot be accepted, such as:
Delicate temperature control
• Cooling of equipment in server rooms
• cooling of medical and laboratory equipment
• cooling of industrial equipment like laser welders
and injection moulding tools.
Temperature control units where maintenance is
inconvenient
• Cooling of solar panels in remote areas
• cooling of wind turbines.
6.2 Pumped liquids
The pumps are suitable for pumping clean, thin,
non-aggressive and non-explosive liquids, not
containing solid particles, fibres or mineral oil.
If the pump is installed in a heating system, the water
must meet the requirements of accepted standards
on water quality in heating systems, for example the
German standard VDI 2035.
In domestic hot-water systems, we recommend that
you use the pumps only for water with a degree of
hardness lower than approx. 14 °dH. For water with
a higher degree of hardness, we recommend a
direct-coupled TP pump.
Liquid temperature, see section 10. Technical data.
6.3 Glycol
The pumps can be used for pumping water-glycol
mixtures up to 50 %.
The maximum viscosity of a 50 % glycol mixture at
-10 °C is approx. 32 cSt.
To prevent the glycol mixture from degrading, avoid
temperatures exceeding the rated liquid temperature
and minimise the operating time at high
temperatures.
It is important to clean and flush the system before
adding the glycol mixture.
To prevent corrosion or precipitation, check that the
glycol mixture is as specified by the glycol supplier
and maintain it regularly. If further dilution of the
supplied glycol is required, follow the glycol
supplier's instructions.
CAUTION
Crushing of feet
Minor or moderate personal injury
- Use safety shoes when handling the
pump.
Observe local regulations setting limits for
manual lifting or handling.
TM06 9537 2517
Do not lift the pump head by the control
box.
WARNING
Flammable material
Death or serious personal injury
- Do not use the pump for flammable
liquids, such as diesel oil and petrol.
When pumping glycol mixtures, the pump
performance will be reduced.
Consult Grundfos Product Center on
www.grundfos.com for further details.
DEX-COOL®glycol may damage the
pump.

English (GB)
8
6.4 Identification
6.4.1 Nameplates for the pump
The pump nameplates are positioned on the terminal
box.
6.4.2 Nameplate with pump data
The data and information on the pump nameplate
are described in the table below. See the nameplate
in fig. 1on page 13.
6.4.3 Nameplate with approval marks
The data and information on the pump nameplate
are described in the table below. See the nameplate
in fig. 2on page 13.
6.4.4 Nameplate for the motor
The motor nameplate is positioned on the end of the
motor.
The data and information on the motor nameplate
are described in the table below. See the nameplate
in fig. 3on page 13.
Pos. Description
1 Pump type
2 Pump model
3 Maximum ambient temperature
4 Temperature class
5 Minimum efficiency index
6 Maximum system pressure
7 Maximum liquid temperature
8 Hydraulic efficiency at best efficiency point
9 Insulation class
10 Motor protection
11 Rated flow
12 Head at rated flow
13 Maximum head
Pos. Description
1CEmark
2 cURus mark
3 Company name and address
4 Country of manufacture
Pos. Description
1 Pump and motor type
2 Product number
3 Model designation
4 Temperature class
5Production code (country of manufacture,
year and week)
6 Rated speed at 50 Hz
7 Rated speed at 60 Hz
8Number of phases, rated voltage and
frequency
9 Full load current (50 Hz)
10 Full load current (60 Hz)
11 Rated power output at 50 Hz [W]
12 Rated power output at 60 Hz [W]
13 Maximum pressure [Mpa]
14 Enclosure class
15 Direction of rotation

English (GB)
9
7. Maintaining the product
The pump is maintenance-free, as it does not have
mechanical ball bearings or a shaft seal. This means
that unplanned downtime is minimised and difficult
servicing is avoided.
You must keep the motor clean in order to ensure
adequate cooling of the motor. If the pump is
installed in dusty environments, clean the pump
regularly. Take the enclosure class of the motor into
account when cleaning.
The motor has maintenance-free bearings.
7.1 Service documentation
Service documentation is available in Grundfos
Product Center
(http://product-selection.grundfos.com/).
If you have any questions, please contact the
nearest Grundfos company or service workshop.
8. Taking the product out of operation
8.1 Cleaning
Before a long period of inactivity, flush the pump with
clean water to prevent corrosion and deposits in the
pump.
Use acetic acid to remove possible lime deposits
from the pump.
8.2 Frost protection
Pumps which are not being used during periods of
frost must be drained to avoid damage.
1. Remove the filling and drain plugs from the
pump. See fig. 8.
2. Remove the inspection screw from the motor.
See fig. 7.
3. Let the pump drain.
4. Re-install the inspection screw.
Do not refit the plugs until the pump is taken into
operation again.
8.3 Taking the product permanently out of
operation
Observe the following if the pump is to be
permanently taken out of operation and removed
from the pipe system.
DANGER
Electric shock
Death or serious personal injury
- Before starting any work on the product,
make sure that the power supply has
been switched off and that it cannot be
accidentally switched on.
WARNING
Corrosive liquids
Death or serious personal injury
- Wear personal protective equipment.
WARNING
Toxic liquids
Death or serious personal injury
- Wear personal protective equipment.
CAUTION
Hot or cold liquid
Minor or moderate personal injury
- Wear personal protective equipment.
CAUTION
Back injury
Minor or moderate personal injury
- Use lifting equipment which is approved
for the weight of the product.
- Use a lifting method suitable for the
weight of the product.
- Wear personal protective equipment.
Before startup after a period of inactivity,
the pump and the inlet pipe must be
completely filled with liquid. See section
4. Starting up the product.
WARNING
Corrosive liquids
Death or serious personal injury
- Wear personal protective equipment.
WARNING
Toxic liquids
Death or serious personal injury
- Wear personal protective equipment.
CAUTION
Hot or cold liquid
Minor or moderate personal injury
- Wear personal protective equipment.
CAUTION
Back injury
Minor or moderate personal injury
- Use lifting equipment which is approved
for the weight of the product.
- Use a lifting method suitable for the
weight of the product.
- Wear personal protective equipment.

English (GB)
10
9. Fault finding the product
DANGER
Electric shock
Death or serious personal injury
- Before starting any work on the product,
make sure that the power supply has
been switched off and that it cannot be
accidentally switched on.
WARNING
Corrosive liquids
Death or serious personal injury
- Wear personal protective equipment.
WARNING
Toxic liquids
Death or serious personal injury
- Wear personal protective equipment.
CAUTION
Hot or cold liquid
Minor or moderate personal injury
- Wear personal protective equipment.
Fault Cause Remedy
1. The pump does not run. a) Supply failure. Switch on the switch.
Replace the fuse.
Check cables and cable connections
for defects and loose connections.
b) Motor protection has tripped. See 2. a, b, c, d, e.
c) The control-current circuit is
defective.
Repair or replace the control-current
circuit.
2. The motor-protective circuit
breaker has tripped. It trips
immediately when power
supply is switched on.
a) Contacts of the
motor-protective circuit
breaker or magnet coil are
defective.
Replace the contacts of the
motor-protective circuit breaker, the
magnet coil or the entire
motor-protective circuit breaker.
b) Cable connection is loose or
faulty.
Check cables and cable connections
for defects, and replace the fuses.
c) The motor winding is
defective. Repair or replace the motor.
d) The pump is mechanically
blocked.
Switch off the power supply, and
clean or repair the pump.
e) The setting of the
motor-protective circuit
breaker is too low.
Set the motor-protective circuit
breaker according to the rated
current of the motor (I1/1).
See the nameplate.
3. The pump does not run. a) The rotor is blocked. Switch off the power supply, and
clean or repair the pump.
4. The motor-protective circuit
breaker trips occasionally.
a) The setting of the
motor-protective circuit
breaker is too low.
See 2. e.
b) Periodic supply fault. See 2. b.
c) Periodically low voltage. Check cables and cable connections
for defects and loose connections.
Check that the power supply cable of
the pump is correctly sized.
5. The motor-protective circuit
breaker has not tripped, but
the pump is inadvertently
out of operation.
a) See 1. a, c and 2. d.

English (GB)
11
6. The pump performance is
unstable.
a) Pump inlet pressure is too
low.
Check the inlet conditions of the
pump.
b) Inlet pipe is partly blocked by
impurities. Remove and clean the inlet pipe.
c) Leakage in the inlet pipe. Remove and repair the inlet pipe.
d) Air in the inlet pipe or pump. Vent the inlet pipe or pump.
Check the inlet conditions of the
pump.
7. The pump runs, but gives
no water.
a) Pump inlet pressure is too
low. See 6. a.
b) The inlet pipe is partly clogged
by impurities. See 6. b.
c) The foot or non-return valve is
stuck in its closed position.
Remove and clean, repair or replace
the valve.
d) Leakage in the inlet pipe. See 6. c.
e) Air in the inlet pipe or pump. See 6. d.
8. The pump runs backwards
when switched off.
a) Leakage in the inlet pipe. See 6. c.
b) The foot or non-return valve is
defective. See 7. c.
c) The foot valve is stuck in
completely or partly open
position.
See 7. c.
9. The pump runs with
reduced performance.
a) Wrong direction of rotation. Three-phase pumps only:
Switch off the power supply with the
external circuit breaker, and
interchange two phases in the pump
terminal box.
b) See 6. a, b, c, d.
Fault Cause Remedy

English (GB)
12
10. Technical data
10.1 Enclosure class
IPX4D
10.2 Sound pressure level
The sound pressure level of the pump is lower than
70 dB(A).
10.3 Ambient temperature
-30 to 55 °C.
Relative humidity
Maximum 95 %.
Liquid temperature
-20 to 60 °C.
Insulation of pump head
Do not insulate the pump head. If you insulate the
pump display and the liquid temperature is lower
than the ambient temperature, do not cover the drain
holes in the stator housing.
System pressure
See the pump nameplate.
Start and stop input, basic and relay modules
External potential-free contact.
Maximum load: 250 V, 1.5 mA.
Minimum load: 100 V, 0.5 mA.
Operating and fault signal output, relay module
Internal potential-free changeover contact.
Maximum load: 250 V, 2 A, AC.
Minimum load: 5 V, 100 mA, DC.
10.4 Minimum inlet pressure
Minimum inlet pressure: 1 bar
10.5 Maximum inlet pressure
The actual inlet pressure plus the pressure when the
pump is operating against a closed valve must
always be lower than the maximum system pressure.
11. Disposal
This product or parts of it must be disposed of in an
environmentally sound way:
1. Use the public or private waste collection service.
2. If this is not possible, contact the nearest
Grundfos company or service workshop.

Appendix
13
Appendix 1
Fig. 1 Pump nameplate with data
Fig. 2 Pump nameplate with approval marks
Fig. 3 Nameplate for the motor
TM05 6388 4712
Type
Model
TAmb
PMax
Tliq,max
bar
Insulation classTF
PSI MPa
C
oF
o
F
o
C
o
2
1
3 3
11
12
13
11
12
13
11
12
13
11
12
13
6
77
66
0(, 54 8 10
9
Q nom
H nom
H max
50 Hz
m /h
3
m
m
GPM
PSI
PSI
Q nom
H nom
H max
60 Hz
m /h
3
m
m
GPM
PSI
PSI
ȘP(%)
TM07 4223 1019TM06 9529 1019
DK-8850 BJERRINGBRO DENMARK Made in Hungary
12
34
Stator set PN:
Model:
TF60
PC:
n 50Hz(RPM)
n 60Hz(RPM)
50Hz
60Hz
Grundfos, DK-8850 Bjerringbro, Denmark
I1/1 (A) P1(W)
CM-L
1
2
3
4
5
6
7
8
9
10 11
12
13
14
15

Appendix
14
Fig. 4 NPSH curve for CML 1
Fig. 5 NPSH curves for CML 3
TM06 9836 3417
0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 2.6 2.8 Q [m³/h]
0
1
2
3
4
5
6
7
[m]
NPSH
CML1
60 Hz
50 Hz
TM06 9837 3417
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 Q [m³/h]
0
1
2
3
4
5
6
7
8
[m]
NPSH
CML3
60 Hz
50 Hz

Appendix
15
Fig. 6 NPSH curves for CML 5
Fig. 7 NPSH curves for CML 10
TM06 9838 3417
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 Q [m³/h]
0
1
2
3
4
5
6
7
8
9
[m]
NPSH
CML5
60 Hz
50 Hz
TM06 9839 3417
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 Q [m³/h]
0
2
4
6
8
10
12
14
16
[m]
NPSH
CML10
60 Hz
50 Hz

Appendix
16

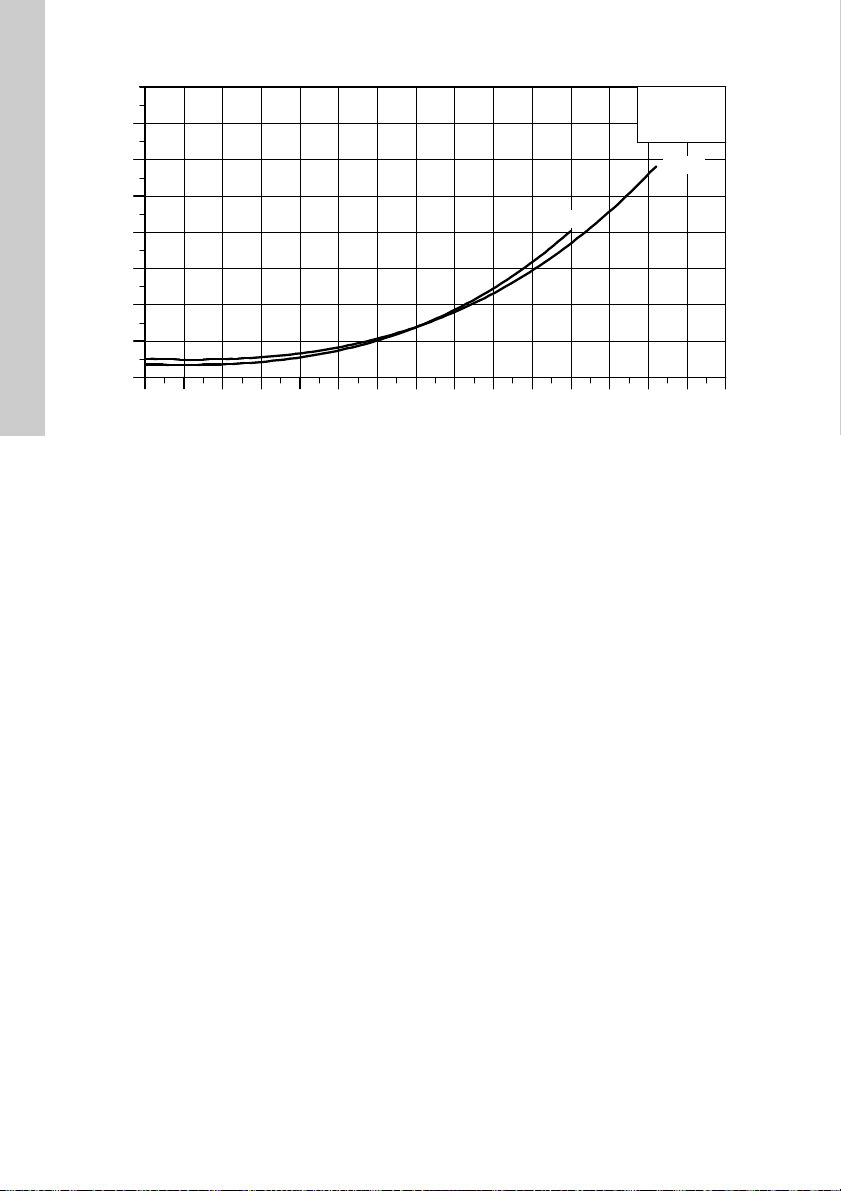

Fig. 8 NPSH curves for CML 15
TM06 9840 3417
0 2 4 6 8 10 12 14 16 18 20 22 24 26 Q [m³/h]
0
2
4
6
8
10
12
14
[m]
NPSH
CML15
60 Hz
50 Hz

Appendix
17
Fig. 9 Vapour pressure
TM00 3037 0800
20
15
12
10
8,0
6,0
5,0
4,0
3,0
2,0
1,0
0,8
0,6
0,4
0,3
0,2
0,1
1,5
120
110
90
100
80
70
60
50
40
30
20
10
0
Hv
(m)
tm
(°C)
150
130
140
25
35
45
40
30

Grundfos companies
Argentina
Bombas GRUNDFOS de Argentina S.A.
Ruta Panamericana km. 37.500 Centro
Industrial Garin
1619 Garín Pcia. de B.A.
Phone: [phone]
Telefax: [phone]
Australia
GRUNDFOS Pumps Pty. Ltd.
P.O. Box 2040
Regency Park
South Australia 5942
Phone: [phone]
Telefax: [phone]
Austria
GRUNDFOS Pumpen Vertrieb
Ges.m.b.H.
Grundfosstraße 2
A-5082 Grödig/Salzburg
Tel.: [phone]
Telefax: [phone]
Belgium
N.V. GRUNDFOS Bellux S.A.
Boomsesteenweg 81-83
B-2630 Aartselaar
Tél.: [phone]
Télécopie: [phone]
Belarus
Представительство ГРУНДФОС в
Минске
220125, Минск
ул. Шафарнянская, 11, оф. 56, БЦ
«Порт»
Тел.: [phone]
Факс: [phone]
E-mail: [email protected]
Bosnia and Herzegovina
GRUNDFOS Sarajevo
Zmaja od Bosne 7-7A,
BH-71000 Sarajevo
Phone: [phone]
Telefax: [phone]
www.ba.grundfos.com
e-mail: [e-mail]
Brazil
BOMBAS GRUNDFOS DO BRASIL
Av. Humberto de Alencar Castelo
Branco, 630
CEP 09850 - 300
São Bernardo do Campo - SP
Phone: [phone]
Telefax: [phone]
Bulgaria
Grundfos Bulgaria EOOD
Slatina District
Iztochna Tangenta street no. 100
BG - 1592 Sofia
Tel. [phone]
Fax. [phone]
email: [e-mail]
Canada
GRUNDFOS Canada Inc.
2941 Brighton Road
Oakville, Ontario
L6H 6C9
Phone: [phone]
Telefax: [phone]
China
GRUNDFOS Pumps (Shanghai) Co. Ltd.
10F The Hub, No. 33 Suhong Road
Minhang District
Shanghai 201106
PRC
Phone: [phone]
Telefax: [phone]
COLOMBIA
GRUNDFOS Colombia S.A.S.
Km 1.5 vía Siberia-Cota Conj. Potrero
Chico,
Parque Empresarial Arcos de Cota Bod.
1A.
Cota, Cundinamarca
Phone: [phone]
Telefax: [phone]
Croatia
GRUNDFOS CROATIA d.o.o.
Buzinski prilaz 38, Buzin
HR-10010 Zagreb
Phone: [phone]
Telefax: [phone]
www.hr.grundfos.com
GRUNDFOS Sales Czechia and
Slovakia s.r.o.
Čajkovského 21
779 00 Olomouc
Phone: [phone]
Denmark
GRUNDFOS DK A/S
Martin Bachs Vej 3
DK-8850 Bjerringbro
Tlf.: [phone]
Telefax: [phone]
E-mail: [email protected]
www.grundfos.com/DK
Estonia
GRUNDFOS Pumps Eesti OÜ
Peterburi tee 92G
11415 Tallinn
Tel: + 372 606 1690
Fax: + 372 606 1691
Finland
OY GRUNDFOS Pumput AB
Trukkikuja 1
FI-01360 Vantaa
Phone: [phone]
France
Pompes GRUNDFOS Distribution S.A.
Parc d’Activités de Chesnes
57, rue de Malacombe
F-38290 St. Quentin Fallavier (Lyon)
Tél.: [phone]
Télécopie: [phone]
Germany
GRUNDFOS GMBH
Schlüterstr. 33
40699 Erkrath
Tel.: [phone]
Telefax: [phone]
e-mail: [e-mail]
Service in Deutschland:
e-mail: [e-mail]
Greece
GRUNDFOS Hellas A.E.B.E.
20th km. Athinon-Markopoulou Av.
P.O. Box 71
GR-19002 Peania
Phone: [phone]
Telefax: +0030-210-66 46 273
Hong Kong
GRUNDFOS Pumps (Hong Kong) Ltd.
Unit 1, Ground floor
Siu Wai Industrial Centre
29-33 Wing Hong Street &
68 King Lam Street, Cheung Sha Wan
Kowloon
Phone: [phone]
Telefax: [phone]
Hungary
GRUNDFOS Hungária Kft.
Tópark u. 8
H-2045 Törökbálint,
Phone: [phone]
Telefax: [phone]
India
GRUNDFOS Pumps India Private
Limited
118 Old Mahabalipuram Road
Thoraipakkam
Chennai 600 096
Phone: [phone]
Indonesia
PT. GRUNDFOS POMPA
Graha Intirub Lt. 2 & 3
Jln. Cililitan Besar No.454. Makasar,
Jakarta Timur
ID-Jakarta 13650
Phone: [phone]
Telefax: [phone] / 460 6901
Ireland
GRUNDFOS (Ireland) Ltd.
Unit A, Merrywell Business Park
Ballymount Road Lower
Dublin 12
Phone: [phone]
Telefax: [phone]
Italy
GRUNDFOS Pompe Italia S.r.l.
Via Gran Sasso 4
I-20060 Truccazzano (Milano)
Tel.: [phone]
Telefax: [phone] / 95838461
Japan
GRUNDFOS Pumps K.K.
1-2-3, Shin-Miyakoda, Kita-ku,
Hamamatsu
431-2103 Japan
Phone: [phone]
Telefax: [phone]
Korea
GRUNDFOS Pumps Korea Ltd.
6th Floor, Aju Building 679-5
Yeoksam-dong, Kangnam-ku, 135-916
Seoul, Korea
Phone: [phone]
Telefax: [phone]
Latvia
SIA GRUNDFOS Pumps Latvia
Deglava biznesa centrs
Augusta Deglava ielā60, LV-1035, Rīga,
Tālr.: + 371 714 9640, 7 149 641
Fakss: + 371 914 9646
Lithuania
GRUNDFOS Pumps UAB
Smolensko g. 6
LT-03201 Vilnius
Tel: + 370 52 395 430
Fax: + 370 52 395 431

Grundfos companies
Malaysia
GRUNDFOS Pumps Sdn. Bhd.
7 Jalan Peguam U1/25
Glenmarie Industrial Park
40150 Shah Alam
Selangor
Phone: [phone]
Telefax: [phone]
Mexico
Bombas GRUNDFOS de México S.A. de
C.V.
Boulevard TLC No. 15
Parque Industrial Stiva Aeropuerto
Apodaca, N.L. 66600
Phone: [phone]
Telefax: [phone]
Netherlands
GRUNDFOS Netherlands
Veluwezoom 35
1326 AE Almere
Postbus 22015
1302 CA ALMERE
Tel.: [phone]
Telefax: [phone]
E-mail: [e-mail]
New Zealand
GRUNDFOS Pumps NZ Ltd.
17 Beatrice Tinsley Crescent
North Harbour Industrial Estate
Albany, Auckland
Phone: [phone]
Telefax: [phone]
Norway
GRUNDFOS Pumper A/S
Strømsveien 344
Postboks 235, Leirdal
N-1011 Oslo
Tlf.: [phone]
Telefax: [phone]
Poland
GRUNDFOS Pompy Sp. z o.o.
ul. Klonowa 23
Baranowo k. Poznania
PL-62-081 Przeźmierowo
Tel: [phone]
Fax: [phone]
Portugal
Bombas GRUNDFOS Portugal, S.A.
Rua Calvet de Magalhães, 241
Apartado 1079
P-2770-153 Paço de Arcos
Tel.: [phone]
Telefax: [phone]
Romania
GRUNDFOS Pompe România SRL
Bd. Biruintei, nr 103
Pantelimon county Ilfov
Phone: [phone]
Telefax: [phone]
E-mail: [e-mail]
Russia
ООО Грундфос Россия
ул. Школьная, 39-41
Москва, RU-109544, Russia
Тел. [phone] (495)
737-30-00
Факс [phone]
E-mail [e-mail]
Serbia
Grundfos Srbija d.o.o.
Omladinskih brigada 90b
11070 Novi Beograd
Phone: [phone]
Telefax: [phone]
www.rs.grundfos.com
Singapore
GRUNDFOS (Singapore) Pte. Ltd.
25 Jalan Tukang
Singapore 619264
Phone: [phone]
Telefax: [phone]
Slovakia
GRUNDFOS s.r.o.
Prievozská 4D
821 09 BRATISLAVA
Phona: [phone]
sk.grundfos.com
Slovenia
GRUNDFOS LJUBLJANA, d.o.o.
Leskoškova 9e, 1122 Ljubljana
Phone: [phone]
Telefax: [phone]
E-mail: [email protected]
South Africa
Grundfos (PTY) Ltd.
16 Lascelles Drive, Meadowbrook Estate
1609 Germiston, Johannesburg
Tel.: [phone]
Fax: [phone]
E-mail: [e-mail]
Spain
Bombas GRUNDFOS España S.A.
Camino de la Fuentecilla, s/n
E-28110 Algete (Madrid)
Tel.: [phone]
Telefax: [phone]
Sweden
GRUNDFOS AB
Box 333 (Lunnagårdsgatan 6)
431 24 Mölndal
Tel.: [phone]
Telefax: [phone]
Switzerland
GRUNDFOS Pumpen AG
Bruggacherstrasse 10
CH-8117 Fällanden/ZH
Tel.: [phone]
Telefax: [phone]
Taiwan
GRUNDFOS Pumps (Taiwan) Ltd.
7 Floor, 219 Min-Chuan Road
Taichung, Taiwan, R.O.C.
Phone: [phone]
Telefax: [phone]
Thailand
GRUNDFOS (Thailand) Ltd.
92 Chaloem Phrakiat Rama 9 Road,
Dokmai, Pravej, Bangkok 10250
Phone: [phone]
Telefax: [phone]
Turkey
GRUNDFOS POMPA San. ve Tic. Ltd.
Sti.
Gebze Organize Sanayi Bölgesi
Ihsan dede Caddesi,
2. yol 200. Sokak No. 204
41490 Gebze/ Kocaeli
Phone: +90 - 262-679 7979
Telefax: +90 - 262-679 7905
E-mail: [e-mail]
Ukraine
Бізнес Центр Європа
Столичне шосе, 103
м. Київ, 03131, Україна
Телефон: [phone]
Факс.: [phone]
E-mail: [e-mail]
United Arab Emirates
GRUNDFOS Gulf Distribution
P.O. Box 16768
Jebel Ali Free Zone
Dubai
Phone: [phone]
Telefax: [phone]
United Kingdom
GRUNDFOS Pumps Ltd.
Grovebury Road
Leighton Buzzard/Beds. LU7 4TL
Phone: [phone]
Telefax: [phone]
U.S.A.
GRUNDFOS Pumps Corporation
9300 Loiret Blvd.
Lenexa, Kansas 66219
Phone: [phone]
Telefax: [phone]
Uzbekistan
Grundfos Tashkent, Uzbekistan The
Representative Office of Grundfos
Kazakhstan in Uzbekistan
38a, Oybek street, Tashkent
Телефон: [phone] / 71 150
3291
Факс: [phone]
Addresses Revised 15.01.2019

www.grundfos.com
99298152 0319
ECM: 1256734
Trademarks displayed in this material, including but not limited to Grundfos, the Grundfos logo and “be think innovate” are registered trademarks owned by The Grundfos Group. All rights reserved. © 2019 Grundfos Holding A/S, all rights reserved.
