English (GB) Installation and operating instructions
Original installation and operating instructions
Table of contents
1. General Information ........................5
1.1 Hazard statements..........................5
1.2 Notes ..................................6
2. Receiving the product.......................6
2.1 Inspecting the product........................6
3. Installing the product .......................6
3.1 Location ................................6
3.2 Mechanical installation .......................7
3.3 Electrical connection.........................9
4. Starting up the product .....................10
4.1 UNILIFT KP-A ...........................10
4.2 UNILIFT KP-AV...........................10
4.3 UNILIFT KP-M ...........................10
5. Product introduction.......................11
5.1 Intended use ............................11
5.2 Pumped liquids ...........................11
5.3 Identification.............................12
6. Servicing the product ......................13
6.1 Maintaining the product ......................13
6.2 Cleaning the pump.........................13
6.3 Service kits .............................15
6.4 Contaminated pumps .......................15
7. Fault finding the product ....................16
8. Technical data ...........................17
8.1 Storage temperature........................17
8.2 Operating conditions........................17
8.3 Sound pressure level .......................17
9. Disposing of the product ....................17
1. General Information
Read this document before you install the product. Instal-
lation and operation must comply with local regulations
and accepted codes of good practice.
Read this document and the online version of the installa-
tion and operating instructions before installing the prod-
uct. Installation and operation must comply with local reg-
ulations and accepted codes of good practice.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concern-
ing use of the appliance in a safe way and understand the
hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by chil-
dren without supervision.
1.1 Hazard statements
The symbols and hazard statements below may appear in Grundfos
installation and operating instructions, safety instructions and
service instructions.
DANGER
Indicates a hazardous situation which, if not avoided, will
result in death or serious personal injury.
WARNING
Indicates a hazardous situation which, if not avoided,
could result in death or serious personal injury.
CAUTION
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate personal injury.
The hazard statements are structured in the following way:
SIGNAL WORD
Description of the hazard
Consequence of ignoring the warning
• Action to avoid the hazard.
5
English (GB)

1.2 Notes
The symbols and notes below may appear in Grundfos installation
and operating instructions, safety instructions and service
instructions.
Observe these instructions for explosion-proof products.
A blue or grey circle with a white graphical symbol indi-
cates that an action must be taken.
A red or grey circle with a diagonal bar, possibly with a
black graphical symbol, indicates that an action must not
be taken or must be stopped.
If these instructions are not observed, it may result in mal-
function or damage to the equipment.
Tips and advice that make the work easier.
2. Receiving the product
WARNING
Falling objects
Death or serious personal injury
‐Keep the product in a stable position during unpack-
ing.
‐Wear personal protective equipment.
2.1 Inspecting the product
Check that the product received is in accordance with the order.
Check that the voltage and frequency of the product match voltage
and frequency of the installation site.
3. Installing the product
CAUTION
Toxic material
Minor or moderate personal injury
‐The product will be classified as contaminated if used
for a liquid which is injurious to health or toxic.
‐Wear personal protective equipment.
Installation must be carried out by specially trained per-
sons and according to local regulations.
According to EN 60335-2-41/A2:2010, this product with 5
m of mains cable may be used only for indoor applica-
tions.
3.1 Location
Always have at least 3 m free cable above liquid level.
This limits the installation depth to 7 m for pumps with 10
m cable and to 2 m for pumps with 5 m cable.
3.1.1 Minimum space for UNILIFT KP-A
The pit, basin or tank must be sized according to the relation
between the water flow to the pit, basin or tank and the pump
performance.
When the pump is installed in a permanent installation with a float
switch, the minimum dimensions of the pit, basin or tank must be as
shown in fig. Minimum installation dimensions, UNILIFT KP-A to
ensure free movability of the float switch. The float switch is set to
the minimum free cable length. See section Start and stop levels.
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹‹
‹
‹
‹
‹
‹
‹
‹
‹‹
‹
‹
‹
‹
‹‹‹‹‹‹‹‹‹‹‹‹
‹‹‹‹‹‹‹‹‹‹‹
‹‹‹‹‹‹‹‹‹‹
‹‹‹‹‹‹‹‹‹‹
‹‹‹‹‹‹‹‹‹
‹‹‹‹‹‹‹‹
‹‹‹‹‹‹‹‹‹
‹‹‹‹‹‹‹‹‹
‹‹‹‹‹‹‹‹
‹
‹
‹
‹
‹
‹‹‹
‹
‹
‹
‹
‹‹
‹
‹
‹‹
‹
‹
‹
‹
‹
‹‹
‹
‹
‹‹
‹
‹
‹
‹
‹
‹‹
‹
‹
‹‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹ ‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹‹
‹
‹
‹
‹
‹
‹
‹
‹‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹ ‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹‹
‹
‹
‹
‹
‹
‹‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹‹‹‹
‹
‹
‹‹
‹
‹
‹
‹
‹
‹
‹ ‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹‹
‹
‹
‹
‹
‹
‹‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹‹‹‹
‹
‹
‹‹
‹
‹
‹
‹
‹
‹
‹
‹
‹ ‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹‹
‹
‹
‹
‹
‹
‹‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹‹‹‹
‹
‹
‹
‹
‹‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹‹
‹
‹
‹
‹
‹
‹‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
‹
400 mm
350mm
TM034445
Minimum installation dimensions, UNILIFT KP-A
Related information
3.2.5 Start and stop levels
6
English (GB)

3.1.2 Minimum space for UNILIFT KP-AV
For pumps with a vertical level switch, the minimum installation
dimensions of the pit, basin or tank must be as shown in fig.
Minimum installation dimensions, UNILIFT KP-AV.
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
··
·
·
·
·
·
··
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
ø 250 mm
400 mm
TM011109
Minimum installation dimensions, UNILIFT KP-AV
3.1.3 Minimum space for UNILIFT KP-M
The pump requires no more space than the physical dimensions of
the pump. See UNILIFT KP-AV UNILIFT KP-M in the Appendix.
3.2 Mechanical installation
DANGER
Electric shock
Death or serious personal injury
‐Switch off the power supply before starting any work
on the product.
‐Make sure that the power supply cannot be accidental-
ly switched on.
CAUTION
Sharp element
Minor or moderate personal injury
‐Wear personal protective equipment.
‐Make sure that persons cannot come into contact with
the pump impeller.
Do not install the pump hanging from the electric cable or
the outlet pipe.
3.2.1 Foundation
Place the pump on a plate or on bricks so that the inlet strainer is
free of sludge, mud or similar materials. See fig. Pump placed on a
plate.
¬¬¬¬ ¬¬ ¬¬
¬¬ ¬¬ ¬¬ ¬
¬¬ ¬¬ ¬¬
¬¬ ¬¬ ¬¬
¬¬ ¬¬ ¬¬
¬¬ ¬¬ ¬
¬¬ ¬¬ ¬
¬¬ ¬¬ ¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬¬¬
¬
¬
¬
¬¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬ ¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬¬
¬
¬
¬
¬
¬
¬¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬ ¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬¬
¬
¬
¬
¬
¬
¬¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬¬¬¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬ ¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬¬
¬
¬
¬
¬
¬
¬¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬¬¬¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬¬
¬
¬
¬
¬¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬ ¬
¬
¬
¬
¬
¬
¬
¬
¬ ¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬¬
¬¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬ ¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬¬
¬
¬
¬
¬¬
¬
¬
¬
¬
¬
¬¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
¬
TM001549
Pump placed on a plate
3.2.2 Lifting the pump
Do not pull or lift the product by the power cable.
Lift the pump using the pump handle. Do not lift the pump by the
power cable or by the outlet pipe or hose.
If the pump is installed in a well or tank, lower and lift it by means of
a wire or chain fastened to the pump handle.
3.2.3 Positioning the pump
UNILIFT KP-A and UNILIFT KP-M can be used in vertical position
with the outlet pointing upwards. The pumps may also be used in
horizontal or tilted position with the outlet as the highest point. See
fig. How to position UNILIFT KP-A and UNILIFT KP-M.
During operation, the inlet strainer must always be completely
covered by the pumped liquid.
TM001548
How to position UNILIFT KP-A and UNILIFT KP-M
Always place Unillift KP-AV in vertical position.
When the pipe or hose has been connected, place the pump in its
operating position.
Position the pump so that the pump inlet will not be blocked or
partly blocked by sludge, mud or similar materials.
In the case of permanent installation, the pit must be cleared of
sludge, pebbles, etc. before the pump is installed.
7
English (GB)

3.2.4 Pipe connection
Fit the outlet pipe or hose in the Rp 1 1/4 outlet. Steel pipes can be
screwed directly into the pump outlet.
In a permanent installation, fit a union to the outlet pipe to facilitate
mounting and removal. If a hose is used, fit a hose union.
In a permanent installation with a level switch, fit a non-return valve
to the outlet pipe or hose.
3.2.5 Start and stop levels
UNILIFT KP-A
For pumps supplied with a float switch, the difference in level
between start and stop can be adjusted by changing the free cable
length between the float switch and the pump handle.
• An increased free cable length will result in fewer starts and
stops and a large difference in level.
• A reduced free cable length will result in more frequent starts
and stops and a small difference in level.
The stop level must be above the pump inlet to prevent the pump
from taking in air.
‹‹‹‹‹‹‹‹‹‹‹‹‹
‹‹‹‹‹‹‹‹ ‹‹‹‹‹‹
‹‹‹‹‹‹‹‹‹‹‹
‹‹‹‹‹‹‹ ‹‹‹‹‹
‹‹‹‹‹‹‹‹‹‹‹
‹‹‹‹‹‹ ‹‹‹‹‹
‹‹‹‹‹‹‹‹‹‹‹
‹‹‹‹‹‹ ‹‹‹‹
‹‹‹‹‹‹‹‹‹
‹‹‹‹‹‹ ‹‹‹
‹‹‹‹‹‹‹‹‹
‹‹‹‹‹ ‹‹‹
‹‹‹‹‹‹‹‹‹
‹‹‹‹‹ ‹‹‹
‹‹‹‹‹‹‹
L
1
2
TM034446
Start and stop levels, UNILIFT KP-A
Pos. Description
1 Start
2 Stop
UNILIFT KP-A start and stop levels
Minimum cable length
(L):
70 mm
Maximum cable length
(L):
150 mm
Pump type Start
[mm]
Stop
[mm]
Start
[mm]
Stop
[mm]
KP 150 A
KP 250 A 290 140 335 100
KP 350 A 300 150 345 110
UNILIFT KP-AV
The level difference for pumps with a vertical level switch cannot be
adjusted. Start and stop levels appear from fig. Start and stop
levels, UNILIFT KP-AV.
1
2
TM011108
Start and stop levels, UNILIFT KP-AV
Pos. Description
1 Start
2 Stop
Pump type
Vertical level switch
Start
[mm]
Stop
[mm]
UNILIFT KP 150 AV
UNILIFT KP 250 AV 180 100
UNILIFT KP 350 AV 190 110
8
English (GB)

3.3 Electrical connection
DANGER
Electric shock
Death or serious personal injury
‐Switch off the power supply before you start any work
on the product.
‐Make sure that the power supply cannot be switched
on accidentally.
DANGER
Electric shock
Death or serious personal injury
‐The installation must be fitted with a residual-current
device (RCD) with a tripping current less than 30 mA.
DANGER
Electric shock
Death or serious personal injury
‐Make sure that the power supply plug delivered with
the product is in compliance with local regulations.
‐The plug must have the same protective earth (PE)
connection system as the power outlet. If not, use a
suitable adapter if allowed by local regulations.
DANGER
Electric shock
Death or serious personal injury
‐Power cables without a plug must be connected to a
supply disconnecting device incorporated in the fixed
wiring according to the local wiring rules.
All electrical connections must be carried out by a quali-
fied person in accordance with local regulations.
Depending on local regulations, a pump with minimum 10
m of mains cable must be used if the pump is used as a
portable pump for different applications.
Make sure that the product is suitable for the supply voltage and
frequency available at the installation site. Voltage and frequency
are marked on the pump nameplate.
The pump must be connected to an external main switch. If the
pump is not installed close to the switch, the switch must be of a
lockable type.
Three-phase pumps must be connected to an external motor-
protective circuit breaker. The rated current of the motor-protective
circuit breaker must correspond to the electrical data marked on the
pump nameplate.
If a level switch is connected to a three-phase pump, the motor-
protective circuit breaker must be magnetically operated.
Single-phase and three-phase pumps incorporate thermal overload
protection and require no additional motor protection. Except for
UNILIFT KP 350, 3 x 200 V, 50 Hz, which must be connected to a
motor-protective circuit breaker.
If the motor is overloaded, it will stop automatically. When
the motor has cooled to normal temperature, it restarts au-
tomatically.
Three-phase pumps with a float switch, UNILIFT KP-A, must be
connected to the mains supply by means of a contactor. See the
figure below.
1
2 3 4
TM002011
Wiring diagram
Pos. Description
1 Yellow and green
2 Grey
3 Brown
4 Black
M
NL-
1
1~
23
TM1040337
Wiring diagram
Pos. Description
1 Yellow and green
2 Blue
3 Brown
9
English (GB)

3.3.1 Checking the direction of rotation
Three-phase pumps only
Check the direction of rotation every time the pump is connected to
a new installation.
1. Place the pump on a plane surface.
2. Start and stop the pump.
3. Observe the pump when started. If the pump gives a slight

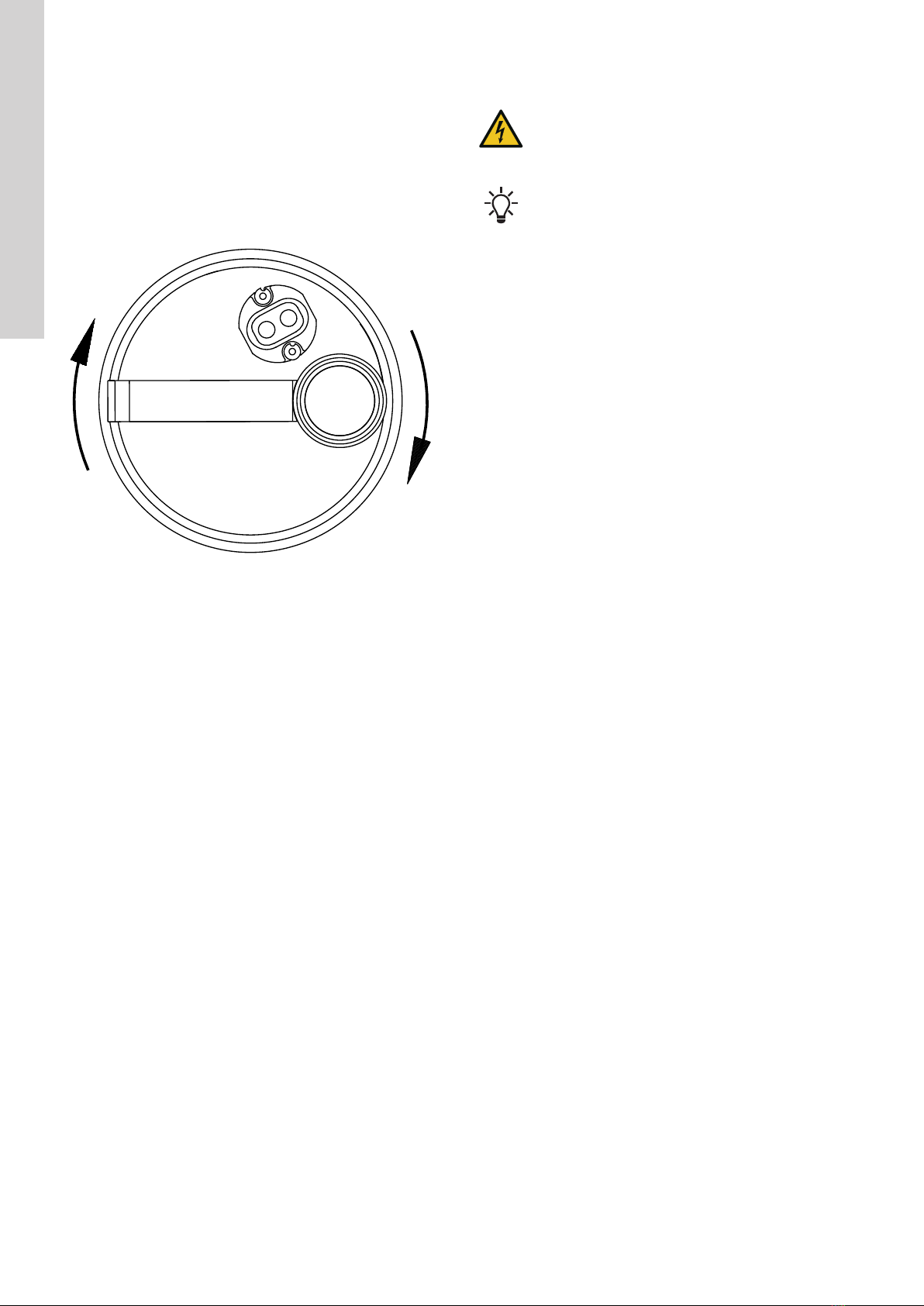

clockwise jerk, see fig. Direction of rotation, the direction of
rotation of the motor is correct. If the jerk is counter-clockwise,
interchange two phases in the mains connection.
TM034482
Direction of rotation
If the pump is connected to a pipe system, check the direction of
rotation in this way:
1. Start the pump and check the quantity of water.
2. Stop the pump and interchange two phases in the mains
connection.
3. Start the pump and check the quantity of water.
4. Stop the pump.
5. Compare the results taken under points 1 and 3. The largest
quantity of water indicates the correct direction of rotation.
4. Starting up the product
DANGER
Electric shock
Death or serious personal injury
‐Do not use the pump in swimming pools, garden
ponds or similar places if there are people in the water.
The pump may be run briefly to check the direction of ro-
tation without being submerged in the pumped liquid.
1. Before starting the pump, check that the inlet strainer is fitted to
the pump and submerged in the pumped liquid.
2. Open the isolating valve, if fitted, and check the level switch
setting.
4.1 UNILIFT KP-A
The pump will start and stop automatically, depending on the liquid
level and the cable length of the float switch.
Forced operation
If the pump is used for draining liquid below the stop level of the
float switch, the float switch can be held in a higher position by
fastening it to the outlet pipe.
During forced operation, check the liquid level regularly to avoid dry
running.
4.2 UNILIFT KP-AV
The pump starts and stops automatically depending on the liquid
level.
4.3 UNILIFT KP-M
The pump is started and stopped via an external switch.
To avoid dry running, check the liquid level regularly during
operation, for instance via external level monitoring.
To enable the pump to self-prime during startup, the liquid level
must be at least 30 mm.
The pump can pump down to a liquid level of 15 mm.
10
English (GB)

5. Product introduction
Grundfos UNILIFT KP pumps are available in these versions:
• UNILIFT KP-A Automatic start/stop operation via a float
switch.
• UNILIFT KP-AV Automatic start/stop operation via a vertical
level switch.
• UNILIFT KP-M Manual operation via an external on/off
switch, without a level switch.
AB
TM011107
Pumps with a level switch
Pos. Description
A UNILIFT KP-A with float switch
B UNILIFT KP-AV with vertical level switch
1 Outlet, Rp 1 1/4
2 Handle
3 Cable clamp
4 Inlet strainer
5 Pump sleeve
6 Float switch
7 Vertical level switch
5.1 Intended use
The Grundfos UNILIFT KP pump is a single-stage submersible
pump designed for pumping grey wastewater, that is, wastewater
from showers, sinks, washing machines, etc.
The pump is capable of pumping water which contains a limited
quantity of solids, however not stones and similar materials, without
being blocked or damaged.
The pump is available for automatic as well as manual operation
and can be installed in a permanent installation or used as a
portable pump.
Applications
KP 150 KP 250 KP 350
Drainage of flooded cellars or buildings ● ● ●
Groundwater lowering ● ● ●
Pumping of water from drain water collecting
tanks and pits ● ● ●
Pumping of water from surface water tanks and
pits with inflow from roof gutters, shafts, tunnels,
etc.
● ● ●
Emptying and filling of swimming pools, ponds,
tanks, etc. ● ● ●
Pumping of wastewater from washing ma-
chines, baths, sinks, etc. from cellars up to sew-
er level
● ● ●
Incorrect application of the pump, for example resulting in blocking
of the pump, and wear are not covered by the warranty.
5.2 Pumped liquids
The pump is capable of pumping wastewater containing a limited
quantity of spherical particles. Pumping of spherical particles
exceeding the maximum particle size for the pump may block or
damage the pump.
Maximum particle size: See section 8.1 Storage temperature.
The pump is not suitable for these liquids:
• sewage
• liquids containing long fibres
• flammable liquids (oil, petrol, etc.)
• aggressive liquids
• liquids containing solids exceeding the pump's recommended
maximum particle size.
The pump contains approx. 70 ml of non-toxic motor liquid
which will be mixed with the pumped liquid in case of a
leak.
11
English (GB)

5.3 Identification
5.3.1 Nameplate
9660811 1
IP 68
Tmax XXX ° C
TYPE XXXXXXX XXXXX -XX - X
Serial no. XXXX -XX-XXXX A
XXXXXXXX M o t o r XXXXXXX X
Qmax XXXX m 3/h
Hmax XXX m
In s. c l. F
Made in HUNGARY
XXX A
DK-8850 Bjerringbro, Denmark
XX m
P1 XXX W
4
67
8
10
11
12
16
17
18
19
13
XXXXXXX X
EN 12050- 2
15
5
20
U XXXXXXX V ± XX % XX Hz
9
14
2
3
1
TM074470
Nameplate example
Pos. Description
1 ID number for Safety Instruction
2 ID number for EN standards
3 Approvals
4 Product type
5 Product number
6 Supply voltage [V]
7 Voltage tolerance [%]
8 Power input [W]
9 Frequency [Hz]
10 Insulation class
11 Max. current [A]
12 Enclosure class
13 Factory code and production code (year and week)
14 Model
15 Nameplate layout
16 Max. liquid temperature [°C]
17 Max. flow rate [m3/h]
18 Max. head [m]
19 Max. installation depth [m]
20 Motor number
5.3.2 Type key
Example: UNILIFT KP 150 A 1
Code Explanation Designation
UNILIFT KP Type range
150
250
350
Rated motor output,
P2 [W]
AAutomatic operation
with float switch
Level controlAV
Automatic operation
with vertical level
switch
MManual operation
without level switch
1 Single-phase Motor
3 Three-phase
12
English (GB)

6. Servicing the product
DANGER
Electric shock
Death or serious personal injury
‐Switch off the power supply before starting any work
on the product.
‐Make sure that the power supply cannot be accidental-
ly switched on.
CAUTION
Sharp element
Minor or moderate personal injury
‐Wear personal protective equipment.
CAUTION
Toxic material
Minor or moderate personal injury
‐The product will be classified as contaminated if it has
been used for a liquid which is injurious to health or
toxic.
‐Wear personal protective equipment.
CAUTION
Biological hazard
Minor or moderate personal injury
‐Flush the product thoroughly with clean water and
rinse the parts in water after dismantling.
‐Wear personal protective equipment.
If the power cable or the level switch is damaged, it must
be replaced by a service workshop authorised by Grund-
fos.
Service must be carried out by specially trained persons.
Furthermore, all rules and regulations covering safety,
health and environment must be observed.
1. If the pump has been used for liquids other than clean water,
flush the pump thoroughly with clean water before carrying out
maintenance and service.
2. Rinse the pump parts in water after dismantling.
6.1 Maintaining the product
Under normal operating conditions, the pump is maintenance-free.
If the pump has been used for liquids other than clean water, flush it
through with clean water immediately after use.
If the pump delivers too little water due to deposits or the like,
dismantle and clean the pump.
The pump contains approx. 70 ml of non-toxic motor liquid
which will be mixed with the pumped liquid in case of a
leak.
6.2 Cleaning the pump
The inlet strainer and the pump housing can be disman-
tled by untrained persons.
Further dismantling of the pump must be carried out by a
specially trained person.
If the pump delivers too little water due to deposits or the like,
dismantle and clean the pump.
6.2.1 Cleaning the inlet strainer
1. Disconnect the power supply.
2. Drain the pump.

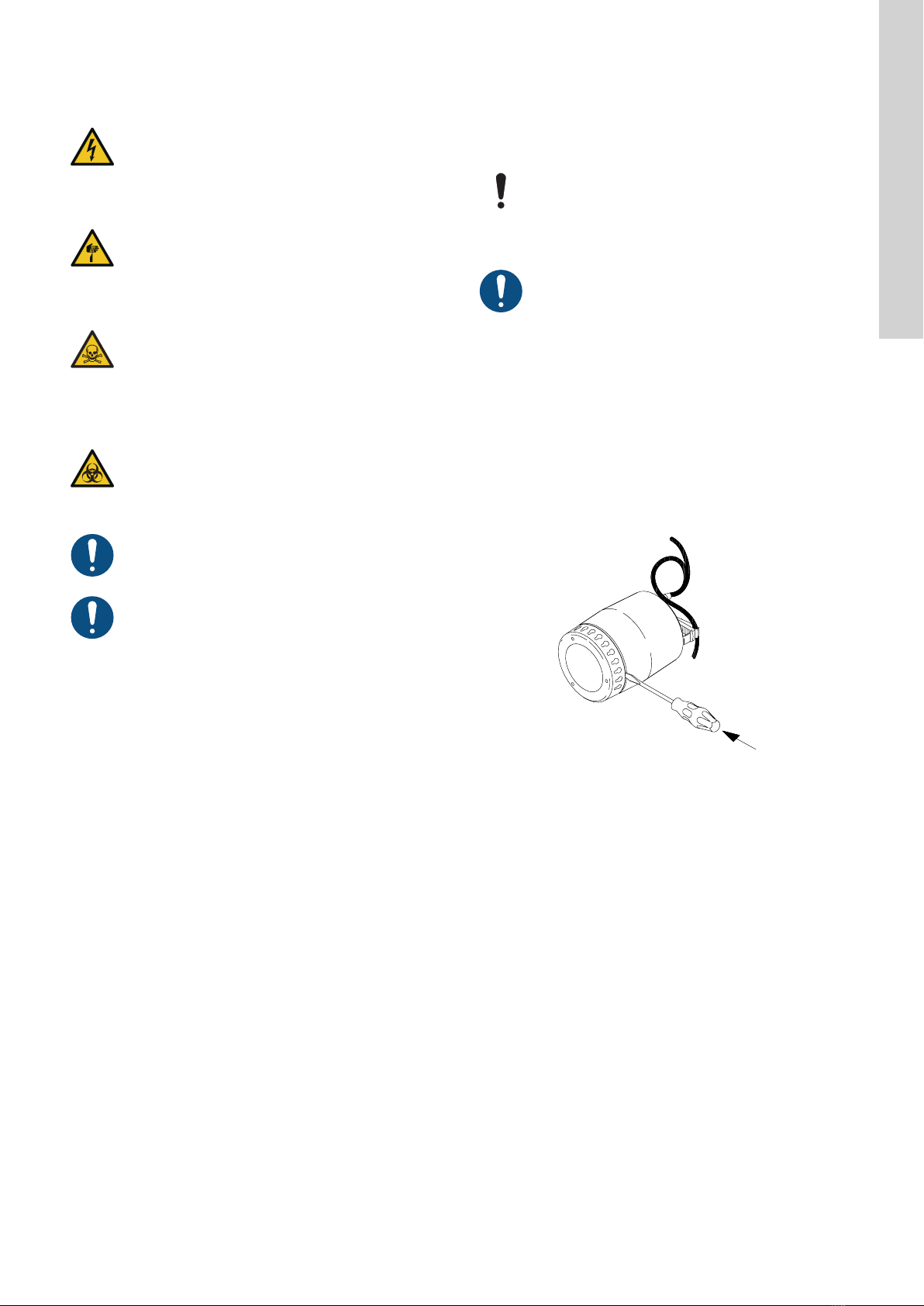

3. Carefully loosen the inlet strainer by inserting a screwdriver in
the recess between the pump sleeve and the strainer. Use the
screwdriver to push apart the outer casing and the strainer.
Repeat the procedure, working around the pump, until the
strainer is free and can be removed. See fig. How to remove the
inlet strainer.
TM031167
How to remove the inlet strainer
4. Remove the inlet strainer, clean and refit it.
13
English (GB)

6.2.2 Cleaning the inside of the pump
Before and during the mounting of the pump housing,
check that the sealing part is fitted correctly. See fig. Serv-
ice parts.
Moisten the sealing part with water to ease the fitting.
If the pump still delivers too little water, dismantle the pump further.
1. Disconnect the power supply.
2. Remove the inlet strainer. See point 3 above.
3. Turn the pump housing 90° counterclockwise using a
screwdriver. See the arrow on the pump housing.
4. Pull off the pump housing. See the figure below.
1
TM031168
How to remove the pump housing
Pos. Description
1 Pump housing
5. Clean and flush the inside of the pump to remove possible
impurities between the motor and pump sleeve.
6. Clean the impeller. See the figure below.
TM031169
How to flush the impeller
7. Check that the impeller can rotate freely. If not, remove the
impeller as described below.
8. Unscrew the nut, cross width 13 mm, from the motor shaft. Use
a screwdriver to prevent the impeller from rotating. See the
figure below.
TM031170
How to remove the impeller
9. Clean the impeller and the area around the shaft.
10. Check the impeller, the pump housing and the sealing part. If
necessary, replace defective parts.
Further dismantling of the pump must be carried out by a
specially trained person.
Related information
6.3 Service kits
6.2.3 Assembling the pump
Assemble the pump in the reverse order of dismantling.
14
English (GB)

6.3 Service kits
The impeller, the inlet strainer and the non-return valve are
replaceable.
Order numbers for the ordering of service kits and contents of
service kits appear from the tables below and fig. Service parts.
Pump type Part number
Impeller kit
UNILIFT KP 150
UNILIFT KP 250
UNILIFT KP 350
015778
015779
015787
Inlet strainer
UNILIFT KP 150
UNILIFT KP 250 96548064
UNILIFT KP 350 96548066
Non-return valve
UNILIFT KP 150
UNILIFT KP 250
UNILIFT KP 350
15220
Service kits Pos. Designation Quantity
Impeller kit
A Impeller 1
B Nut 1
C Sealing part 1
Inlet strainer D Inlet strainer 1
D
C
B
A
TM031166

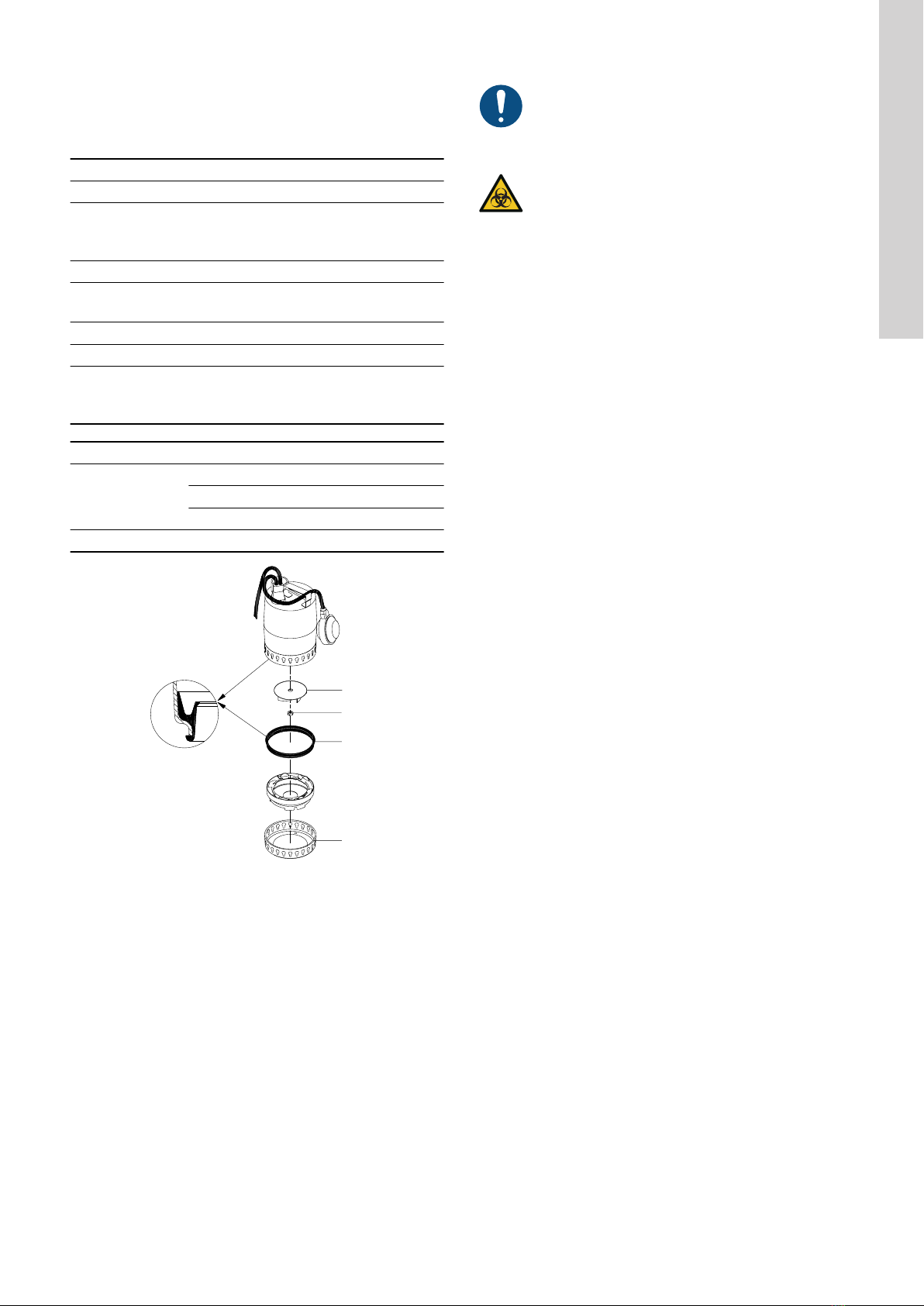

Service parts
If other pump components are damaged or defective, contact the
pump supplier.
6.4 Contaminated pumps
If the power cable or the level switch is damaged, it must
be replaced by a service workshop authorised by Grund-
fos.
CAUTION
Biological hazard
Minor or moderate personal injury
‐Flush the product thoroughly with clean water and
rinse the parts in water after dismantling.
‐Wear personal protective equipment.
The product will be classified as contaminated if it has been used
for a liquid which is injurious to health or toxic.
If you request Grundfos to service the product, contact Grundfos
with details about the pumped liquid before returning the product for
service. Otherwise, Grundfos can refuse to accept the product for
service.
Any application for service must include details about the pumped
liquid.
Clean the product in the best possible way before you return it.
Costs of returning the product are to be paid by the customer.
15
English (GB)

7. Fault finding the product
DANGER
Electric shock
Death or serious personal injury
‐Before starting any work on the product, make sure
that the power supply has been switched off and that it
cannot be accidentally switched on.
CAUTION
Sharp element
Minor or moderate personal injury
‐Wear personal protective equipment.
CAUTION
Toxic material
Minor or moderate personal injury
‐The product will be classified as contaminated if it has
been used for a liquid which is injurious to health or
toxic.
‐Wear personal protective equipment.
Fault Cause Remedy
The motor does not start.
No power supply. Connect the power supply.
The pump was stopped by the level switch. UNILIFT KP-A: Adjust or replace the level switch.
The fuses have blown. Replace the fuses.
The motor protection or thermal relay has tripped. Wait until the motor protection trips in again or re-
set the relay.
The impeller is blocked by impurities. Clean the impeller.
Short circuit in the cable or motor. Replace the defective part.
The motor protection or thermal re-
lay trips after a short time of opera-
tion.
The liquid temperature is too high.
The pump starts automatically after sufficient cool-
ing. If not, use another pump type. Contact your lo-
cal Grundfos supplier or sales support.
The impeller is blocked or partly blocked by impuri-
ties. Clean the pump.
Phase failure. Call an electrician.
Too low voltage. Call an electrician.
The overload setting of the motor-protective circuit
breaker is too low. Adjust the setting.
The pump runs constantly or gives
too little water.
The pump is partly blocked by impurities. Clean the pump.
The outlet pipe or valve is partly blocked by impuri-
ties. Clean the outlet pipe or valve.
The impeller is not properly fixed to the shaft. Tighten the impeller.
Incorrect direction of rotation. See section Check-
ing the direction of rotation. Reverse the direction of rotation.
Incorrect setting of the level switch. Adjust the level switch.
The pump is too small for the application. Replace the pump.
The impeller is worn. Replace the impeller.
The pump runs but gives no water.
The pump is blocked by impurities. Clean the pump.
The outlet pipe or valve is blocked by impurities. Clean the outlet pipe or valve.
The impeller is not properly fixed to the shaft. Tighten the impeller.
There is air in the pump. Vent the pump and the outlet pipe.
The liquid level is too low. The pump inlet is not
completely submerged in the pumped liquid.
Submerge the pump in the liquid or adjust the level
switch.
Pumps with float switch: The float switch does not
move freely.
Adjust the float switch. See section Start and stop
levels.
Related information
3.2.5 Start and stop levels
3.3.1 Checking the direction of rotation
16
English (GB)

8. Technical data
8.1 Storage temperature
-20 - +70 °C.
8.2 Operating conditions
Installation depth Maximum 10 m below liquid level
pH value 4-10
Density Maximum 1100 kg/m3
Viscosity Maximum 1 mm2/s
Maximum particle size Max. spherical diameter:
10 mm
Technical data See the pump nameplate.
Make sure that there are minimum 3 m free cable above
the liquid level. This limits the maximum installation depth
to 7 m for pumps with 10 m cable and to 2 m for pumps
with 5 m cable.
8.2.1 Liquid temperature
Minimum 0 °C.
The maximum liquid temperature depends on the rated voltage of
the pump. See the table below.
Voltage
Maximum liquid tem-
perature
[°C]
1 x 100 V, 50 Hz
1 x 110 V, 50 Hz
1 x 100-110 V, 50 Hz 1)
1 x 220-230 V, 50 Hz
1 x 220-240 V, 50 Hz, 50 Hz 1)
1 x 230-240 V, 50 Hz
35
40
40
50
40
50
1 x 100 V, 60 Hz
1 x 115 V, 60 Hz
1 x 220 V, 60 Hz
35
502)
40
3 x 200 V, 50 Hz
3 x 380-400 V, 50 Hz 1)
3 x 380-415 V, 50 Hz
35
50
50
3 x 200 V, 60 Hz 35
At intervals of at least 30 minutes, the pumps may, however, run at
maximum 70 °C for periods not exceeding 2 minutes.
1) Voltage variant for UNILIFT KP 350.
2) KP 350: 45.
8.3 Sound pressure level
The sound pressure level of the pump is lower than the limiting
values stated in the EC Council Directive 2006/42/EC relating to
machinery.
9. Disposing of the product
This product or parts of it must be disposed of in an environmentally
sound way.
1. Use the public or private waste collection service.
2. If this is not possible, contact the nearest Grundfos company or
service workshop.
The crossed-out wheelie bin symbol on a product
means that it must be disposed of separately from
household waste. When a product marked with this
symbol reaches its end of life, take it to a collection
point designated by the local waste disposal authori-
ties. The separate collection and recycling of such
products will help protect the environment and human
health.
See also end-of-life information at www.grundfos.com/product-
recycling.
17
English (GB)

Appendix A
A.1. Dimensions
A.1.1. UNILIFT KP-AV UNILIFT KP-M
30
148
256 (266*)
220 (230*)
140
215
Rp 1 1/4
TM011523
148
30
140
Rp 1 1/4
220 (230*)
226 (236*)
TM001642
* UNILIFT KP 350
382
Appendix A

A.2. GRUNDFOS WARRANTY - AUSTRALIA AND NEW ZEALAND
Free from manufacturing defects
1. The relevant Grundfos entity, as specified below, warrants that from the date of purchase and for the period related to the specific
product purchased (Warranty Period) the products purchased (Equipment) by you (the Customer) in the relevant country will, with
normal use, be free from manufacturing defects and material defects (Warranty), subject to the terms set out herein.
FOR EQUIPMENT PURCHASED IN AUSTRALIA: : This Warranty is provided by Grundfos Pumps Pty Ltd (ACN 007920765) of 515
South Road Regency Park SA 5010 PH: [phone] Email: [email protected] (Grundfos Australia)
FOR EQUIPMENT PURCHASED IN NEW ZEALAND: This Warranty is provided by Grundfos Pumps NZ Limited (Company number
108507) of 17 Beatrice Tinsley Crescent, Albany, North Shore City, 0632 PH: [phone] Email: [email protected]
(Grundfos NZ).
(In this Warranty references to "Grundfos" shall mean either Grundfos Australia or Grundfos NZ, as applicable)
2. The relevant Warranty Period varies between different items of Equipment and can be confirmed by your Equipment supplier or by
contacting the relevant Grundfos entity at the above address.
Non Transferable
3. This Warranty is non- transferable and only applies to the first person to purchase and to use or install the Equipment.
Conditions
4. The Customer must provide the original proof or purchase for the Equipment.
5. This Warranty only applies where a defect has arisen, wholly or substantially, as a result of faulty manufacture, parts or workmanship
and where such defect appears during the Warranty Period.
6. The Warranty does not apply in the following circumstances:
a. where the damage arises due to normal wear and tear;
b. where the Equipment was not installed in accordance with Grundfos' installation and operating instructions for the Equipment;
c. where the Customer failed to specify a site condition or specification at the time of ordering the Equipment, which subsequent-
ly affects the operation of the Equipment;
d. where damage results because the Equipment is installed to operate at a duty point other than what has been specified at the
time of ordering;
e. the Equipment has been stored by the Customer prior to installation and operation and such period of storage is not in accord-
ance with the requirements set out in the Equipment's operation and installation manual;
f. where the Customer attempts to repair the Equipment;
g. where damage is caused by abuse, mishandling or failure to follow operating instructions;
h. where the servicing or modification of the Equipment was conducted by someone other than by Grundfos or its authorised
service agent; or
i. where damage occurs during shipping or other transit.
7 This Warranty does not cover:
a. repair of Equipment polluted by poisonous media or other liquids injurious to the environment;
b. the cost of disassembly, assembly and installation; or
c. the Equipment where protection devices have been installed but have not been used or monitored.
383
Appendix A

Excluded products
8. This Warranty does not apply to Equipment that Grundfos imports that is not manufactured by Grundfos (or one of its related compa-
nies). However:
a. FOR EQUIPMENT PURCHASED IN AUSTRALIA: The Customer is entitled to the benefit of the warranty provided by the
overseas manufacturer of that Equipment (if any), and any rights the Customer may have under the Australian Consumer Law
(ACL).
b. FOR EQUIPMENT PURCHASED IN NEW ZEALAND: The Customer is entitled to the benefit of the warranty provided by the
overseas manufacturer of that Equipment (if any), and any rights the Customer may have under the Consumer Guarantees
Act 1993 (CGA) that have not otherwise been lawfully excluded.
Warranty is additional to statutory consumer rights
9. This Warranty is in addition to and does not exclude, restrict or modify in any way any non-excludable statutory rights the Customer
may have, including any rights the Customer may have under the ACL or the CGA (as applicable).
10. FOR EQUIPMENT PURCHASED IN AUSTRALIA: Grundfos Australia provides the following advice to all Customers who are con-
sumers as defined by the ACL and to whom the ACL applies, as required by the ACL:
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or
refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the
goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
11. FOR EQUIPMENT PURCHASED IN NEW ZEALAND: Grundfos NZ provides the following advice to all Customers who are consum-
ers as defined by the CGA and to whom the CGA applies:
Unless the provisions of the CGA have been lawfully excluded, the guarantees and the remedies for failure to comply with those guar-
antees as set out in the CGA shall apply. Such remedies include the repair or replacement of the Equipment or, where the failure is of
a substantial character, the rejection of the Equipment or compensation for the reduction in value of the Equipment. In addition to
these remedies, you are also entitled to compensation for reasonably foreseeable loss or damage resulting from the failure.
How to claim
12. Instructions for making a Warranty claim:
a. The Customer must inform Grundfos as soon as any Warranty claim arises. The Customer must contact Grundfos:
i. in writing, by notice sent to:
FOR EQUIPMENT PURCHASED IN AUSTRALIA:
Grundfos Pumps Pty Ltd
515 South Road, Regency Park, South Australia, 5010;
FOR EQUIPMENT PURCHASED IN NEW ZEALAND:
Grundfos Pumps New Zealand Ltd
17 Beatrice Tinsley Crescent, Albany, North Shore City, 0632; or
ii. by returning the item to the place of purchase and requesting them to complete the required documentation (a Goods
Return Advise or a Field Warranty Claim Form) and send it to Grundfos.
b. The Customer must provide Grundfos with a description of the problem encountered with the Equipment, the Equipment mod-
el number, serial number, and date of purchase. Most importantly, the Customer must provide Grundfos the original proof of
purchase. The Customer will bear the cost of notifying Grundfos of the Warranty claim.
384
Appendix A
