ENGLISH 17
SAFETY AND SET-UP____________________________
7 This device is designed for the playback of audio signals. Any other use
is expressly prohibited.
7 Protect the device from moisture (water drops or splashes). Do not
place any vessels such as vases on the device. These may be knocked
over and spill fluid on the electrical components, thus presenting a
safety risk.
7 Do not place any naked flames such as candles on the device.
7 Make sure the device is adequately ventilated. Do not cover the ventila-
tion slots with newspapers, table cloths, curtains, etc.
7 When deciding where to place the device, please note that furniture
surfaces are covered by various types of varnish and plastic, most of
which contain chemical additives. These additives can corrode the
device supports, leaving residues on the furniture surfaces which can be
difficult or impossible to remove.
7 Do not use any cleaning agent, as this may damage the casing. Clean
the device with a clean, moist leather cloth.
7 Note, prolonged listening at loud volumes with the earphones can
damage your hearing.
7 Do not expose the back-up battery to extreme heat, caused for example
by direct sunlight, heaters or fire.
7 Never open the device casing. No warranty claims are accepted for
damage caused by incorrect handling.
7 The type plate is located on the bottom of the device.

18 ENGLISH
OVERVIEW ______________________________________

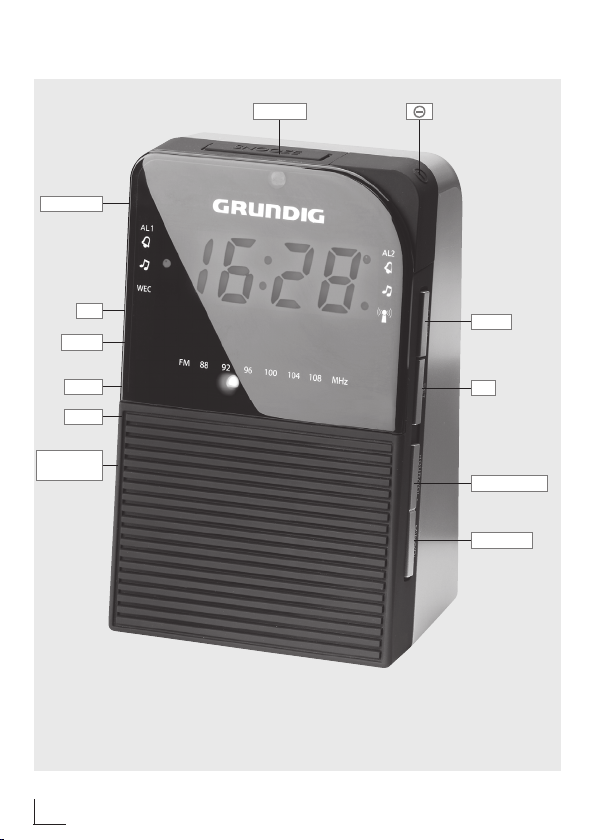

See the figure on page 2.
Controls on the top
SNOOZE Interrupts the alarm function; displays the day of the
week; displays the remaining snooze time.
Switches the radio on and off; ends the alarm for this
day; deactivates the sleep timer.
Controls on the left side
AL 1 For alarm time 1: selects the alarm with a signal tone or
radio; activates and deactivates the alarm.
AL 2 For alarm time 2: selects the alarm with a signal tone or
radio; activates and deactivates the alarm.
TIME ZONE/ WEC Activates the alarm interruption for the weekend;
activates the time zone setting.
- TUNING + Dial for tuning to radio stations.
U Headphone jack, to connect headphones or earphones
with a jack plug (ø 3.5 mm).
RESET Resets the device.
Controls on the right side
SLEEP Activates the sleep time setting.
SET Activates the time setting;
activates the day of the week setting;
displays the alarm times.
HOUR/VOL+ To set the hour;
press briefly: changes the hours forward in steps;
press longer: changes the hours forward continuously.
In radio mode: increases the volume.

ENGLISH 19
OVERVIEW ______________________________________
MIN/VOL- To set the minutes;
press briefly: changes the minutes forward in steps;
press longer: changes the minutes forward continuously.
In radio mode: decreases the volume.
Controls on the back
ÜPower cord.
Wire antenna for FM reception.
DCF 77- Antenna.
Controls on the bottom
BACKUP Battery compartment for the 9V back-up battery.
Displays
•Automatically adjusts the brightness of the display to the
brightness of the surroundings.
AL 1 Displays that the alarm is activated with a signal tone or
radio for alarm time 1.
WEC Displays that the alarm interruption for the weekend is
activated.
10:00 Displays the time, the alarm times, the sleep timer time.
AL 2 Displays that the alarm is activated with a signal tone or
radio for alarm time 2.
Displays that the DCF time synchronisation is active;
flashes during the synchronisation.
•Mode indicator for the radio.
FM 88 108 MHz Frequency display.

20 ENGLISH
POWER SUPPLY ________________________________
Mains operation
Check that the mains voltage on the type plate (on the bottom of the device)
corresponds to your local mains supply. If this is not the case, contact your
specialist dealer.
1Plug the mains cable into the socket (230V~, 50/60 Hz).
Caution:
The device is connected to the mains with the power plug. To fully
disconnect the device from the mains, pull out the plug.
The mains plug is used to disconnect the device. It shall remain readily
operable and should not be obstructed during intended use.
Inserting the back-up battery
During mains operation, the back-up battery ensures that stored settings
are not lost in the case of a power failure or when the device is briefly
disconnected from the mains.
1Open the battery compartment lid by pressing on the arrow and pushing
down the lid.
2When inserting the battery (9 V, 6LF 22), observe the polarity marked on
the base of the battery compartment.
Note:
Remove the back-up battery when it is flat or when you know that the
device will not be used for a long period of time.
Batteries, including those which do not contain heavy metal, should not
be disposed of with household waste. Always dispose of used batteries
in accordance with local environmental regulations.

ENGLISH 21
SETTINGS________________________________________
Radio-controlled clock
With your built-in radio-controlled clock, you are in possession of an
absolutely precise alarm and meeting clock which is automatically set to
the radio-transmitted time signals of the most precise clock in the world:
the atomic clock of the Physikalisch-Technischen Bundesanstalt (PTB – the
German national metrology institute). This clock is so precise that in 1 million
years a deviation of 1 second can be expected.
Your radio-controlled alarm clock receives “time telegrams” via long wave
77.5 kHz from the time signal transmitter DCF 77, located in Mainflingen
(24 km south-east of Frankfurt/Main). This time signal transmitter has a range
of 1500 km.
The device receives the station DCF 77 free of charge via the connected DCF
77 antenna everywhere, where a sufficient long wave reception is possible
with a good portable radio. In many cases, your radio clock receives the
time telegrams from a considerable distance from the station; however, the
local reception quality plays a significant role here.
The installed microprocessor of the radio-controlled clock processes the
received time telegrams and controls the quartz clock fully automatically.
After the clock is first activated, the DCF synchronisation is performed
immediately and subsequently every day at 2 am and 3 am. Depending
on the point of reception, synchronisation can take several minutes. During
this process, the » « display flashes, if the signal is strong enough, in a 1
second rhythm of the received time telegram. After synchronization has taken
place, the » « display begins to light up. If the » « display disappear,
the synchronization was not successful.
In addition to the advantages of the time precision and the exact, to-the-second
wake-up and alarm signal, your radio clock sets itself fully automatically from
winter time to summer time.

22 ENGLISH
Setting time and day of the week
If the device has been switched on for the first time – if no time signal has
been received – »0:00« appears in the display as a sign that the time has
to be set. The same applies after a power failure or if the device has been
disconnected from the mains supply and no back-up battery has been
inserted.
1Press »SET«.
– Display: »:« flashes.
2Press »HOUR/VOL+« briefly to set the hours step-by-step or hold down
to run through the hours continuously.
3Press »MIN/VOL-« briefly to set the minutes step-by-step or hold down
to run through the minutes continuously.
Notes:
When the minute display changes from »59« to »00«, this does not affect
the hour display.
The device saves the set time automatically after 10 seconds.
4To set the day of the week, press »TIME ZONE/WEC« and »SET« at the
same time.
– Display: for example, the day of the week »1« = Monday.
5Set the day of the week (»1« = Monday, »2«, »3«, »4«, »5«, »6« or »7« =
Sunday) using »HOUR/VOL+« or »MIN/VOL-«.
– The device saves the selected day of the week automatically after 5
seconds.
Note:
Display the selected day of the week and press »SNOOZE« longer than
3 seconds and hold it pressed.
SETTINGS________________________________________

ENGLISH 23
Setting the time zone
If you use the device outside of the Central European Time Zone (CET), you
can correct the time by +/– 2 hours.
1Press »TIME ZONE/WEC« keep pressed for approximately 2 seconds.
– Display: »00«, »:« flashes.
2Set the time zone with »HOUR/VOL+« or »MIN/VOL-« (Scale: »00«,
»01«, »02«, »-02« and »-01«).
– Display: e.g. »02«.
Note:
If a back-up battery has not been inserted, the time is automatically reset
by DCF time synchronisation as long as the DCF reception is strong
enough. Alarm time and time zone synchronisation are each reset to
the values »00:00« and »00«. Please note that, in this case, you may be
wakened at the wrong time.
Setting alarm time 1
1Press »SET« twice.
– Display: the last alarm time set, »AL 1 « and »:« flash alternately.
2Press »HOUR/VOL+« briefly to set the hours step-by-step or hold down
to run through the hours continuously.
3Press »MIN/VOL-« briefly to set the minutes step-by-step or hold down
to run through the minutes continuously.
– The device saves the set alarm time automatically after 10 seconds.
– Display: »AL 1 « lights up, this means the alarm is activated.
– The device wakes you up at the set time with the alarm signal of your
choice.
SETTINGS________________________________________

24 ENGLISH
Setting alarm time 2
1Press »SET« three times.
– Display: the last alarm time set, »AL 2 « and »:« flash alternately.
2Press »HOUR/VOL+« briefly to set the hours step-by-step or hold down
to run through the hours continuously.
3Press »MIN/VOL-« briefly to set the minutes step-by-step or hold down
to run through the minutes continuously.
– The device saves the set alarm time automatically after 10 seconds.
– Display: »AL 2 « lights up, this means the alarm is activated.
– The device wakes you up at the set time with the alarm signal of your
choice.
SETTINGS________________________________________

ENGLISH 25
OPERATION_____________________________________
Switching on and off
1Press » « to switch on the device from standby mode.
2Press » « to switch the device to standby mode.
Radio mode
For the best possible FM (VHF) reception, it is sufficient to align the wire
antenna accordingly.
Tuning to radio stations
1Select the radio station using the »-TUNING+« dial.
Adjusting the volume
1Adjust the volume by pressing »HOUR/VOL+« or »MIN/VOL-«.
Alarm mode
The device has a dynamic alarm tone that starts at a low volume and reaches
its maximum volume within 30 to 45 seconds.
Viewing the alarm time
1Press »SET« twice (for alarm time 1) or three times (for alarm time 2).
– Display: the last set alarm time 1 or 2, the LED »AL 1 « or
»AL 2 « flashes.
Note:
If no other button is pressed, the device switches back automatically
to the current time after 10 seconds.
Alarm with radio station
1Press » « to switch on the device.
2Select the radio station using the »-TUNING+« dial.
3Adjust the alarm volume by pressing »HOUR/VOL+« or »MIN/VOL-«.

26 ENGLISH
4Set the radio station you want as an alarm signal (» «), and press »AL1«
or »AL 2« twice.
– Display: the corresponding LED »AL 1 « or »AL 2 « lights up.
5Press » « to switch off the device.
– The device wakes you up at the set time with the radio station (alarm
duration is 59 minutes).
Alarm with signal tone
1Press » « to switch off the device.
2Set the signal tone alarm signal (» «), and press »AL 1« or »AL 2« once.
– The device wakes you up at the set time with the signal tone (alarm
duration is 59 minutes).
Interrupting the alarm
1Press »SNOOZE« while the alarm is sounding.
– The alarm signal (radio station or signal tone) stops.
– The alarm goes on again at 9 minute intervals (alarm duration is 59
minutes).
Cancelling the alarm for the day
1Press » « while the alarm is sounding.
– The alarm signal (radio station or signal tone) stops, the alarm remains
at the set time for the next day.
Deactivating and activating alarm standby
1To deactivate the alarm, press »AL 1« or »AL 2« repeatedly until the LED
»AL 1 « or »AL 2 « disappears.
– The set alarm time is saved.
2To activate the alarm with »AL 1« or »AL 2« switch to » « or » «.
– Display: the LED »AL 1 « or »AL 2 « lights up.
OPERATION_____________________________________

ENGLISH 27
Activating the alarm interruption for the weekend
1Press »TIME ZONE/WEC«.
– Display: the LED »WEC« lights up.
– The alarm function is deactivated at the weekend.
2Press »TIME ZONE/WEC« again.
– Display: the LED »WEC« disappears.
– The alarm function is activated at the weekend.
Timer mode
The device has a sleep timer, which switches it off in radio mode at a preset
time. The switch-off time can be set to between 1 minute and 1 hour and 59
minutes and then stays saved.
Activating the sleep timer
1Press »SLEEP« to switch on the device.
– Display: the switch-off time »0:59« (for 59 minutes).
– You will hear the selected radio station.
2Set the selected switch-off time with »HOUR/VOL+« or »MIN/VOL-«
step-by-step (press briefly) or continuously (hold down).
– After the selected switch-off time has elapsed, the device switches off
automatically.
3Display the remaining switch-off time with »SLEEP«.
Deactivating the sleep timer
1To deactivate the sleep timer early, press » «.
– The device switches to stand-by.
Note:
The device realize the switch-off time and offer this time for the next using
like a preselection.
OPERATION_____________________________________

28 ENGLISH
INFORMATION _________________________________
Environmental note
This product has been manufactured with high quality parts and materials
which can be reused and are suitable for recycling.
Therefore, do not dispose the product and battery with nor-
mal domestic waste at the end of its service life. Take it to a
collection point for the recycling of electrical and electronic
equipment.
This is indicated by this symbol on the product, in the operating
manual and on the packaging.
Please consult your local authorities to learn the nearest collection point.
Help protect the environment by recycling used products.

ENGLISH 29
Technical data
This device is noise-suppressed according to the applicable
EU directives.
This product fulfils the European directives 2004/108/EC,
2006/95/EC, 2005/32/EC.
This device conforms to the safety regulation VDE 0860 and therefore the
international safety regulation IEC 65.
Power supply: 230 V, 50/60 Hz
Max. power consumption: < 3,5 W (operation), < 2 W (standby)
Output: 400 mW
Frequency bands: FM 87.5 ...108.0 MHz
Dimensions: W x H x L 95 x 150 x 75 mm
Weight : 565 g
Technical and design modifications reserved.
INFORMATION _________________________________

www.grundig.com
25/10 72011 410 3500
