DVD PLAYER GDV 120________________________________________
Special features of your DVD player
Your DVD player gives you perfect digital video playback in studio quality.
It also provides superb cinema-quality audio playback - in stereo or with digital
multi-channel sound – depending on the type of DVD and the HiFI system or
stereo television.
Other features of DVD video include the choice of audio channel and language,
choice of subtitle language, and various camera recording angles.
In addition to DVDs, your DVD player can also play all other video
and audio CDs. DVDs and CDs can be identified by one of the logos shown to
the left.
Your DVD player is designed for DVDs with region code 2.

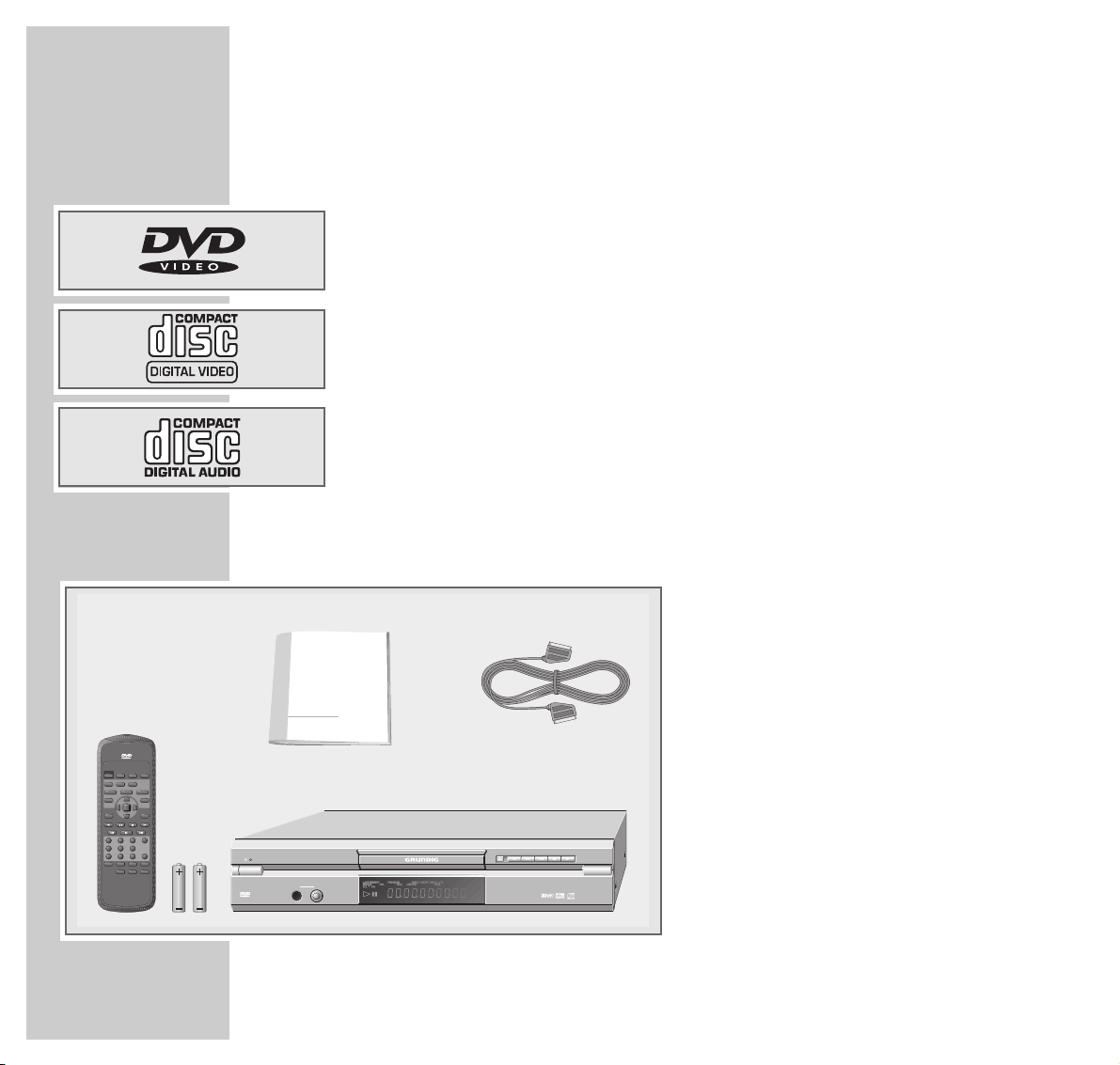

Packing contents
1DVD player GDV 120
22 Batteries, 1.5 V, type AA
3Remote control
4Operating manual
5EURO-AV cable
1
DVD-PLAYER
8/ON PICTURE
MODE LAST MEMO
OSD SUBTITLE AUDIO
TITLE MENU ZOOM
SET UP RETURN
VIRTUAL
SURROUND
OK
o
o
o o
I I
PROGRAM SEARCH MODE ANGLE ANGLE REPLAY
BOOKMARK REPEAT A-B REPEAT
1
VIDEO
TELE PILOT 82V
1 2 3 C
456
7890
CLEAR
DVD VIDEO CD CD PLAYER
LEVEL
MIN.
PHONE
MAX.
0N/
GDV 120
VIRTUAL
SURROUND
1
2
3
4 5

ENGLISH
5
SET-UP AND SAFETY______________________________________________
°C2h
°C
DVD VIDEOCD CD PLAYER
LEVEL
MIN.
PHONE
MAX.
0N/
GDV120
VIRTUAL
SURROUND
GDV120
VIRTUAL
SURROUND
To ensure that this high-quality, easy-to-use DVD player provides you with
lasting satisfaction and enjoyment, please observe the following instructions
when setting it up.
This DVD player set is designed to play audio and video signals from compact
discs (DVD and CD).
Any other use is expressly prohibited.
When the DVD player is subject to extreme variations in temperature,
for example during transportation from a cold area to a warm one, connect it to
the mains supply and let it stand for at least two hours before you insert a DVD.
The DVD player is designed for use in dry rooms. If, however, you use it in the
open, it is essential to ensure that it is protected from moisture (rain, lawn
sprinklers).
Place the combined DVD player on an even and solid surface. Do not place any
objects (newspapers, for example) on the DVD player or any cloth or similar
articles underneath it.
Do not place the DVD player close to heating units or in direct sunlight, as this
will impair cooling.
Do not insert foreign objects in the air vents or the disc compartment.
Never open the DVD player casing under any circumstances. The manufacturer
accepts no liability for damage resulting from improper handling.
Do not place any containers filled with liquids (vases or similar) on the DVD
player. The container could fall over and the liquid may present an electrical
safety risk.
DVD VIDEO CD CD PLAYER
LEVEL
MIN.
PHONE
MAX.
0N/
GDV 120
VIRTUAL
SURROUND
Krieg im Balkan
DVD VIDEO CD CD PLAYER
LEVEL
MIN.
PHONE
MAX.
0N/
GDV 120
VIRTUAL
SURROUND
DVD VIDEO CD CD PLAYER
LEVEL
MIN.
PHONE
MAX.
0N/
GDV 120
VIRTUAL
SURROUND

6
SET-UP AND SAFETY_________________________________________________________________
Thunderstorms present a danger to all electrical devices. Even if the DVD player
is switched off, it can be damaged by a lightning strike to the mains. Always
remove the mains plug during an electrical storm.
If the DVD player is unable to scan DVDs or CDs perfectly, use a standard
commercial cleaning CD to clean the laser optics. Other cleaning methods may
damage the laser optics.
Always keep the disc compartment closed to prevent dust from collecting on the
laser optics.
This DVD player successfully fuses technology and environmental friendliness
into a coherent package. Only ecologically compatible, high quality materials
have been used. The batteries included are free of mercury and cadmium.
The range of materials used has been deliberately reduced to a minimum and
all the larger plastic parts have been labelled to enable effective recycling at the
end of the system´s service life. This DVD player is easily disassembled to make
servicing easier and optimise recycling.
GDV 120
G.MI 50-00
220-240V~ 50/60Hz
titane
PAG-Code
Madefor Grundig in P.R. China
2
CT
AVEURO CONNECTOR
RGBOUT
AVIS:RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR.
CAUTION
RISKOF ELECTRIC SHOCK
DONOT OPEN

ENGLISH
7
OVERVIEW________________________________________________________________________
9Switches the DVD player to and from Stand-by mode.
Switching the DVD player off does not completely separate it from
the mains.
•Stand-by display.
PHONE Headphone socket for connecting a stereo headphone set with a
jack plug (ø 6.3 mm).
LEVEL Adjusts the volume for headphones connected to the »PHONE«
socket.
Compartment for DVDs/CDs.
Display.
•Indicator light for Virtual Surround function.
.Opens and closes the disc compartment.
!Freeze-frame for DVDs and video CDs; pause for audio CDs.
3Selects the previous title or section during playback.
4Selects the next title or section during playback.
7Interrupts the current, switches to ”STOP”.
8Starts playback.
B
A

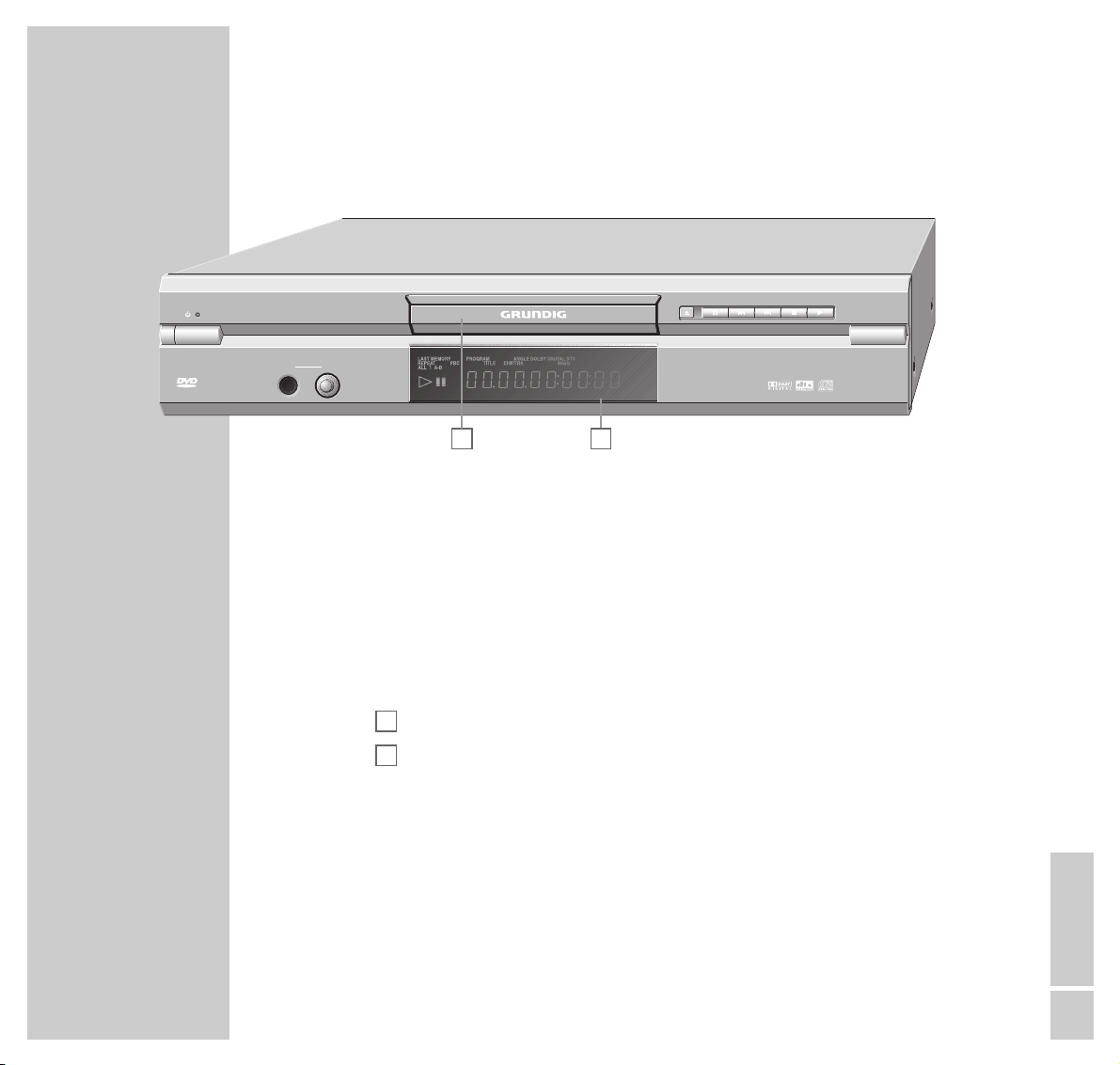

The front of the DVD player
DVD VIDEO CD CD PLAYER
LEVEL
MIN.
PHONE
MAX.
0N /
GDV 120
VIRTUAL
SURROUND
A B

8
OVERVIEW__________________________________________________________________________________
The DVD player display
»LAST MEMORY« Function is activated.
»PBC« Video CD in use.
»PROGRAM« Function is activated.
»
0I TITLE« Number of the title of a DVD.
»
0I CHP/TRK« Number of the chapter (CHP) on a DVD or CD, or number of the
title (TRK) on a DVD, or number of the track on a CD.
»ANGLE« Angle function is activated.
»DOLBY DIGITAL« The DVD provides a Dolby Digital audio signal.
»DTS« The DVD provides a DTS audio signal.
»96 kHz« Audio clock frequency 96 kHz.
»
00:00:00 « Total or elapsed playing time in hours, minutes and seconds.
»REPEAT ALL 1 A-B«One of the Repeat functions is activated.
»!«Pause/Freeze-Frame.
»EE« Playback.
LAST MEMORY
REPEAT
ALL 1 A-B PBC PROGRAM
TITLE ANGLE DOLBY DIGITAL DTS CHP/TRK 96kHz

ENGLISH
9
OVERVIEW__________________________________________________________________________________
OPT. DIGITAL OUT Audio output socket (optical) for PCM/MPEG2/AC3/DTS
signals, for connecting to a digital HiFi system.
R AUDIO OUT L Audio output sockets (right/left channel) for connecting a HiFi
system.
VIDEO OUT Video output socket for connecting a television with a video
socket.
TV SYSTEM For specifying the TV system (PAL or NTSC).
PAL NTSC
S-VIDEO OUT Video output socket for connecting a television
with S-VHS socket.
VIDEO OUT SELECT Switches the video output signal to the »A/V EURO
S RGB CONNECTOR« or »S-VIDEO OUT« socket.

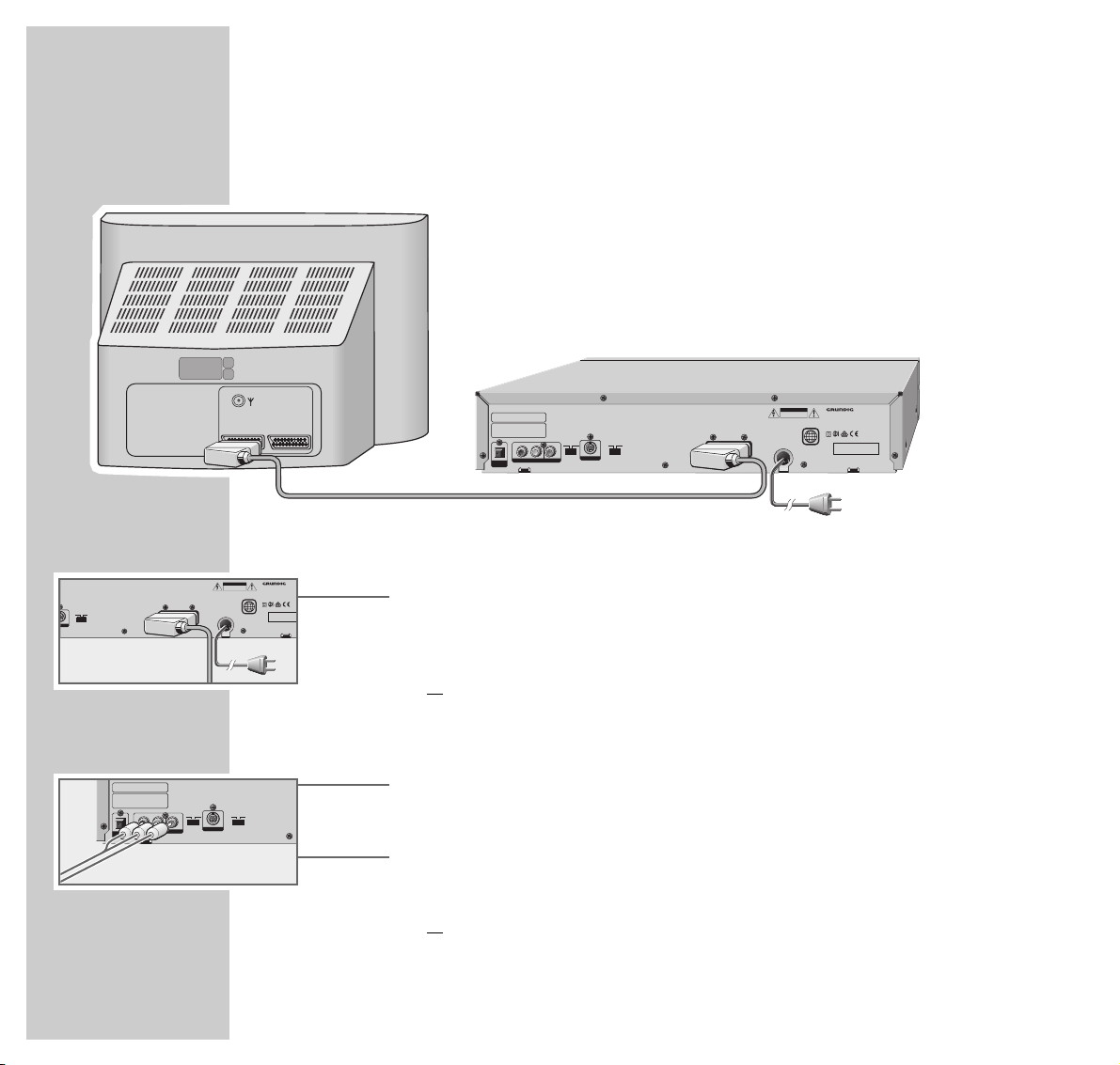

A/V EURO Video/audio output socket for connecting a tele-
CONNECTOR vision.
ÜÜMains cable.
Caution:
Do not connect any devices while the DVD player is switched on.
Never touch the inside of the sockets and plugs of the connecting cables.
An electrostatic discharge can damage the DVD player.
GDV 120
G.MI 50-00
220-240V~ 50/60Hz
titane
PAG-Code
Made for Grundig in P.R. China
2
VIDEO OUTAUDIO OUT
R L
OPT.
DIGITAL
OUT
Apparatus Claims of U.S.Patent Nos. 4,631,603,
4,577,216 4,819,098, and 4,907,093 licensed for
limited viewing uses only.
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks
of Dolby Laboratories.
Confidential Unpublished Works.
©1992-1997 Dolby Laboratories, Inc. All rights reserved.
S-VIDEO OUT
TV SYSTEM
PAL NTSC VIDEO OUT SELECT
RGBS
AV EURO CONNECTOR
RGB OUT
AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN

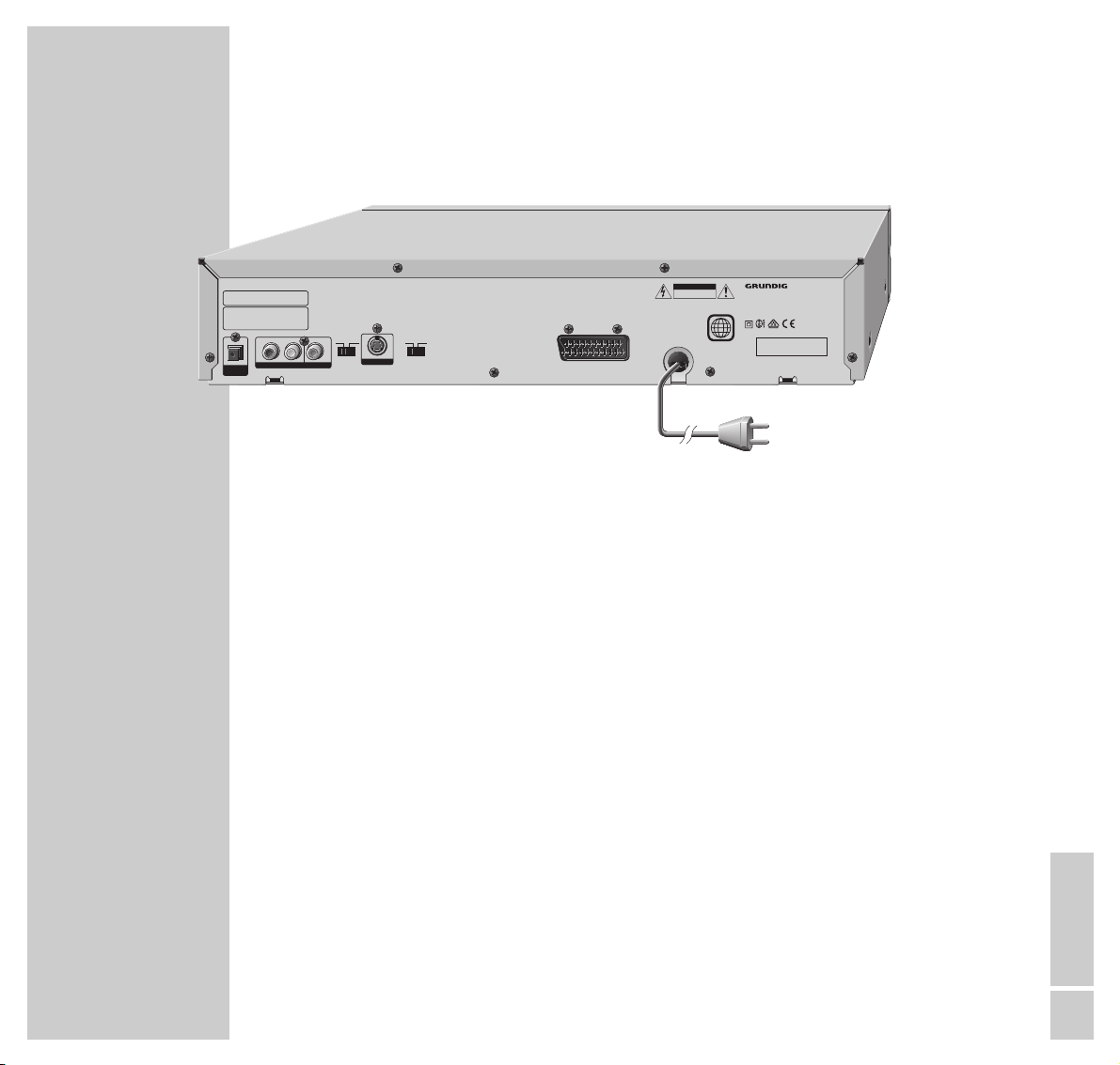

The back of the DVD player

10

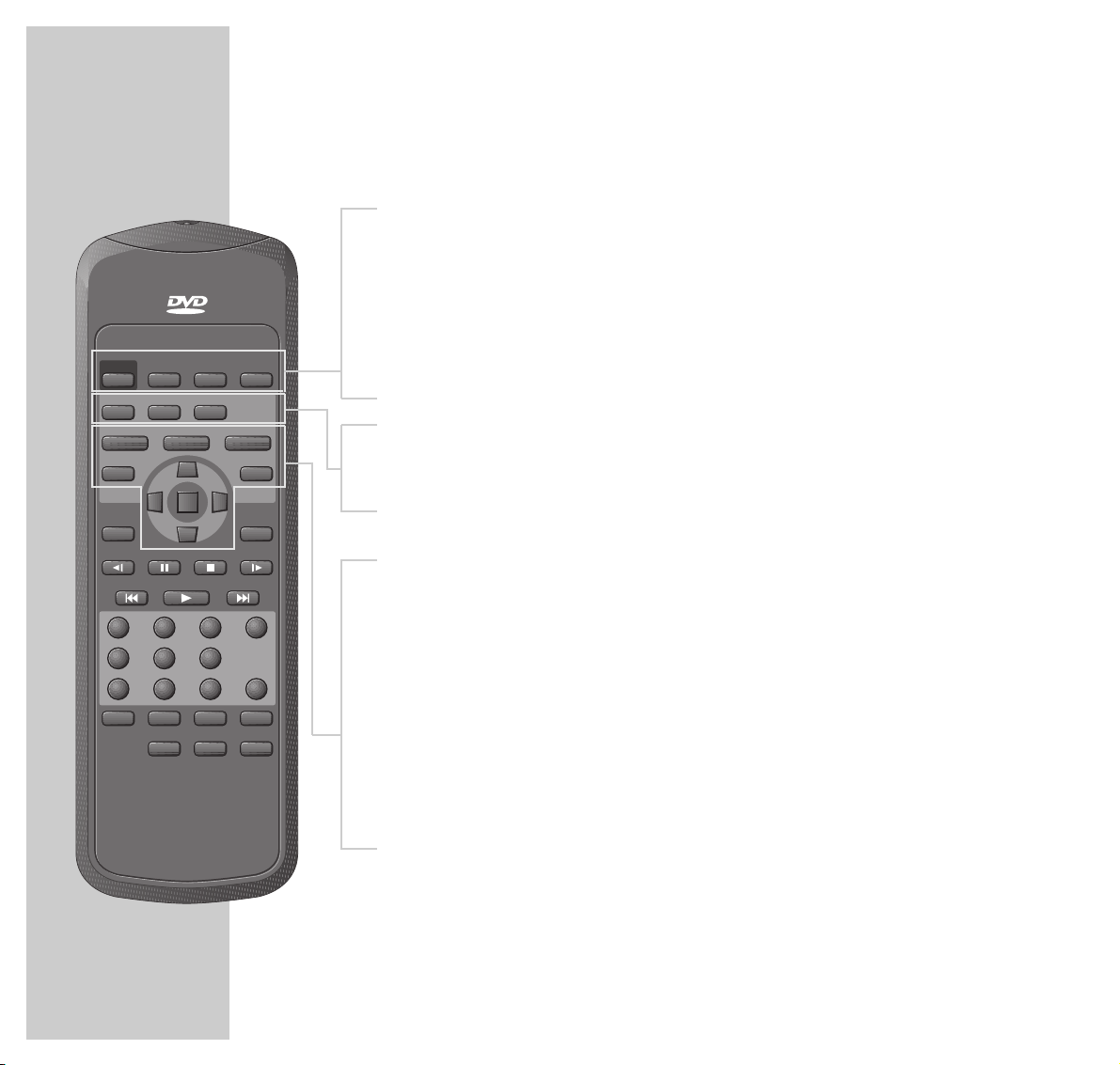

The remote control
9 ON Switches the DVD player to and from Stand-by mode.
The display on the DVD player is red in Stand-by mode.
PICTURE MODE For adjusting the picture during playback.
LAST MEMO Selects a position on the DVD during playback.
VIRTUAL Activates the Virtual Surround function.
SURROUND
OSD Displays/conceals the menus on the television screen.
SUBTITLE Displays subtitles during DVD playback.
AUDIO Switches between original and dubbed langage during
DVD playback.
TITLE Calls up the main menu during DVD/video CD playback
(depends on DVD).
MENU Calls up the DVD/video CD title menu during playback.
ZOOM Enlarges freeze-frames.
SETUP Calls up the DVD player’s »main« menu
(in STOP mode).
asAS Select various functions in the menus.
OK Confirms menu entries.
RETURN Calls up the previous DVD menu.
OVERVIEW__________________________________________________________________________________
8/ON PICTURE
MODE LAST MEMO
OSD SUBTITLE AUDIO
TITLE MENU ZOOM
SET UP RETURN
VIRTUAL
SURROUND
OK
o
o
o o
I I
PROGRAM SEARCH MODE ANGLE ANGLE REPLAY
BOOKMARK REPEAT A-B REPEAT
1
VIDEO
TELE PILOT 82V
1 2 3 C
4 5 6
7 8 9 0
CLEAR
