GDV 200 DVD PLAYER________________________________________
Special features of your DVD player
Your DVD player gives you perfect digital video playback in studio quality.
It also provides superb cinema-quality audio playback – in stereo or with digital
multi-channel sound – depending on the type of DVD and the HiFi system or
stereo television.
Other features of DVD video include the choice of audio channel and language,
choice of subtitle language, and various camera recording angles.
In addition to DVDs, your DVD player can also play all other video and audio
CDs.
DVDs and CDs can be identified by one of the logos shown to the left.
Your DVD player is designed for DVDs with region code 2.

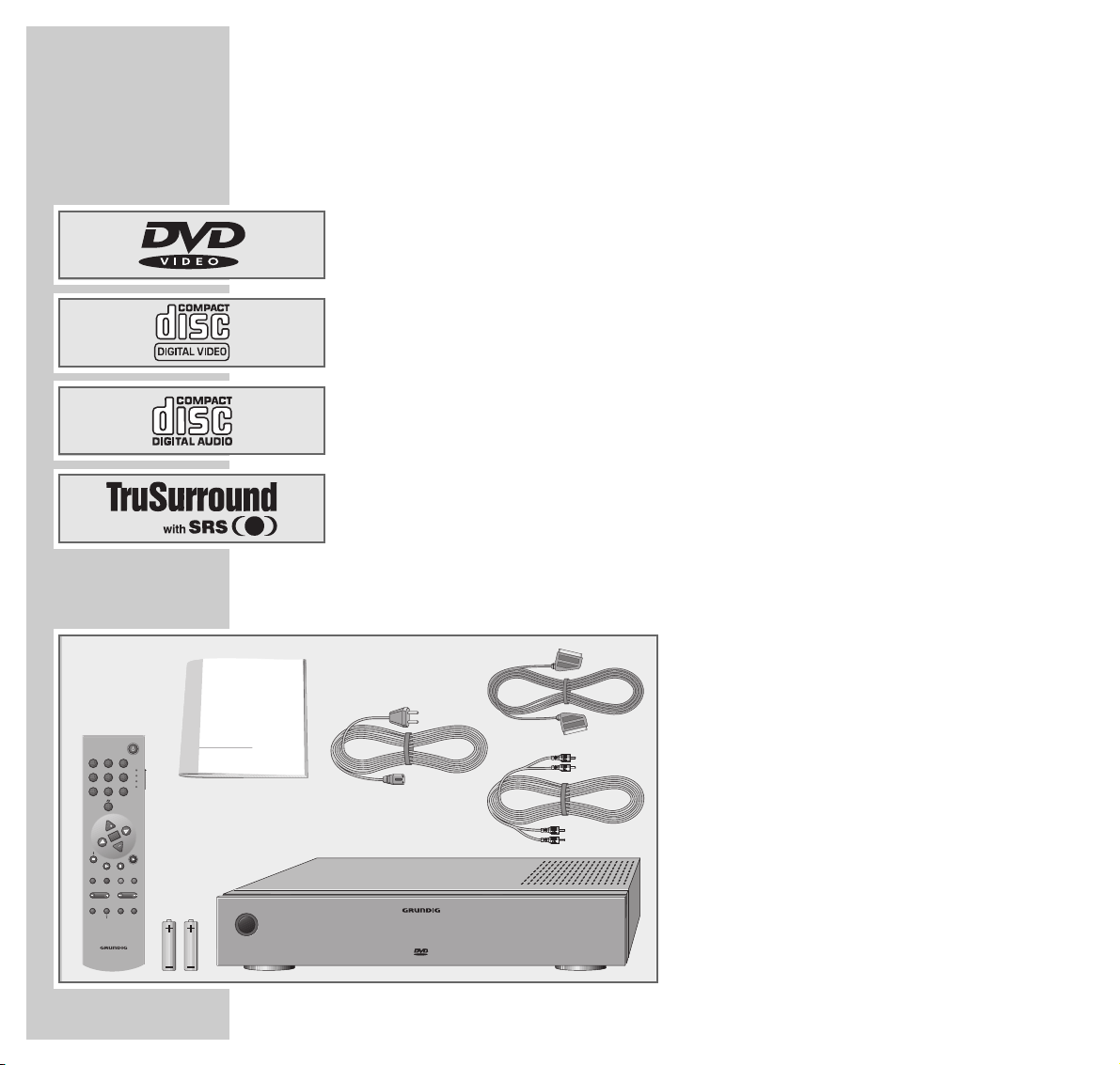

Packing contents
1
DVD-PLAYER
OK
P
P
DVD
TV
VCR
EXT
31 2
4 5 6
78 9
0
TV-GUIDE
VOL
REPEATANGLE
TELEPILOT 80V
RETURNSHUFFLE
SUBTITLEOSD AUDIOMENU
SHOWVIEWVCR-MENURECORD
FORMAT AUXPIP
TXT
MUTE
GDV 200
VIDEO
1GDV 200 DVD player
22 Batteries, 1.5 V, type AA
3TP 80 V remote control
4Operating manual
5Mains cable
6EURO-AV cable
7Cinch cable
1
3
2
7
5
4
6

ENGLISH
5
SET-UP AND SAFETY______________________________________________
°C
2h
°C
GDV 200
TRACKTITLE
SCAN
TIMETRACKTOTAL
CHAPTER
CD
SHUFFLE
CHAPTER
TITLE TRACK
V
REPEAT
ON/ OFF
OPEN/ CLOSE
DVD/ VIDEO CD / CD PLAYER
To ensure that this high-quality, easy-to-use DVD player provides you with
lasting satisfaction and enjoyment, please observe the following instructions
when setting it up:
This DVD player set is designed to play video and audio signals from compact
discs (DVD and CD).
Any other use is expressly prohibited.

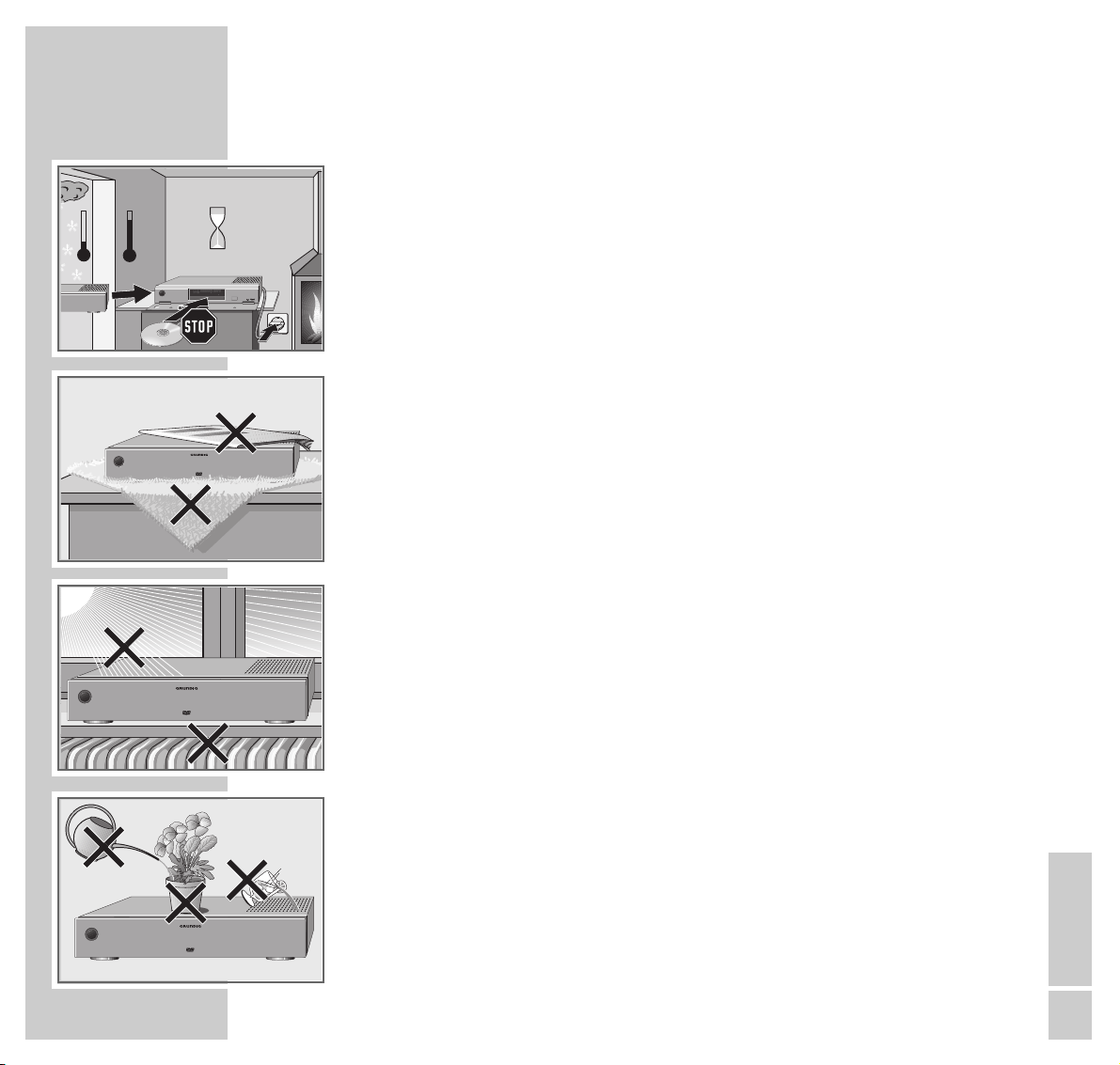

If the DVD player is subject to sudden changes in temperature, for example if it
is brought in from the cold to a warm room, connect it to the mains supply and
let it stand for at least two hours before you insert a DVD.
The DVD player is designed for use in dry rooms. If you do use it in the open,
please ensure that it is protected from moisture, such as rain or lawn sprinklers.
Place the DVD player on a hard, level surface. Do not place any objects such as
newspapers on the DVD player or any cloth or similar articles underneath it.
Do not place the DVD player close to heating units or in direct sunlight, as this
will impair cooling.
Do not insert foreign objects in the air vents or the disc compartment.
Never open the DVD player casing under any circumstances. The manufacturer
accepts no liability for damage resulting from improper handling.
Do not place any containers filled with liquids (such as vases) on the DVD
player. The container could fall over and the liquid may present an electrical
safety risk.
GDV 200
VIDEO
Krieg im Balkan
GDV 200
VIDEO
GDV 200
VIDEO

6
SET-UP AND SAFETY_________________________________________________________________

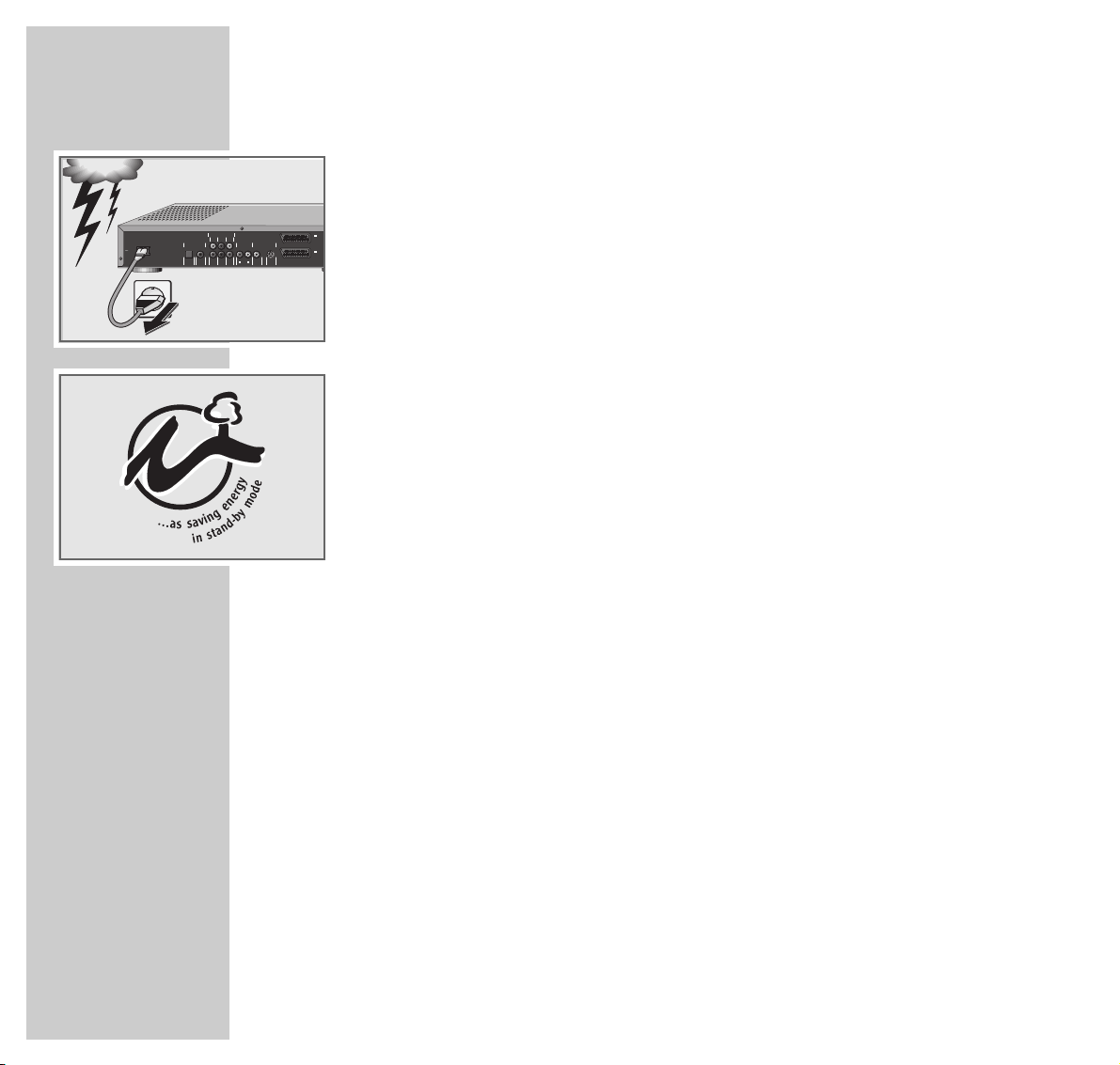

Thunderstorms present a danger to all electrical devices. Even if the DVD player
is switched off, it can be damaged by a lightning strike to the mains. Always
remove the mains plug during an electrical storm.
If the DVD player is unable to scan DVDs or CDs perfectly, use a standard
commercial cleaning CD to clean the laser optics. Other cleaning methods may
damage the laser optics.
Always keep the disc compartment closed to prevent dust from collecting on the
laser optics.
This DVD player is designed to the highest technological and environmental
standards. Only ecologically compatible, high quality materials have been
used. The batteries included are free of mercury and cadmium.
The range of materials used has been deliberately restricted and all the larger
plastic parts have been labelled. This means that the DVD player is easily
disassembled to make servicing easier and optimise recycling.
MAINS
(CVBS) (Y/C)
VIDEO OUT S-VIDEO OUT
DIG OUT
OPT OUT
RIGHT SUBW.
REAR
RIGHT
FRONT
L
R
AUDIO OUT
LEFT CENTER
MULTICHANNELAUDIO OUT
REAR
LEFT
FRONT
DIGITALAUDIO OUT
PCM/MPEG2/AC3/DTS
STEREO OUT VIDEO OUT
I
AUX/VCR
IN
II
TV OUT

ENGLISH
7
OVERVIEW________________________________________________________________________

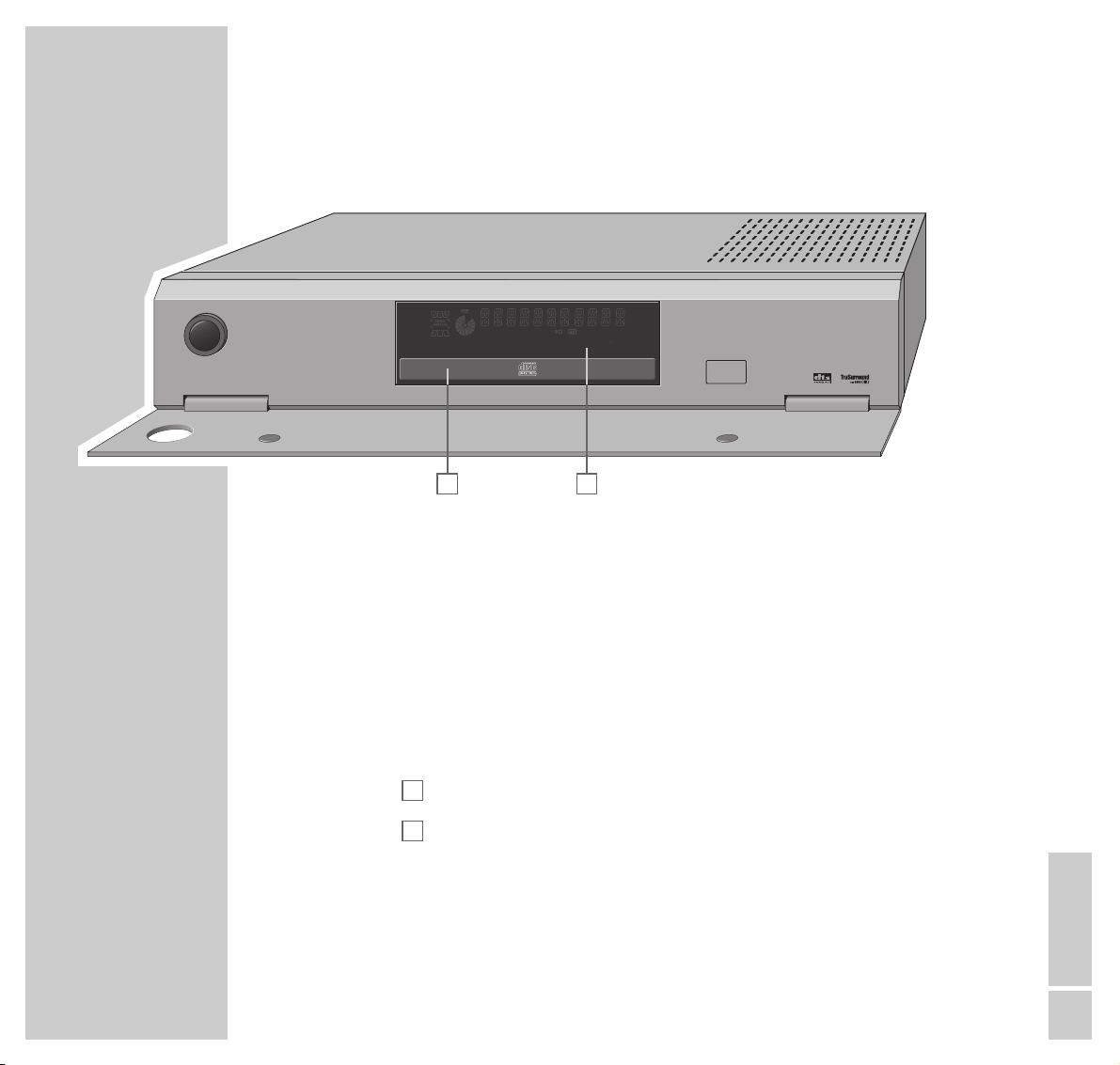

The controls of the DVD player are located behind a cover panel.
ON/OFF Switches the DVD player to and from Stand-by mode.
The LED around the button displays the current operating
status:
Red – Stand-by; Green – On.
Caution:
Switching the DVD player off does not completely separate
it from the mains.
Compartment for DVDs/CDs.
Display.
OPEN/CLOSE Opens and closes the disc compartment.
B
A
TRACKTITLE
SCAN
TIMETRACKTOTAL
CHAPTER
CD
SHUFFLE
CHAPTER
TITLE TRACK
V
REPEAT
ON / OFF
OPEN / CLOSE
DVD / VIDEO CD / CD PLAYER
The front of the DVD player
A B

8
OVERVIEW__________________________________________________________________________________

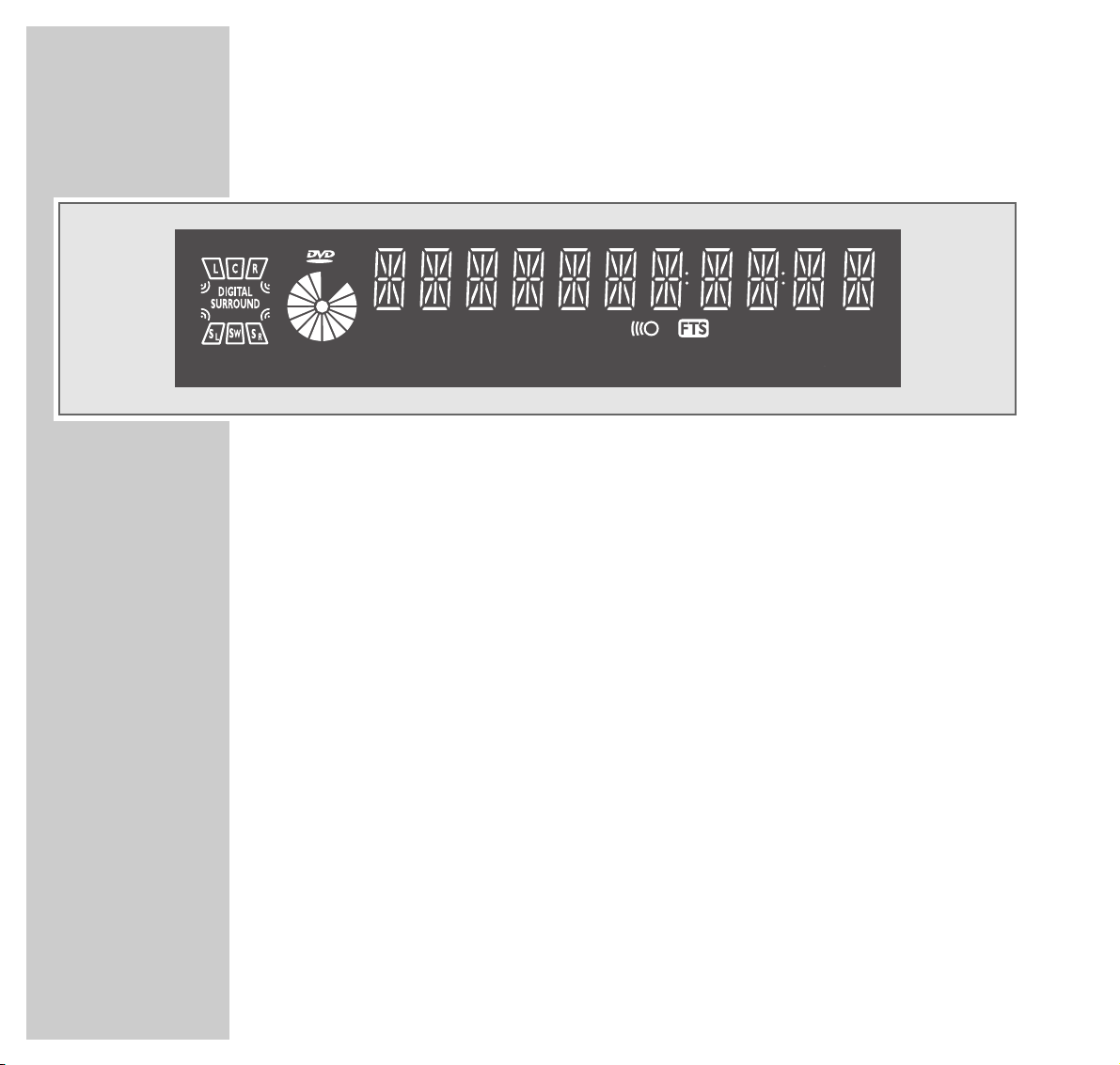

The display elements of the DVD player
»ƒª« Activates the left/right front loudspeaker.
»©« Activates the middle loudspeaker.
» « Activates test sound.
»DIGITAL SURROUND« Activates the Digital Surround function.
»ÏÓ«Activates the left/right surround loudspeaker.
»Ì« Activates the subwoofer.
»/« DVD inserted.
»,« Function display for playback, pause, search etc.
»(V)CD« Video or audio CD inserted.
» I TITLE« Number of the title on a DVD.
» 0I CHAPTER« Number of the chapter on a DVD or CD.
» I TRACK« Number of the scene on a DVD or the track on a music CD.
»(((1« Lights up when a remote control command is received.
»FTS« Function is activated.
»TOTAL TIME 0:00:00 « Total playing time in hours, minutes and seconds.
»TRACK TIME 0:00:00 «Length of the track in hours, minutes and seconds.
»REPEAT«Repeat function is activated.
»SHUFFLE« Shuffle function is activated.
»CHAPTER TITLE TRACK«One of the functions (chapter, title or track) is activated.
TRACKTITLE
TIMETRACKTOTAL
CHAPTER
CD
SHUFFLE
CHAPTER
TITLE TRACK
V
REPEAT
å ‚
Å Í

ENGLISH
9
OVERVIEW__________________________________________________________________________________

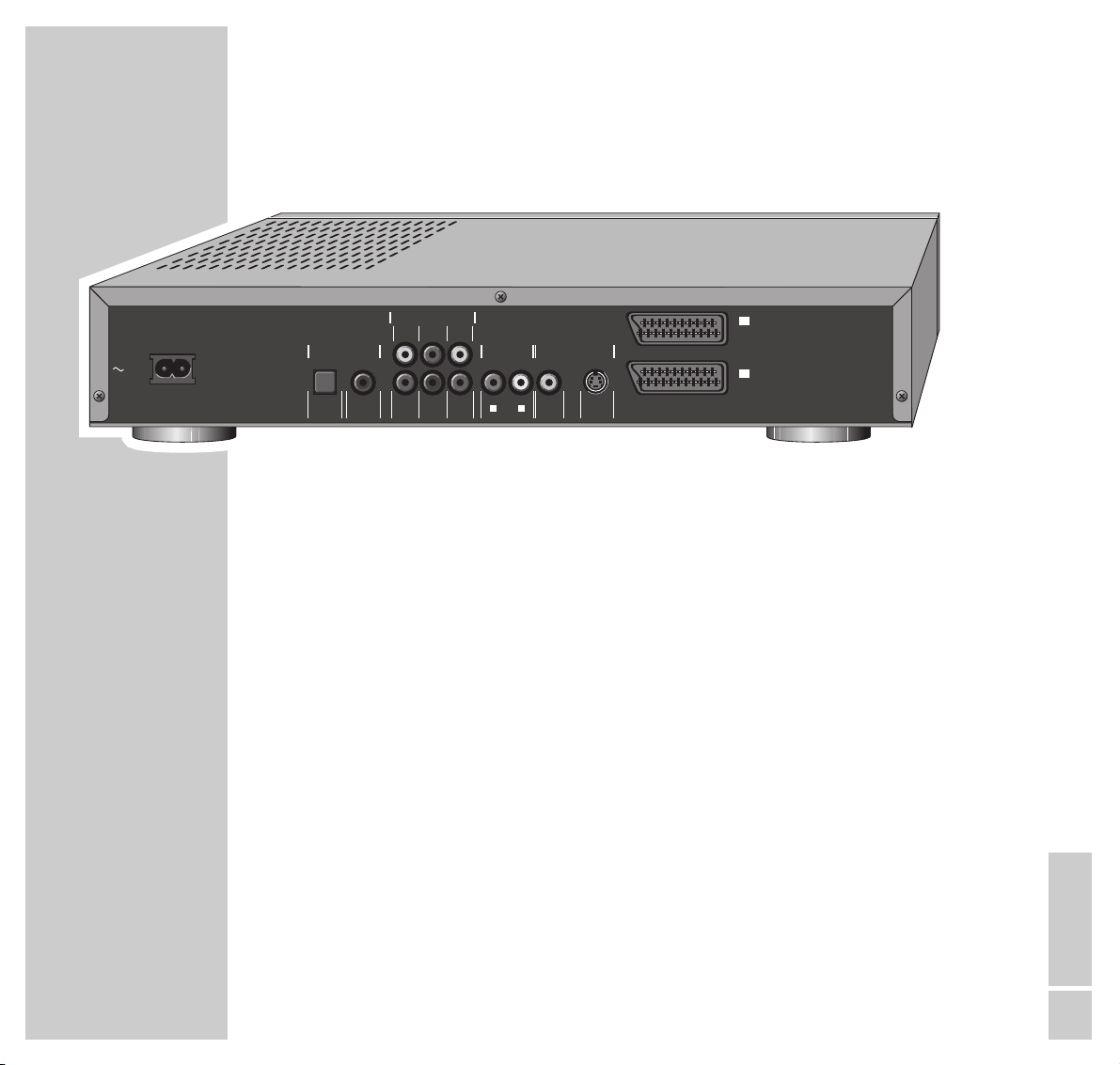

~MAINS Socket for mains cable
Digital audio connections (PCM/MPEG2/AC3/DTS)
OPT OUT Audio output socket (optical), for connecting to a
digital HiFi system using a standard OPTICAL
cable.
DIG OUT Audio output socket,
for connecting to a digital HiFi system.
Multichannel connections
(MULTICHANNEL AUDIO OUT)
LEFT REAR Audio output sockets for connecting to
RIGHT REAR Surround loudspeakers.
CENTER Audio output socket for connecting to a middle
loudspeaker.
SUBW. Audio output socket for connecting to a
subwoofer.
LEFT FRONT Audio output sockets for connecting to
RIGHT FRONT front loudspeakers.
MAINS
(CVBS) (Y/C)
VIDEO OUT S-VIDEO OUT
DIG OUT
OPT OUT
RIGHT SUBW.
REAR
RIGHT
FRONT
L
R
AUDIO OUT
LEFT CENTER
MULTICHANNEL AUDIO OUT
REAR
LEFT
FRONT
DIGITAL AUDIO OUT
PCM/MPEG2/AC3/DTS
STEREO OUT VIDEO OUT
I
AUX/VCR
IN
II
TV OUT
The back of the DVD player

10
OVERVIEW__________________________________________________________________________________
Audio and video connections
STEREO OUT Audio output sockets (right/left channel),
■
R AUDIO OUT ■ Lfor connecting to a HiFi system.
VIDEO OUT
(CVBS) VIDEO OUT Video output socket, for connecting to a television
with a video socket.
(Y/C) S-VIDEO OUT Video output socket, for connecting to a
television with an S-VHS socket.
■
IAUX/VCR IN Audio/video input/output socket, for connecting
a video recorder.
■
II TV OUT Video/audio output socket for connecting to a
television.
Caution:
Do not connect any devices while the DVD player is switched on.
Never touch the inside of the sockets and plugs of the connecting cables. An
electrostatic discharge can damage the DVD player.

ENGLISH
11
OVERVIEW__________________________________________________________________________________
OK
P
P
DVD
TV
VCR
EXT
31 2
4 5 6
78 9
0
TV-GUIDE
VOL
REPEATANGLE
TELE PILOT 80V
RETURNSHUFFLE
SUBTITLEOSD AUDIOMENU
SHOWVIEWVCR-MENURECORD
FORMAT AUXPIP
TXT
MUTE

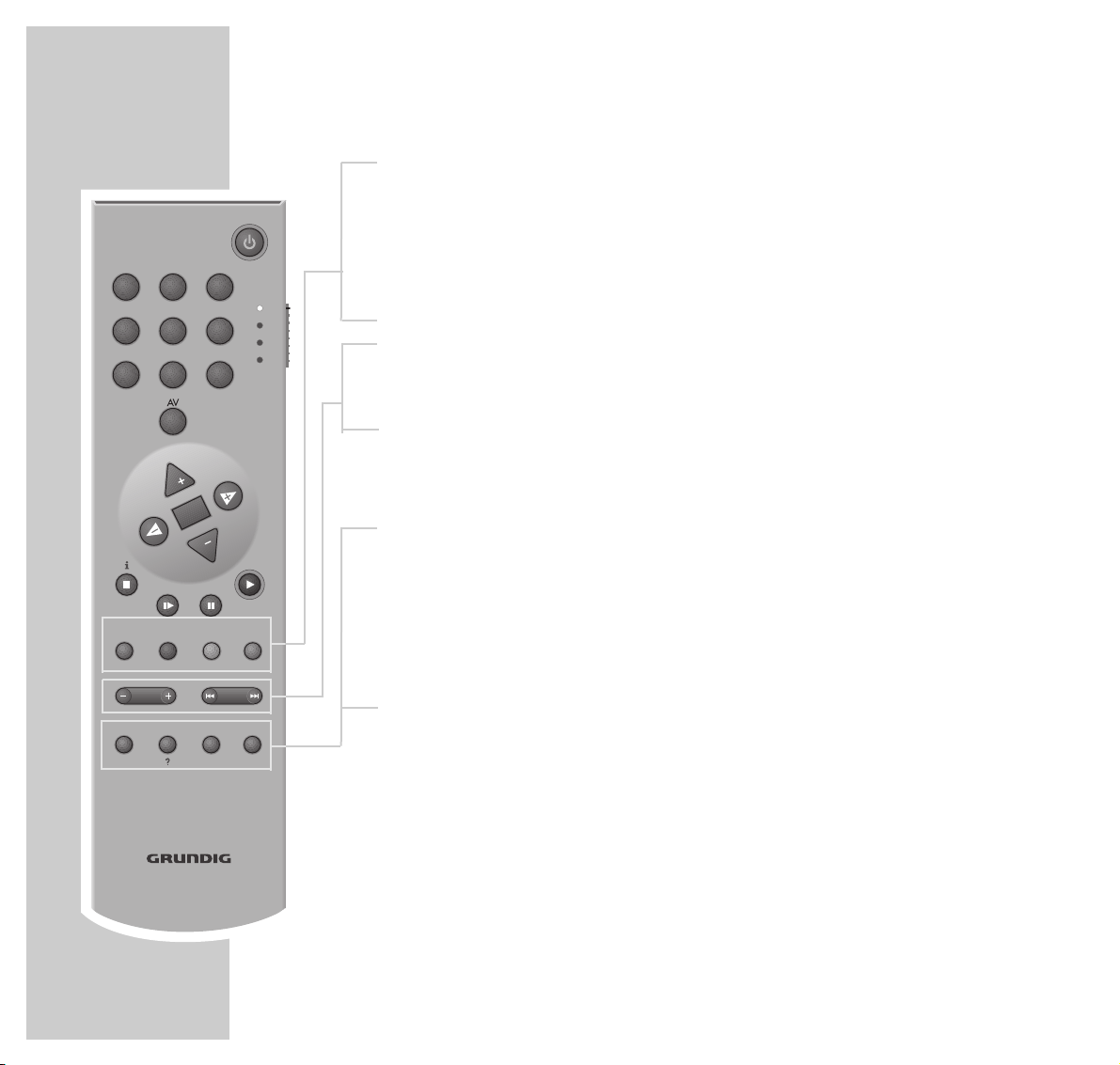

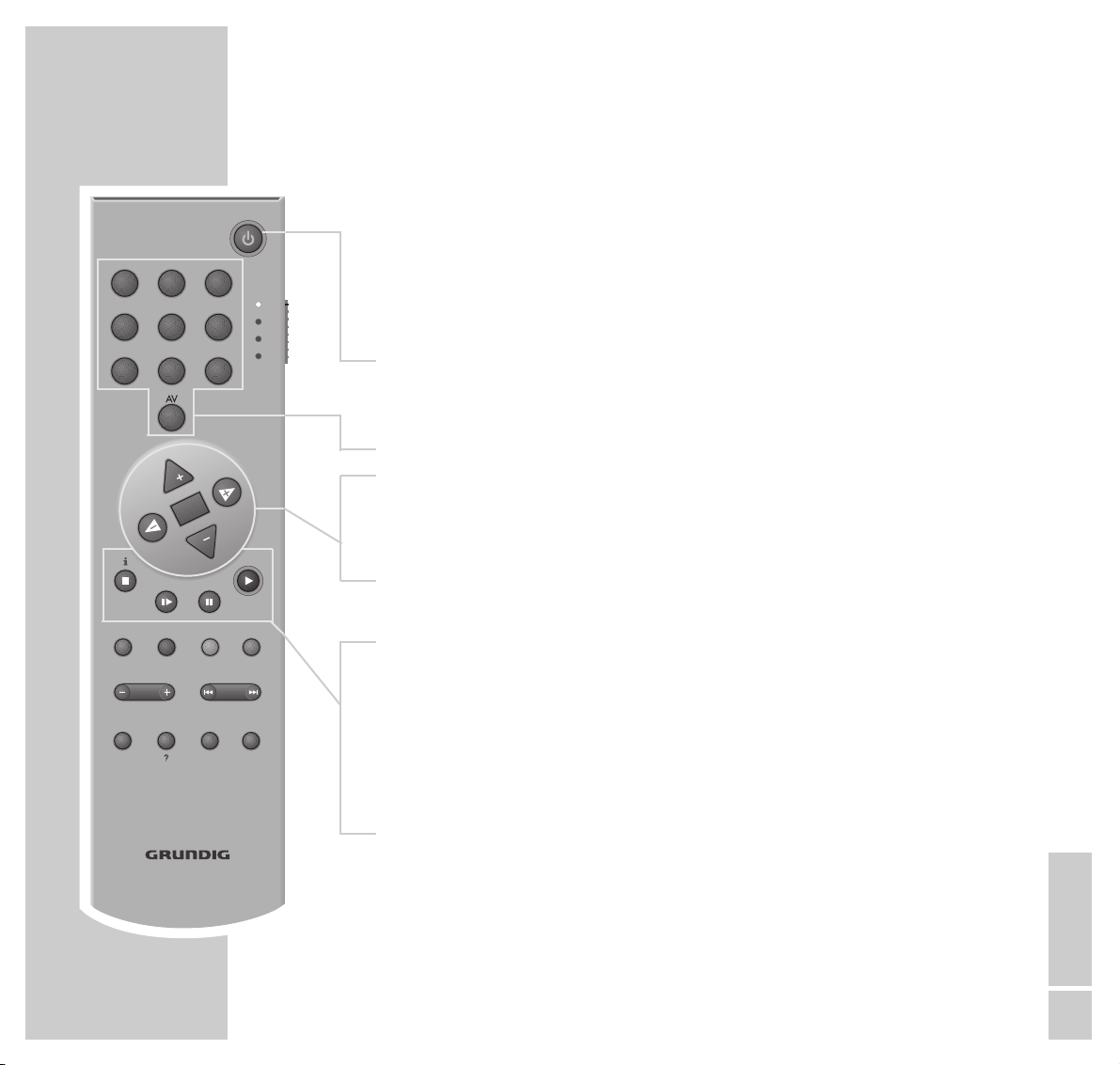

Using the TP 80 V remote control you can not only operate the DVD player, but
also Grundig televisions, video recorders and satellite receivers.
To operate the DVD player, push the »DVD TV VCR EXT« switch to the
»DVD« position. The yellow LED briefly lights up.
9Switches the DVD player to and from Stand-by mode.
The LED around the button on the DVD player indicates the
current operating status: Red – Stand-by; Green – On.
1 ... 0 AV Numeric keys for various inputs.
,,..Select various functions in the menus.
OK Confirms menu entries.
FFEEDuring playback, switch the video search forwards or
backwards at different speeds.
Select various menu functions.
7Terminates all functions, switches the DVD player to ”STOP”.
%Slow motion for DVDs and video CDs.
I I Freeze-frame for DVDs and video CDs;
Pause for audio CDs.
8Starts playback;
when pressed twice activates the ”Resume” function.
The remote control

12
OVERVIEW__________________________________________________________________________________
MENU Calls up the DVD/video CD title menu during playback.
OSD Displays/conceals the menus on the television screen.
SUBTITLE Displays subtitles during DVD playback.
AUDIO Switches between the original and the dubbed language
during DVD playback.
– VOL + Increases/reduces volume on GRUNDIG televisions with
TP 590 remote control or later.
5a s6 When pressed briefly during playback select the next or
previous title or chapter;
when pressed longer activates the forwards or backwards
picture search.
SHUFFLE Plays back all titles on a DVD or CD in random order.
ANGLE Selects various camera angles for certain scenes or passages
on the DVD during playback.
REPEAT Repeats chapters or titles, DVDs or CDs during playback.
RETURN Returns to the previous DVD menu.
Note:
For details on operating Grundig televisions, video recorders and satellite
receivers, see Page 54 onwards.
OK
P
P
DVD
TV
VCR
EXT
31 2
4 5 6
78 9
0
TV-GUIDE
VOL
REPEATANGLE
TELE PILOT 80V
RETURNSHUFFLE
SUBTITLEOSD AUDIOMENU
SHOWVIEWVCR-MENURECORD
FORMAT AUXPIP
TXT
MUTE

ENGLISH
13
THE OSD MENU__________________________________________________________
The OSD menu – which is displayed on the television screen – enables you to
select any function and carry out the necessary settings.
Icons, buttons and dialog lines indicate the available options.
The menu line
1Press »OSD« to call up the menu line, and » 3« to scroll to the right.
– The illustrations show the options presented by the menu line.
»Ö« = »Settings« menu.
»P« = Select title.
»K« = Select chapter.
»(« = Select audio track.
»I« = Select subtitles language.
»R« = Select camera angle.
»k« = Activate zoom function.
»B« = Select colour settings.
»_« = For programming scenes.
»Z« = Select sound type.
»;« = Select slow motion speed.
»N« = Select video search speed.
»L« = Select section to the nearest minute.
BB_ZZ;NNLL
off st
ÖÖPPKK((IIRRkk
//1 2 1 off no off
A
S
sa >
sa
<
S

14
THE OSD MENU_________________________________________________________________________
The »Settings« menu
»O«= »Picture menu« containing the following functions:
– TV Shape,
– Black level shift,
– Video shift,
– Colour settings,
– Personal colour.
»>« = »Sound menu« containing the following functions:
– Digital output,
– Analogue output,
– Night mode,
– Karaoke vocal,
– Speakers.
»U« = »Language menu« containing the following functions:
– Audio,
– Subtitle,
– Menu.
»Ü« = »Special functions« menu containing the following
functions:
– Access control,
– Status window,
– Low power standby.
The dialog line
The dialogue line displays information about the operating condition.
» « = Function not available.
» « = Parental lock activated.
» « = Parental lock off.
» « = Camera angle for scenes.
» « = Playback resumed.
resume
%
2/2
R
safe
H
locked
G
x
ÖÖPP
//1
a
ÖÖP K ( I R k
/1 2 1 off no off
O
>>
U
Ü
TV Shape
Black level shift
Video shift
Colour settings
Personal colour
A
S8
>
16:9
On
■■
××
■■■■■■
1 Personal
Settings...

ENGLISH
15
THE OSD MENU_________________________________________________________________________
» « = Repeating DVDs/CDs.
» « = Repeating titles.
» « = Repeating chapters.
» « = Repeating tracks.
» « = Titles selected and played back at random.
The status display
The status display shows information on the current DVD or video CD, the
total running time and the elapsed running time of the DVD or video CD.
»2 : 05 : 30« = Total running time.
»0 : 15 : 00« = Elapsed running time.
The current function is also displayed:
»..DVD« = DVD inserted.
»..VCD« = Video CD inserted.
»,,reading« = Reading DVD.
»{no disc« = No DVD or video CD inserted.
»]opened« = Disc compartment open.
»[closing« = Disc compartment closed.
» 1
!error« = Error message.
»8 play« = Playback.
»7 stop« = End playback.
»I I pause« = Pause playback.
»E W x 4 x 32« = Video search forwards/backwards.
»& 1/8 1/4 1/2« = Slow motion forwards/backwards.
shuffle
track
p
chapter
p
title
p
repeat
p
..!
DVD pause
2 : 04 : 26
0 : 00 : 21
&

16
THE OSD MENU_________________________________________________________________________
Using the OSD menu
The following example shows how the OSD menu is structured and how to select
the various menus and settings.

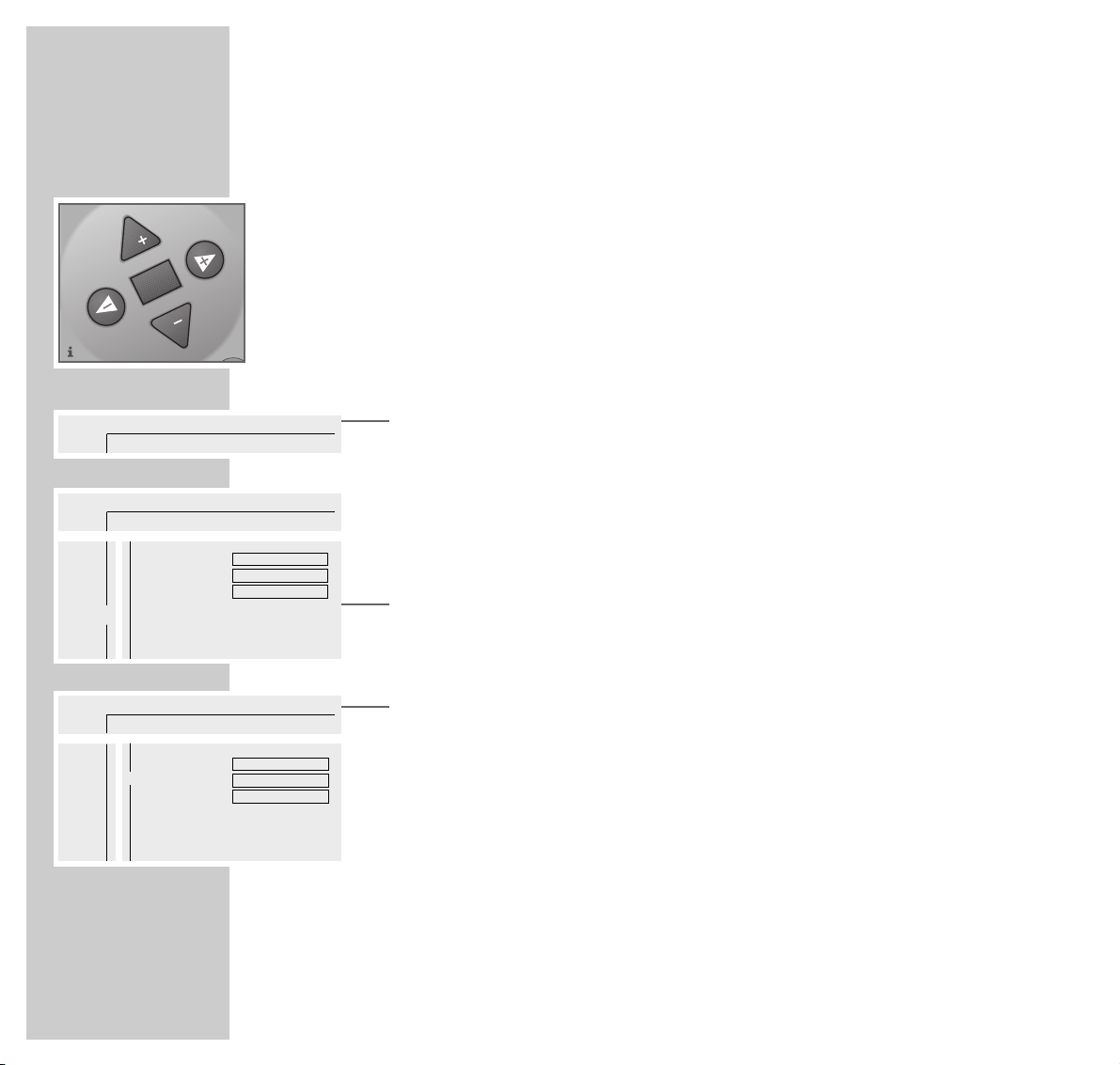

Press the »OSD« button to select the menu line, then select individual menu
items with the »,,« or »..«, » 4« or » 3« buttons.
The active menu item is highlighted in blue. Menu items which have no function
on the current DVD are greyed out and cannot be selected.
To scroll along the menu line press » 3«.
1Press »OSD« to call up the menu line.
– The menu line is displayed.
2Select the required menu item (in the example, »Ö«) by pressing » 4« or
»3« and then press »..« to activate it.
– The main menu is displayed.
3Select the desired menu (in the example, »U«) by pressing »,,« or
»..« and then press »3« to open it.
– The language menu is displayed.
4Select the function (in the example, »Subtitle«) by pressing »,,« or »..«
and then press » 3« to activate it.
5Select desired setting using the »,,« or »..« buttons.
Note:
You can switch back to the previous menus and menu items by pressing
»OK«.
6To exit the menu line press the »OSD« button.
– The functions or values you set are automatically saved.
ÖPPK ( I R k
/1 2 1 off no off
OK
P
P
MUT
E
>
sa A
S
ÖÖP K ( I R k
/1 2 1 off no off
O
>>
U
Ü
Audio
Subtitle
Menu
S
a
A
>
ÖÖP K ( I R k
/1 2 1 off no off
O
>>
U
Ü
Audio
Subtitle
Menu
A
S8
>
English
English
English
English
English
English

ENGLISH
17

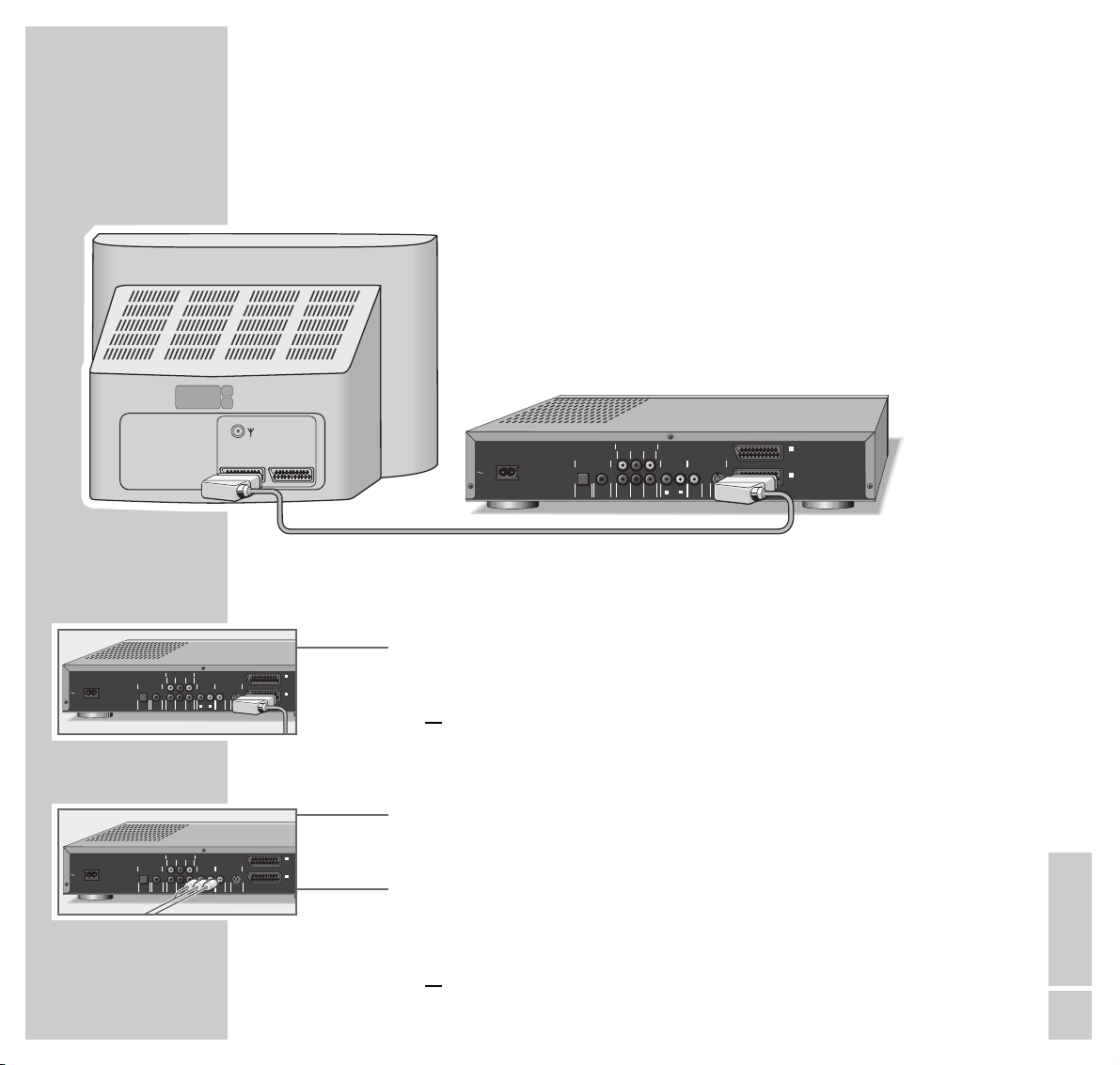

Connecting to a television...
... using a EURO-AV cable
1Plug the EURO-AV cable supplied into the »■
II TV OUT« socket on the DVD
player and into the appropriate socket (AV 1) on the television,
or
... using a cinch cable
1Plug a standard cinch cable into the »(CVBS) VIDEO OUT« socket on the
DVD player and into the appropriate socket (VIDEO IN) on the television.
2Plug the cinch AV cable supplied into the »■ RAUDIO OUT ■ L« sockets on
the DVD player and into the appropriate sockets (AUDIO IN) on the
television,
or
CONNECTION AND PREPARATION_______
MAINS
(CVBS) (Y/C)
VIDEO OUT S-VIDEO OUT
DIG OUT
OPT OUT
RIGHT SUBW.
REAR
RIGHT
FRONT
L
R
AUDIO OUT
LEFT CENTER
MULTICHANNELAUDIO OUT
REAR
LEFT
FRONT
DIGITALAUDIO OUT
PCM/MPEG2/AC3/DTS
STEREO OUT VIDEO OUT
I
AUX/VCR
IN
II
TV OUT
MAINS
(CVBS) (Y/C)
VIDEO OUT S-VIDEO OUT
DIG OUT
OPT OUT
RIGHT SUBW.
REAR
RIGHT
FRONT
L
R
AUDIO OUT
LEFT CENTER
MULTICHANNELAUDIO OUT
REAR
LEFT
FRONT
DIGITALAUDIO OUT
PCM/MPEG2/AC3/DTS
STEREO OUT VIDEO OUT
I
AUX/VCR
IN
II
TV OUT
MAINS
(CVBS) (Y/C)
VIDEO OUT S-VIDEO OUT
DIG OUT
OPT OUT
RIGHT SUBW.
REAR
RIGHT
FRONT
L
R
AUDIO OUT
LEFT CENTER
MULTICHANNEL AUDIO OUT
REAR
LEFT
FRONT
DIGITAL AUDIO OUT
PCM/MPEG2/AC3/DTS
STEREO OUT VIDEO OUT
I
AUX/VCR
IN
II
TV OUT
AV1 AV2

18
CONNECTION AND PREPARATION_______________________________________
... using a cinch cable (S-VHS)
1Plug a standard cinch cable into the »(Y/C) S- VIDEO OUT« socket on the
DVD player and into the appropriate socket (S-VIDEO) on the television.
2Plug the cinch AV cable supplied into the »■ RAUDIO OUT ■ L« sockets on
the DVD player and into the appropriate sockets (AUDIO IN) on the
television.
Note:
If the DVD player is connected to a television set with a 16:9 format, observe
the settings described in the ”Setting the television format” section on Page
49.
Connecting to a HiFi system with analog
two-channel stereo sound
As an alternative to using the television’s speakers, the sound can also be played
back through a HiFi system.
1Plug the cinch cable supplied into the »■ RAUDIO OUT ■ L« socket on the
DVD player and into the appropriate sockets on the HiFi.
Caution:
Do not connect the DVD player’s »■ RAUDIO OUT ■ L« sockets to the
PHONO sockets (record player input) on the HiFi system.
Note:
For information on connecting to a HiFi system with digital two-channel

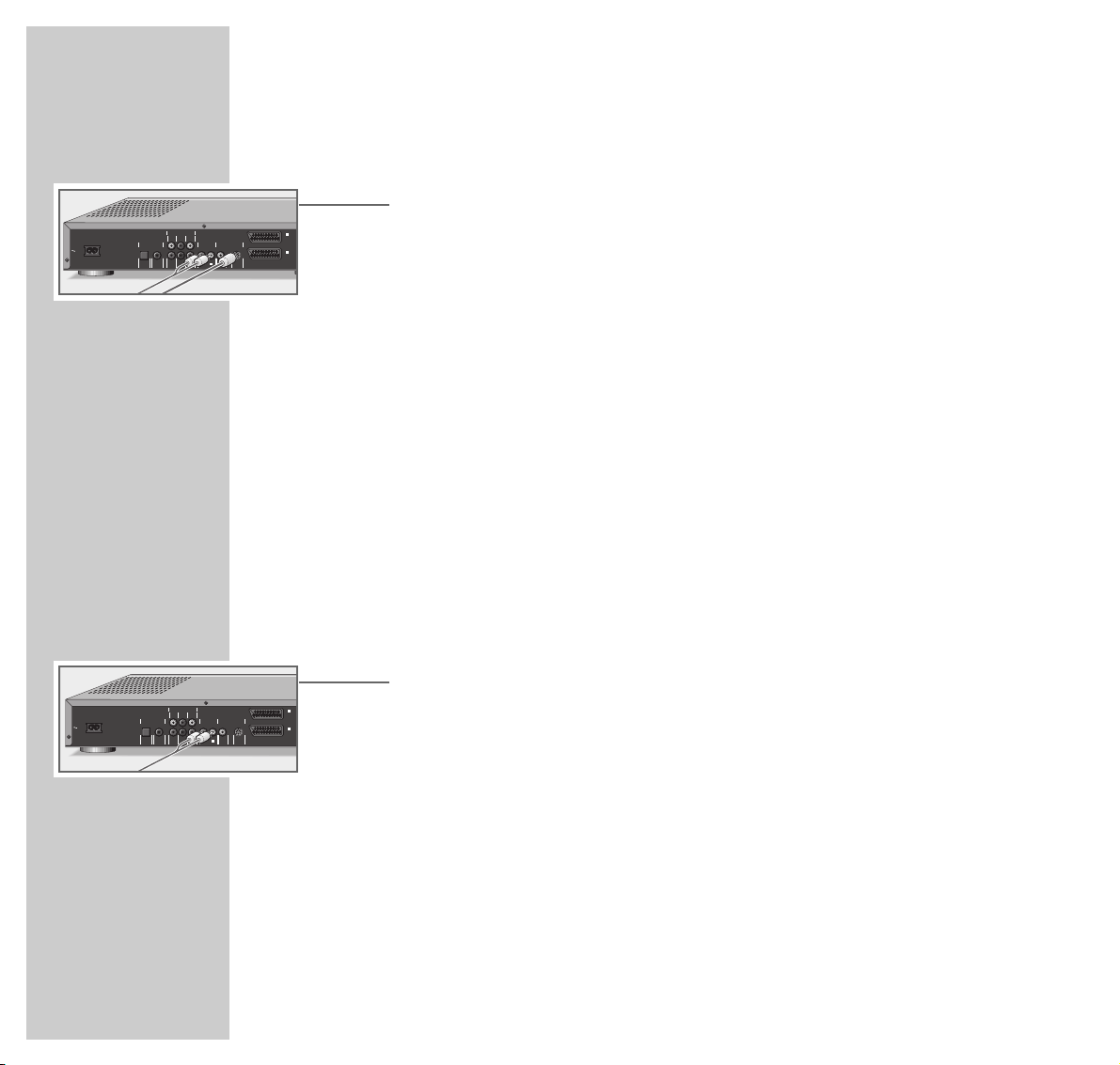

stereo sound or a digital multi-channel receiver, see Page 42 onwards.
MAINS
(CVBS) (Y/C)
VIDEO OUT S-VIDEO OUT
DIG OUT
OPT OUT
RIGHT SUBW.
REAR
RIGHT
FRONT
L
R
AUDIO OUT
LEFT CENTER
MULTICHANNELAUDIO OUT
REAR
LEFT
FRONT
DIGITALAUDIO OUT
PCM/MPEG2/AC3/DTS
STEREO OUT VIDEO OUT
I
AUX/VCR
IN
II
TV OUT
MAINS
(CVBS) (Y/C)
VIDEO OUT S-VIDEO OUT
DIG OUT
OPT OUT
RIGHT SUBW.
REAR
RIGHT
FRONT
L
R
AUDIO OUT
LEFT CENTER
MULTICHANNELAUDIO OUT
REAR
LEFT
FRONT
DIGITALAUDIO OUT
PCM/MPEG2/AC3/DTS
STEREO OUT VIDEO OUT
I
AUX/VCR
IN
II
TV OUT

ENGLISH
19
CONNECTION AND PREPARATION_______________________________________

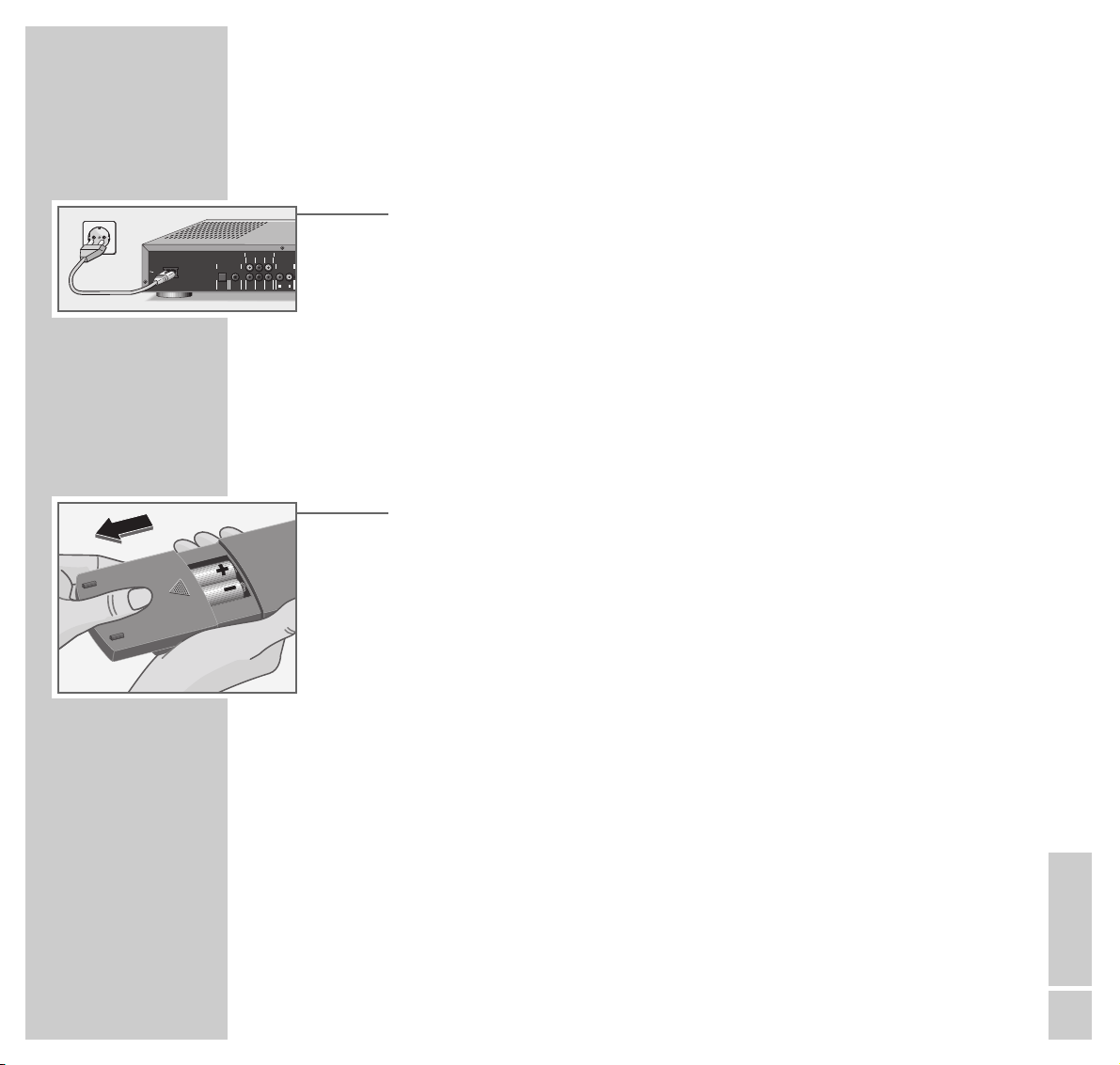

Connecting the mains cable
1Plug the mains cable supplied into the »~MAINS« socket on the DVD
player.
2Insert the mains cable plug into the mains socket.
Caution:
The only way to separate the DVD player from the mains supply is to pull the
plug.
Inserting batteries in the remote control
1Open the battery compartment by pressing the arrow and pulling back the
lid.
2When inserting the batteries (UM-3 or AA, 2 x1.5 V), observe the polarity
marked on the base of the battery compartment.
Note:
If the DVD player no longer reacts properly to remote control commands, the
batteries may be flat. Always remove flat batteries. No liability is accepted
for damage resulting from leaking batteries.
Environmental note:
Batteries, including those which are heavy metal-free, may not be disposed
of with household waste. Please dispose of used batteries in and environ-
mentally sound way, for example at public collection points. Find out about
the legal regulations which apply in your area.
MAINS
V
DIG OUT
OPT OUT
RIGHT SUBW.
REAR
RIGHT
FRONT
L
R
AUDIO OUT
LEFT CENTER
MULTICHANNELAUDIO OUT
REAR
LEFT
FRONT
DIGITALAUDIO OUT
PCM/MPEG2/AC3/DTS
STEREO OUT

20
DVD/VIDEO CD PLAYBACK____________________________
DVD and Video CD features
You can recognise DVDs and video CDs by their labels, which are shown here.
Depending on the contents the DVD or video CD (films, music videos etc.), they
may carry one or more titles.
Each title may contain one or more chapters. Titles and chapters can be selected
easily and comfortably.
You can control and direct playback of a DVD or video CD using the menu of
the DVD player on the television screen.
Special features of DVDs
DVDs may contain titles and passages which have been arranged in fixed order
by the manufacturer. You can also select individual titles and passages and then
play them back.
DVDs have a title menu which provides an overview of the titles available and
the passages they contain.
Some of the DVD player’s functions, such as slow motion, freeze-frame and
auto-play, can also be controlled by the DVD itself. It is therefore possible that
the freeze-frame function, for example, cannot be selected during certain
scenes.
Many DVDs have audio tracks recorded in up to eight languages.
This enables you to select the language you prefer.
Many DVDs are recorded by the manufacturer with subtitles in several languages.
You can select subtitle superimposition from up to 32 different languages.
Since films are released in different parts of the world at different times, all DVD
players world-wide are given a regional code. Your DVD player is designed for
region code 2.
DVDs can also be given a supplementary regional code. If you insert a DVD
with different code to that of the DVD player, a reference to the regional code
appears on the television screen. The DVD player will not be able to play back
the DVD.
