OPERATING MANUAL
Model number: MM001
OPERATING MANUAL
ProLite
4703_ProLite_body_only_manual_aw3.indd 14703_ProLite_body_only_manual_aw3.indd 1 09/06/2021 14:2809/06/2021 14:28

2
IMPORTANT SAFEGUARDS:
IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE.
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
Do not use in rain or leave outdoors whilst it’s raining.
WARNING: basic safety precautions should always be observed when
using an electrical appliance in order to reduce the risk of fire, electric shock
or injury. These include the following:
Personal safety:
• Store indoors in a dry place out of the reach
of children.
• Always use responsibly. This appliance can
be used by children aged from 8 years and
above and persons with reduced physical,
sensory or mental capabilities or lack of
experience and knowledge if they have been
given supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved.
• Don’t let children play with the appliance;
supervise children using or maintaining the
appliance.
• Use only manufacturer’s recommended
attachments as described in this manual;
misuse, or use of any accessory or
attachment other than those recommended,
may present a risk of personal injury.
• Take extra care when cleaning stairs.
• Keep the appliance and accessories away
from hot surfaces.
• Do not block the appliance’s openings or
hinder airflow; keep openings free of any
objects including dust, lint, clothing, fingers
and all parts of the body.
• Keep hair, loose clothing, fingers and other
body parts away from the brush bar and other
moving parts.
Electrical safety:
• Only use batteries and chargers supplied by
Gtech.
• Never modify the charger in any way.
• The charger has been designed for a specific
voltage. Always check that the mains voltage
is the same as that stated on the rating plate.
• A charger that is suitable for one type of
battery pack may create a risk of fire when
used with another battery pack; never use the
charger with another appliance or attempt to
charge this product with another charger.
• Before use, check the charger cord for signs of
damage or ageing. A damaged or entangled
charger cord increases the risk of fire and
electric shock.
• Do not abuse the charger cord.
• Never carry the charger by the cord.
• Do not pull the cord to disconnect it from a
socket; grasp the plug and pull it to disconnect.
• Don’t wrap the cord around the charger
during storage.
• Keep the charger cord away from hot
surfaces and sharp edges.
• The supply cord cannot be replaced.
If the cord is damaged, the charger should
be discarded and replaced.
• Do not handle the charger or the appliance
with wet hands.
• Do not store or charge the appliance
outdoors.
• The charger must be removed from the
socket before removing the battery or
cleaning or maintaining the appliance.
• Ensure the appliance is off before connecting
or disconnecting the accessories and
motorised brush bar.
Battery safety:
• This appliance includes Li-ion batteries; do
not incinerate batteries or expose to high
temperatures, as they may explode.
• Liquid ejected from the battery may cause
irritation or burns.
• In an emergency situation, contact
professional medical help immediately!
4703_ProLite_body_only_manual_aw3.indd 24703_ProLite_body_only_manual_aw3.indd 2 09/06/2021 14:2809/06/2021 14:28

3
• Leaks from the battery cells can occur under
extreme conditions. Do not touch any liquid
that leaks from the battery. If the liquid gets
on the skin, wash immediately with soap and
water. If the liquid gets into the eyes, flush them
immediately with clean water for a minimum
of 10 minutes and seek medical attention.
Wear gloves to handle the battery and dispose
of it immediately in accordance with local
regulations.
• Shorting the battery terminals may cause
burns or fire.
• When the battery pack is not in use, keep
it away from paper clips, coins, keys, nails,
screws or other small metal objects that
could make a connection from one terminal
to another.
• When you dispose of the appliance, remove
the battery and dispose of the battery safely in
accordance with local regulations.
Service:
• CAUTION – to reduce the risk of injury from
moving parts, remove the battery before
servicing.
• Before using the appliance and aer any
impact, check for signs of wear or damage
and repair as necessary.
• Do not use the appliance if any part is
damaged or defective.
• Repairs should be carried out by a service
agent or a suitably qualified person in
accordance with relevant safety regulations.
Repairs by unqualified persons could be
dangerous.
• The product can be used for above floor
cleaning and hard to reach places. Extra care
should be taken when using the product for
above floor cleaning.
• Never modify the appliance in any way, as this
may increase the risk of personal injury.
• Only use replacement parts or accessories
provided or recommended by Gtech.
• If the appliance is not working as it should,
has been dropped, damaged, le outdoors,
or dropped into water, return it to a service
centre.
Intended use:
• This appliance has been designed for
domestic dry vacuum cleaning only.
• Do not pick up liquids or use on wet
surfaces.
• Do not pick up anything that is flammable,
burning or smoking.
• Use only as described in this manual.
• Don’t use on concrete, tarmacadam
or other rough surfaces.
• The brush bar may damage certain floor
surfaces. Before vacuuming flooring, rugs or
carpets, check the flooring manufacturer’s
recommended cleaning instructions.
• This vacuum may damage delicate fabrics
or upholstery. Care should be taken on
loose weave fabrics or where there are
loose threads. If in doubt, please test on an
inconspicuous area first.
• The product has a constantly rotating brush
bar. Never leave the cleaning head in one
spot for an extended period of time, as this
may damage the floor surface.
WARNING:
•Do not use water, solvents or polishes
to clean the outside of the appliance;
wipe clean with a so, dry cloth.
•Never immerse the unit in water and do
not clean in a dishwasher.
•Only use authentic Gtech bags,
batteries, charger etc.
•Do not use without a bag fitted.
•For household use only.
4703_ProLite_body_only_manual_aw3.indd 34703_ProLite_body_only_manual_aw3.indd 3 09/06/2021 14:2809/06/2021 14:28

4
4
2
1
6
5
3
What’s in the box
Crevice tool
Battery (available separately)
4Spare bags X2
Dusting brush
2
Main unit (bag fitted)
1
Charger (available separately)
5
3
6
Make a note of your product serial number for future reference. You can find this on the
underside of the product.
_ - _ _ - _ _ _ ~
_ _ _ _ _ ~
_ _ _ _ ~
_ _ ~ _ _ _ _ _ _ _
X-XX-XXX~
XXXXX~
WWYY~
00~0000000
Thank you for choosing Gtech
“Welcome to the Gtech family. I started Gtech to create sensible, easy
to use products that do a great job, and hope you get many years of
trouble-free performance from your new product.”
Nick Grey – Inventor, owner of Gtech
4703_ProLite_body_only_manual_aw3.indd 44703_ProLite_body_only_manual_aw3.indd 4 09/06/2021 14:2809/06/2021 14:28

5
Tool configurations
Your Pro Lite comes with a crevice tool and
dusting brush as standard. Other tools are also
available (see section at the back of this manual).
Operation
Press the power button above the handle to turn
your vacuum on and off. It has a power symbol
on it. Press the mode button above the handle to
switch between ‘Eco’ and ‘Max, mode.
There is a LED headlight on top of the product to
illuminate the area being cleaned.
LED headlights
The battery indicator shows how much charge
remains in the battery.
Battery state of charge
100% 16%
15% 1%
4703_ProLite_body_only_manual_aw3.indd 54703_ProLite_body_only_manual_aw3.indd 5 09/06/2021 14:2809/06/2021 14:28

6

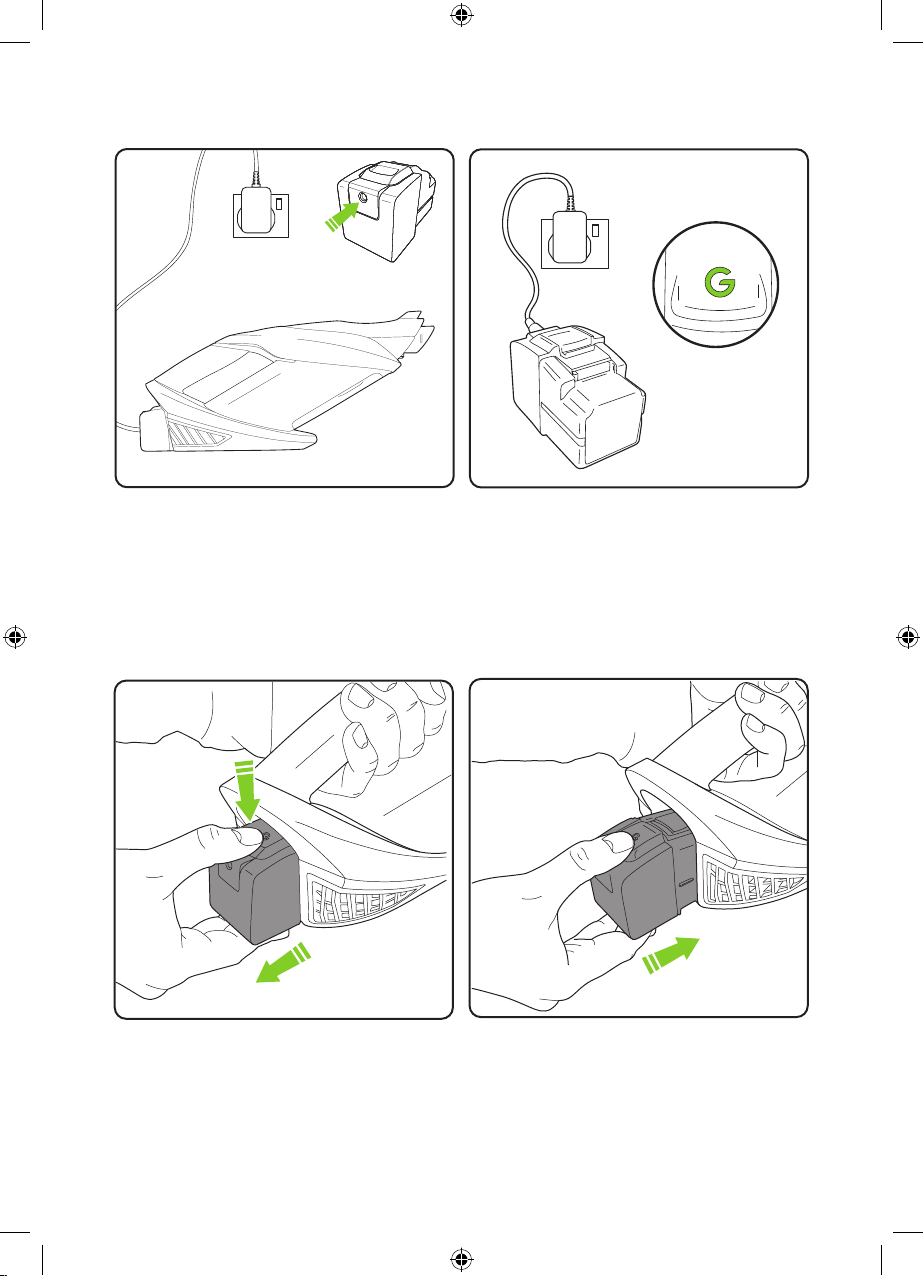

Whilst charging, the ‘G’ on the battery will
pulsate green. Once the battery is fully charged,
the indicator will show a solid green colour. This
will take up to 2 hours from flat.
For a quick burst of cleaning, you can charge the
battery for just 30 minutes.
Connect the charger to the charging port
located on the back of the battery pack. Plug the
charger into the mains socket. You can charge
the battery both on and off the product.
Charging the battery
Press the latch on top of the battery downwards and
slide it out of the product.
To refit the battery, simply slide it into the battery
housing. Push the battery into the battery
housing until it clicks into place.
If you want to buy a spare battery, go to
www.gtech.co.uk/spares.
Removing the battery Replacing the battery
4703_ProLite_body_only_manual_aw3.indd 64703_ProLite_body_only_manual_aw3.indd 6 09/06/2021 14:2809/06/2021 14:28

7

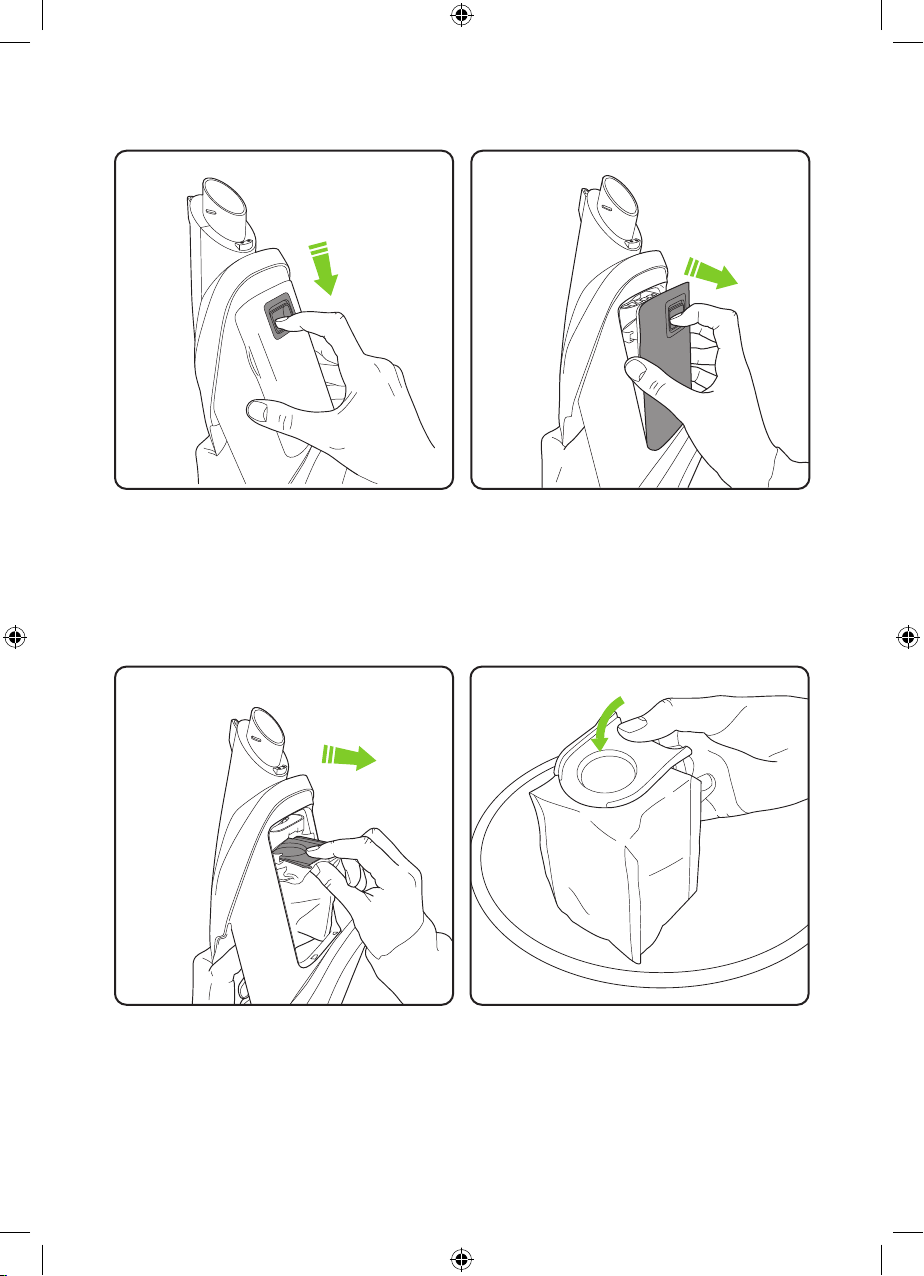

Bag removal
Cover the bag by folding over the lid.
Dispose of the bag and replace with a new
one. You can get more bags at:
www.gtech.co.uk/spares
or call 08081 685 028
Do not reuse bags as this could damage and
reduce the performance of your Gtech product.
Unlock the bag chamber by sliding down the
release latch located on the front of the product.
Pull the chamber cover away from the main
unit.
Slide the bag out of the bag chamber by gripping
the collar of the bag.
4703_ProLite_body_only_manual_aw3.indd 74703_ProLite_body_only_manual_aw3.indd 7 09/06/2021 14:2809/06/2021 14:28

8

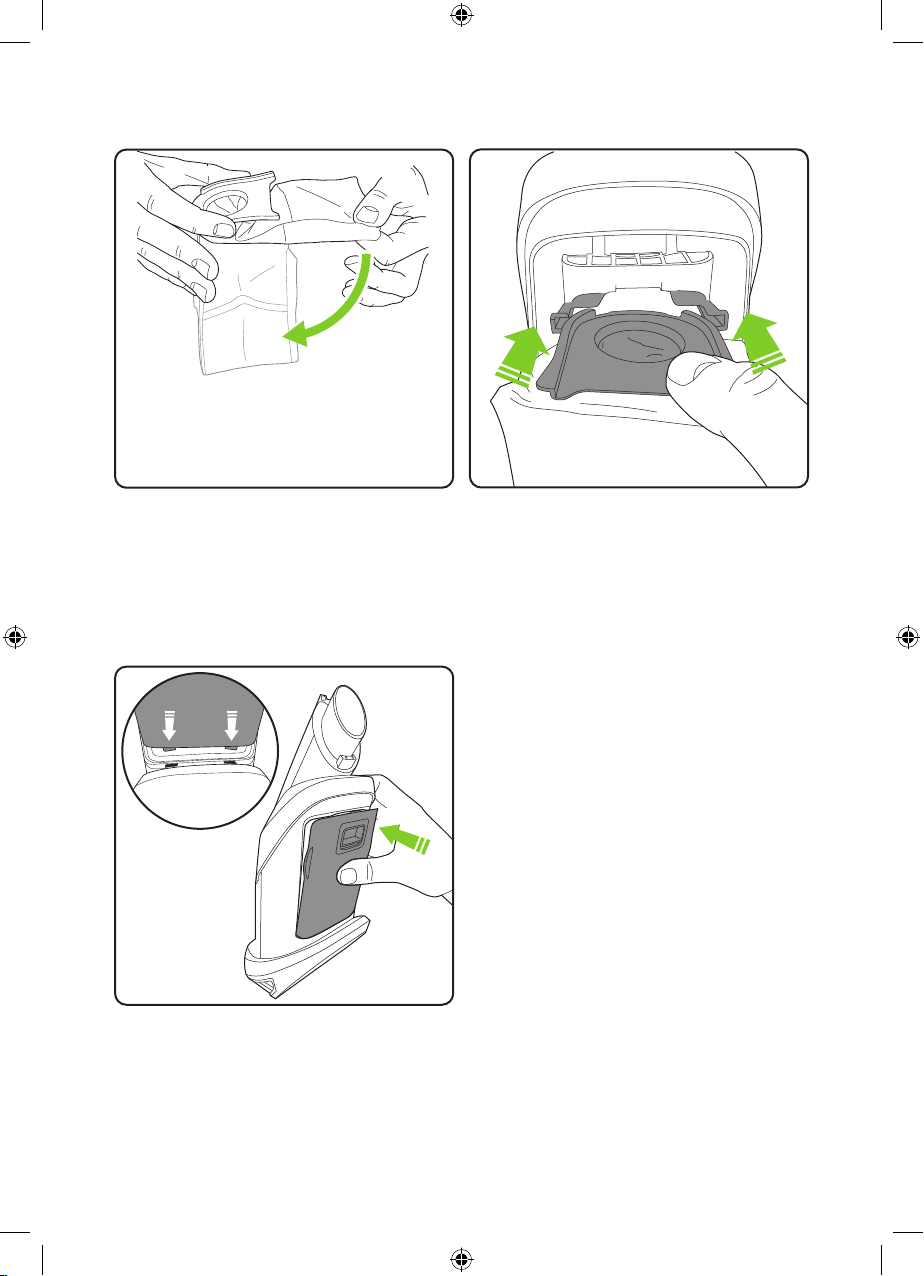

Bag installation
Before placing the bag in the chamber, ensure
the bag is fully expanded by gently unfolding
and spreading the fabric of the bag.
Refit the chamber cover. Fit the pegs on the
cover into the slots at the bottom, then push
the top part of the cover. You will hear a click
when the cover is correctly fitted.
Do not use the vacuum without a bag;
it may damage the motor and will
invalidate your warranty.
Slide the bag collar into the grooves inside the
bag chamber. Make sure the collar is completely
inserted into the chamber and the bag has
expanded. A reduction in suction will occur if the
bag has not expanded or is incorrectly fitted.
4703_ProLite_body_only_manual_aw3.indd 84703_ProLite_body_only_manual_aw3.indd 8 09/06/2021 14:2809/06/2021 14:28

9

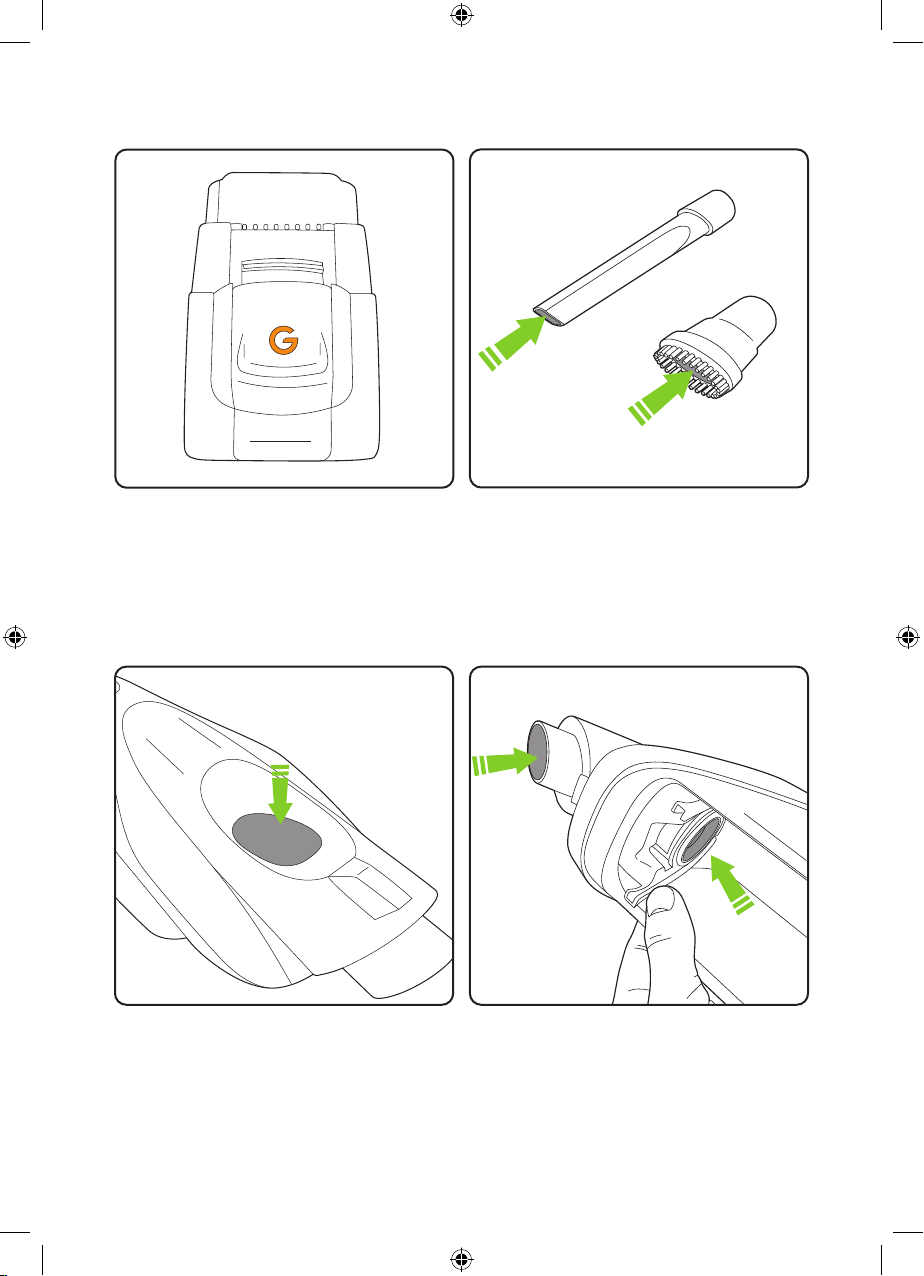

Jams and blockages
If the bag is full or there is a blockage, there will be a reduction
in suction.
Remove the battery and bag and look through
the nozzle. Remove any blockages.
A light above the main unit’s window allows you
to check when the bag is full. You can also check
for blockages.
The tools can block sometimes too, so remove
these from the main unit before checking for
blockages.
If the brush bar has jammed or there is a
blockage, the battery will display a solid amber
light for 5 seconds.
4703_ProLite_body_only_manual_aw3.indd 94703_ProLite_body_only_manual_aw3.indd 9 09/06/2021 14:2809/06/2021 14:28

10

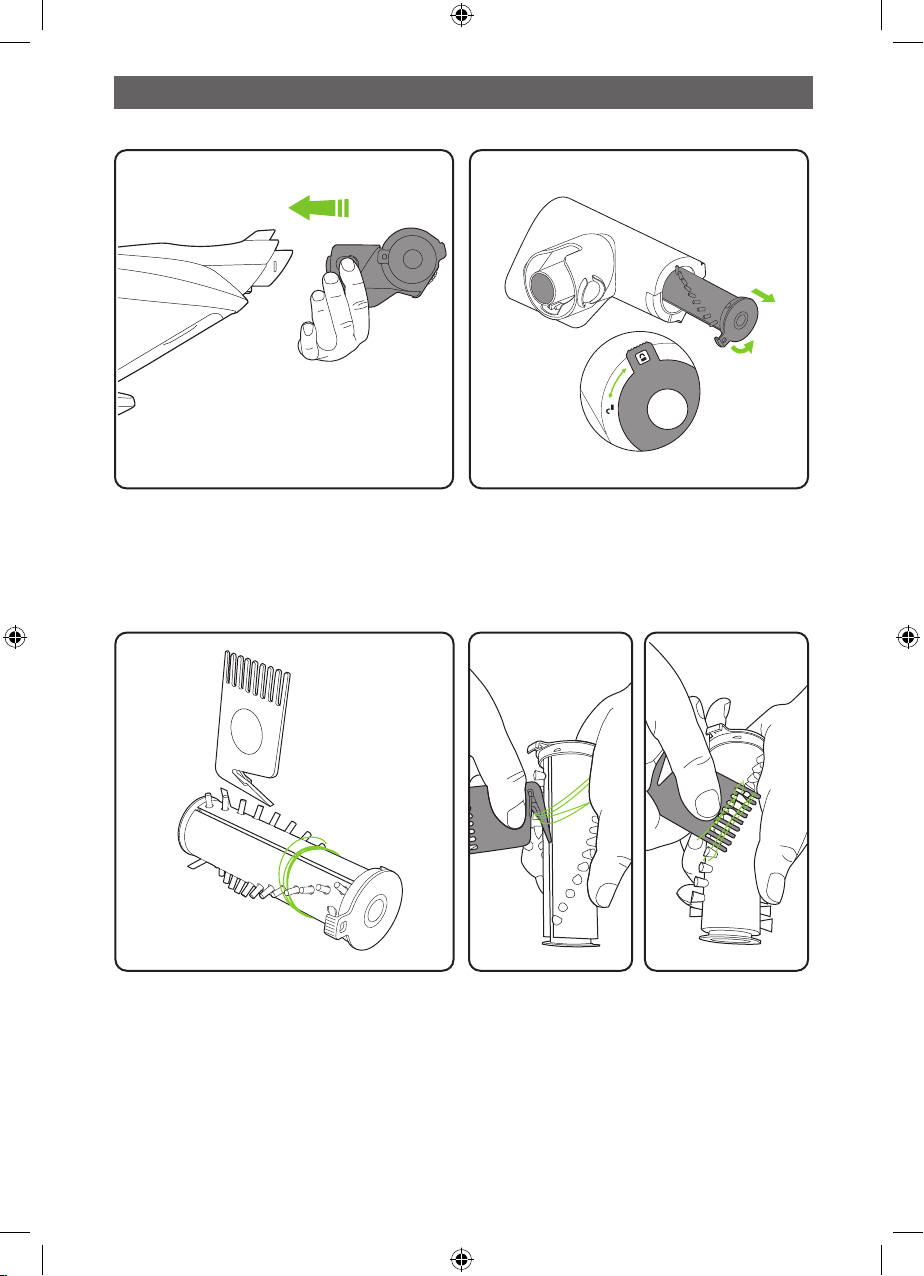

Power brush
To attach the power brush, slot it over the
standard nozzle. The power must be off while
changing nozzles. To remove, place your fingers
in the indents of the attachment, grip and pull it
away from the main unit.
Optional extras
To clean the brush bar, first remove the power
brush. Rotate the latch from the ‘locked’ to the
‘unlocked’ position and pull out the brush bar.
To remove hair from the brush bar, run the hair
removal tool down the groove to cut the hair,
then pull it out. Never operate the power head
without the brush bar in.
To remove hair from the brush bar, run the hair
removal tool down the groove to cut the hair,
then pull it out with the comb. Never operate the
power head without the brush bar in.
4703_ProLite_body_only_manual_aw3.indd 104703_ProLite_body_only_manual_aw3.indd 10 09/06/2021 14:2809/06/2021 14:28

11
The flexible power hose attaches in the same way as the other accessories and can be used as it is or
with the addition of other tools.
Flexible power hose
Optional extras
4703_ProLite_body_only_manual_aw3.indd 114703_ProLite_body_only_manual_aw3.indd 11 09/06/2021 14:2809/06/2021 14:28

12
Wall mount
Install your wall mount at least 1035mm from the
floor. Universal fixings have been included - please
use the correct fixings for the wall type you’re
mounting this item to. Please use a stud finder to
ensure no water pipes or electrical cables are hit.
If you are unsure, please seek professional advice.
Pull the detachable tool kit out from the fixed
section of the wall mount. You can also carry
the detachable part of your wall mount with
you while you clean - attach it to your belt. Extra
precautions must be taken to ensure you do not
damage the product or injure yourself.
Optional extras
1035mm
The tools can be stored like this on the wall
mount. Your wall mount will look like the picture
on the right when fully assembled with the
ProLite.
4703_ProLite_body_only_manual_aw3.indd 124703_ProLite_body_only_manual_aw3.indd 12 09/06/2021 14:2809/06/2021 14:28

13
Your product doesn’t need much maintenance: check for blockages, remove hair from
the brush bar and charge the battery. Wipe your vacuum with a so, dry cloth if it gets
dirty. Never wash it with liquid, run it under a tap or use it without a bag.
Product is not cleaning well 1. Check for blockages.
2. Replace the bag.
3. Clean hair from the brush bar.
4. Check the chamber cover is closed
properly.
Product has stopped or won’t
work
1. Charge the battery – check that the mains
socket works and is switched on.
2. Check for blockages.
3. Check the battery is fully inserted.
4. Check the battery is charged.
Battery will not charge 1. Check the charger is correctly connected
to the battery and mains supply.
2.Check the mains socket works and is
switched on.
3. Try another plug socket.
4. Check the charger cord for signs of wear
or damage.
Amber light displayed on battery
indicator for 5 seconds
1. Brush bar jammed.
2. Turn off the product, remove the battery
and check for blockages.
3. Clear any blockages.
Flashing amber light displayed on
battery indicator
Charge the battery.
Red light displayed on battery
indicator
Contact Gtech.
Product care
Troubleshooting
4703_ProLite_body_only_manual_aw3.indd 134703_ProLite_body_only_manual_aw3.indd 13 09/06/2021 14:2809/06/2021 14:28

14
PRODUCT TECHNICAL SPECIFICATION
Battery model 165A0005
Battery 14.4V Li-Ion
Charging period 2 hours
Battery charger output 17.3v DC 1A
Weight (with standard nozzle) 0.9kg
Weight (full product) 2.1kg
[e-mail] chat supportOnline How to Videos
Product support
If these initial tips do not solve your problem we please visit our support area where you can find
troubleshooting help including online manuals, FAQs and how-to-videos, as well as genuine
spares and replacement parts compatible with your product.
Visit: www.gtech.co.uk/support
The symbol indicates that this product is
covered by legislation for waste electrical and
electronic products (2012/19/EU)
When the vacuum has reached the end of its life, it and
the Li-ion battery it contains should not be disposed of
with general household waste. The battery should be
removed from the vacuum and both should be disposed
of properly at a recognised recycling facility.
Call your local council, civic amenity site or recycling
centre for information on the disposal and recycling of
electrical products. Alternatively, visit
www.recycle-more.co.uk for advice on recycling and to
find your nearest recycling facilities.
FOR HOUSEHOLD USE ONLY
4703_ProLite_body_only_manual_aw3.indd 144703_ProLite_body_only_manual_aw3.indd 14 09/06/2021 14:2809/06/2021 14:28

15
WARRANTY – REGISTRATION
If your product is within its warranty and has a fault that cannot be resolved from the
troubleshooting section or online support, please do the following:
• Contact our Gtech Customer Care Helpline on UK: 08000 308 794, who will go through any
troubleshooting with you to identify the fault.
• If your fault can be resolved by a replacement part, this will be sent to you free of charge.
• Following troubleshooting, if your product needs to be replaced, we will arrange collection of
your faulty product for inspection, and delivery of a replacement product free of charge.
Your product is guaranteed against material or manufacturing faults for 2 years from the date of
purchase (or the delivery date if this is later) subject to the following terms and conditions:
WHAT ISN’T COVEREDSUMMARY
The guarantee becomes effective at
the date of purchase (or the date of
delivery if this is later). If a product
is repaired or replaced during the
warranty period, the warranty period
is not started again.
• You must provide proof of delivery/
purchase before any work can be
carried out on the product. Without
this proof, any work carried out will be
chargeable. Please keep your receipt or
delivery note.
• All work will be carried out by Gtech or
its authorised agents.
• Any parts which are replaced will
become the property of Gtech.
• The repair or replacement of your
product is under guarantee and will not
extend the period of guarantee.
• The guarantee provides benefits which
are additional to and do not affect your
statutory rights as a consumer.
Gtech does not guarantee the repair or
replacement of a product as a result of:
• Normal wear and tear (e.g. drive belt, brush bar, batteries) .
• Use of consumables (e.g dust bags and cartridges)
• Accidental damage, faults caused by negligent use or lack of care
and maintenance, misuse, neglect, careless operation or handling of
the product which is not in accordance with operating manual.
• Blockages. Please refer to the operating manual for details of how to
unblock your product.
• Use of the product for anything other than the normal domestic
household purposes.
• Use of parts and accessories which are not Gtech genuine
components.
• Faulty installation (except where installed by Gtech)
• If it is modified in any way.
• Repairs or alterations carried out by parties other than Gtech or its
authorised agents.
• Purchasing your product from an unofficial third party (i.e not from
Gtech or an official Gtech retailer.
• If you are in doubt as to what is covered by your guarantee, please
call the Gtech Customer Care Helpline on UK: 08000 308 794
International orders are subject to a delivery charge for both faulty and
non faulty products.
WARRANTY – TERMS AND CONDITIONS
If you purchased directly from Gtech, your
details are already registered and your 2-year
warranty will start automatically.
If you purchased from an authorised Gtech
retailer, please register your warranty within
3 months. You will need to provide proof of
purchase to support any claim(s) against your
warranty.
Visit www.gtech.co.uk/warrantyregistration to register your product to ensure that we have all
the information required to provide you with quick and efficient support.
You will need your product’s serial code.
X-XX-XXX~
XXXXX~
WWYY~
00~0000000
4703_ProLite_body_only_manual_aw3.indd 154703_ProLite_body_only_manual_aw3.indd 15 09/06/2021 14:2809/06/2021 14:28

CPN4703
Grey Technology Limited
Brindley Road, Warndon, Worcester WR4 9FB
email: [e-mail]
telephone: [phone]
www.gtech.co.uk
4703_ProLite_body_only_manual_aw3.indd 164703_ProLite_body_only_manual_aw3.indd 16 09/06/2021 14:2809/06/2021 14:28
