GTV 172485 User manual

2.0 AMP OSCILLATING TOOL 100 PIECE KIT
172485
Owner’s Manual
PRODUCT SPECIFICATIONS
Rating:
120V AC, 60Hz
Amperes:
2.0 AMP
Speed:
21,000 OPM (no load)
Weight:
2 lb 11 oz (1.23 kg)
Need Assistance?
Call us on our toll free customer support line:
1-866-349-8665 Monday –Friday from 9am to 5pm Eastern Standard
Time
Technical questions
Replacement parts
Parts missing from package
Manufactured For and Distributed By
True Value®Company, Chicago, IL
©2013 True Value Company
Made in China
Warning: Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to the State of California to cause cancer and
birth defects or other reproductive harm. Some examples of these chemicals are:
lead from lead-based paints,
crystalline silica from bricks and cement and other masonry products, and
arsenic and chromium from chemically treated lumber.
Your risk from exposure to these chemicals varies, depending on how often you do this type of
work. To reduce your exposure, work in a well-ventilated area and with approved safety
equipment, such as dust masks that are specially designed to filter out microscopic particles.
Warning: This product contains chemicals known to the State of California to cause cancer
and birth defects or other reproductive harm.
!
!

2
Product specifications ………….………………………………………………………………...
1
Table of contents ……………………………………………………………………...………....
2
General safety warnings ……………………………………………………………..………....
3–4
Eye, ear, & lung protection …………………………………………………………………......
4
Electrical safety ……………………………………………………………………….………....
4
Power tool safety ……………………………………………………………………...………....
5–6
General warning ………………………………………………………………………………....
5
Work area safety ………………………………………………………….…………..………....
5
Electrical safety ……………………………………………………………………….………....
5
Personal safety ………………………………………………………………………..………....
5
Power tools use and care ……………………………………………………………………....
6
Service …………………………………………………………………………………………....
6
Specific safety rules …………………………………………………………………..………....
7
Extension cord safety ……………………………………………………………………………
8
Symbols ………………………………………………………………………………..………....
9
Know your oscillating tool ……………………………………………………………………....
10
Contents ……………………………………………………………………………….………....
10–11
Assembly and operating ……………………………………………………………..………....
12–16
Installing accessories …………………………………………………………………………....
12
Installing sandpaper …………………………………………………………………..………....
13
ON/OFF switch ………………………………………………………………………..………....
13
Selecting the correct blade ……………………………………………………………….....….
13

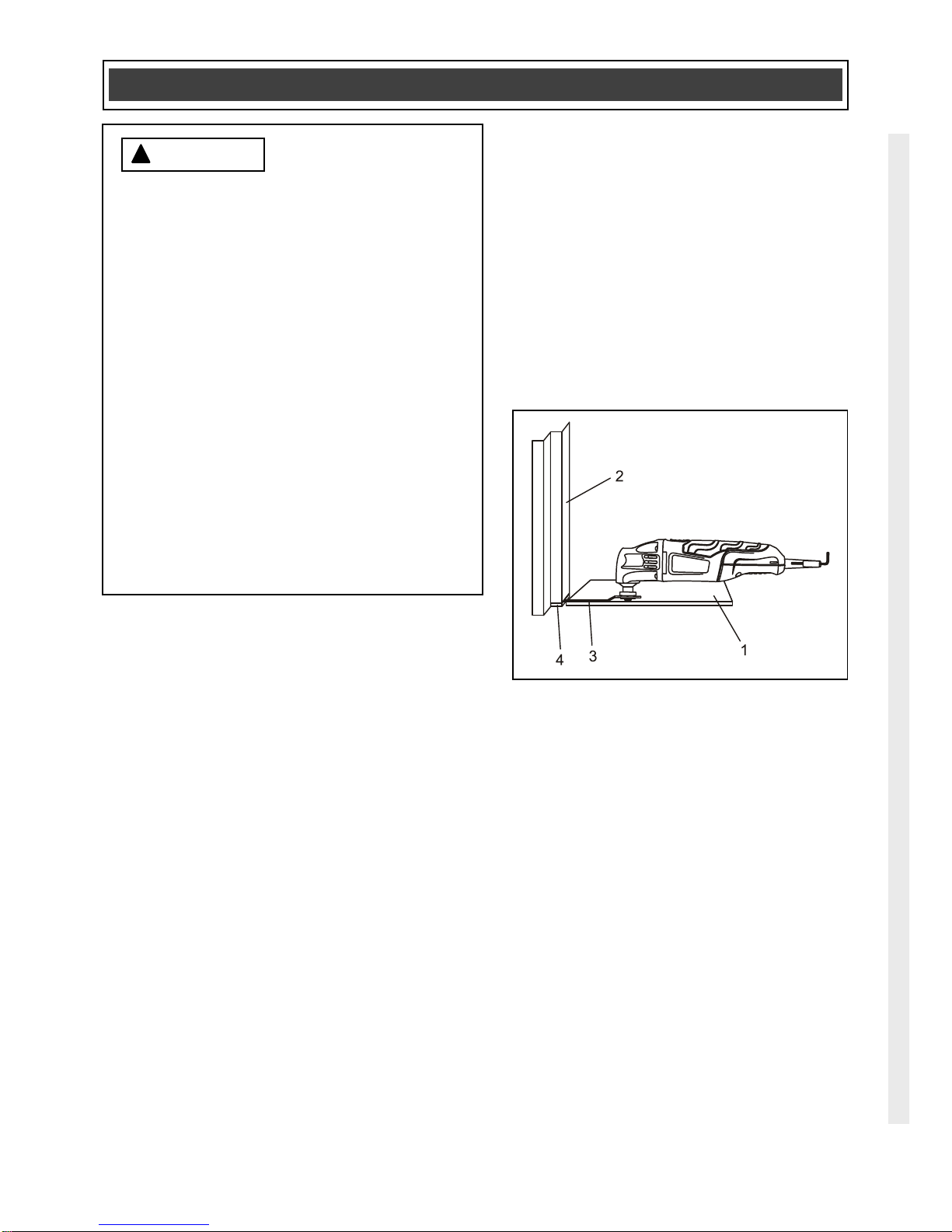

Flush cutting a door jamb and casing for installing flooring ………………………………....
14
Cutting a hole in wood flooring to install a heating vent …………………………..………....
14–15
Cutting a hole in drywall for installing an electrical outlet box ……………………………....
15–16
Using a detail sander attachment ………………………………………………………….......
16
Using the scraper blade ……………………………………………………………...………....
16
Maintenance …………………………………………………………………………..………....
17
Exploded view …………………………………………………………………………………....
18
Parts list ………………………………………………………………………………..………....
19
Warranty ……………………………………………………………………….………………....
20
TABLE OF CONTENTS

3
READ AND UNDERSTAND ALL SAFETY AND OPERATIONAL
INSTRUCTIONS. Failure to follow the safety rules listed below and other basic
safety precautions may result in serious personal injury. KEEP THIS MANUAL,
SALES RECEIPTS AND APPLICABLE WARRANTY FORMS FOR FUTURE
REFERENCE.
Safety Symbols
The purpose of safety symbols is to alert you of the potential safety RISKS.
Recognize and understand them. Follow the instructions provided.
SYMBOL
MEANING
Failure to obey a DANGER safety alert WILL result in
serious personal injury or death to you or to others.
Always obey all messages following this symbol to
reduce the risk of serious personal injury or death.
Failure to obey a WARNING safety alert MAY result in
serious personal injury or death to you or to others.
Always obey all messages following this symbol to
reduce the risk of potential serious personal injury or
death.
Failure to obey a CAUTION safety alert MAY result in
personal injury or property damage to you or to others.
Always obey all messages following this symbol to
reduce the risk of personal injury or property damage.
Failure to obey a NOTICE or a CAUTION (without a
safety alert) MAY result in property damage to you or to
others. Always obey all messages following this
symbol to reduce the risk of property damage.
GENERAL SAFETY WARNINGS
This instruction manual includes the following:
General Safety Rules
Specific Safety Rules and Symbols
Functional Description
Assembly
Operation
Maintenance
Accessories
SAVE THESE INSTRUCTIONS FOR REFERENCE

4

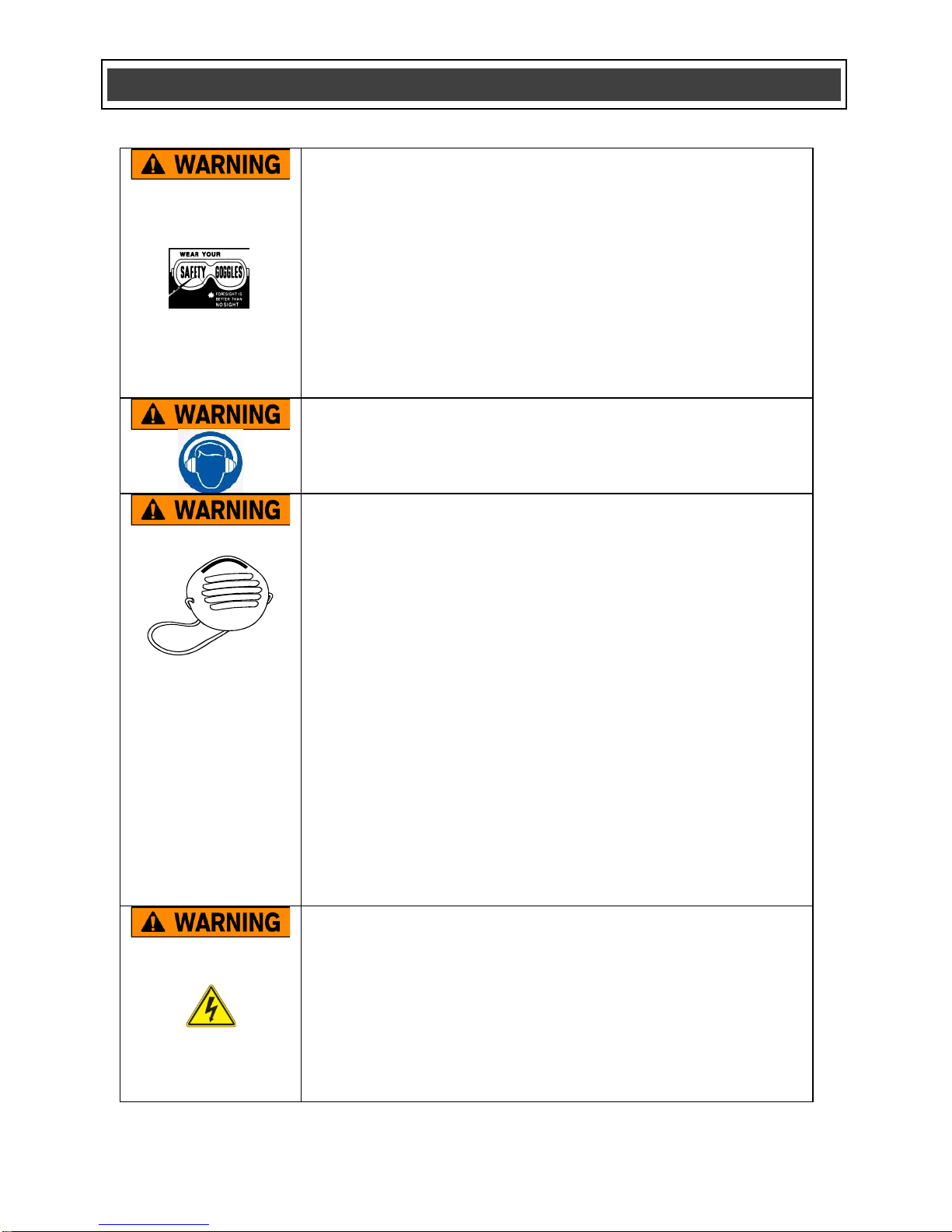

ALWAYS WEAR EYE PROTECTION THAT CONFORMS
WITH CSA REQUIREMENTS or ANSI SAFETY
STANDARD Z87.1
FLYING DEBRIS can cause permanent eye damage.
Prescription eyeglasses ARE NOT a replacement for
proper eye protection.
Non-compliant eyewear can cause serious injury if
broken during the operation of a power tool.
Use hearing protection, particularly during extended
periods of operation of the tool, or if the operation is
noisy.
WEAR A DUST MASK THAT IS DESIGNED TO BE
USED WHEN OPERATING A POWER TOOL IN A
DUSTY ENVIRONMENT.
Dust that is created by power sanding, sawing, grinding,
drilling, and other construction activities may contain
chemicals that are known to cause cancer, birth defects,
or other genetic abnormalities. These chemicals include:
Lead from lead-based paints, Crystalline silica from bricks,
cement, and other masonry products, Arsenic and
chromium from chemically treated lumber
The level of risk from exposure to these chemicals varies,
according to how often this type of work is performed. In
order to reduce exposure to these chemicals, work in a
well-ventilated area, and use approved safety equipment,
such as a dust mask that is specifically designed to filter
out microscopic particles.
To avoid electrical hazards, fire hazards or damage to
the tool, use proper circuit protection.
This tool is wired at the factory for 120 V AC operations. It
must be connected to a 120 V AC, 15 A circuit that is
protected by a time-delayed fuse or circuit breaker. To
avoid shock or fire, replace power cord immediately if it is
worn, cut or damaged in any way.
GENERAL SAFETY WARNINGS
SAVE THESE INSTRUCTIONS FOR REFERENCE

5
WARNING: Read all safety warnings
and instructions. Failure to follow the warnings
and instructions may result in electric shock, fire
and/or serious injury.
Save all warnings and instructions for future
reference.
Work area safety
Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or
fumes.
Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical safety
Power tool plugs must match the outlet.
Never modify the plug in any way. Do not
use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric
shock.
Avoid body contact with earthed or
grounded surfaces such as pipes, radiators,
ranges and refrigerators. There is an
increased risk of electric shock if your body is
earthed or grounded.
Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or
entangled cords increase the risk of electric
shock.
When operating a power tool outdoors, use
an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces
the risk of electric shock.
If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of a ground fault
circuit interrupter (GFCI) reduces the risk of
electric shock.
Personal safety
Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired
or under the influence of drugs, alcohol or
medication. A moment of inattention while
operating power tools may result in serious
personal injury.
Use personal protective equipment. Always
wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
Prevent unintentional starting. Ensure the
switch is in the off-position before
connecting to power source and/or battery
pack, picking up or carrying the tool.
Carrying power tools with your finger on the
switch or energizing power tools that have the
switch on invites accidents.
Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key
left attached to a rotating part of the power tool
may result in personal injury.
Do not overreach. Keep proper footing and
balance at all times. This enables better
control of the power tool in unexpected
situations.
Dress properly. Do not wear loose clothing
or jewelry. Keep your hair, clothing and
gloves away from moving parts. Loose
clothes, jewelry or long hair can be caught in
moving parts.
If devices are provided for the connection of
dust extraction and collection facilities,
ensure these are connected and properly
used. Use of dust collection can reduce dust-
related hazards.
POWER TOOL SAFETY
!

6
Power tool use and care
Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
Do not use the power tool if the switch does
not turn it on and off. Any power tool that
cannot be controlled with the switch is
dangerous and must be repaired.
Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
Maintain power tools. Check for
misalignment or binding of moving parts,
breakage of parts and any other condition
that may affect the power tool’s operation. If
damaged, have the power tool repaired
before use. Many accidents are caused by
poorly maintained power tools.
Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to
control.
Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the
power tool for operations different from those
intended could result in a hazardous situation.
Hold power tool by insulated gripping
surfaces, because the blade may contact its
own cord. Cutting a "live" wire may make
exposed metal parts of the tool "live" and could
give the operator an electric shock.
Service
Have your power tool serviced by a qualified
repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained.
POWER TOOL SAFETY

7
WARNING: This product contains
chemicals known to the State of California to
cause cancer and birth defects or other
reproductive harm.
WARNING: Some dust created by power
sanding, sawing, grinding, drilling, and other
construction activities contain chemicals
known to cause cancer, birth defects, or
other reproductive harm. Some samples of
these chemicals are:
lead from lead-based paints,
crystalline silica from bricks and
cement and other masonry products,
and
arsenic and chromium from
chemically-treated lumber.
Your risk from these exposures varies,
depending on how often you do this type of
work. To reduce your exposure to these
chemicals: work in a well-ventilated area, and
work with approved safety equipment, such as
those dust masks that are specially designed to
filter out microscopic particles.
Always wear eye protection. Any
power tool can throw foreign
objects into your eyes and cause
permanent eye damage. ALWAYS
wear safety goggles (not glasses) that comply
with ANSI safety standard Z87.1. Everyday
glasses have only impact resistant lenses. They
ARE NOT safety glasses.
WARNING: Glasses or goggles not in
compliance with ANSI Z87.1 could cause
serious injury when they break.
WARNING: Know your oscillating tool.
Do not plug the tool into the power source
until you have read and understand this
Instruction Manual. Learn the tool’s
applications and limitations, as well as the
specific potential hazards related to this tool.
Following this rule will reduce the risk of electric
shock, fire, or serious injury.
Always wear eye protection. Any power tool can
throw foreign objects into your eyes and cause
permanent eye damage. ALWAYS wear safety
goggles (not glasses) that comply with ANSI
safety standard Z87.1. Everyday glasses have
only impact resistant lenses. They ARE NOT
safety glasses.
WARNING: Glasses or goggles not in
compliance with ANSI Z87.1 could cause
serious injury when they break.
Always keep hands out of the path of the saw
blade. Avoid awkward hand positions where a
sudden slip could cause your hand to move into
the path of the saw blade.
Secure workpiece. Use clamps or a vice to hold
the workpiece. It is safer than using your hand
and it frees both hands to operate the tool.
Make sure there are no nails or foreign objects
in the part of the workpiece to be cut or sanded.
To avoid injury from accidental starting, always
remove the plug from the power source before
installing or removing an accessory.
Never use dull blades in the tool. They will cut
slower, leave rough cuts and break easily due to
added pressure and excessive heat. They will
also overload the motor and cause premature
failure of the tool.
Never use damaged or bent blades. They will be
brittle and break easily possibly causing injury to
the operator.
Never touch a saw blade immediately after
using the tool. The blade will be extremely
hot and will burn your hand.
Only use accessories designed for use with this
tool.
SPECIFIC SAFETY RULES
!
!
!
!
!

8
WARNING: Keep the extension cord
clear of the working area. Position the cord so
it will not get caught on the workpiece, tools or
any other obstructions while you are working
with the power tool.
Make sure any extension cord used with this
tool is in good condition. When using an
extension cord, be sure to use one of heavy
enough gauge to carry the current the tool will
draw. An undersized cord will cause a drop in
line voltage resulting in loss of power and
overheating.
The table at right shows the correct size to use
according to cord length and nameplate ampere
rating. If in doubt, use the next heavier gauge.
The smaller the gauge number the heavier the
cord.
Be sure your extension cord is properly wired
and in good condition. Always replace a
damaged extension cord or have it repaired by a
qualified electrician before using it. Protect your
extension cord from sharp objects, excessive
heat and damp or wet areas.
Use a separate electrical circuit for your power
tools. This circuit must not be less than 14
gauge wire and should be protected with either
a 15 AMP time delayed fuse or circuit breaker.
Before connecting the power tool to the power
source, make sure the switch is in the OFF
position and the power source is the same as
indicated on the nameplate. Running at lower
voltage will damage the motor.
WARNING: Repair or replace damaged
or worn extension cords immediately.
Select the appropriate extension cord gauge
and length using the chart below.
When operating a power tool outdoors, use an
outdoor extension cord marked “W-A” or “W”.
These cords are rated for outdoor use and
reduce the risk of electric shock.
WARNING: Keep the extension cord
clear of the working area. Position the cord
so it will not get caught on the workpiece,
tools or any other obstructions while you are
working with the power tool.
EXTENSION CORD SAFETY
MINIMUM GAUGE (AWG)
EXTENSION CORDS (120V use only)
Amperage
rating
Total length
More
than
Not
more
than
25'
(7.5 m)
50'
(15 m)
100'
(30 m)
150'
(45 m)
0
6
18
16
16
14
6
10
18
16
14
12
10
12
16
16
14
12
12
16
14
12
Not Applicable
!
!
!

9
This symbol designates that this tool is listed
with U.S. requirements by ETL Testing
Laboratories, Inc.
Conforms to UL Std. 60745-1 and 60745-2-4.
3042597
JD2547U-A
V
Volts
A
Amperes
Hz
Hertz
W
Watts
kW
Kilowatts
Microfarads
L
Litres
kg
Kilograms
H
Hours
N/cm2
Newtons per square
centimetre
Pa
Pascals
OPM
Oscillations per minute
Min
Minutes
S
Seconds
or a.c.
Alternating current
Three-phase alternating
current
Three-phase alternating
current with neutral
Direct current
No load speed
Alternating or direct
current
Class II construction
Splash-proof
construction
Watertight construction
Protective grounding at
grounding terminal,
Class I tools
Revolutions or
reciprocations per
minute
Diameter
Off position
Directional arrow
Warning symbol
SYMBOLS
WARNING: Some of the following symbols may appear on the
oscillating tool. Study these symbols and learn their meaning. Proper
interpretation of these symbols will allow for more efficient and safer
operation of this tool.
!

10
Carefully unpack the oscillating tool. Compare
the contents against the “OSCILLATING TOOL
COMPONENTS” chart at right.
NOTE: See illustration of the oscillating tool on
Page 11.
WARNING: To avoid fire or toxic
reaction, never use gasoline, naphtha,
acetone, lacquer thinner or similar highly
volatile solvents to clean the tool.
KNOW YOUR OSCILLATING TOOL
CONTENTS
!
OSCILLATING TOOL COMPONENTS
KEY
DESCRIPTION
QTY
A
Oscillating tool
1
B
5 mm Hex key
1
C
1 1/4" Plunge cutting saw
blade for cutting softwood,
plastic & drywall
1
D
1 3/8" Coarse blade for cutting
wood
1
E
1 1/4" Plunge cutting saw
blade for cutting metal
1
F
3 1/2" Half circle saw blade for
cutting wood, plastic & drywall
1
G
2" Scraper blade
2
H
3" Sanding pad
1
I
3" Sanding pad sandpaper
60 grit - 15
80 grit - 15
120 grit - 16
46
J
Finger sanding pad
1
K
Finger sanding pad sandpaper
60 grit –15
80 grit - 15
120 grit - 16
46
Owner’s Manual
1
ON/OFF switch
Air vents
Accessory
holder
Hex key
holder
Hex key

11
CONTENTS

12
INSTALLING ACCESSORIES
All accessories are installed on the oscillating
tool in a similar manner. For the purposes of
describing the accessory installation, the half
circle blade is used.
DANGER: Always remove the plug from
the power source before installing or
removing accessories or sandpaper. Failing
to remove the plug from the power source
may result in the tool accidentally being
started and causing serious injury to the
operator.
1. Remove the screw (1) and washer (2) from
the accessory holder (3) by turning the
screw counter clockwise. Use the 5 mm
Hex key (4) if the screw is too tight to be
removed by hand (Fig. 1).
NOTES:
a) For "open back" accessories
(Fig. 1a), the blade screw does not have to
be removed. Simply loosen the blade
screw sufficiently to allow the accessory
mount to slide between the washer and the
accessory holder.
b) For "closed back" accessories
(Fig. 1b), the blade screw and washer must
be completely removed from the tool.
2. Place the blade (5) on the accessory
holder (Fig. 2).
NOTES:
a) Make sure the alignment holes (6) in the
blade fit over the alignment pins (7) in the
accessory holder and the printed side of
the blade is facing the tool.
b) The blade can be mounted at various
angles left or right of center if required.
3. Thread the screw (1) through the washer
(2) and the blade and into the accessory
holder threaded hole (8).
4. Turn the screw clockwise until it is finger
tight.
NOTES:
a) Check to make sure the convex curve of
the washer (9) is facing the head of the
screw and the slots in the edge of the
washer fit over the alignment pins in the
accessory holder.
b) Make sure the alignment holes in the blade
are still mated with the alignment pins in
the accessory holder.
5. Firmly tighten the screw with the 5 mm hex
key.
NOTE: Check to make sure the holes in the
blade are still mated with the alignment pins on
the accessory holder after the screw is fully
tightened.
ASSEMBLY AND OPERATING
!
Fig. 1b
Fig. 1
Fig. 2
Fig. 1a

13
INSTALLING SANDPAPER
1. Install the hook & loop sanding pad (1)
onto the tool (Fig. 3).
2. Firmly press the sandpaper (2) onto the
hook & loop pad.
NOTES:
a) Place the sandpaper so the holes in the
sandpaper line up with the matching holes in the
hook & loop pad.
b) Press the sandpaper firmly onto the hook &
loop pad.
3. To remove the sandpaper, simply peel the
sandpaper way from the hook & loop pad
(Fig. 4).
ON/OFF SWITCH
1. To turn the tool ON, slide the ON/OFF
switch (1) toward the front of the tool
(Fig. 5).
2. To turn the tool OFF, slide the ON/OFF
switch toward the rear of the tool.
SELECTING THE CORRECT BLADE
Project
Accessory
Drywall
Half circle blade
or coarse plunge
cutting blade
Restoring windows
Half circle blade
Door jamb
Wood blade
Door casing
Wood blade
Wood dowels
Wood blade
Floor vent
Wood blade
PVC pipe
Wood blade
Glued flooring
Scraper
Sanding concave
surface
Finger sanding
pad
Sanding flat surface
3” sanding pad
ASSEMBLY AND OPERATING
Fig. 3
Fig. 4
Fig. 5

14
FLUSH CUTTING A DOOR JAMB AND
CASING FOR INSTALLING FLOORING
(see Fig. 6)
The oscillating tool can be used to flush cut a
door jamb and casing to allow space for the new
flooring to fit neatly under the door jamb and
casing. For the purpose of demonstrating the
procedure, floor tile is being used.
1. Install the plunge cutting wood saw blade
for wood in the tool (Page 12).
NOTE: The blade should be centered on
the tool housing and NOT installed in the
90° position.
2. Place a scrap piece of floor tile (1) on the
floor about 1/2" (25 mm) from the door
jamb (2) (Fig. 6).
NOTE: Make sure the “good” side of the
tile is facing upward to provide a smooth
surface for the blade to follow.
3. Place the tool with the saw blade (3) lightly
touching the surface of the tile and the
cutting teeth NOT touching the surface to
be cut.
4. Turn the tool ON (Fig. 5 Page 13).
5. When the tool reaches its maximum speed,
carefully plunge the blade into the door
jamb while sliding the blade along the floor
tile.
NOTE: Hold the tool tightly and do not put
too much forward pressure on the saw
blade when cutting, as this will cause the
tool to vibrate excessively.
6. Continue to make several plunge cuts until
the bottom of the door jamb and casing are
completely cut off and the loose pieces can
be easily removed.
Follow the same basic procedure for installing
carpet, using a thicker spacer that is the same
thickness of the carpet being installed.
CUTTING A HOLE IN WOOD FLOORING TO
INSTALL A HEATING VENT
(see Fig. 7)
The oscillating tool can be used to cut a hole in
wood flooring for installing a heating vent.
1. Use a stud finder before cutting through the
floor to confirm that no floor joist will
interfere with the cut out.
ASSEMBLY AND OPERATING
For safety reasons, the operator must read
the sections of this Owner’s Manual entitled
“GENERAL SAFETY WARNINGS”, “POWER
TOOL SAFETY”, “SPECIFIC SAFETY
RULES”, EXTENSION CORD SAFETY” and
“SYMBOLS” before using this oscillating
tool.
Verify the following every time the
oscillating tool is used:
1. Safety glasses, safety goggles, or face
shield are being worn.
2. Hearing protection is being worn.
3. The blade or sandpaper is in good
condition.
4. The accessory is properly tightened
onto the accessory holder of the tool.
Failure to observe these safety rules will
significantly increase the risk of injury.
WARNING
!
Fig. 6

15
CUTTING A HOLE IN WOOD FLOORING TO
INSTALL A HEATING VENT
(see Fig. 7)
2. Install the plunge cutting saw blade for
wood in the tool (Page 12).
NOTE: The blade should be centered on
the tool housing and NOT installed in the
90° position.
3. Place the floor vent on the floor and use a
soft lead pencil to trace the required
rectangular hole (1) on the flooring (Fig. 7).
4. Place the saw blade (2) near the floor
surface in the middle of one of the cutting
lines.
5. Turn the tool ON (Fig. 5 Page 13).
NOTE: The tool and blade should be at a 45°
angle to the floor to allow the corner of the blade
to plunge cut into the flooring.
6. While holding the tool tightly, slowly plunge
the corner of the blade into the flooring until
it cuts through the flooring. Once the
plunge cut is complete, set the tool to its
highest speed and complete the cut to the
corner of the rectangle.
7. Turn the saw OFF, remove it from the cut
and proceed to cut in the opposite direction
to complete the cut for the first side of the
rectangle.
8. Repeat steps #4, #5 & #6 to cut the
remaining three sides of the rectangle.
9. When all cuts are complete, use a flat
blade screw driver to carefully pry the cut-
out from the floor.
NOTE: Do NOT use the saw blade to pry the
cut-out from the floor. You will break the blade.
If the cut-out is not easy to pry from the floor,
check to make sure each line is cut completely
into the corner of the rectangle.
CUTTING A HOLE IN DRYWALL FOR
INSTALLING AN ELECTRICAL OUTLET BOX
(see Fig. 8)
The oscillating tool can be used to cut a hole in
drywall for installing an electrical outlet box.
1. Use a stud finder before cutting through the
drywall to confirm that no wall stud will
interfere with the cut out.
2. Install the half circle saw blade for wood &
drywall in the tool (Page 12).
NOTE: The blade should be centered on
the tool housing and NOT installed in the
90° position.
3. Place the outlet box on the drywall and use
a soft lead pencil to trace the required
rectangular hole (1) on the drywall (Fig. 8).
ASSEMBLY AND OPERATING
Fig. 7

16
CUTTING A HOLE IN DRYWALL FOR
INSTALLING AN ELECTRICAL OUTLET BOX –
cont’d
4. Place the corner edge of the saw blade (2)
near the drywall in the middle of one of the
cutting lines.
5. When the tool reaches its maximum speed,
carefully plunge the blade into the drywall
until it cuts through the drywall. Complete
the cut to the corner of the rectangle.
NOTE: Hold the tool tightly and do not put
too much pressure on the saw blade when
cutting.
6. Turn the saw OFF, remove it from the cut
and proceed to cut in the opposite direction
to complete the cut for the first side of the
rectangle.
7. Repeat steps #4, #5 & #6 to cut the
remaining three sides of the rectangle.
8. When all cuts are complete, use a flat
blade screw driver to carefully pry the cut-
out from the drywall.
USING A DETAIL SANDER ATTACHMENT
1. Install a sanding pad on the oscillating tool
(Page 12).
2. Install the sandpaper on the sanding pad
(Page 13).
3. Turn the switch ON (Page 13).
This tool is designed for detail sanding on small
surface areas. Place the sandpaper surface of
the sanding pad on the workpiece to be sanded.
Keep the tool moving to avoid gouging the
surface. Use coarse sandpaper when sanding
rough surfaces and for removing previous
finishes. Use fine sandpaper to produce the
smoothest surface.
USING THE SCRAPER BLADE
1. Install the scraper blade on the oscillating
tool (Page 12).
2. Turn the switch ON (Page 13).
When using the scraper blade to scrape old
finishes or glue from a workpiece, place the
under side of the blade flat on the workpiece
surface and then lift upward on the rear of the
tool to allow the blade to form a very slight angle
with the workpiece surface. Feed the blade
slowly into the material that is to be removed.
Do not force the tool as slower travel speeds will
produce better cutting action and reduce the risk
of gouging the workpiece.
When using the scraper blade to cut carpet,
place a scrap workpiece under the carpet where
the cut is being made. Turn the tool so the
scraper blade is at right angles (perpendicular)
to the carpet and then feed the blade into the
carpet.
ASSEMBLY AND OPERATING
Fig. 8

17
GENERAL
WARNING: When servicing, use only
identical replacement parts. The use of any
other part may create a hazard or cause
product damage.
DO NOT use solvents when cleaning plastic
parts. Plastics are susceptible to damage from
various types of commercial solvents and may
be damaged by their use. Use a clean cloth to
remove dirt, dust, oil, grease etc.
WARNING: Do not allow brake fluids,
gasoline, petroleum-based products,
penetrating oils, etc. to come into contact
with plastic parts. They contain chemicals
that can damage, weaken or destroy plastic.
DO NOT abuse power tools. Abusive practices
can damage the tool and the workpiece.
WARNING: DO NOT attempt to modify
tools or create accessories. Any such
alteration or modification is misuse and
could result in a hazardous condition leading
to possible serious injury. It will also void
the warranty.
LUBRICATION
All of the bearings in this tool are lubricated with
a sufficient amount of high-grade lubricant for
the life of the unit under normal conditions.
Therefore, no further lubrication is required.
!
MAINTENANCE
!
!
!

18
EXPLODED VIEW

19
WARNING: When servicing, use only original equipment replacement parts. The use of any
other parts may create a safety hazard or cause damage to the oscillating tool.
Any attempt to repair or replace electrical parts on this oscillating tool may create a safety hazard
unless repairs are performed by a qualified technician. For more information, call the Toll-free
Helpline, at 1-866-349-8665 Monday –Friday from 9am to 5pm Eastern Standard Time.
Always order by PART NUMBER, not by key number.
Key #
Part #
Part Name
Quantity
1
4030010114
Screw ST3.9X25
4
2
3110010140
Gear housing
1
3
2020050031
E-ring
1
4
4020080032
Bearing
1
5
2030020177
O-ring
1
6
4100010003
Bearing support
1
7
3140130003
Ball bearing 608-2Z
1
8
4010020005
Baffle
1
9
2030200004
Needle bearing
1
10
4010010055
Fork
1
11
2040290048
Ball bearing 6001-2RS
1
12
4100050001
Inner ring
1
13
4010050002
Rubber washer
1
14
3140020049
Output shaft
1
15
2020130027
Washer
1
16
4010010036
Bolt
1
17
3120010050
Level knob
1
18
3150050047
Switch level
1
19
1020210004
Rotor
1
20
3120110040
Stator
1
21
1010210004
Carbon brush assembly
2
22
1230010059
Brush holder
2
23
2030070001
Brush holder support
2
24
3150060005
Ball bearing 607-2Z
1
25
4010010035
Motor housing
1
26
1061150016
Cord guard
1
27
3150160117
Hex key
1
28
1130080009
Power cord
1
29
4030010026
Switch
1
30
3011210004
Switch support
1
31
3140060014
PCB
2
32
4060090009
Rubber cap
2
33
3140010032
Handle cover
1
34
1190030008
Screw ST3.9X19
4
PARTS LIST
!

20
30-Day Limited Warranty
This product is warranted for 30 days against any defects in
material and workmanship. If defective; the product will be
replaced free of charge. Simply provide proof of purchase and
return the tool to your place of purchase. Normal wear or
damage due to abuse, mishandling, or unauthorized repair is
not covered. This warranty does not apply to accessories. This
warranty gives you specific legal rights and you may have other
rights which vary from state to state.
Rev 1.4 09/08/2013
