Instruction Manual
BM09 DS PAS T for BMW

GU Electronic
Specifications
1. Main Spec./Feature ---------------------------
2. Diagram----------------------------------------
3. Components-----------------------------------
4. Exterior ----------------------------------------
Settings
1. Dip Switch -------------------------------------
2. OEM button------------------------------------
3. Key board -------------------------------------
4. OSD Menu-------------------------------------
Installation
1. Diagram ---------------------------------------
2. Installation ------------------------------------
Caution
1. FAQ --------------------------------------------
2. Caution ----------------------------------------
2
3
4
5
6
7
8
12
12
22
22
20
21
INDEX

GU Electronic
Specification
1. Main Spec.
1-1 Input Spec. (MULTI VIDEO INTERFACE)
- 1 x Analog RGB Input (MHL to RGB System output)
- 1 x Analog RGB Input (Navigation System output)
- 2 x A/V Input (External video source)
- 1 x CVBS(FRONT CAMERA) Input. (Front camera source)
- 1 x CVBS(REAR CAMERA) Input. (Rear camera source)
- 1 x LVDS Input (Car command system)
1-2 Output Spec.
- 2 x CVBS Output (Video out for Installing Headrest Monitor)
- 1 x Audio L/R Output.
- 1 x LCD Output (LCD Operation)
1-3 Power Spec.
- Input Power : 8VDC ~ 24VDC
- Consumption Power : 12Watt, Max
1-4 Switching mode
- Possible to switch input mode by OEM button
2. Features
- No need to cut any OEM wires (Providing Plug&Play cable)
- Possible to register IR code of DVD/DTV
- Parking PIP function
- Display dynamic PAS (Parking assistance system) with PDC
3

GU Electronic

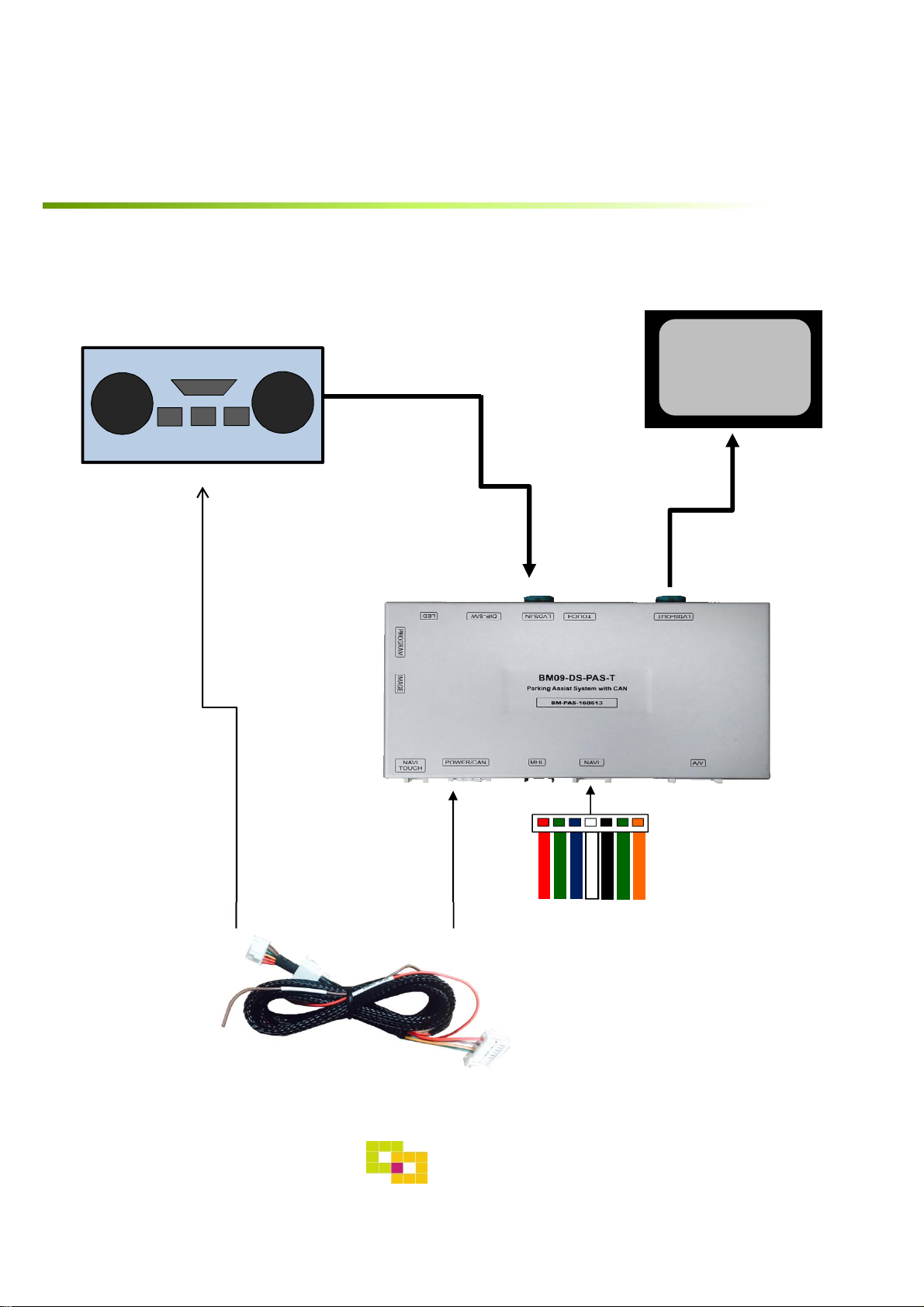

3. Diagram
4
Scaler
MCU
INTERFACE
CAR
COMMAND
SYSTEM LVDS
COMPOSITE
RGB
NAVIGATION
SYSTEM
CVBS1
CVBS2
EEPROM
FRONT CAMERA
MUX
LVDS
TX
REAR CAMERA
MHL
RELAY
OEM Monitor
LVDS
RX
Specification

GU Electronic 5
LVDS Cable 1 EA
RGB Navi Cable(7pin) 1 EA
OSD Board 1 EA
Specification
Power Cable 1 EA
Touch Cable(KD-900) 1 EA
Touch Cable 1 EA

125mm
22mm
92mm
6

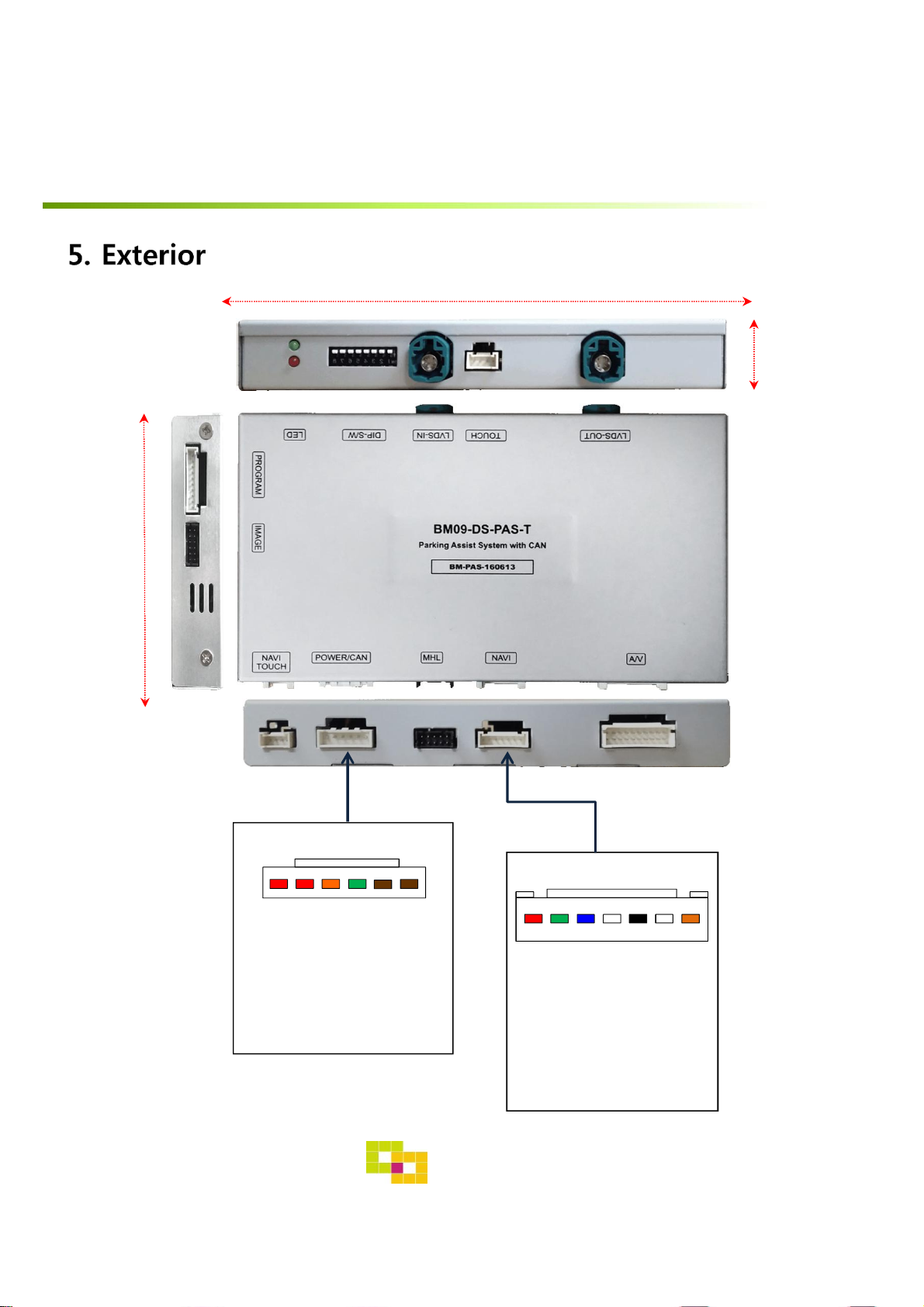

*NAVI Connect
① R DATA (Red)
② G DATA (Green)
③ B DATA (Blue)
④ SYNC (White)
⑤ GND (Black)
⑥ DMB IR (Green）
⑦ DVD IR (Orange)
①②③④⑤⑥⑦
*POWER Connect
① ACC (Red)
② REAR_POWER (Red)
③ CAN-HIGH (Orange)
④ CAN-LOW (Green)
⑤ REAR-DETECT(Brown)
⑥ GND(Brown)
①②③④⑤⑥
Specification
GU Electronic

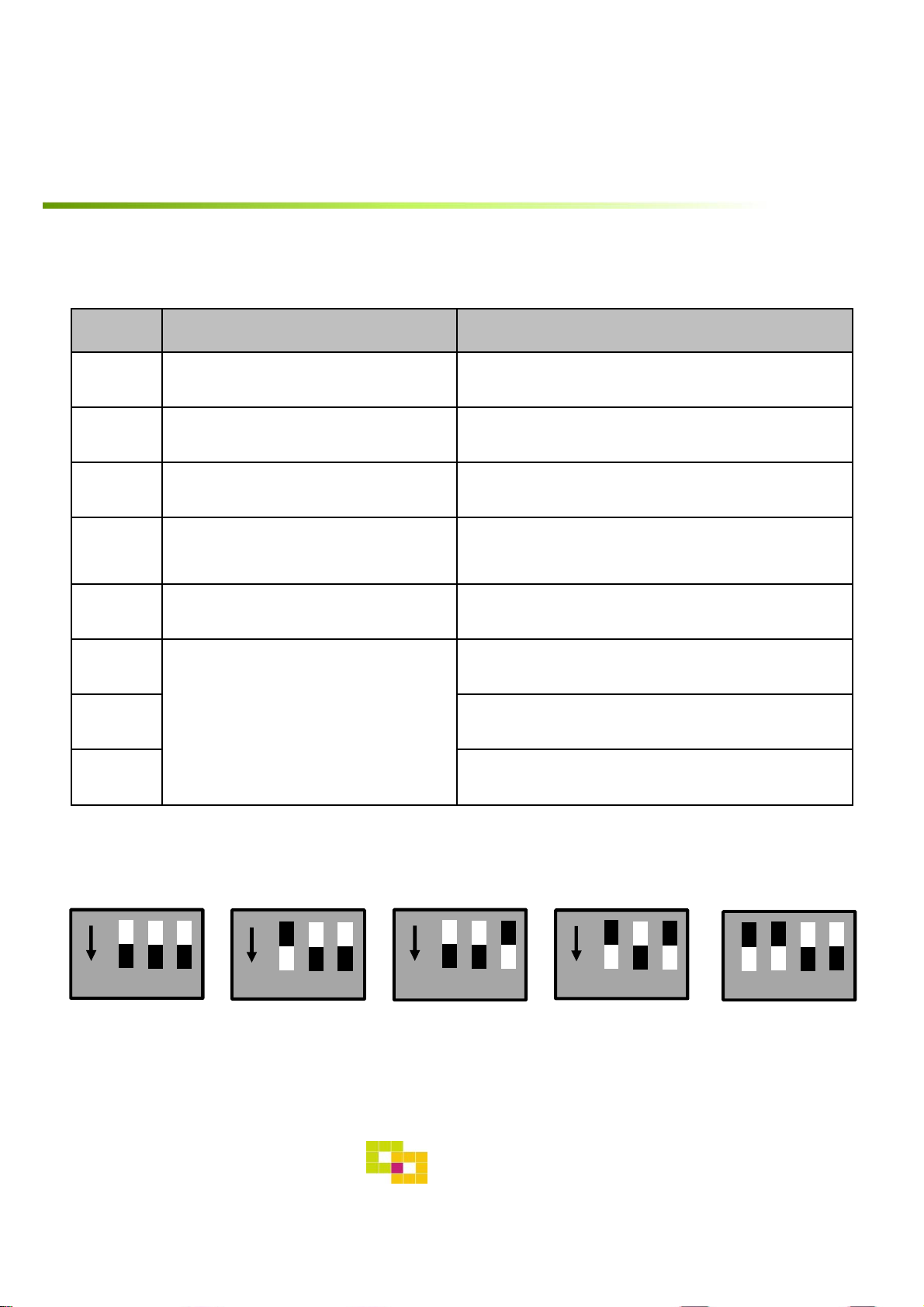

1. Dip Switch
* ON : DOWN , OFF : UP
NO. Function Selection
1 NAVI ON : Skip
OFF : Display
2 DVB-T ON : Skip
OFF : Display
3 DVD ON : Skip
OFF : Display
4 MHL(RESERVE) ON : Skip
OFF : Display
5 NC
6
Car model
E90 8.8” , MINI 7”
7
8 F10 7” , MINI 7”
* Example
7
ON 6 7 8 ON 6 7 8
ON 6 7 8 ON 6 7 8
MINI 7”
F10 10.25” F10 7”
E90 8.8”
Settings
GU Electronic
5 6 7 8
※8.8”
※Please set the dip s/w as ‘8.8”’ when the rear screen in PIP mode appears
red color.

-Switching
①: Press long -> Switching mode
Press short-> Switching to OEM directly
- PIP function
②: Press long to activate PIP function
8
NAVIOEM AV1 AV2
[External picture] [External+OEM] [OEM+External]
①
②
<Steering wheel><Jog shuttle> <Car Audio Button>
①
①
Settings
GU Electronic
2. OEM button – Switching, PIP function

9
⑥
②④⑤
① PUSH : Selection
Activating DVD/DTV menu
② Moving toward the left
③ Moving toward the right
④ Moving toward the left
⑤ Moving toward the right
⑥ Moving up
⑦ Moving down
PUSH
①
⑦
③
Settings
GU Electronic

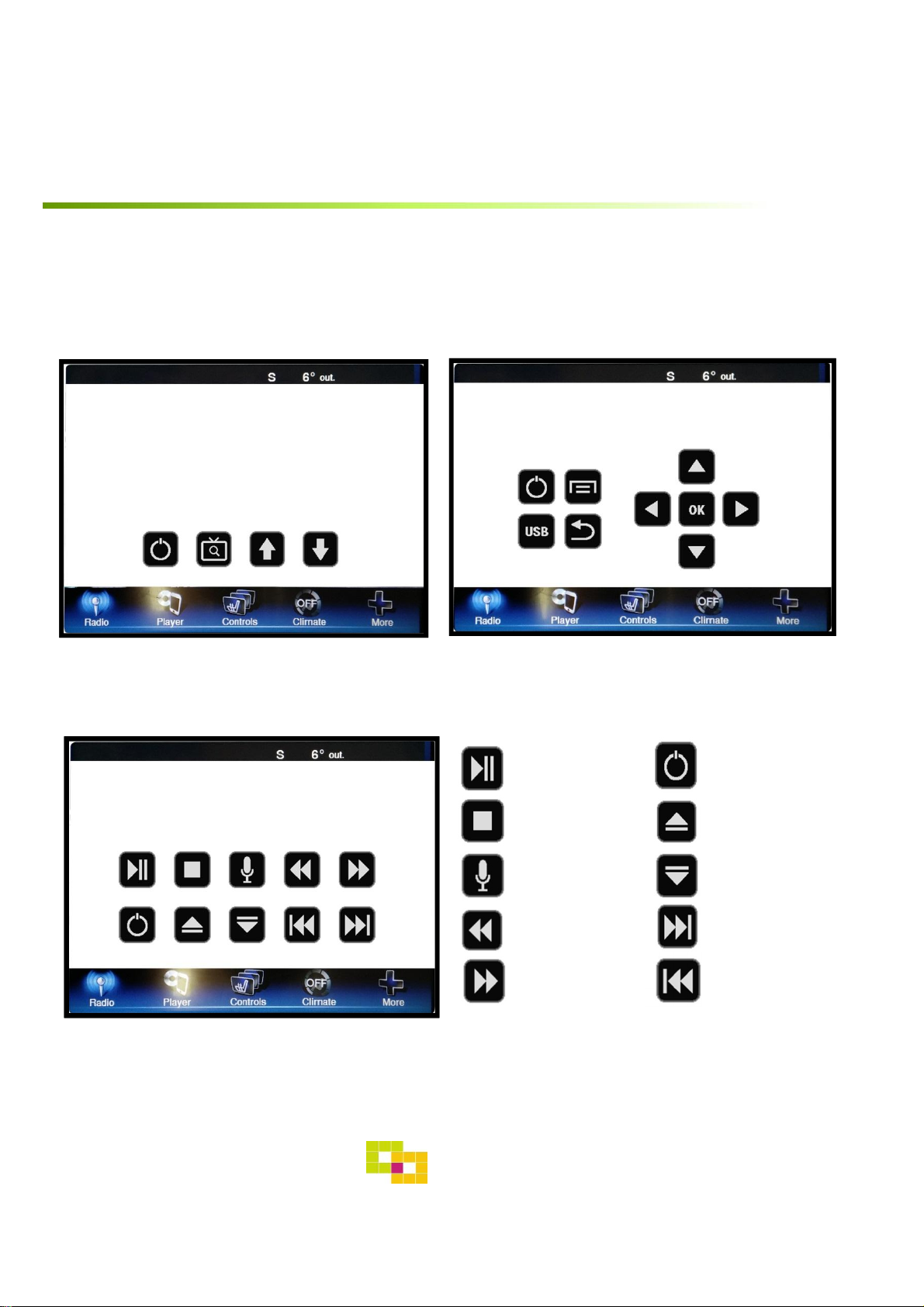

2. OEM button –Direction for Controlling DVB-T, DVD

10
[Type -1] [Type -2]
•DVD
[POWER][SCAN] [Ch+] [Ch-]
[POEWER][MENU]
[RETURN][USB]
[stop]
[Play/Pause]
[Audio]
•DTV (Select the type of I-con)
[FR]
[FF]
[Ch+]
[Ch-]
[Right]
[Left]
[POWER]
[DISC UP]
[DISC DOWN]
[Play next
chapter]
[Play previous
chapter]
Settings
GU Electronic
※ To use this function It is necessary to offer the remote IR code to manufacturer or
setting OSD IR – Ctrl（P. 19）
2. OEM button - DVB-T, DVD Menu
*Control the menu below by OEM button

OPTION : Press long(6sec) - Activating OSD menu
Press short - Exit
① PUSH : Selection
② Moving up, Increasing value
③ Moving down, Decreasing value
④ Moving from third menu to first menu in order
⑤ Moving from first menu to third menu in order
⑥ Moving up, Increasing value
⑦ Moving down, Decreasing value
Mode state
Second menu Third menu
11
2. OEM button – OSD Menu
First menu
⑥
②④⑤
PUSH
①
⑦
③
First menu
Settings
GU Electronic

Settings
① MENU : Activating OSD Menu
② SEL : Selection
③ Up : Moving upward / increasing value
④ Down : Moving downward / decreasing value
MENU SEL UP DOWN
①②③ ④
12

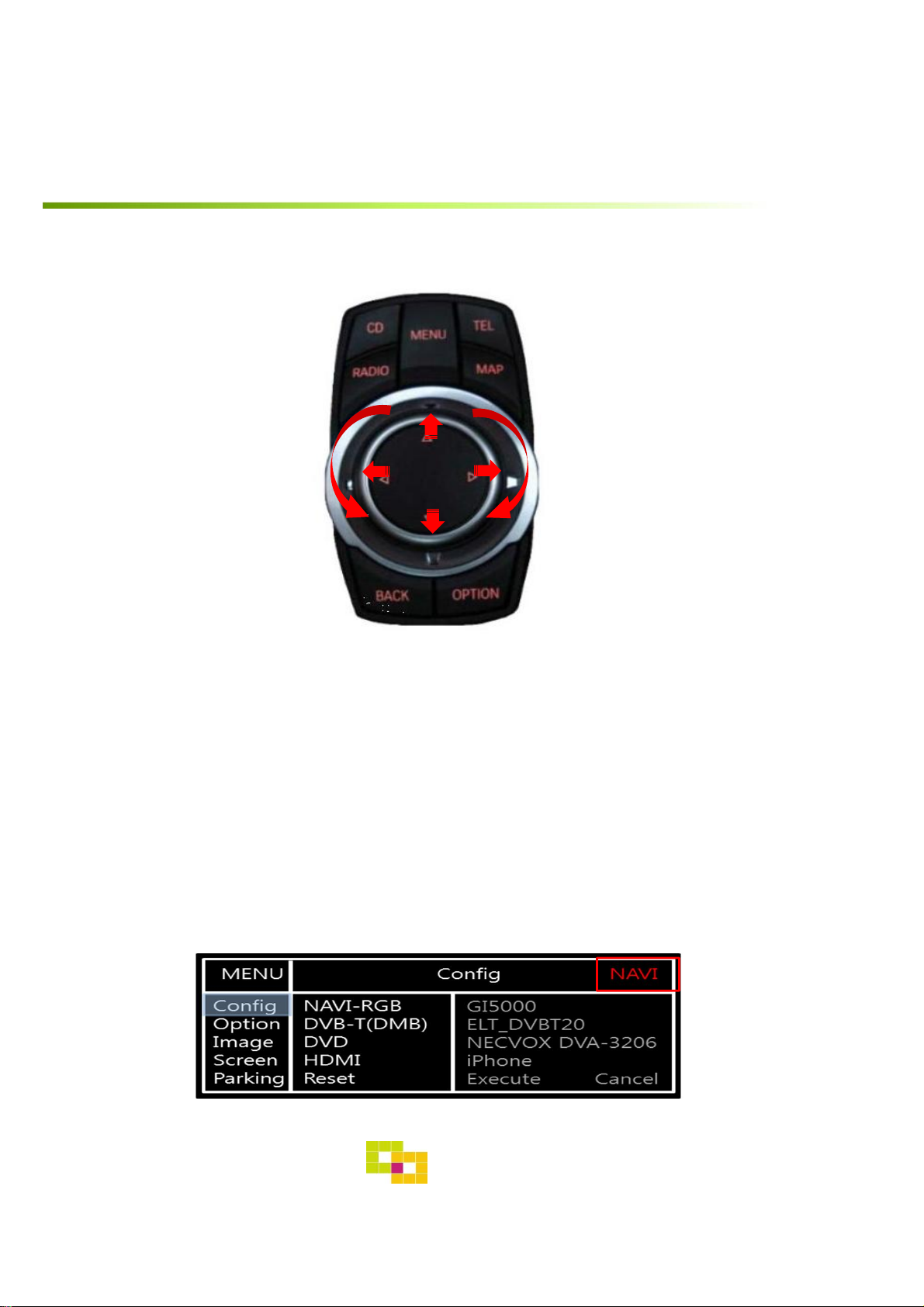

Config - NAVI-RGB : Setup for the type of RGB
Config - DVB-T(DMB) : Setup for the type of DVB-T(DMB)
Config - DVD : Setup for the type of DVD
Config - MHL : Setup for the type of MHL
Reset : Reset all value
GU Electronic
4. OSD Menu
※Press “MENU” button on Key board
3. OSD Key board

13
Settings
Option
•RearCam-Type : Setup for rear camera
ExtDevice - External rear camera
OEM - Original camera
•RearCam-Power : Setup for Rear VCC wire in power cable
ON - +12V out always (current consumption : 200mA)
AUTO - +12V out in rear mode only (200mA)
OFF - Power OFF
•RearCam-Det : Setup for Rear detection
PDC, GEAR : by CAN wire
Ext Wire : by 12V wire
Setting to display screen when switching to the D gear from the R gear (Refer to P.13)
PDC : OEM type - When switching to the D gear from the R gear , press
the activated “P“ button or driving up 20km to display AV/RGB/OEM screen
GEAR : Normal type -
When switching to the D gear from the R gear, The
AV/RGB/OEM screen is display right away
•FrontCam-Type : Setup for front camera
ExtDevice - External rear camera
OEM - Original camera
•RearCam-RcvOpt : The time of displaying front camera
OEM
NAVI
AV1(DVB-T)
AV2(DVD)
REAR FRONT
OEM
NAVI
AV1(DVB-T)
AV2(DVD)
1~30 second
Select time of display
GU Electronic
4. OSD Menu
※Press “MENU” button on Key board

14
Option
•AV out : Setup for the external AV out in OEM screen
AV1 : AV1’s AV comes out in OEM screen
AV2 : AV2’s AV comes out in OEM screen
USER : select one of AV out

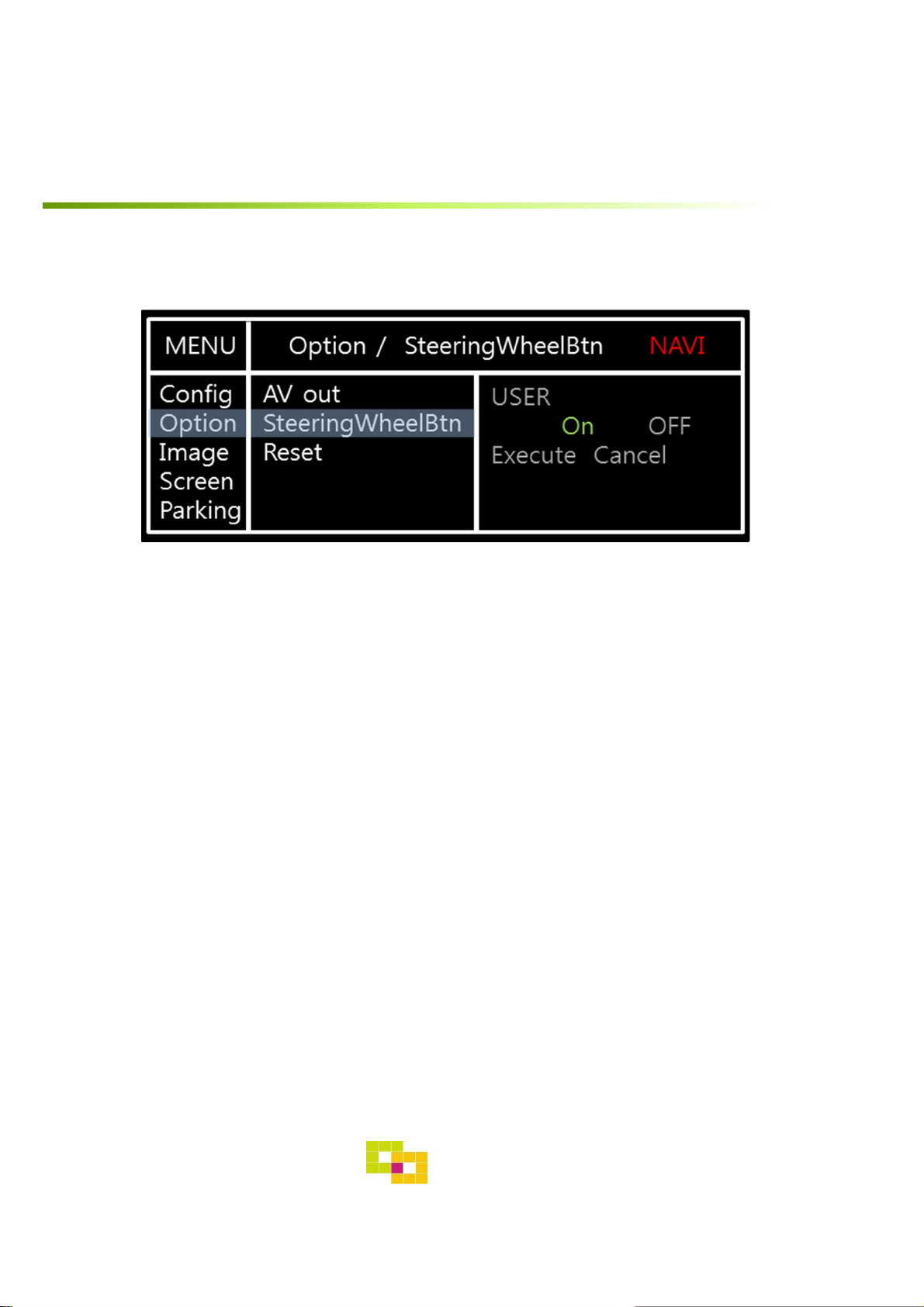

•SteeringWheelBtn : Setting Handle wheel button - ON or OFF
Settings
GU Electronic
4. OSD Menu
※Press “MENU” button on Key board

15
MENU IMAGE NAVI
Config
Option
Screen
Parking
Brightness
Contrast
Color- RED
Color- GREEN
Color- BLUE
50
50
50
50
25
MENU Screen NAVI
Config
Option
Screen
Parking
Horizontal
Vertical
Scale X Up
Scale X Down
Scale X Up
50
50
50
50
50
MENU IMAGE Rear
Config
Option
Screen
Parking
Brightness
Contrast
Saturation
Hue
Sharpness
50
50
50
50
25
- NAVI(RGB) Image / Screen
- DVD, DVBT, NAVI-AV, REAR, FRONT Image
GU Electronic
Settings
4. OSD Menu
※Press “MENU” button on Key board

- Parking line ON/OFF
Select a use of parking line
(OSD Menu – Parking – Line display – ON
or OFF)
Packing line - ON
※ PIP function: Press
Settings
E90, F01
(7 kinds)
F10
(3 kinds)
7”
(3 kinds)
GU Electronic
4. OSD Menu – Parking Line
※Press “MENU” button on Key board

17
Settings
- Language
Selecting a type of language
(OSD Menu – Parking – Warning lang)
MENU SEL UP DOWN
- Adjusting the position of guide line
GU Electronic
4. OSD Menu – Parking Line
※Press “MENU” button on Key board
Gear
1. OEM type : When switching to the D gear from the R gear ,
Press the activated “P“ button or driving up 20km
to display AV/RGB/OEM screen
2. Normal type : When switching to the D gear from the R gear,
The AV/RGB/OEM screen is display right away
-Setting to display screen when switching to the D gear from the R gear(p.13)
Possible to adjust the position of line
by Keypad in Horizontal / Vertical menu
※ Pressing this Horizontal / Vertical menu,
The OSD screen automatically disappears.
Please adjust from the parking line Screen.
Left Right Down
Up

18
- OSD
•OSD – Horizontal
•OSD – Vertical
•OSD – Display : Setting time for displaying OSD menu
•OSD – Transparency
•OSD – Language : Setting language of ODS menu
MENU Horizontal
OSD
IR-Ctrl
Utility
Horizontal
Vertical
Display
Transparency
Language English
50
50
10s
30
- IR – Ctrl (Refer to p.19)
- Utility
MENU Utility
OSD
IR-Ctrl
Utility
Factory Reset
Version
Execute Cancel
AD4P52KRX - 160509
•Utilityy– Software version
4. OSD Menu
※Press “MENU” button on Key board
Settings
GU Electronic

19
MENU DVB-T(DMB) DVD
OSD
IR-Ctrl
Utility
DVB- T
DVD
DVR
Sel Learn Cancel
User
Sys
MENU DVB-T(DMB) DVD
OSD
IR-Ctrl
Utility
ALL - Clear
POWER
SCAN
CH+
CH-
____ _____
____ _____
____ _____
____ _____
MENU DVB-T(DMB) DVD
OSD
IR-Ctrl
Utility
New Code :
Cfm Code :
____ _____
____ _____
Save Clr Cancel
① Select IR Ctrl à
DVB/DVD/DVR àLearn to
register IR code
② All Clear : Remove all value of
Remote control registered before
Select one of the buttons
registering to move on to next
step
③ Press a button on the remote
control of DVD/DTV then the IR
code will appear on “New code”
menu. Press the same button one
more time to confirm the IR code.
(Cfm code = confirm code)
4. OSD Menu – Register IR code
※Press “MENU” button on Key board
※ Caution
•Delete :
ALL Clear – Delete all value
Clr – Delete one button’s Value
•Play/Pause：
To use button, Please register
the IR code in power / Pause menu
separately
Settings
GU Electronic

20
MONITOR
COMMAND
LVDS IN cable
OEM cable
DVD IR DMB IR GND SYNC BLUE GREEN RED
Installation
1. Installation Diagram
