GUILCOR AR003826 User manual

www.guilcorcom
Web Sensor AR003826 with PoE
Web Sensor AR005075 with PoE
Web Sensor AR003827 with PoE
USER GUIDE

2
©Copyright:
Is prohibited to copy and make any changes in this manual, without explicit agreement of
company Guilcor. All rights reserved.
Manufacturer is not responsible for damages caused by using the device in conflict with
this manual. To damages caused by using the device in conflict with this manual
cannot be provide free repairs during the warranty period.
Revision history
This manual describes devices with latest firmware version according the table below.
Older version of manual can be obtained from a technical support.
Document version
Date of issue
Firmware version
Note
IE-SNC-P86xx-01
2011-06-13
4-5-1-22
Latest revision of manual for an old generation
of firmware for P86xx devices.
IE-SNC-P86xx-04
2014-02-20
4-5-5-x
4-5-6-0
Initial revision of manual for new generation of
P86xx firmware.
IE-SNC-P86xx-05
2015-03-13
4-5-7-0
IE-SNC-P86xx-06
2015-09-25
4-5-8-0
IE-SNC-P86xx-07
2017-10-26
4-5-8-1

3
Table of contents
Introduction........................................................................................................................................................4
General safety rules .....................................................................................................................................4
Device description and important notices...............................................................................................5
Getting started....................................................................................................................................................6
What is needed for operation ....................................................................................................................6
Mounting the device....................................................................................................................................6
Device settings .............................................................................................................................................8
Checking functions......................................................................................................................................9
Device setup .....................................................................................................................................................10
Setup using web interface.........................................................................................................................10
Setup using TSensor software .................................................................................................................17
Factory defaults..........................................................................................................................................18
Communication protocols .............................................................................................................................20
Website........................................................................................................................................................20
SMTP –sending e-mails...........................................................................................................................20
SNMP ..........................................................................................................................................................21
Modbus TCP ..............................................................................................................................................22
SOAP...........................................................................................................................................................24
Syslog...........................................................................................................................................................25
SNTP ...........................................................................................................................................................25
Software development kit.........................................................................................................................25
Troubleshooting...............................................................................................................................................26
I forgot the device IP address..................................................................................................................26
I cannot connect to the device ................................................................................................................26
Error or n/a is displayed instead the measured value .........................................................................27
I forgot the password for setup...............................................................................................................27
Factory defaults..........................................................................................................................................28
Technical specifications..................................................................................................................................29
Dimensions.................................................................................................................................................29
Basic parameters ........................................................................................................................................30
Operating terms .........................................................................................................................................32
End of operation .......................................................................................................................................33
Technical support and service .................................................................................................................33
Preventive maintenance............................................................................................................................33
Optional accessories........................................................................................................................................34

4
Introduction
This chapter provides basic information about device. Before starting please read
this manual carefully.
Thermometer Web Sensor AR003826, Web Sensor AR005075 and Web Sensor AR003827
are designed to measure temperature or relative humidity. Temperature can be displayed
in °C or °F. Relative humidity have unit %RH. Communication with the device is realized
via Ethernet network. Device can be powered from external power supply adapter or by
using power over Ethernet –PoE.
Thermometer Web Sensor AR003826 has compact design and measures the temperature in
place of installation. To Web Sensor AR005075 is possible connect one probe. Web
Sensor AR003827 supports up to four probes. Temperature or humidity probes are
available as optional accessories.
General safety rules
The following summary is used to reduce the risk of injury or damage the device.
To prevent injury, please follow instructions in this manual.
The device can be services only by a qualified person. The device contains no
serviceable parts inside.
Don’t use the device, if it doesn’t work correctly. If you think, that the device is
not working correctly, let check it by qualified service person.
Don’t disassemble the device. It’s forbidden to use the device without the cover. Inside the
device can be a dangerous voltage and may be risk of electric shock.
Use only the appropriate power supply adapter according to manufacturer specifications and
approved according to relevant standards. Make sure, that the adapter does not have
damaged cables or covers.
Connect the device only to network parts approved according to relevant standards. Where
power over Ethernet is used, the network infrastructure must be compatible with IEEE
802.3af standard.
Connect and disconnect the device properly. Don’t connect or disconnect Ethernet cable or
probes, if the device is powered.
Chapter
1

5
The device may be installed only in prescribed areas. Never expose the device to higher or
lower temperatures than is allowed. The device has not improved resistance to moisture.
Protect it from dripping or splashing water and do not use at areas with condensation.
Don’t use device in explosive environments.
Don’t stress the device mechanically.
Device description and important notices
This chapter contains information about basic features. Also there are important
notices concerning to functional safety.
Values from the device can be read using an Ethernet connection. The following formats are
supported:
Web pages
Current values in XML and JSON format
Modbus TCP protocol
SNMPv1 protocol
SOAP protocol
The device can also be used to check measured values and if the limit is exceeded, device
sends warning messages. Possible ways to sending warning messages:
Sending e-mails up to 3 e-mail addresses
Sending SNMP traps up to 3 configurable IP addresses
Displaying the alarm status on web page
Sending messages to Syslog server
The device setup can be made by the TSensor software or web interface. TSensor software
can be free downloaded from the manufacturer’s website. Latest firmware can be obtained
from the technical support. Do not upload to your device firmware which is not designed
for it. Unsupported firmware can damage your device.
If you want to use PoE, you must use PoE switch compatible with IEEE 802.3af standard.
Reliability of warning messages delivering (e-mail, trap, syslog), depends on
actual availability of necessary network services. The device should not be used
for critical applications, where malfunction could cause to injury or loss of
human life. For highly reliable systems, redundancy is essential. For more
information please see standard IEC 61508 and IEC 61511.
Never connect the device directly to the Internet. If it is necessary connect the
device to the Internet, properly configured firewall must be used. Firewall can
be partially replaced with the NAT.

6
Getting started
Here you can find information necessary to put newly purchased equipment to
operation. This procedure is only informative.
What is needed for operation
To install the unit you need to the following equipment. Before installation check if it’s
available.
•thermometer Web Sensor AR003826, Web Sensor AR005075 or AR003827
•power supply adapter 5V/250mA or switch with PoE. Before using the device
is necessary to decide which way of powering will be used.
•RJ45 LAN connection with appropriate cable
•free IP address in your network
•for Web Sensor AR003827 up to 4 temperatures probes type
DSTR162/C, DSTGL40/C, DSTG8/C or relative humidity probe DSRH.
Web Sensor AR005075 supports one probe.
Mounting the device
check if the equipment from previous chapter are available
install the latest version of TSensor software. This software is used to all device
settings. TSensor software can be free downloaded from the manufacturer’s
website. Software can be also supplied on CD. Device configuration can be
made using web interface. For web configuration is not TSensor software
necessary.
contact your network administrator to obtain following information for the
connection to the network:
Chapter
2

7
IP address:
_____._____._____._____
Gateway:
_____._____._____._____
DNS server IP:
_____._____._____._____
Netmask:
_____._____._____._____
•check if there is no IP address conflict when you connect the device into
network for the first time. The device has from factory set the IP address to
192.168.1.213. This address must be changed according to informations from
the previous step. When you installing several new devices, connect them to the
network one after another.
•connect probes to Web Sensor AR005075 or Web Sensor AR003827
•connect the Ethernet connector
•if the power over Ethernet (PoE) is not used, connect the power adapter
5V/250mA
•LEDs on LAN connector should blink after connecting the power
Web Sensor AR003826 connection (power supply adapter, Power over Ethernet):
Web Sensor AR005075 and AR003827 connection (power supply adapter, Power over Ethernet):

8
Device settings
run configuration software TSensor on your PC
switch to an Ethernet communication interface
press button Find device...
the window shows all available devices on your network
click to Change IP address to set new address according to network
administrator instructions. If your device is not listed, then click Help! My
device wasn’t found! Then follow the instructions. MAC address is on
product label. The device is factory set to IP 192.168.1.213.
gateway may not be entered if you want to use the device only in local network.
If you set the same IP address which is already used, the device will not work

9
correctly and there will be collisions on the network. If the device detects a
collision of IP address then reboot is performed automatically.
•after changing IP address device is restarted and new IP address is assigned.
Restart of the device takes about 10 seconds.
•connect to device using TSensor software and check the measured values. If
Web Sensors AR005075 and AR003827 values are not displayed, it’s
necessary to find probes using button Search probes (Find probes).
•set the other parameters (alarm limits, SMTP server, etc.). Settings are saved
after click on button Save changes.
Checking functions
The last step is to check measured values on the device website. In the address bar of the
web browser, enter the device IP address. If the default IP address was not changed, then
insert http://192.168.1.213.
Displayed web page lists actual measured values. If the web pages are disabled, you can see
text Access denied. If the measured value exceeds the measurement range or probe is not
correctly installed, then is shown Error message. If the channel is switched off, the web site
displayed n/a instead of the value.

10
Device setup
This chapter describes basic device configuration. There is a description of settings
using web interface.

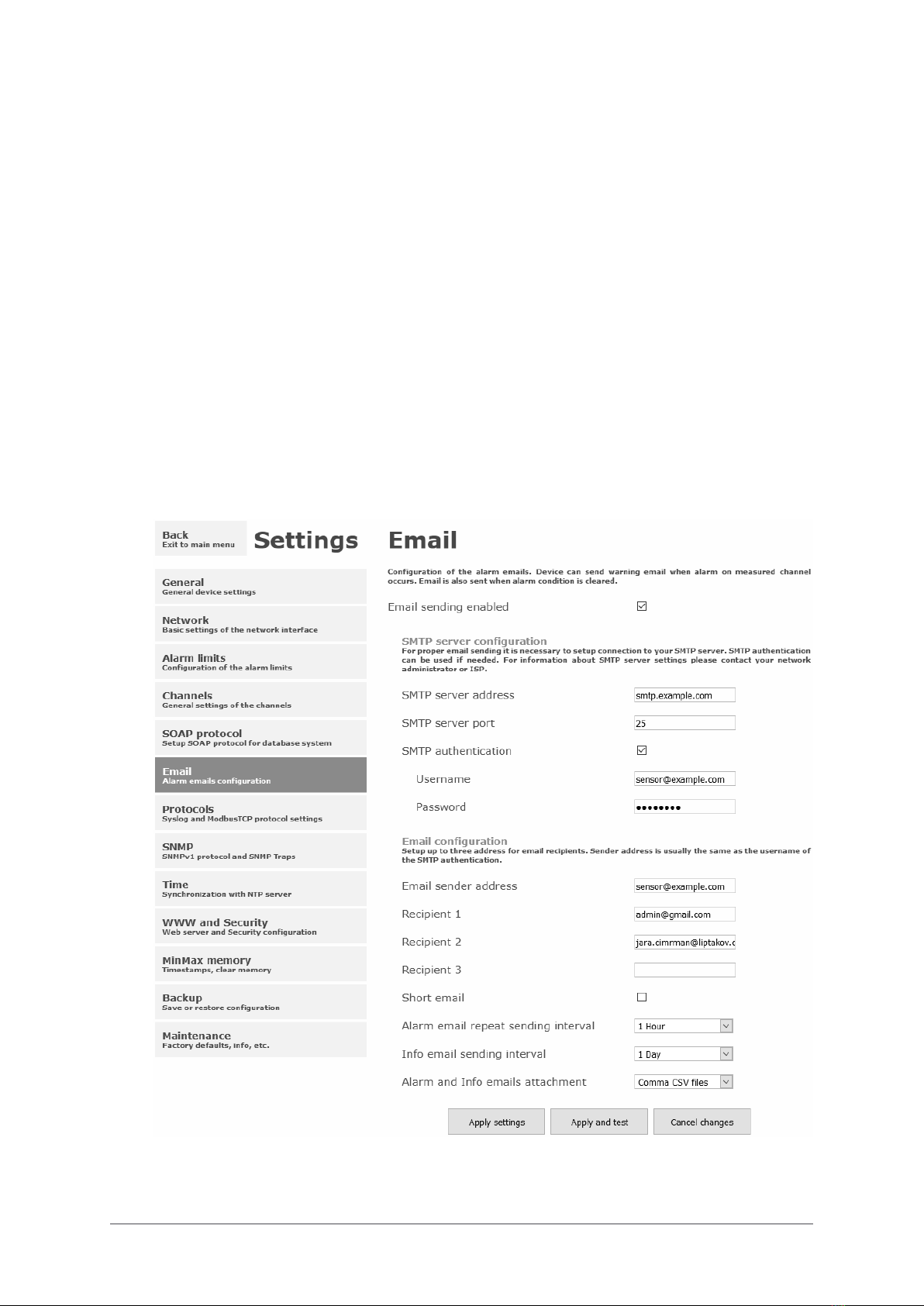

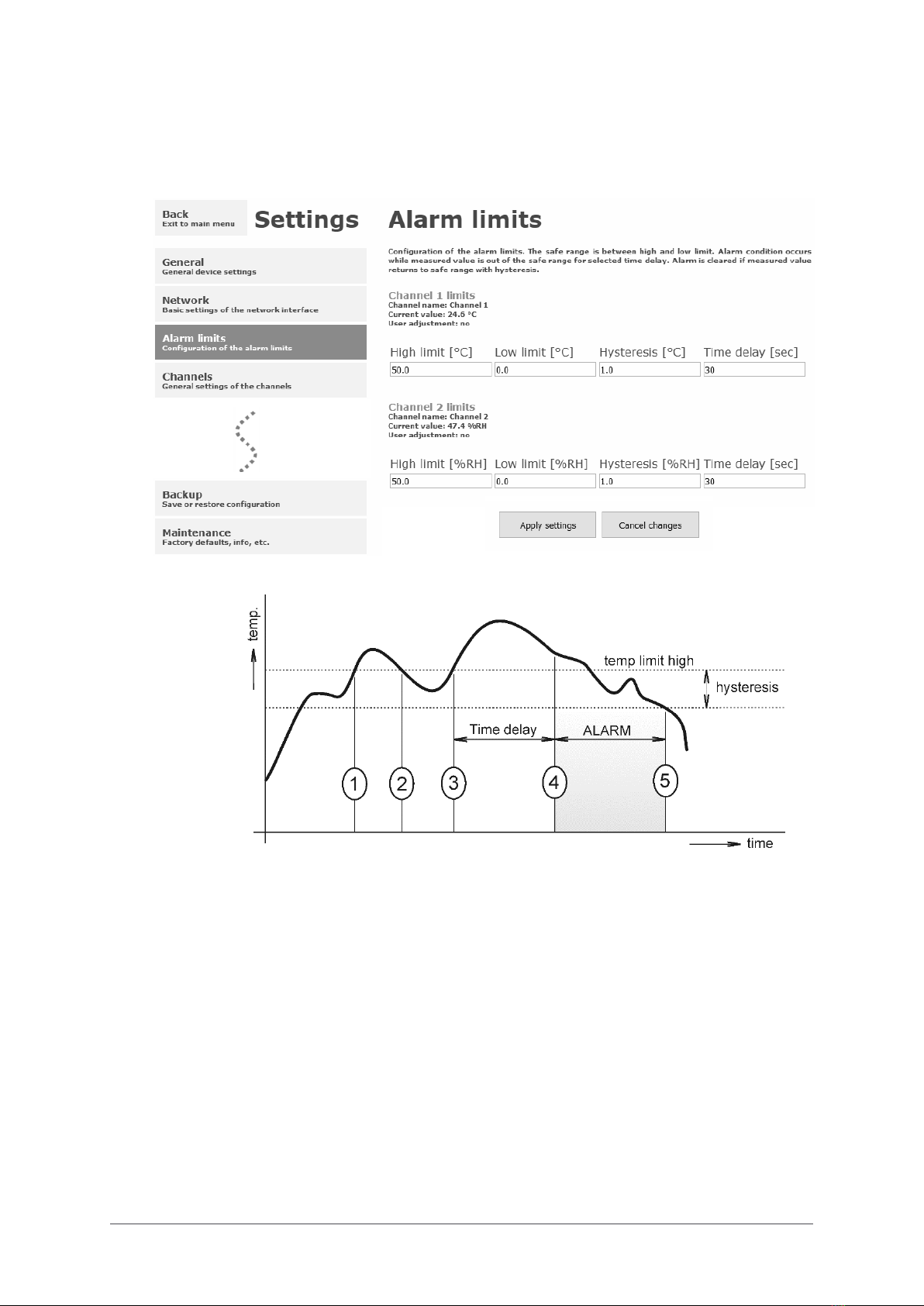

Setup using web interface
Device can be setup using web interface or TSensor software. Web interface can be managed
by the web browser. Main page will be shown when you insert device address into address

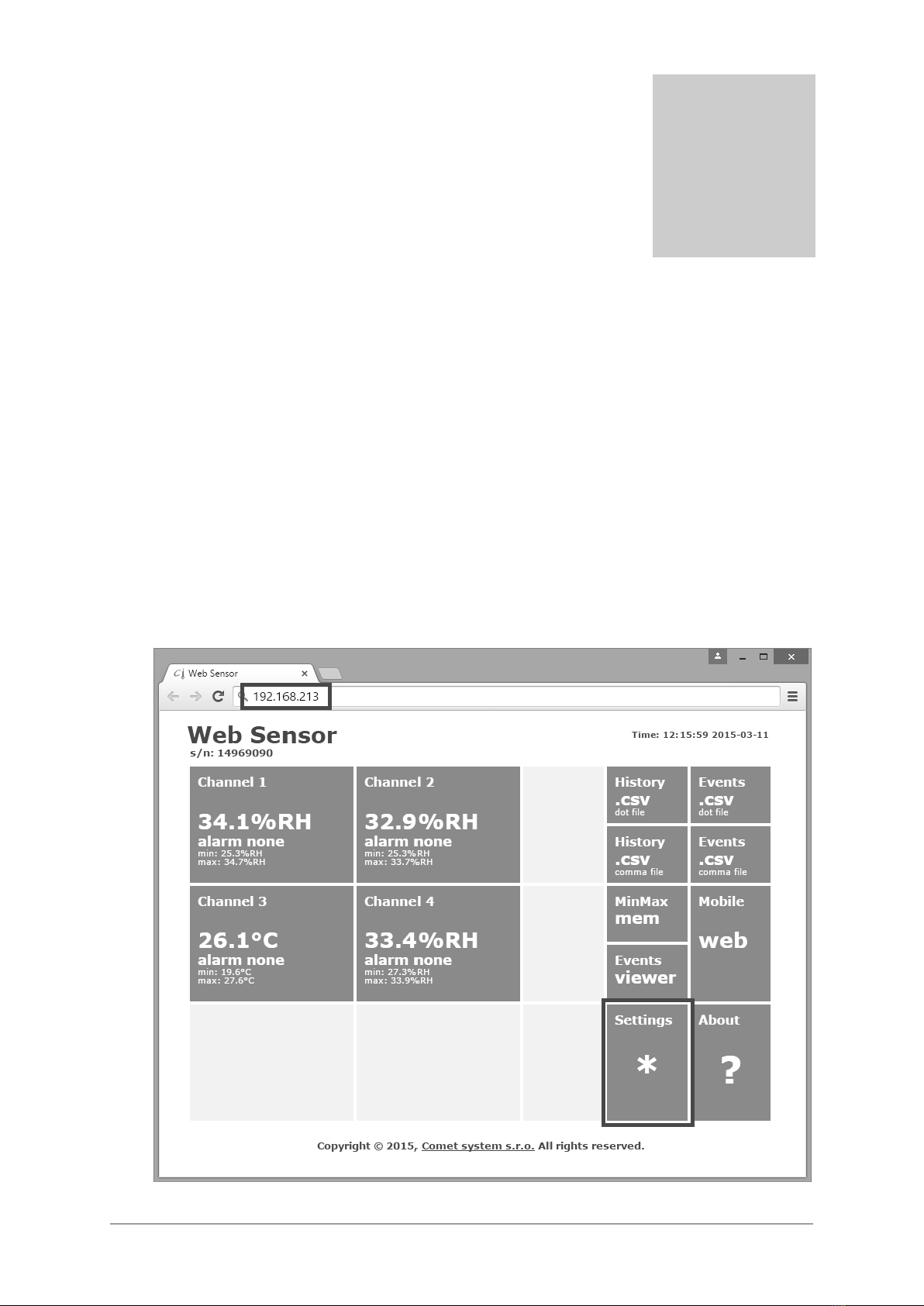

bar of your web browser. There you find actual measured values. Page with history graphs is
shown when you click to tile with actual values. Access to device setup is possible via tile
Settings.
Chapter
3
