Günter & Hauer
Instruction manual
Cooker hood
ATALA
1060 GL/GLW 1075 GL/GLW 1090 GL/GLW

Content
Safety instructions…………………………..4
Installation…………………………………..7
Start using your cooker hood………………..9
Troubleshooting…………………………….11
Maintenance and cleaning………………….12
Environmental protection…………………..16

Safety Instructions s
This manual explains the proper installation and use of your cooker hood, please
read it carefully before using even if you are familiar with the product. The manual
should be kept in a safe place for future reference

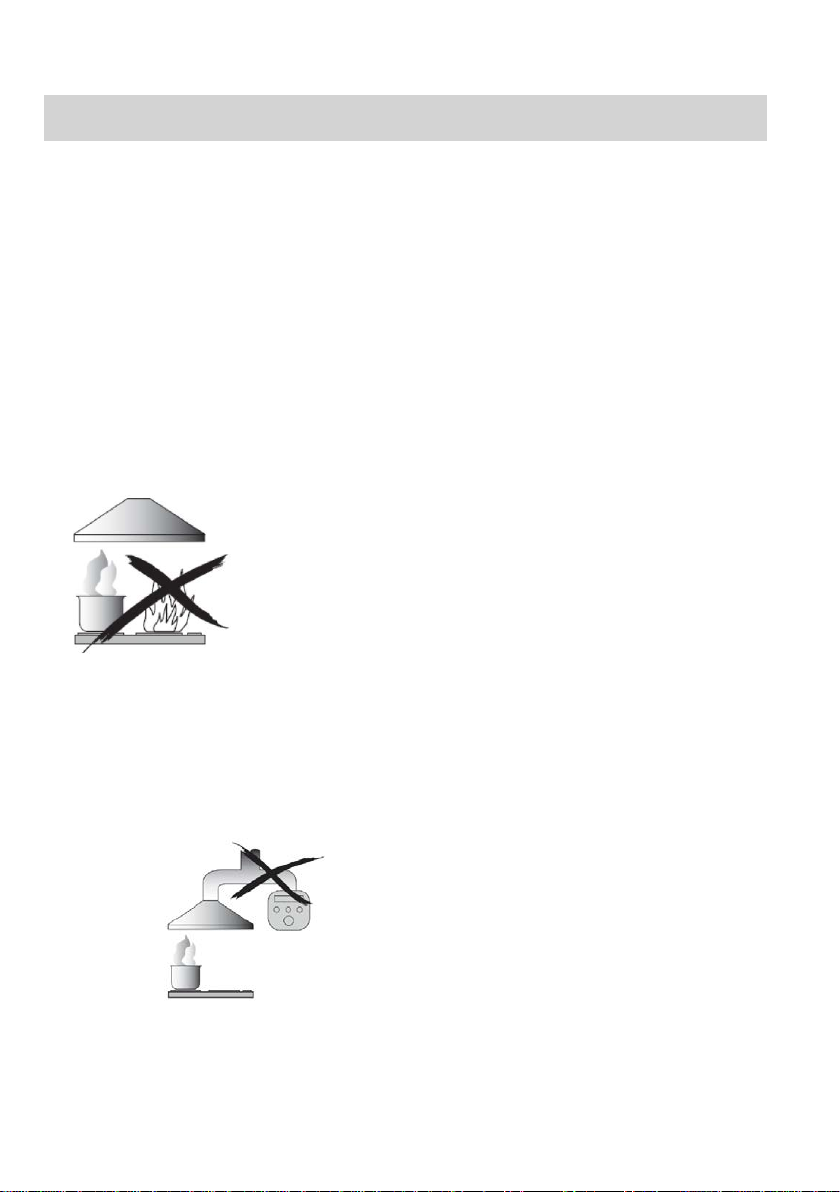

Never to do:
●Do not try to use the cooker hood without the grease filters or if the filters
are excessively greasy!
●Do not install above a cooker with a high level grill.
●Do not leave frying pans unattended during use because overheated fats
or oils might catch fire.
●Never leave naked flames under the cooker hood.
●Do not flambé under the cooker hood.
●CAUTION: Accessible parts may
become hot when used with cooking
appliances.
●The minimum distance between the
supporting surface for the cooking vessels
on the hob and the lowest part of the cooker hood. (When the cooker hood
is located above a gas appliance, this distance shall be at least 65 cm)
●The air must not be discharged into a flue that is used for exhausting fumes
from appliances burning gas or other fuels.
4

Always to do:
●Important! Always switch off the electricity supply at the mains during
installation and maintenance such as light bulb replacement.
●The cooker hood must be installed in accordance with the installation
instructions and all measurements followed.
●All installation work must be carried out by a competent person or
qualified electrician.
●Please dispose of the packing material carefully. Children are vulnerable
to it.
●Pay attention to the sharp edges inside the cooker hood especially during
installation and cleaning.
●Make sure the ducting has no bends sharper than 90 degrees as this will
reduce the efficiency of the cooker hood.
●Warning: Failure to install the screws or fixing device in accordance with
these instructions may result in electrical hazards
●If the cooker hood is damaged, do not attempt to use.
Warning: Before obtaining access to terminals, all supply circuits must be
disconnected.
Always to do:
●Always put lids on pots and pans when cooking on a gas cooker.
●When in extraction mode, air in the room is being removed by the cooker
hood. Please make sure that proper ventilation measures are being
observed. The cooker hood removes odours from room but not steam.
●Cooker hood is for domestic use only.
●If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
●This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance.
5

Cleaning and user maintenance shall not be made by
children without supervision.
Warning:Danger of fire: do not store items on the
cooking surfaces.
A steam cleaner is not to be used.
Always to do:
●Caution: The appliance and its accessible parts can become hot during
operation. Be careful to avoid touching the heating elements. Children
younger than 8 years old should stay away unless they are under
permanent supervision.
●There shall be adequate ventilation of the room when the cooker hood is
used at the same time as appliances burning gas or other fuels.
●There is a fire risk if cleaning is not carried out in accordance with the
instructions
●Regulations concerning the discharge of air have to be fulfilled.
●Clean your appliance periodically by following the method given in the
chapter MAINTENANCE.
●For safety reason, please use only the same size of fixing or mounting
screw which are recommended in this instruction manual.
●Regarding the details about the method and frequency of cleaning, please
refer to maintenance and cleaning section in the instruction manual.
●Cleaning and user maintenance shall not be made by children without
supervision.
●When the cooker hood and appliances supplied with energy other than
electricity are simultaneously in operation, the negative pressure in the
room must not exceed 4 Pa (4 x 10-5 bar).
NEVER try to extinguish a fire with water, but switch off the appliance and
then cover flame e.g. with a lid or a fire blanket.
6

Installation (Vent outside) j
1. The cooker hood should be placed at a distance of 65-75cm (26-
30inch) from the cooking surface for the best effect.
2. Drill a hole in the cabinet, with hole wide 500*275(mm) for 52CM,
730*275(mm) for model 75CM and 880*275(mm) for model
90CM.Refer to Pic 1. Make sure the hole edge to the cupboard edge
at least 35mm distance.
3. Unscrew the 4 screws on the outer glass frame panel by screwdriver,
pull out the light wire, take down the outer glass frame panel, see Pic
2.
7

4. Put the hood into the
cabinet, tighten up the screws by screwdriver, and make sure the hood
was fixed. Pic 3.
5. Connect the light wire and assemble the outer glass frame panel by
screw.
6. Install the outlet and expansion pipe: install the outlet on the cooker
hood, then cover the expansion pipe on the outlet and lead it to
outdoor.
WARNING:
For safety reason, please use only
the same size of fixing or mounting
screw which are recommended in
this instruction manual.
Failure to install the screws or fixing
device in accordance with these
instructions may result in electrical
hazards.
8

Start using your cooker hood s

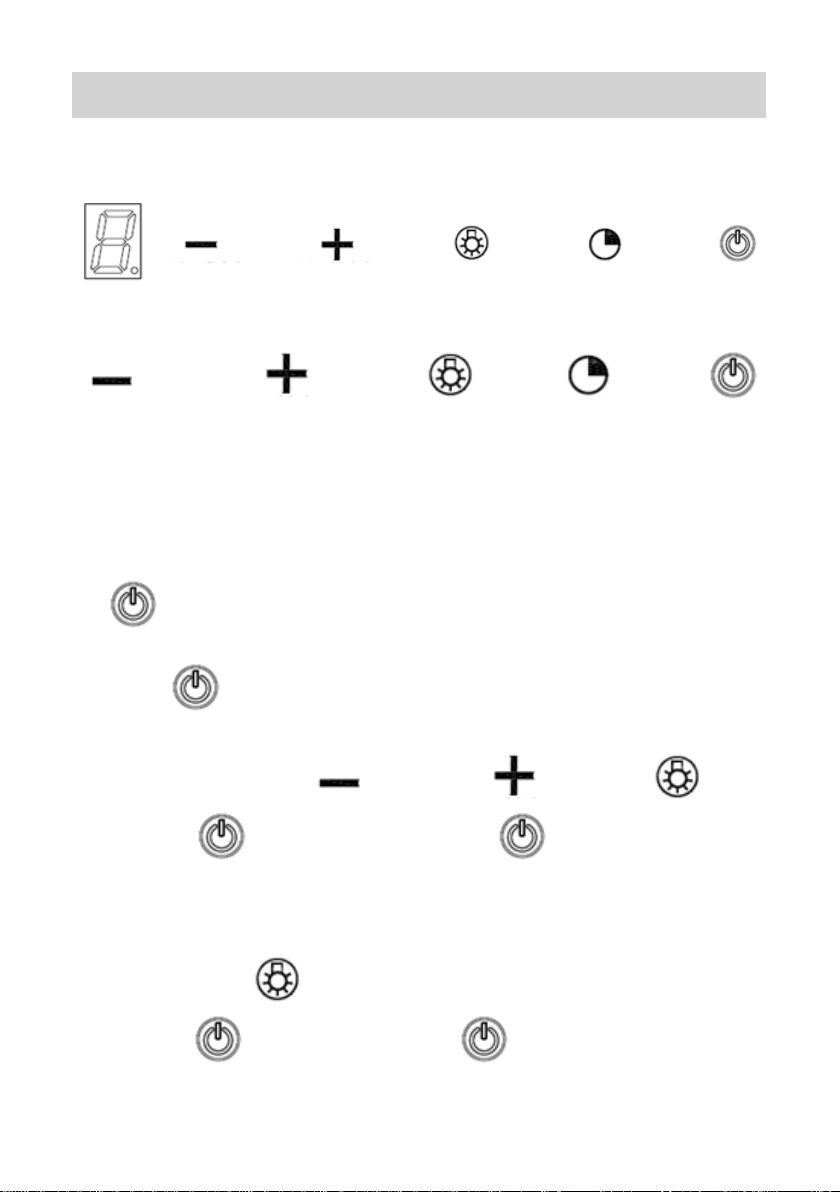

LED touch control
LED touch control has five buttons, see pic.
(Decrease), (Increase), (Lamp), (Timer),
(Power)
1. Power-on: After connecting the cooker hood to the main supply, the
backlight of button will turn on, output will be closed and the cooker
hood will enter into stand-by mode.
2. (Power) button:
2.1. Press (Power) button, the backlight of button will be on and
the hood will work at the low speed, and the light will be on. The
backlight of the buttons (Decrease), (Increase),
(Lamp), and (Power) will be on. Press (Power) button again,
the backlight of button will be off and the cooker hood will be turn off
and return into stand-by mode and operate by the circle.
2.2. The button of (Lamp) button could be operated without
pressing the (Power) button. Press (Power) button, the
9

cooker hood will be turn off without any functions.
3. (Lamp) button:
Press (Lamp) button, the backlight of button and the lights will be
on. Press again, the lights will be off. The lights run circularly.
4. (Increase) button:
4.1 Press (Increase) button, the backlight of button will be on,
the cooker hood starts to work at the low speed. the LED display
will display “1”,
4.2 Press (Increase) button again when it is working on the low
speed, the cooker hood works at the mid speed and the LED
display will display “2”,
4.3 Press (Increase) button again when it is working on the mid
speed, the cooker hood works at the high speed and the LED
display will display “3”.
5. (Decrease) button
Press (Decrease) button, the cooker hood will decrease one
speed, and the display will show the current working speed. When press
(Decrease) button again when it is working on the low speed, the
10

cooker hood will turn off and the backlight of the (Decrease)
button will be off.
6. (Timer) button:
6.1．The (Timer) button works when the motor and light is on
only. The timer setting is 5mins and could be repeat setting. When the
time is up, the cooker hood will be turn off and the light will be off.
6.2 When the timer is set, if adjusting the speeds, the timer will re-
calculate the working time.
Troubleshooting s
Fault Possible Cause Solution
Light on,
but motor
does not
work
Fan switch turned
off
Select a fan switch position.
Fan switch failed
Contact service center.
Motor failed Contact service center.
Light does
not work,
motor does
not work
House fuses blown Reset/Replace fuses.
Power cord loose or
disconnected Refit cord to power outlet. Switch power outlet on.
Oil leakage
One way valve and
the outlet are not
tightly sealed
Take down the one way valve
and seal with sealant.
Leakage from the
connection of
chimney and cover
Take chimney down and seal.
Lights not
working Broken/Faulty globes Replace globes as per this instruction.
11

Insufficient
suction
The distance
between the cooker
hood and the gas top
is too far
Refit the cooker hood to the
correct distance.
The Cooker
hood
inclines
The fixing screw not
tight enough Tighten the hanging screw and make it horizontal.
NOTE:
Any electrical repairs to this appliance must conform to your
local, state and federal laws. Please contact the service centre if
in any doubt before undertaking any of the above. Always disconnect the
unit from the power source when opening the unit.
Maintenance and cleaning s
Caution:
●Before maintenance or cleaning is carried out,
the cooker hood should be disconnected from
the main power supply. Ensure that the cooker
hood is switched off at the wall socket and the
plug removed.
●External surfaces are susceptible to scratches
and abrasions, so please follow the cleaning
instructions to ensure the best possible result is achieved without damage.
GENERAL
Cleaning and maintenance should be carried out with the appliance cold
especially when cleaning. Avoid leaving alkaline or acid substances
(lemon juice, vinegar etc.) on the surfaces.
STAINLESS STEEL
The stainless steel must be cleaned regularly (e.g. weekly) to ensure long
life expectancy. Dry with a clean soft cloth. A specialized stainless steel
cleaning fluid may be used.
12

NOTE:
Ensure that wiping is done along with the grain of the stainless steel to
prevent any unsightly crisscross scratching patterns from appearing.
CONTROL PANEL SURFACE
The inlay control panel can be cleaned using warm soapy water. Ensure
the cloth is clean and well wrung before cleaning. Use a dry soft cloth to
remove any excess moisture left after cleaning.
Important
Using neutral detergents and avoid using harsh cleaning chemicals,
strong household detergents or products containing abrasives, as this will
affect the appliance appearance and potentially remove any printing of
artwork on the control panel and will void manufactures warrantee.
GREASE MESH FILTERS
The mesh filters can be cleaned by hand. Soak them for about 3 minute
in water with a grease-loosening detergent then brush it gently with a soft
brush. Please do not apply too much pressure, avoid to damage it. (Leave
to dry naturally out of direct sun light)
Filters should be washed separately to crockery and kitchen utensils. it is
advisable not to use rinse aid.

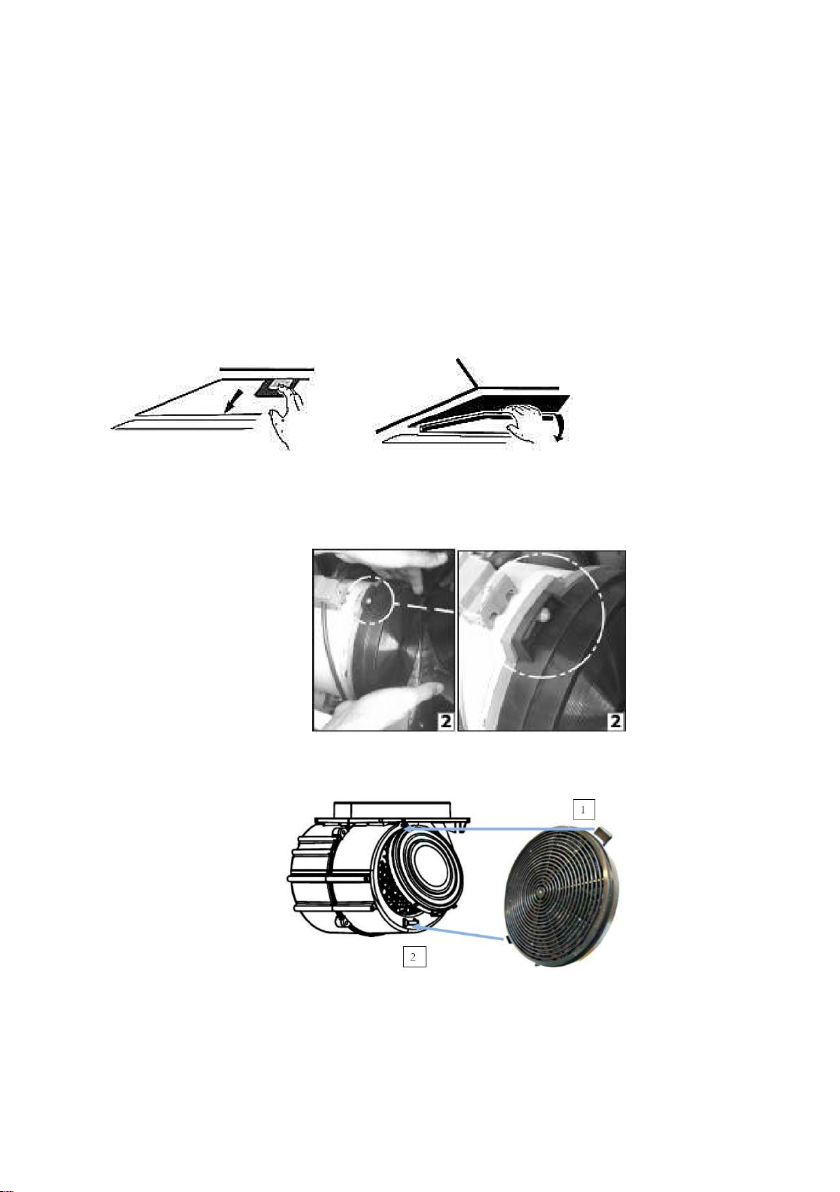

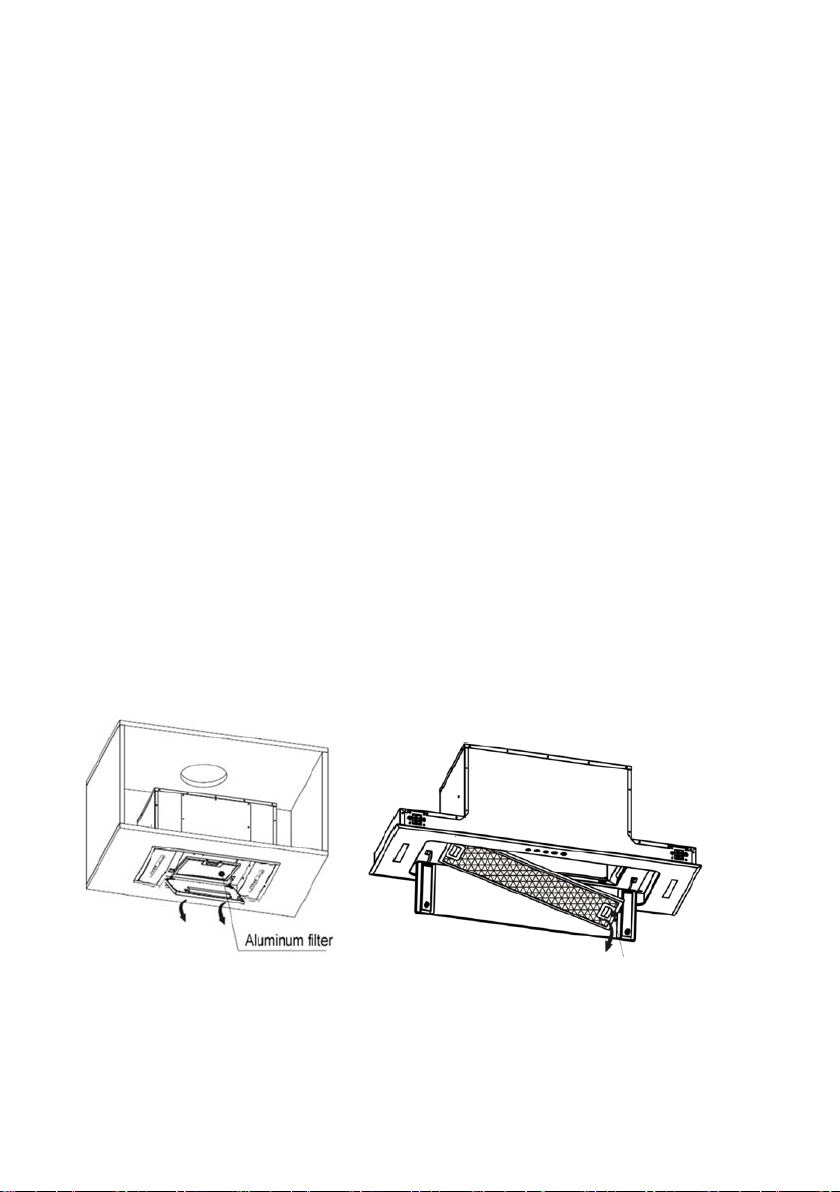

INSTALLING GREASE MESH FILTERS
• To install filters for the following four steps:
-Angle the filter into slots at the back of the hood.
- Push the button on handle of the filter.
13

-Release the handle once the filter fits into a resting position.
-Repeat to install all filters.
CARBON FILTER-not supplied
Activated carbon filter can be used to trap odors. Normally the activated
carbon filter should be changed at three or six months according to your
cooking habit. The installation procedure of activated carbon filter is as
below.
1. Remove the grease filter(s).
2. Hook the carbon filter over the pins that are located at the end of the
motor.
3. Turn the carbon filter anticlockwise, until you feel it click into place.
※Repeat this process for the second carbon filter. You need to place a
carbon filter at either end of the motor.
14

※Refit the motor access panel and fully tighten the screws that you
removed previously.
※Refit the lower and upper chimney sections to the main body of the
hood.
NOTE:
•Make sure the filter is securely locked. Otherwise, it would loosen
and cause dangerous.
•When activated carbon filter attached, the suction power will be
lowered.
BULB REPLACEMENT
Important:
The bulb must be replaced by the
manufacturer, its
service agent or
similarly qualified persons.
Always switch off the electricity supply
before carrying out any operations on the
appliance. When handling bulb, make
sure it is completely cool down before
any direct contact to hands.
When handling globes hold with a cloth
or gloves to ensure perspiration does not
come in contact with the globe as this can
reduce the life of the globe.
LED LIGHTS:
1. Switch off the appliance and unplug it.
2. Slide the front part of the cooker hood.
3. The al filter should be detached first. Press the lock and pull it
downward.
4. Replace with same type of light:230V~50Hz, MAX.2.5W LED
• ILCOS D code for this lamp is: DBS-2.5/65-H-120/33.
–Max wattage: 2.5W
– Voltage range: AC 230V
15

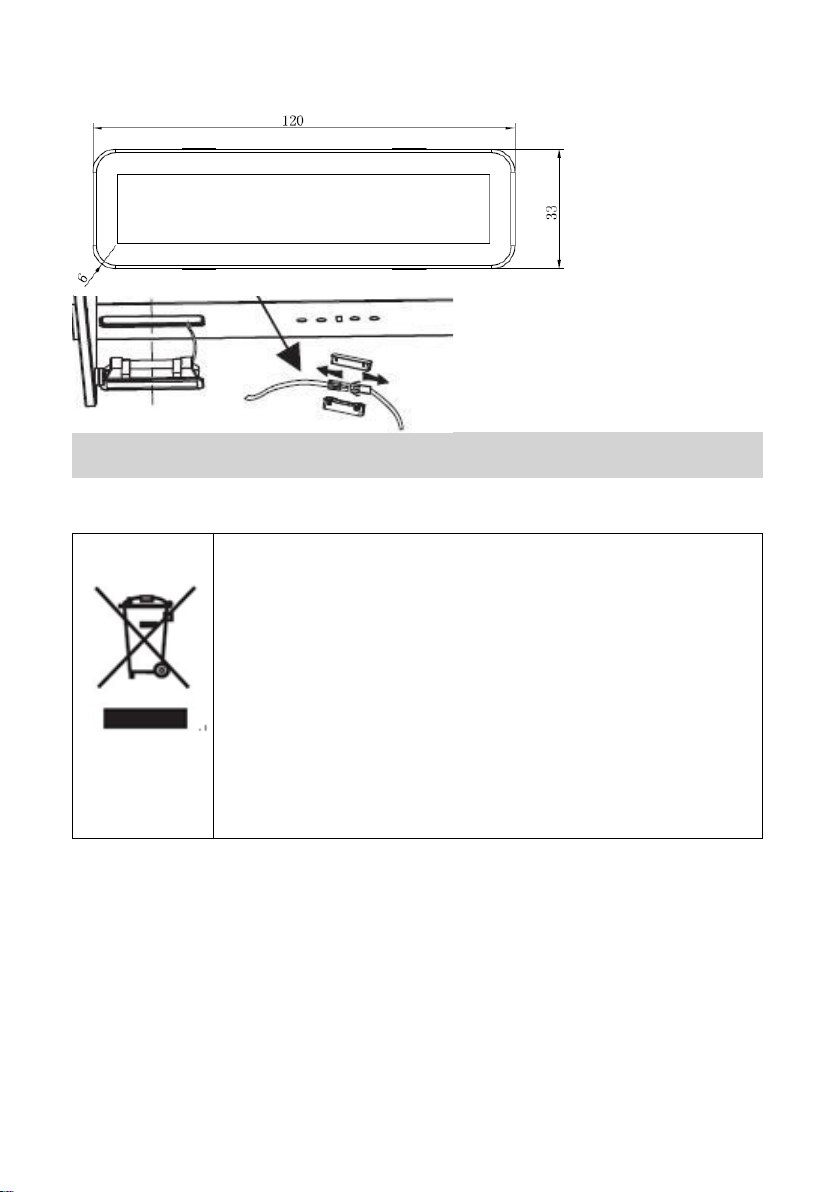

– Dimensions:
Environmental Protection s
This product is marked with the symbol on the selective
sorting of waste electronic equipment. This means that
this product must not be disposed of with household
waste but must be supported by a system of selective
collection in accordance with Directive 2012/19/EU. It
will then be recycled or dismantled to minimize impacts
on the environment, electrical and electronic products
are potentially dangerous for the environment and
human health due to the presence of hazardous
substances. For more information,
please contact your
local or regional authorities.
NOTE:
The following shows how to reduce total environmental impact (e.g.
energy use) of the cooking process).
(1) Install the cooker hood in a proper place where there is efficient
ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.
16

INFORMATION FOR DISMANTLING
Do not dismantle the appliance in a way which is not shown in the user
manual. The appliance could not be dismantled by user. At the end of
life, the appliance should not be disposed of with household waste.
Check with you Local Authority or retainer for recycling advice.
17

Mühlenstrasse 8a, Berlin,14167, Germany
www.gunter-hauer.eu
e-mail: [e-mail]
