GW Instek GHT-118 User manual

High Voltage / Ground Bond Adapter Box
GHT-118
User Manual
GW INSTEK PART NO. 82HT-11800M01
This assembly manual contains proprietary information, which is protected by copyrights. All rights are
reserved. No part of this manual may be photocopied, reproduced or translated to another language
without prior written consent of Good Will company.
The information in this manual was correct at the time of printing. However, Good Will continues to
improve products and reserves the rights to change specification, equipment, and maintenance
procedures at any time without notice.
Good Will Instrument Co., Ltd.
No. 7-1, Jhongsing Rd., Tucheng Dist., New Taipei City 236, Taiwan.
ISO-9001 CERTIFIED MANUFACTURER

GHT-118 HV/GB Adapter Box
2
GHT-118
The GHT-118 High Voltage / Ground Bond Adapter Box is an optional accessory
of the GPT-9000 Series Electrical Safety Tester aimed at providing a convenient
way to connect the DUT’s AC line socket for the AC withstanding, DC
withstanding, Insulation Resistance and Ground Bond tests. Among the
GPT-9000 Series Electrical Safety Tester, the Ground Bond testing function is
only available on the GPT-9804 and the GPT-9904.
Consideration
Warning
The GPT-9000 series Electrical Safety Testers operate at up
to 5kVAC and 6kVDC. To prevent electrical shock, the
grounding wire of the adapter box (green/yellow wire)
must be connected to the ground connector of the GPT-9000
rear panel. Please also make sure that the GPT-9000 is
properly grounded via its AC line input. Please refer to the
GPT-9000 User Manual for more information regarding
safety and the earth ground connection.

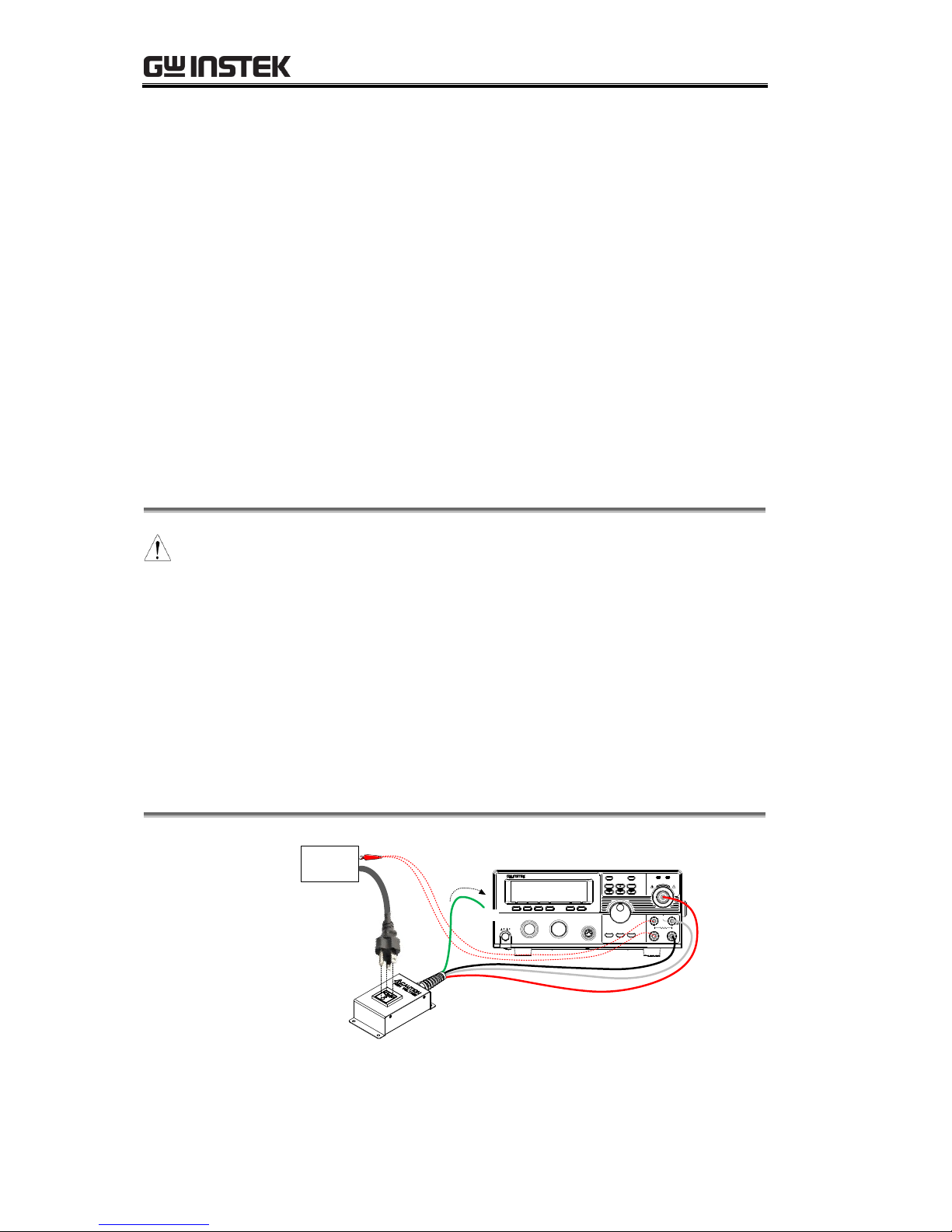

Connection
Connection
diagram
DUT GPT-9000
Rear
panel
GND
GHT-118
POWER
START STOP
REMOTE
MANU/AUTO EDIT/SAVE UTILITY
ESC PAGE
GPT-9803 Tester
HIGH VOLTAGE
CAUTION 5.0 kVAC MAX.
6.0 kVDC MAX.
AC / DC Withstanding Voltage/
Insulation Resistance
RETURN
PASS FAIL READY TEST
POWER
START STOP
REMOTE
MANU/AUTO EDIT/SAVE UTILITY
ESC PAGE
HIGH VOLTAGE
CAUTION 5.0 kVAC MAX.
6.0 kVDC MAX.
GB Rx
SENSE H
SOURCE H
SENSE L
SOURCE L
RETURN
PASS FAIL READY TEST
HI-POT
IR
GPT-9904 Tester
AC / DC Withstanding Voltage /
Insulation Resistance / Ground Bond
HV
Return
Source L
Ground
GPT-9x04

GHT-118 HV/GB Adapter Box
3
1. Connect the red wire to
the High Voltage terminal
of the GPT-9000.
HIGH VOLTAGE
Terminal
2. Connect the white wire to
the Return terminal of the
GPT-9000.
RETURN
Terminal
3. Connect the black wire to
the Source L terminal of
the GPT-9000.
SOURCE L
4. Connect the green/yellow
wire to the GND terminal
at the rear panel of the
GPT-9000.
Ground wire
GND
Internal connection
Internal
connection
diagram
The AC plug L and N
terminals are shorted and
connected to the red HV
wire.
The AC plug GND
terminal is connected to
the white Return wire and
black Source L wire.
The adapter’s case is
connected to the
green/yellow GND wire.
HV
Return
L N
GND
Case
GND
Source L

GHT-118 HV/GB Adapter Box
4
Dimensions
Dimensions
Wiring length
Color
Description
Length
Red
High Voltage
1,000mm
White
Return
1,000mm
Black
Source L
1,000mm
Green/yellow
Ground
1,500mm
