Hafele Suzie-Q 541.35.520 User manual

Revolving Corner Unit
Item No.: 541.35.520/521/522/420/421/422
Mounting Instructions

2
Frameless Cabinets:
The standard specification
includes a steel top mounting
bracket. The fitting has a
door lowering device
included which lowers the
door automatically during
opening. The door lowering
device permits small gaps
between the door and the
countertop.
Face Frame cabinets:
The standard specification
is without a top mounting
bracket. The pole bearing is
attached to the cabinet top.
No lowering device is needed.
In addition to these general mounting
instructions, please refer to the fitting
instructions, where the individual drilling
dimensions for the cabinet bottom, cabinet
top, side walls and cabinet doors are specified.
These instructions also indicate if additional
adjustments to the cabinet design are neces-
sary. Please contact your Häfele Hardware
Consultant if fitting specifications are neces-
sary.

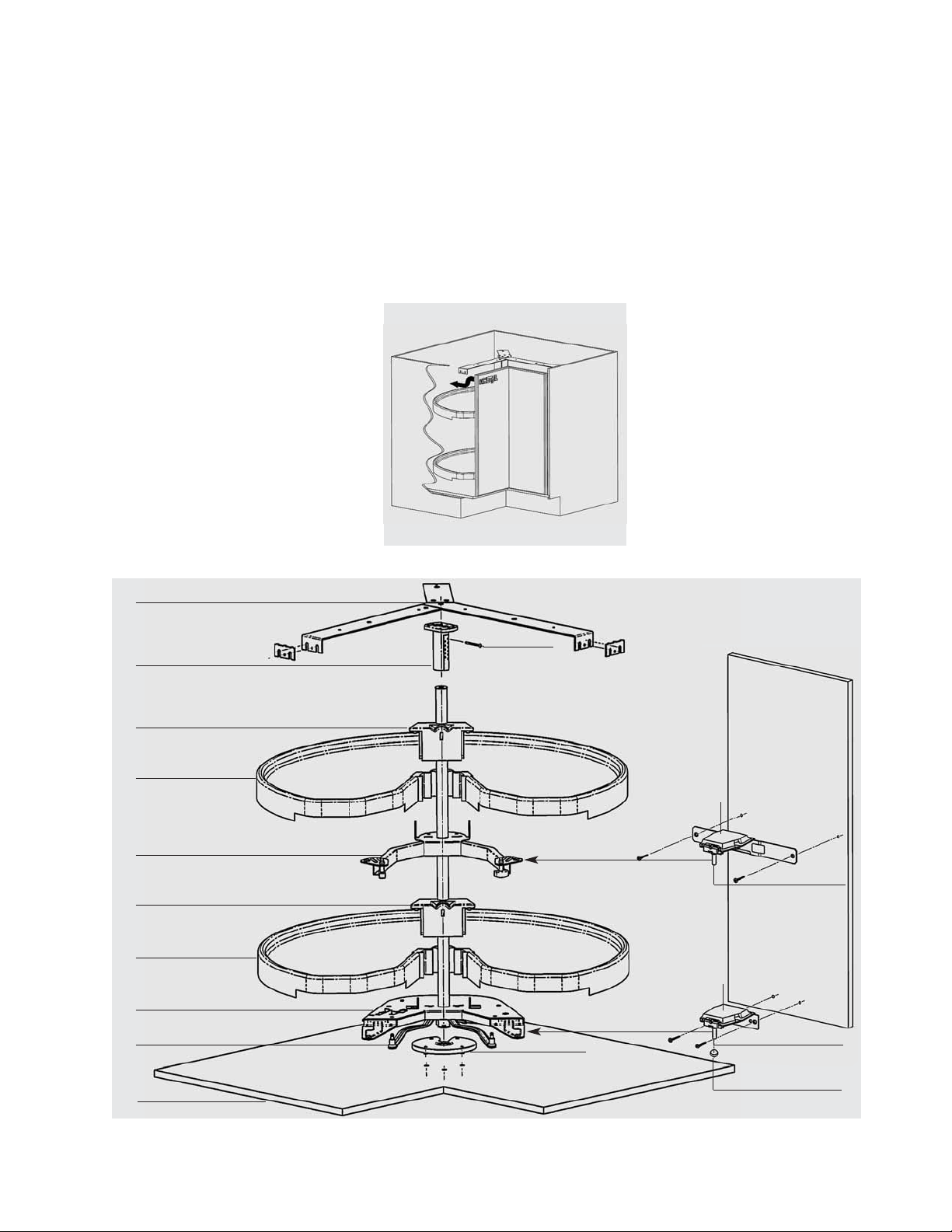

Top mounting bracket (if specified)
Upper pole bearing
Distance plates (spacers)
(are specified)
Upper fastening wedge
(optional)
Lower fastening wedge
(optional)
Upper shelf
(optional)
Lower shelf
(optional)
Lower door holder
Connection rods Cam plate
Securing cap
Lower locating pin
Upper locating pin
Upper door
bracket
Lower door
bracket
Bottom of cabinet
Example shows one shelf option.
Upper door holder
Securing Pin

3
1. Preparing cabinet bottom and side
all/cabinet top
Preparing cabinet bottom
Drill three holes into the cabinet bottom
according to the illustration included in the
fitting instructions.
EXAMPLE
EXAMPLE
Specification Document
Drill two holes 12 mm deep with 5 mm bit
into side walls (see drilling dimensions in
fitting instructions).
Drill one 10 mm hole into the cabinet top
according to the illustration included in the
fitting instructions.
If a top mounting bracket is specified
(mainly frameless cabinets):
For cabinets with cabinet top:
EXAMPLE
EXAMPLE
Specification Document
EXAMPLE
EXAMPLE
Specification Document

4
2. Assembling side panels and cam plate
Assembling side panels
After having drilled all holes, assemble the
side panels.
Mounting of cam plate
Press the cam plate into the drilled holes
in the bottom of cabinet interior and
fasten with four 3.5 x 30 mm (#6 x 1 1/8’’)
flat head screws (customer supplied).

5
3. Installation of top mounting bracket
only if specified
Installation of top mounting bracket is
only applicable if cabinet has no top.
(mainly frameless cabinets)
If cabinet has a top, proceed to
step 4.Installation of fitting,
(page 6).
(mainly face - frame cabinets)
Please refer to your fitting instructions if the
use of 3 mm spacers is specified. If the
spacers are specified, please mount them
between the top mounting bracket and the
side wall. This assures the correct position
of the upper pole bearing.
Fasten top mounting bracket with 6.2 x 10.5
mm Euro flange head screws (customer
supplied).

6
4. Installation of Fitting
Mounting the pole
Place the pole with the upper pole bearing
into the cam plate. Push both connection
rods completely to rear while turning the
pole approx. 90° to the left until the guide
roller is positioned on the outer edge of
the cam plate and the axle firmly clicks
into position. This prevents lifting of the
pole out of the cam plate.
Connecting the upper pole bearing
Now connect the upper pole bearing to
either the top mounting bracket (frameless
cabinets with specified top mounting
bracket) or . . .
to the cabinet top (face frame cabinet
without specified top mounting bracket)
and fasten with screws (customer
supplied).
The pole should now easily turn 360
degrees.

7

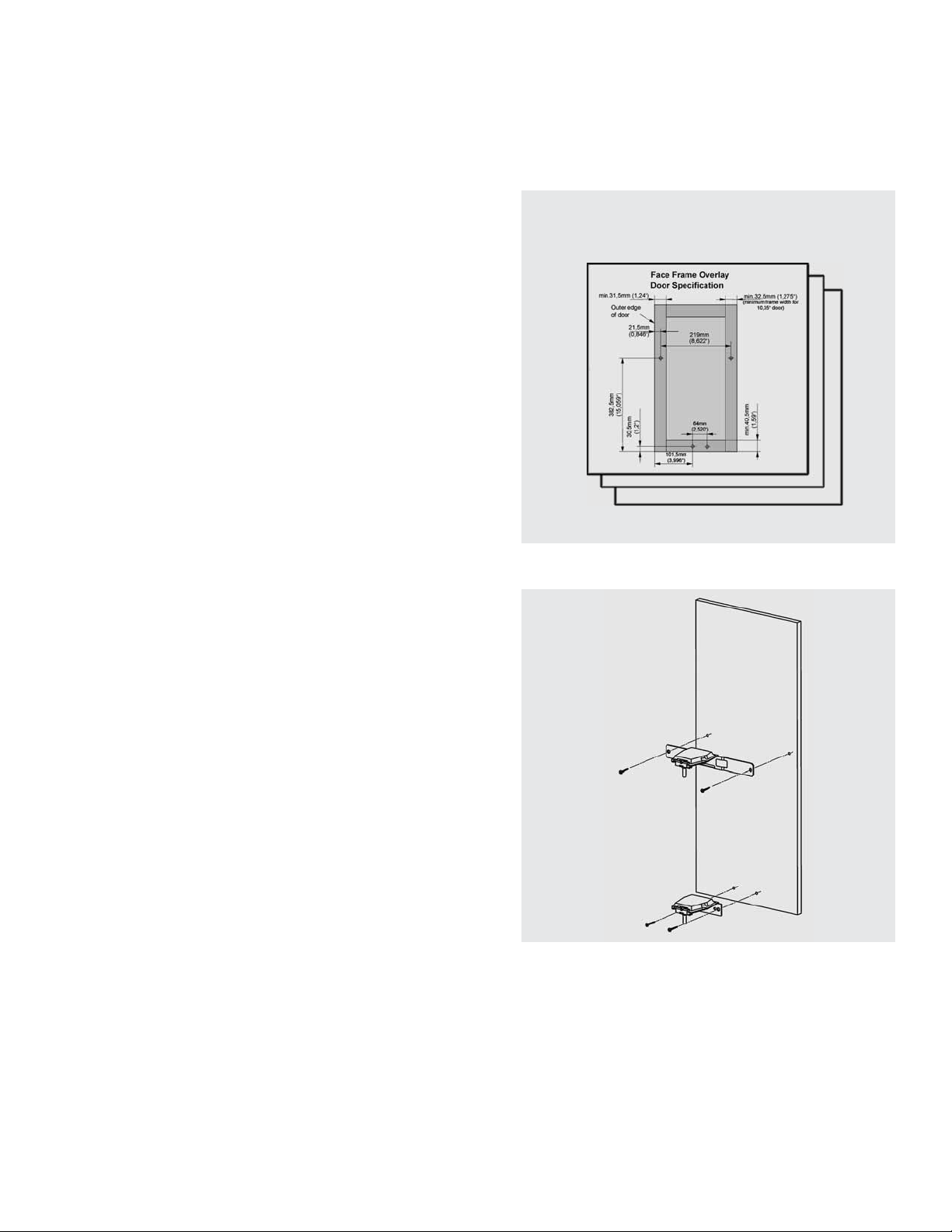

5. Mounting doors
Preparing doors
Drill 4 holes into the doors according to
the illustration included in the fitting
instructions.
Screwing door brackets onto the doors
First screw the lower door brackets
(unhanded) and then the upper door
brackets (left and right!) onto the doors
(customer supplied).
You can identify the left and the right
upper door bracket, as the upper and
lower door brackets have to be
vertically aligned at each door.
The lower door brackets are the same
for left and right side.
EXAMPLE
EXAMPLE
Specification Document

8
5. Mounting doors
Hanging doors onto the door holders:
Hang doors onto upper door holder and
lower door holders with the locating pins.
Clip the connecting rods into the bottom
door bracket.
Securing the door
To avoid unintended unhinging of the door,
attach securing caps onto lower locating
pin.
NOTE - Securing caps are permanent.
Install after final adjustment.

9
6. Mounting shelves / Fixing transport lock
Plastic Shelves, Arena Shelves,
Chrome/Wire Shelves or Pro Arc
Shelves:
Attach shelves to pole according to the
mounting instructions supplied with the
shelves.
Wooden shelves:
If you use your own wooden shelves, you
need shelf supports supplied by Häfele.
Fasten the wooden shelves with screws
to the supports and attach the support to
the pole.
Transport Lock:
Insert transport securing pin through the
upper pole bearing directly above the
pole. This is to prevent damage during
shipping.
Important!
Remove securing pin prior to
operation.

10

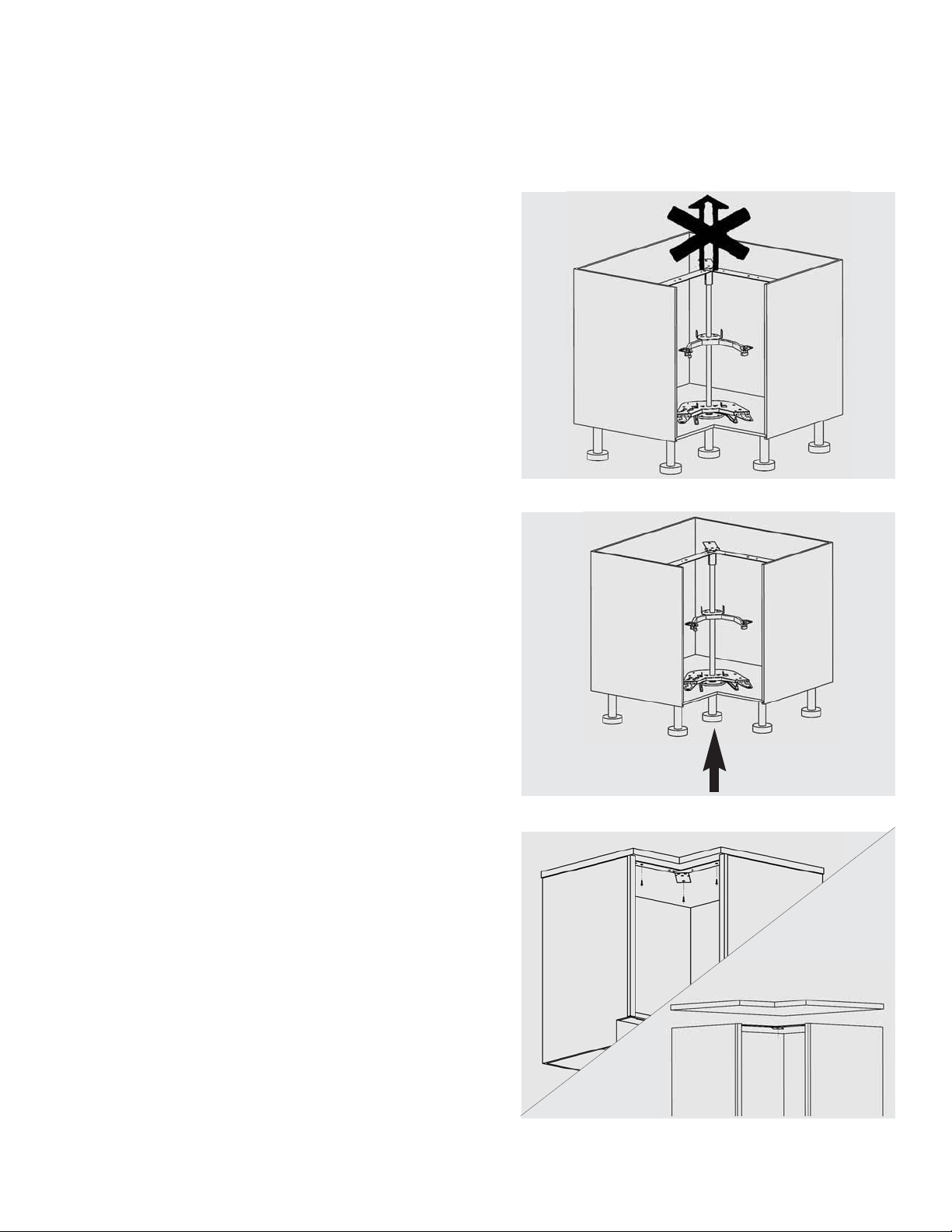

7. Mounting of support device / Transport notices
Screwing the top mounting bracket to
the countertop:
Use adhesive (as recommended by
countertop supplier) in order to attach the
top mounting bracket to the countertop.
Mounting of support device:
Please put a support device (i.e. socket
foot, extended toe kick) underneath the
cabinet bottom (pole) in order to avoid a
sagging of the bottom under the weight of
the trays, which may cause a malfunction
of the fitting.
If you use a top mounting bracket:
Do not suspend the cabinet from the top
mounting bracket. Do not bend the top
mounting bracket. Do not put weight on
the top mounting bracket (i.e. do not stack
other cabinets on top for transport).

11

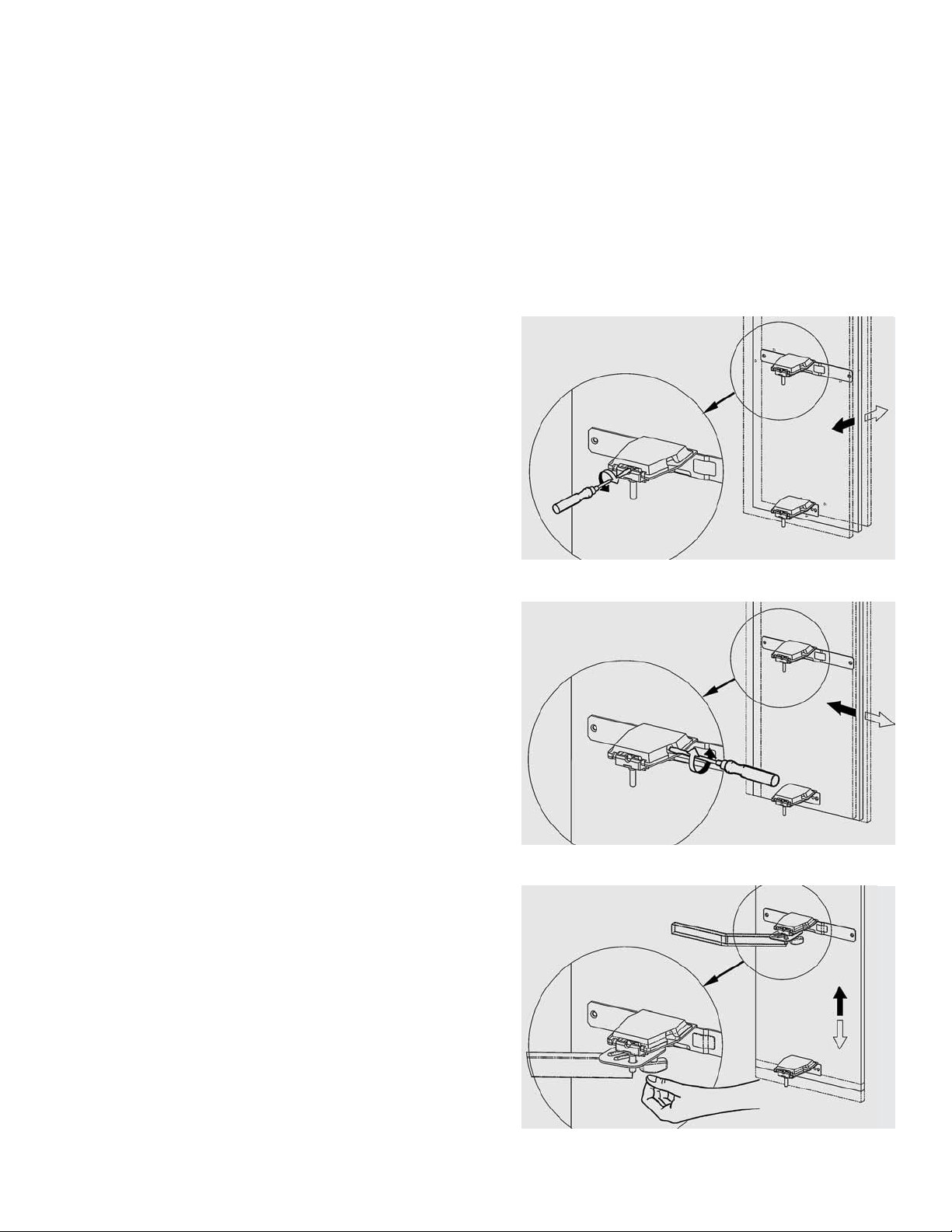

8. Adjusting the doors
Adjusting the Doors:
The doors can be adjusted independently in all directions. Before making adjustments, make sure
the corner cabinet is aligned exactly. If you use adjustable cabinet feet, special attention should be
paid to adjusting the middle foot for support of the pole weight. When adjusting, first correctly align
the right door following the steps illustrated below. Then adjust the left door in the
same sequence.
1. Depth adjustment:
Depth adjustment – aligns the doors to the
cabinet face.
2. Side adjustment:
Side adjustment: adjusts the door overlay.
3. Height adjustment:
Height adjustment: adjusts the distance
between the door and the countertop.

12
Adjusting closing speed of doors
Further increase in the closing force can be
achieved by repositioning the tension
spring.
Four combinations can be chosen:
B-1= weakest spring force. This is
increased through the combinations A-1,
B-2 to the strongest spring force of A-2.
The tension spring can only be
repositioned when the fitting is removed.
Closing Speed of Doors:
You can adjust the closing speed of the
doors without removing the fitting. Turn
adjustment screw clockwise for quicker
door-closing. For slower door-closing, turn
adjustment screw counterclockwise.
