As a manufacturer of “high quality” hardware, Blum turns the opening
and closing of furniture into an experience that significantly increases
the comfort of motion in all areas of the house, especially the kitchen.
This manual provides you with the correct information on the basic
procedures of cleaning, installing, removing and adjusting Blum fittings.
To guarantee a reliable product performance, Blum hardware needs to
be installed correctly – preferably by a Blum certified carpenter.
Contents
Cleaning instructions
CLIP top hinges - CLIP removal & re-assembly
BLUMOTION - removal, re-assembly
TANDEMBOX pull-out system - removal & re-assembly
TANDEM runner - Drawer removal & insertion
General information
4
6
7
8
11
12
Moving solutions
for furniture
Note: As your Blum fittings manufacturer, we are delighted to be always
of service to you. Please keep this manual for your cleaning reference.
We also want to invite you to come to our showroom with this manual
so we can personally show you the appropriate way of preserving the
quality of your Blum hardware and give you our Blum goodie bag.

4
5
Cleaning instructions
CLIP/CLIP top hinge
■Use only commercial cleaners for stainless steel (usually
obtainable as spray). Read carefully the cleaning
instructions located on the canister before applying.
■Rub with a soft, damp cloth. Dry cloth should be used
for wet surfaces.
■Wipe small contaminations with solvent soap (mixed
with water) and then mop away the small water drops
with a dry cloth.
■ORGA-LINE: Dishwasher-proof using commercial
dishwasher cleaner.
■Rub with a soft, damp cloth. Dry cloth should be used
for wet surfaces.
■Wipe small contaminations with solvent soap (mixed with
water) and then mop away the small water drops with a
dry cloth.
Plastic-coated surfaces and plastic components
Care instructions for
Blum products
Blum products are maintenance-free. However, during assembly and usage of Blum
products, it is inevitable that stains or other kinds of contamination will appear on the
product or its surfaces. When cleaning, make sure to treat the protective areas and
materials with care. Avoid applying abrasive chemicals as they will cause damage to
the product. The instruction procedures below show how proper treatment should be
performed in order to maintain the good condition of the purchased goods.
Drawer sides and stainless steel ORGA-LINE
>
>

4
5
Nickel- or chrome-plated surfaces
>
Oil
SOLVENTS
■Scrubbing household cleaners and accessories (bristly
cloths, sponges, etc).
■Strong alkaline or strong acid substances.
■Chloral cleaners.
■Micro fibres might harm surfaces in the event of
scrubbing.
■Acetone solvents, nitro thinners, Sal ammoniac or
solvents whose nomenclature contains terms that
begin with Tri/Tetra.
■Rub with a soft, damp cloth. Dry cloth should be used
for wet surfaces.
Under the above-mentioned circumstances,
the following should NOT be used:
>
To clean the most intricate parts of Blum products such as TANDEMBOX pull-out systems and CLIP top
hinges, dis-assembling its parts is well-recommended. The following pages will lead you to proper and
easy methods of removing, re-assembling and adjusting elaborative parts of TANDEMBOX, CLIP/CLIP top,
BLUMOTION for doors and TANDEM. Should you need assistance, you may call our hotline at
[phone] or visit our website at connect.blum.com.

6
7
CLIP top hinges
CLIP
Hinge cover cap
2
1
Removal Re-assembly
Re-assemblyRemoval

6
7

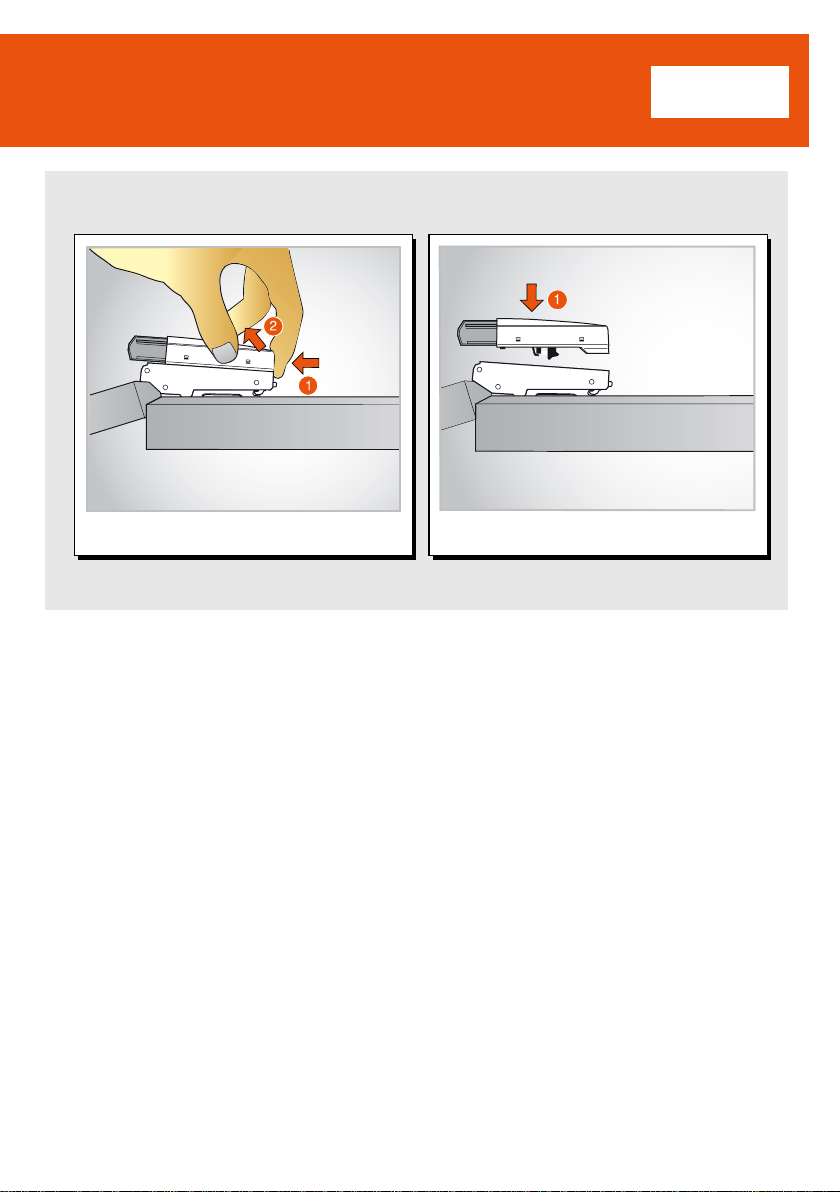

BLUMOTION 973A
BLUMOTION 973A - clip on for standard applications
Re-assemblyRemoval

8
9
TANDEMBOX pull-out system
TANDEMBOX side drawer
Removal
Re-assembly
1
2

8
9
Double walled BOXSIDE
3
2
1
Re-assembly
1
2
Removal

10
11
Drawer removal and insertion
TANDEMBOX pull-out system
Insertion
Removal
2
1

10
11

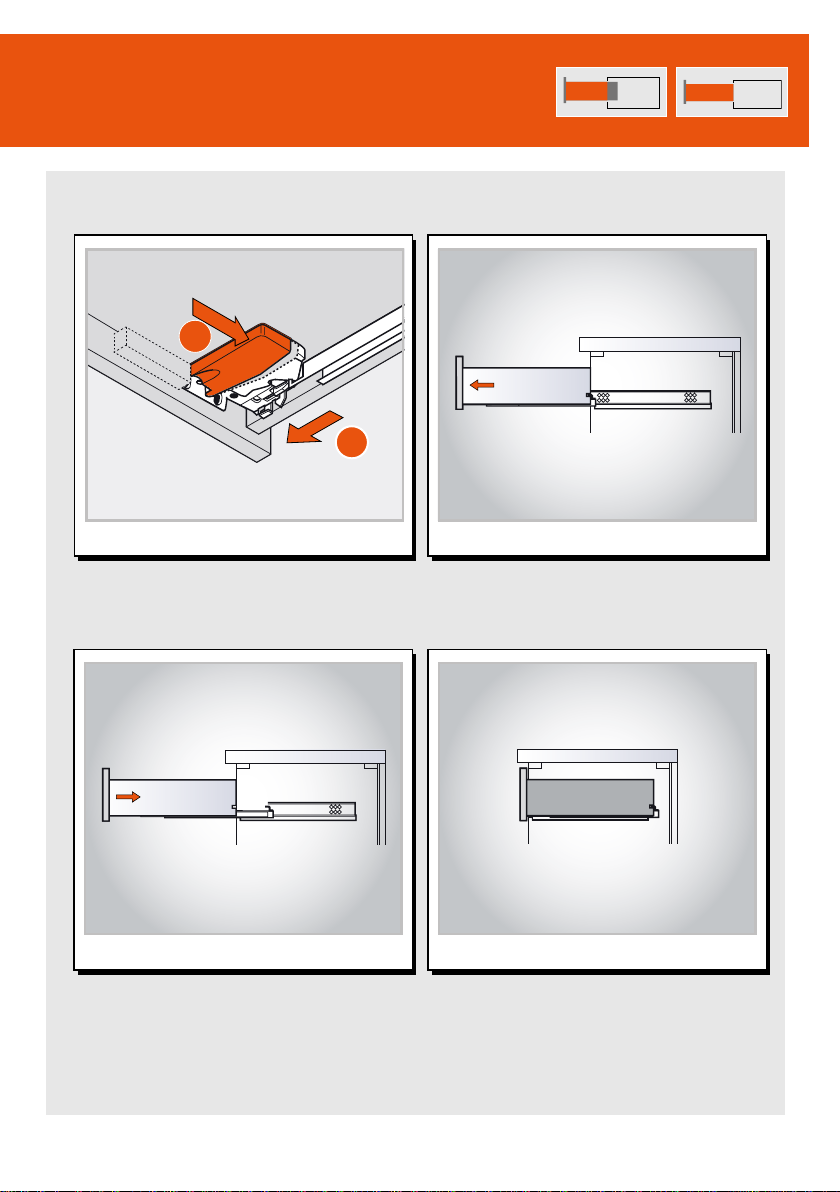

TANDEM runner system
TANDEM 560/566/550H
Re-assembly
Drawer removal
1
2

12
13
General information
Quality for the lifetime of the
furniture
Our goal is to ensure that furniture buyers can
enjoy the convenience and perfect function
of our fittings for the lifetime of their furniture.
To reach our objective, we are monitoring our
products in real working environments as well
as in testing labs. Test results are incorpo-
rated into the manufacture and development
of our products. Over the course of time, this
has allowed us to tailor new products to the
requirements of the market.
Austria/Lake Constance: The home of Blum and our 7 factories.

12
13
All Blum products undergo strict quality
control procedures through all stages of
production. All Blum fittings are designed for
furniture and furniture components made from
wood, chipboard or MDF. Keep this manual
to serve as reference when cleaning Blum
hardware. All Blum users must be aware of
any relevant information given in this manual.
For any additional infornation or advice,
please contact your Blum representative.
General assembly, application
and user instructions

14
15
Blum South East Asia Pte Ltd.
150 Ubi Avenue 4
#02-00 Ubi Biz-Hub
Singapore 408825
Tel.: [phone]
Fax: [phone]
E-Mail: [e-mail]
connect.blum.com
The Blum DYNAMIC SPACE showroom provides you with exquisite inspirations for
your home through its latest innovations on furniture fittings, perfected through over
50 years of experience. Blum equips your home with fittings that work in perfect
motion and absolute grace.
Discover Blum’s latest home inspirations at: connect.blum.com
