Hafler M5 User manual

51⁄4" Reference Monitor
51⁄4" Reference Monitor

– 1 –
Introduction
Thank you and congratulations on your purchase of the HAFLER M5 monitor, the world’s finest brand in professional
audio equipment.
The M5 Monitor is a compact (5.3liter) vented 2-way nearfield passive loudspeaker offering unmatched quality and perfor-
mance in a truly professional grade product. The low profile of the M5 and lack of obtrusive or reflective grille details
enables it to project a well focused and reflection free natural soundstage in small console, workstation or meter-bridge
applications.
Although the M5 Monitor is a passive model it has the technical circuitry and features that ensure excellent sound quality
in every application. Crossover design is a 24dB/octave Linkwitz Riley that filters high frequencies to the tweeter and low
frequencies to the woofer. The circuit also incorporates optical protection for “overload”protection and a 0dB/-3dB tweet-
er pad to match the tweeter level to the midrange for the best balance in sound.
Combine the M5 Enclosure with the technical features and you’ll see the HAFLER M5 Monitor certainly reflects a great
success for Hafler in achieving a reliable reference level of performance in a compact and portable package at an afford-
able cost.
Although we realize a professional such as yourself already knows a thing or two about pro audio, we urge you to read
this manual to at least humor our technical writer. For ease of use, this manual is organized into two main sections:
Performance Specifications and Installation. “Performance Specifications”covers technical information useful for techni-
cians and engineers.“Installation”covers the set-up of your new HAFLER equipment in the system.

–2 –
Table of Contents
INTRODUCTION ....................................................................................................................................................1
TECHNICAL SPECIFICATIONS ................................................................................................................................3
PERFORMANCE SPECIFICATIONS ........................................................................................................................4
Frequency Response Graph ..............................................................................................................................4
Horizontal Polar Response Graph......................................................................................................................4
Impedance Graph..............................................................................................................................................5
Impulse Graph ..................................................................................................................................................5
Cumulative Spectral Decay Plot ........................................................................................................................5
TECHNICAL DESIGN FEATURES ............................................................................................................................6
INSTALLATION
Location ............................................................................................................................................................7
WARRANTY ............................................................................................................................................................8
SAFETY PRECAUTIONS ..........................................................................................................................................9

–3 –
Technical Specifications
M56
Free Field Frequency Response 70Hz-21kHz,+\-3db
Peak Acoustic Output ≥110dB (per pair w/music @ 1m)
Total Harmonic Distortion (THD) <3%,70Hz-150Hz <1%, >150Hz
at 90db @1m on axis
High Frequency Driver 1”(25mm) Silk Dome
Low Frequency Driver 5 1/4”(133mm) Polypropylene Cone
Nitrile Rubber Surround
Full Magnetic Shielding
Cabinet 0.19 cu.ft (5.3 liters)
Black Textured Vinyl on 5/8”MDF
Front Firing Vent
Power Rating 20-200 Watts Program
Sensitivity >89dB (w/2.83 vrms @ 1m)
Nominal Impedance 6Ω
Crossover 4th Order Linkwitz-Riley at 3.2kHz
Woofer Mid-Frequency Notch Filter
Woofer High Frequency Zobel
Optical Tweeter Protection
User Selectable -3dB L-Pad
Input Gold 5-way Inputs
Dimensions 6 3/4”W x 12 3/16”H x 7”D
Net Weight 10 lbs. (25kg)
Specifications are subject to change without notice.

–4 –

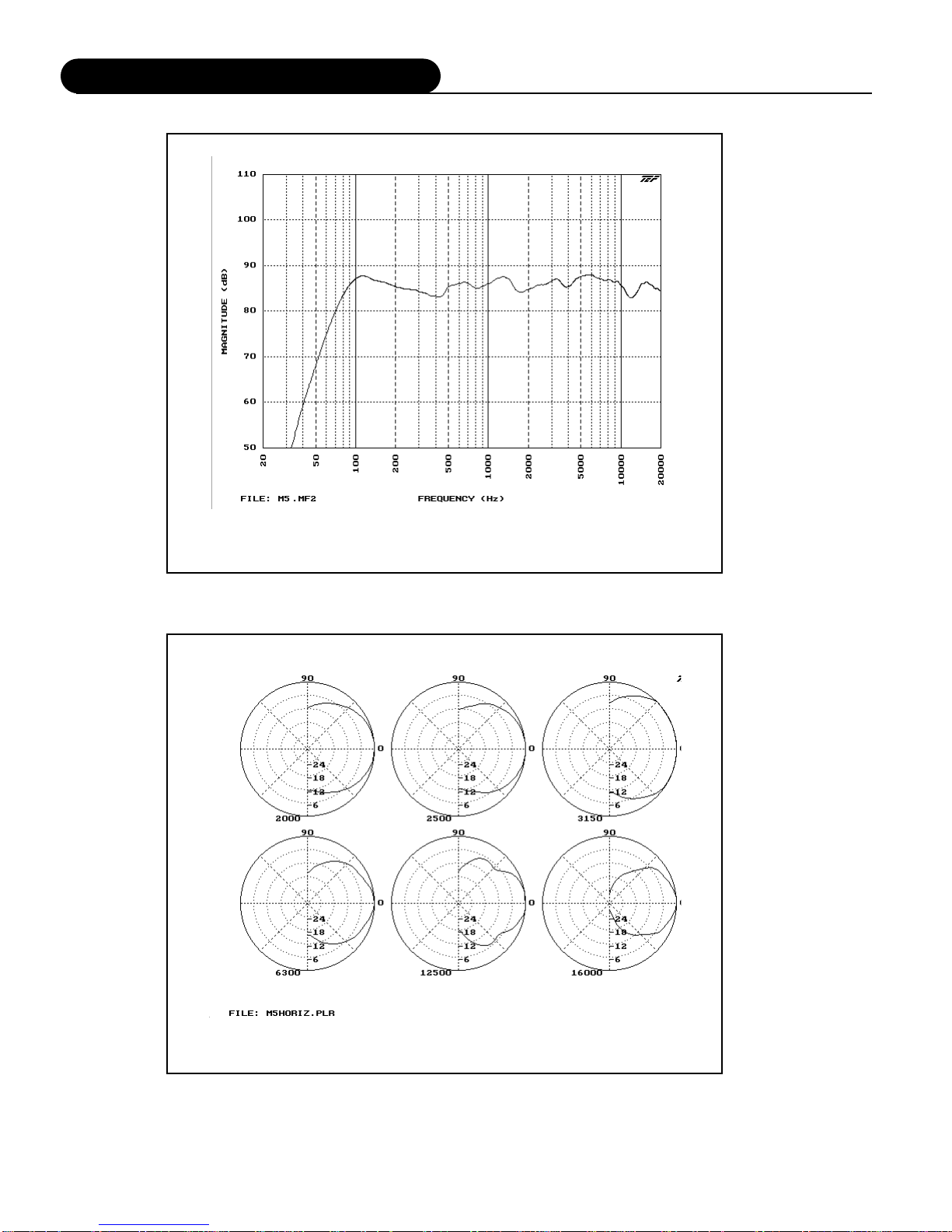

Frequency Response @ 1m on axis
Horizontal Polar Response
Performance Specifications

–5 –

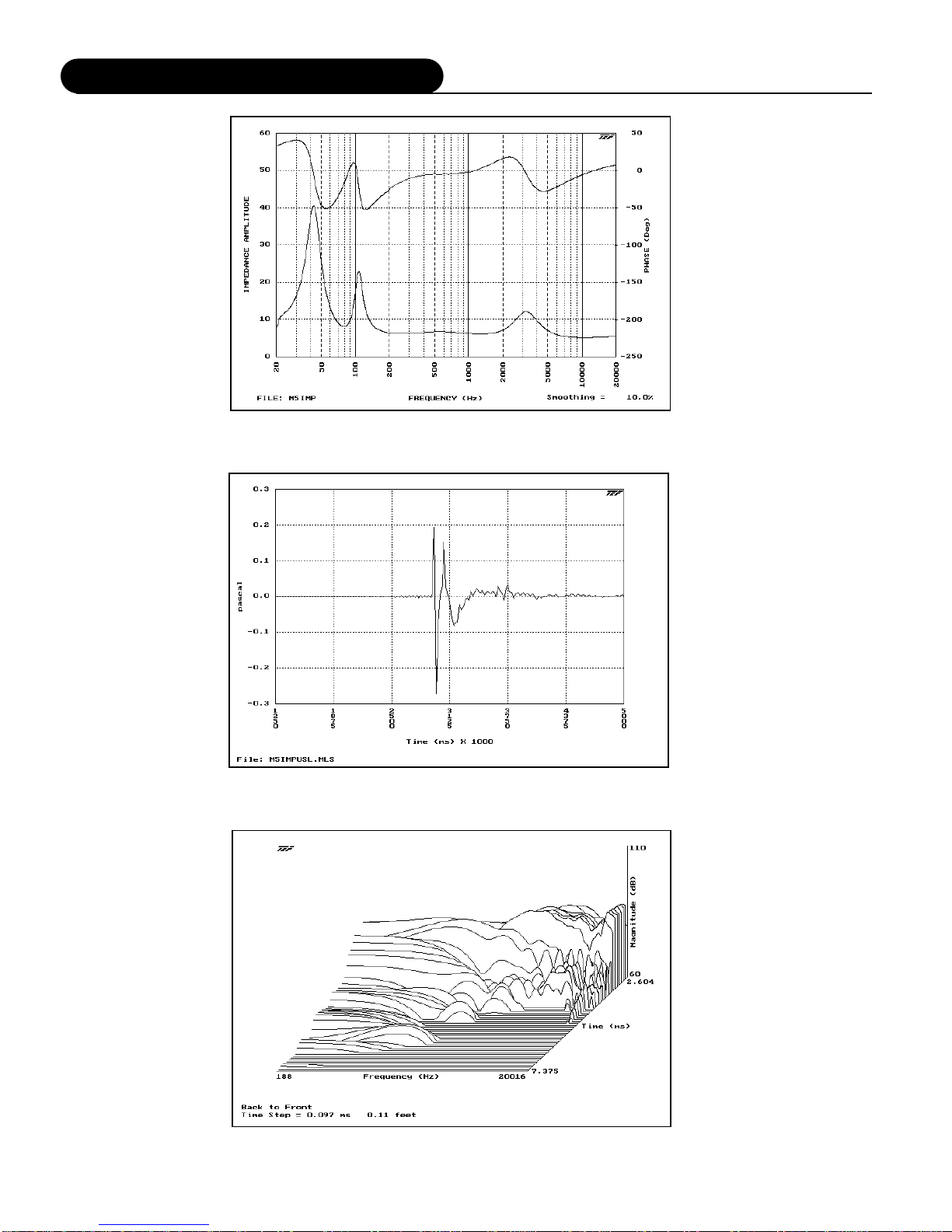

Impedance Graph
Impulse Graph
Cumulative Spectral Decay Plot
Performance Specifications

–6 –
The M5 enclosure is a textured black vinyl clad 5/8”thick MDF cabinet with an internal volume of
5.3 liters and a front firing slotted port tuning the system to 70Hz. The low frequency character of the
M5 follows a classic 4th order Butterworth vented alignment with smooth response extending down
well below system tuning. Small panel size and strategically placed internal bracing reduces wall flex-
ing and mid-band resonance. High cabinet rigidity also improves low frequency mid-bass coupling.
The M5 tweeter uses a proprietary 25mm silk dome and exponential horn waveguide combination.
The 133mm (51/4”) M5 mid-bass driver is a custom designed and manufactured speaker specific to
this new Hafler monitor. This woofer uses a polypropylene cone with a nitrile rubber edge for fast,
efficient low frequency damping and uniform piston control. The cone’s polypropylene material is
mineral loaded and adds the required stiffness to maintain a smooth response character well past the
system’s crossover point. The increased cone rigidity also helps minimize inter-modulation distortion
(IMD) components. IMD at normal playback levels is not just an audible distraction it’s a contributor
to listening fatigue.
The linear characteristic of the multi-rolled flat spider and the nitrile rubber edge also ensures low lev-
els of harmonic distortion (THD). High magnetic linearity is achieved by using a long 32mm (11/4”)
diameter voice coil set in a computer optimized magnet structure. The 4.2 lb magnet assembly is
completely shielded for use near video monitors or other CRT devices. The M5 mid-bass driver is
carefully designed and constructed to be both thermally and mechanically capable of handling the
200-watt system power rating.
Design Features

–7 –
Installation
LOCATION
The location of your reference monitors in addition to the acoustics of the listening room will influence the system frequency
response. In the near field environment, our ears are more sensitive to direct sound rather than the reverberation of sound.
Below are some recommendations for the initial set-up which may help you optimize performance in complex acoustic envi-
ronments. In any configuration, keep the rear of the monitor at least 5" (12.7cm) away from any wall or obstruction to reduce
excessive boundary “loading” of the woofer vent.
Aiming the monitors directly forward (Fig. 1) may cause response problems resulting in inadequate stereo imaging. Aiming
the monitors toward you and spaced equally like a triangle (Fig. 2) provides the best imaging and produces the flattest fre-
quency response.
If you frequently move your chair from side to side in front of your mixing console, positioning the tweeter and woofer in hor-
izontal alignment (Fig. 3) can create complex lobing patterns. Minimizing this effect can be achieved by placing the tweeter
and woofer in vertical alignment (Fig. 4). If it is essential to position the monitors horizontally, place them with the tweeters
toward the inside.
INADEQUATE
Off-Axis Response
Fig. 1 OPTIMUM
On-Axis Response
Fig. 2
M5REFERENCE
M5REFERENCE
INADEQUATE
Horizontal Alignment
Fig. 3 OPTIMUM
Vertical Alignment
Fig. 4
M5REFERENCE
M5REFERENCE
M5REFERENCE
M5REFERENCE
M5REFERENCE
M5REFERENCE

–8 –
Rockford Corporation (Hafler Division) offers a limited warranty on Hafler products on the
following terms:
•Length of Warranty
1 year on Monitors
•What is Covered
This warranty applies only to products sold to the original owner and is non-transferable.
This warranty only applies to units sold in the continental United States. You are required to
have a copy of the receipt stating the customer’s name, dealer name, product purchased and
date of purchase.
•Products found to be defective during the warranty period will be repaired or replaced (with
product deemed to be equivalent) at Hafler’s discretion.
•What is NOT Covered
1. Damage caused by accident, abuse, improper operations, water, theft
2. Service performed by anyone other than Hafler or an Authorized Hafler
service center
3. Any product purchased outside the United States (please contact your local dealer)
4. Shipping charges to get the unit to Hafler
5. Any product which has had the serial number defaced, altered, or removed
•Limit on Implied Warranties
Any implied warranties including warranties of fitness for use and merchantability are limited in
duration to the period of the express warranty set forth above. Some states do not allow limita-
tions on the length of an implied warranty, so this limitation may not apply. No person is autho-
rized to assume for Hafler any other liability in connection with the sale of the product.
•How to obtain service or technical support
Please call 1-800-669-9899 for Rockford/Hafler support. You must obtain an RA # (return autho-
rization number) to return any products to Hafler. You are responsible for shipment
of product to Hafler.
Rockford Corporation
Hafler Division
2055 E. 5th Street
Tempe, Arizona 85281
Service Policy and LimitedWarranty

–9 –
The lightning flash with arrowhead symbol within an equilateral triangle
is intended to alert the user to the presence of uninsulated “dangerous
voltage”within the product’s enclosure, that may be of sufficient magni-
tude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user of the presence of important operating and maintenance (servic-
ing) instructions in the literature accompanying the appliance.
1.Read Instructions
All the safety and operating instructions of your Hafler equip
ment should be read before power is applied to the equipment.
2.Retain Owner’s Manual
These safety and operating instructions should be retained for
future reference.
3.HEED WARNINGS
All warnings on the equipment and in the operating instructions
are important and should be followed.
4.FOLLOW INSTRUCTIONS
All operating and use instructions are important and should be fol-
lowed.
5.HEAT
The equipment should be kept away from areas of high tempera-
ture, i.e., heater vents, radiators, stoves/ovens, fireplaces, etc.
6.VENTILATION
The equipment should be used in an area suitable for proper ven-
tilation. Care should be taken not to impede airflow in and
around the cabinet.
7.WATER AND MOISTURE
The equipment should not be used in or around water, such as a
bathtub, sink, or swimming area. Also, the equipment should not
be used in areas prone to flooding, such as a basement.
8.CLEANING
The equipment should be cleaned only as detailed in the operat-
ing instructions.
9.OBJECT AND LIQUID ENTRY
Care should be taken so that objects and/or liquids, such as clean-
ing fluids or beverages, are not spilled into the enclosure of the
equipment.
10.DAMAGE REQUIRING SERVICE
Hafler equipment should be serviced by qualified service person-
nel when:
A.Objects have fallen onto, or liquid has been spilled into the
equipment, or
B.The equipment has been exposed to rain, or
C.The equipment does not appear to operate normally or
exhibits a marked change in performance, or
D.The equipment has been dropped, or the enclosure has
been damaged.
11.SERVICING
The user should not attempt to service the equipment beyond that
which is described in the operating instructions. All other service
should be referred to qualified service personnel.
12.CARTS AND STANDS
The equipment should be used with carts or stands only of suffi-
cient strength and stability for the use intended.
An equipment and cart combination should be moved with care.
Quick stops and starts, excessive force, and uneven surfaces may
cause the equipment and cart combination to topple.
NOTICE - IMPORTANT SAFETY INFORMATION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO PREVENT FIRE OR SHOCK HAZARD
DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
!

–10 –
1.LEA LAS INSTRUCCIONES
Todas las instrucciones de seguidad y operación de su equipo
Hafler, deben ser leídas antes de que el equipo sea conectado dléc-
tricamente.
2.CONSERVE EL MANUAL DEL PROPIETARIO
Estas instrucciones de seguridad y operación, deben ser conservadas
para futuras referencias.
3.CUADROS DE ADVERTENCIAS
Todas las advertencias en el equipo y en las instrucciones de
operación, son importantes y deben ser seguidas.
4.SIGA LAS INSTRUCCIONES
Todas las instrucciones de uso y operación son importantes y deben
ser seguidas.
5.CALOR
El equipo debe ser mantenido lejos de areas de alta temperatura,
como por ejemplo: ventilaciones de calentadores, radiadores, estu-
fas/hornos, hogueras, etc.
6.VENTILACION
El equip debe ser usado en áreas con ventilación adecuada. Deben
er tornadas las precauciones necesarias para no impedir el flujo de
aire dentro y alrededor del aparato.
7.AGUA Y HUMEDAD
El equipo no debe ser usado en el agua óalrededor de ésta, tales
como en una bañera, tanque o áreas de nado. También, el equipo
no debe ser usado en áreas propensas a inundaciones, tales como
en un sótano.
8.LIMPIEZA
El equip debe ser limpiado solo en la forma que se detalla en las
instrucciones de operación.
9.INTRODUCCIÓN DE OBJETOS Y LIQUIDO
Deben ser tornadas precauciones con el fin de que objetos y/ó
líquidos, tales como fluidos de limpieza y gaseosas, no sean derra-
mados dentro del chassis del aparato.
10.DAÑOS QUE REQUIEREN DE SERVICIO
Los equipos Hafler deben ser llevados a servicio por personal califi-
cado cuando:
A.Objetos ólíquido hayan sido introducidos óder
ramado en el equipo, ó
B.El equipo haya sido expuesto a lluvia, ó
D.El equipo aparenta no operar normalmente óexhibe
un marcado cambio en su desempeño, ó
E.El equipo se ha caído, o el chassis ha sido golpeado.
11.SERVICIO
El usuario no deberáintentar darle servicio al equipo más alláde lo
que estádescrito en el instructivo de operación. Todo lo demás,
deberáser referido a servicio por personal calificado.
12.CARRETILLAS Y SOPORTES
El equipo podráser usado con carretillas y soportes que tengan la
fortaleza y estabilidad suficiente para el uso previsto.
La combinación equipo/carretilla deberáser movida con cuidado.
Rápidas paradas y arranques, excesiva fuerza y superficies impare-
jas, pueden causar el volcamiento del conjunto de carretilla/equipo.
El símbolo de flecha relámpago dentro de un triángulo equilátero, es para aler-
tar al usario de la presencia de “voltajes peligrosos”no aislados en el interior
del aparato, los cuales pueden ser de suficiente magnitud para constituir un
riesgo de choque eléctrico a las personas.
El símbolo de exclamación dentro de un triángulo equilátero, es para alertar al
usuario de la presencia de instrucciones importantes de operación y manten-
imiento (servicio) en la documentación que acompaña al equipo.
ADVERTENCIA –INFORMACION DE SEGURIDAD IMPORTANTE
PELIGRO
RIESGO DE DESCARGA
ELECTRICA NO ABRIR.
!
´´
PRECAUCIONS:
Para Prevenir el incendio o la descarga electrica, no
exponer este equipo a la lluvia o a la humedad
´

–11 –
1.LIRE LES INSTRUCTIONS
Le mode d’emploi et les mesures de sécuritéde votre équipement
Hafler devraient être consultés avant sa mise en marche.
2.CONSERVER LE GUIDE DE L’UTILISATEUR
Le mode e’emploi et les mesures de sécuritédevraient être con-
servés pour des références futures.
3.CONSIDÉRATIONS DE MISE EN GARDE
Le mode d’emploi et les mises en garde concernant cet
équipement sont de grande importance et devraient être suivis.
4.SUIVRE LE MODE E’EMPLOI
Le mode d’emploi et les conseils d’utilisation sont importants et
devraient être suivis.
5.CHALEUR
Le matériel devrait être préservéloin de toute source de chaleur:
radiateurs, cuisinière/fours, cheminées,…etc.
6.VENTILATION
Le matériel devrait être utilisédans un endroit àbonne ventilation.
Il reste nécessaire de respecter la circulation de flux d’air àl’intéri-
er et autour du meuble.
7.EAU ET HUMIDITE
Le matériel ne devrait pas être utiliséprès d’une source d’eau, telle
qu’une baignoire, un évier, ou une aire de baignade. De plus, le
matériel ne devrait pas être utilisédans des lieux sujets aux innon-
dations, tels que les sous-sols.
8.NETTOYAGE
Le matériel devrait être nettoyéen respectant les instructions
indiquées.
9.PENETRATION DES LIQUIDES
Un attention particulière est éxigée quant àla dispersion de liq-
uides tels que les produits de nettoyage et boissons, de façcon à
éviter toute pénetration dans l’enceinte du matériel.
10.DÉGÂT NÉCESSITANT UNE RÉVISION
Le matériel Hafler devrait être révisépar des personnes qualifées
de service après-vente, lorsque:
A.De objets sont tombés sur le matériel, ou des liquides s’y son
dispersés, ou:
B.Le matériel a étéexposéàla pluie, ou:
C.Le matériel ne semble pas fonctioner correctement, ou
affiche un changement de performance, ou:
D.Le matériel a étérenverséàterre, ou l’enceinte a été
endommagée.
11.REVISION
L’utilisateur ne devrait pas essayer de réviser le matériel en allant
plus loin que ce qui a étédécrit dans le mode d’emploi. Toute
autre réviion devrait être confiée àun personnel qualifié.
12.CHARRIOTS ET MEUBLES
Le matériel devriat être utiliséavec des charriots et meubles de
qualitéet stabilitésuffisante àson utilisation préconçue.
L’ensemble du matériel et du charriot devrait être déplacéavec
précaution. Des mises en marche et arrêts brusques, des collisions
excessives ainsi que des surfaces inégales peuvent renverser
l’ensemble du matériel et du charriot.
ATTENTION: INFORMATIONS IMPORTANTES DE SÉCURITÉ
La lumière clignotante du symbole de la flêche àl’intérieur d’un triangle
équilatéral, àpour objet d’alerter l’utilisateur de la présence “d’un voltage dan-
gereux”non-isoléàl’intérieur du produit, qui pourrait être de magnitude suff-
isante au risque d’éléctrocution.
Le point d’exclamation, àl’intériur d’un triangle équilatéral, àpour objet de
prévenir l’utilisateur de l’importance des instructions de fonctionement et de
maintenance, jointes àl’appareil.
ATTENTION
RISQUE DE CHOC
ELECTRIQUE NE PAS OUVRIR
!
´
´
AVERTISSEMENT:
Afin de prevenir les risques de feu ou de choc, ne pas
exposer cet appareil a la pluie ou a l'humidité
´
´

–12 –
1.INSTRUKTIONEN LESEN
Alle Sicherheits- und Operationshinweise Ihres Hafler Equipments
sollten vor der Inbetriebnahme gelesen werden.
2.BETRIEBSANLEITUNG AUFBEWAHREN
Bewahren Sie die Bedienungsanleitung sorgfältig auf, damit Sie in
dieser auch in Zukunft nachschlagen können.
3.WARNUNGEN BEACHTEN
Alle Warnungen des Gerätes und der Bedienungsanleitung sind
extrem wichtig und müssen befolgt werden.
4.INSTRUKTIONEN BEACHTEN
Alle Operations- und Gebrauchshinweise sind extrem wichtig und
müssen beachtet werden.
5.HITZE
Das Equipment sollte fern von Hitze ausstrahlenden Geräten
aufgestellt werden, wie z.B. Heizungen, Öfen etc.
6.VENTILATION
Das Equipment sollte so aufgestellt werden, dab eine ausreichende
Ventialition gewährt wird.
7.WASSER UND FEUCHTIGKEIT
Das Equipment sollte nicht im oder in der Nähe von Wasser
benutzt werden, wie z.B. in Schwimmbädem, Saunen etc. Es sollte
ebenfalls nicht in Überschwämmungsgefährdeten Gebieten
aufgestellt werden, wie z.B. Kellerräumen.
8.REINIGEN
Reinigen Sie das Gerät nur, wie in der Bedienungsanleitung
detailliert beschrieben.
9.EINDRINGEN VON FREMDKÖRPERN
Achten Sie darauf, dab weder Fremdkörper, noch Flüssigkeiten in
das Gerät eindringen.
10.ERFORDERLICHER REPARATURSERVICE
Hafler Equipment sollte nur von qualifizierten Service-Technikern
instand gesetzt werden, wenn:
A.Eine Flüssigkeit in das Gerät eingedrimgem ist
B.Das Gerät Regen ausgesetzt wurde
C.Das Gerät nicht mehr ordnungsgemäb funktioniert, ggf. nicht
mehr die volle Leistung abgibt
D.Das Gerät runtergefallen ist oder das Gehäuse beschädigt wurde
11.SERVICE
Der Benutzer sollte nur den Service ausführen, der in der
Bedienungsanleitung für den Benutzer freigegeben wird. Den weit-
erführenden Service sollte nur von qualifizierten Tevhnikern
durchgeführt werden.
12.AUFSTELLUNG
Das Equipment sollte so aufgestellt werden, dab der gewählte
Untergrund die erforderliche Stabilität aufweist, so dab eine
gefahrlose Bnutzong gewährleistet wird.
Das Equipment und der Untergrund sollte mit äuberster Vorsicht
bewegt werden. Bei schnellen Bewegungen oder starkem
Abbremsen, kann es zum Umkippen des Equipments kommen.
ACHTUNG –WICHTIGE SICHERHEITS –INFORMATIONEN
Der Blitz mit dem Pfeil, in einem gleihschenkligen Dreieck, soll den
benutzer vor unisolierter “gefährlicher Spannung”innerhalb des
Gerätes warnen.
Das Ausrufezeichen, in einem gleichschenkligen Dreieck, soll den
Benutzer darauf aufmerksam machen, dab dem Gerät wichtige
Operations - und Service - Informationen beigefügt sind.
ACHTUNG
GEFAHR EINES
ELEKTRISCHEN SCHLAGS
NICHT OFFNEN
!
¨
¨
WARNUNG:
Um die gefahr eines elektroschocks oder feuer zu
vermeiden, setzen sie das gerat keinem regen oder
extremer feuchtigkeitaus.

–13 –
NOTARE –IMPORTANTI INFORMAZIONI SULLA SICUREZZA
Il simbolo del fulmine in un triangolo equilatero vuole avvertire della pre-
senza di tensioni elevate non isolate e di valore sufficiente per costituire
rischio di shock elettrico alle persone.
Il punto esclamativo contentuto in un triangolo equilatero vuole avvertire
l’utente della presenza di parti di servizio e di manutenzione che sono
dettagliate nel manuale di istruzioni.
ATTENZIONE
ATTENZIONE:
RISCHIO DE SCARICHE
ELETTRICHE NON APRIRE
!
ATTENZIONE:
Per prevenire incendio scariche elettriche, non esporre
questo apparato a pioggia o umiditá.
1.LEGGETE LE ISTRUZIONI
Tutte le istruzioni riguardanti la sicurezza ed il funzionamento
devono essere lette prima di applicare tensione all’apparato.
2.CONSERVATE IL MANUALE
Queste istruzioni riguardanti la sicurezza ed il funzionamento
devono essere conservate come riferimento futuro.
3.AVVERTENZE
Tutte le avvertenze poste sull’apparato e sul libretto di istruzioni
sono importanti e devono essere seguite.
4.SEGUIRE LE ISTRUZIONI
Tuttle le istruzioni operative e di funzionamento devono essere
seguite.
5.TEMPERATURA
L’apparato deve essere mantenuto lontano da tuttle le zone ad alta
temperature, termosifoni, termoconvettori, stufe e forni, caminetti
ed altro.
6.VENTILAZIONE
L’apparato deve essere posizionato in aree convenienti per una
corretta ventilazione. Prestare attenzione che sia consentita circo-
lazione d’aria attorno e dentro il cabinet.
7.ACQUA E POLVERE
L’apparato deve essere posizionato lontano da zone contenenti
acqua, come vasche a bagno, acquari e piscine. Inoltre non deve
essere impiegato in aree soggette ad allagamento, come le cantine.
8.PULIZIA
L’apparato deve essere pulito solo come indicato dalle istruzioni.
9.INGRESSO DI OGGETTI E LIQUIDI
Si deve prestar attenzione che oggetti e liquidi, come fluidi deter-
genti e bibite, non vengano versati all’interno dell’apparato.
10.RIPARAZIONI
Gli apparati Hafler devono essere riparati da personale qualificato
quando:
A.Oggetti sono caduti all’interno del telaio o quando del
liquido èentrato
B.Quando l’apparato èstato esposto a pioggia
C.Quando l’apparato non sempra funzionare normalmente o
quando esibisce un cambiamento di prestazioni o
D.Quando ècaduto o il telaio èstato danneggiato
11.ASSISTENZA
L’utente non deve tentare di prestare assistenza all’apparato, se non
per quanto esposto nelle istruzioni. Tutti gli altri interventi devono
essere effettuati da un tecnico specializzato.
12.CARRELLI E STAND
L’apparato deve essere impiegato su carrelli o stand solo se questi
sono sufficientemente solidi e stabili per la funzione a cui si vuole
dedicarli.
La combinazione di carrello ed apparato deve essere mossa con
cautela. Fermate e partenze improvvise, forze eccessiva e superfici
irregolari, possono ribaltare la cominzione carrello e apparato.

–14 –
Notes

LIT10952
4/00 M.J.T.
HAFLER
A DIVISION OF
ROCKFORD CORPORATION
546 SOUTH ROCKFORD DRIVE
TEMPE, ARIZONA 85281 U.S.A.
1-888-HAFLER1 / 480-967-3565
WWW.HAFLER.COM
MADE IN THE USA
This product is designed, developed and assembled in the USA by a dedicated group of
American workers. The majority of the components used in the construction of this product
are produced by American companies. However, due to the global nature of their
manufacturing facilities and the electronics parts industry in general, some parts may be
manufactured in other countries.
