Haier AB142ACBBA User manual

No.0010571987
CASSETTE AIR CONDITIONER
Operation
Manual
AB142ACBBA
AU142AFBBA
(HBU-14HC03/R1)
Please read this manual carefully before using the air conditioner
Please keep this manual properly for future use

Contents
Cautions ...........................................................................................
Main points of operation..................................................................
Name of Each part ..........................................................................
Safety cautions................................................................................
Gaide to operation........................................................................
Maintenance .....................................................................................
Trouble shooting ..........................................................................
When trouble happens .....................................................................
Customer Need to know .................................................................
Installation Tools ..............................................................................
Installation Procedures ................................................................
Installation Procedures,Check and Test Run ....................................
Air Purging Method ( To use vacuum pump) ....................................
1-2
3-4
5-6
7-8
9-14
15
16-18
19
20
21
22-31
32
33

CAUTIONS
1
Disposal of the old air conditioner
Before disposing an old air conditioner
that goes out of use, please make sure
it's inoperative and safe. Unplug the
air conditioner in order to avoid the risk
of child entrapment.
It must be noticed that air conditioner
system contains refrigerants, which
require specialized waste disposal.
The valuable materials contained in a
air conditioner can be recycled.
Contact your local waste disposal
center for proper disposal of an old air
conditioner and contact your local
authority or your dealer if you have any
question. Please ensure that the
pipework of your air conditioner does
not get damaged prior to being picked
up by the relevant waste disposal
center, and contribute to environmental
awareness by insisting on an
appropriate, anti-pollution method of
disposal.
Disposal of the packaging of your
new air conditioner
All the packaging materials employed
in the package of your new air
conditioner may be disposed without
any danger to the environment.
The cardboard box may be broken or
cut into smaller pieces and given to a
waste paper disposal service. The
wrapping bag made of polyethylene
and the polyethylene foam pads
contain no fluorochloric hydrocarbon.
Consult your local authorities for the name
and address of the waste materials
collecting centers and waste paper
disposal services nearest to your house.
Safety Instructions and Warnings
Before starting the air conditioner, read
the information given in the User's Guide
carefully. The User's Guide contains
very important observations relating to
the assembly, operation and
maintenance of the air conditioner.
The manufacturer does not accept
responsibility for any damages that may
arise due to non-observation of the
following instruction.
All these valuable materials may be taken
to a waste collecting center and used again
after adequate recycling.
Damaged air conditioners are not to be
put into operation. In case of doubt, consult
your supplier.
Use of the air conditioner is to be carried
out in strict compliance with the relative
instructions set forth in the User's Guide.
Installation shall be done by professional
people, don't install unit by yourself.
For the purpose of safety, the air
conditioner must be properly grounded
in accordance with specifications.
Always remember to unplug the air
conditioner before opening inlet grill.
Never unplug your air conditioner by
pulling on the power cord. Always grip
plug firmly and pull straight out from the
outlet.

2
All electrical repairs must be carried
out by qualified electricians.
Inadequate repairs may result in a
major source of danger for the user of
the air conditoiner.
Do not damage any parts of the air
conditioner that carry refrigerant by
piercing or perforating the air
conditioner's tubes with sharp or
pointed items, crushing or twisting any
tubes, or scraping the coatings off the
surfaces. If the refrigerant spurts out
and gets into eyes, it may result in
serious eye injuries.
Do not obstruct or cover the
ventilation grille of the air conditioner.
Do not put fingers or any other things
into the inlet/outlet and swing louver.
Do not allow children to play with the
air conditioner. In no case should
children be allowed to sit on the
outdoor unit.
Specifications
The refrigerating circuit is leak-proof.
1. Applicable ambient temperature range:
The machine is adaptive in following
situation
Cooling
Heating
Indoor Maximum:
Minimum: D.B / W.B
D.B /
D.B
Outdoor Maximum:
Minimum: D.B
D.B
Indoor Maximum:
Minimum: D.B
Outdoor Maximum:
Minimum:
43 C/ 26 C
D.B / W.B 24 C/ 18 C
20 C
27 C
15 C
18 C/ 14 C
32 C/ 23 C
2. If the supply cord is damaged, it must be
replaced by the manufacturer or its service
agent or a similar qualified person.
3. If the fuse on PC board is broken please
change it with the type of T.3.15A/250VAC.
CAUTIONS
4. The wiring method should be in line with
the local wiring standard.
5.All the cables shall have got the European
authentication certificate.
6.The waste battery shall be disposed properly.
7.The indoor unit installation height is at least
2.5m.
8.The appliance must be installation that the
plug should be easily accessible after instal-
lation.
9. The power plug should be self-provided and
it should have got the European authenti-
cation certificate.
D.B / W.B -7 C/ -8 C

3
Main points of Operation
Operation of Air Conditioner
When the environmental humidity is great,
water maybe dripped from the air outlet in
cooling or drying mode.
3-minute Protection Function
If restart the unit immediately after stopping,
the compressor will start only 3 minutes later
to protect the machine.
Variation of Fan Speed
If fan speed in auto mode, it will automatically
lower when the room temperature close to the
setting temperature in cooling mode.
In heating mode,the compressor stops when the
room temperature at setting temperature and fan
turns into low speed or stops.
In Dry mode,fan speed will be automatically varied.
Remote Control:
There is a telecommunication interface for remote control on the control
panel of the indoor unit. After the peripheral equipment have been installed
in accordance with the instruction manual of the selected remote control
detector, the air conditioner will be computerized and controlled from a far-
away place.
Note: Air conditioner has installed detector,in order to add group control function,Can
refer to Centralized Controller installation and operation manual.

4
Main points of Operation
Prevent Cool Air Blowing Off
In heating mode,the indoor fan will not run
immediately after the unit starts to prevent
the cool air blowing off.
Defrosting Function
In heating mode, when frost formed on the outdoor heat
exchanger, the air conditioner will automatically defrost a
few minutes. During defrosting, both indoor and outdoor
fan will stop running. When defrosting finished, air condi-
tioner will automatically back to running.
Hints
The air conditioner absorbs heat form outside and
releases inside when in heating mode, therefore the
outside environmental temperature will affect heating
effects.
Power Failure Compensation(to be applied for a necessary situation):
After the power failure compensation is set, if power failure suddenly occurs while the air
conditioner is working,it will resume the previous working state when the power is supplied
again.
Setting Method: When the remote controller is on (excluding timer mode and fan mode),press
the ìsleepingî button on the remote controller 10 times within 5 seconds,and
after the buzzer rings 4 times,the air conditioner will enter the state of power
failure compenstation.
Cancel Method:Press the ìsleepingî button on the remote controller 10 times within 5 seconds,
and after the buzzer rings 2 timer,the power failure compensation mode will be
cancelled.
Note: When a power failure suddenly occurs during the air conditioner si working after the
power after the power failure compensationis set,if the air conditioner will not be used
for a long time, please cut off the power supply to prevent its operation from being res-
umed after the power is supplied again, or press the ì Switch On/Off î button after the
power comes again.
Wait a
minute
Defrosting Running

5
Indoor unit
Swing louver
(Air flow direction can be adjusted by using
the SWING button on the remote controller)
Electrical Components Case
Air Inlet Grille
Air Filter
(Inside of the Inlet Grille)
Air Outlet
(blow out hot air when cooling
and cool air when heating)
Air Inlet (back)
Conneting pipe and
electrical wiring
Name of Each Part
outdoor unit
Air Inlet (side)

6
Name of Each Part
1.ON//OFF button
2.Temperature display
3.Clock display
4.Timer ON/OFF display
5.Humidity display
6.Air filter cleaning display
When there is too much duct
collected on the air inlet, the
wire controller will show this
display to remind the user to
clean the air inlet.After cleaning
and installation, just press the
air filter reset button
7.Super/Soft operation display
8.Fan speed display
low Mid High Auto
AUTO
9.Health state display
10.Fresh air state display
Note:
1.Cooling only type air conditioner does not have thedisplay and functions related with heating.
2.This model does not have the following related display and function 5 7 9 10 11 15 .
Calibration of clock
When turning on the unit for the first time, the clock should be calibrated. The method of
calibration is:
1.Press ìClockî button, the Clock display ìAMî ìPMî will flash.
2.Press or to adjust time. For each press, the time will increase or decrease 1 minute.
If depressing the button, the time will increase or decrease rapidly.
3.After confirming the time, press ìSetî button, ìAMî or ìPMî will stop flashing, the clock
will begin to work.
11.Humidifying state display
12.Sleep state display
13.Network control display
14.Working mode display
AUTO RUN COOL RUN DRY RUN HEAT RUN FAN RUN
15.Electric heating display

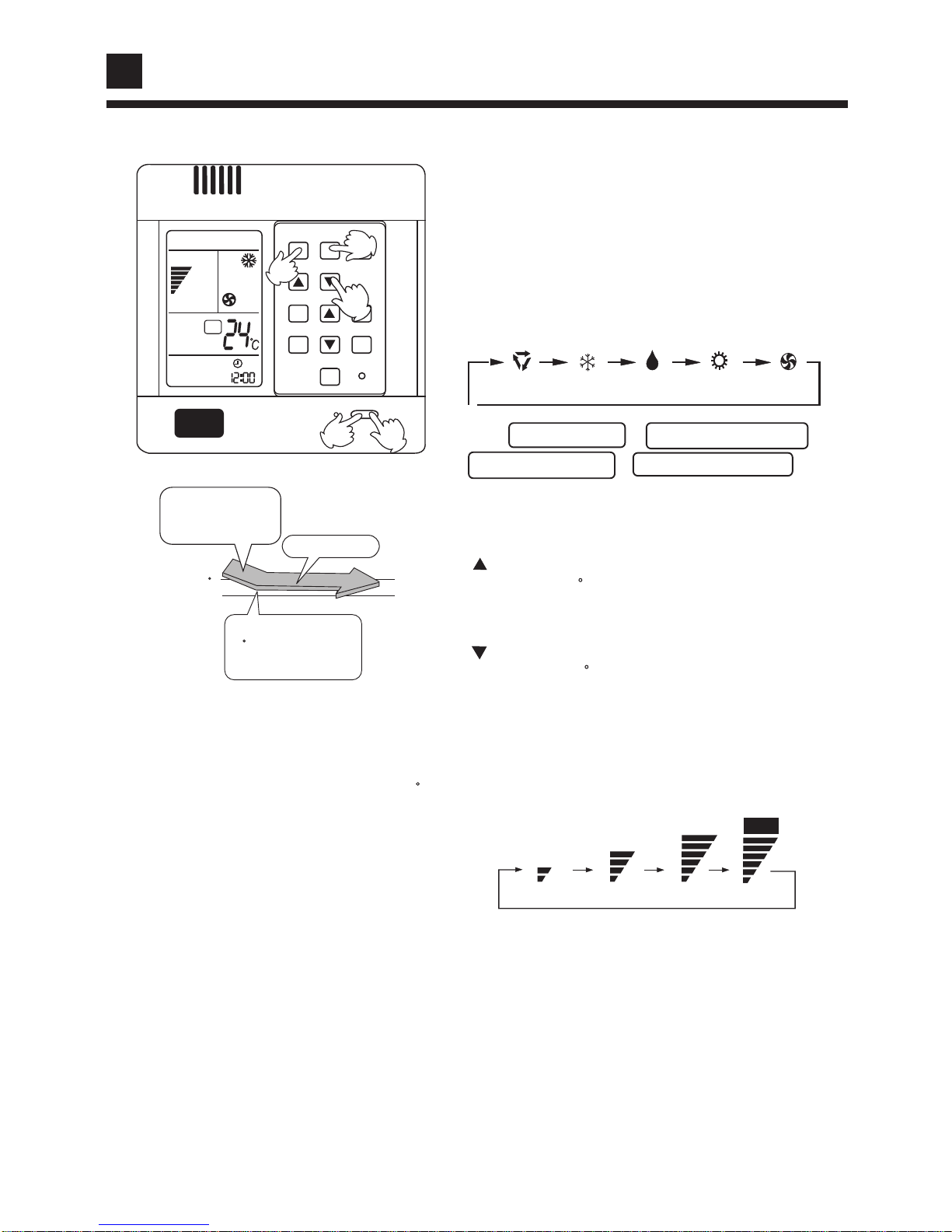

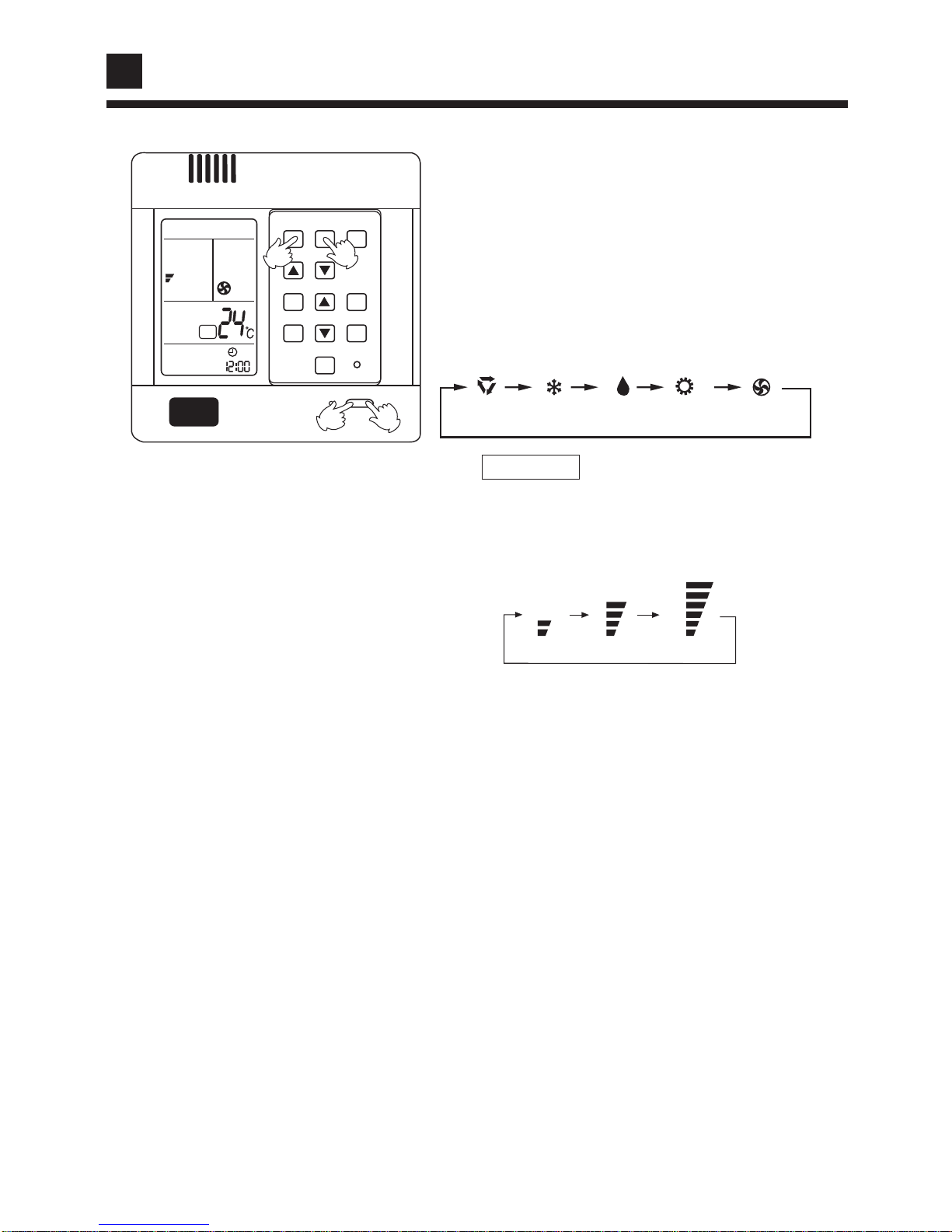

16.Operation mode button
Used to set working mode:
Auto,Cooling,Dry,Heating,Fan
17.Fan speed button
Used to set fan speed:
Low Fan, Mid Fan, High Fan,Auto
18.Temperature Setting button
Used to set temperature,
19.Clock button
Used to calibrate the time of timer
and clock
20.Setting button
Used to confirm the time
of timer and clock
temperature range: 16 C~30 C

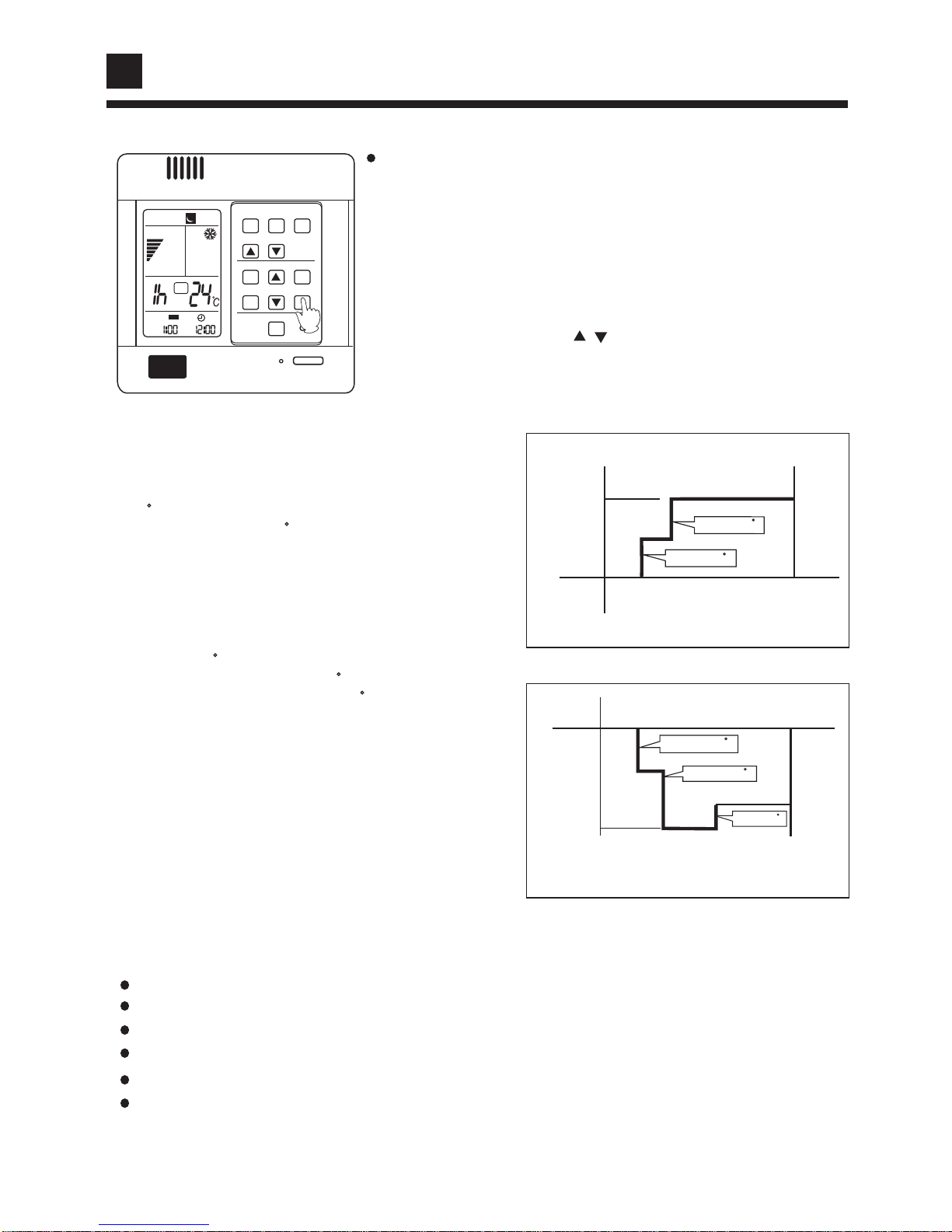

21.Sleep button
Used to confirm the time
of timer and clock
22.TimeAdjusting button
Used to adjust the time of
timer and clock
23.Reset button
When the wire controller appears
abnormal condition, use asharp-
pointed article topress this button
to make the wirecontroller resume
normal
24.Air Filter Reset button
After cleaning the air inlet,
press thisbutton, the unit
can start to operate

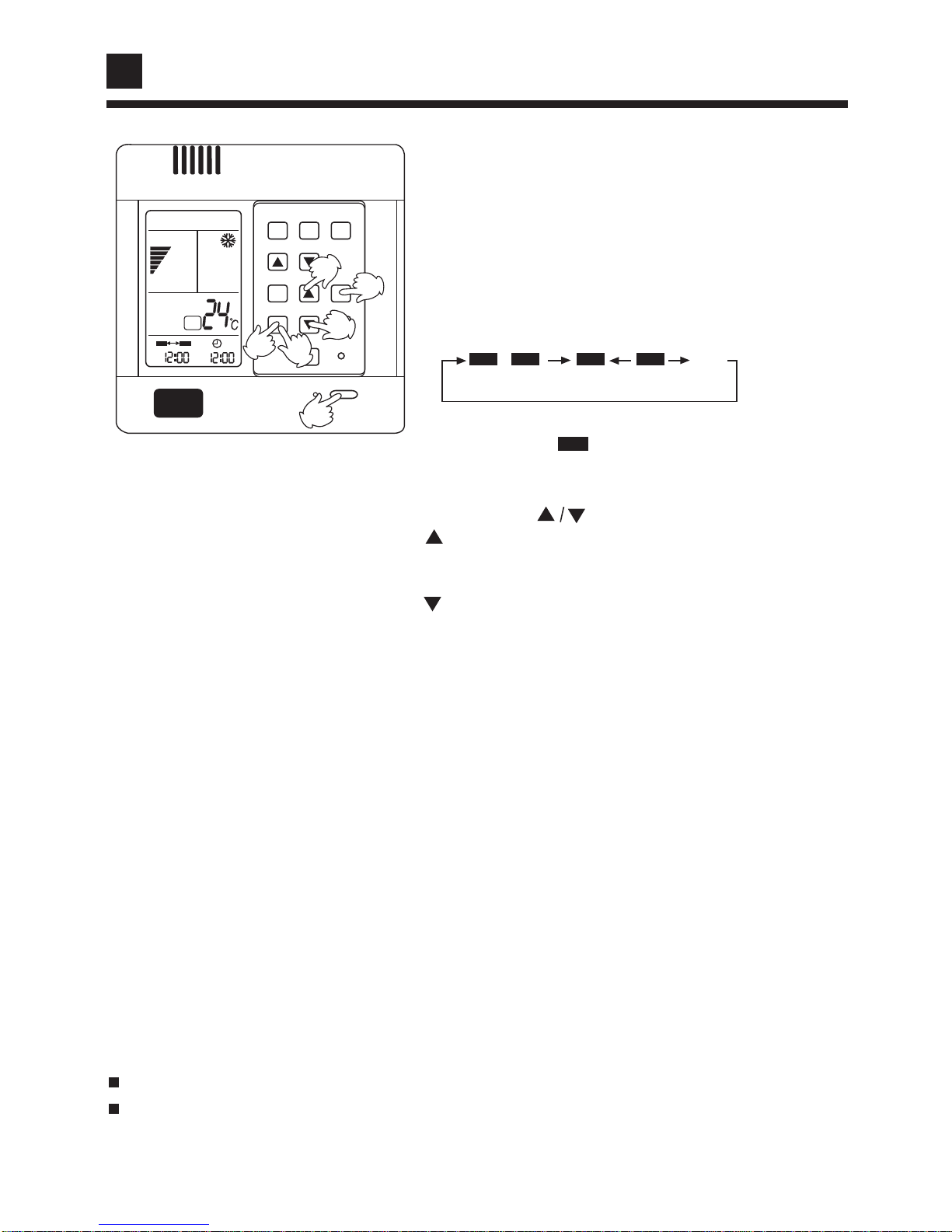

25.Timer button
Used to set the mode of timer
26.Lock state display
2
3
5
6
7
8
9
10
11
12 13 14 15 16 17
4
AM PM AM PM
C
AUTO
%
SET
ROOM
ON OFF
MODE FAN SWING
TEMP
CLOCK SET
TIMER SLEEP
RESET
FILTERRESET
18
19
20
21
22
2324
25
26
1
ON/OFF

7
Safety Cautions
Below are listed four kinds of Safety Cautions and Suggestions:
Be sure to conform with the following important Safety Cautions.
The Safety Cautions should be at hand so that they can be checked at any time when needed.
If the air conditoner is transferred to the new user, this manual should be as well transferred to
the new user.
Incorrect operations may result in severe consequences of death or serious injures.
WARNING: Incorrect operations may result in injures or machine damages; in some cases may
cause serious consequences.
CAUTION :
: It must be strictly prohibited where marked with ì Prohibited î, otherwise may result in
machine damages or endanger the userípersonal safety.
This information can ensure the correct operation of the machine.
INSTRUCTION:
Carefully read the following information in order to operate the air conditioner correctly.
WARNING
If any abnormal phenomena are found (e.g.
smell of firing),please cut off the power supply
immediately, and contact the dealer to find outí
the handling method.
When need maintenance and
repair,call dealer to handle it.
Donít put figures or any other
things into the inlet/outlet and
swing louver while the conditi-
oner is in operation
Call the dealer to take measures to prevent the
refrigerant from leaking.
Switch
off
In such case,to continue using
the air conditioner will damage
the conditioner,and may cause
electrical shock or fire hazard.
Incorrect maintenance and
repair may cause water leak,
electrical shock and fire hazard.
Because the high-speed fan
is very dangerous and may
cause injures.
The leaked refrigerant over certain density may
cause oxygen deficient.If the air conditioner is
installed in a small room be sure to take measure
in order to prevent suffocation accident even in
case of refrigerant leakage
When air conditioner is removed and reinstalled
dealer should be responsible for them.
Incorrect installation may cause water leaking,
electrical shock and fire hazard.
Donít dismantle the outlet of the outdoor unit.
The exposure of fan is very
dangerous witch may harm
human beings.
After a long time use of air conditioner the base
should be checked for any damages.
If the damaged base is not
repaired, the unit may fall
down and cause accidents.

8

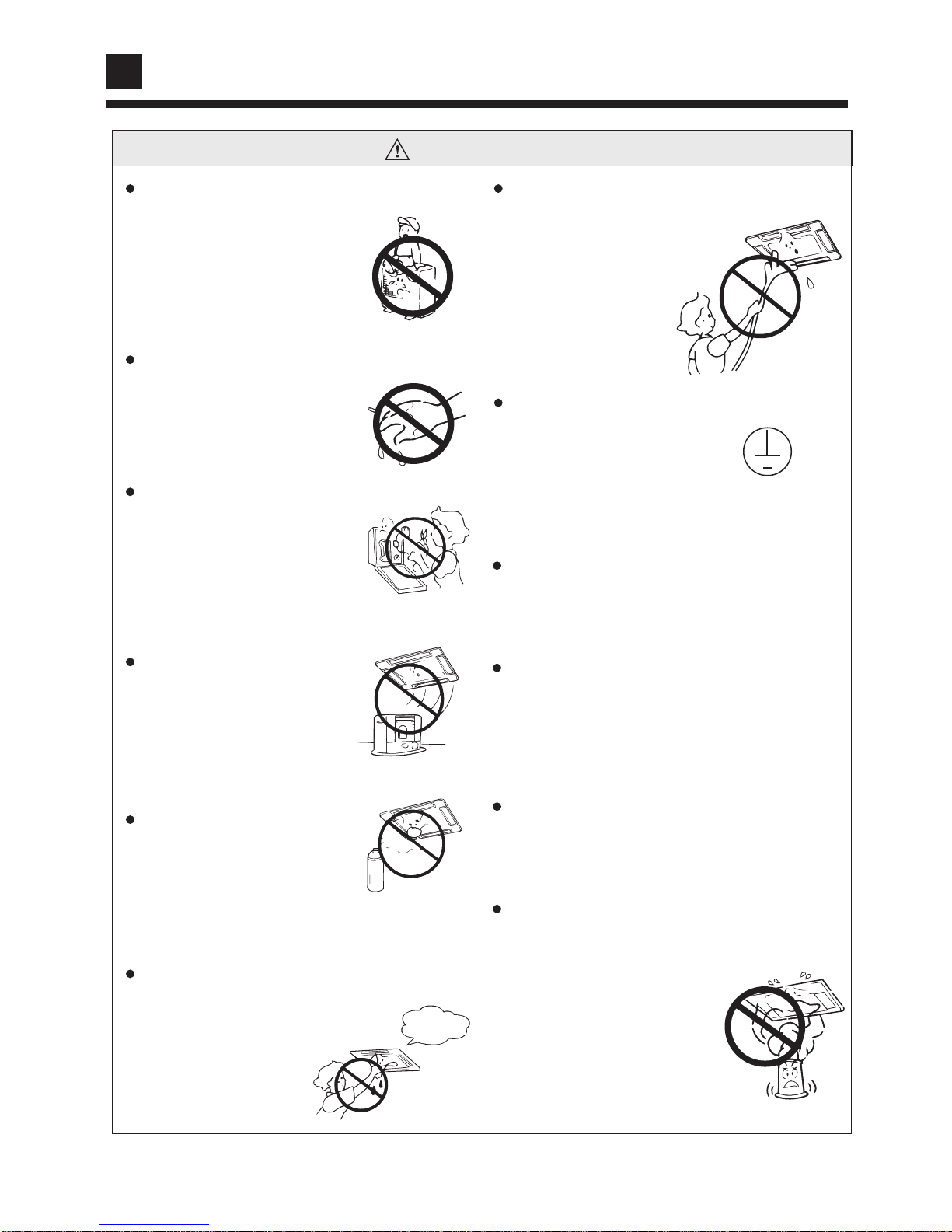

Safety Cautions
WARNING
No goods or nobody is permitted
to be placed on or stand on
outdoor unit.
Donít clean air conditioner
with water.
The falling of goods and
people may cause accidents.
Don't operate the air conditioner with
damp hands.
Otherwise will be shocked.
Only use correct type fuse.
May not use wire or any other
materials replacing fuse,othe-
rwise may cause faults or fire
accidents.
Donít place any burning
unit in the airflow of air
conditioner,which may
cause incomplete
combustion
No inflammable spray fluid
should be permitted to be
placed or used near to air
conditioner,otherwise may
cause fire accident.
Air conditioner should be
cleaned only after power
supply is cut off to keep
from shock or hurt.
Otherwise may cause shock.
Connect earthing wire.
Earthing wire should not be
connected to the gas pipe,
water pipe,lightning rod or
phone line,incorrect earthing
may cause shock.
Use discharge pipe correctly to
ensure efficient discharge.
In correct pipe usage may cause water
leaking.
Air conditioner canít be be installed in
the environment with inflammable gases.
The inflammable gases near to air conditioner
may cause fire hazard.
Installed electrical-leaking circuit breaker.
When use the fumigating insecticide
donít operate air conditioner.
Otherwise the poisonous chemicals
may settle in air conditioner,
which harm the health of
chemical-allergic people.
It easily causes electrical shock without
circuit breaker.
Not permitted
when running

9
Guide to Operation Fan Operation
Unit will selected the desired fan speed
ROOM
MODE FAN SWING
TEMP
CLOCK SET
TIMER SLEEP
RESET
FILTERRESET
14
23
ON/OFF
1.Unit start
Press ON/OFF button, unit starts.
Previous operation status appears on LCD (except for
TIMER ,SLEEP, and SWING setting).
Power indicator light up.
2.Select operation mode
Press MODE button. For each press,operation mode
changes as follows:
3. Adjust fan speed
Press FAN button.For each press,fan speed changes
as follows:
4. Unit stop
Press ON/OFF button,unit stops.
AUTO FANHEAT
COOL DRY
Then select FAN
LOW MID HIGH
The wire controller only shows the clock and room
temperature.
FAN operation refers the air conditioner does not perform COOLING and HEATING
operation, but air sending operation. In this mode, the air conditioner cannot perform
AUOT FAN operation, and does show the temperature value on the wire controller.
About FAN operation
AM

10
Guide to Operation AUTO run, COOL , HEAT and DRY
Operation
Then select AUTO run or select COOL operation or
select DRY operation or select HEAT operation
Set proper temperature
Temp. setting +2 C
Temp.setting
On reaching temp.setting
+2 C, unit will run in mild
DRY mode.
Ultra-low air flow
COOL operation starts
when room temp.is
higher than temp.
setting.
About Auto operation
In Auto operation, the air conditioner will
automatically choose Cooling, Heating or
Fan mode according to the room temperature.
Hints:
The wire controller can memorize the working condition of each time. When start the unit
for the next time, just need to press ON/OFF button, the air conditioner will work according
to the previous working mode. (except for Timer, Sleep and Swing)
SET
MODE FAN SWING
TEMP
CLOCK SET
TIMER SLEEP
RESET
FILTERRESET
ON/OFF
15
24
3
Set proper fan speed
LOW MID HIGH
AUTO
Unit runs at the speed displayed on LCD.
In HEAT mode, warm air will blow out after a short
period of time due to cold-draft prevention function.
In DRYmode, when room temp. becomes 2 C
higher than temp. setting, unit will run intermittently
at LOW speed regardless of FAN setting.
(1) Unit start
Press ON/OFF button, unit starts.
Previous operation status appears on display
( except for Timer, Sleep, Swing mode). Power
indicator lights up.
(2) Select operation mode
Press MODE button. For each press, operation
mode changes as follows:
AUTO COOL DRY FANHEAT
(3) Select temp. setting
Every time the button is pressed, temp. setting
increases 1 C.
If button is kept depressed, temp.setting will
increase quickly.
Every time the button is pressed, temp. setting
decreases 1 C.
If button is kept depressed, temp. setting will
decrease quickly.
Press TEMP button
Press ON/OFF button.
Only clock and room temp remains on LCD.
(5) Unit stop
Press FAN button. For each press, fan speed
changes as follows:
(4) Fan speed
AUTO
AM

11
Guide to Operation Sleep Function
Use of SLEEP function
Before using this function, you should calibrate the clock first,
otherwise, the SLEEP function will be out of order.
Before going to bed, you can press the SLEEP button, the air
conditioner will operate in comfort sleep mode to make you
have a sound sleep.
After unit start,first set running mode and then press SLEEP button
once.Mark the air conditioner have the previous-set sleep time(first
power-on or after carrying out sleep function is 1h),the sleep symbol
will appear. Press time button / , you can choose the time in 1~8
hours.Each time the button is pressed the time increases/decreases
1 hour and ì xh î appears in the humidity setting part ,ì OFF î appears
in ì TIMER OFF î display part. Press Sleep button again to cancel
Sleep function and the sleep symbol disappears.
1.In COOL, DRY mode
One hour after sleeping operation start, the temp.
is 1 C higher than the setting one. After another
hour the temp. rises 1 C and then run continuously
for another 6 hrs and then close. The actual temp.
is higher than the setting one which is to prevent
from being too cool to your sleep.
2.In HEAT mode
One hour after sleeping operation start, the temp.
decreases 2 C lower than the setting one. After
another hour decreases by 2 C more. The temper-
ature will automatically rise by 1 C after an other
3 hrs operation ,and then automatically close after
3 hrs continuous operation.The actual temperature
is lower than the setting one which is to prevent
from being too hot to your sleep.
SLEEP RUN BEGINS SLEEP RUN STOPS
SETTING T SHUT DOWN
about 6 hrs
1 hrs
In COOL,DRY mode
increase 1 C
increase 1 C
SLEEP RUN BEGINS SLEEP RUN STOPS
SETTING T SHUT DOWN
1 hrs 1 hrs
3 hrs about 6 hrs
increase 1 C
decrease 2 C
decrease 2 C
In HEAT mode
Note:
Operation Mode
3.In AUTO mode.
The air conditioner will run in corresponding sleep
operation according to the automatically selected
operation mode.
InAuto mode, the air conditioner will perform relative Sleep operation according to working mode.
After setting Sleep function, it is not permitted to adjust clock.
The Sleep time is less than 8h, after reaching the set time, the unit will automatically stop.
Set Sleep function after setting ìTimer Offî function, the air conditioner will perform Sleep function.
After setting Sleep function, the Timer function cannot be set.
Set Sleep function after setting ìTimer Onî function, the Sleep function can only be set in the set time of
Timer On.
MODE FAN SWING
TEMP
CLOCK SET
TIMER SLEEP
RESET
FILTER RESET
ON/OFF
AM
SET
AM
OFF

12
Guide to Operation Timer On/Off
Before using TIMER function, calibrate the clock first (referring to page 4). When
you wake up in the morning, before going back to home after work or after going
to bed, you can let your air conditioner automatically turn on or turn off.
SET
MODE FAN SWING
TEMP
CLOCK SET
TIMER SLEEP
RESET
FILTERRESET
ON/OFF
1
2
4
AM
3
(4)Confirming your setting
After setting correct time, press SET button to
confirm "ON" or "OFF" stops flashing.
Time displayed: Unit starts or stops at x hour x min
(ON or OFF).Timer mode indicator lights up.
To cancel TIMER mode
Just press TIMER button several times until TIMER
mode disappears.
Hints
Wire controller possesses memory function, when use TIMER mode next time, just
press SET button after mode selecting if timer setting is the same as previous one.
After power failure, the clock should be calibrated again.
At this time the will flash.
OFF
or
ON OFF ON OFF
12:00 12:00 12:00 12:00
AM PM AM PM
TIMER ON TIMER OFF TIMER ON-OFF
BLANK
Operation mode will be displayed on LCD.
(except for Timer, Sleep, Swing)
(2)TIMER mode selection
Press TIMER button to change TIMER mode.
Every time the button is pressed, display changes
as follows:
Select your desired TIMER mode (ON or OFF)
(1)After unit start, select your desired
operation mode.
ON
(3)Timer setting
Press TIME button.
Every time the button is pressed, time increases
10min.If button is kept depressed, time will change
quickly.
Every time the button is pressed, time decreases
10min.If button is kept depressed, time will change
quickly. Time will be shown on LCD. It can be
adjusted within 24hours. AM refers to morning and
PM refers to afternoon.
AM
OFF
ON

13
Guide to Operation Timer On-Off
At this time the will flash.
ON OFF ON OFF
12:00 12:00 12:00 12:00
AM PM AM PM
TIMER ON TIMER OFF TIMER ON-OFF
BLANK
Operation mode will be displayed on LCD.
(except for Timer, Sleep, Swing)
(2)TIMER mode selection
Press TIMER button to change TIMER mode.
Every time the button is pressed, display changes
as follows:
Select your desired TIMER mode (ON or OFF)
(1)After unit start, select your desired
operation mode.
ON
(3)Timer setting
Press TIME button.
Every time the button is pressed, time increases
10min.If button is kept depressed, time will change
quickly.
Every time the button is pressed, time decreases
10min.If button is kept depressed, time will change
quickly. Time will be shown on LCD. It can be
adjusted within 24hours. AM refers to morning and
PM refers to afternoon.
(5)Time setting for TIMER OFF
Time displayed: Unit starts at X hour X min.
After time setting, press TIMER button to confirm.
"ON" stops blinking, While "OFF" starts blinking.
(4) Time confirming for TIMER ON
Follow the same procedures in "Time setting
for TIMER ON".
(6)Time confirming for TIMER OFF
After time setting, press SET button to confirm
"OFF" stops flashing.
Time displayed: Unit stops at X hour X min.
To cancel TIMER mode
According to the Time setting sequence of TIMER ON or TIMER OFF, either Start-Stop or
Stop-Start can be achieved.
MODE FAN SWING
TEMP
CLOCK SET
TIMER SLEEP
RESET
FILTERRESET
ON/OFF
1
2
PM
3
4
6
5
ROOM
Just press TIMER button several times until TIMER mode disappears.
AM
OFF
ON

14
Guide to Operation

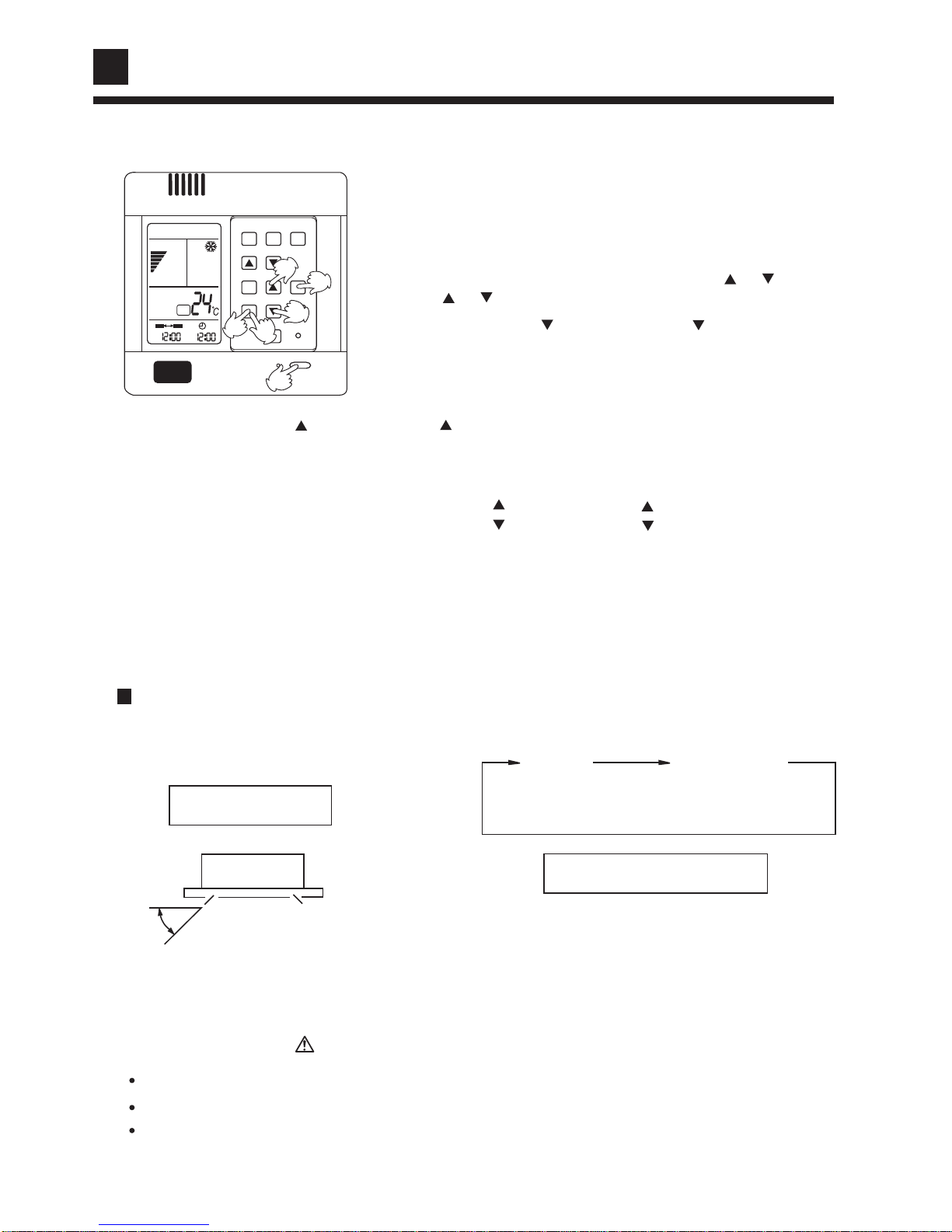

After air conditioner operated for a period, dusts were gradually
accumulated on the filter ,and the filter up/down function can be
used to clean the filter.
1.Whether unit start or stop, continuously press FILTER button
3 seconds,and enter into the filter up/down waiting status
(when unit stops,the yellow TIMER indicator flashes, filter and
clock displayed on the remote controller and no others.Only the
FILTER button and the temperature button and time
button are active).
2.Press temperature button or time button in filter
up/down waiting status, the up/down mechanism makes the
filter to move downward and do not stop until reach the
maximum limit.
3.Press temperature button or time button in filter up/down waiting status , the up/down
mechanism makes the filter to move upward till near to the surface board and then automatically
adjust to reset (when adjusting to reset, it will not be controlled by the remote controller till the
adjustment is finished, and the remote controller can control again.
4.During moving downward ,press temperature button or time button, moving stops.
5.During moving downward ,press temperature button or time button, moving stops.
6.Continuously press FILTER button 3 seconds again to cancel the filter up/down waiting mode
(unit stops, the yellow timer indicator stops flashing, the filter backs to the original position , the
remote controller backs to off status and only clock is displayed).
Note: If the filter does not thoroughly back to the original position,only need to operate several
times repeatedly.
Filter Up/Down
ì î
Filter Up/Down
ì î ì î
ì î ì î
ì î ì î
ì î
ì î
Adjusting up/down air flow direction
Up/down direction can be adjusted by using the SWING button on the remote controller.
Each time pressing this button, the mode changes in the following sequence.
SWING No indication
(louver stopped)
Change to the AIRFLOW mode.
SWING
LOUVER STOPPED
Louver moves in upward and
downward directions continuously.
When the LOUVER button is pushed
during SWING mode,it stops swinging
at the just angle.
Avoid direct air flow to the body for many hours.
Avoid downward blowing opera-tion of cooling mode for many hours.
Do not touch the swing louver during swing operation.
CAUTION
MODE FAN SWING
TEMP
CLOCK SET
TIMER SLEEP
RESET
FILTERRESET
ON/OFF
1
2
PM
3
4
6
5
ROOM
AM
OFF
ON
ì î
ì î
ì î

15

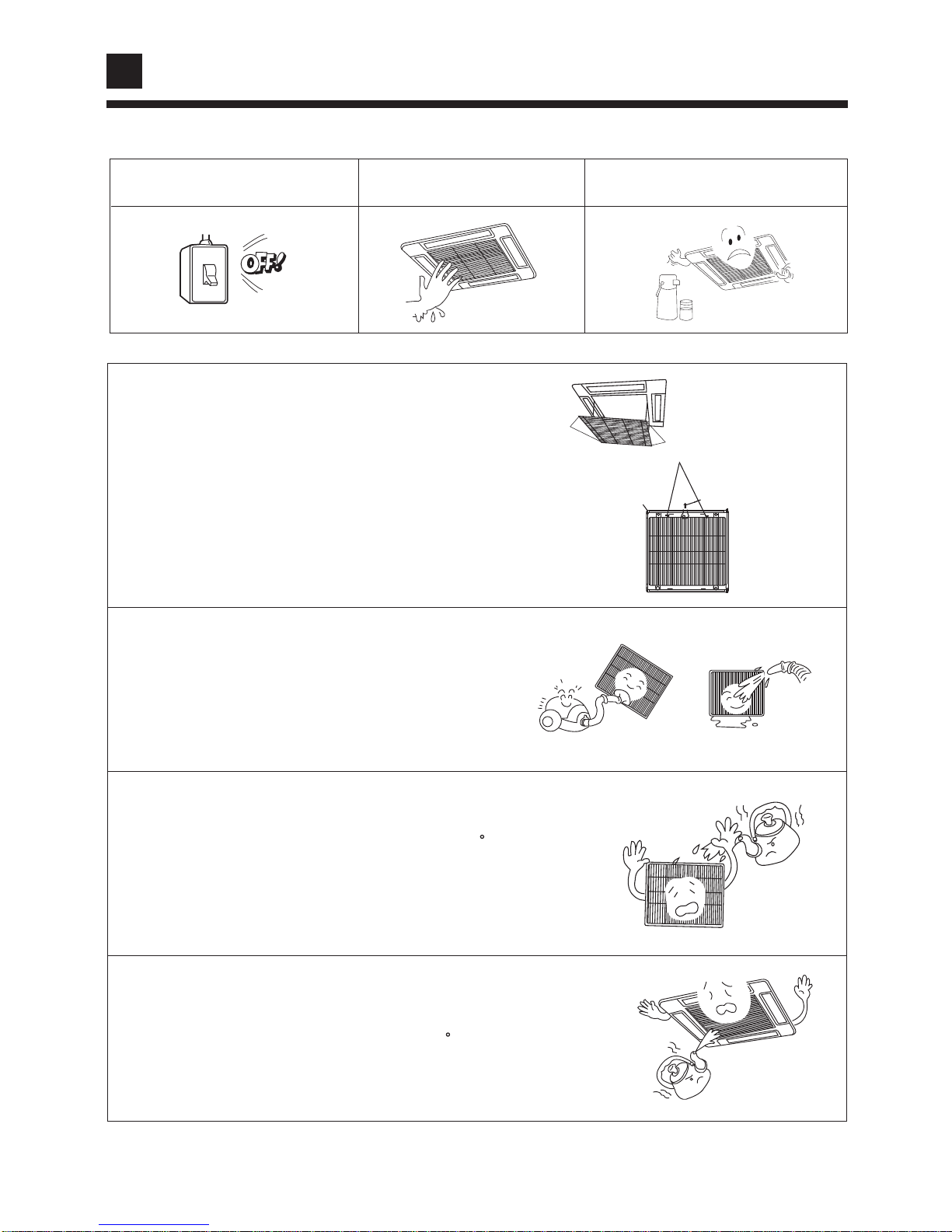

Maintenance
Clean the unit
Turn off the power supply switch Do not touch with wet hand. Do not use hot water or volatile liquid
The 4 fixed bolts must be loosed as shown in
the figure by arrow if they are bolts, the method
is that: push the blots inward till to another edge.
Generally the fixed blots are opened for inlet
grille easily up and down as well cheaning the
air filter.After open it,lower the inlet grille using
remote controller, the maximum distance is 2.24m.
Then turn the 1 rotated clamps 90 degree as
shown in the figure, hold the air filter and nearly
in the horizontal direction slightly pull it out.
Clean the air filter
Clean the air filter with water or vacuum cleaner.
Use the detergent or neutral soapy water if the
air filter is too dirty. Then rinse the air filter with
water,and reinstall after drying.
Caution:
Do not clean the air filter with hot water over 40 C,
otherwise may damage the filter.
Sweep the filter carefully.
Clean indoor (outdoor ) unit
Clean with hot wet cloth and neutral detergent, then wipe with
dry cloth.Do not use too hot water (over 40 C) which may result
in fading and deforming. Do not use insecticide and chemical
washing agent.
Fixing nolt
Fixing nolt Fixing nolt
Rotary fixing clamp
Outward drawable filter
ON
OFF

16
Troubleshooting

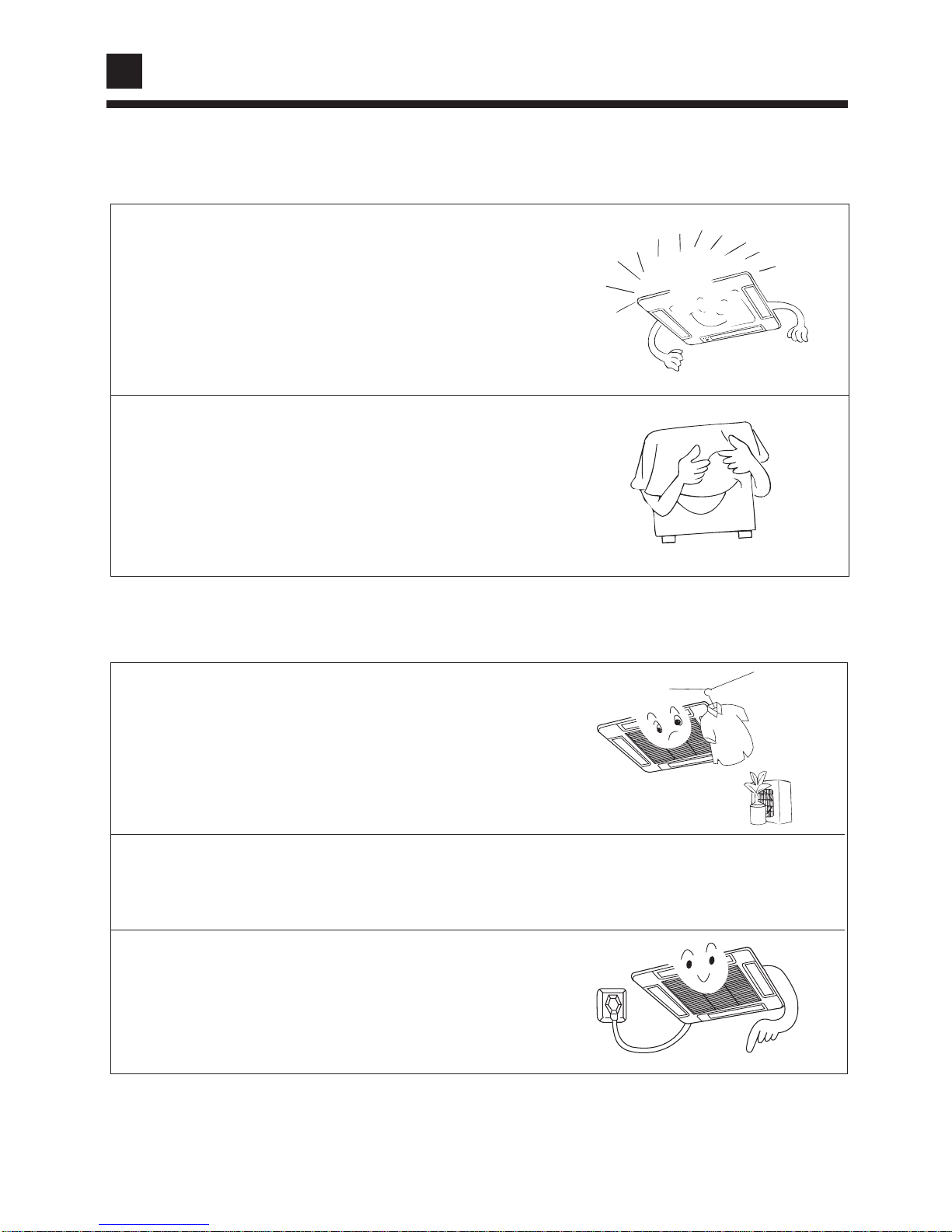

Seasonal Reserve
Operate the unit with FAN mode on a fair day for about half
a day to dry the inside of the unit well.
Stop operation and turn off the power supply switch .Electric
power is consumed even the air conditioner is in stop.
Clean the air filter, indoor unit and outdoor unit,and cover
the unit with dustcoat.
Pre-season Care
See that there is no bostacles blocking the air
inlet and air outlet of both indoor and outdoor
unit to avoid reduce the working efficiency.
Be sure to install the air filter, ensure that the air filter is not dirty. Otherwise may result in
machine damages or cause malfunciton due th dust inside the unit
To prevent compressor when start in HEAT mode,
please cut in the power supply switch 12 hours
before starting run,furthermore, always keep the
power supply switch on during the using senson.
Post-season Care

17
Troubleshooting
The followings are not malfuncition
Hua
Hua
Water flowing sound is heard When the air conditoner is started, when the
compressor starts or stops during operation
or when the air conditioner is stopped,it som-
etimes sounds ì Bi- Bi-î or ìGodo-Godoî. It is
the flowing sound of the refrigerant , not a
malfunction.
Cracking sound is heard
It smells.
This is caused by heat expansion or contra-
ction of plastics
Air blown out from the indoor unit sometimes
smells. The smell results from smells of
furniture, paint , tobacco absorbed by indoor
unit.
During operation, white fog comes out of
indoor unit. When in COOL or DRY mode, a thin water
fog can be seen blown out of unit ,this is the
condensed fog because the suddenly cooled
indoor air is blown out.
Automatically switch into FAN mode during
cooling. To prevent frost from being accumulated on the
indoor unit heat exchanger, it sometimes auto-
matically switched into the FAN mode,but it will
soon back to the cooling mode.
The air conditioner cannot be restarted soon
after it stops.
Air conditioner does not start?
This is because of the self-protection function
of the system, therefore,it cannot be restarted
for about three minutes after it stops.
Air does not blow or the fan speed cannot be
changed during drying. In DRY mode, when room temperature
becomes 2 C higher than temperature setting,
unit rill run intermittently at LO speed regardless
of FAN setting
Please wait for
three minutes

18
Troubleshooting
**?
ON
OFF

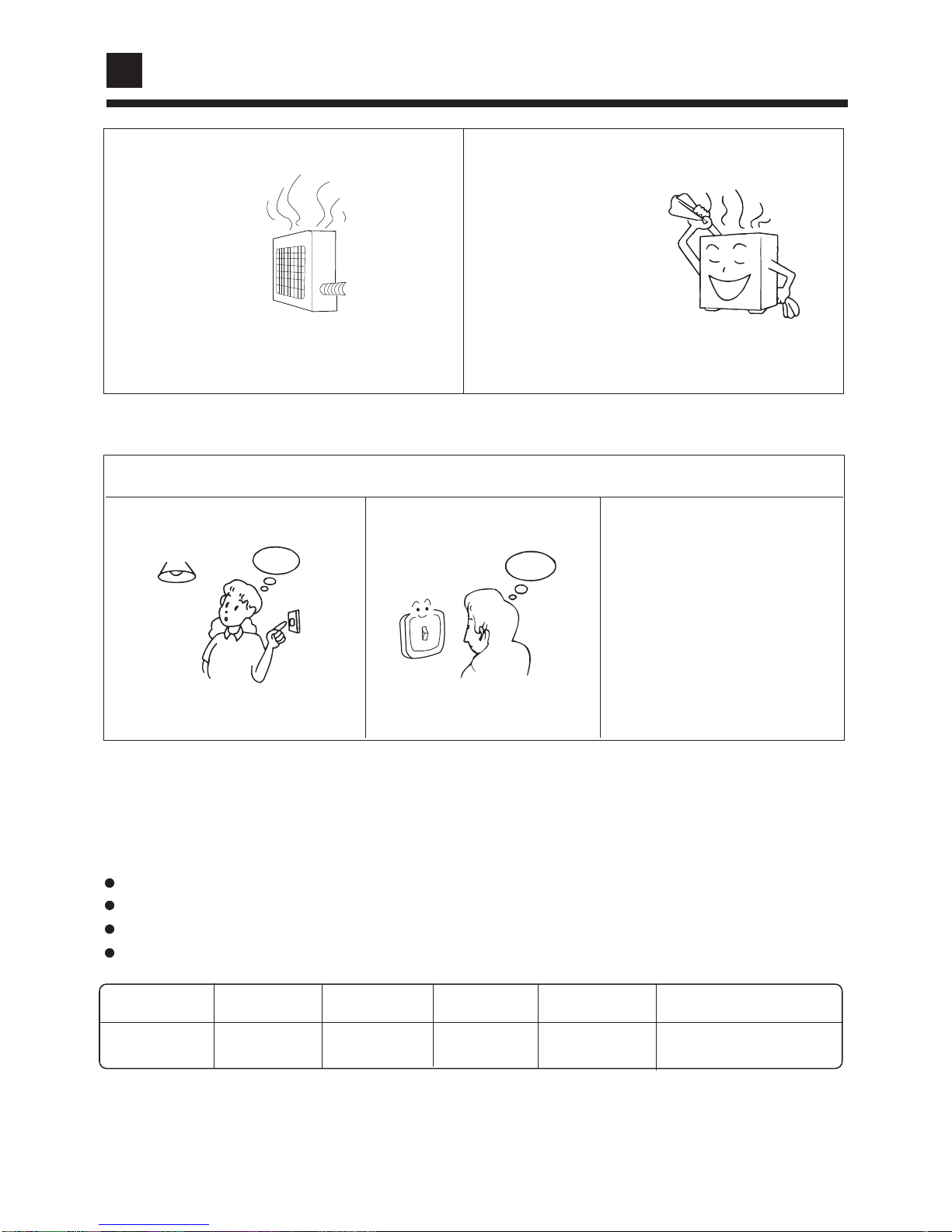

During heating,indoor fan is still running even
unit is stopped. To get ride of the excess heat, indoor fan will
continue running for a while after unit autom-
atically stops.
Water or vapor generated from the outdoor
unit during heating. This happens when the frost accumulated on
the outdoor unit is removed (during defrosting
operation).
Defrosting operation
Please check the following things about your air conditioner before making a
service call.
Unit fails to start.
Is the power supply switch on ?
Power supply switch is not in
ON position.
Is city supply power normal ? Is the earth leakage breaker
in action ?
Be sure to turn off the power
supply switch immediately and
contact the sales dealer.
Malfunction
judgement
MALFUNCTION JUDGEMENT
When the air conditioner does not operate properly after you have checked the above mentioned
items or when the following phenomenon is observed, stop the operation of the air conditioner
and contact your sales dealer.
The fuse or breaker often shuts down.
Water drops off during cooling operation.
There is a irregularity in operation or abnormal sound is audible.
When the CHECK lamp flickers, an irregularity has occurred in the air conditioner.
E0
Note:
This unit has a function of automatic restart system after recovering power stoppage. Please contact
the sales dealer if it is not required.
The trouble of the
drainage system
Content of defect
E1
The trouble of the
room temp. sensor
E2
The trouble of the
pipe temp. sensor
E5
The trouble of the
overload current
E8
The trouble of the main control
board communication
