Haier AB182ACBHA User manual

OPERATION MANUAL
No.0010571312
B
CASSETTE TYPE AIR CONDITIONER
AB182ACBHA
AU182AFBIA
(HBU-18HA03/R1(B))

1
CONTENTS
CAUTIONS..................................................................................
THE NAME OF EACH PART AND ITS FUNCTION.............
INTRODUCTION TO SPARE PARTS ..................................
REMOTE CONTROLLER OPERATION .................................
GUIDE TO OPERATION ......................................................
AIR FLOW DIRECTION ADJUSTMENT PROCEDURE
.......
FOR COMFORTABLE USE .....................................................
CARE AND MAINTENANCE..............................................
WARNING OPERATION ....................................................
2-3
4
5-6
7
8-12
13-15
16
17-19
20-24

2
CAUTIONS
Disposal of the old air conditioner
Before disposing an old air conditioner
that goes out of use, please make sure
it's inoperative and safe. Unplug the
air conditioner in order to avoid the risk
of child entrapment.
It must be noticed that air conditioner
system contains refrigerants, which
require specialized waste disposal.
The valuable materials contained in an
air conditioner can be recycled.
Contact your local waste disposal
center for proper disposal of an old air
conditioner and contact your local
authority or your dealer if you have
any question. Please ensure that the
pipework of your air conditioner does
not get damaged prior to being picked
up by the relevant waste disposal
center, and contribute to
environmental awareness by insisting
on an appropriate, anti-pollution
method of disposal.
Disposal of the packaging of your
new air conditioner
All the packaging materials employed
in the package of your new air
conditioner may be disposed without
any danger to the environment.
Consult your local authorities for the name
and address of the waste materials
collecting centers and waste paper
disposal services nearest to your house.
Safety Instructions and Warnings
Before starting the air conditioner, read
the information given in the User's Guide
carefully. The User's Guide contains very
important observations relating to the
assembly, operation and maintenance of
the air conditioner.
The manufacturer does not accept
responsibility for any damages that may
arise due to non-observation of the
following instruction.
Damaged air conditioners are not to
be put into operation. In case of doubt,
consult your supplier.
All these valuable materials may be taken
to a waste collecting center and used
again after adequate recycling.
The cardboard box may be broken or cut
into smaller pieces and given to a waste
paper disposal service. The wrapping
bag made of polyethylene and the
polyethylene foam pads contain no
fluorochloric hydrocarbon.

3
CAUTIONS
All electrical repairs must be carried
out by qualified electricians.
Inadequate repairs may result in a
major source of danger for the user of
the air conditioner.
Do not damage any parts of the air
conditioner that carry refrigerant by
piercing or perforating the air
conditioner's tubes with sharp or
pointed items, crushing or twisting any
tubes, or scraping the coatings off the
surfaces. If the refrigerant spurts out
and gets into eyes, it may result in
serious eye injuries.
For the purpose of safety, the air
conditioner must be properly grounded
in accordance with specifications.
Always remember to unplug the air
conditioner before opening inlet grill.
Never unplug your air conditioner by
pulling on the power cord. Always grip
plug firmly and pull straight out from
the outlet.
Use of the air conditioner is to be
carried out in strict compliance with the
relative instructions set forth in the
User's Guide.
Installation shall be done by
professional people, don't install unit
by yourself.
Do not obstruct or cover the
ventilation grille of the air conditioner.
Do not put fingers or any other things
into the inlet/outlet and swing louver.
Do not allow children to play with the
air conditioner. In no case should
children be allowed to sit on the
outdoor unit.

Indoor unit
Air inlet
Outdoor unit
Air outlet
Compressor(inside of unit)
Swing louver
(Air flow direction can be adjusted by using
the SWING button on the remote controller)
Air Inlet Grille
Air Filter
(Inside of the Inlet Grille)
Operating Control Panel
COMP TIMER OPERPOWER
1 2 3 4 5
Operating Control Panel
6
Remote receiver
Compressor Lamp
TIMER Lamp
OPERATION Lamp
Power Lamp
Emergency switch
1
2
3
4
5
6
*
4
THE NAME OF EACH PART AND ITS FUNCTION

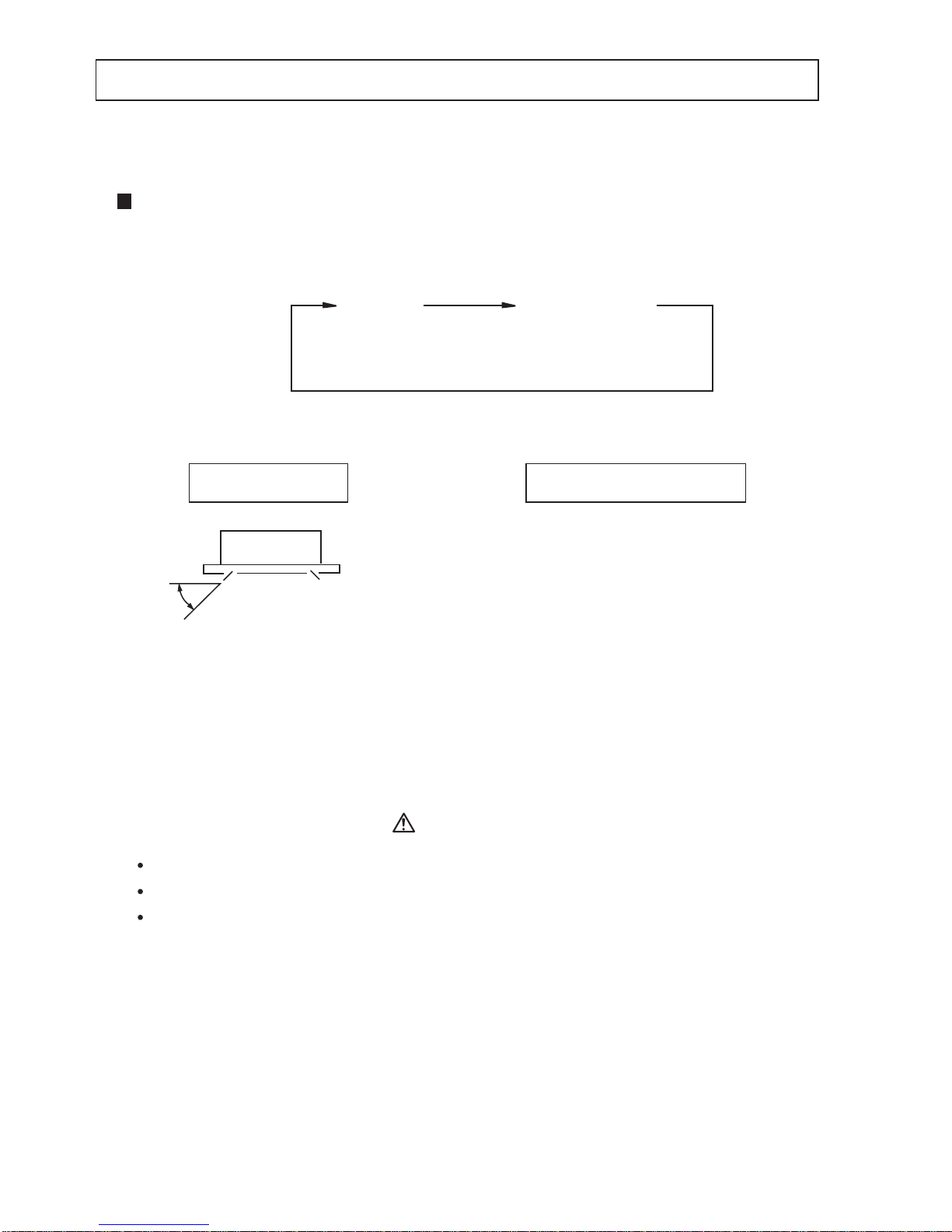

Adjusting up/down air flow direction
Up/down direction can be adjusted by using the SWING button on the remote
controller.
Each time pressing this button, the mode changes in the following sequence.
SWING No indication
(louver stopped)
Change to the AIRFLOW mode.
SWING LOUVER STOPPED
Louver moves in upward and
downward directions continuously.
When the LOUVER button is
pushed during SWING mode,
it stops swinging at the just
angle.
Avoid direct air flow to the body for many hours.
Avoid downward blowing operation of cooling mode for many hours.
Do not touch the swing louver during swing operation.
AIR FLOW DIRECTION ADJUSTMENT PROCEDURE
13
CAUTION

about 6 hrs
1 hr
1 hr
increase 1 C
increase 1 C
FRESH
HIGH/SO TIMER
SET
FILTER
A
HEALTH
HEAT
OFF
14
At night, before going to bed you can press down the SLEEP button
on the controller and the air-conditioner will run by the comfortable
sleeping mode to make you sleep more comfortable.
One hour after sleeping operation start, the temp. is 1 C higher than
the setting one. After another hour the temp. rises 1 C and then run
continuously for another 6 hrs' and then close. The actual temp. is
higher than the setting one which is to prevent from being too cool
to your sleep.
In cooling, dehumidifying mode
Press SLEEP button once to make the air conditioner have the
previous-set sleep time (first power-on is "1h"), the sleep symbol will
appear. Press time button / , you can choose the time in 1~8
hours. Each press of / , the time increases/reduces 1 hour and
"xh" appears in the humidity setting part, "OFF" appears in "TIMER
OFF" display part and timer-off time; press SLEEP button again to
cancel sleep function, the sleep symbol disappears.
One hour after start up, the temp. decrease 2 C lower than the
setting one. After another hour decrease by more 2 C.
The temperature will automatically rise by 1 C after another 3 hrs'
operation, and then automatically close after 3 hrs' continuous
operation. The actual temperature is lower than the setting one
which is to prevent from being too hot to your sleep.
In heating mode
Note:
In AUTO mode, unit will run in SLEEP function according to the operation mode.
After setting SLEEP function, it is forbidden to calibrate clock.
If the set sleep-time does not reach 8 hours, the unit will stop operation automatically
after set time is complete.
Set "TIMER-OFF" function first, then set SLEEP, and press the sleep-set-performance;
set TIMER-ON function first, the sleep function can only be set before TIMER-ON; if
set the SLEEP function first, the TIMER function can not be set.
After setting SLEEP, press CLOCK button to show the time; press TEMP. button to
show the temperature; press again to change temperature.
When the set SLEEP time is 8 hours, connect it as shown in the following figure.
SETTING T
SLEEP RUN BEGINS SLEEP RUN STOPS
1 hr
1 hr
3 hrs
about 3 hrs
decrease 2 C
decreases 2 C
increase1 C
SHUT DOWN
SLEEP RUN STOPS
Heat mode
SLEEP RUN BEGINS
SETTING T SHUT DOWN
Cooling mode
Comfortable Sleep
RESET LOCK
SLEEP
FAN
TEMP
ON
OFF
SWING
MODE
CLOCK
CODE LIGHT
A
U
T
O

Remote Control :
There is a telecommunication interface for remote control on the control panel of the
indoor unit. After the peripheral equipment have been installed in accordance with the
instruction manual of the selected remote control detector, the air conditioner will be
computerized and controlled from a far-away place.
Malfunction
code Indoor unit LED2
Malfunction judgement
No. Remark
indoor unit
malfunction
outdoor unit
malfunction
time
state
Indoor unit LED1
time
state
flash 1
2
flash
flash
flash
flash
flash
flash
flash
flash
flash
Malfunction
cause
1
2
3
6
7
8
14
10
1
2
3
4
5
6
7
8
9
10
Power supply led
flash 1 time
Power supply led
flash 2 time
Compressor led
flash 1 time
Compressor led
flash 2 time
Compressor led
flash 3 time
Compressor led
flash 6 time
Compressor led
flash 7 time
Compressor led
flash 8 time
Compressor led
flash 10 time
Compressor led
flash 14 time
Malfunction of the
room temp.sensor
Malfunction of the
piping temp.sensor
Malfunction of the
module
No load
EEPROM bad
Malfunction of the
ambient temp.sensor
Malfunction of the
piping temp.sensor
Malfunction of the indoor
and outdoor comumication
singlechip bad
voltage too high
15
Power Failure Resume (to be applied for a necessary situation) :
Setting Method: When the remote controller is on (excluding timer mode and fan mode),
press the "Sleeping" button on the remote controller 10 times within 5
seconds, and after the buzzer rings 4 times, the air conditioner will enter
the state of power failure compensation.
Cancel Method: Press the "Sleeping" button on the remote controller 10 times within 5
seconds, and after the buzzer rings 2 timer, the power failure compensation
mode will be cancelled.
Notes: When a power failure suddenly occurs during the air conditioner is working after
the power after the power failure compensation is set, if the air conditioner will not be used
for a long time, please cut off the power supply to prevent its operation from being resumed
after the power is supplied again, or press the "Switch On/Off" button after the power
comes again.
After the power failure compensation is set, if power failure suddenly occurs while the air
conditioner is working, it will resume the previous working state when the power is supplied
again.

16

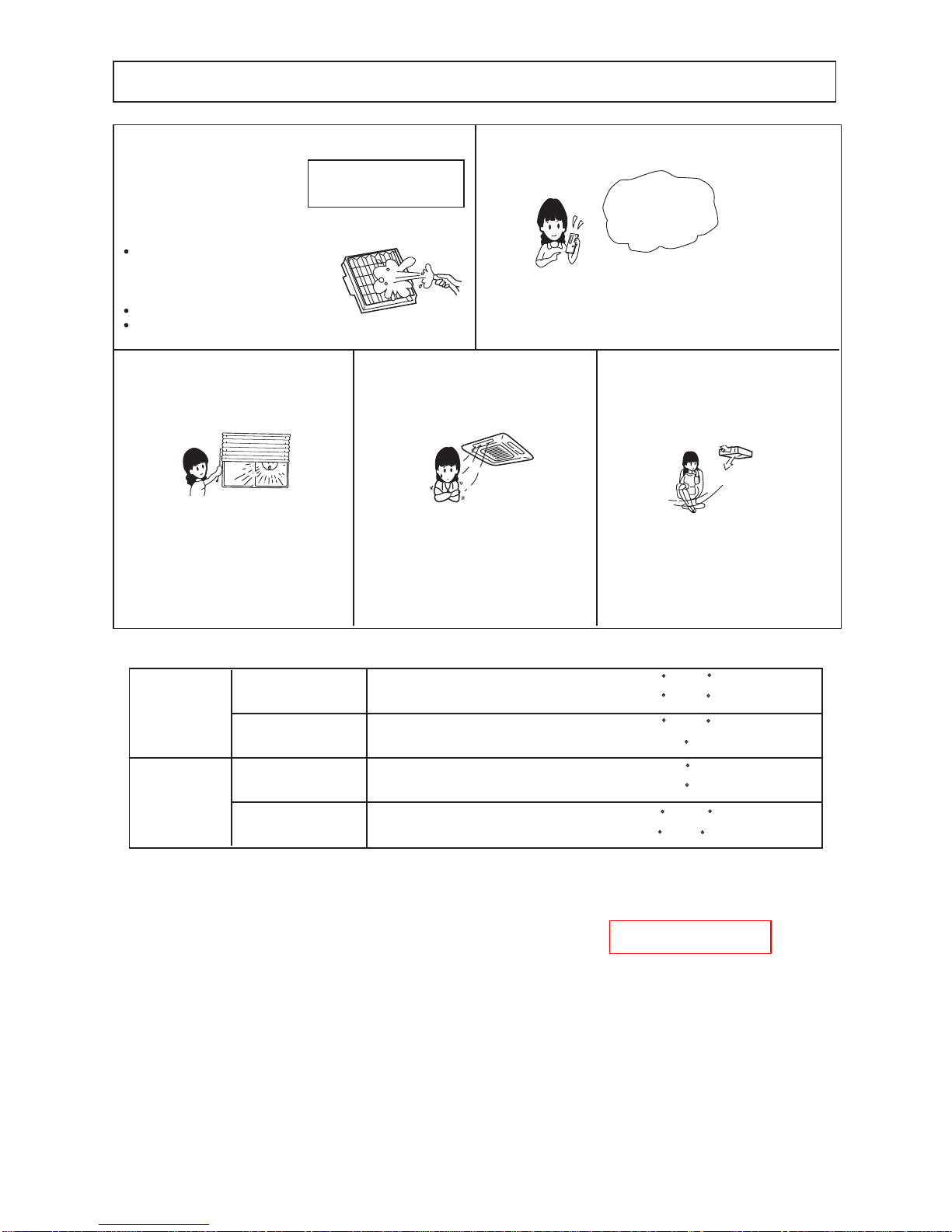

FOR COMFORTABLE USE
Clean the air filter periodically.
When cooling season is
over,clean the air filter.
If air filter is colgged:
Efficiency of air-conditioning is
reduced, and it will result in
excessive consumption of elec-
tric power.
It will result in malfunction.
Water drop will drip in cooling
mode Operation.
Keep the room temperature to be suitable.
Too cooling is not good for your health. Furthermore, it
will result in excessive consumption of electric power.
Optimal
temperature
Prevent direct sunlight and draft. Adjust the blow direction cleverly. Use circulator when coldness is
felt on your feet during the heating
operation.
Intercept direct sunlight with the cur-
tain or blind during cooling. Keep the
window and entrance shut except dur-
ing ventilation.
Avoid facing the cooled air directly for a
long time. Care also should be exercised
to avoid the wind directly to small ani-
mals or plants.
If you feel cold on the feet because of
high ceiling, it is recommended to use
the circulator.
For details, contact your dealer.
43 15
/ 26
-7 / -8
24 / 18
CC
CC
CC
C
C
C
CC
CC
1. Applicable ambient temperature range:
Cooling
Heating
Indoor
Indoor
Outdoor
D.B
32 / 23
18 / 14
Maximum:
Minimum: D.B / W.B
D.B / W.B
Maximum:
Minimum: D.B / W.B
D.B
Maximum:
Minimum: D.B 20
27
Outdoor D.B / W.B
Maximum:
Minimum: D.B / W.B
2. If the supply cord is damaged, it must be replaced by the manufacturer or its service agentor a
similar qualified person. An extend cord is not recommended, the requirement of the power supply
cord is H05RN-F 3G 2.5mm2(suitable for installation in European region)
3. If the fuse on PC board is broken please change it with the type of T 3.15A /250VAC.
4. The waste battery shall be disposed properly.
5. The wiring method should be in line with the local wiring standard.
6. Use copper wire only. The connecting cable should be H05RN-F 4G 0.75mm2. The power cable
should be H05RN-F 3G 2.5mm2. All the cables shall have got the European allthentication
certificate.
7. The power supply connects from the outdoor side.
8. The all-pole discon-rexion connection method should be applied in the power supply.
9. The indoor unit installation height is at least 2.5m

17
CARE AND MAINTENANCE
Points to observe
Turn off the power supply
switch. Do not touch with wet hand. Do not use hot water or volatileliquid.
Thinner Do not
use!
Benzine
Tooth powder
Cleaning the Air Filter
Clean the air filter periodically.
Removal Cleaning
1. How to open the suction grille
Push the fingers to the ellipse and slowly open the
grille downward.
1. Clean the air filter by lightly tapping it or
with the cleaner. It is more effective to clean
the air filter with water.
2. How to remove the filter
Hold the hook part with fingers asillustrated below
(two positions at left and right) at lower part of fil-
ter and pull toward this side while slightly pushing
upward. 2. After drying the air filter, set it up on the air
conditioner.
If the air filter is very dirty. dissolve neutral
detergent in the lukewarm water (approx.
30 C), rinse the air filter in the water, and
thoroughly wash the air filter off the deter-
gent in the plain water.
CAUTION
Do not dry the air filter with fire.
Do not run the air conditioner
without the air filter.
Filter
ON
OFF
Drag the knob of
the grill back lift
the filter and take
down.
Air filter

18
MALFUNCTION?
Care and Cleaning of the unit
Clean with soft and dry cloth.
If it is very dirty, dissolve neutral detergent in the lukewarm water and make the cloth wet with the water.
After wiping, clean off the detergent using clean water.
Post-Season Care
Operate the unit with FAN mode on a fair day for about half a day to dry the inside of the unit well.
Stop operation and turn off the power supply switch. Electric power is consumed even the air conditioner is in stop.
Clean the air filter and set it in the place.
Pre-Season Care
See that there are no obstacles blocking the air inlet and air outlet of both indoor and outoor units.
Make sure that the air filter is not dirty.
Cut in the power supply switch 12 hours before starting run.
Please check the following things about your air conditioner before making a service call.
Unit fails to start
Is the power source switch
cut in? Is city supply power in nor- mal? Isn't the signal receiving sec-
tion exposed to the direct sun-
light or strong illumination?
Isn't the earth leakage
breaker in action?
It is dangerous. Turn off the power supply
switch immediately and contact the sales
dealer.
Cooling or heating is not sufficient
Is the themostat adjust as
required? Isn't the air filter dirty? Isn't any doors or window
left opened? Doesn't any obstacle exist
at the air inlet or outlet?
Isn't the swing louver hori-
zontal? (At HEATING mode)
If swing louver is horizontal,
the blow wind does not reach
floor.
The wind does not blow
during heating operation
Isn't it warming up?
Cooling is not sufficient
Isn't sun-shine invading di-
rectly? Isn't any unexpected heat- ing load generated? Isn't the room much crowd- ed?
Heat generated
by machines
When the air conditioner does not operate properly after you have checked the above
mentioned items or when the following phenomenon is observed, stop the operation of
the air conditioner and contact your sales dealer.
The fuse or breaker often shuts down.
Water drops off during cooling operation.
There is a irregularity in operation or abnormal sound which is audible.
Power
stoppage?
Suitable
temperature
ON
OFF Power supply
switch is not ON.

The followings are not malfunction
Water flowing
sound is heard. When the air conditioner is started, when the compressor starts or
stops during operation or when the air conditioner is stopped, it
sometimes sounds "shuru shuru "or" gobo gobo". It is the flowing
sound of the refrigerant, and it is not a trouble.
Cracking sound is heard.
It smells.
This is caused by heat expansion or contraction of plastics.
Air which blows out from the indoor unit sometimes smells.
The smell results from residents of tobacco smoke or cosmetics stuck
inside of unit.
During operation,
white fog comes
out of indoor
unit.
It is switched into the FAN
mode during cooling.
The air condi-
tioner can not
be restarted
soon after it
stops.
Air does not blow or the fan
speed can not be changed
during dehumidifying.
Water or steam generates
from the outdoor unit during
heating.
Unit does
not start
defrosting
operation
Wait for
three
minutes
When the air conditioner is used at restaurant etc. where dense edible
oil fume is always exists, white fog sometimes blows out of air outlet
during operation.
In this case consult sales dealer for cleaning the heat exchanger.
To prevent frost from being accumulated on the indoor unit heat ex-
changer, it is sometimes automatically switched to the FAN mode
but it will soon return to the cooling mode.
Even if the operation switch is turned on, cooling*
dehumidifying or heating is not operable for three
minutes after the air conditioner is stopped. Because
the protecting circuit is activated.
(During this time air conditioner operates in fan mode.)
When it is excessively cold during dehumidifying, the blower auto-
matically repeats reducing and lowering the fan speed.
This results when frost accumulated on the outdoor unit is removed
(during defrosting operation).
Shuru
Shuru
19

20
WARNING OPERATION
Heat pump type warming
With the heat pump type warming, the mechanism of heat pump that concentrate heat of
outdoor air with the help of refrigerant to warm the indoor space, is utilized.
Defrosting operation
when a room is warmed with a heat pump type air conditioner, frost accumulates on the
heat exchanger of outdoor unit along with the drop of indoor temperature. Since the accu-
mulated frost reduces the effect of warming, it is necessary to automatically switch the op-
eration to the defrosting mode. During the defrosting operation heating operation is inter-
rupted.
Atmospheric temperature and warming capacity
Warming capacity of heat pump type air conditioner decrease along with the drop of out-
door temperature.
When the warming capacity is not sufficient, it is recommended to use another heating im-
plement.
Period of warm-up
Since the heat pump type air conditioner employs a method to circu-
late warm winds to warm the entire space of a room, it takes time be-
fore the room temperature rises.
It is recommendable to start the operation a little earlier in a very
cold morning.
IS THE UNIT INSTALLED CORRECTLY?
Confirm the following items for safe and comfortable use of air conditioner.
The installation work is to be burden on the sales dealer, and do not conduct it by yourself.
Installation place
Avoid installing the air conditioner
near the place where possibility of in-
flammable gas leakage exists.
Install the unit at well ventilated
place. Install the air conditioner firmly
on the foundation that can fully
support the weight of the unit.
Explosion (Ignition) may occur. If some obstacle exist, it may cause
capacity reduction or noise increase. If not, it may cause vibration or noise.
Select the place so as not to
annoy neighbor with the hot air
or noise It is advisable not to install the air conditioner at the following special place.
It may cause malfunction,consult the sales dealer when you have to install the
unit on such a place.
The place where corrosive gas generates (Hot spring area etc.)
The place where salt breeze blows (Seaside etc.)
The place where dense soot smoke exists
The place where humidity is extraordinarily high
The place near the machine which radiates the electromagnetic wave
The place where voltage variation is considerably large

21
SAFETY PRECAUTIONS
Electric work
Before starting to use the system, read carefully this "SAFETY PRECAUTIONS" to ensure a proper
operation of the system.
Safety precautions described here are classified as " WARNING" and " CAUTION". Precau-
tions which are shown in the column of " WARNING" means that an improper handling could lead to
a grave result like a death,serious injury, etc. However, even if precautions are shown in the col-
umn of " CAUTION", a very serious problem could occur depending on situation. Make sure to
observe these safety precautions faithfully because they are very important information to ensure the
safety.
Symbols which appear frequently in the text have following meanings.
The electric work must be burden on the authorized engineer with qualification for electric
work and grounding work, and the work must be conducted in accordance with electric equip-
ment technical standard.
The power source for the unit is to be of exclusive use.
An earth leakage breaker should be installed. (This is necessary to prevent electric
shock.)
The unit must be grounded.
CAUTIONS FOR INSTALLATION
When you have read through the manual, keep it always at hand for ready consultation. If the opera-
tor is replaced, make sure to hand over this manual to the new operator.
Strictly prohibited. Observe instructions
faithfully. Provide a positive grounding.
WARNING
The system should be applied to
places as office , restaurant,
residence and the like.
The system should be installed
by your dealer or a professional
installer.
Whenyouneedsome optionaldevices
such as a humidifier, electric heater,
etc., be sure to use the products
whicharerecommendedby us.These
devices should be attached by a pro-
fessionalinstaller.
Application to inferior environment
such as an engineering shop,could
cause equipment malfunction and seri-
ous injury or death.
Installation by yourself is not encour-
aged because it could cause such prob-
lems as water leakage, electrical shock
or fire accident by some improper han-
dling.
Installation by yourself is not encour-
aged because it could cause such prob-
lems as water leakage, electrical shock
or fire accident by some improper han-
dling.

22

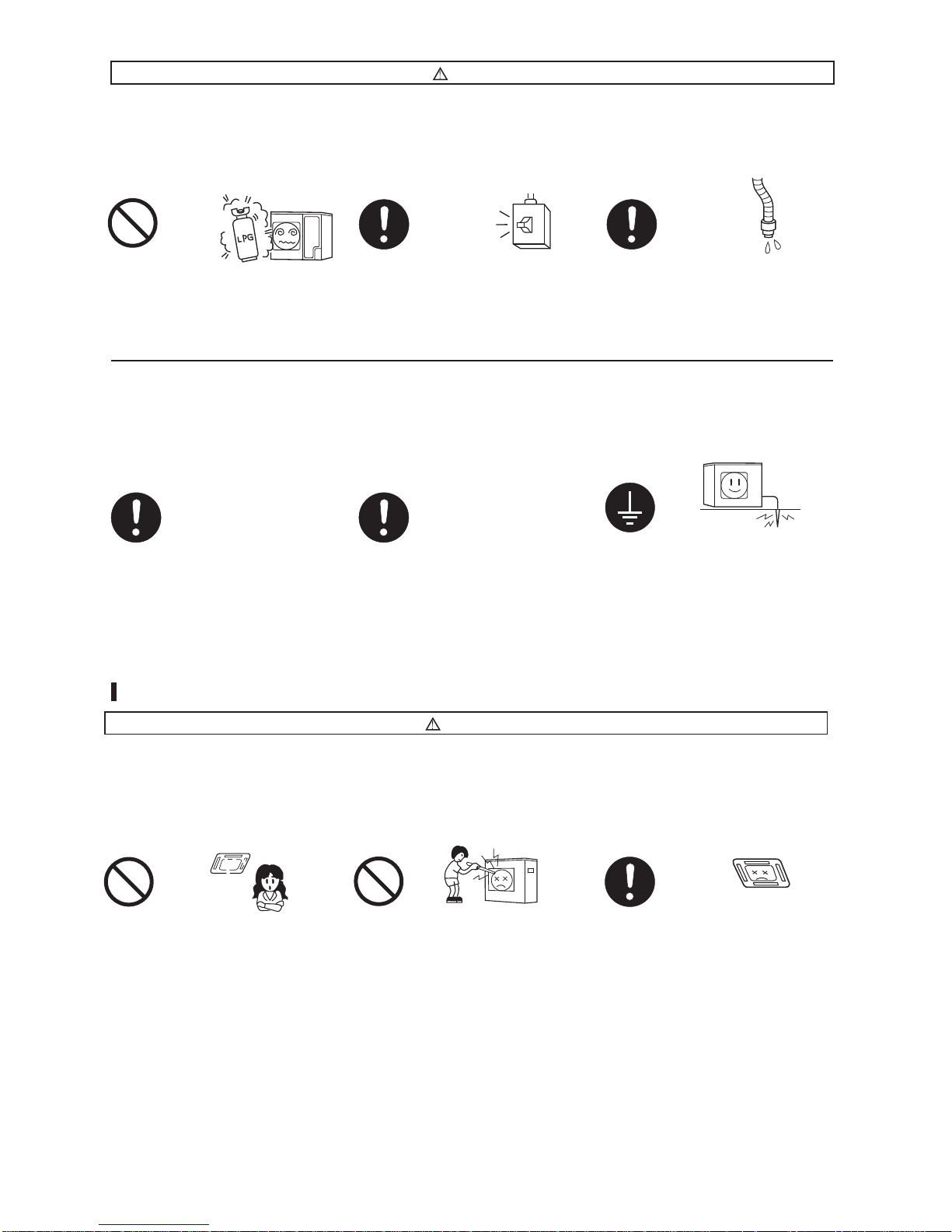

CAUTIONS FOR OPERATION WARNING
CAUTION
Do not install nearby the place
where may have leakage of
flammable gas.
Depending on the place of in-
stallation, a circuit breaker may
be necessary.
Drain pipe should be arranged to
provide a positive draining.
If the pipe is arranged improperly,
furniture or the likes may be damaged
by leaked water.
Unless the circuit breaker is installed,
it could cause electrical shocks.
If the gas leakes and gathers around,
it may cause the fire.
Where strong winds may pre-
vail, the system should be fixed
securely to prevent a collapse.
Install on the place where can
endure the weight of air condi-
tioner.
Make sure the system is ground-
ed.
Bodily injury could result by a col-
lapse. Bodily injury could result by a careless installation.
Grounding cable should never be con-
nected to a gas pipe, city water pipe,
lightning conductor rod or grounding
cable of telephone. If the grounding
cable is not set properly, it could cause
electric shocks.
You should refrain from exposing
your body directly to cool wind
for a long time.
Do not poke the air inlet or out-
let with a bar,etc.
When any abnormal condition (scorch-
ing smell or others) is found, stop the
operation immediately and turn off the
power switch. Then consult your deal-
er.
It could affect your physical condition
or cause some health problems. Since the internal fan is operating with a high speed, it could cause an injury.
If you continue the operation without
removing the cause, it could result in a
trouble, electric shock or fire.
ON
OFF

23
SAFETY PRECAUTIONS
CAUTION
CAUTION
The system should never be
used for any other purposes than
intended such as for preserva-
tion of foods, flora and fauna,
precision devices or work of
art.
It could cause deterioration of foods or
other problems.
Do not handle switches with a
wet hand. Combustion apparatus should not be placed allowing a direct
exposure to wind of air condi-
tioner.
It could cause electric shocks. Incomplete combustion could occur on
the apparatus.
Do not wash the air conditioner
with water.
It could cause electric shocks.
Do not install the system where
the wind of blower reaches di-
rectly the flora and fauna.
Make sure to use a fuse of prop-
er electric rating.
It will not be good for their health.
Use of steel or copper wire in place of
a fuse is strictly prohibited because it
could result in a trouble or fire acci-
dent.
Neither stand on the air condi-
tioner nor place something on it.
There are risks of falling or injury by
collapsed object.
It is strictly prohibited to place a
container of combustible gas or
liquid near the air conditioner or
to spray it directly with the gas
or liquid.
Do not operate the system while
the exhaust grill is removed.
It could cause a fire accident. There is a risk of injury.

CAUTION
24
OFF
ON
Do not use the power switch
to turn on or off the system.
It could cause a fire or water
leakage
Do not touch the exhaust
section while the swing louver
is operating
There is a risk of injury.
Do not use such equipment as
a water heater,etc. around the
indoor unit or the remote
controller.
If the system is operated at the
vicinity of such equipment which
generates steam,condensed water
may drop during cooling operation
or it could cause a fault current or
short-circuit
WARNING
Modification of the system is strictly prohibited.
When the system needs a repair , consult your
dealer.
Improper practice of repair could cause water
leakage,electric shock or fire
When the air conditioner is relocated, contact
you dealer or a professional installer.
Improper practice of installation could cause
water leakage, electric shock or fire.
When operating the system
simultaneously with a comb-
ustion apparatus , indoor air
must be ventilated frequently.
Check occasionally the support
structure of the unit for any dam-
age after a use of long period of
time.
When cleaning the system,stop
the operation and turn off the
power switch
Insufficient ventilation could
cause an oxygen deficiency
accident.
If the structure is not repaired imm-
ediately, the unit could topple down
to cause a personal injury.
Cleaning should never be done while
the internal fans are running with high
speed.
