Haier HSU-09HA103-R2 User manual

SPLITTYPE ROOM AIR CONDITIONER
OPERATION MANUAL
Please read this operation manual before using the air conditioner.
No.00105
HSU-09H03/R2(DB)
HSU-12H03/R2(DB)
HSU-18H03/R2(DB)
HSU-22H03/R2(DB)
HSU-12HB03/R2(DB)
HSU-18HA103/R2(DB)
HSU-22HA103/R2(DB)
HSU-09HA103/R2(DB)
HSU-12HA103/R2(DB)

Before disposing an old air conditioner that
goes out of use, please make sure it's inop-
erative and safe. Unplug the air conditioner
in order to avoid the risk of child entrapment.
It must be noticed that air conditioner system
contains refrigerants, which require speciali-
zed waste disposal.The valuable materials
contained in an air conditioner can be
recycled.Contact your local waste disposal
center for proper disposal of an old air
conditioner and contact your local authority
or your dealer if you have any question.
Please ensure that the pipework of your air
conditioner does not get damagedprior to
being picked up by the relevant waste
disposal center, and contribute to environ-
mental awareness by insisting on an
appropriate, anti-pollution method of disposal.
Cautions
Disposal of the old air conditioner
All the packaging materials employed in the
package of your new air conditioner may be
disposed without any danger to the
environment.
The cardboard box may be broken or cut into
smaller pieces and given to a waste paper
disposal service.The wrapping bag made of
polyethylene and the polyethylene foam pads
All these valuable materials may be taken to
a waste collecting center and used again after
adequate recycling.
Consult your local authorities for the name
and address of the waste materials collecting
centers and waste paper disposal services
nearest to your house.
Disposal of the packaging of your
new air conditioner
Before starting the air conditioner, read the
information given in the User's Guide caref-
ully.The User's Guide contains very impor-
tant observations relating to the assembly,
operation and maintenance of the air
conditioner.
The manufacturer does not accept respon-
sibility for any damages that may arise due
to non-observation of the following
instruction.
Damaged air conditioners are not to be
put into operation.In case of doubt, consult
your supplier.
Use of the air conditioner is to be carried
out in strict compliance with the relative
instructions set forth in the User's Guide.
Installation shall be done by professional
people, don't install unit by yourself.
For the purpose of the safety,the air con-
ditioner must be properly grounded in acco-
rdance with specifications.
Always remember to unplug the air
conditioner before openning inlet grill.Never
unplug your air conditioner by pulling on
the power cord.Always grip plug firmly and
pull straight out from the outlet.
All electrical repairs must be carried out
by qualified electricians.Inadequate repairs
may result in a major source of danger for
the user of the air conditioner.
Safety Instructions andWarnings
Do not damage any parts of the air
conditioner that carry refrigerant by piercing
or performating the air conditioner's tubes
with sharp or pointed items, crushing or
twisting any tubes, or scraping the coatings
off the surfaces.If the refrigerant spurts
out and gets into eyes, it may result in
serious eye injuries.
1

3. If the fuse of indoor unit on PC board is
broken,please change it with the type of
T. 3.15A/ 250V. If the fuse of outdoor
unit is broken,change it with the type of
T.25A/250V
Do not obstruct or cover the ventilation
grille of the air conditoner.Do not put fingers
or any other things into the inlet/outlet and
swing louver.
Do not allow children to play with the air
conditioner.In no case should children be
allowed to sit on the outdoor unit.
The refrigerating circuit is leak-proof.
1.Applicable ambient temperature range:
Specifications
The machine is adaptive in following
situation
11 .The power plug and connecting cable
must have acquired the local attestation.
2. If the power supply cord is damaged, it
must be replaced by the manufacturer
or its service agent or a similar qualified
person.
4.The wiring method should be in line with
the local wiring standard.
5.After installation, the power plug should
be easily reached.
6.The waste battery should be disposed
properly.
7.The appliance is not intended for use
by young children or infirm persons
without supervision.
8.Young children should be supervised
to ensure that they do not play with
the appliance.
9. Please employ the proper power plug,
which fit into the power supply cord.
Cautions
2
Cooling Indoor Maximum:D.B/W.B
Maximum:D.B/W.B
Maximum:D.B
Maximum:D.B
Maximum:D.B
Minimum:D.B/W.B
Maximum:D.B/W.B
Minimum:D.B/W.B
Outdoor
Indoor
Outdoor
Heating
32oC/23oC
24oC/18oC
-7oC/-8oC
43oC/26oC
18oC
27oC
15oC
18oC/14oC
Outdoor Maximum:D.B/W.B
Minimum:D.B/W.B 24oC/18oC
-15oC
(INVERTER)
12.In order to protect the units,please turn
off the A/C first, and at least 30 seconds
later, cutting off the power.
10. A breaker should be incorporated into
fixed wiring. The breaker should be
all-pole switch and the distance between
its two contacts should be not less than
3mm.

Cautions
STRICT
ENFORCEMENT
Safety Instruction
Installation
WARNING
Please read the following Safety Instructions carefully prior to use.
The instructions are classified into two levels, WARNING and CAUTION according to
the seriousness of possible risks and damages as follows. Compliance to the
instructions are strictly required for safety use.
Please call Sales/Service Shop for the Installation.
Do not attempt to install the air conditioner by yourself because improper works
may cause electric shock, fire, water leakage.
lnstallation in a inadequate place may cause accidents.Do not install in the following place.
Connect the earth
cable.
earthing
Do not install in the
place where there is
any possibility of
inflammable gas
leakage around the
unit.
Do not get the unit
exposed to vapor
or oil steam.
Check proper
installation of the
drainage securely
PROHIBITION PROHIBITION
CAUTION
3

Cautions
WARNING
When abnormality such as burnt-small found,
immediately stop the operation button and
contact sales shop.
OFF
Use an exclusive power source with a
circuit breaker
ENFORCEMENT
Connect power supply cord
to the outlet completely Use the proper voltage
Do not use power supply cord
in a bundle. Take care not to damage
the power supply cord.
Do not use power supply cord
extended or connected in halfway
STRICT
ENFORCEMENT
STRICT
STRICT
ENFORCEMENT PROHIBITION
PROHIBITION PROHIBITION
PROHIBITION
Do not start or stop the
operation by disconnecting
the power supply cord and so on.
Do not channel the air flow directly
at people, especially at infants or
the aged.
Do not try to repair or reconstruct
by yourself.
Do not use for the purpose of storage of
food, art work, precise equipment,
breeding, or cultivation.
CAUTION
Take fresh air occasionally especially
when gas appliance is running at the
same time.
PROHIBITION STRICT
ENFORCEMENT
Do not operate the switch with
wet hand.
PROHIBITION
PROHIBITION
4
PROHIBITION PROHIBITION
PROHIBITION
Do not install the unit near a fireplace
or other heating apparatus. Check good condition of the
installation stand Do not pour water onto the unit
for cleaning
PROHIBITION
Do not place animals or plants in
the direct path of the air flow Do not place any objects on or
climb on the unit. Do not place flower vase or water
containers on the top of the unit.
Do not insert objects into the air
inlet or outlet.
PROHIBITION
PROHIBITION
PROHIBITION

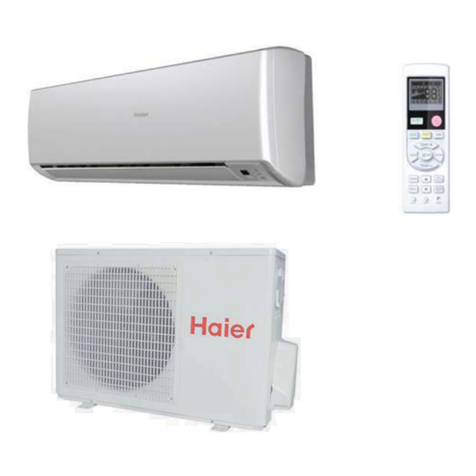

Parts and Functions
Indoor unit
OUTLET CONNECTING PIPING AND ELECTRICALWIRING
DRAIN HOSE
INLET
5
4
HSU-12HB03/R2(DB)
HSU-22H03/R2(DB)
Inlet grille
Air filter
Vertical flap Power indicator Timer mode indicator Operation mode indicator
Remote signal receiver
Emergency switch(manual)
Test running switch(manual)
Use remote controller to
adjust up and down air flow.
(Don't adjust it manually.) Lights up when unit starts. Lights up when Timer operation
is selected. Lights up during compressor
running.
A beeping sound is generated when
a signal from remote controller is
received.
Used when remote controller is lost or
defective. Unit will run temporarily.
Used only for test running in cooling
when room temp. is below 16oC.
Don't use it in normal operation.
Outdoor unit
HSU-12H03/R2(DB)
HSU-09H03/R2(DB)
HSU-18H03/R2(DB) HSU-18HA103/R2(DB) HSU-22HA103/R2(DB)
HSU-12HA103/R2(DB)
HSU-09HA103/R2(DB)
Actual inlet grille may vary from the one shown in the manual according to the product purchased

16. SIGNAL SENDING display
17. POWER/SOFT display
18. Left/right air flow display
19.TEMP display
Remote controller: to display theTEMP.setting.
20.TIMER OFF display
21. CLOCK display
22. FAN button
Used to select fan speed: LOW,MED, HI, AUTO
23. ON/OFF button
Used for unit start and stop.
24. SLEEP button
Used to select sleep mode.
25. SET button
Used to confirm timer and clock settings.
26. POWER/SOFT button
27. LOCK
Used to lock buttons and LCD display. If
pressed, the other buttons will be disabled
and the lock condition display appears.
Press it once again, lock will be canceled
and lock condition display disappears.
28. LIGHT button
Colorful display bar of the controlling indoor
machine is on and extinguished.
29. CODE
Used to select CODE A or B with a press,A or
B will be displayed on LCD.
Please select A without special explanation.
1. SWING button
Used to select up or down air sending
direction.
2. HOUR button
Used to set clock and timer setting.
3. MODE button
Used to select operation mode.AUTO,
COOL,DRY, FAN,HEAT.
4. HEALTH button
Used to set healthy operation.
5. CLOCK button
Used to set correct time.
6.TIMER button
Used to select TIMER ON,
TIMER OFF, TIMER ON-OFF.
7. RESET
When the remote controller appears
abnormal, use a sharp pointed article
to press this button to reset the
remote controller normal
8. HEALTH display
9. SLEEP display
11. LOCK display
12. FAN SPEED display
13.TIMER ON display
14.TEMP button
Used to select your desired temperature.
15. Operation mode display
Parts and Functions
6
10. SWING UP/DOWN display
NOTE: (1)The following functions and related displays are not available
(2) Cooling only unit do not have functions and displays related with heating.
Operation mode AUTO HEAT FANCOOL DRY
Remote controller
,
LOW HI
MED AUTO

Remove the batteries in case unit won't be in usage for a long period. If there are any display after
taking-out, just need to press reset key.
Parts and Functions
Clock Set
When unit is started for the first time and after replacing batteries in remote
controller, clock should be adjusted as follows:
Remote controller's operation
3.After time setting is confirmed, press SET, "AM" or "PM" stop flashing,
while clock starts working.
2. Press or to set correct time. Each press will increase or decrease 1
min. If the button is kept depressed, time will change quickly.
1. Press CLOCK button,"AM" or "PM" flashes.
When in use, put the signal transmission head directly to the receiver hole on the indoor unit.
The distance between the signal transmission head and the receiver hole should be within 7 m
without any obstacle as well.
Don't throw or knock the remoter controller.
When electronic-started type fluorescent lamp or change-over type fluorescent lamp or wireless
telephone is installed in the room, the receiver is apt to be disturbed in receiving the signals,
so the distance to the indoor unit should be shorter.
Loading of the battery
Load the batteries as illustrated right
2 R-03 (7#) batteries
Remove the battery cover:
Slightly press" "area and push down the cover
as illustrated.
Load the battery:
Be sure that the loading is in line with the "+" / "-".
request as illustrated on the bottom of the case.
Put on the cover again.
Confirmation indicator:
After pressing power ON/OFF, if no display, reload the batteries.
Note:
Full display or unclear display during operation indicates the batteries have been used up.
Please change batteries.
Used two new same-typed batteries when loading.
If the remote controller can't run normally during operation, please remove the batteries and
reload several minutes later.
Hint:
7

Press HEALTH button again, the health function stops.
BRIEF INTRODUCTIONTO HEALTH OPERATION
The anion generator in the air conditioner can generate a lot of anion to
effectively balance the quantity of position and anion in the air and also to kill
bacteria and speed up the dust sediment in the room and finally clean the air
in the room.
Note
When the fan motor in the indoor unit does not work, the health lamp lights up, but
the anion generator does not release anion.
Operation
Health Operation
Remote controller 1. Unit start
Then set up the comfortable working state.
Link with electronic power.
Press ON/OFF on the remote controller, unit starts.
The liquid crystal will display the working state of last
time (Except Timer, Sleep, Power/Soft and Health
airflow).
2. Select operation mode
Press HEALTH button. For one press, is displayed.
hence healthy process begins.
When indoor fan motor is running, it has healthy
process function. (It's available under any mode)
3. Unit stop
8

Operation
Auto Operation
Remote controller
About Auto Operation
Under the mode of auto operation, air conditioner will
automatically select Cool or Heat operation according
to room temperature.
1. Unit start
Link with electronic power.
Press ON/OFF on the remote controller, unit starts.
The liquid crystal will display the working state of last
time (Except Timer, Sleep, Power/Soft and Health
airflow).
2.Select operation mode
Press FAN button. For each press, fan speed changes as
follows:
Press MODE button.For each press, operation mode
changes as follows:
Remote controller:
Remote controller:
Then Select Auto operation
AUTO
LOW MED HI AUTO
COOL DRY FAN HEAT
3.Fan speed selection
4.Unit stop
Air conditioner is running under displayed fan speed
When FAN is set to AUTO, the air conditioner
automatically adjusts the fan speed according to room
temperature.
Press ON/OFF button, the unit stops.
9
