Haier HCFU-18CF03 Specification sheet

Operation & Installation
Manual
No. 0010576835
HCFU-18CF03
HCFU-18HF03
HCFU-28CF03
HCFU-28HF03
&EXPOSED CEILING/FLOOR MOUNTING
AIR CONDITIONER
CONVERTIBLE CEILING/FLOOR MOUNTING
Please read this operation manual before using the air conditioner.
Please keep this manual carefully and safely.

Contents
Cautions ...........................................................................
Safety Precautions ..............................................................
Features and Functions .......................................................
Name of Parts .....................................................................
Cleaning and Care ...........................................................
Trouble Shooting..............................................................
Operation Tips ...................................................................
Installation of Indoor Unit ...........................................
1-2
3
4
5
6-7
8-9
10
11-23

Cautions
1
Disposal of the old air conditioner
Before disposing an old air conditioner that
goes out of use, please make sure it's
inoperative and safe. Unplug the air
conditioner in order to avoid the risk of
child entrapment.
It must be noticed that air conditioner
system contains refrigerants, which require
specialized waste disposal. The valuable
materials contained in a air conditioner can
be recycled. Contact your local waste
disposal center for proper disposal of an
old air conditioner and contact your local
authority or your dealer if you have any
question. Please ensure that the pipework
of your air conditioner does not get
damaged prior to being picked up by the
relevant waste disposal center, and
contribute to environmental awareness by
insisting on an appropriate, anti-pollution
method of disposal.
Disposal of the packaging of your new
air conditioner
All the packaging materials employed in
the package of your new air conditioner
may be disposed without any danger to the
environment.
The cardboard box may be broken or cut
into smaller pieces and given to a waste
paper disposal service. The wrapping bag
made of polyethylene and the polyethylene
foam pads contain no fluorochloric
hydrocarbon.
All these valuable materials may be taken to
a waste collecting center and used again after
adequate recycling.
Consult your local authorities for the name
and address of the waste materials collecting
centers and waste paper disposal services
nearest to your house.
Safety Instructions and Warnings
Before starting the air conditioner,
read the information given in the
User's Guide carefully. The User's
Guide contains very important
observations relating to the assembly,
operation and maintenance of the air
conditioner.
The manufacturer does not accept
responsibility for any damages that
may arise due to non-observation of
the following instruction.
Damaged air conditioners are not to be
put into operation. In case of doubt, consult
your supplier.
Use of the air conditioner is to be carried
out in strict compliance with the relative
instructions set forth in the User's Guide.
Installation shall be done by professional
people, don't install unit by yourself.

2
Cautions
For the purpose of safety, the air
conditioner must be properly grounded in
accordance with specifications.
Always remember to unplug the air
conditioner before opening inlet grill.
Never unplug your air conditioner by
pulling on the power cord. Always grip
plug firmly and pull straight out from the
outlet.
All electrical repairs must be carried out
by qualified electricians. Inadequate repairs
may result in a major source of danger for
the user of the air conditoiner.
Do not damage any parts of the air
conditioner that carry refrigerant by
piercing or perforating the air conditioner's
tubes with sharp or pointed items, crushing
or twisting any tubes, or scraping the
coatings off the surfaces. If the refrigerant
spurts out and gets into eyes, it may result
in serious eye injuries.
Do not obstruct or cover the ventilation
grille of the air conditioner. Do not put
fingers or any other things into the
inlet/outlet and swing louver.
Do not allow children to play with the air
conditioner. In no case should children be
allowed to sit on the outdoor unit.

3
Safety Precautions
WARNING!
DANGER!
CAUTION!
Do not attempt to install this air conditioner by yourself.
This unit contains no user-serviceable parts. Always consult authorized service personnel for repairs.
When moving, consult authorized service personnel for disconnection and installation of the unit.
Do not become excessively chilled by staying for lengthy periods in the direct cooling airflow.
Do not insert fingers or objects into the outlet port or intake grills.
Do not start and stop air conditioner operation by connecting and disconnecting the power supply cord and so on.
Take care not to damage the power supply cord.
In the event of a malfunction (burning smell, etc.), stop operation immediately, turn off the circuit breaker,
and consult authorized service personnel.
Provide occasional ventilation during use.
Do not direct air flow at fireplaces or heating apparatuses.
Do not climb on place objects on the air conditioner.
Do not hang objects from the indoor unit.
Do not set flower vases or water containers on top of the air conditioner.
Do not expose the air conditioner directly to water.
Do not operate the air conditioner with wet hands.
Do not pull power supply cord.
Turn off power source when not using the unit for extended periods.
Check the condition of the installation stand for damage.
Do not place animals or plants in the direct path of the air flow.
Do not drink the water drained from the air conditioner.
Do not use in applications involving the storage of foods, plants or animals, precision equipment, or art works.
Do not apply any heavy pressure to radiator fins.
Operate only with air filters installed.
Do not block or cover the intake grill and outlet port.
Ensure that any electronic equipment is at least one metre away from either the indoor or outdoor unit.
Avoid installing the air conditioner near a fireplace or other heating apparatuses.
When installing the indoor and outdoor unit, take precautions to prevent access to infants.
Do not use inflammable gases near the air conditioner.
If the power supply cord of this air conditioner is damaged, it must be replaced by the
manufacturer its authorized service personnel only.
The breaker of the air conditioner should be all-pole switch; and the distance between its two contacts should
be no less 3mm. Such means for disconnection must be incorporation in the fixed wiring.
Use copper wire only. All the cables shall have got the local certificate.
For series 18, the power supply connects from the indoor side.
For series 28, the power supply connects from the outdoor side. The power cable and connecting cable
are self-provided.
The parameter of connecting cable:
HCFU-18CF03:H05RN-F 3G*2.0mm2, HCFU-18HF03: 3G*2.0mm2+2*0.75mm2,
HCFU-28CF03:H05RN-F 4G*0.75mm2, HCFU-18HF03:6G*0.75mm2,
The parameter of the power supply cord:
For series 18, H05RN-F 3G 2.5mm2.
For series 28, H05RN-F 3G 4.0mm2.

4
Features and Functions
AUTOMATIC OPERATION
SLEEP
HEAT & COOL TYPE
Merely press the ON/OFF button, and the unit will begin automatic operation in any of the
Heating, Cooling and Blow modes as appropriate, in accordance with the thermostat setting and
the actual temperature of the room.
COOLING TYPE
When the SLEEP button is pressed during Cooling or Dry mode, the thermostat setting
gradually rises during the period of operation. When the set time is reached, the unit
automatically turns off.
HEAT & COOL TYPE
When the SLEEP button is pressed during Heating mode, the air conditioner's thermostat
setting gradually lowers during the period of operation; When the set time is reached, the
unit automatically turns off.
WIRELESS REMOTE CONTROL UNIT
The WIRELESS REMOTE CONTROL UNIT allows convenient control of air conditioner
operation.
COOLING TYPE
Merely press the ON/OFF button, and the unit will begin automatic operation in the Cooling
or dry modes as appropriate, in accordance with the thermostat setting and the actual temperature
of the room.

Name of Parts
5

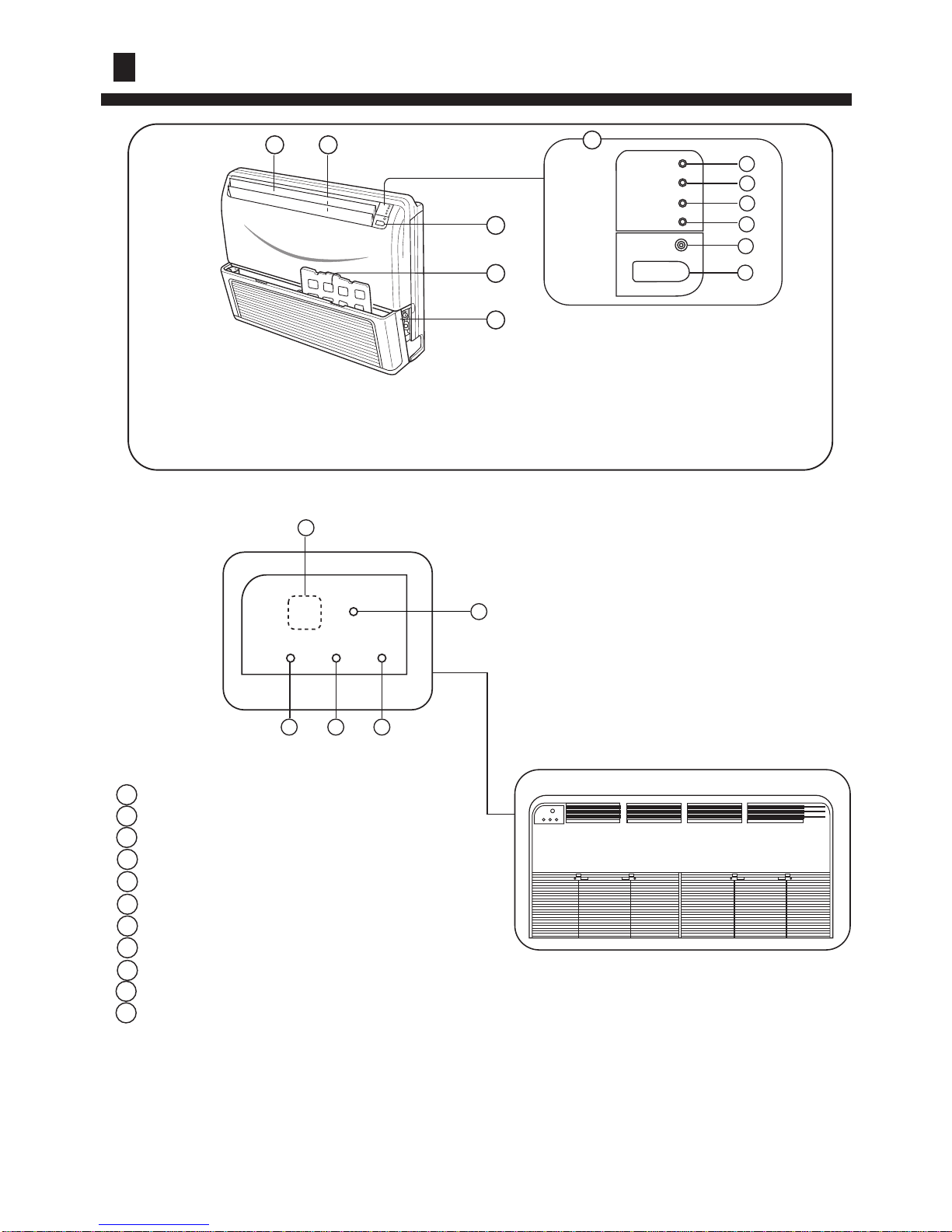

Fig.1 Indoor Unit
1 Operating Control Panel (Fig.2)
2 Emergency switch
3 Remote Control Signal Receiver
4 Power Indicator Lamp
5 OPERATION Indicator Lamp
6 TIMER Indicator Lamp
7 Compressor Run Lamp
8 Intake Grill (Fig.3)
9 Air Filter
10 UP/DOWN Air Direction Flaps
11 RIGHT/LEFT Air Direction Louvers
(behind UP/DOWN Air Direction Flaps)
45 6
3
POWER OPER TIMER
for series 28
3
1
9
8
Fig.1
1110
for series 18
4
6
7
3
Fig.2
POWER
OPER
TIMER
COMP
EMER 2
5
EMER 2

6
Cleaning and Care
CAUTION! Before cleaning the air conditioner ,be sure to turn it off and disconnect
the Power Supply Cord.
Be sure the Intake Grill is installed securely.
When removing and replacing the air filters, be sure not to touch the heat
exchanger, as personal injury may result.
Cleaning the Air Filter
(For Series 18)

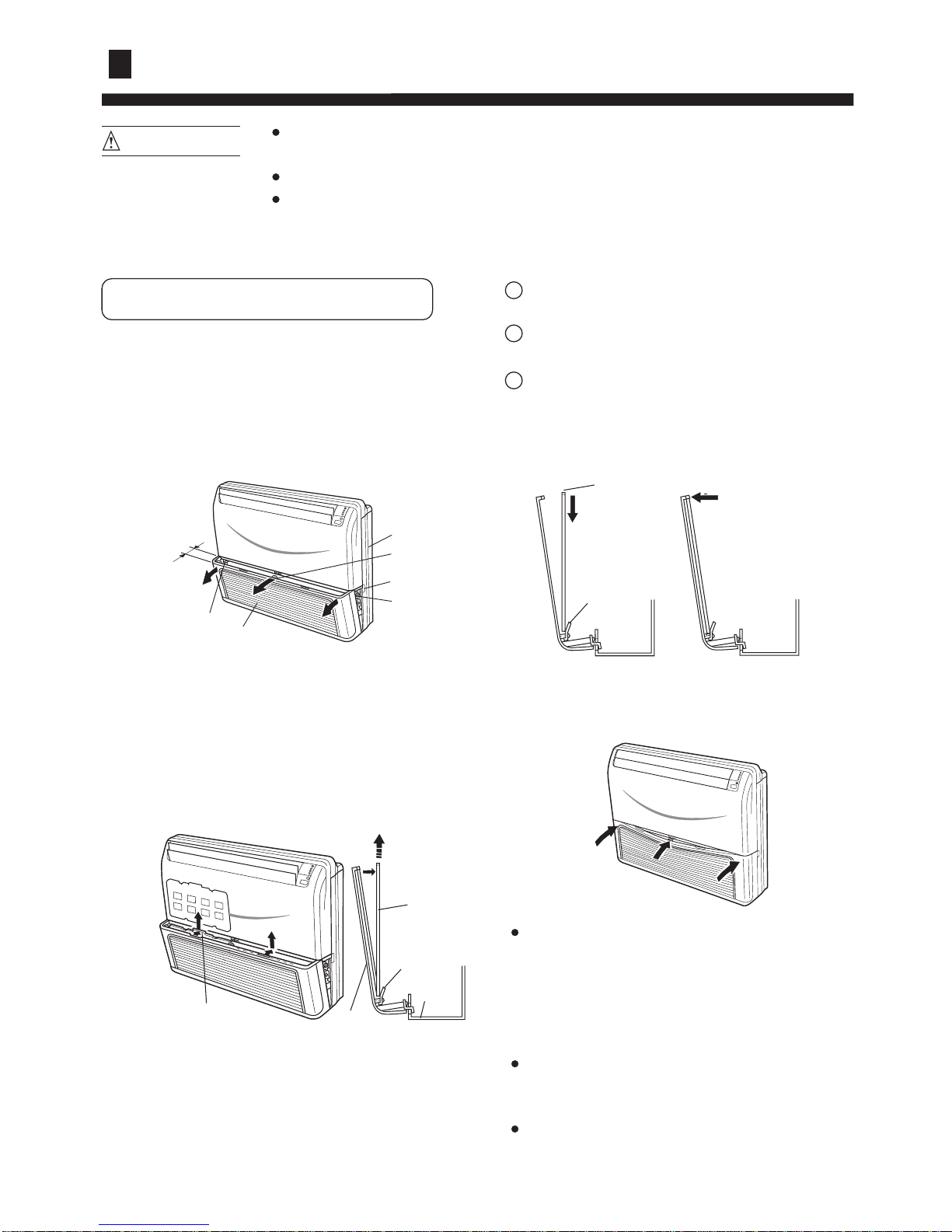

Open the Intake Grill
1. Pull out both sides and the center of the
Intake Grill.
2. Pull the Air Filters upward to remove
them.
3. Clean the Air Filters.
5. Push in both sides and the center of the
Intake Grill.
4. Re-attach the Air Filters to the Intake Grill.
Push the Air Filter handles away from the
Intake Grille in direction as illustrated, then
pull out Air Filters.
Remove the dust from the Air Filters by
vacuum cleaner or washing them. After
washing, allow the Air Filters to dry
thoroughly in an area protected from sunlight.
1
2
3
The Filters fit onto the inside of the intake
Grill. (figure 1)
The bottom edges of the Air Filters should
fit into the filter brackets. (figure 1)
The Air Filters should be pushed down so
that their top edges fit under the projections
at the top of the Intake Grill. (figure 2)
Dust can be cleaned from the Air Filter
either with a vacuum cleaner, or by washing
the filter in a solution of mild detergent and
warm water. If you wash the filter, be sure
to allow it to dry thoroughly in a shady
place before reinstalling.
If dirt is allowed to accumulate on the Air
Filter, air flow will be reduced, lowering
operating efficiency and increasing noise.
During periods of normal use, the Air
Filters should be cleaned every two weeks.
(Figure 1)
Filter bracket
Air Filter
(Figure 2)
Handle
Air Filter
Bracket
Base
About 30 mm
Arm Intake Grill
Arm
Notch
Hook
Side Panel

7
CAUTION! Before cleaning the air conditioner ,be sure to turn it off and disconnect
the Power Supply Cord.
Be sure the Intake Grill is installed securely.
When removing and replacing the air filters, be sure not to touch the heat
exchanger, as personal injury may result.

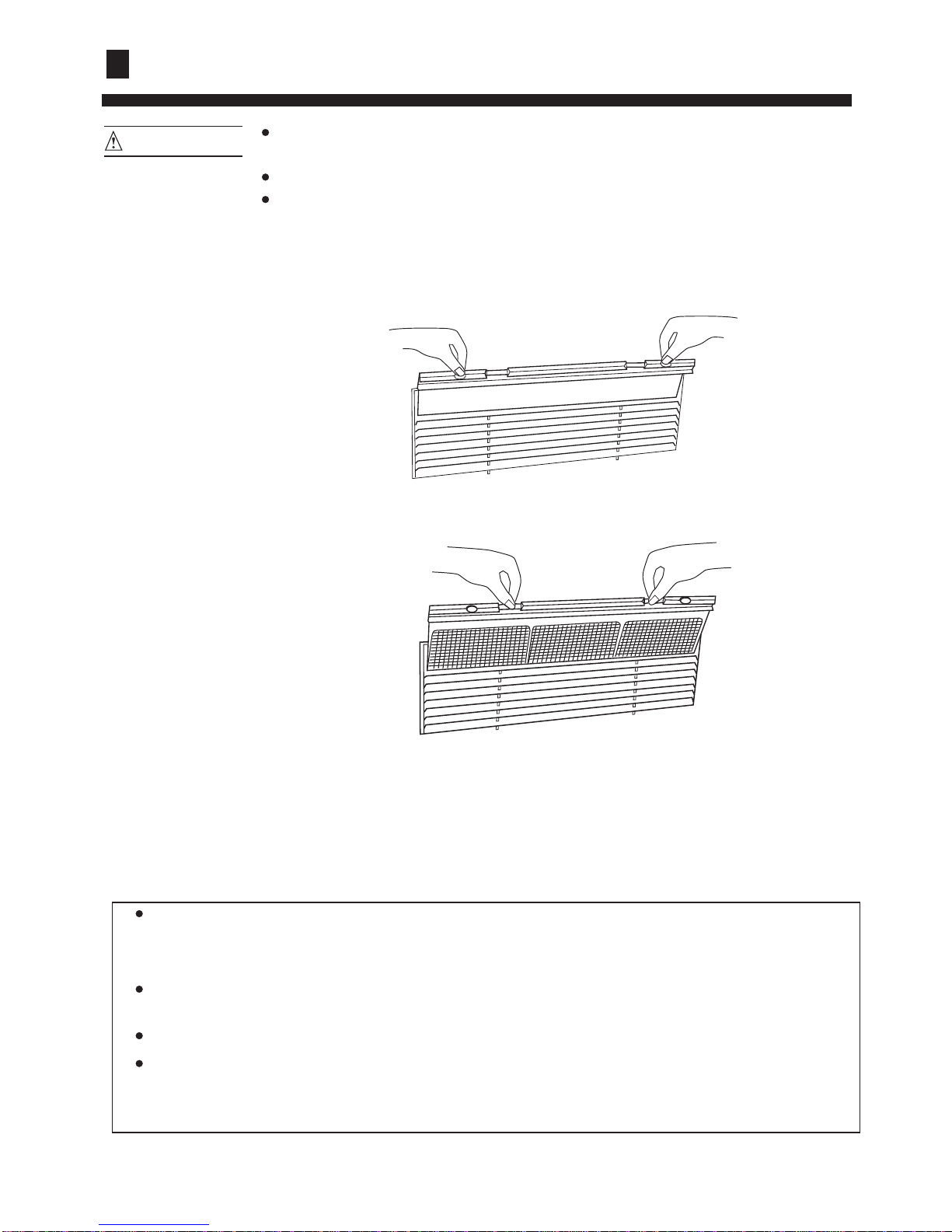

The following four procedures are for series 28.
1. Press the two buttons on the filters, until you hear a sound of click.
2. Pull the filters upward to remove them from the Intake Grill.
3. Clean the air filter: Remove the dust from the filters by vacuum cleaner or washing them. After
washing, allow the air filters to dry thoroughly in an area protected from sunlight.
4. Re-attach the air filters to the Intake Grill, press the two buttons on the filters, until you hear
a sound of click.
When used for extended periods, the unit may accumulate dirt inside, which reduces its
performance. We recommend that the unit is inspected regularly, in addition to your own
cleaning and care. For more information, consult authorized service personnel.
When cleaning the unit's body, do not use water hotter than 40*, harsh abrasive
cleansers, or volatile agents like benzene or thinner.
Do not expose the unit body to liquid insecticides or hairsprays.
When shutting down the unit for one month or more, first allow the Fan mode to operate
continuously for about half a day to allow internal parts to dry thoroughly.
Cleaning and Care

8
Trouble Shooting

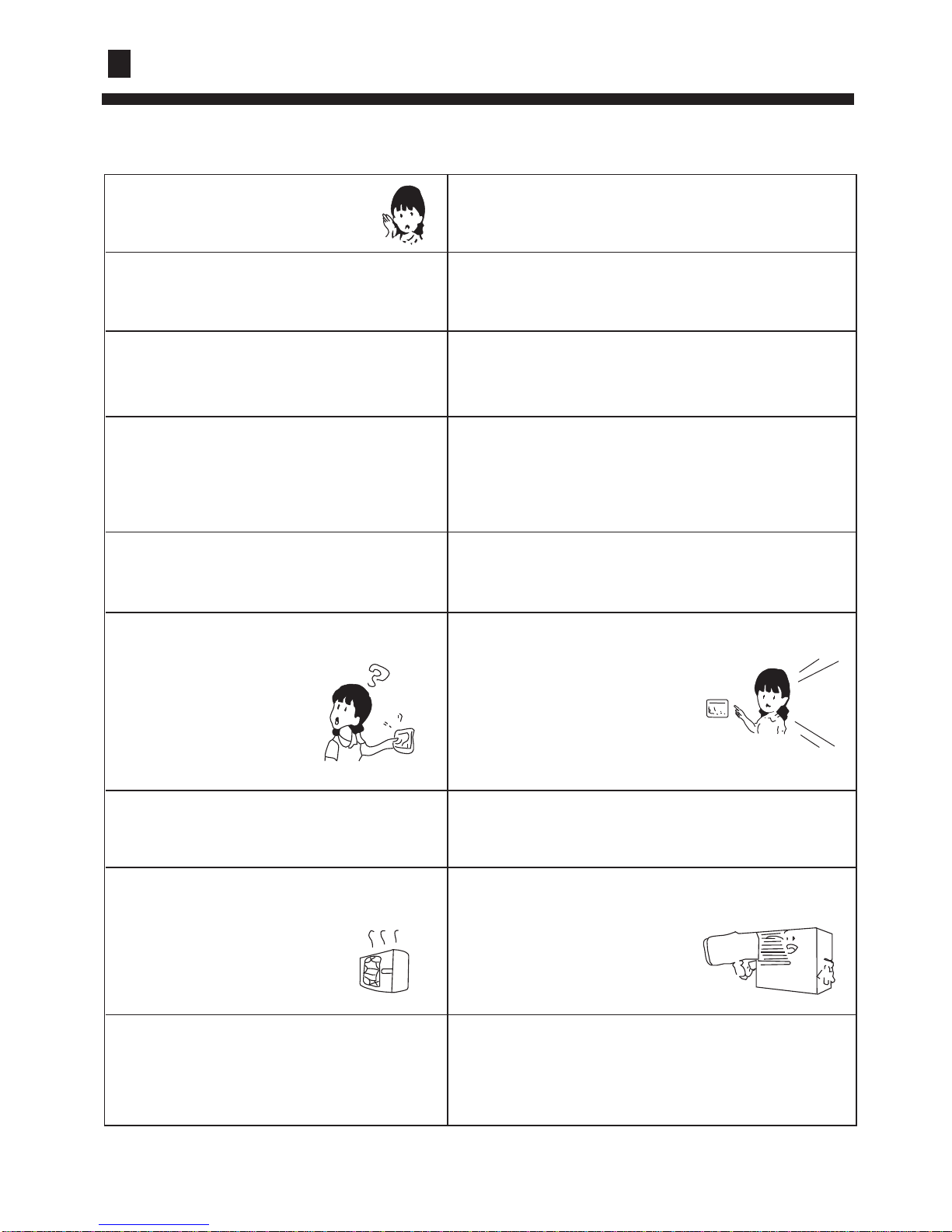

Followings are not problems
Sound of water flowing is
not a problem.
Sound of cracking is heard.
Smell are generated.
During operation, white fog or steam
comes out from the indoor unit.
No outlet air or fan speed can't be changed
in dry mode.
In cooling operation, unit switches to
blowing operation.
Won't start?
In heating operation, water or steam are
blown out of outdoor unit.
In heating operation, indoor fan won't stop
even if unit is stopped.
During unit operation or at stop, a swishing or
gurgling noise may be heard. This noise is generated
by refrigerant flowing in the system.
Unit will not restart after stop.
During unit operation, a cracking noise may be heard.
This noise is generated by the casing expanding or
shrinking because of temperature changes.
This is because the system circulates smells from the
interior air such as the smell of cigarettes or the
painting on the furniture.
When unit is running at places like restaurant, etc. where
dense edible oil fumes always exist, this will happen.
To prevent frost from accumulating on indoor heat
exchanger, unit will switch to blowing operation for a
while then resume cooling operation.
Though ON/OFF button is set
to ON, unit won't resume cooling,
dry or heating operation
in 3 min after it is stopped, this
is because of 3-min-delay
protection circuit. Please wait 3 minutes
Unit will reduce fan speed repeatedly and automatically
if room temp. is too low in dry operation.
This occurs when frost accumulated
on the outdoor unit is removed.
(during defrosting operation)
After unit stop, indoor fan will go on running
until indoor unit cools down.

9

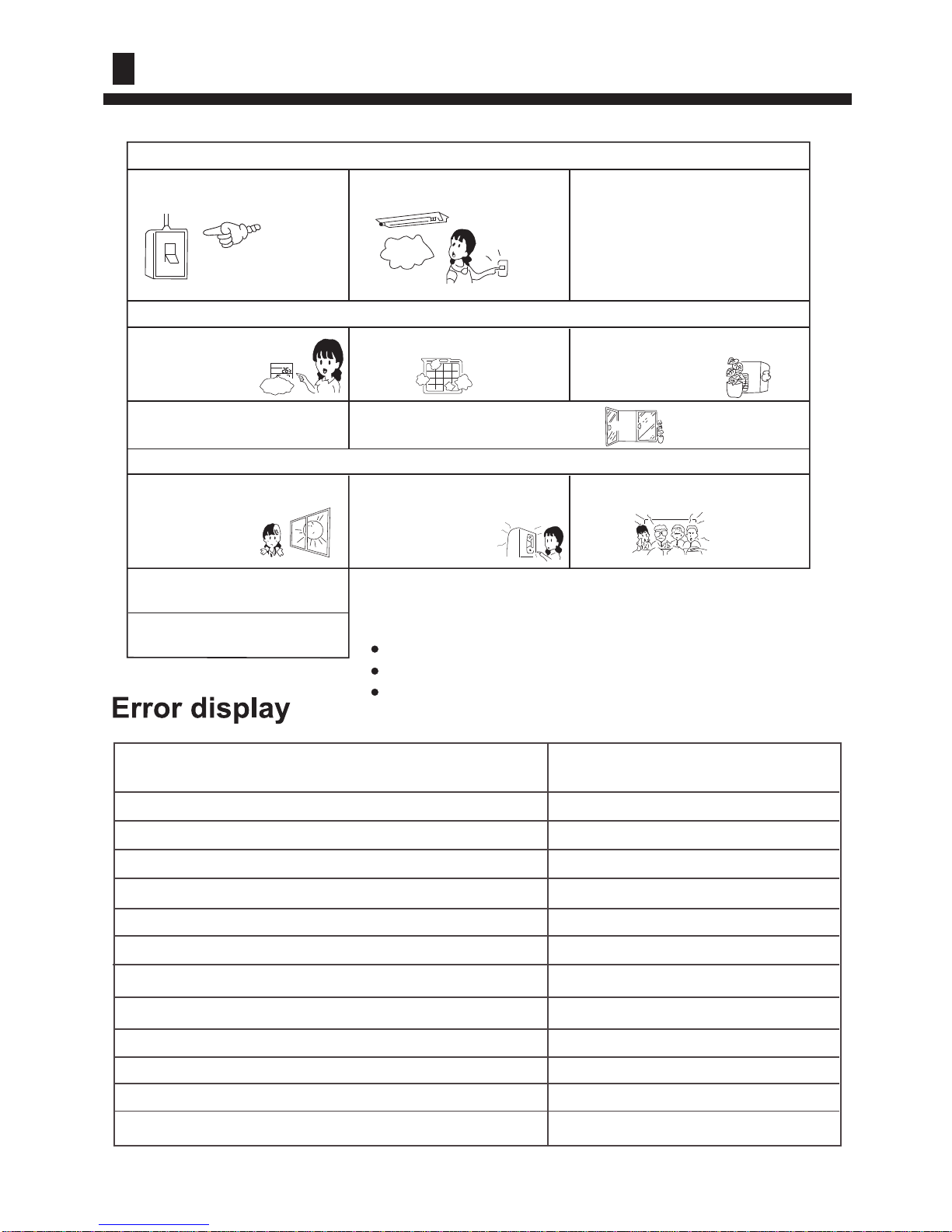

Before ask for services, please first check your unit against the following.
Air conditioner won't start.
Poor cooling or heating
Is power supply switch
turned on?
Power supply switch
is not set at ON.
Is city power supply normal? Is leakage current breaker
activated?
This is very dangerous, please
disconnect power supply
immediately and contact your
dealer.
Are operation control
adjusted correctly
as specified?
Is air filter too dirty? Are there any obstacles in inlet
or outlet grill?
Are horizontal louvers at up
position (in heating mode)? Any doors or windows left open?
Is there any direct sunlight
in the room? If there are unexpected heat
sources in the room? Too many people in the room?
Poor cooling
Is air conditioner in standby
condition in heating mode?
Cold air blows out
(in heating mode) If your unit still can't work properly after above mentioned
checks, or following problems occur, please stop it immediately
and contact your dealer.
Fuses or circuit breakers often blow out.
Water comes out in cooling/dry operation.
Operation is abnormal or sound is heard.
Trouble Shooting
Failure description
Room temp. sensor abnormal
Indoor coil temp. sensor abnormal
Outdoor coil temp. sensor abnormal
Over-current malfunction
Communication malfunction between indoor and wired controller
Communication malfunction between indoor and outdoor abnormal
Coil gas pipe temp. Sensor abnormal
Flash times of indoor receiver board
Power LED flashes 1 time
Power LED flashes 2 times
Power LED flashes 3 times
Power LED flashes 4 times
Power LED flashes 5 times
Power LED flashes 16 times
Power LED flashes 8 times
Power LED flashes 9 times
Power LED flashes 12 times
Outdoor temp. sensor abnormal
High / Low pressure abnormal
Temperature protection malfunction Power LED flashes 13 times
Drainage system malfunction Power LED flashes 10 times
Alarm of exterior annunciator Power LED flashes 11 times
Proper
temp
Power
failure?

10
Operation and Performance
*Heating Performance
*Microcomputer-controlled Automatic Defrosting
Heat-pump air conditioners heat your entire room
by recirculating air throughout the room, with the
result that some time may be required after first
starting the air conditioner until the room is heated.
This air conditioner operates on the heat-pump
principle, absorbing heat from outdoor air and
transferring that heat indoors. As a result, the
operating performance is reduced as outdoor air
temperature drops. If you feel that insufficient
heating perfomance is being produced, we
recommend you use this air conditioner in
conjunction with another kind of heating
appliance.
Instructions relating to heating (*) are applicable
only to "HEAT & COOLTYPE".
When using the Heating mode under conditions of
low outdoor air temperature high humidity, frost
may form on the outdoor unit, resulting in reduced
operating performance.
In order to prevent this kind of reduced
performance, this unit is equipped with a
Microcomputer-controlled Automatic Defrosting
function. If frost forms, the air conditioner will
temporarily stop, and the defrosting circuit will
operate briefly (for about 7 to 15 minutes).
During Automatic Defrosting operation, the
OPERATION Indicator Lamp will flash.
*Trouble alarming performance
During operation, when there is any trouble,
the power indicator lamp will flash.
Operation Tips
Temperature and Humidity Range
If the air conditioner is used under higher temperature condition than those listed, the built-in protection
circuit may operate to prevent internal circuit damage. Also, during Cooling and Dry modes, if the unit is
used under conditions of lower temperature than those listed above, the heat-exchanger may freeze, leading
to water leakage and other damage.
Do not use this unit for any other purposes except for the Cooling, (*) Heating, Dehumidifying, and air-
circulation of rooms in ordinary dwellings.
The wiring method should be in line with the local wiring standand.
The waste battery should be disposed properly.
If the fuse on PC board is broken, please change it with the type T 3.15A/250VAC.
Cooling
Heating
Indoor
outdoor
Rated Maximum Minimum
27 32 18
19 23 14
35 43 10
24 26 6
20 27 15
14.5 -- --
7 24 -7
6 18 --
DB C
WB C
DB C
WB C
Indoor
outdoor DB C
WB C
DB C
WB C

11
WARNING !
CAUTION !
Please ask the dealer or specialist to install, never try by the users themselves. After the installation please
be sure of the following conditions.
Incorrect installation may cause water leaking, shock and fire hazard.
Please call dealer to install the air-conditioner.
Air-conditioner can't be installed in the envi-
ronment with inflammable gases because the
inflammable gases near to air-conditioner may
cause fire hazard.
Installed electrical-leaking circuit breaker.
Connect earthing wire.
Use discharge pipe correctly to ensure efficient
discharge.
[Location]
[Wiring]
[Operating noise]
It easily cause electrical shock without circuit
breaker.
Air-conditioner should be located in well-vented
and easily-accessible place.
Air-conditioner should not be located in the
following places:
(a) Places with machine oils or other oil vapours.
(b) Seaside with high salt content in the air.
(c) Near to hot spring with high content of sulfide
gases.
(d) Area with frequent fluctuation of voltage e.g.
factory, etc.
(e) In vehicles or ships.
(f) Kitchen with heavy oil vapour or humidity.
(g) Near to the machine emitting electric-magnetic
waves.
(h) Places with acid, alkali vapuor.
TV, radio, acoustic appliances etc are at least 1 m
far away to the indoor unit, outdoor unit, power
Earthing wire should not be con-
nected to the gas pipe, water pipe,
lightning rod or phone line, in-
correct earthing may cause shock.
Incorrect pipe use may cause water leaking.
supply wire, connecting wire, pipes, otherwise
images may be disturbed or noises be created.
As required, take measures against heavy snow.
Air-conditioner should be equipped with special
power supply wire.
Choose the following locations:
(a) Capable of supporting air-conditioner weight,
don't increase operating noise and vibration.
(b) Hot vapour from outdoor unit outlet and ope-
rating noise don't disturb neighbour.
No obstacles around the outdoor unit outlet.
Earthing
Installation of Indoor Unit

1. SELECTING THE MOUNTING POSITION
(1) Decide the mounting position with the customer as follows:
NOTE: The appearance may be different from models.
For authorized service personnel only
WARNING
WARNING
CAUTION
Installation of Indoor Unit
12
Be careful not to scratch the room air conditioner when handing it.
After installation, explain correct operation to the customer, according to the operating manual.
Let the customer keep this installation manual because it will be used when the room air conditioner
is serviced or moved.
(1) For the room air conditioner to operate satisfactorily, install it as outlined in this installation
manual.
(2) Connect the indoor unit and outdoor unit with the room air conditioner piping and cords available
from our standard parts. This in stallation manual describes for the correct connections so that the
installation set available from our standard parts should be used.
(3) Installation work must be performed in accordance with national wiring standards by authorized
personnel only.
(4) Never cut the power cord, lengthen or shorten the cord, or change the plug.
(5) Also, do not use an extension cord.
(6) Plug in the power cord plug firmly. If the receptacle is loose, repair it before using the room air
conditioner.
(7) Do not turn on the power until all installation work is done.
Install the indoor unit level on a strong wall, floor, ceiling which is not subject to vibration.
The inlet and outlet ports should not be obstructed: the air should be able to blow all over the room.
Install the unit near an electric outlet or special branch circuit.
Do not install the unit where it will be exposed to direct sunlight.
Install the unit where connection to the outdoor unit is easy.
Install the unit where the drain pipe can be easily installed.
Do not install where there is the danger of combustible gas leakage.
Do not install near heat sources.
If children under 10 years old may approach the unit, take preventive measures so that they
cannot reach the unit.
Install at a place that can withstand the weight of the indoor units and install positively so that
the units will not topple or fall.

INSTALLATION PROCEDURE
PREPARING INDOOR UNIT INSTALLATION
1. REMOVE THE INTAKE GRILL
Install the room air conditioner as follows:
Open the intake grill and remove the
three or four or six screws.(Fig. 1) (Fig. 1)
When the directions are selected, drill a 7 cm dia. hole on the wall so
that the hole is tilted downward toward the outdoor for smooth water
flow. When the pipe is led out from the rear, make a hole in Fig.6, at
the position shown.
(Fig.3)
Remark: The main unit can be wired before
the indoor unit is installed. Select
the most appropriate installation
order.
For series 28, there is no power plug.
A. FLOOR CONSOLE TYPE
1. DRILLING FOR PIPING
Select piping and drain directions.(Fig.2)
The piping and drain can be made in three directions as shown below.
The drain hose can be connected to either the left or right side.(Fig.3) For series 28 only right side.
(Fig. 2)
rear
right
down

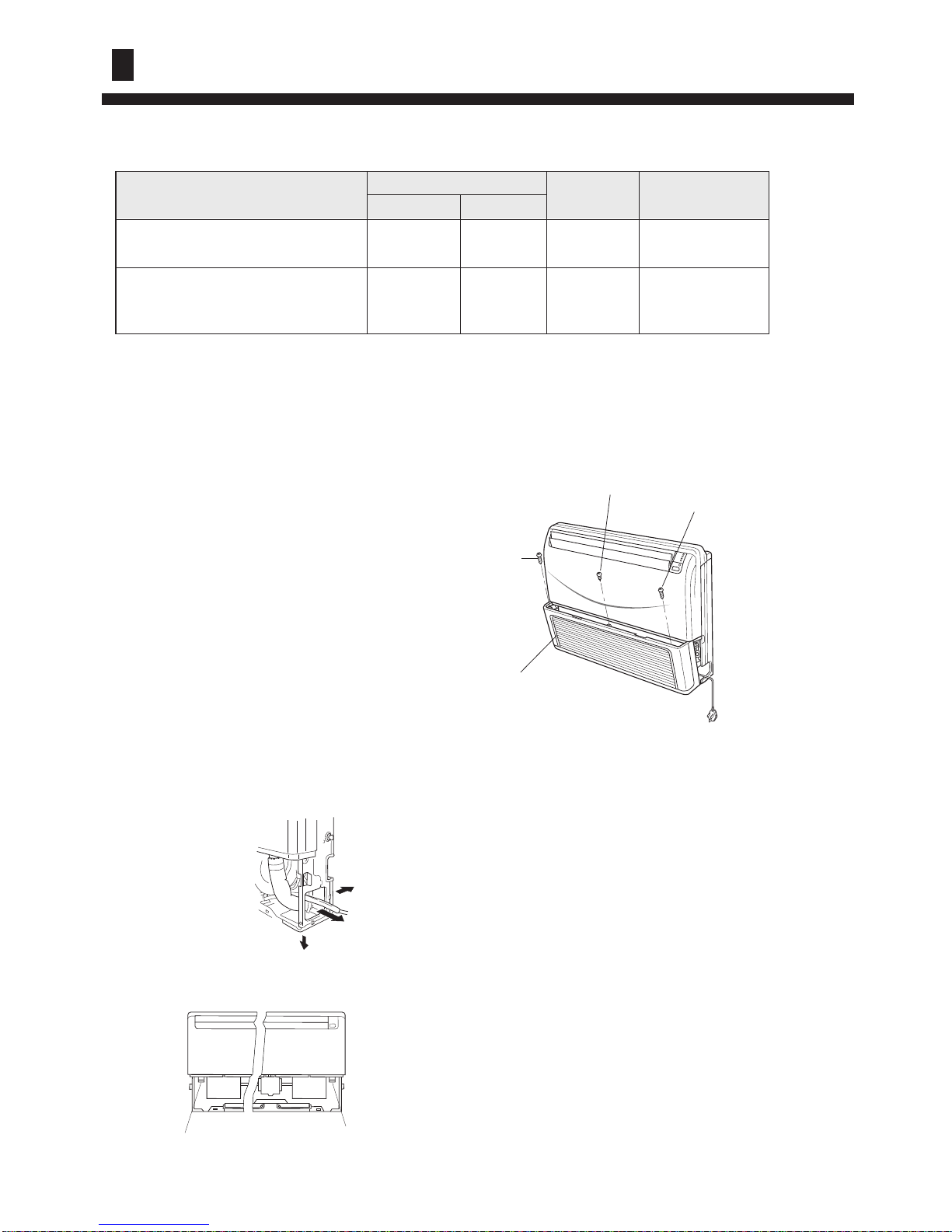

CONNECTION PIPE REQUIREMENT
Table 1
Model
Diameter
Liquid side Gas side Maximum
length Maximum height
(between indoor
and outdoor)
9.52 mm 15.88 mm 30 m 20 m
HCFU-28CF03 HCFU-28HF03
Machine screwTapping screw
Tapping screw
Intake grill
13
Installation of Indoor Unit
6.35 mm 12.7 mm 15 m 5 m
HCFU-18CF03 HCFU-18HF03
Drain hose (Left side) Drain hose (Right side)

Select whether the drain hose will be connected to the left or right side.(for series 28 only the right side).(Fig.3)
Insert the drain hose into the drain pan, then secure the drain hose with a nylon fastener. (Fig.6)
2. INSTALLING DRAIN HOSE
Be sure to arrange the drain hose correctly so that it is leveled lower than the drain hose connecting port of the indoor
unit.
Do not install the unit drain hose side is too high. Height A should be less than 5 mm.(Fig.9)
(Fig. 9)
(Fig. 5)
Wrap the insulation (drain hose) around the drain hose connection.(Fig.7)
(Fig. 7)
Wall
10cm 6mm
Indoor unit outdoor unit
(Fig. 4)
When installing set to wall, install the accessory
wall bracket at the position shown in Fig.5,and
mount the set to it.
Drain pan
Drain hose
Nylon fastener
(Fig. 6)
Drain pan
Drain hose
Insulation
(Drain hose)
Arrange the drain hose
lower than this portion.
(Fig. 8) OK NO NO
Drain hose
CAUTION
14
Wall bracket
Side of set
65.5cm
99cm
50cm 24.5cm
6.5cm
12.5cm 10cm
6.5cm
53cm
4.5cm
7cm hole
3.5cm hole
Installation of Indoor Unit
A
Drain hose
A
A
B
40 40
100mm
720mm
87.5mm
147mm 326mm 247mm
85
53
Series A B
28 12401320
For series 18

Select piping and drain directions. For series 28.only rear side (Fig.11)
B. UNDER CEILING TYPE
Using the installation template, drill holes for piping and anchor bolts(for holes).(Fig.10)
1. DRILLING FOR PIPING
(Fig. 11)
(Fig. 12)
Insert the anchor bolts into the drilled holes, and drive the pins
completely into the anchor bolts with a hammer. (Fig. 13)
2. DRILLING HOLES FORANCHOR BOLTS AND INSTALLING THEANCHOR BOLTS
When the directions are selected, drill 80mm and 50mm or 150mm dia. hole on the wall so that the hole is tilted
downward toward the outdoor for smooth water flow.
With a concrete drill, drill four 12.7 mm dia. Holes.(Fig.12)
Wall 6mm
Rear (Install the drain hose
in the direction.)
Right
60 to 70mm
12.7mm
(Fig. 13)
15
Install the drain hose at the rear; it should not be installed on the top or right side.
CAUTION
(Fig. 10)
Installation
template
Wall
Ceilling
Drilling position
for piping
Drilling position
for anchor bolt
For series 18
200mm
900mm
Installation of Indoor Unit
A
B
40 40
100mm
720mm
87.5mm
147mm 326mm 247mm
85
53
Series A B
28 12401320

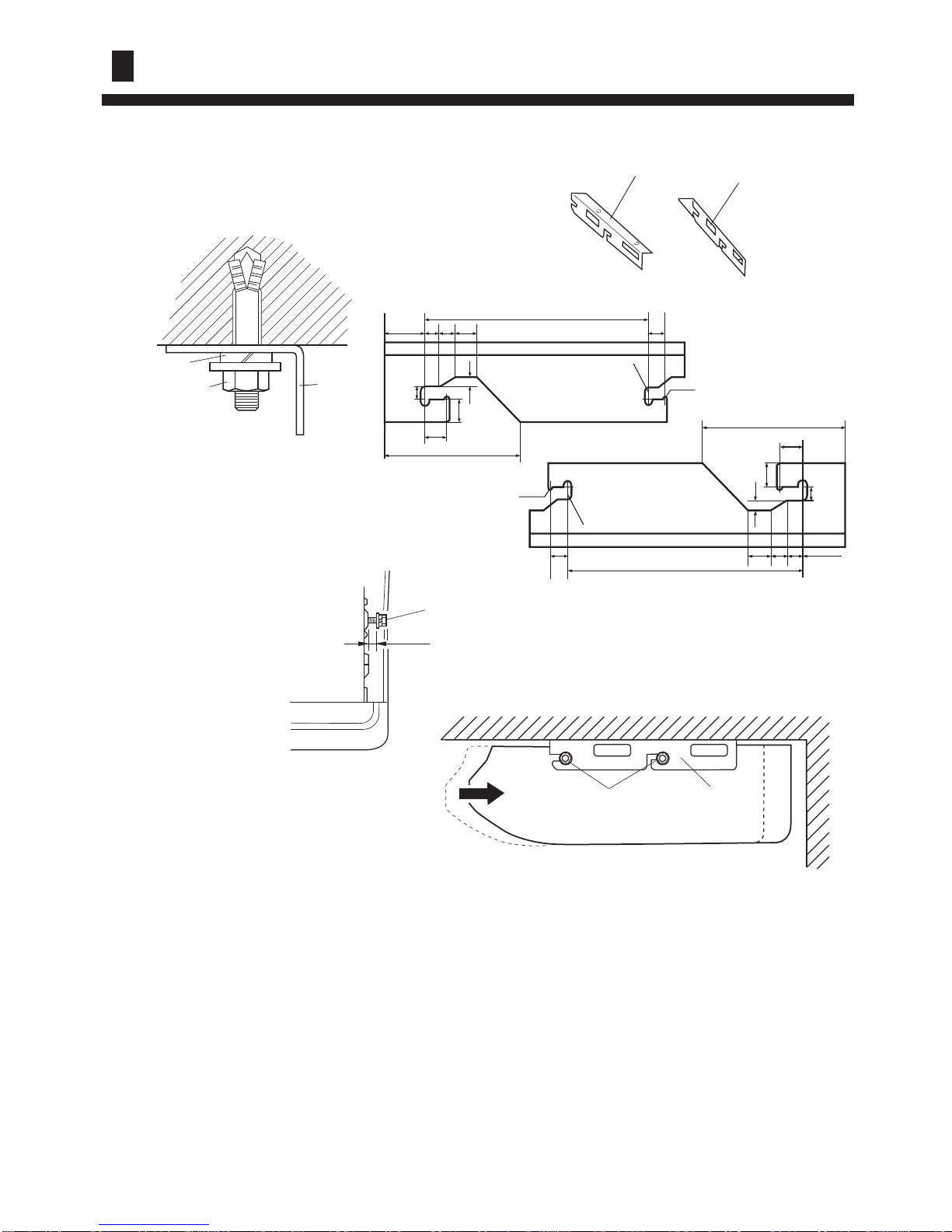

3. INSTALLING BRACKETS
(Fig. 14)
Install the brackets with nuts, washers and spring washers.(Fig. 14)
Spring washer
Special nut Bracket
4. INSTALLING INDOOR UNIT
For series 28
Bracket (Right)
Bracket (Left)
For series 18
Reset the hex bolts as shown in Fig.15.
Hex bolt
8 to 13mm
Indoor unit
(Fig. 15)
Apply the indoor unit to the brackets.(Fig.16)
Now, securely tighten the hex bolts in both sides.
(Fig. 16)
Bolt Bracket
Indoor unit
5. INSTALLTHE DRAIN HOSE
Select whether the drain hose will be connected to the left or right side.(Fig.3)
Insert the drain hose into the drain pan, then secure the drain hose with a nylon fastener.(Fig.6)
Wrap the insulation (drain hose)around the drain hose connection.(Fig.7)
Be sure to arrange the drain hose correctly so that it is leveled lower than the drain hose connecting port of the
indoor unit.(Fig.8)
16
68 16 21 28 381
232
26.5
26.5
2-R2.5
10
18
7.5
4-R5
68
16
21
28
381
232
26.5
26.5
2-R2.5
10
18
7.5
4-R5
Installation of Indoor Unit

When drain hose is arranged backward. Secure the drain hose with the VT wire. (Fig. 18)
For series 28
Drain hose
VT wire hole
Piping hole
(Fig. 18)
VT wire
Drain hose
For series 28
no this part
Piping hole
Base (Bottom)
Intake grill
VT wire hole
Pass the drain hose through here
For series 18 Cut the grill
(Fig. 17)
OK
Remove the hole cover.
Arrange the drain hose
lower than this portion Drain hose
NO
17
GAS LEAKAGE INSPECTION
After connecting the piping, check the joints for gas leakage with gas leakage detector.
HOW TO CONNECT WIRING TO THE TERMINALS

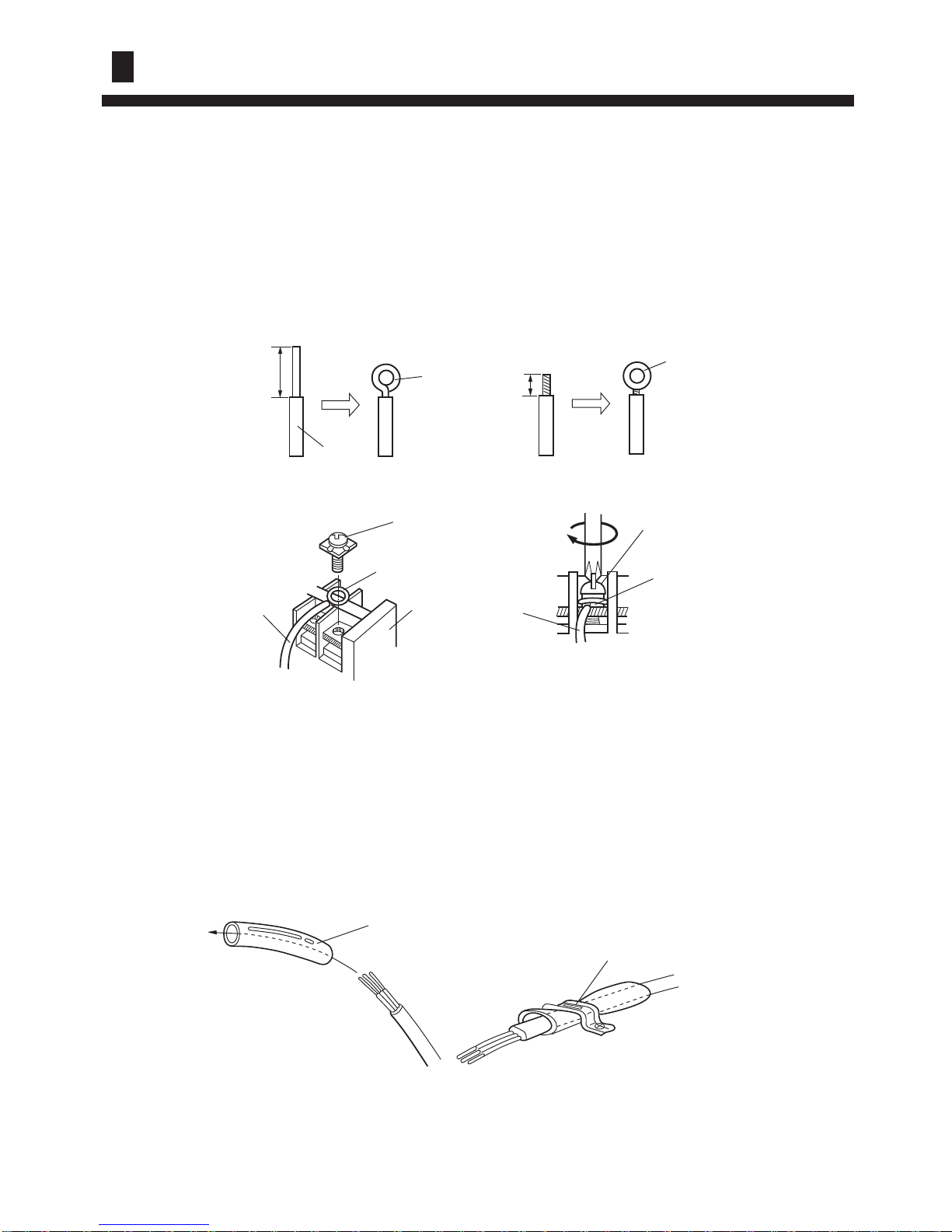

A. For solid core wiring (or F-cable)(Fig.19A)
(1) Cut the wire with a wire cutter or wire-cutting pliers, then strip the insulation to about 25mm of the
exposed solid wire.
(2) Using a screwdriver, remove the terminal screw(s) on the terminal board.
(3) Using pliers, bend the solid wire to form a loop suitable for the terminal screw.
(4) Shape the loop wire properly, place it on the terminal board and tighten securely with the terminal
screw using a screw driver.
CAUTION
Installation of Indoor Unit

B. For strand wiring(Fig.19B)
(1) Cut the wire with a wire cutter or wire-cutting pliers, then strip the insulation to about 10mm of the
exposed strand wiring.
(2) Using a screwdriver, remove the terminal screw(s)on the terminal board.
(3) Using a round terminal fastener or pliers, securely clamp a round terminal to each stripped wire end.
(4) Position the round terminal wire, and replace and tighten the terminal screw using a screw driver.
18
After passing the connection cord and power cable through the insulation tube, fasten it with the cord clamp,
as shown in Fig.20
HOW TO FIXED CONNECTION CORDAND POWER CABLE AT THE CORD
CLAMP
(Fig. 19)
Insulation
Strip 25mm
Loop
Strip 10mm
Round
terminal
A. Solid wire B. Strand wire
Screw with
special washer
Round
terminal
Wire
Terminal
board
Screw with
special washer
Round
terminal
Wire
(Fig. 20)
Insulation tube
Cord clamp
Use VW-1, 0.5 to 1.0 mm thick, PVC tube as the insulation tube.
Installation of Indoor Unit
