Haier HPAC9M - Portable Air Conditioner User manual

0 @ 0 •
Whaf The World Comes Home To TM

Thank You for buying a dependable, energy saving and easy to operate HALERair conditioner,
This manual contains useful information for you to maintain, operate, install and safely use your air
conditioner, Your air conditioner deans, cools and dehumidifies the air in your room to provide
you with the ultimate levd of comfort.
Pleaseread instructions carefully before using the product° Also, do not forget to fiHout and maiW
the Product Registration Car4
Record Your Model and Seriam Number.
For all your service calls during the warranty period the following information will be needed.
Attach the sales receipt to this guide and keep for future reference. This information can be
obtained from the serial plate, which ison your air conditioner,
TABLE
RECEPTACLE AND FUSE TYPES
RATEDVOLTS 1RS/6D R50/60
Ah_RS 15 20 1S 20 30
WALEODTLET f_
FUSESUZE 15 R0 15 RO 30
TUNEDELAY FUSE Plug Plug Plug
(or dr_uR br_k*r)
(1)

1)Air conditioner must be connected to proper electrical outlet with the correct electrical
supply. (seetable)
Proper grounding mustbe ensured to reduce the risk of shock and fire_ DO NOT CUT OR
REMOVETHEGROUNDING PRONG_if you do not have a three-prong electric receptacle outlet
in the wall, have a certified electrician install the proper receptade_Thewall receptacle MUST be
properly grounded_
Do not operate air conditioner if power cord is frayed or otherwise damaged_ Also avoid using it
if there are cracks or abrasion damage along the length, plug connector or if the unit malfunctions
or is damaged in any mannen Contact an authorized service for examination, repairs or
adjustments_
4) DO NOT USE AN ADAPTER OR AN EXTENSION CORD_
5) Do not block airflow around the air conditionen Also the exhaust hose should be free of any
obstructions_
6) Always unplug the air conditioner before servicing it or moving it.
7) Do not install or usethe air conditioner in any area where the atmosphere contains combustible
gases or where the atmosphere is oily or sdphurous_ Avoid any chemicals coming in contact with
your air conditionen
8) Do not place any obiect on the top of the uniL
9) Never operate the air conditioner without the filters in place_
10) Do not use the air conditioners near a bathtub, shower or wash basin_
(2)

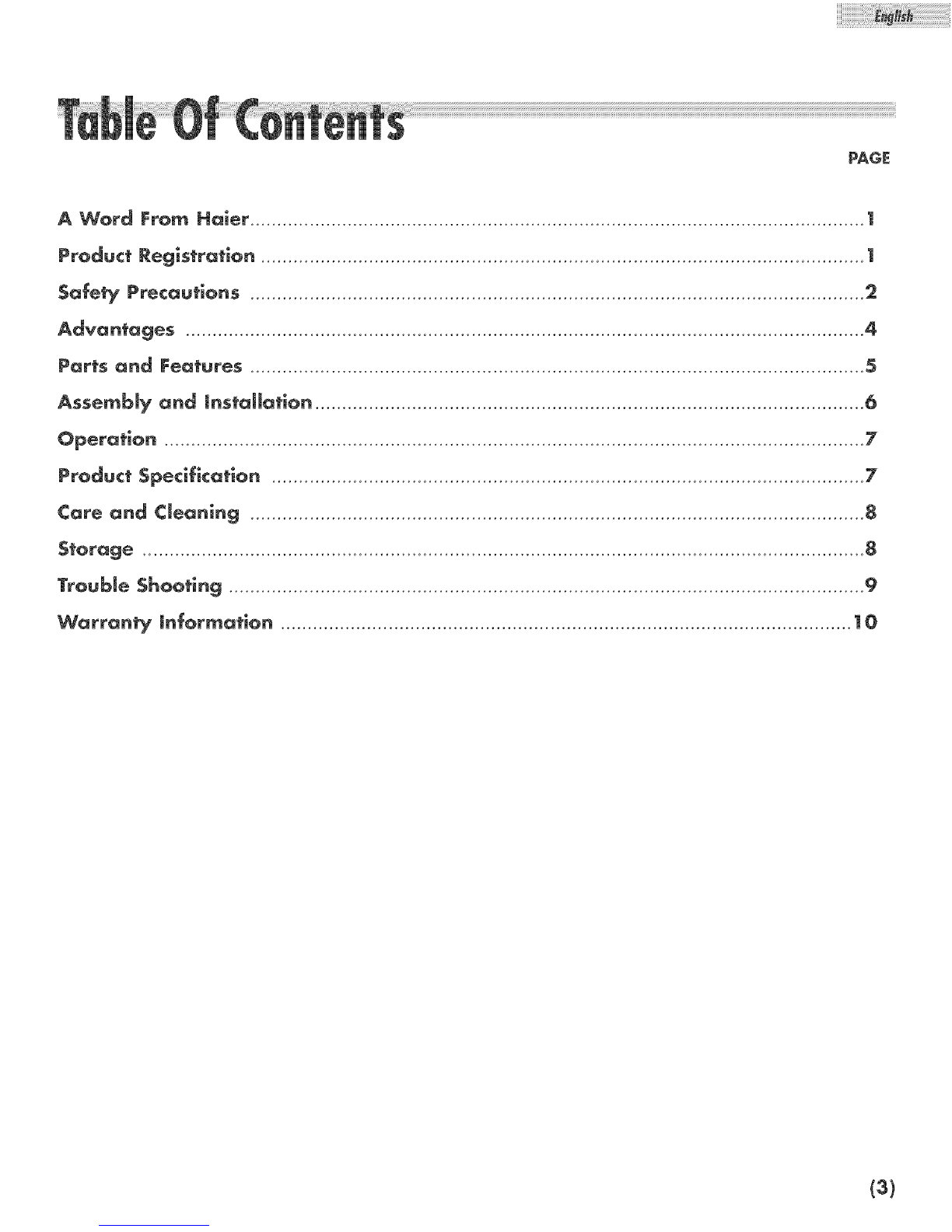

PAGE
(3)

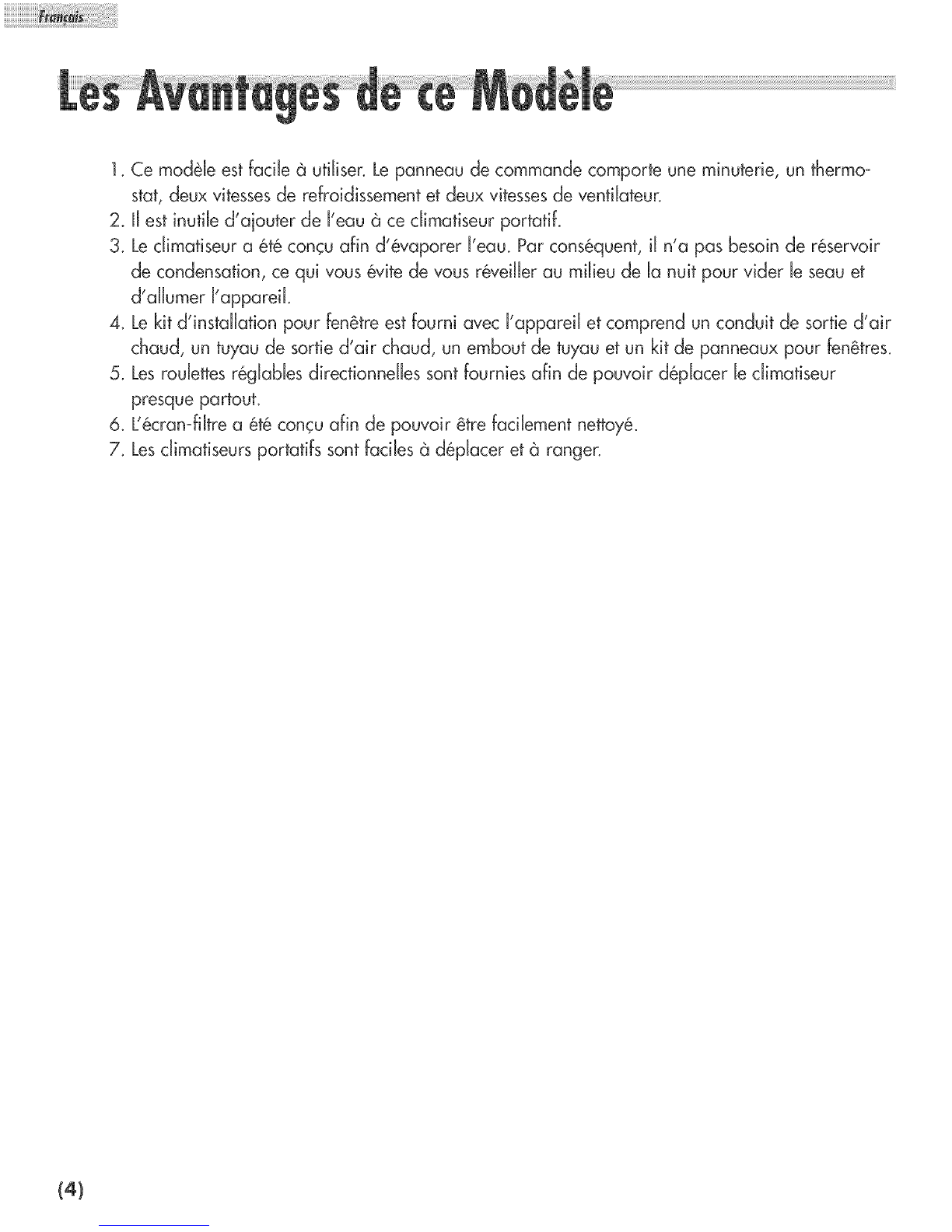

1_Thismodel is easy to operate_ The manual control panel has a timer, thermostat, two speed
cooling speeds and t_,o fan speeds_
2_Thisportable air conditioner does not require water to be added_
3_Theunit has a unique design which evaporates the waten Therefore no condensation tank is
necessary, thus avoiding you to have to wake up in the middle of the night to empty the bucket
and turn on the uniL
4_Easy to install window kit is included which consists of the exhaust duct, exhaust hose,
hose nozzle and the window panel kiL
5_Full directional adjustable casters are included to help to move the unit to be conveniently used
in almost any area_
& The filter screen is designed for easy cleaning and is easily accessible_
7_Portable air conditioners are easy to store when not in use_
(4)

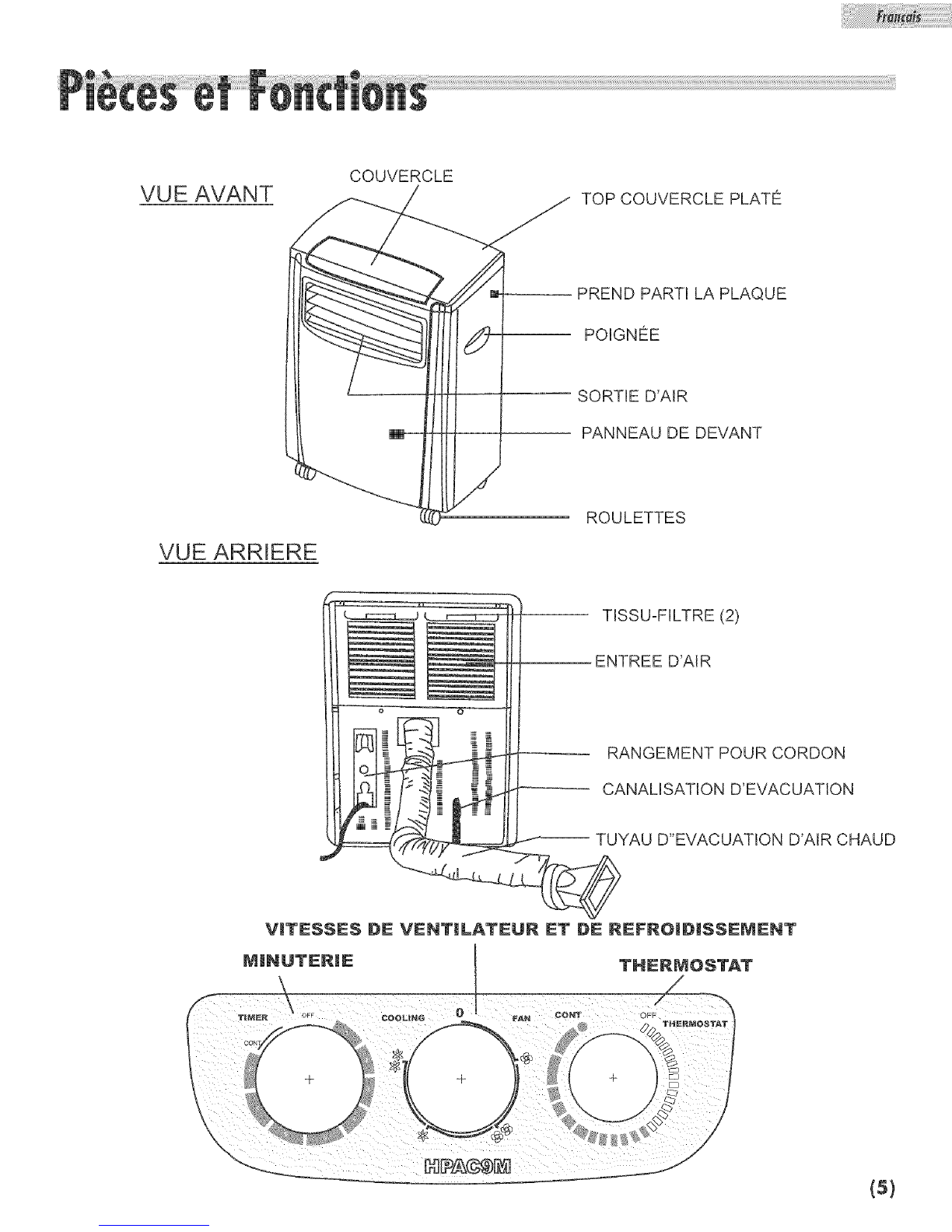

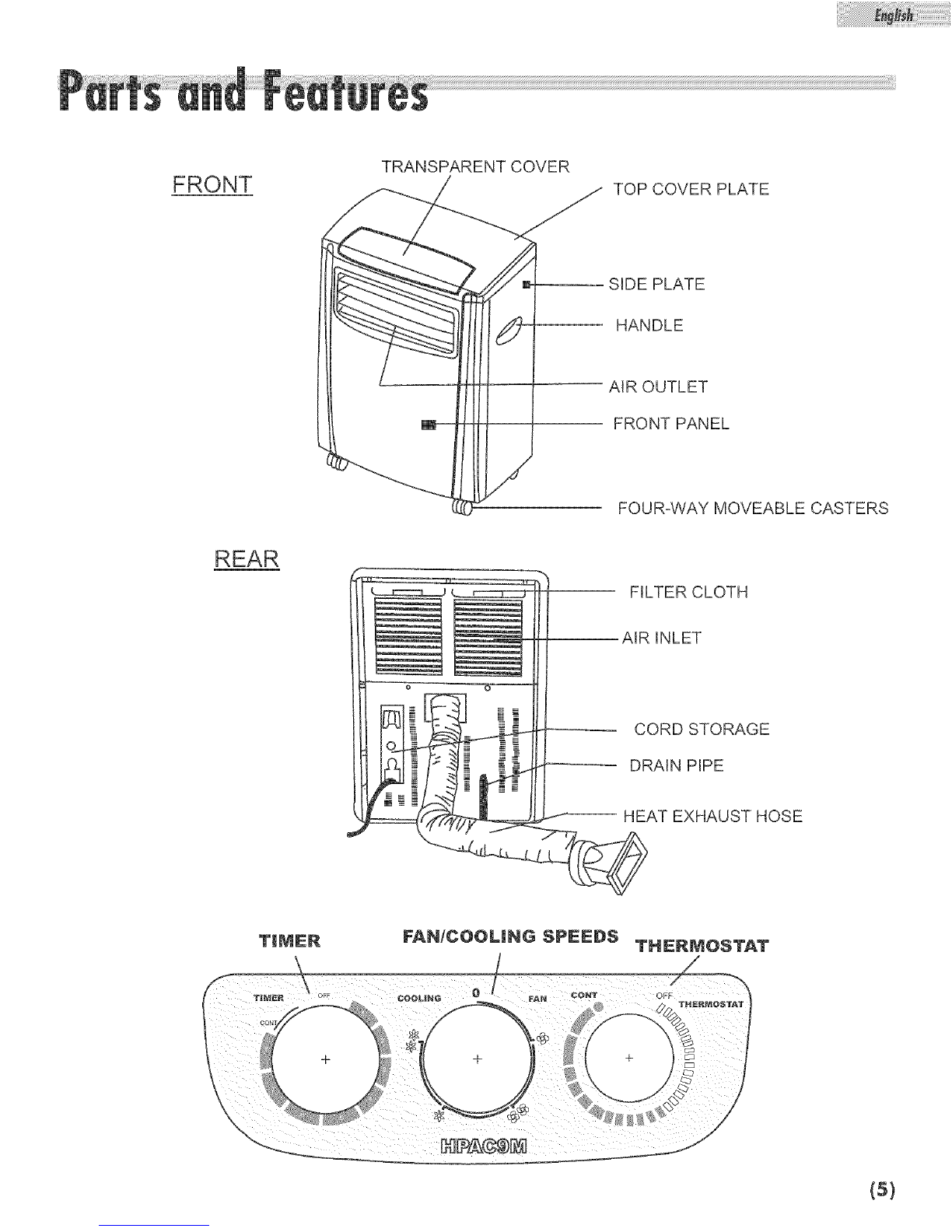

FRONT TRANSPARENT COVER TOP COVER PLATE
SIDE PLATE
HANDLE
AIR OUTLET
FRONT PANEL
FOUR=WAY MOVEABLE CASTERS
REAR
FILTER CLOTH
AIR INLET
CORD STORAGE
DRAIN PIPE
_HEATEXHAUSTHOSE
TmMER FAN/COOLmNG SPEEDS THERMOSTAT
(5)

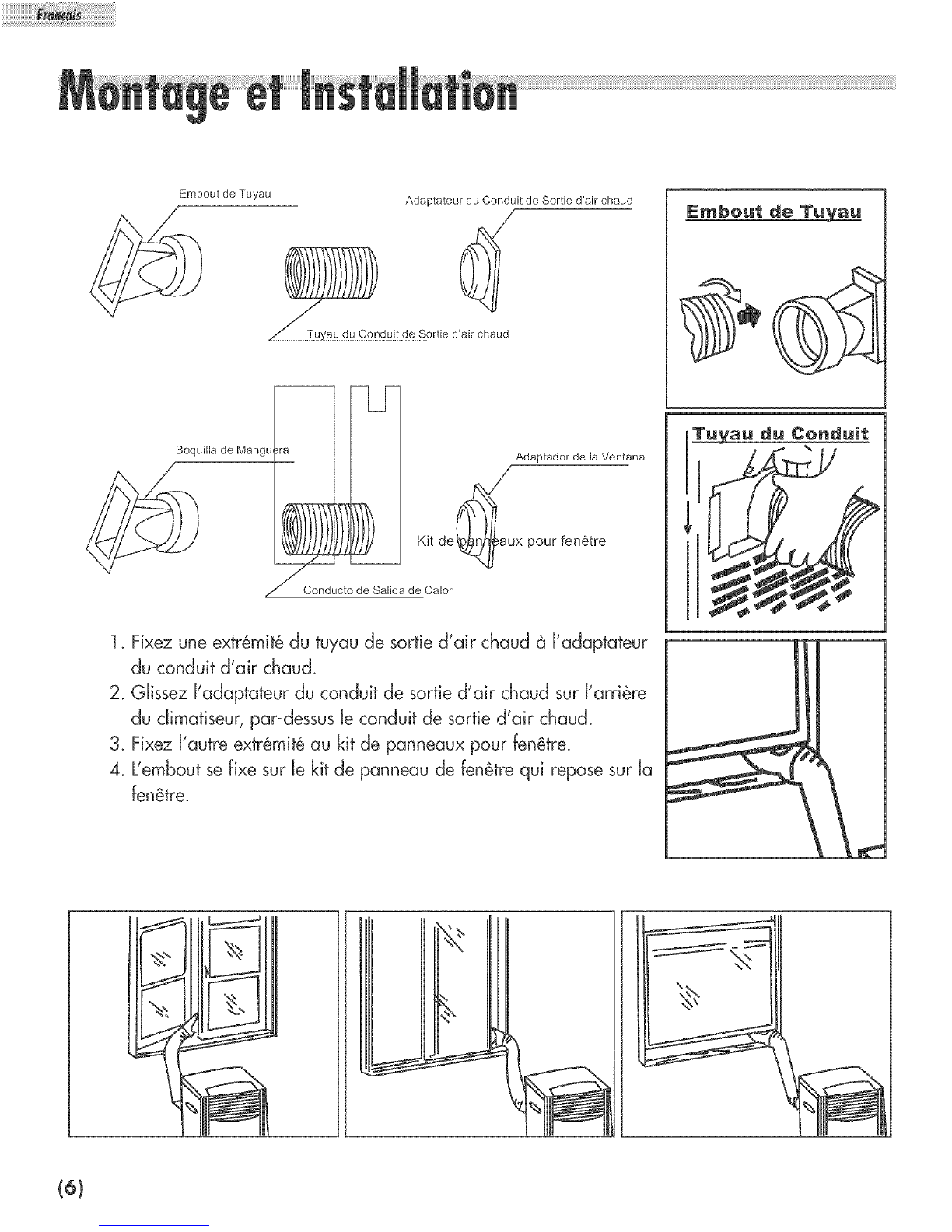

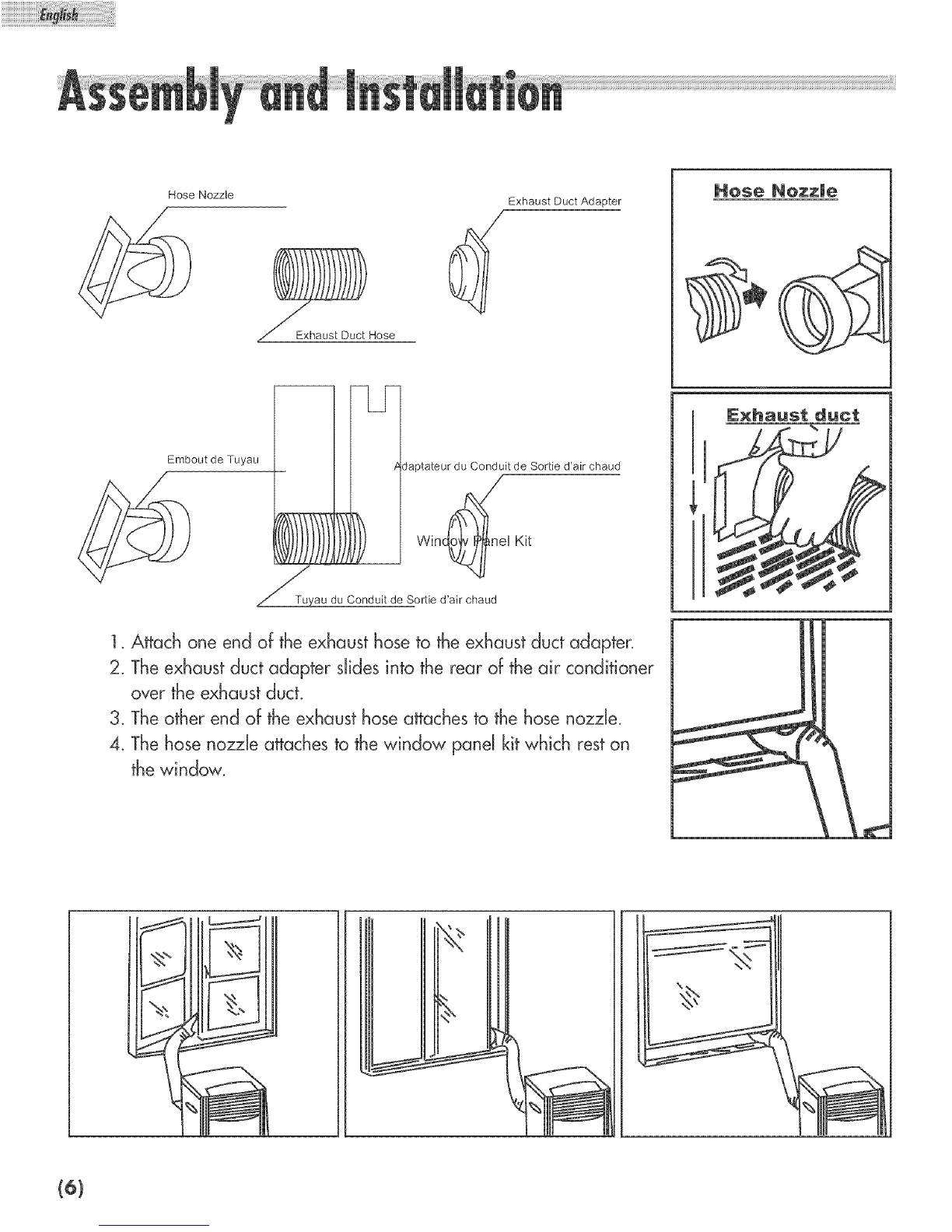

Exhaust Duct Adapter
Embout de Tuyau
L2
/doptoteur du Conduit de Sortie d'oir choud
_ortie d'oir choud
Kit
]. Affach one end of the exhaust hose to the exhaust duct adapter.
2. Theexhaust duct adapter slides into the rear of the air conditioner
over the exhaust duct.
3. Theother end of the exhaust hose attaches to the hose nozzJe.
4. Thehose nozzle attaches to the window panel kit which reston
the window.
Hese Nezzme
(61

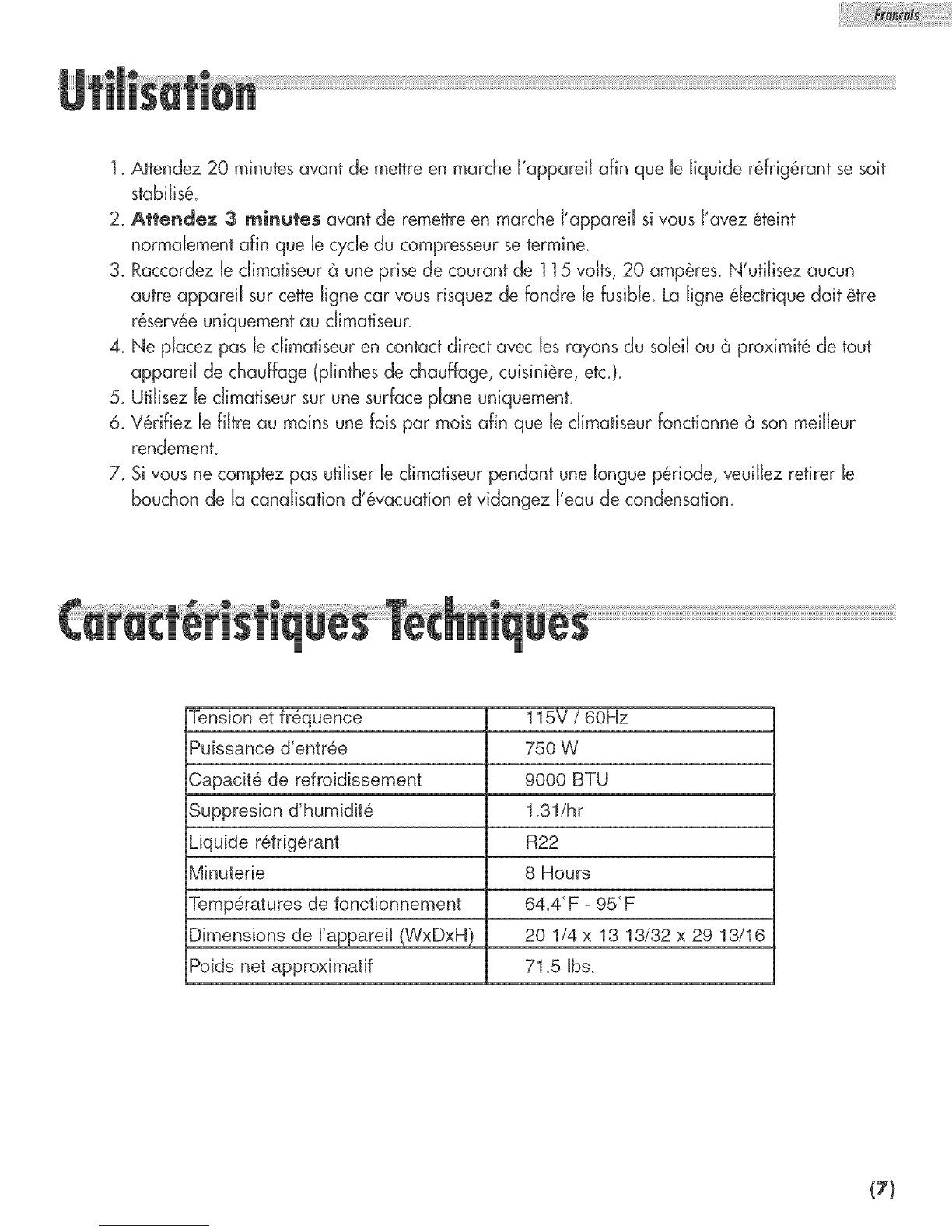

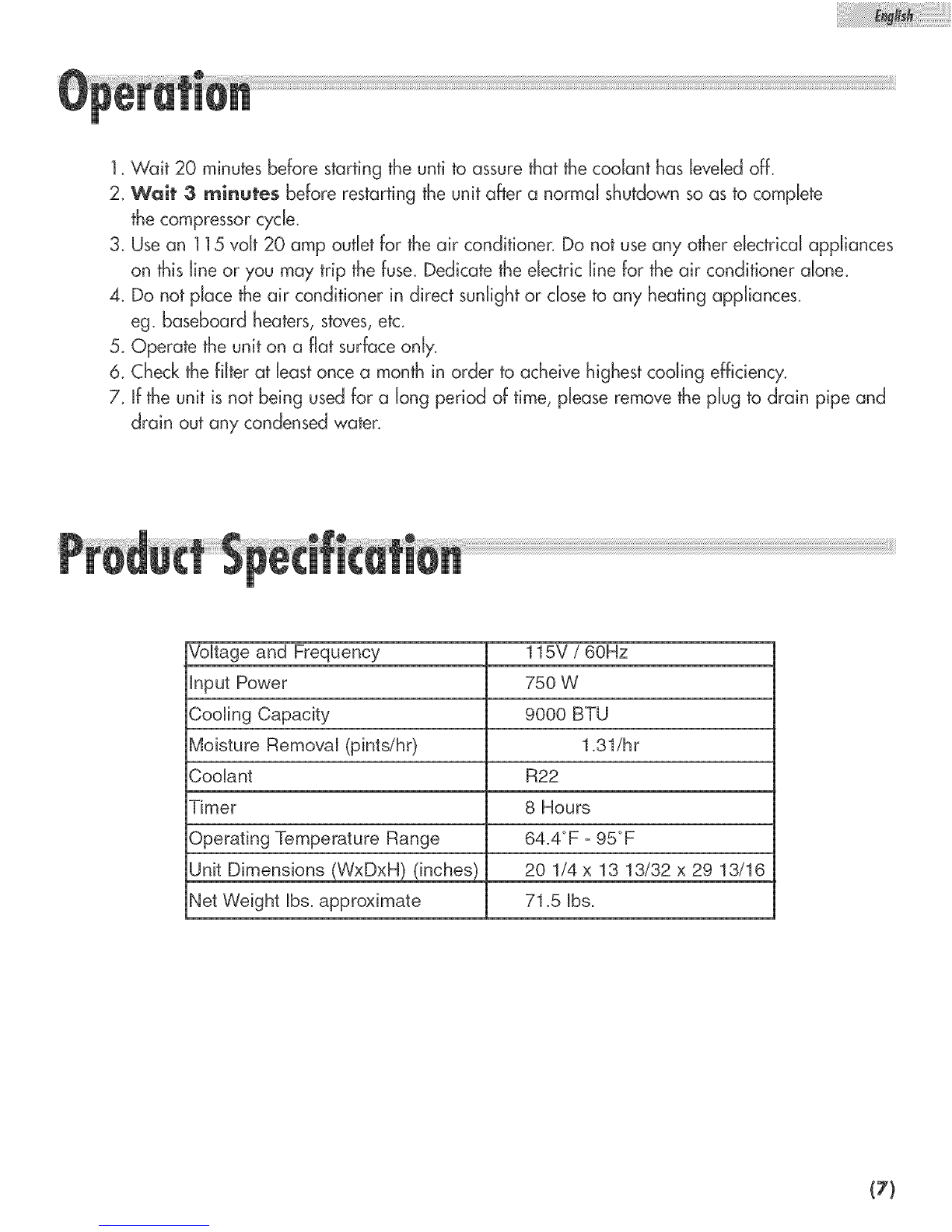

1. Wait 20 minutes before starting the unfi to assure that the coolant has leveled off.
2. Wait 3 minutes before restarting the unit after a normal shutdown so as to complete
the compressor cycle.
3. Use an 115 volt 20 amp outlet for the air condifionen Do not use any other electrical appliances
on this hne or you may trip the fuse. Dedicate the electric hne for the air conditioner alone.
4. Do not place the air conditioner in direct sunhght or dose to any heating apphances.
eg. baseboard heaters, stoves,etc.
5oOperate the unit on a fiat surface only.
& Check the filter at [east once a month in order to achdve highest coding efficiency.
7. If the unit is not being used for a long period of time, please remove the plug to drain pipe and
drain out any condensed waten
Voltage and Frequency 115V t60Hz
Input Power 750 W
Cooling Capacity 9000 BTU
Moisture Removal (pintsihr) 1.31/hr
Coolant R22
Timer 8 Hours
Operating Temperature Range 64.4°F - 95°F
Unit Dimensions !WxDxH} !inches} 20 1/4 x 13 13/32 x 29 13/16
Net Weight Ibs. approximate 71.5 Ibs.
(7)

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii iii!ii!

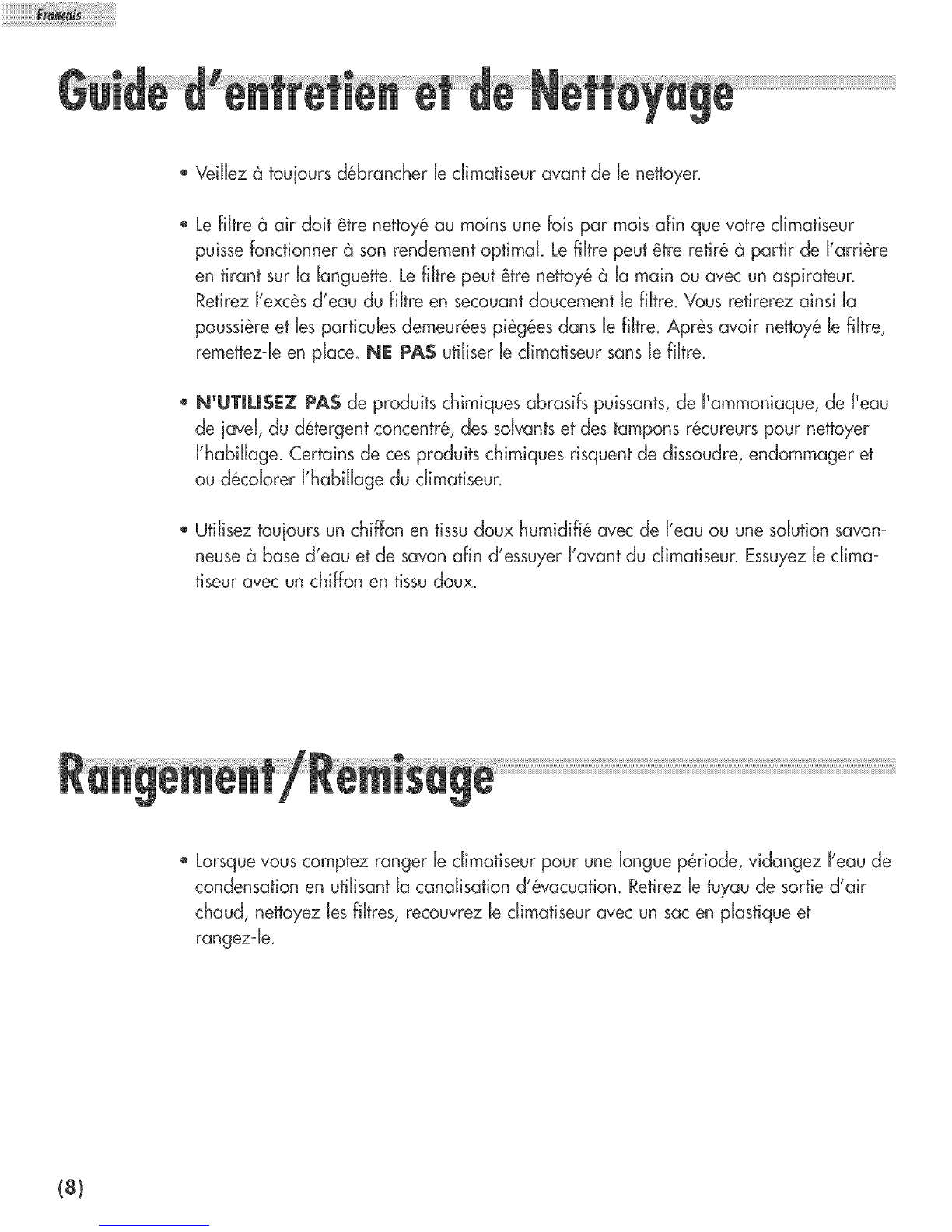

o Always unplug your air conditioner before cleaning.
Air filter needsb be cleaned at least once a month for your unit b operate at optimum
efficiency. The filter can be slid out from the back by pulling on the tab. The filter may
be washed or vacuumed. Removethe excesswater from the filter by gently shaking the
fiJtenThiswiJJremove dust and particles trapped in the fiJtenAfter cleaning, reinstall the
fiJten DO NOT useyour air conditioner without the air filter in place.
Toclean the cabinet DO BlOT use harsh chemicals, abrasives, ammonia, chlorine,
bleach, concentrated detergents, solventsor metal scouring pads_Some of these chemi-
caJsmay dissolve, damage and/or discolor your air conditionen
Always usea soft cloth dampened with water or mild soap and water solution to wipe
the front of the cabinet_ Wipe dry with a soft doth_
Tostore your air conditioner when not being used for a long period of time, drain
condensed water using the drain pipe_ Removeexhaust hose, clean filters, cover with
plastic bag and store away_
(8)

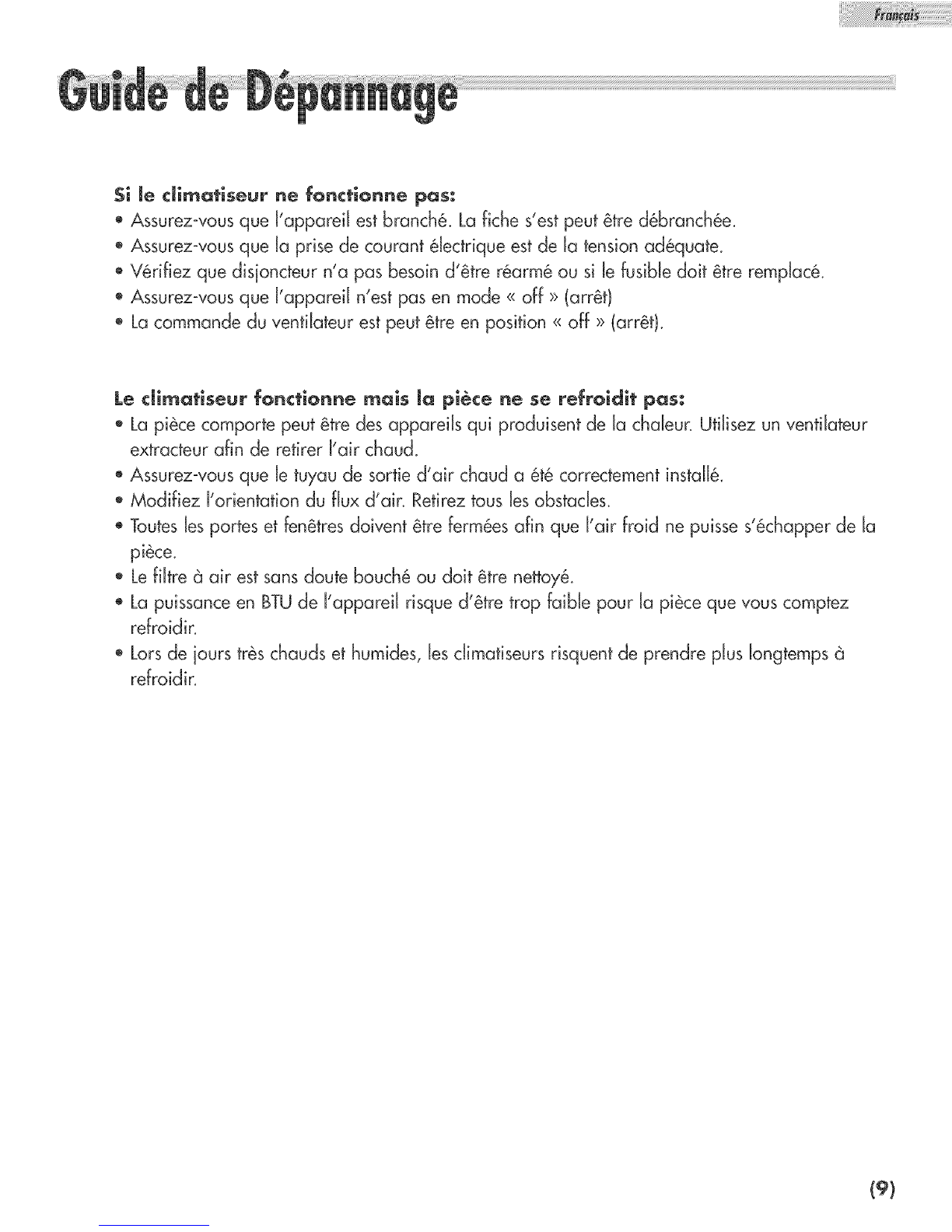

Jf air conditioner does not operate:
Check if unit is plugged in_Theplug may have come Joose_
Check if the electrical wall receptacle is of proper vdtage_
Check if the circuit breaker needs to be resetor if the fuse needs to be replaced_
Check if the unit is in "Off" mode_
Thefan control may be in "Off" position.
Air conditioner working but room not cooling:
Room may have appliances that produce heat. Use an exhaust fan to remove excessheat.
Check exhaust hose for proper installations
Redirect the airflow. Removeany obstacles.
All doors and windows need to be closed so cool air does
not escape the room_
Air filter may be blocked or may need deaning_
Unit BTUmay be too low for the required cooling area_
On extreme hot & humid days air conditioners may take a little longer to cook
(9)
