Haier HPR09XC7 User manual

Haier America
New York, NY 10018
Printed in China
IMPORTANT
Do Not Return This Product To The Store
If you have a problem with this product, please contact the "Haier Customer Satisfaction
Center" at 1-877-337-3639.
DATED PROOF OF PURCHASE, MODEL # AND SERIAL # REQUIRED FOR WARRANTY SERVICE
IMPORTANT
Ne pas retourner cet article au magasin
En cas de problème avec cet article, veuillez contacter le « Centre satisfaction client » de
Haier au 1-877-337-3639.
UNE PREUVE D’ACHAT DATÉE, LE NUMÉRO DU MODÈLE ET LE NUMÉRO DE SÉRIE SONT
OBLIGATOIRES POUR BÉNÉFICIER DE LA COUVERTURE OFFERTE PAR LA GARANTIE.
IMPORTANTE
No Devuelva Este Producto al Establecimiento Compra.
Si tiene problemas con este producto, por favor póngase en contacto con el "Centro Haier de
Atención al Cliente" en el 1-877-337-3639.
PARA EL SERVICIO DE GARANTÍA SE REQUIERE PRUEBA DE COMPRA, FECHADA, No. DE
MODELO Y No. DE SERIE
Made in China
Issue: November 2006 Part: AC-9999-58 HPRB09XC7 AC-9999-59 HPRB09XH7

PORTABLE AIR CONDITIONER
CLIMATISEUR PORTATIF
ACONDICIONADOR DE AIRE PORTATIL
Before operating this air conditioner, please read these instructions completely.
Quality ■Innovation ■Style
User Manual
Model # HPR09XC7, HPR09XH7
Guide de l’Utilisateur
Modéle # HPR09XC7, HPR09XH7
Manual del Usuario
Para Modelo de # HPR09XC7, HPR09XH7

1
English
A Word From Haier
Thank you for buying a dependable, energy-saving and easy-to-operate HAIER air conditioner.
This manual contains useful information for you to maintain, operate, install and safely use your air
conditioner. Your air conditioner cleans, cools and dehumidifies the air in your room to provide you with
the ultimate level of comfort.
Please read instructions carefully before using the product. Also, do not forget to fill out and mail the
Product Registration Card.
Product Registration
Record Your Model and Serial Number.
Attach the sales receipt to this guide and keep for future reference. Model and serial number can be
obtained from the serial label, which is on your air conditioner. For all your service calls during the
warranty period the following information will be needed:
Model Number: ......................................................................................................................
Serial Number: .......................................................................................................................
Date of Purchase:....................................................................................................................
Dealer’s Name:.......................................................................................................................
Dealer’s Address:....................................................................................................................
Dealer’s Phone Number:..........................................................................................................

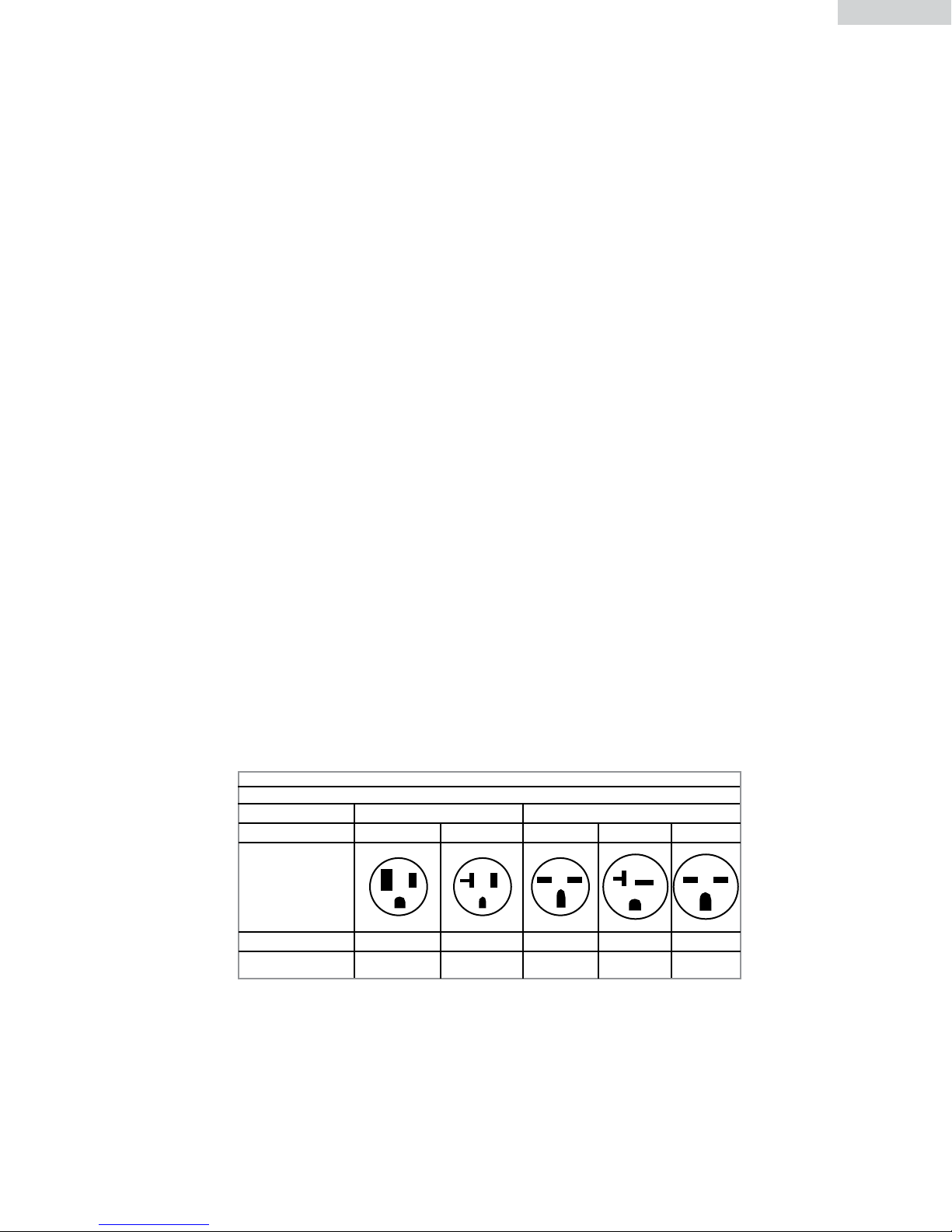

T A B L E
RECEPTACLE AND FUSE TYPES
RATED VOLTS 125/60 250/60
AMPS 15 20 15 20 30
WALL OUTLET
FUSE SIZE 15 20 20 30 30
TIME DELAY FUSE Plug Plug Plug Plug Plug
(or circuit braker)

2
English
SAFETY PRECAUTIONS
WARNING: Following these basic precautions will reduce the risk
of fire, electrical shock, injury or death when using
your air conditioner.
1) Air conditioner must be connected to proper electrical outlet with the correct electrical
supply. (see table previous page)
2) Proper grounding must be ensured to reduce the risk of shock and fire. DO NOT CUT OR
REMOVE THE GROUNDING PRONG. If you do not have a three-prong electric receptacle
outlet in the wall, have a certified electrician install the proper receptacle. The wall recep-
tacle MUST be properly grounded.
3) Do not operate air conditioner if power cord is frayed or otherwise damaged. Also avoid
using it if there are cracks or abrasion damage along the length or plug connector or if the
unit malfunctions or is damaged in any manner. Contact an authorized service for exami-
nation, repairs or adjustments.
4) DO NOT USE AN ADAPTER OR AN EXTENSION CORD.
5) Do not block airflow around the air conditioner. Also, the exhaust hose should be free of
any obstructions.
6) Always unplug the air conditioner before servicing it or moving it.
7) Do not install or use the air conditioner in any area where the atmosphere contains com-
bustible gases or where the atmosphere is oily or sulphurous. Avoid any chemicals coming
in contact with your air conditioner.
8) Do not place any object on the top of the unit.
9) Never operate the air conditioner without the filters in place.
10) Do not use the air conditioner near a bathtub, shower or wash basin.
SAVE THESE INSTRUCTIONS

3
English
Important Instructions
• Please keep this manual in a safe place.
• Do not use liquid or a spray to clean this product. Use a damp cloth.
• Do not place the product in an insecure or elevated place as it may fall and cause damage or injury.
• Never spill liquid on the control panel; it may cause electrical shock to the electronic parts inside and
disable them or cause them to function improperly.
• Never try to dismantle the product by yourself. Unsupervised dismantling and incorrect reassembly of
the inside of the back cover may damage the electrical circuit and affect its performance. When
maintenance is required, please contact the local service center or local distributor.
Thank you for purchasing our Haier product. Please read this
manual carefully before operating and store for future reference
Staple your receipt to your manual. You will need it to obtain
warranty service.
Model number
Serial number
Date of purchase

Table Of Contents
PAGE
A Word From Haier...................................................................................................................... 1
Product Registration....................................................................................................................... 1
Safety Precautions......................................................................................................................... 2
Advantages .................................................................................................................................. 4
Parts and Features......................................................................................................................... 5
Assembly and Installation .............................................................................................................. 6
Operation.................................................................................................................................. 7-8
Product Specification..................................................................................................................... 9
Care and Cleaning ....................................................................................................................... 9
Storage ........................................................................................................................................ 9
Trouble Shooting ......................................................................................................................... 10
Warranty Information.................................................................................................................. 11
English
Advantages of this Model
1. This model is easy to operate. The electronic control panel has a timer, thermostat, three speed
cooling speeds, three fan speeds and one speed dehumidification function (dry).
2. This portable air conditioner does not require water to be added.
3. The unit has a unique design which evaporates water. Therefore no condensation tank is necessary,
thus avoiding the need to empty the bucket and turn on the unit in the middle of the night.
4. Easy-to-install window kit is included, which consists of the exhaust hose, 2 hose adaptors, the window
panel kit and window panel adaptor.
5. Full-directional casters are included to help move the unit so it can be used conveniently in almost any
area.
6. The filter screen is designed for easy accessibility of the filter.
7. Portable air conditioners are easy to store when not in use.
4

5
English
Parts and Features
1. Air Outlet
2. Van Air Deflector
3. Front Panel
4. Control Panel
5. Side Panel
6. Caster
7. Screen Filter
8. Air Intake (Evaporator)
9. Air Outlet (Heat Exhaust)
10. Air Intake (Condenser)
11. Power Supply Cord
12. Water Outlet Drain
77 F
12
5
4
3
1. Full-Tank Indicator
See the troubleshooting section when the light is on.
2. Mode Key
Cool: Sign appears in LCD display when in cooling
mode.
Dehumidifier: Sign appears in LCD display when in
dehumidifier mode.
Fan: Sign appears in LCD display when in fan mode.
Heat: Sign appears in LCD display when in heat mode.
(ONLY for Model HPR09XH7)
3. Power Key
On/Off
4. Fan Speed Key
HIGH MED LOW
5. On/Off Timer Key
In running mode: Auto Switch Off
In Stand by Mode: Auto Switch On
Front
Rear
1
4
6
5
3
2
7
8
9
10
12
11
RESET
TEST
TEST: WHEN THIS BUTTON IS PRESSED
OR WHEN THERE IS A CURRENT LEAK,
THE INDICATOR LIGHT WILL TURN OFF
AND THE UNIT WILL NOT RUN.
RESET: AFTER SOLVING THE PROBLEM,
PLEASE PRESS THE BUTTON AND THE
UNIT WILL START OPERATING.

6
English
Assembly and Installation
1. Adjust the Plastic Panel to the width or height of your window and tighten
the 2 screws that are attached to the panel.
2. Push the round Window Panel Adapter through the rear of the Plastic Panel.
Line up the holes and tighten the Adapter with 4 screws that are included in
the kit. (Tighten screws from the front).
3. Install the Window Plastic Panel into the window. If necessary use duct tape
to better secure the panel.
4. Connect exhaust hose to the unit by inserting the hose connector that is
attached to the hose into the exhaust. (See Illustration A)
5. Move the unit to the window, extend the hose and attach the other end of the
hose to the window. Align the tabs on the hose and window panel adapters
and fasten them together.
Accessories Include
1. Plastic panel - 2 pieces
2. Window Panel Adaptor - 1 piece
3. Screws - 4 pieces
4. Heat Exhaust hose connector -2 pieces
5. Heat Exhaust hose -1 piece
Exhuast Hose
Hose Connector Hose Connector
123
A
B
454

7
English
Operation
NOTE: Wait for 24 hours to turn on air conditioner if the unit has been tilted for any
reason. This is for the oils and the coolants to settle and level off.
1. After a normal shut down wait for 3 minutes before restarting the unit so as to complete the
compressor cycle.
2. Use an 115v /15 amp outlet for the air conditioner. Do not use any other electrical appliances on this
line or you may trip the fuse. Use a dedicated line for this air conditioner.
3. Do not place the air conditioner in direct sunlight or close to any heating appliances
(eg. baseboard heaters, stoves, etc).
4. Operate on a flat surface only.
5. Keep the unit free of any obstructions such as drapes, curtains, blinds, etc.
6. Keep unit at least 1 foot away from the wall.
7. Check and clean the filter once every week for highest efficiency.
NOTE: Do not use unit without filter.
8. If the unit is not being used for a long period of time, remove the plug from the water drain pipe and
drain out any condensed water.
When turning on the unit for the first time after plugging it into an electrical outlet, the unit will start in a
low fan cool mode. The temperature reading out on the LED will be the current room temperature. When
turning on the unit during regular usage, it will remember the last setting used. If you want to operate the
air conditioner as a dehumidifier, then adjust to dehumidify mode.
SETTING THE TEMPERATURE
To set the temperature, press the + or the - key to raise or lower the temperature. The temperature can be
raised or lowered in the cool or dry mode. The temperature cannot be adjusted in the fan mode.
FAN SPEEDS
There are 3 adjustable speeds in the cool and fan mode: Low, Medium & High. In the dry or
dehumidification mode the fan will only operate at low speed.
ON/OFF TIME SET
The air conditioner has a 1-24 hour on/off built-in timer. To delay the start time for 1-24 hours at 1 hour
intervals, simply press “Timer” key (or On/Off Timer Key) to adjust the start time. Note that the unit has
to be plugged in to an electrical outlet for the timer to operate.
To automatically shut-off the unit, press “Timer” key while the unit is running to adjust the shut-off time.
The auto shut-off switch operates in all 3 modes: Cool, Dry & Fan.
NOTE: The temperature can be set between 61˚F to 89˚F.

8
English
TIMER PROGRAMMING
1. Press the ( ) button on the remote or the “Timer Setting” button on the control panel to turn on the
Timer Function.
2. Press the ( ) or ( ) buttons on the remote or the ( ) or ( ) buttons on the control panel to set the
desired shut-off time.
3. The unit will shut off when the set time elapses.
DEHUMIDIFICATION OPERATION
Press the ( ) button on the remote or the “MODE” button on the control panel to sleect the dehumidifier
mode. When the dehumidifier mode is on, the temperature buttons and the fan speed buttons do not
function and the fan will operate on low speed. The dehumidifier indicator light will illuminate and stay
solid while the unit is dehumidify, and the dehumidifier light will blink. Remember, the exhaust hose does
not need to be used in dehumidifier mode.
a) LCD Screen
b) Power On/Off Button
c) Timer and Thermostat Setting Buttons
d) Mode Button (Select A/C, Fan or Dehumidifier)
e) A/C Fan Speed Button (High, Medium, or Low)
f) Timer On/Off Button
g) Fahrenheit/Celsius Selector
Remote Control Operations
