SPLIT WALL MOUNTED TYPE
AIR CONDITIONERS OWNER'S MANUAL
Thank you for choosing our Air Conditioner. Please read this OWNER'S
MANUAL carefully prior to use and keep it for further reference.

22
66
Safety Awareness
Name of Parts
Service and Maintenance
Trouble Shooting
Performance Parameters
77
44
99
CONTENTS
11
Contents
11

22

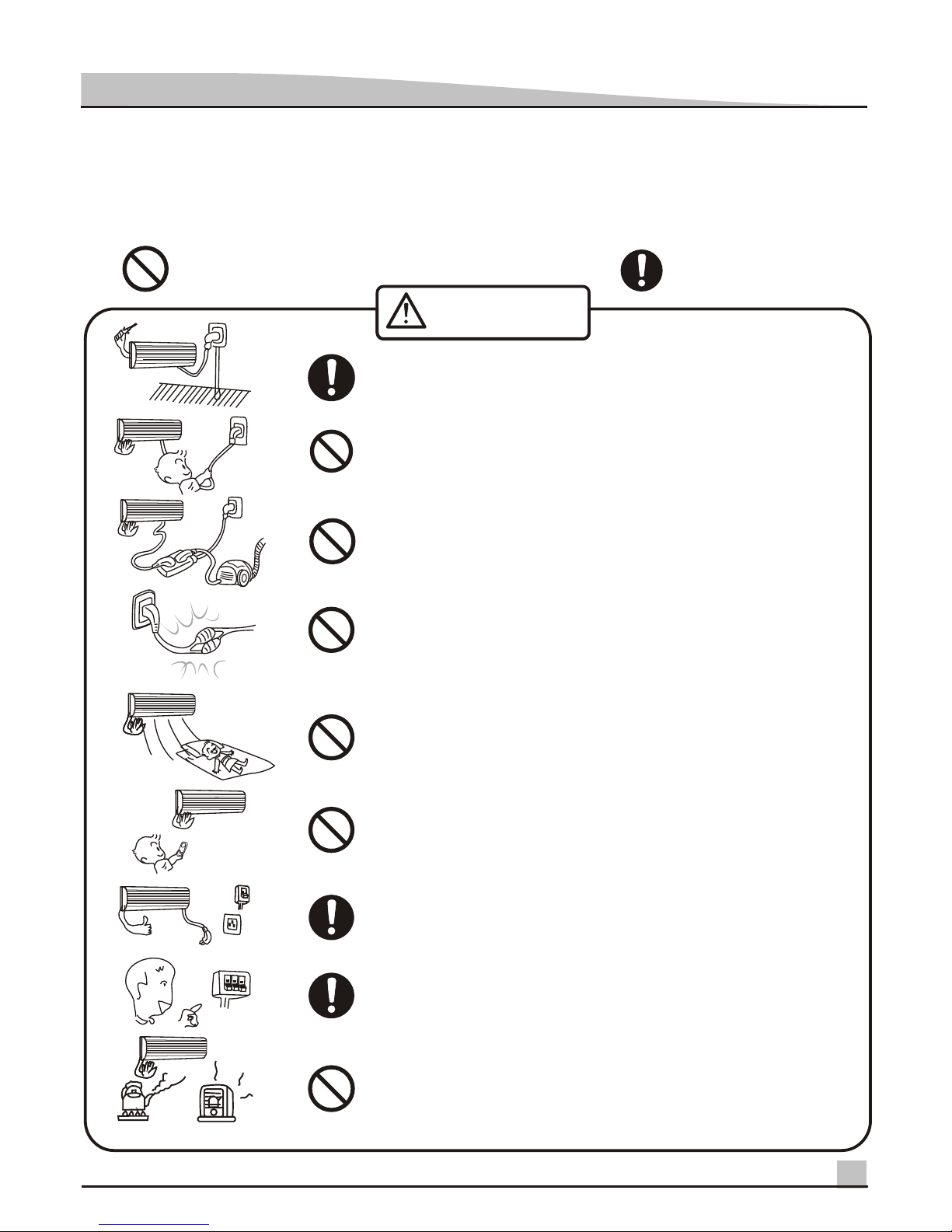

Absolutely not Must be done
WARNING
The air conditioner must be grounded. Incomplete grounding
may result in electric shocks.
Do not expose your body directly to the cool (or hot) air for
prolonged period; do not cool (or heat) the room too much.
This could effect your physical condition and cause health
problems.
Pull out the power plug or turn off the power supply when
not using the air conditioner for a long time. (Accumulated
dirt might cause fire.)
Read and understandthoroughly this safetyawareness before use.
Do not pullthe power cable duringoperation. It can cause
fire. To pull out the plug, please turn off theunit and hold
the plug topull it out.
Do not attempt to extend the power cord by joining it to
another cord, or by using an extension cord. Do not put
any other loads on the power supply socket.
An earth leakagebreaker with ratedcapacity must be
installed to avoidpossible electric shocks.
SAFETY PRECAUTION
The following picturesare presented justfor the purposeof illustration.As for somemodels whose
cooling capacity isabove 4600W(17000BTU/h), theirpower cables donot have a plug! So please
take real objectsas a reference.
The items indicatedhere are veryimportant safety precautions,which must befollowed.
Do not putburning appliances atplaces exposed tothe
airflow, itmay cause incompletecombustion.
The appliances isnot intended tobe used byyoung
children or infirmpersons without supervision.
Do not damagethe power cord,or do jointwork. Piling up
heavy objects onthe power cable,approaching high
temperature supply objects,or doing jointwork will cause
electric shock andfire.

33

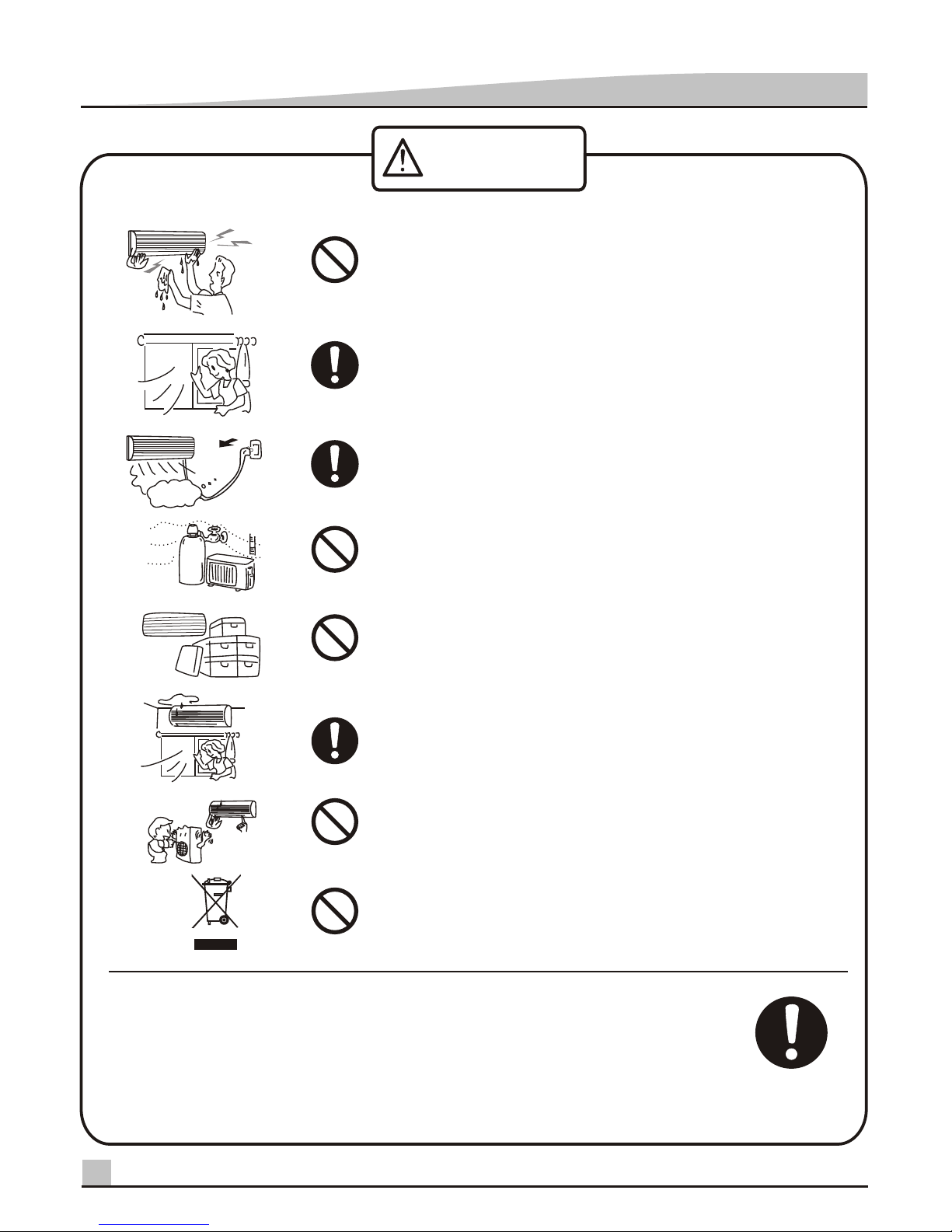

WARNING
If anything abnormal such as a burning smell occurs, stop the
operation immediately and turn the breaker off.
Close doors andwindows (preferably usea curtain) while
operating air conditionerfor a longtime, if roomair is quite
turbid, you couldopen the doorand window fora moment
to get somefresh air outside.
Do not install the air conditioner at places where flammable
gas may leak. If there is electrical leakage accidentally from
air conditioner, it is easy to cause fire or explosion.
Do not apply the unit for special purposes. Do not use to store
precision equipment, food, painting etc, which require certain
humidity and temperature, for their quality may be affected.
Do not open windows and doors while operating the air
conditioner at COOL/DRY mode for a long time under high
humidity condition (above 80%). Otherwise, condensed
water may drip from the unit.
The appliance shallbe installed inaccordance with nationalwiring regulations.
The appliance mustnot be installedin the laundry.
The appliance mustbe installed 2.3mabove the floor.
The appliance mustbe positioned sothat the plugis accessible.
For some modelswhose cooling capacityare above 4600W(17000BTU/h),
an all-pole disconnectiondevice which hasat least 3mmseparation distance in
all pole anda residual currentdevice(RCD)with the ratingof above 10mAshall be incorporated
in the fixedwiring according tothe national rule.
Do not insert a finger, a rod or any other objects into the air
outlet/inlet grille. As the fan is running at a high speed, it will
cause injury.
SAFETY PRECAUTION
Do not use these stuffs for cleaning:
chemical solvent, insecticide, inflammable spraying
materials which will damage the appearance of air
conditioner. Do not sprinkle water directly on the indoor unit.
This product must not be disposed together with the domestic
waste. This product has to be disposed at an authorized place
for recycling of electrical and electronic appliances.

2.DISPLAY MODELS
This illustration generalizes all the displays for the models included in this
manual book. Please take real objects as reference while using.
1.OUTDOOR UNIT AND INDOOR UNIT
NAME OF PARTS
44
Connecting pipe
Drain hose
Air inlet
Air outlet
Drain opening
(Manual operation)
Left / Right deflector
Filter Air inlet
Deflector
Display
Front panel
Appearance ofthe indoor unitand outdoor unitmay differ with some models.
NOTICE
Time indicator
lamp
Setting temperature
and timer display
Sleep indicator
lamp
HEAT PUMP MODE
indicator lamp
COOL MODE
indicator lamp

NAME OF PARTS
55
( ).
Emergency Operation switch
3.EMERGENCY OPERATION SWITCH
In case thebatteries in theremote controller arewore out, orremote controller isat fault, use
Emergency operation switch
Cooling only type
Every time theswitch is pressed,it changes insequence of COOL STOP.
Heat pump type
Every time theswitch is pressed,it changes insequence of COOL HEAT STOP.
The following table shows the condition of settemperature, fan speed and deflector during
emergency operation.
4.HORIZONTAL LOUVER BLADE
Hold the knob and move the deflector to change right/left airflow direction. Be careful not to adjust
the deflector during operation as the fan is rotating at a high speed and may pinch your fingers.
Mode
Set temperature Deflector
Fan speed
Swing
Swing
Heating
High
Cooling 24
C
24
C High
The places of e different models maybe different, but all of the
e¡°¡¡¡¡¡±
mergency operation switch of
mergency operation switches are showed by the icon .
or

SERVICE AND MAINTENANCE
66
Clean the front grille and air filters
If you will not be using the air conditioner for a long idle period
1.Set thefan going fora few hoursto dry outthe inside thoroughly. (Choose COOLmode or
HEAT mode and select the highest set temperature, then the fan rotates.)
2.Switch theair conditioner off and unplugit from thewall socket. Cleanthe filters andouter
surface.
3.Take out thebatteries from theremote controller.
If you have not used the air conditioner for a long period
1.Clean filters andreplace them to the original position. Clean the indoor and outdoor units with
a piece ofsoft cloth.
2.Insert thepower plug andmake sure the earth wire not be loose.
3.Put thebatteries into theremote controller.
Air inlets andoutlets shall not be covered/blocked.
For cleaning, donot use gasoline, benzene, thinner, grinding powder, detergent
insecticide etc asthey can damage the units.
Don't tear thebatteries apart orthrow them into fire, which will lead to explosion.
FAN OPERATION
Clean the front grille and air filters at least once in every two weeks.
Before cleaning, be sure to stop the operation and turn off the breaker.
In this illustration, each section is shown just for the purpose of explanation.
During operation, please take real objects as major reference.
NOTICE
1.Open thefront grille bypulling the tabson both sidesand lift itup until itstops with a click.
Pull out theair filters.
2.Remove alldust on thefront grille andair filters witha vacuum cleaneror brush. (If the dust
does not comeoff easily, wash theair filters withgentle detergent dissolvedin warm water
below 45 .)
3.Wash them in clean water and dry them in the shade.
4.Insert thefront grille andair filters attheir original positionand close thefront grille.
5.Wipe thesurface of theunit with moistcloth and thenwipe it againwith dry cloth.
(Do not usebenzene, solvent orother chemical products.)

77
Is there a fault? Fault analysis!
Air conditioner does
not operate.
Is it a power failure?
Has the power plug fallen off?
Has the circuit breaker or fuse shut off
Are there any obstacles or disturbance
supply oscillators in the room to disturb the
signal from remote controller?
Remote controller is
not available and
does not display.
Operation does not
start soon whenI/O
button is pressed
after operation was
stopped.
Cooling and heating
effect is not good.
Air will not
immediately blow
out at thestart of
HEAT mode.
The air conditioneris ready toblow out
enough warm air. Please wait.
This is a way toprotect the air conditioner.
Please wait 3 minutes.
Is temperature setting appropriate?
Are the air filters clean?
Are there any obstacles to block the inlets
and outlets of the indoor and outdoor units?
Is sleep mode used during daytime?
Is the indoor fan speed set low?
Are doors and windows closed?
The power supply may
be suddenly cut off,
when the power is
normal again; the air
conditioner will automatically
resume the same mode
operation as setting before
power failure.
This is called auto-restart function and this
function is only accessible for certain types of
air conditioners with the function of auto-restart.
Check whether the batteries of remote
controller are usable.
Check whether the batteries are positioned
correctly.
The following casesare not troubles that will obstruct you in using please follow the fault analysis
and continue using.
TROUBLE SHOOTING

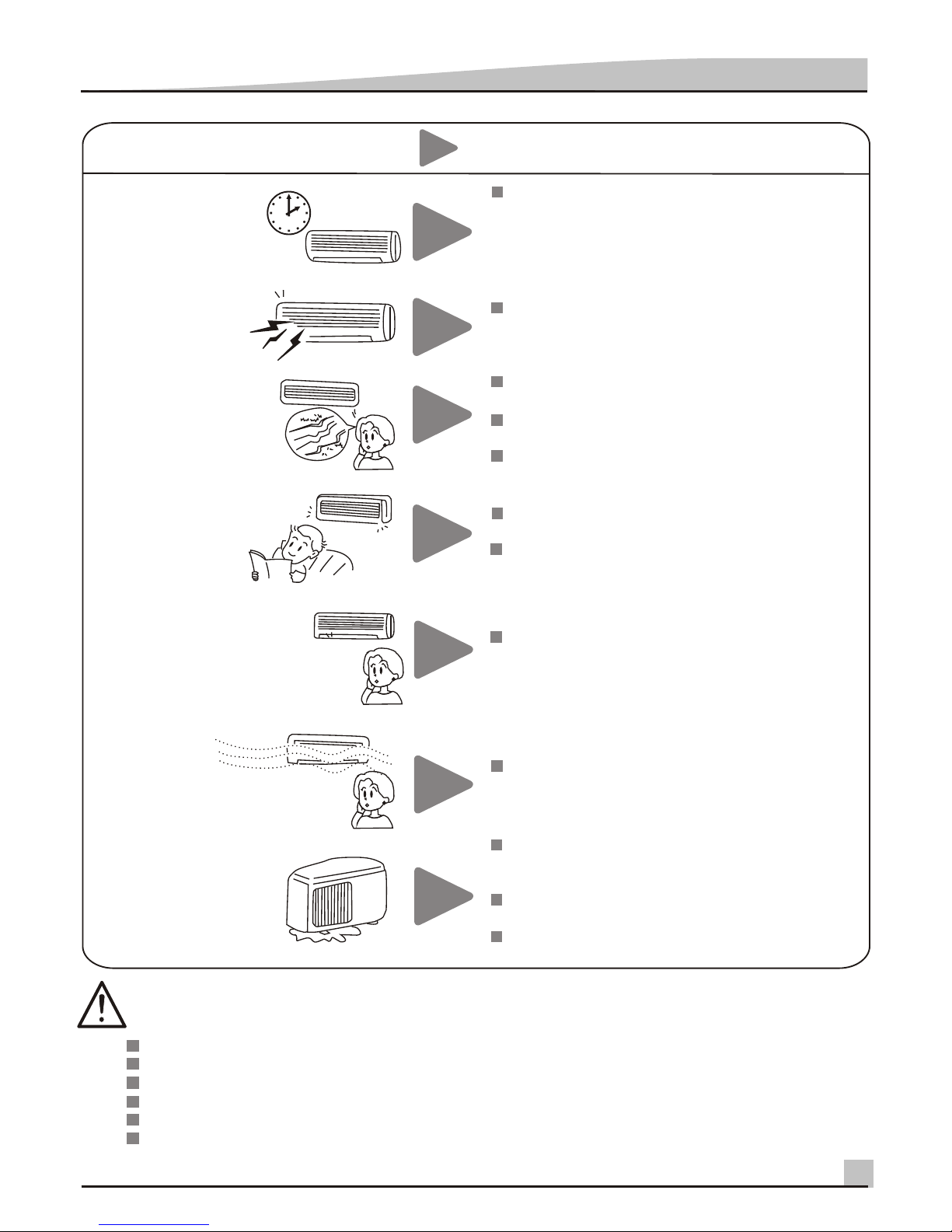

After operation
terminates, the vane
appears not toclose
completely.
Stepping motor couldnot find theRESET
point, please restartthe air conditioner
and stop again.

Indoor unit fanstops
during heating.
The air conditioner is deicing and it takes
10 minutes at most.( It freezes when
outdoor temperature is low and humidity is
high). It automatically resumes operation
about 10 minutes later.
Issue cracking
sounds.
The friction sounds are caused by expansion
and contraction of front grille resulting from
temperature changes.
You can hear the
sound of running
water.
It is the sound of flowing refrigerant inside
the air conditioner.
Sound of accumulated flowing water on the
Heat-exchanger.
Sound of frost melting on the heat exchanger.
Indoor unit makes
“bush” sound and
click sound.
Click sound is made by the switching of the
fan or compressor.
“Bush” sound is made by the switch of
refrigerant flowing inside the air conditioner.
Indoor unit gives
outdoor.
Air conditioner may have absorbed odors
from wall, carpet, furniture and again blows
out.
Outdoor unit leaks
water.
During cooling, connecting pipe or pipe
connector will cause the moisture content
condensation due to the low temperature.
During heating or defrosting, melting water
and water vapor will run out.
During heating, water on heat exchanger
will drop.
Is there a fault? Fault analysis
If you find one of the following symptoms, please turn the breaker off quickly and call our
designated service shop nearest to you for help.
88
TROUBLE SHOOTING
When the unit is set
directional swinging at low
angle on COOL mode:
the deflector will may auto
swing to its maximum angle
for 3 minutes and then resume
to swing at the low angle.
This function prevents the production of
condensed water and does not cause any
worry.
The power cordis overheat ordamaged.
An abnormal soundis heard duringoperation.
The safety breaker, fuse orthe earth leakagebreaker often cutsoff the operation.
Some switch orbutton often failsto work normally.
The air conditionergives out burningsmell during operation.
Water leaks from the indoor unit.

Rated cooling capacity(W)
Rated heating capacity(W)
Cool
Aux-heat
Dehumidifying capacity (L/h)
Waterproof class
Noise(dB(A))
Net weight(kg)
Climate type
Power
Indoor
Outdoor
IP20(INDOOR) IP24(OUTDOOR)
I
T1
Heat pump
Rated input
power(W)
Protection class
Dimension WxHxD
(mmxmmxmm)
Indoor
Outdoor
Outdoor
Indoor
1.The indicatednoise parameter ismeasured in laboratoriesbefore leaving factory.
Model
NOTICE
2.The ratedcooling/heating capacity istested under thefollowing conditions:
Air flow volume(m /h)
3
Cooling operation
Heating operation
Indoor
Indoor
Outdoor
Outdoor
20 (DB)
35 (DB)
7 (DB)
19 (WB)
15 (WB)
24 (WB)
6 (WB)
5.Wiring diagram of air conditioner (indoor unit/outdoor unit) are attached to the indoor/ outdoor unit
respectively.
27 (DB)
Maximum cooling Minimum cooling Maximum heating Minimum heating
Indoor side DB/WB( )
Outdoor side DB/WB( )
C
C
32/23 21/15 27/-- 20/--
43/26 21/15 24/18 -5/-6
3.Due tothe policy ofconstant development, wereserve the rightto modify technicaldata without
notice. While errorsand omissions area possibility, every reasonableeffort has been made to
ensure that theinformation in thismanual is correct.
4.Operating temperature range:
Refrigerant( )charge amount(g)R22
99
PERFORMANCE PARAMETERS
6.If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.

KGS-04
