Haier HSU-30LPA03/R2 User manual

SERVICE MANUAL
●
This service information is designed for experienced repair technicians only and is not designed for use by the general public.
●
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or
Repair the product or products dealt with in this service information by anyone else could result in serious injury or death
WARNING
2017 (Qingdao Haier Air Conditioner General corp. , Ltd)
All rights reserved. Unauthorized copying and distribution is a violation of law
Version V1 Date 2020-9-1
Wall Mounted Type
ON/OFF 3.5P(21)-Series
Model No.HSU-30LPA03/R2(T3&T4)
1U30XZ5QAM

Contents
Domestic air conditioner
Contents
1. Introduction ............................................................................................1
2. Specifications.........................................................................................7
3. Sensors list ............................................................................................8
●
4. Piping diagrams ....................................................................................9
5. Operation range ....................................................................................10
6. Wiring Diagram .............................
●
....................................................... 11
7. Functions and Control...........................................................................
8. Dimensional
●
drawings...........................................................................18
9. Conter of gravity .................................................................................. 18.
10.Service Diagnosis .................................................................................
12
19
11.Remove Procedure ..............................................................................20

Introduction
Domestic air conditioner
1 Introduction
1.1 Model name explanation
1
1 U 3 0 XZ 5 Q M A
Type of outdoor unit : U (normal type)
●
The maximum combination number
Platform of outdoor units: X (X platform)
Nominal cooling capacity (30000BTU/h)
Middle number
Version number
220-230V 50HZ/1ph
Fixed frequency Cool
& R 410A refrigerant Cooling only

Introduction
Domestic air conditioner
1.2 Safety Cautions
Be sure to read the following safety cautions before conducting repair work.
The caution items are classified into Warning and Caution. The Warning items are especially important
since they can lead to death or serious injury if they
●
are not followed closely. The Caution items can also
lead
to serious accidents under some conditions if they are not followed. Therefore, be sure to observe all the
safety
caution items described below.
●
About the pictograms
This symbol indicates an item for which caution must be exercised.
The pictogram shows the item to which attention must be paid.
This symbol indicates a prohibited action.
The prohibited item or action is shown inside or near the symbol.
●
This symbol indicates an action that must be taken, or an instruction.
The instruction is shown inside or near the symbol.
After the repair work is complete, be sure to conduct a test operation to ensure that the equipment operates
Normally, and explain the cautions for operating the product to the customer.
1.2.1 Caution in Repair
Warning
Be sure to disconnect the power cable plug from the plug socket before disassembling the equipment for
a repair.
Working on the equipment that is connected to a power supply can cause an electrical shook.
If it is necessary to supply power to the equipment to conduct the repair or inspecting the circuits, do not
touch any electrically charged sections of the equipment.
If the refrigerant gas discharges during the repair work
●
, do not touch the discharging refrigerant gas .The
refrigerant gas can cause frostbite.
When disconnecting the suction or discharge pipe of the compressor at the welded section, release the
refrigerant gas completely at a well-ventilated place first.
If there is a gas remaining inside the compressor , the refrigerant gas or cooling machine oil discharges
when the pipe is disconnected, and it can cause injury.
If the refrigerant gas leaks during the repair work,
●
ventilate the area. The refrigerant gas can generate
toxic gases when it contacts flames.
The step-up capacitor supplies high-voltage electricity to the electrical components of the outdoor unit.
Be sure to discharge the capacitor completely before conducting repair work . A charged capacitor can
cause an electrical shock.
Do not start or stop the air conditioner operation by plugging or unplugging the power cable plug.
Plugging or unplugging the power cable plug to operate the equipment can cause an electrical shock or
fire.
2 2

Introduction
Domestic air conditioner
Warning
Do not repair the electrical components with wet hands . Working on the equipment with wet hands can
cause an electrical shock
●
Do not clean the air conditioner by splashing water. Washing the unit with water can cause an electrical
shock.
Be sure to provide the grounding when repairing the equipment in a humid or wet place, to avoid
●
electrical
shock.
Be sure to turn off the power switch and unplug the power cable when cleaning the equipment. The
internal fan rotates at a high speed, and cause injury.
●
Do not tilt the unit when removing it. The water inside the unit can spill and wet the furniture and floor.
Be sure to check that the cooling cycle section has cooled down sufficiently before conducting repair
work. Working on the unit when the cooling cycle section is hot can cause burns.
Use the welder in a well-ventilated place. Using the welder in an enclosed room can cause oxygen
deficiency.
1.2.2 Cautions Regarding Products after Repair
Warning
Be sure to use parts listed in the service parts lis
●
t of the applicable model and appropriate tools to
conduct repair work. Never attempt to modify the equipment. The use of inappropriate parts or tools can
cause an electrical shock, excessive heat generation or fire.
When relocating the equipment, make sure that the new installation site has sufficient strength to
withstand the weight of the equipment.
If the installation site does not have sufficient strength and if the installation work is not conducted
securely, the equipment can fall and cause injury.
●
Be sure to install the product correctly by using the provided standard installation frame.
Incorrect use of the installation frame and improper installation can cause the equipment to fall, resulting
in injury.
For
integral
units only
Be sure to install the product securely in the installation frame mounted on a window frame.
If the unit is not securely mounted, it can fall and cause injury.
For
integral
units only
3 3

Introduction
Domestic air conditioner
Warning
Be sure to use an exclusive power circuit for the equipment, and follow the technical standards related to
the electrical equipment, the internal wiring regulations and the instruction manual for installation when
conducting electrical work.
●
Insufficient power circuit capacity and improper electrical work can cause an electrical shock or fire.
Be sure to use the specified cable to connect between the indoor and outdoor units. Make the
●
connections securely and route the cable properly so that there is no force pulling the cable at the
connection terminals.
Improper connections can cause excessive heat generation or fire.
When connecting the cable between the indoor and outdoor units, make sure that the terminal cover
does
not lift off or dismount because of the cable.
●
If the cover is not mounted properly, the terminal connection section can cause an electrical shock,
excessive heat generation or fire.
Do not damage or modify the power cable.
Damaged or modified power cable can cause an electrical shock or fire. Placing heavy items on the
power cable, and heating or pulling the power cable can damage the cable.
Do not mix air or gas other than the specified refrigerant (R-410A / R22) in the refrigerant system.
If air enters the cooling system, an excessively high pressure results, causing equipment damage
and injury.
If the refrigerant gas leaks, be sure to locate the leak and repair it before charging the refrigerant. After
charging refrigerant, make sure that there is no refrigerant leak.
If the leak cannot be located and the repair work must be stopped, be sure to perform pump-down and
close the service valve, to prevent the refrigerant gas from leaking into the room. The refrigerant gas
itself
is harmless, but it can generate toxic gases when it
●
contacts flames, such as fan and other heaters,
stoves and ranges.
.
When replacing the coin battery in the remote controller, be sure to disposed of the old battery to prevent
children from swallowing it.
If a child swallows the coin battery, see a doctor immediately.
Caution
Installation of a leakage breaker is necessary in
●
some cases depending on the conditions of the
installation site, to prevent electrical shocks.
4 4

Introduction
Domestic air conditioner
Do not install the equipment in a place where there is a possibility of combustible gas leaks.
If a combustible gas leaks and remains around the unit, it can cause a fire.
Be sure to install the packing and seal on the installation frame properly. If the packing and seal are not
installed properly, water can enter the room and wet the furniture and floor.
1.2.3 Inspection after Repair
●
Warning
Check to make sure that the power cable plug is not
●
dirty or loose, then insert the plug into a power outlet
all the way.
If the plug has dust or loose connection, it can cause an electrical shock or fire.
●
If the power cable and lead wires have scratches or deteriorated, be sure to replace them.
Damaged cable and wires can cause an electrical shock, excessive heat generation or fire.
Warning
Do not use a joined power cable or extension cable, or share the same power outlet with other electrical
appliances since it can cause an electrical shock, excessive heat generation or fire.
Caution
Check to see if the parts and wires are mounted and connected properly, and if the connections at the
●
soldered or crimped terminals are secure. Improper installation and connections can cause excessive
heat generation, fire or an electrical shock.
●
If the installation platform or frame has corroded, replace it. Corroded installation platform or frame can
cause the unit to fall, resulting in injury.
5 5

Introduction
Domestic air conditioner
Check the grounding, and repair it if the equipment is not properly grounded. Improper grounding can
cause an electrical shock.
Be sure to measure the insulation resistance after the repair, and make sure that the resistance is 1 M
ohm or higher.
Faulty insulation can cause an electrical shock.
Be sure to check the drainage of the indoor unit after the repair.
Faulty drainage can cause the water to enter the room and wet the furniture and floor.
1.2.4 Using Icons
●
Icons are used to attract the attention of the reader to spec
●
ific information. The meaning of each icon is described in
the table below:
1.2.5 Using Icons List
Icon Type of Information Description
●
Note Note A note provides information that is not indispensable, but may
nevertheless be valuable to the reader, such as tips and tricks.
Caution Caution
A caution is used when there is danger that the reader, through
incorrect manipulation, may damage equipment, loose data, get
an
unexpected result or has to restart (part of) a procedure.
Warning Warning A warning is used when there is danger of personal injury.
Reference
A reference guides the reader to other places in this binder or in
this manual, where he/she will find additional information on a
specific topic.
●
6 6
1.2.6 Embedded wire checking before installation
Check the embedded wire diameter suitable to request:
(Power supply from indoor: 2.5kw ≥1.0mm2 3.5kw,5kw ≥1.5mm2 7kw ≥2.5mm2 ; Power supply from
outdoor
≥1.0mm2 )
Check the embedded wire are four roots, L/N/COM/GND; GND is needed, if not, thunder or high
voltage wave from power grid will impact to the performance
Using a multi-meter to test short circuit of the four roots wires, make sure no short circuit happen.

Specification
Domestic air conditioner
2 Specifications
NOMINAL DISTRIBUTION SYSTEM VOLTAGE
1/Phase
50HzFrequency
220-240VVoltage
NOMINAL CAPACITY and NOMINAL INPUT
cooling
Capacity rated
●
KW
Btu/h
Power Consumption(Rated)
●
KW
W/WSEER/SCOP
m³/hMoisture Removal
TECHNICAL SPECIFICATIONS-UNIT
Dimensions H*W*D mm 950×370×815
Packaged
Dimensions H*W*D mm 1090×500×895
60KG/Weight
67KG/Gross weight
Sound level
/
dBSound pressure
dB(A)Sound power
ELECTRICAL SPECIFICATIONS
cooling
ANominal running current
Maximum running current ●
A
AStarting current
TECHNICAL SPECIFICATIONS-PARTS
cooling
Compressor
Rotary CompressorType
Model
2330(220V 70uf)
WMotor output
Oil type
0.88±0.020
LOil charge volume
Fan
Axial fanType
70WMotor output
---m³/hAir flow rate(high)
rpmSpeed(high/low)
Heat
exchanger
Type ML fin- 7HI-HX tube
2*36*1.4Row*stage*fitch
7
ATH290MV-C8FU
α68HES-H or equivalent
820
58
--
10.4(T1)/12.4(T3)
13.9
8.204(T1)/7.032(T3)
28000(T1)/24000(T3)
2.370(T1)/2.823(T3)
3.458(T1)/2.491(T3)

Specification
8 Domestic air conditioner
TECHNICAL SPECIFICATIONS-OTHERS
Refrigerant
circuit
Refrigerant type
Refrigerant charge KG 2.1
Maximum allowable distance
between indoor an outdoor m
Maximum allowable level difference
●
m
Refrigerant control
●
Capillary
Piping connections
(external diameter)
liquid mm
gas mm
drain
●
mm 1
Heat insulation type Both liquid and Gas pipes
Max. piping Length m
Max. Level Difference m
Chargeless m
Amount of Additional Charge of Refrigerant g/m 20
Note: the data are based on the conditions shown in the table below
Piping length
gnilooc
Indoor: 27 DB/19 WB
●
Outdoor: 35 DB/24 WB 5m
3 Sensors list
type Description Qty
Ambient sensor Its used for detecti 1edisroodtuofoerutarepmetgn
Suction sensor Its used for detecting suction pipe temperature of compressor to
adjust gas flowing 1
Defrosting sensor Its used for controlling outdoor defrosting at heating mode 1
1taeh-revofoesacnirosserpmocrofdesustIrosnesgnigrahcseD
Conversation formulae
Kcal/h= KW×860
Btu/h= KW×3414
cfm=m³/min×35.3
R410A
15.88
9.52
5

Pinping diagrams
Domestic air conditioner

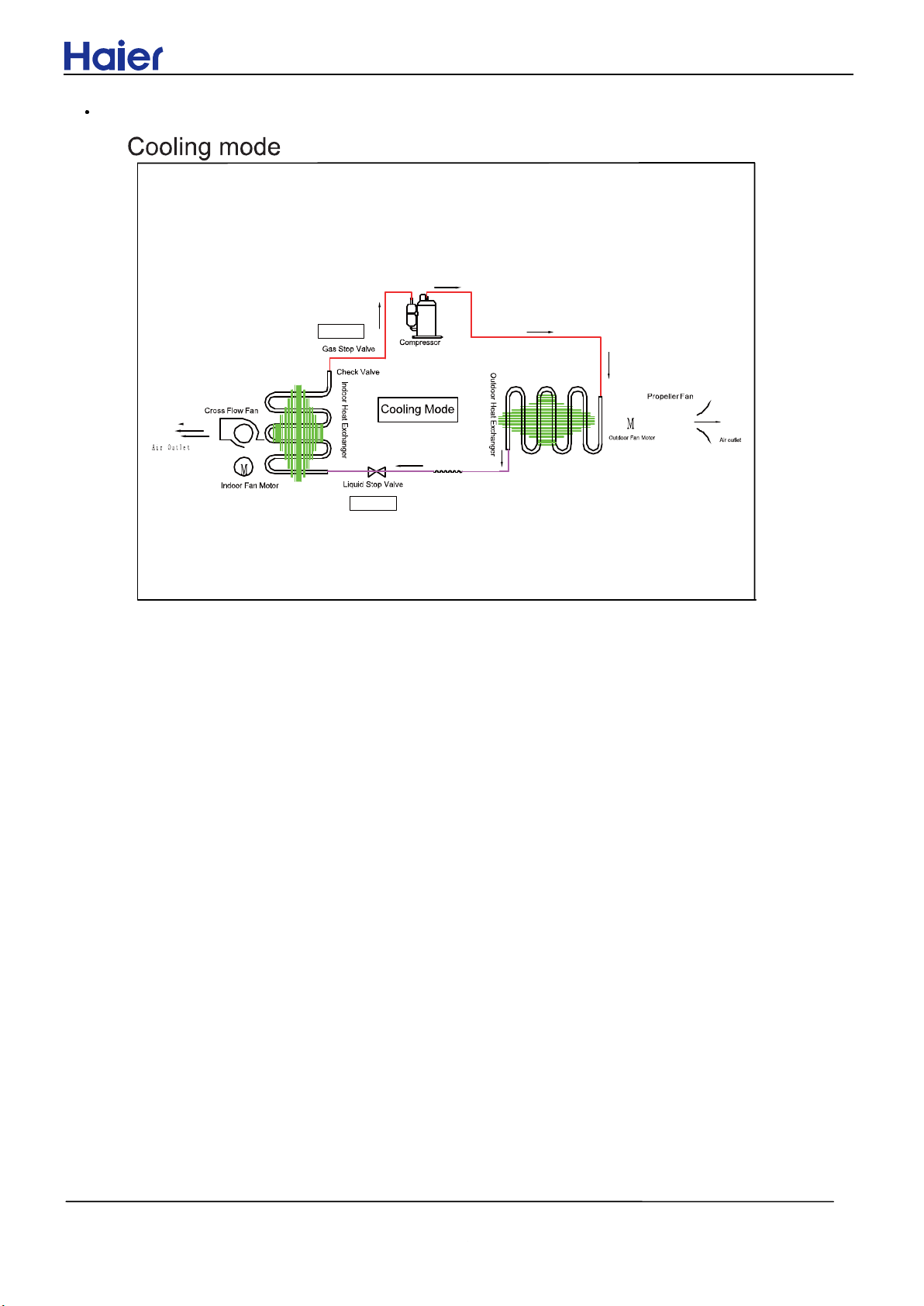

4 Pinping diagrams
9 9
15.88 CuT
9.52 CuT

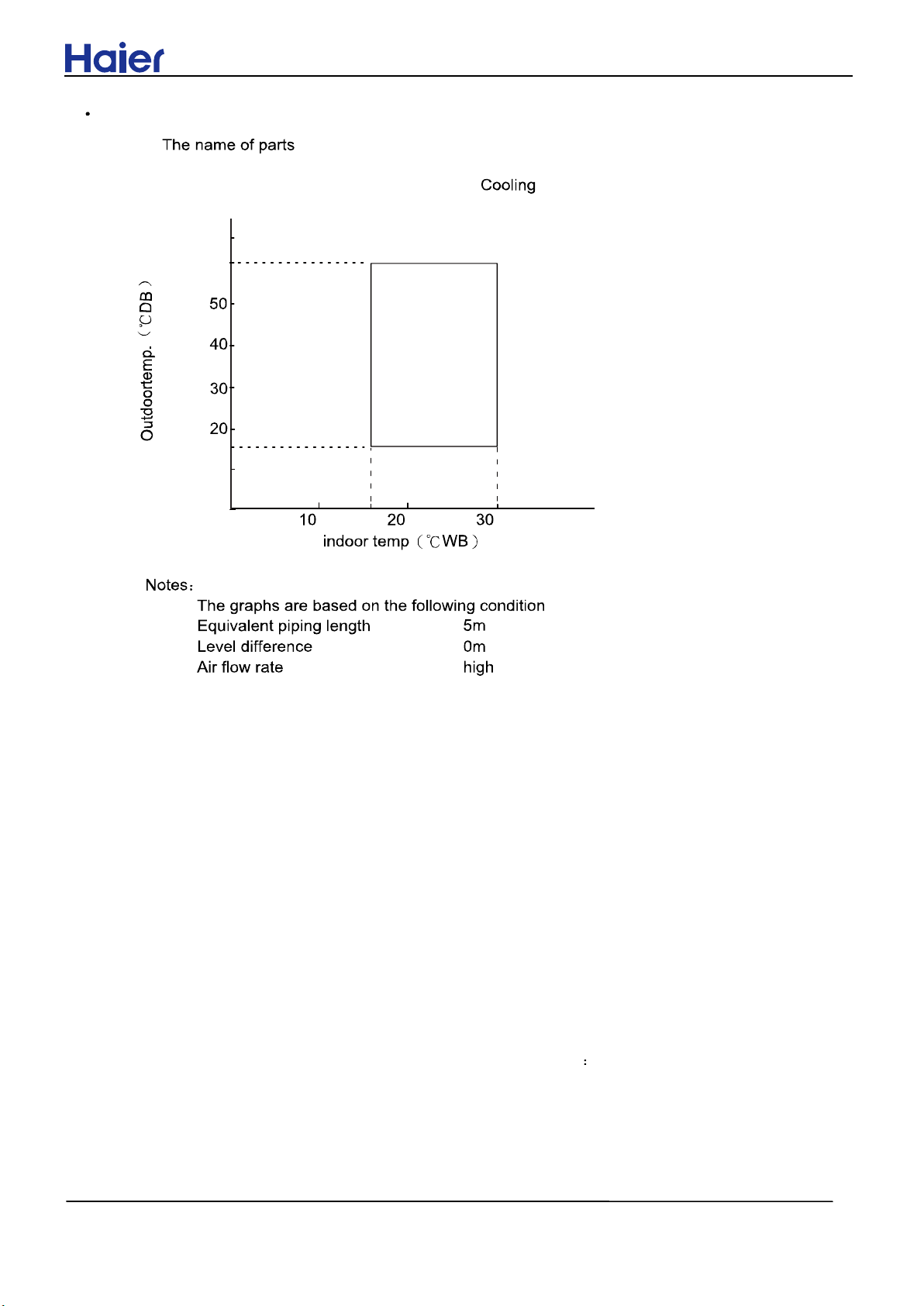

Operation range
Domestic air conditioner
5 Operation range
10
016
1 0 1 0
60
16

Wiring diagrams
Domestic air conditioner
6. Wiring Diagram
Outdoor
1 1 1 1

1 2 1 2

1 3 1 3

1 4 1 4

1 5 1 5

1 6 1 6

Domestic air conditioner

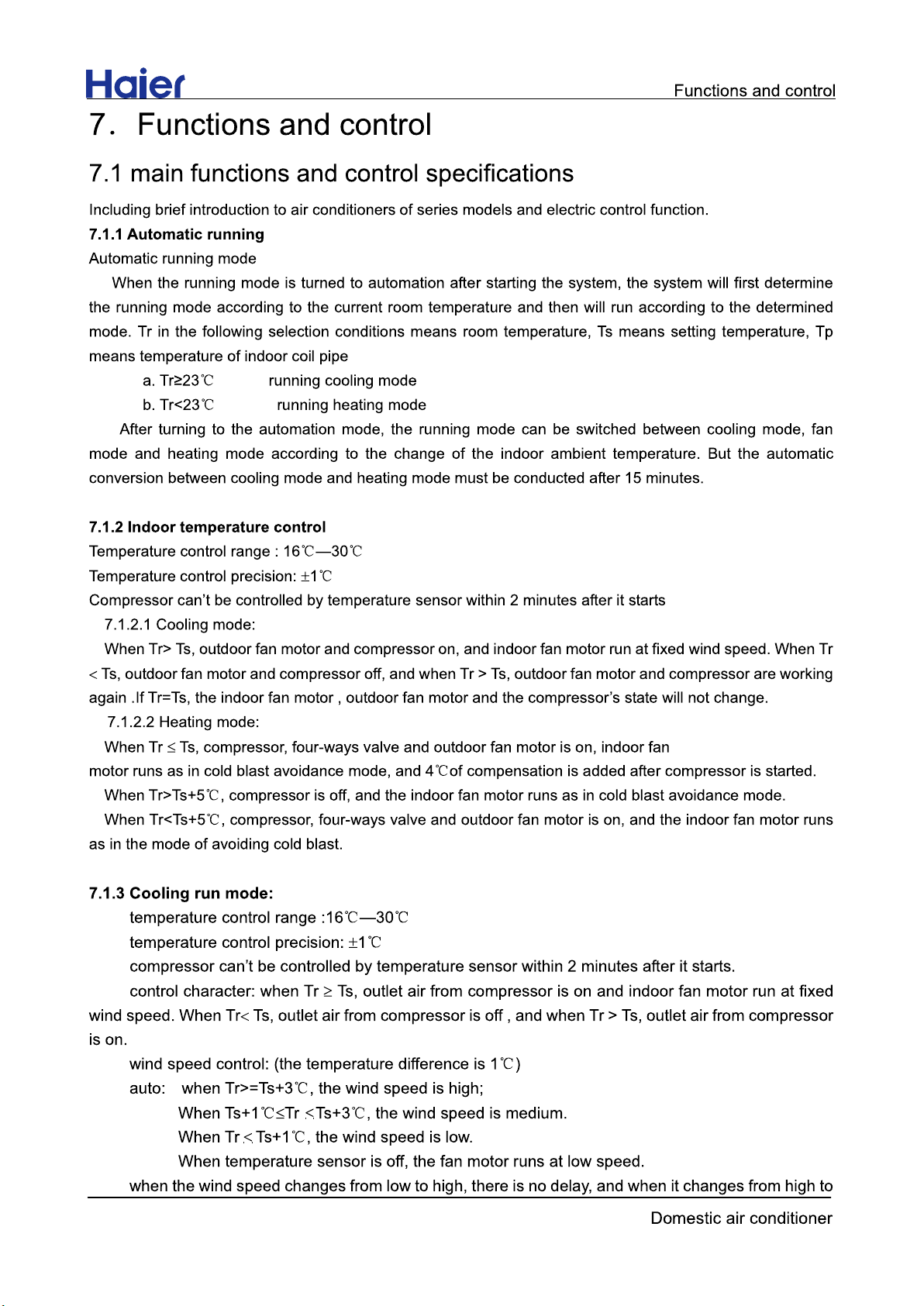

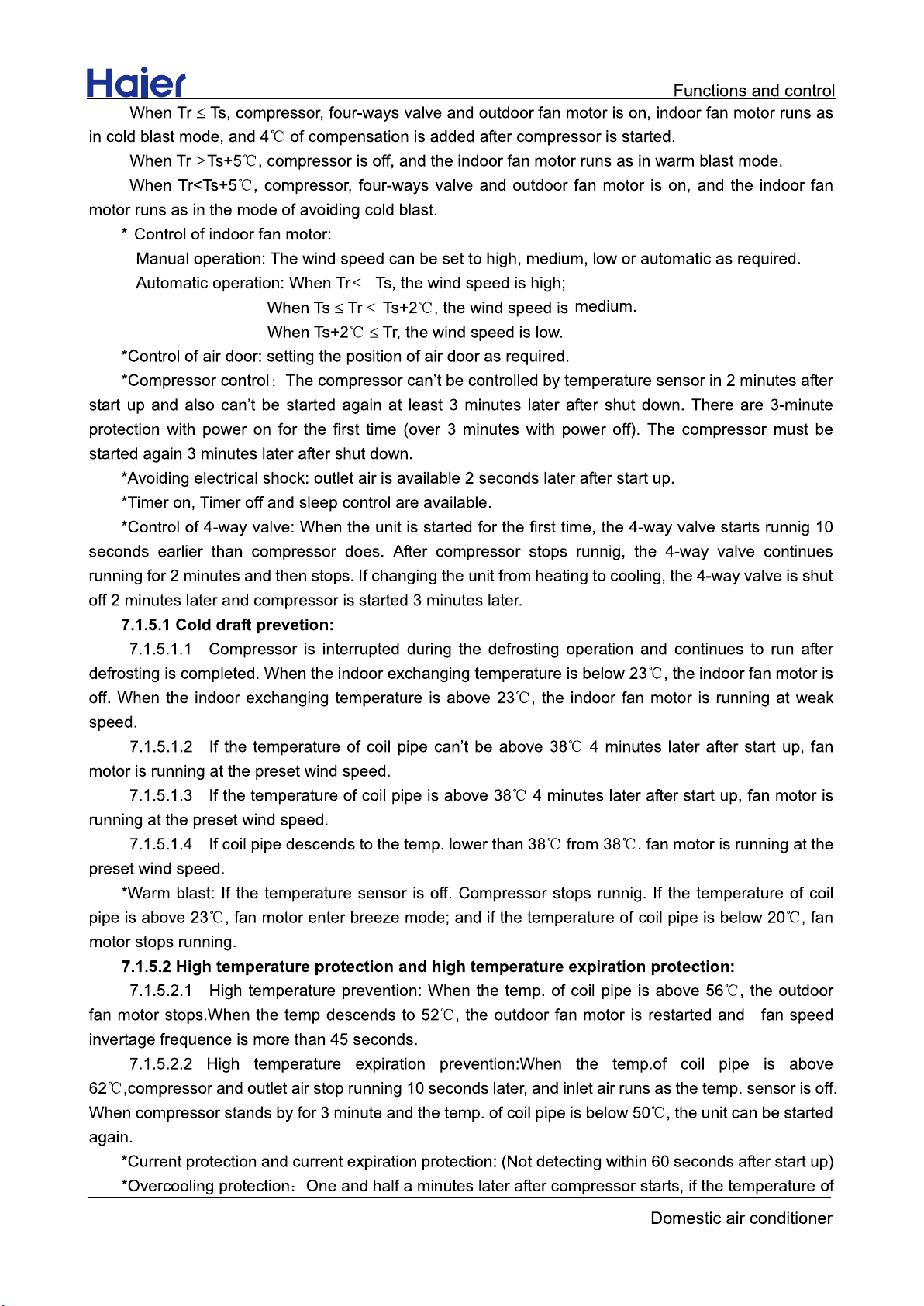

limit of -minute delay excluding the first time), and high wind, cooling, and air door is open.The indoor fan
motor runs, running indicator lights up, compressor relay and the one of outdoor fan motor is closed
7.1.9.2 During test run:
The prevention of freezing of evaporator doesn’t work.
Current cross control doesn’t work.
The control of current cross peak expiration doesn’t work.
Temperature control doesn’t work.
Temperature expiration control doesn’t work.

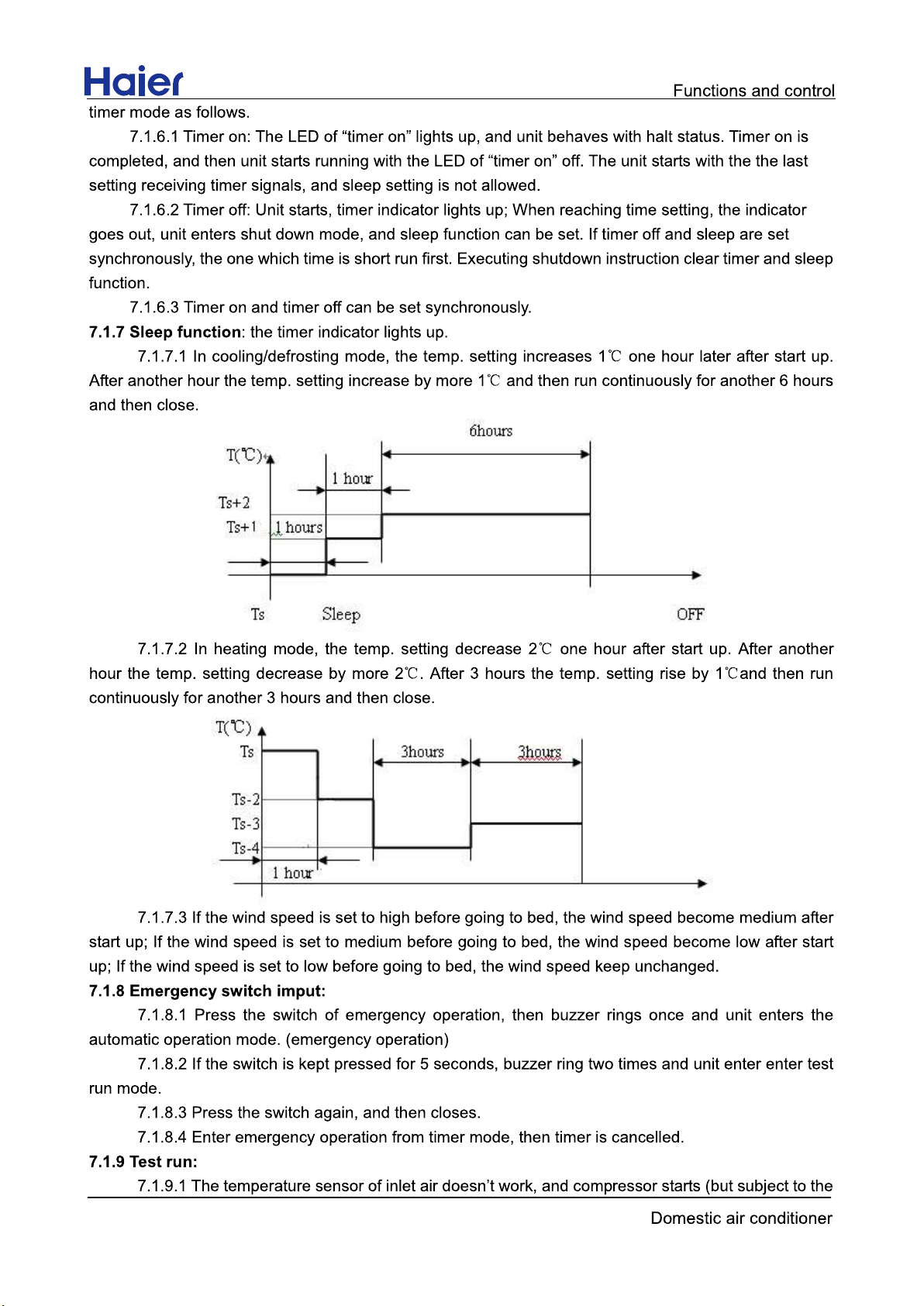

7.1.10 memory function
●
The memory function of power down is available, and the auto recovery
function of power on is optional. (In auto, heating, cooling, or defrosting status, press the “sleeping”
button 10 times within 5 seconds, and the auto recovery function of power on can be set on/off. If the
buzzer rings 4 times, the the auto recovery function of power on is available; If the buzzer rings 2 times,
the the auto recovery function of power on is unavailable.)
If there is no EEPROM, the unit is taken off the ‘off’ function of the memory function of power down.
But the memory function of power down can also be set on/off, and the data is the default value of chip.
7.1.11 Alarm from indoor fan motor: 2 minutes later after the indoor fan motor is charged, and the
impulse from fan motor is not detected, hen send alarm signals.
●
Functions and control
1 7 1 7

Dimensinal drawings
Domestic air conditioner
8.Dimensional drawings
9.Center of gravity
unit:mm
unit:mm
1 8 1 8
