Haier HW-18LM03 User manual

No. 0010523429
WINDOW TYPE ROOM AIR CONDITIONER
OPERATION MANUAL
Please read this operation manual
before using the air conditioner.
Please keep it attentively.

Contents
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure that they do not play
with the appliance.
1

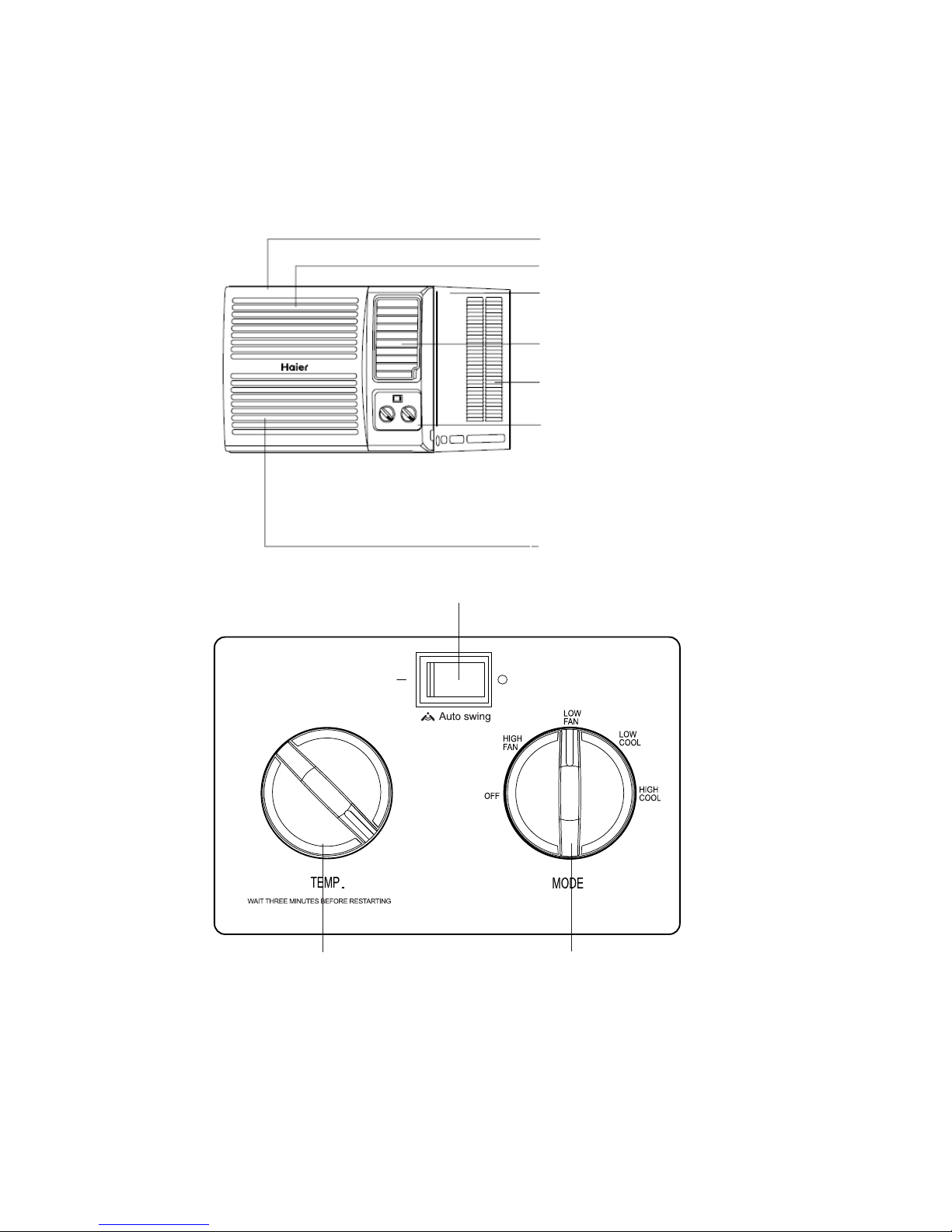

Parts Name
Machine body
Operation panel
Front panel
Air inlet (indoor side)
Air outlet (indoor side)
Air inlet (outdoor side)
Display panel
Air filter (inside)
Machine body
1
2
3
4
56
7
8
9
10
2

3

Operation Guide
In cooling mode, after you turn thermostat switch counter-clockwise,
do not turn it back until at least 3 minutes have elapsed.
Otherwise, the fuse may blow due to overload.
Do not exceed the selection range.
This switch controls the preset indoor temperature
to makethe air conditioner start or stop automatically,
so as to reduce power consumption and operate the
system both comfortably and economically.
The compressor stops running when the
set temperature is reached but the fan
continues to operate to keep an even
indoor temperature.
Remark:

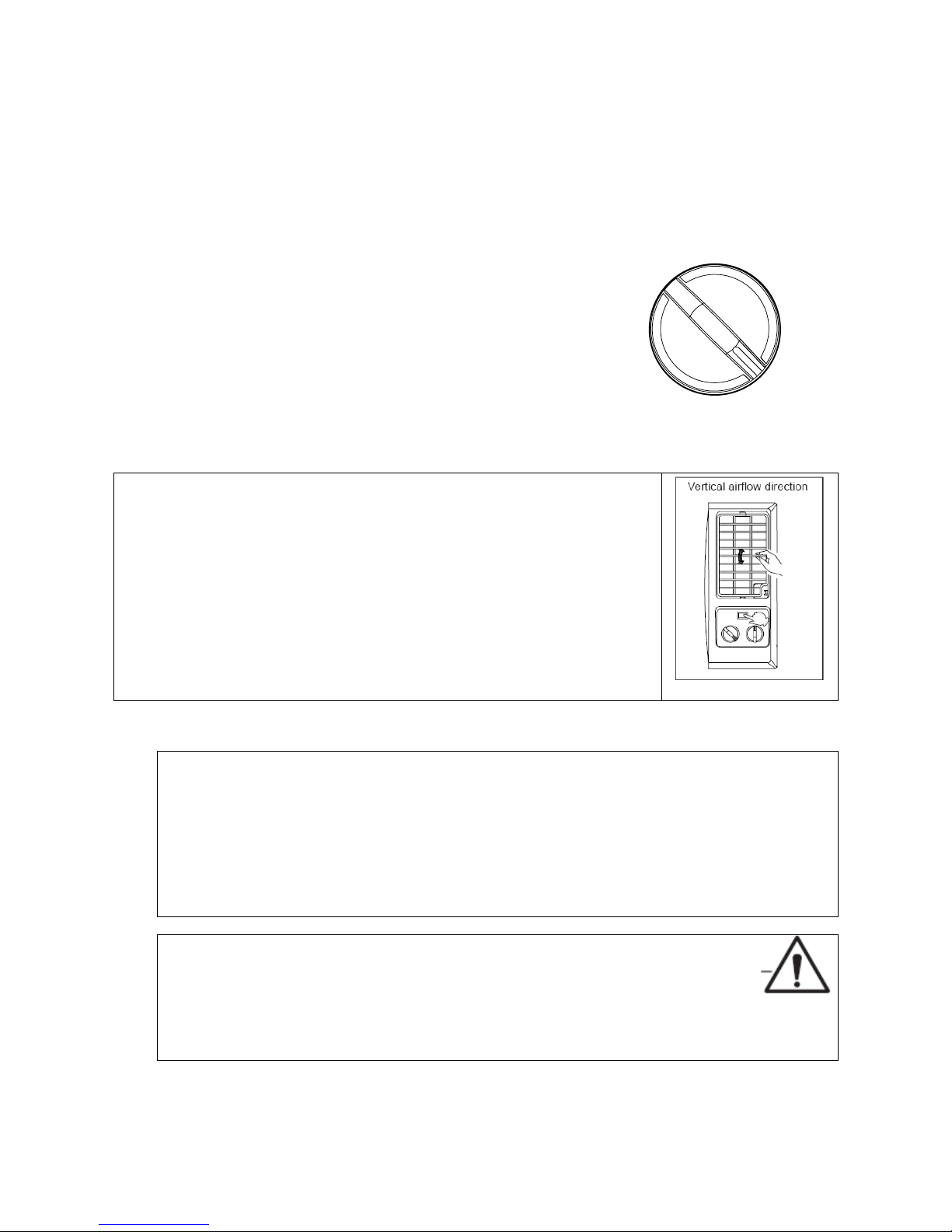

Vertical airflow direction
Airflow Direction Vane
The Vertical Airflow Direction Vane is
manually controlled by positioning the
vane todischarge the air upward,
downward or straight out.
Thermostat switch
CAUTION
Note:
It is advisable not to keep vertical flap at downward position for a long time
in COOL or FAN mode, otherwise , condensate water might occur.
Don't move the horizontal flap with hand in order to avoid the vertical flap
abnormal, using the remote controller to adjust the move of vertical flap.

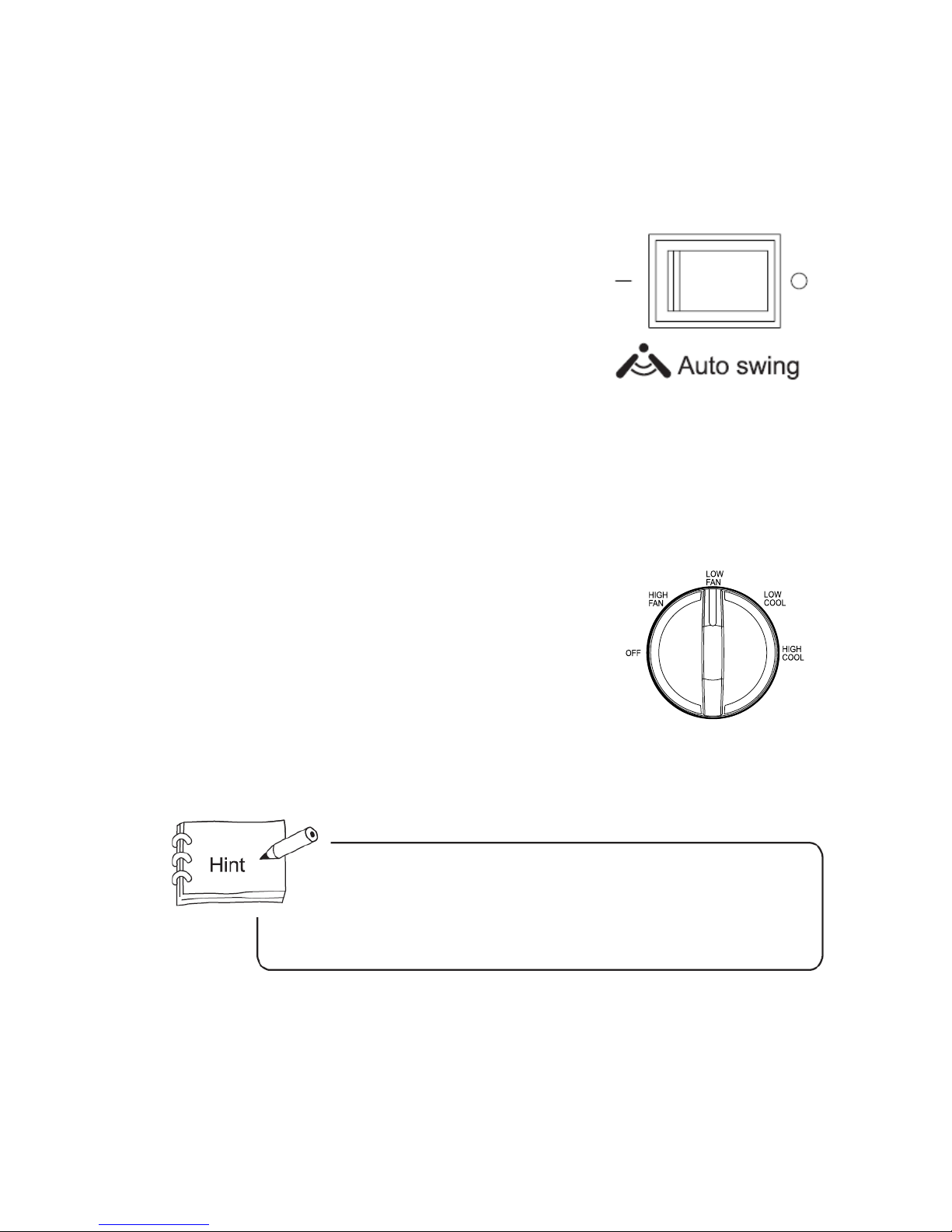

The horizontal air direction is adjusted
by setting the AUTO SWING switch to
the ON position.
1
2
3
4
56
7
8
9
10
4

Maintenance
Air filter cleaning (before cleaning, turn off the power)
Air filter cleaning
Cleaning of the
air filter

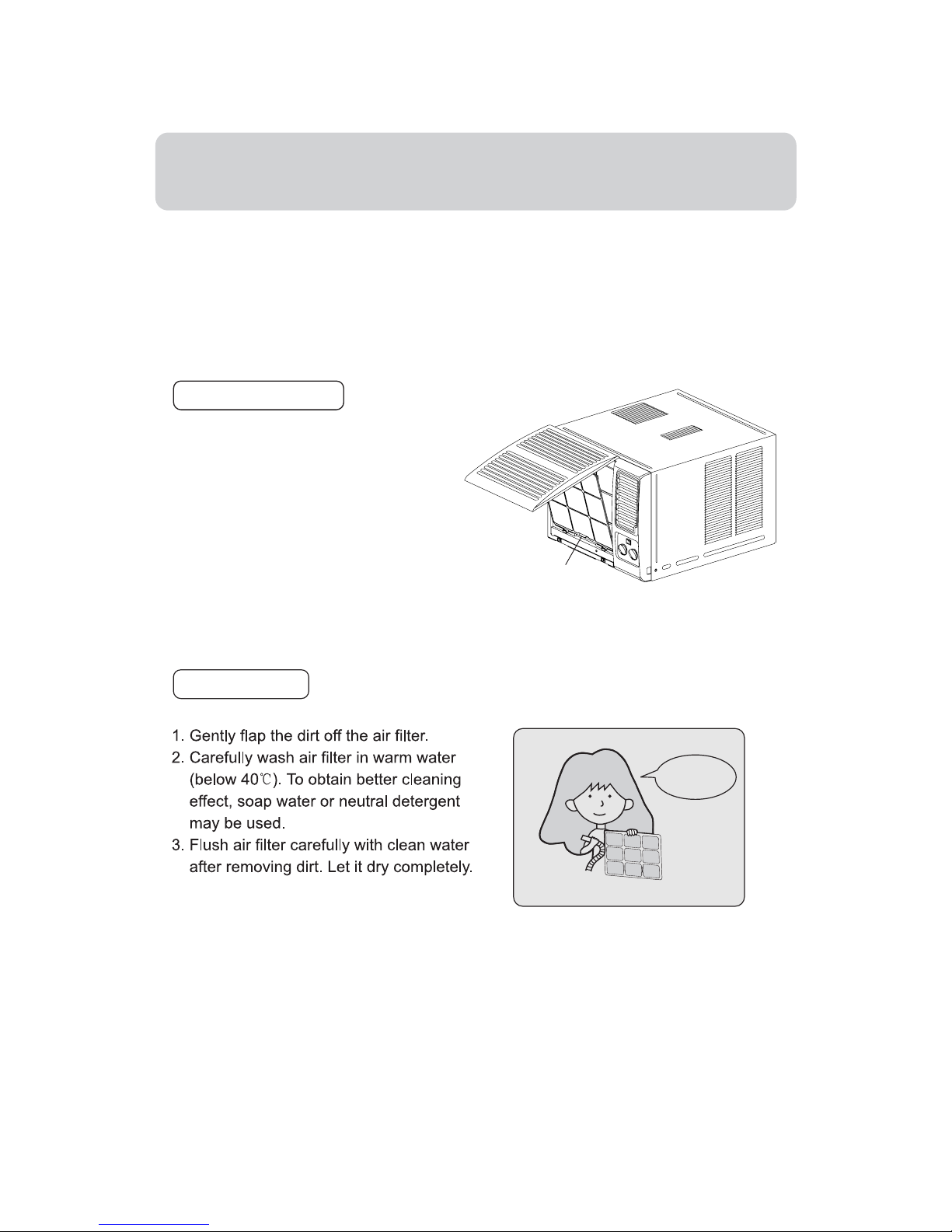

Take out the air filter
When dirt accumulates on air filter, air circulation will be blocked, which causes poor
cooling. It is advisable to clean air filter every two weeks for longer operation.
1.Press the concave parts on both sides at
the lower part of air inlet grille to open the
air inlet grille.
2.Hold the hump of filter mesh with
fingers (as illustrated) and take it out.
Hump
Note: Open-angle should be less than 70 degrees in case of components damage.
5

Cautions
Power cord: Be sure to use the exclusive power cord.
Change installation place: If air-con need to be changed to another
place please contact the dealer, who sold you the unit.
Maintenance

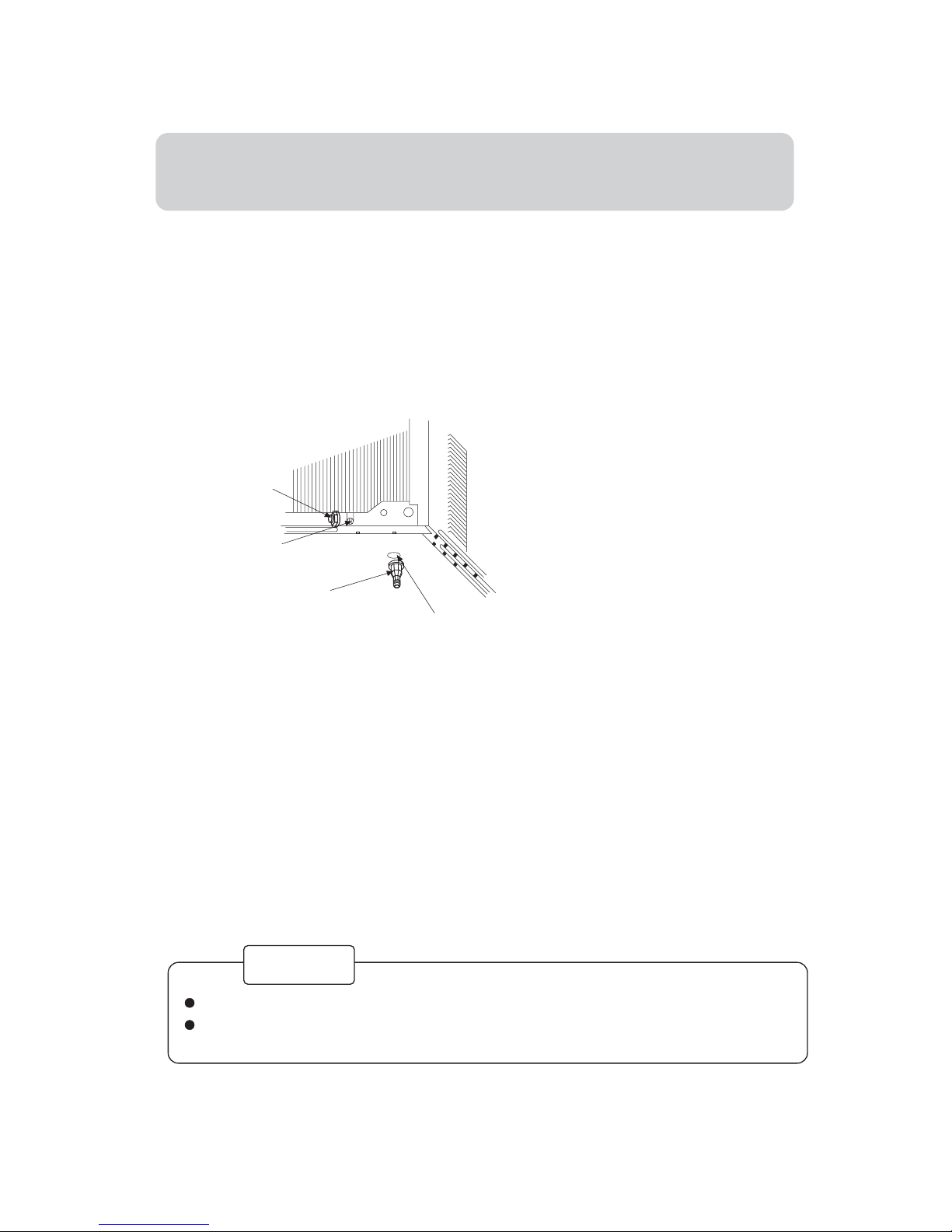

Fig.1
Rubber lid
Back hole
outlet pipe fitting
Bottom plate hole
Disposal of the condensed water
Block the back hole of the conditioner with rubber lid and install outlet pipe fitting to the bottom
hole, which can make the condensed water flow out from the bottom plate. (See Fig.1)
If necessary the above can have extra pipe added on the outlet pipe fitting.
(available on the market).
6

After unit stops, don't restart it
until 3 min. have elapsed.
Don't be exposed to cold air for
a long time.
Proper
temperature
Avoid opening doors and windows
unless necessary.
Use curtain or blind
Direct sunlight may reduce cooling
effect, always use window curtain.
Keep heat source away from
air conditioner.
Set temp . a little bit higher
before going to bed.
OK! Enjoy a
3-min nap
Maintenance
7

Troubleshooting
Doesn't work
No cool air or
poor cooling
Is thermostat switch
wrongly adjusted?
Readjust the thermostat.
Is there any direct
sunlight in the room?
Use curtain or blind.
Are doors or windows
left open?
Shut doors and windows.
Are there any obstacles
blocking air inlet and
outlet?
Remove the obstacles.
Is there too much heat
source in the room?
Is air filter clogged?
Clean it.
Remove the heat source
8

Go away!
Baby has
gone sleep,
better to adjust
suitable temp.
Don't hang clothes in the vicinity
of air inlet. This will decrease
cooling effect and cause abnormal
operation.
Temperature should be set
properly when there are infant,
child, the aged or disabled
in the room.
Before operating mode selection
switch, check that if the air inlet
or outlet have been blocked.
For longer and trouble-free operation of the unit, pay special attention to
the following:
Install air-con at a place strong enough to support the unit.
Leave enough space around air inlet and outlet for better circulation.
Avoid places where flammable gas leaks.
Problems may occur if unit is installed in the following places:
Place where oil exists in the air including engine oil or seaside with
salt breeze blows and hot spring area with sulphurous gas in the air.
Installation Instructions
9
