Before operating this dehumidifier, please read these instructions completely.

2
English
Table Of Contents page
Safety Precautions ............................................................................................1
Important Safety Information ..........................................................................3
Features Diagram ............................................................................................4
Part Names....................................................................................................4
Control Panel..................................................................................................5
Operation ........................................................................................................5
Specifications ..................................................................................................6
Operation Instructions ......................................................................................6
Start Operation ..............................................................................................6
When Tank is Full ..........................................................................................6
Continuous Drainage ......................................................................................7
Installing Drainage PVC Hose..........................................................................7
Caution ..........................................................................................................8
Maintenance/Emergency ..................................................................................8
Troubleshooting ................................................................................................9
Warranty Information......................................................................................10

3
English
Important Safety Information
READ ALL SAFETY INFORMATION BEFORE USING
When using this dehumidifier, always follow basic precaution including the
following:
• This dehumidifier must be properly installed and grounded as described in this
manual.
• Never operate this dehumidifier in an area that is likely to accumulate standing
water. If this condition develops, disconnect the power supply before stepping
into the water.
• Do not operate dehumidifier in presence of explosive fumes.
• Repair or replace immediatly all electric service cords that have become frayed
or otherwise damaged. Do not use a power cord that shows signs of damage
along its length, on the plug, or where it is connected to the appliance.
SAVE THESE INSTRUCTIONS
Thank you for using our Haier
product. This easy-to-use manual will
guide you in getting the best use of
your dehumidifier. Remember to record the
model and serial number. They are
on a label in back of the dehumidifier.
Staple your receipt to your manual. You
will need it to obtain warranty service.
Model number
Serial number
Date of purchase

4
English
Before Using your Dehumidifier
Read this manual carefully. It contains instructions to help you use, maintain and
enjoy you dehumidifier.
UNPACK YOUR DEHUMIDIFIER
• Remove all packing material. This includes foam, inserts & adhesive tape.
• Inspect any remains of packing, tape or printed material, or accessories before
dicarding it.
ELECTRICAL REQUIREMENT
• Make sure there is a suitable power outlet (115Volts 15 Amps) with proper
grounding.
GROUNDING
• This dehumidifier must be grounded.
• Grounding reduces the risk of electric shock by providing an escape wire for the
electric current.
• The power cord has a grounding plug. Plug it in to an outlet that is properly
installed and grounded.
Warning- Improper use of the grounding plug can result in a risk of electric shock.
Call a qualified electrician if you don’t understand the grounding
instructions or if you are not sure if the humidifier is properly grounded.
If the wall outlet is not grounded, please contact an electrician to have it
replaced with a properly grounded outlet.
Do not, under any circumstances, cut or remove the third
(ground) prong from the power cord.
USE OF EXTENSION CORD
• Avoid the use of extension cord because of potential safety hazards under certain
condition.
• If it is necessary to use an extension cord, use:
A) Only 3-wire extension cord that has 3-blade grounding plug and grounded
wall outlet that will accept the plug.
B) The mark rating of the extension cord must be equal or greater thatn the
electrical rating of the dehumidifier.

5
English

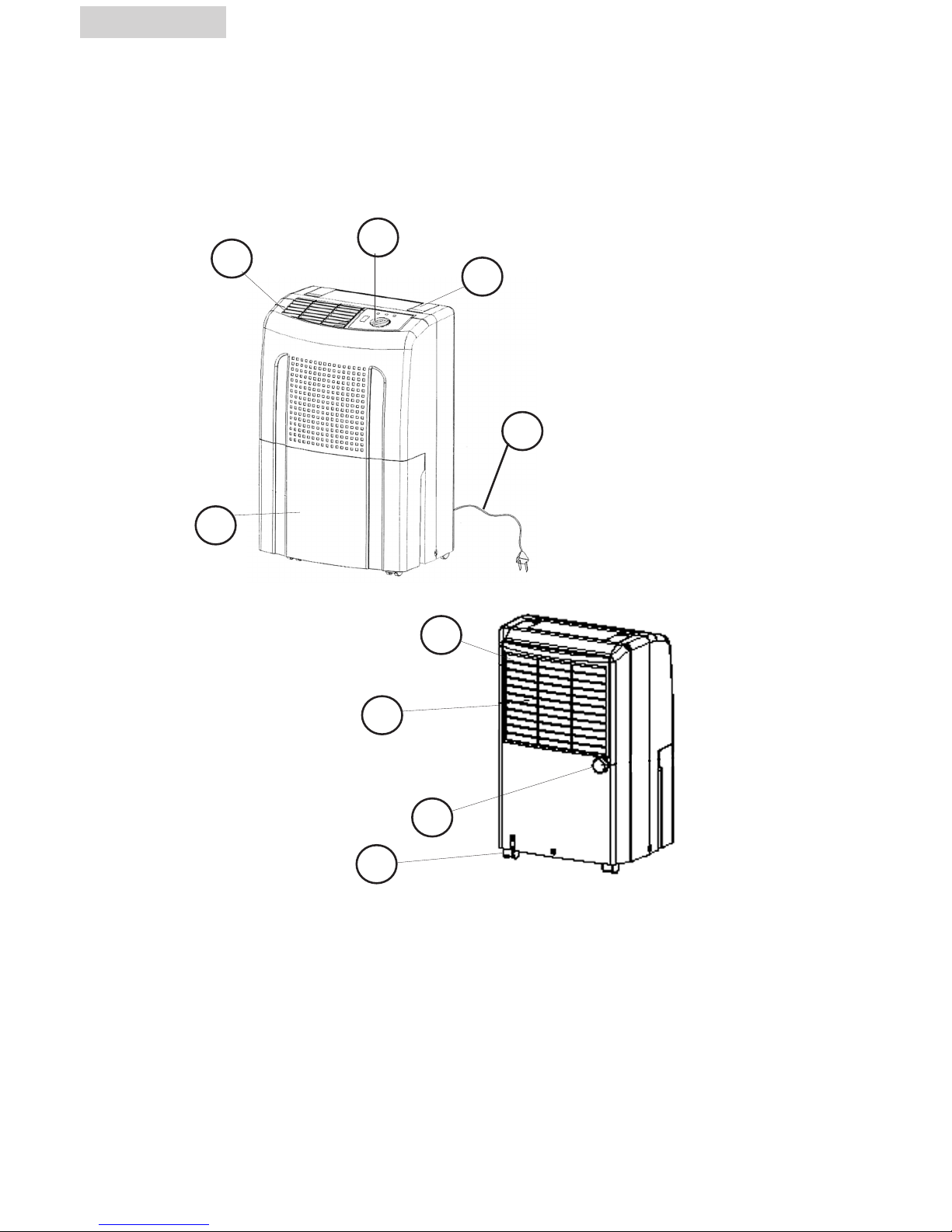

Features Diagram
1. Dehumidified Dry Air Vent
2. Control Panel
3. Handle
4. Power Supply Cord
5. Continuous Drainage Outlet
(Capped for bucket drainage)
6. Moist Air Intake
7. Air Filter
8. Rotating Wheels
9. Drainage Bucket
PART NAMES
12
3
4
5
6
7
9
Front
Rear
8

6
English
CONTROL PANEL
123
4
5
6
7
1. Running Lamp
The lamp lights up which means dehumidifier is operating.
2. Full Tank Light
When water tank is full, the Full Tank Light will light up and the dehumidifier will stop
operating automatically.
3. Defrost Light
When operating under low temperature conditions, automatic defrost may activate. Light
indicates that the unit is currently in defrost mode.
4. Off
Dehumdifier stop removing moisture.
5. Normal
Humidity control between 50%-60%.
6. Fan Speed Control
7. Extra Dry
Dehumidifier continuously removing moisture.

7
English
Specification
Model HDN305 HDN455 HDN655
Power AC 115V/60 Hz
Moisture Removal 30 Pint/D 45 Pint/D 65 Pint/D
(80˚F/27˚C 60%RH) (80˚F/27˚C 60%RH) (80˚F/27˚C 60%RH)
Power Input 500 W 600 W 780 W
Size of Shell 23-1/32“ x 14-31/32“ x 12-19/32“
(H x W x D) (585 x 380 x 320 mm)
Weight 35.3 lbs./16 kgs. 35.3 lbs./16 kgs. 38.6 lbs./17.5 kgs.
Operating
Temperature 41˚F-95˚F (5˚C ~ 35˚C)
OPERATION
1. Turn the knob clockwise to begin unit operation. Turn it to “Off” again to stop
the operation.
2. Turn the knob clockwise to increase the humidity setting and counter-clockwise to
decrease the humidity setting.
3. Press “Speed” button to select high (II) or low (I) speeds.

8
English
Operating Instructions
START OPERATION
1. Make sure the plug is inserted firmly into the socket.
2. Make sure the water tank is placed in the proper
position. If the full tank light is on when turning on
the machine for the first time, pull out the water tank
and push it back into proper position.
WHEN FULL TANK LIGHT IS ON
When the water tank is full, the indicator light will light
up and the dehumidifier will stop operating. Empty the
water tank and place it back in its proper position. The
machine will reactivate after 3 minutes.
Note: Empty the water from the water tank
using two hands.

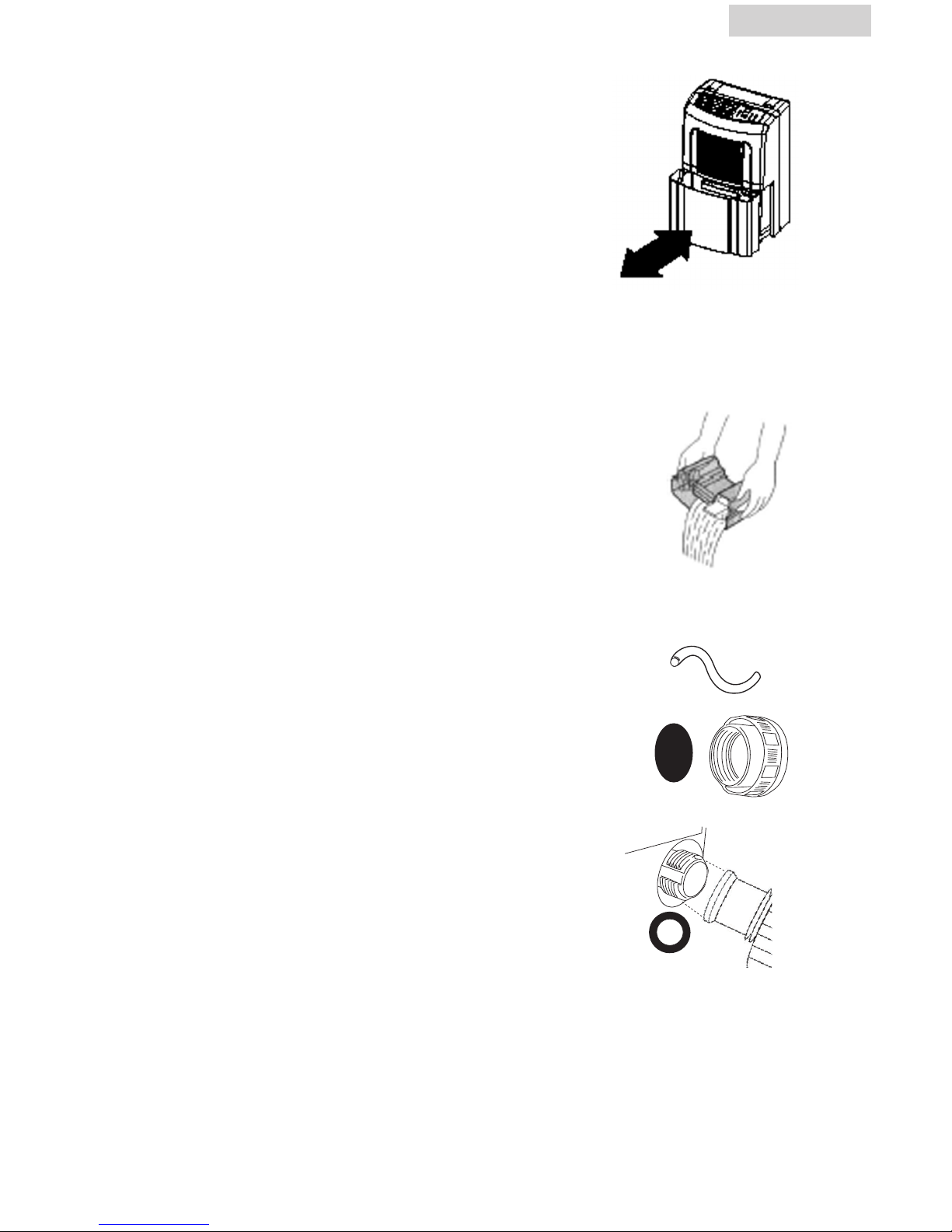

Continuous Drainage
The continuous drainage function can be activated using the
flowing steps.
1. Prepare PVC hose to drain out water. Remove the cap
from drainage outlet.
2. Remove flat rubber insert from cap.
3. Pull the drainage hose through the ring of
the cap.
4. Align the hose with the water outlet on the unit first
and then fasten the cap back on to the outlet.
5. Place the bucket in its original location.
INSTALLING DRAINAGE PVC HOSE
When using the continuous drainage function, the PVC hose must be placed
horizontally below the drainage hole. Avoid folding the hose or placing it on an
uneven surface.

9
English
Caution!
• Do not pull the power cord to remove the plug from the socket. Always pull
on the plug.
• Do not use bug spray, oil, spray paint or other flammable materials near the
machine. This can cause damage to the plastic parts or start a fire.
• To avoid shaking, noise and water leakage, do not place the unit on an
uneven surface.
• Always keep the unit 8” (20 cm) away from the wall to allow heat to dissipate
properly. Hang clothing at least 20” (50 cm) above the machine.
• It is dangerous to insert anything into the machine.
• Close all windows to reach maximum possible efficiency.
• Keep the machine away from all
sources of heat.
• When moving or storing the
dehumidifier, do not place it
sideways or upside down. Avoid
violent shaking.
MAINTENANCE
For safety reasons, make sure the dehumidifier is unplugged before servicing or
cleaning.
1. Cleaning the shell:
A. Wipe the shell with a clean, soft cloth.
B. If the dehumidifier is very dirty use mild detergent and wipe with a
damp cloth.
C. Do not wash the machine with a hose or immerse it in water. This may
cause an electrical shortage.
2. Cleaning the air filter:
The purpose of the air filter is to filter dust and other materials from the air. If
the filter is blocked by dust the electricity usage will be greater than normal.
For optimal moisture removal efficiency, clean the filter every two weeks.
Cleaning steps:
A. Pull the air filter out slowly.
B. Clean the filter with a vacuum cleaner or wash it with clean
water and dry with a dry cloth.
C. Put the clean air filter back in place and continue to operate
the dehumidifier.
EMERGENCY
If a problem occurs, unplug the machine and contact a qualified service center
immediately. Do not disassemble the dehumidifier yourself.

10
English
Troubleshooting
Before calling, read the following section. It will help you solve some common
problems that might occur and can be easily corrected. If all attempts fail and you
need service, please call the toll free number to contact customer service.
ITEMS TO CHECK BEFORE CALLING FOR SERVICE:
Unit not operating:
• Make sure the plug is pushed completely into the outlet.
• The fuse may be blown or the circuit may have been tripped. Check the house
fuse/circuit breaker. Replace fuse or reset circuit breaker if necessary.
• The bucket may be full. The dehumidifier automatically turns off when this occurs.
Empty the drain bucket.
Dehumidifier is icing up during initial stage of operation:
• This is normal. Frost will usually disappear within 60 minutes.
Airflow is restricted:
• Make sure there are no curtains, blinds or furniture blocking the front or back of
the dehumidifier.
• Clean the filter.
Unsatisfactory dehumidification:
When first installed, allow at least 3 or 4 days for the moisture from the room to be
removed and desired dryness to be maintained.
• Area to be humidified may be too large. Check with dealer to be sure model is
suitable for room size and moisture level.
• The controls may not be set correctly. Adjust controls according to instructions.
• Doors and windows may not be closed. Check that all doors, windows and other
openings are closed tightly.
• Clothes dryer may be in operation in the same room. Install the dehumidifier
away from the moisture-laden air generated by the dryer. Dryer should be vented
to the outside.
• Room temperature may be too low. The unit will not operate if the room
temperature is below 41˚F.

1
English
Safety Precautions
• Do not fold or knot the power cord.
• Make sure the plug is inserted firmly and properly into the outlet.
• Do insert multiple plugs into the electrical socket.
• Make sure the plug is clean.
• Before turning off the dehumidifier, unplug the power cord.
• Do not plug in the power cord if hands are wet.
CAUTION
• Do not place anything on top of the control panel.
• Do not cover the machine’s air vents.
• Do not allow children to climb on or play with the machine.
• Do not wet the machine or control panel.
• Keep flammable materials away from the machine.
• Contact a professional for service and repair.

English
11
Limited Warranty
This warranty covers all defects in
workmanship or material for:
1. The mechanical and electrical parts
(including labor costs) contained in this
Haier product, for a period of 12 months
from the date of purchase. (For
commercial or rental application the
warranty is 90 days.)
2. The sealed system and compressor
contained in this Haier product is for a
period of 5 years, from the date of
purchase (excluding labor costs after the
initial 12 month period). In commercial or
rental use, the additional limited
compressor warranty is for 1 year and 9
months, (excluding labor costs after the
initial 90 days period).
You must keep and be able to provide your
original sales receipt as proof of the date of
purchase.
Who is covered?
The original retail purchaser of this Haier
product.
What will be done?
Haier will repair or replace, in your home,
any mechanical, electrical part or the
compressor, which proves defective in normal
household, use for a period of 12 months.
Haier will repair or replace (excluding labor
costs) the sealed system and compressor
(parts only) for an additional 4 year
period.
How can you get service?
1. Contact your nearest Haier authorized
Service Depot. For the name of the
Service Depot nearest you, contact Haier
at [phone].
2. All service must be performed by an
authorized Haier Service Depot.
3. This is carry-in service only.
THIS WARRANTY COVERS UNITS WITHIN
THE COMTINENTAL UNITED STATES,
CANADA AND PUERTO RICO.
THIS WARRANTY DOES NOT COVER:
Damages from improper installation.
Damages in shipping.
Damages from misuse, abuse, accident,
alteration, lack of proper care and
maintenance.
Damages from service by other than an
authorized dealer or service center.
Labor, service, transportation and shipping
charges for the removal of defective parts
and installation of replacement parts beyond
the initial 12-month period.
THIS LIMITED WARRANTY IS GIVEN IN LIEU
OF ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING THE WARRANTIES OF
MERCHANTIBILITY AND FITNESS FOR A
PARTICULAR PURPOSE.
The remedy provided in this warranty is
exclusive and is granted in lieu of all other
remedies. This warranty does not cover
incidental or consequential damages. Some
states do not allow the exclusion of incidental
or consequential damages, so this limitation
may not apply to you. Some states do not
allow limitations on how long an implied
warranty lasts, so this limitation may not
apply to you. This warranty gives you
specific legal rights and you may also have
other rights, which vary from state to state.

Haier America
New York, NY 10018
Printed in China
IMPORTANT
Do Not Return This Product To The Store
If you have a problem with this product, please contact the "Haier Customer Satisfaction Center"
at 1-877-337-3639.
DATED PROOF OF PURCHASE, MODEL # AND SERIAL # REQUIRED FOR WARRANTY SERVICE
IMPORTANT
Ne pas retourner cet article au magasin
En cas de problème avec cet article, veuillez contacter le « Centre satisfaction client » de Haier
au 1-877-337-3639.
UNE PREUVE D’ACHAT DATÉE, LE NUMÉRO DU MODÈLE ET LE NUMÉRO DE SÉRIE SONT
OBLIGATOIRES POUR BÉNÉFICIER DE LA COUVERTURE OFFERTE PAR LA GARANTIE.
IMPORTANTE
No Devuelva Este Producto al Establecimiento Compra.
Si tiene problemas con este producto, por favor póngase en contacto con el "Centro Haier de
Atención al Cliente" en el 1-877-337-3639.
PARA EL SERVICIO DE GARANTÍA SE REQUIERE PRUEBA DE COMPRA, FECHADA, No. DE MODELO
Y No. DE SERIE
Made in China
AC-9999-46
Issue: October. 04
