Haier L32M3F User manual

FULL HD LCD TV
OWNER' S MANUAL
MODEL: L32M3F
Please READ this manual carefully
before operating your TV, and retain
it for future reference

Contents
1 Safety and warnings..........................................................................................................2-3
2 Introduction.....................................................................................................................4
3 Installation.......................................................................................................................5-8
TV Operation..................................................................................................................10-13
TV Trouble shooting.......................................................................................................14
4 Remote Controller .........................................................................................................9
5
6
-1-

SAFETY ANDWARNINGS
1.Read these safety instructions.
2.Keep these safety instructions.
3.Heed all warnings.
4.Follow all safety instructions.
5.Do not use this apparatus near water.
6.Clean only with dry cloth.
7.Do not block any ventilation openings. Install in
accordance with the manufacturers instructions.
8.Do not install near any heat sources such as radiators ,
stoves, or other apparatus (including amplifiers)that
produce heat.
9.Protect the power cord from being walked on or
pinched particularly at power outlets, and the point
where they exit from the apparatus.
10.Only use attachments/accessories specified by the
manufacturer.
11.Unplug this apparatus during lightning storms or
when unused for long periods of time.
12.Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as the power-supply cord
or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture , does not operate normally,
or has been dropped.
13.Apparatus must not be exposed to dripping or
splashing and no objects filled with liquids, such as
vases, should be placed on the apparatus.
14.WARNING:The battery(battery or batteries or battery
pack) shall not be exposed to excessive heat such as
sunshine, fire or the like.
15:The mains plug is used as disconnect device, the
disconnect device shall remain readily operable.
16: This is CLASS II apparatus with double
insulation, and no protective earth provided.
IMPORTANT SAFETY INSTRUCTION
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK).NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOTOPEN!
CAUTION
CAUTION
The symbol indicates that dangerous voltages
constituting a risk of electric shock are present
within this unit.
The symbol indicates that there are important
operating and maintenance instructions in the
literature accompanying this unit.
To prevent fireor shock hazard, do not expose this
appliance to rain or moisture.
WARNING:
Thank you very much for purchasing this TV. To enjoy
your product from the very beginning, read this manual
carefully and keep it handy for easy reference.
INSTALLATION
CAUTION
Locate the TV in the room where light does not strike
the screen .
Total darkness or a reflection on the picture screen can
cause eyestrain. Soft and indirect lighting is recommended
for comfortable viewing.
Allow enough space between the TV and the wall to
permit ventilation.
Avoid extremely warm locations to prevent possible
damage to the cabinet or premature component failure.
This TV can be connected to AC 100-240 Volts. 50/60 Hz.
Never connect to a DC supply or any other power supply.
Do not cover the ventilation openings when using the TV.
directly
Never tamper with any components inside the TV, or any
other adjustment controls not mentioned in this manual.
All LCD-TVs are high voltage instruments. When you
clean up dust or water drops on the LCD PANEL or
CABINET, the power cord should be pulled out from the
receptacle, then wipe the TV with a dry soft cloth. During
thunder and lighting, unplug the power cord and antenna
cord to prevent damage to your TV. All repairs to this TV
should only be performed by qualified TV service personnel.
Warning: Change or modifications to this unit not expressly
by the part responsible for compliance could void the user 's
authority to operate the Equipment.
a. Do not expose to dripping or splashing.
b. No objects filled with liquids, such as vases, shall be
placed on the apparatus.
c. The mains plug of this device is used as the disconnect
device and shall remain readily accessible and operable.
d. No naked flame sources, such as lighted candles, should
be placed on the apparatus.
e. Allow suitable distances around the apparatus for sufficient
ventilation. Ventilation should not be impeded by covering
ventilation openings with items such as newspapers, table
cloths, curtains and such like.
This symbol indicates that thisproductincorporates
double insulation between hazardous mainsvoltage
and user accessible parts.When servicing use only
identical replacement parts.
WARNING:To reducethe risk of fire orelectric shock,
do not expose this apparatusto rain or cords.
-2-

-3-
High voltages are used in the operation of this television
receiver. Do not remove the cabinet back from your set.
Refer servicing to qualified service personnel.
SAFETY ANDWARNINGS
To prevent fire or electrical shock hazard, do not expose
the television receiver to rain or moisture.
Do not drop or push objects into the television cabinet
slots or openings. Never spill any kind of liquid on the
television receiver.
Do not block the ventilation holes in the back cover.
Adequate ventilation is essential to prevent failure of
electrical components.
Do not trap the power supply cord under the television
receiver.
Never stand on, lean on, or suddenly push the television or
its stand. You should pay special attention to children.
Serious injury may result if it falls.
Do not place your television on an unstable cart, stand,
shelf or table. Serious injury to an individual , and damage
to the television, may result if it falls.
When the televisionreceiver is notused for an
extended period of time, it isadvisable to disconnect
the ACpower cord from the ACoutlet.
Avoid exposing the television receiver to direct sunlight
and other sources of heat. Do not stand the television
receiver directly on other products which give off heat,
e.g. video cassette players and audio amplifiers. Do not
place naked flame sources, such as lighted candles on
the television.
Dim:515*320mm(
If the television is to be built into a compartment or similar
enclosure, the minimum distances must be maintained. Heat
build-up can reduce the service life of your television, and
can also be dangerous.

INTRODUCTION
-4-
Main features
AC Power Cord......................... 1
Infrared Remote Controller...... 1
User s Manual...............................1
Battery(AAA)...............................2
Accessories
Main parameter
ViewingPictureSize(diagonal)
Resolution1920x1080
Aspect Ratio 16 : 9
TV SystemPAL-B/G ID/K,SECAM-L/L
Video Signal SystemPAL/NTSC/SECAM
Receiving Channel 1-99
Inpu t Power Voltage AC100 V-240 V~ 50/60Hz
Po wer consumption
Audio Output Powe r THD 7%2x 8W
Signal Input Analog RGB(VGA) x 1
High-Definition Multimedia Interface(HDMI) x 2
Rear Composite Video Input x 2
Audio Input x 4
YCb (Pb )Cr (PR) x 1
Horizontal definitionTVlineComposite Video input>=350
YCb(Pb )Cr(Pr)>=400
Side Composite Video Input x 1
Side HEAD PHONE x 1
Side USB x 1
SECAM-B/G SECAM-D/K
32
170W
Response Time 6.5ms
Viewing Angle
Brightness 2
500cd/m
176 H/ 176 V
Dynamic Contrast
1500:1
Used as Television, display terminal,PC display
High luminance,wide viewing angle
Can store 99 TV programs
HDMI interface
5 NICAM

-5-
INSTALLATION
Front panel KEYBOARD
REAR AV PASTER
1: Remote controlsensor.
2: Indicator LED: GREEN POWER ON.
RED STANDBY.
3: Key board
123
456
7890
+
CH
_
+
_
VOL
30 30
3
1
2
1 SOURCE Display the input source menu.
2 MENU Display main MENU.
3 CH+/CH-:In TV mode press CH+ or CH- to
change the channel up and down.In MENU mode, press
CH+ or CH- to select items .In standby mode,
press CH+ or CH- to turn on the TV.
4 VOL+/VOL-:Adjust sound level.In MENU mode,
press VOL+ or VOL- to adjust the item that you
selected.
5. STANDBY : Press this button to turn the unit ON
from STANDBY mode. Press it again to turn the set
back to STANDBY.
6.USB
7.HEADPHONE
8.VIDEO INPUT
9.AUDIO INPUT-L
10.AUDIO INPUT-R
SOURCE
MENU
CH+
CH-
VOL+
VOL-
STANDBY
R
L
VIDEO
USB
VIDEO
L
R
AV2
HEADPHONE
HEADPHONE
USB
All the terminalsare(from left toright):
AC POWER SOCKET,
Note: 1.AV1 share one audiochannel.
2.When HDMI 1 port get DVI signal, the PC Audio channel is changedto
receive the audiofor HDMI 1port.
HDMI 1, HDMI2, VGA, YPbPr, AV1, AUDIOINPUT, PCAUDIO INPUT,
ANTENNA, AV OUTPUT,AV3 INPUT.
and YPbPr
HDMI1 INPUT
HDMI2 INPUT
L
R
PC
AUDIO INPUT
AV1
Pr
Y
Pb
RF INPUT

ANTENNA
INSTALLATION
-6-

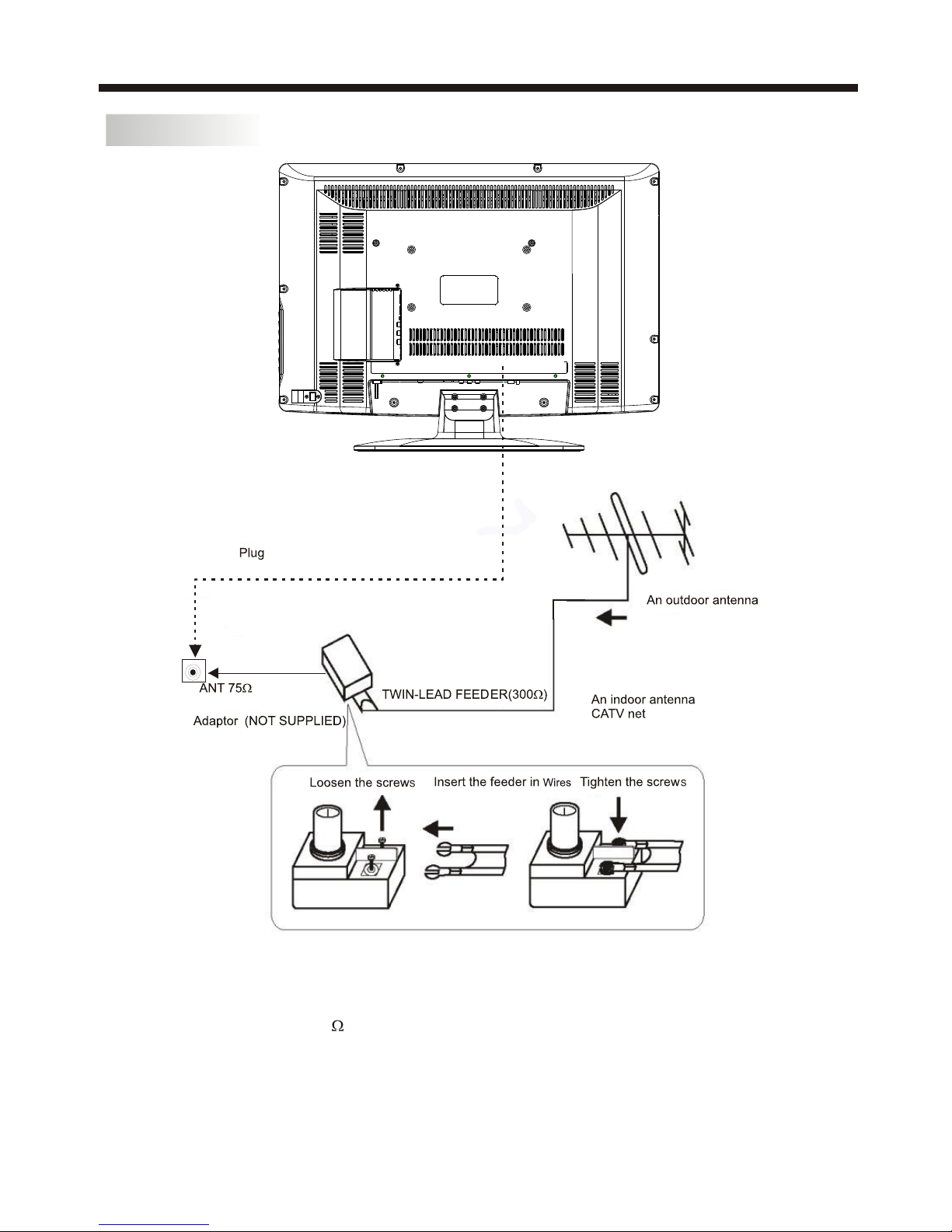

Note:
Aerial connections:IEC(female).
Input impendance:75 unbalanced.

INSTALLATION
-7-
STEPS:
PC
Be sure both the TV and computer are Power off.
1.Connect VGA and audio cable
2.Connect power cord
3.Power on the TV, switch to PC mode
4.Power on the PC
This sequence is very important.
PC
PRESET MODE
1
2
3
800*600
1024*768
1280*768
60
60
60
37.88
48.36
47.3
RESOLUTION V.Freq.(Hz) H.Freq.(KHz)
NOTE:
PC V.Freq.(Hz) not more than 60Hz.
8
HDMI1 INPUT
HDMI2 INPUT
L
R
PC
AUDIO INPUT
AV1
Pr
Y
Pb
RF INPUT

INSTALLATION
-8-
AV EQUIPMENT
This TV provides three groups of AV, one group of YPbPr for convenient connection to VCR, DVD or other
video equipment. Please refer to the owner s manual of the equipment to be connected as well.
You can use the input terminals on TV set rear as follows.
It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder, video game
or stereo system, etc.....
YPbPr can support these video fomats:480i,576i,480p,576p,720p,1080i.
Note: 1.AV2 share theaudio input channel
2.When HDMI 1 port get DVI signal, the PC Audio channel is changedto
receive the audiofor HDMI1 port.
To audio outputs
VIDEO EQUIPMENT
To video
output
W R
W R
HDMI
GBR
VIDEO EQUIPMENT with YPbPr
GBR
W R
HDMI1 INPUT
HDMI2 INPUT
L
R
PC
AUDIO INPUT
AV1
Pr
Y
Pb
RF INPUT
To audio outputs
VIDEO EQUIPMENT
To VIDEO
output
W R
W R
From audio outputs
VIDEO EQUIPMENT
From video
output
W R
W R
W R
Red (audio R)
White(audio L)
Red(Pr)
R
W
R
Blue(Pb)
Green(Y)
B
G
Yellow (video)
Y
Y
Y
Y
Y
Y
Y

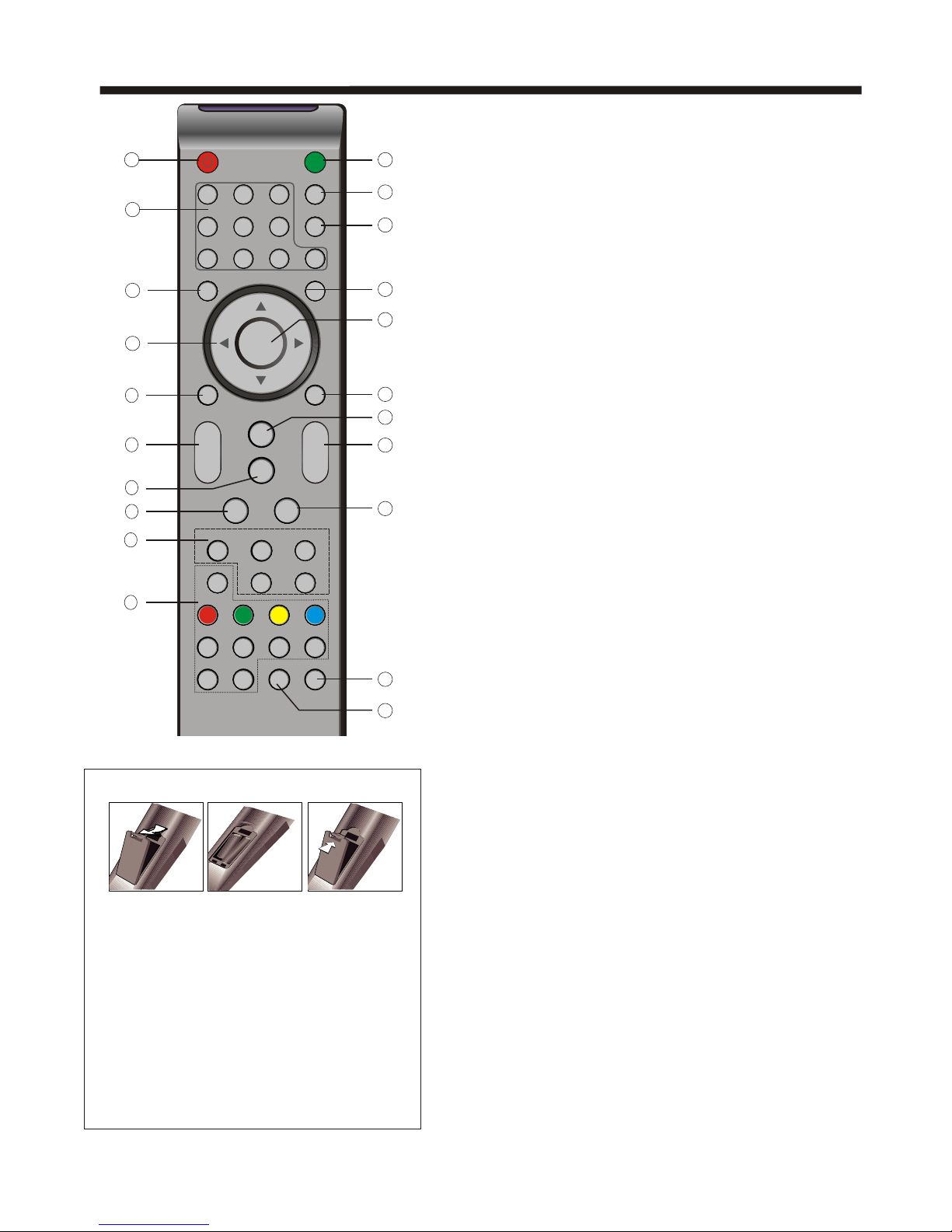

REMOTE CONTROLLER
-9-
1
EXIT
TV
ENTER
HDMI
SLEEP
MIX
DISPLAY
PC
REVEAL HOLD LIST INDEX
SOUND
PIC
ASPECT
YPbPr
SUBPAGE
AV
AUTO
TEXT SIZE
NICAM
RECALL
SOURCEMENU
23
456
7890
+
CH
_
+
_
VOL
POWER MUTE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Insert Batteries Into the Remote Control
1 2 3
Remark:
1. Remove the battery cover.
2. Inserting the 2 AAA 1.5V batteries making sure the
polarity (+ or -) of the batteries matches the polarity
marks inside the unit.
3. Mount the battery cover.
Replace with new batteries when the TV set begins
to show the following symptoms:
Operation is unsteady or erratic. Sometimes the TV
set does not function with Remote Control Unit.
1) Alkaline Battery Recommended.
2) Remove batteries when they are exhausted or if the
remote control is not to be used for long time.
1:POWER
To set the TV to standby or power on.
2:NUMBER KEY:
For direct access to programmes. For a 2 digit
programme number, the second digit must be
entered before the dash disappears. The number
(in analog TV mode) is displayed for a few seconds.
3:MENU
To display the menu or return to the previous menu
4: CURSOR
To move within the menu.
5: EXIT
Used to exit menu.
6: VOL+/-
To adjust the sound level.
7: PIC
To switch the picture mode.
8: SLEEP
Set the time to turn off the TV.
9: SOURCE HOT KEYS
Switch to the source that you want
directly.
10:TELETEXT KEYS (OPTIONAL)
11:MUTE
To disable or enable the sound.
12:NICAM (OPTIONAL)
To switch to nicam mode.only available in TV
programmes with nicam mode transmission.
13:RECALL
To access the previously viewed programme.
14:SOURCE
To display source menu .
15:ENTER
Confirms selection.
16:DISPLAY
Displays/removes the programme information.
17:SOUND
To switch sound mode.
18:CH+/CH-
To access the next or previous TV
Programmes.
19:ASPECT
To change the picture aspect ratio.
20:TEXT (OPTIONAL)
To enter or exit TELETEXT.
21:AUTO
Auto adjust in PC mode.

FUNCTION
SLEEP TIMER
RESETTING
OFF
OSD
OSD H-POSITION
OSD V-POSITION
OSD DURATION
OSD HALFTONE
OSD LANGUAGE ENGLISH
50
50
30
50
TV OPERATION
-10-
CONTRAST
BRIGHTNESS
HUE
COLOUR
SHARPNESS
ASPECT
COLOUR TEMP
3D NR
16:9
PICTURE MODE STANDARD
NORMAL
MID
50
50
50
50
50

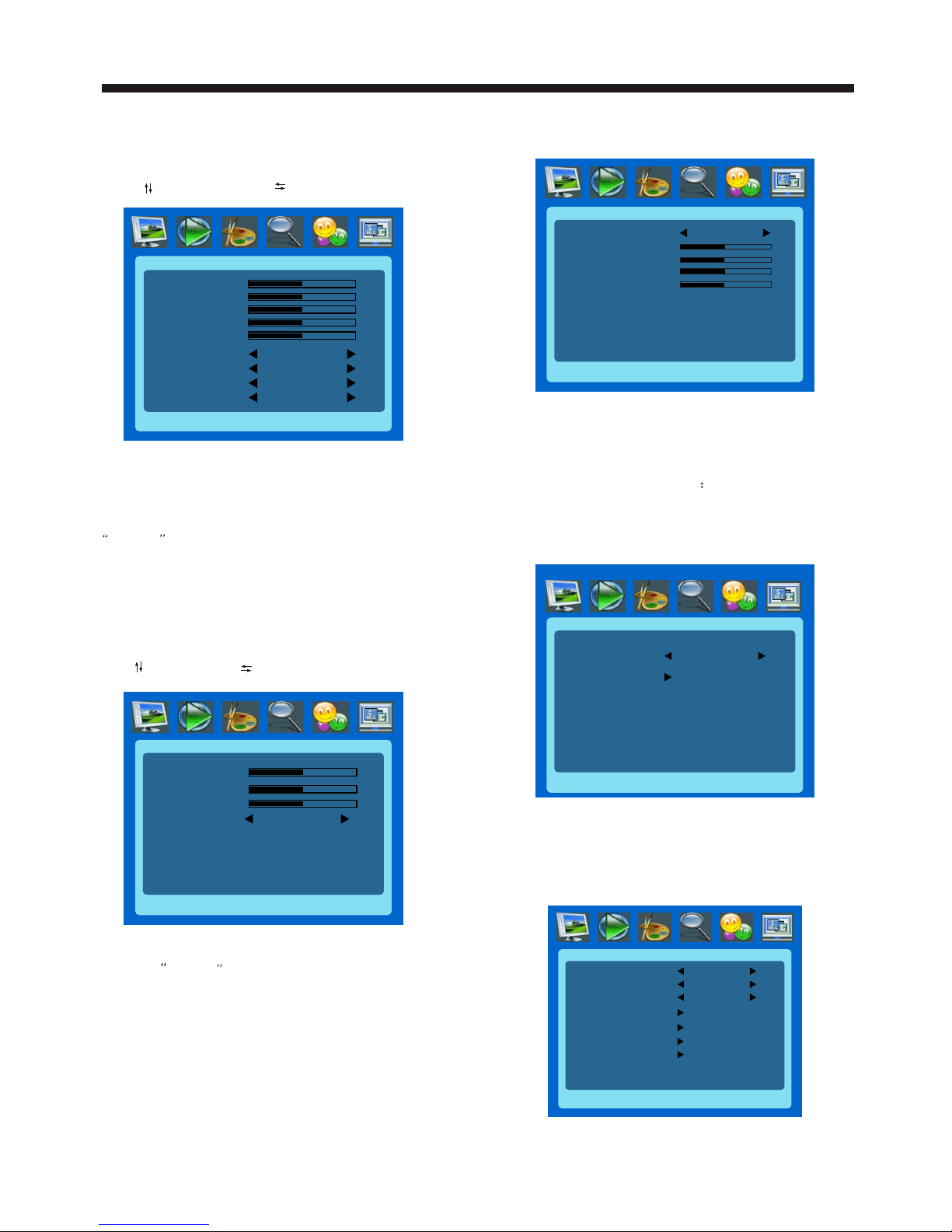

4.FUNCTION MENU
3.OSD MENU
The third itemof the MENU is OSD MENU.
5.CHANNEL MENU
The fifth item of the MENU is channel menu(only
use in TV source).You can complete channel search
and setting here.
The first item of the MENU is PICTURE MENU.
You can adjust picture effect here, such as contrast,
brightness, etc.
Press to move, press to adjust.
1. PICTURE MENU
SOUND
50
50
50
BASS
TREBLE
BALANCE
SOUND MODE STANDARD
2.SOUND MENU
The second item of the MENU is SOUND MENU.
You can adjust sound here.
Press to move, press to adjust.
Note:
1). If Bass, Treble are adjusted, the sound mode will
return to personal .
Note:
1). HUE only available when receiving NTSC
signal.
2). If contrast, brightness, hue, colour, sharpness
be adjusted, the picture mode will return to
personal.
The fourth itemof the MENU is FUNCTION MENU.
Youcan adjust settingsbelow
1).SLEEP TIME:adjustthis item,you can set the sleep
timer.
2).LANGUAGE:adjust teletext language.
3).RESETTING:Reset all thesettings to default value.
CHANNEL
COLOUR SYSTEM
OFF
SOUND SYSTEM
SKIP
AUTO SCAN
MANUAL SEARCH
FINE TUNING
CHANNEL EDIT
AUTO
DK

-11-
TV OPERATION
6. PIP
The Sixth itemof the MENUis PIP Menu,you can
select PIP or POP operation.
650.25MHz
55.25MHZ
CHANNEL 1
OK
SEARCH
STORE
6)Finetuning:finetuning the currentprogram.
7).Channel edit:Press to entre the channel edit
menu
.Rename the channel:
Youcan press to select onechannel and press
1 button to rename it.
Use select character,press 1 to store the
name or press 2 to cancel.
Use select character positon.
1).Colour system: adjustthe colour system,
Auto is remmended.
2).Sound system:adjust thesound system.
Please select theright sound systemfor
your contry.
3).Skip:If select on,youcan select thechannel
only by dightbutton.
4).Auto scan:Serach allthe channels automaticly.
5).Manual Search
Search the channelsmanually.
Channel: Select thechannel of themanual search.
Search: Press begintosearch.
Store:Press to storethe channel
MULTI WINDOW
SUB SOURCE
SIZE
BORDER COLOUR
SOUND SOURCE
SWAP
PIP POSITION
MAIN
BLUE
LARGE
YPBPR
OFF
TOP L
PIP
1)Multi window
Open the PIP/POPwindow
2).Sub source
Select the subsource
3).Size
Adjust the PIPwindow size
4).PIP Position
Adjust the positionof the PIPwindow
5).Border colour
Adjust the bordercolour of thesub window
6).Sound source
Select the soundsource.
7).Swap
Swap the mainsource and thesub source.
Change the sequence.
Press 3 to select onechannel position ,then
press to selectanother channel,
when the 2channels are hlighted,youcan swap
them, press 1 to confirm orpress 2
to cancel.
Delete the channel
Press 2 to select onechannel.
Press 1 to delete orpress 2 to
cancel.
001
002
003
004
005
006
007
008
009
010
011
012
013
0
015
016
017
018
019
14
020
021
022
023
024
025
026
027
028
029
001
002
003
004
005
006
007
008
009
010
011
012
013
0
015
016
017
018
019
14 A
020
021
022
023
024
025
026
027
028
029
001
002
003
004
005
006
007
008
009
010
011
012
013
0
015
016
017
018
019
14 B
020
021
022
023
024
0
026
027
028
029
25A
001
002
003
004
005
006
007
008
009
010
011
012
013
0
0
016
017
018
019
14B
15A
020
021
022
023
024
025
026
027
028
029
001
002
003
004
005
006
007
008
009
010
011
012
013
0
015
016
017
018
019
14
020
021
022
023
024
025
026
027
028
029

50
50
50
PC
COLOR TEMP. USER
USER-R
USER-G
USER-B
TV OPERATION
-12-

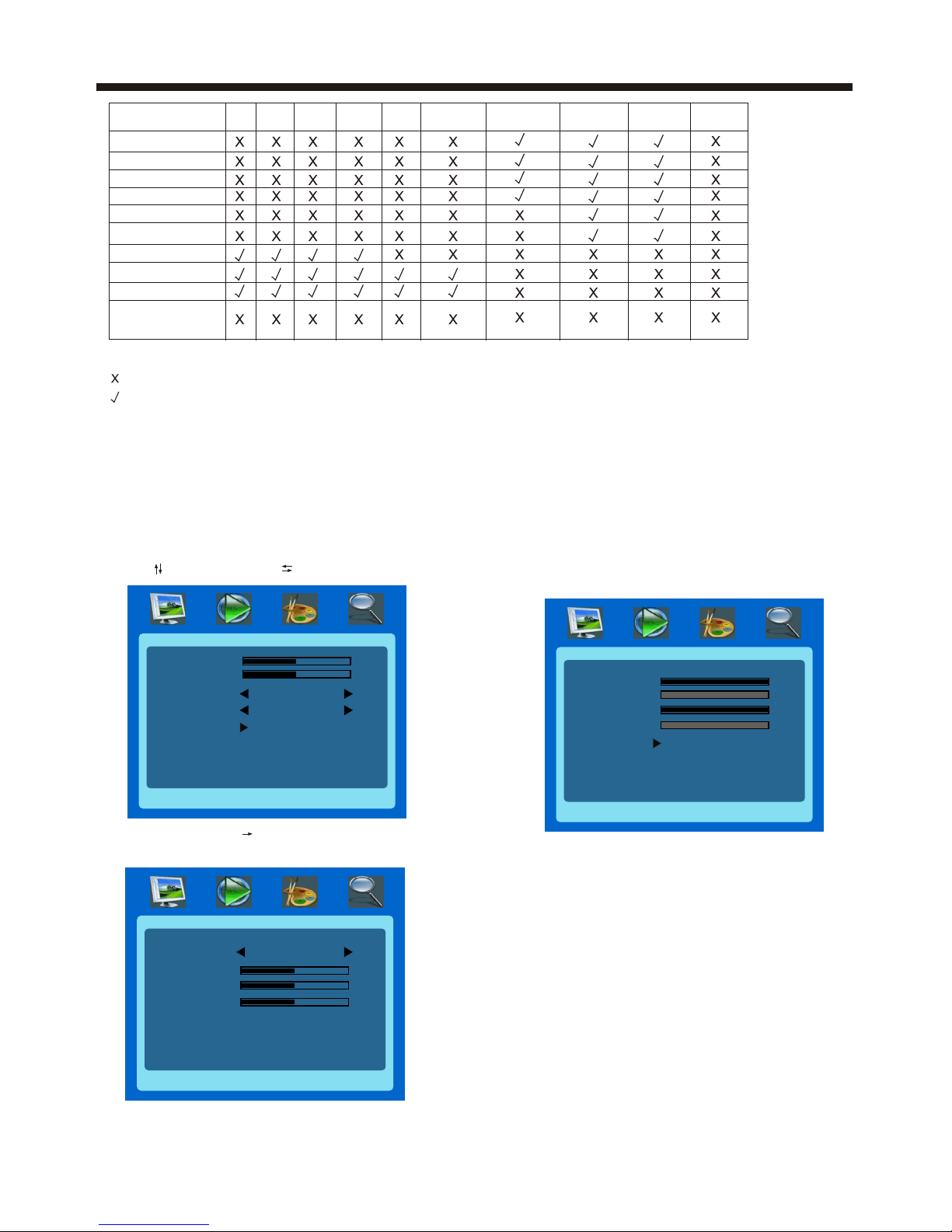

1. PC MENU
Youcan adjust picture here, such as contrast,
brightness.
Press to move,press to adjust.
50
50
CONTRAST
BR IGHTNESS
PICTURE MODE
ASPECT FULL
PC
1).Colour temp: press to entre thecolour temp
MENU.To select the colour temp,thatyou like.
2.GEOMETRY
1).H-Position: adjust thehorizontal position ofthe
screen.
2).V-Position :adjust the vertical positonof the
screen.
3).Clock: finetune thescreen width.
4).Phase: finetune thephase of thesreen,usually don
not adjust thisitem.
COLOUR TEMP
:The two sourcescannot do PIP/POP
:The two sourcescan do PIP/POP.
The sources inthe table are optional. If any of these sources are not available in your unit,
please ignore thesesources.
Note:
In PC mode,thereare two itemsthat are different
with other sources.
100
0
100
0
GEOMETRY
H-POSITION
V-POSITION
CLOCK
PHASE
Source TV
AV 1
AV 2 AV 3 YPBPR
DVD SCART HDMI1 HDMI2 PC
TV
AV 1
AV 2
AV 3
YPBPR
DVD
SCART
HDMI1
HDMI2
PC
STANDARD
AUTO ADJUST

TV OPERATION
-13-

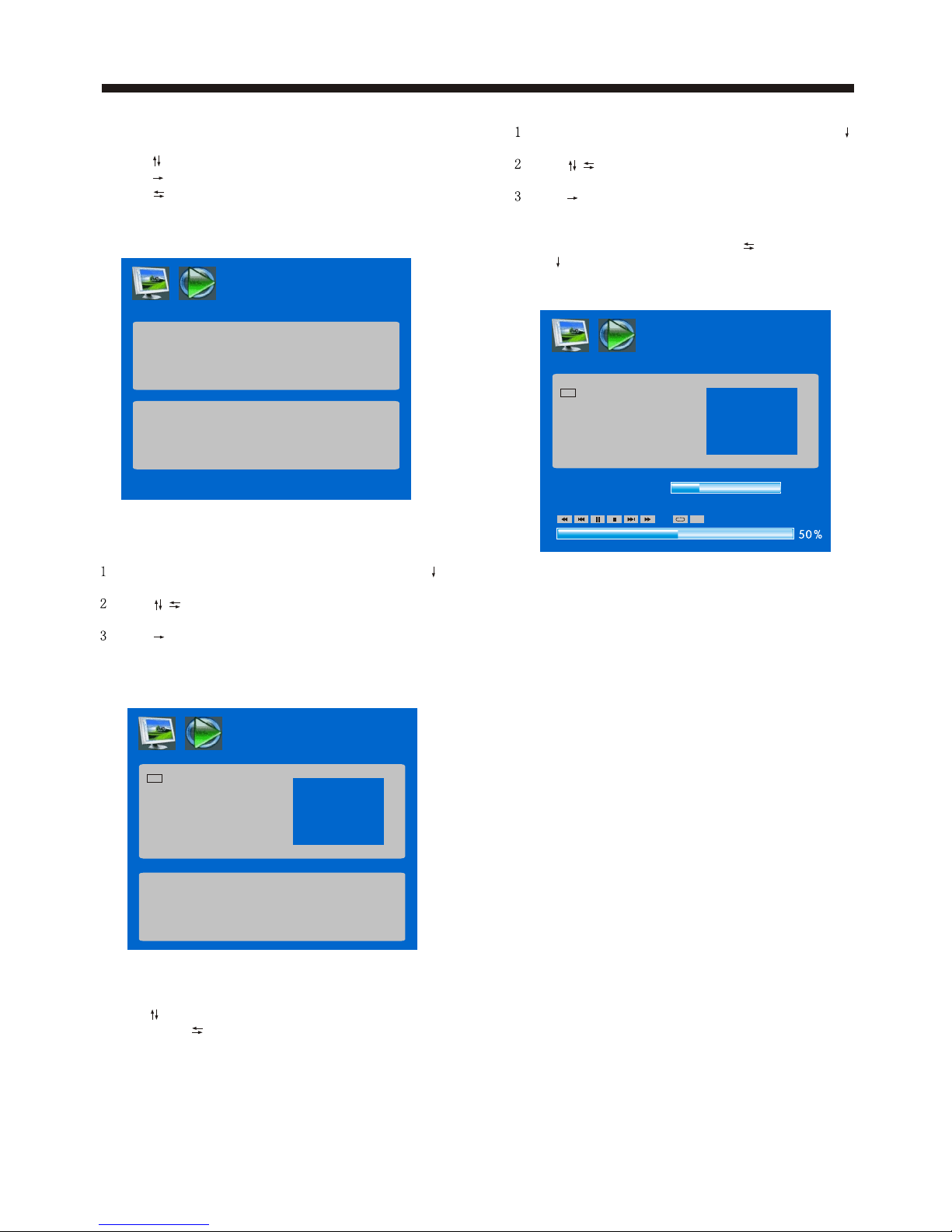

USB Function:(optional)
1.Entre the “USB”menu.
1)Press the “source”button to entre the source menu.
2)press to select the “USB”.
3)Press to entre the “USB”menu.
4)press to selectthe JPEG menuor MP3 menu.
1.JPEG menu
)Select the JPEGitem of theUSB menu, andpress
to entre theJPEG menu.
)Press to entrefolder or exitfolders until JPEG
files are found.
)Press to displaythe JPEG files,press “MENU”
button to exit.
Note:
1.Press to selectprevious picture ornext
Picture, press torotate the picture.
JPEG
110.JPG1
FOLDERS
2009/03/10 08:53:00
JPG
VOLUME
EQ
Mp3
MP3 110.MP3
25
1.MP3 menu
) Select the mp3 item of the USB menu,and press
to entre theMP3 menu.
)Press to entre folders or exit folder until Mp3
files are found.
)Press to playthe MP3 file ,press “MENU”button
to exit.
Note :
When playing themp3 music, press to move ,and
press to play, stop, pause,etc.

Picture Audio
Snow Noise antenna position, direction
or connection
Inspection
Interfere Noise electronic equipment,car/
motorcycle,fluorescent light
Normal Picture Mute
Volume(inspect wether the
mute function onthe remote
control are started, or audio
system are corrector not)
No picture Mute
Power cord isnot inserted
Power switch isnot opened
Contrast and brightness/volume
setup
Press standby keyon the remote
control for inspecting
No color Normal audio color control
Scramble Normal audio
or weak
retune channel
No color Noise Audio system
Special Explanation The accessories such as remote controlis not belongs
to the guarantee
Normal audio
antenna position, direction
or connection
Trouble shooting
Trouble phenomenon
Ghost
-14-
