Haier HTR3619FN Series User manual

Refrigerator-Freezer
HTR3619FN*
HDR3619FN*
*= Colour code
User Manual
GB
R2DF512DHJ
R3DF512DHJ
HTR3619EN*
HTR3619FW*
CFE735C*J

Thank You GB
Legend
Warning – Important Safety information
General information and tips
Environmental information
Disposal
Help protect the environment and human health. Put
the packaging in applicable containers to recycle it.
Help to recycle waste of electrical and electronic ap-
pliances. Do not dispose appliances marked with this
symbol with the household waste. Return the product
to your local recycling facility or contact your municipal
oce.
Thank you for purchasing a Haier Product.
Please read these instructions carefully before using this appliance. The instructions con-
tain important information which will help you get the best out of the appliance and ensure
safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper
use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure
you also pass this manual so that the new owner can become familiar with the appliance
and safety warnings.
WARNING!
Risk of injury or suocation!
Refrigerants and gases must be disposed of professionally. Ensure that the tubing of
the refrigerant circuit is not damaged before being properly disposed of. Disconnect
the appliance from the mains supply. Cut o the mains cable and dispose of it. Remove
the trays and drawers as well as the door catch and seals, to prevent children and pets
to get closed in the appliance.
2

GB Content
1- Safety information......................................................................................................................4
2- Intended use................................................................................................................................8
3- Product description ...................................................................................................................9
4- Control panel..............................................................................................................................12
5- Use................................................................................................................................................13
6- Energy saving tips.....................................................................................................................20
7- Equipment..................................................................................................................................21
8- Care and Cleaning.....................................................................................................................24
9- Troubleshooting........................................................................................................................26
10- Installation................................................................................................................................29
11- Technical Data.........................................................................................................................33
12- Customer Service ..................................................................................................................36
3

1- Safety information GB
Before switching on the appliance for the rst time read the follow-
ing safety hints!:
WARNING!
Before rst use
▶Make sure there is no transport damage.
▶Remove all packaging and keep out of children´s reach.
▶Wait at least two hours before installing the appliance in order to
ensure the refrigerant circuit is fully ecient.
▶Handle the appliance always with at least two persons because it
is heavy.
Installation
▶The appliance should be placed in a well-ventilated place. Ensure
a space of at least 20 cm above and 10 cm around the appliance.
▶Never place the appliance in a damp area or location where it
might be splashed with water. Clean and dry water splashes and
stains with a soft clean cloth.
▶Do not install the appliance in direct sunlight or in the near of heat
sources(e.g. stoves, heaters).
▶Install and level the appliance in an area suitable for its size and use.
▶Keep ventilation openings in the appliance or in the in-built struc-
ture clear of obstruction.
▶Make sure that the electrical information on the rating plate agrees
with the power supply. If it does not, contact an electrician.
▶The appliance is operated by a 220-240 VAC/50 Hz power sup-
ply. Abnormal voltage uctuation may cause the appliance to fail
to start, or damage to the temperature control or compressor, or
there may be an abnormal noise when operating. In such case, an
automatic regulator shall be mounted.
▶Use a separate earthed socket for the power supply which is easy
accessible. The appliance must be earthed.
▶Only for UK: The appliance’s power cable is tted with 3-cord
(grounding) plug that ts a standard 3-cord (grounded) socket.
Never cut o or dismount the third pin (grounding). After the ap-
pliance is installed, the plug should be accessible.
▶Do not use multi-plug adapters and extension cables.
▶Ensure that the power cable is not trapped by the refrigerator. Do
not step on the power cable.
▶Do not damage the refrigerant circuit.
4

GB 1- Safety information
WARNING!
Daily use
▶This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental ca-
pabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
▶Keep away children under 3 years of age from the appliance un-
less they are constantly supervised.
▶Children shall not play with the appliance.
▶If cool gas or other inammable gas is leaking in the vicinity of the
appliance, turn o the valve of the leaking gas, open the doors
and windows and do not unplug a plug in the power cable of the
refrigerator or any other appliance.
▶Notice that the appliance is set for operation at a specic am-
bient range between 10 and 43°C. The appliance may not work
properly if it is left for a long period at a temperature above or be-
low the indicated range.
▶Do not place unstable articles (heavy objects, containers lled
with water) on top of the refrigerator, to ovoid personal injury
caused by falling or electric shock caused by contact with water.
▶Do not pull on the door shelves. The door may be pulled slant, the
bottle rack, may be pulled away, or the appliance may topple.
▶Openandclose the doors only withthehandles. Thegap between
the doors and between the doors and the cabinet is very narrow.
Do not extend your hands in these areas to avoid pinching your
ngers. Open or close the refrigerator doors only when there are
no children standing within the range of door movement.
▶Do not store or use inammable, explosive or corrosive materials
in the appliance or in the vicinity.
▶Do not store medicines, bacteria or chemical agents in the ap-
pliance. This appliance is a household appliance. It is not recom-
mended to store materials that require strict temperatures.
▶Never store liquids in bottles or cans (besides high percentage
spirits) especially carbonated beverages in the freezer, as these
will burst during freezing.
▶Checkthe condition offoodif awarmingin thefreezerhastakenplace.
5

1- Safety information GB
WARNING!
Daily use
▶Do not set unnecessarily low temperature in the refrigerator
compartment. Minus temperatures may occur at high settings.
Attention: Bottles can burst.
▶Do not touch frozen goods with wet hands (wear gloves). Espe-
cially do not eat ice lollies immediately after removal from the
freezer compartment. There is the risk to freeze or the formation
of frost blisters. FIRST aid: keep immediately under running cold
water. Do not pull away!
▶Do not touch the inside surface of the freezer storage compart-
ment when in operation, especially with wet hands, as your hands
may freeze onto the surface.
▶Unplug the appliance in the event of a power interruption or be-
fore cleaning. Allow at least 5 minutes before restarting the appli-
ance, as frequent starting may damage the compressor.
▶Do not use electrical devices inside the food storage compart-
ments of the appliance, unless they are of the type recommend-
ed by the manufacturer.
Maintenance / cleaning
▶Make sure children are supervised if they carry out cleaning and
maintenance.
▶Disconnect the appliance from the electrical supply before un-
dertaking any routine maintenance. Allow at least 5 minutes be-
fore restarting the appliance, as frequent starting may damage
the compressor.
▶Hold the plug, not the cable, when unplugging the appliance.
▶Do not scrape o frost and ice with sharp objects. Do not use
sprays, electric heaters like heater, hair dryer, steam cleaners or
other sources of heat in order to avoid damage to the plastic parts.
▶Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the man-
ufacturer.
▶If the supply cord is damaged, it must be replaced by the manu-
facturer, its service agent or similarly qualied persons in order to
avoid a hazard.
6

GB 1- Safety information
WARNING!
The appliance contains the ammable refrigerant ISOBUTANE
(R600a). Make sure the refrigerant circuit is not damaged during
transportation or installation. Leaking refrigerant may cause eye
injuries or ignite. If a damage has occurred, keep away open re
sources, thoroughly ventilate the room, do not plug or unplug the
power cords of the appliance or any other appliance. Inform the
customer service.
In case of eyes get into contact with the refrigerant, rinse immedi-
ately it under running water and call immediately the eye specialist.
WARNING!
Maintenance / cleaning
▶Do not try to repair, disassemble or modify the appliance by your-
self. In case of repair please contact our customer service.
▶Eliminate the dust on the back of the unit at least once in the year
to avoid hazard by re, as well as increased energy consumption.
▶Do not spray or ush the appliance during cleaning.
▶Do not use water spray or steam to clean the appliance.
▶Do not clean the cold glass shelves with hot water. Sudden tem-
perature change may cause the glass to break.
WARNING!
▶Taking care to avoid causing a re by igniting ammable material.
▶WARNING: When positioning the appliance, ensure the supply
cord is not trapped or damaged.
▶WARNING: Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
Refrigerant gas information
7

2- Intended use GB
2.1 Intended use
This appliance is intended for cooling and freezing food. It has been designed exclusively
for use in household and similar applications such as staff kitchen areas in shops, offices
Changes or modifcations to the device are not allowed. Unintended use may cause haz-
-
ards and loss of warranty claims.
and other working environments; farm houses and by clients in hotels, motels and other
residential type environments as well as in bed-and breakfast ant catering business, It is
not intended for commercial or industrial use.
To avoid contamination of food, please respect the following instructions:
– Opening the door for long periods can cause a significant increase of the temperature in
the compartments of the appliance.
– Clean regularly surfaces that can come in contact with food and accessible drainage systems.
– Clean water tanks if they have not been used for 48 h; flush the water system connected
to a water supply if water has not been drawn for 5 days.
– Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact
with or drip onto other food.
– Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or
making ice cream and making ice cubes.
– One-, two- and three-star compartments are not suitable for the freezing of fresh food.
– If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry,
and leave the door open to prevent mould developing within the appliance.

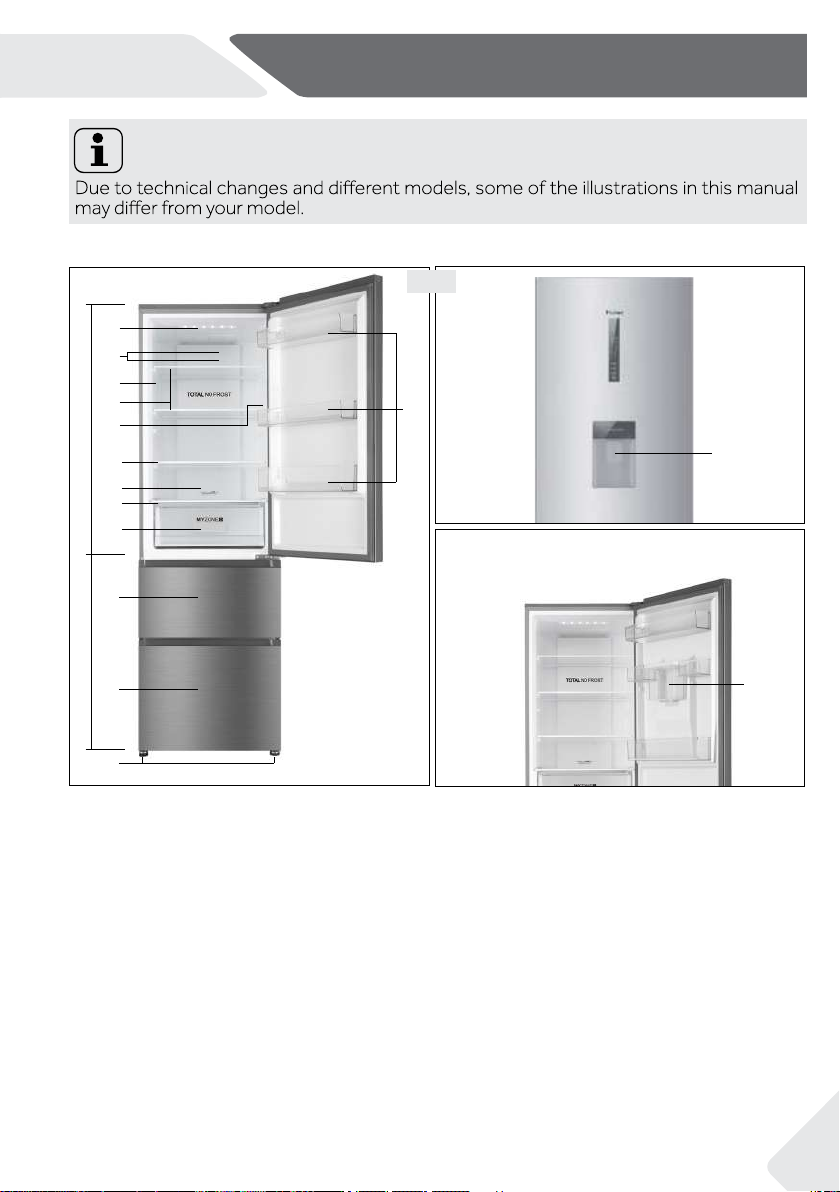

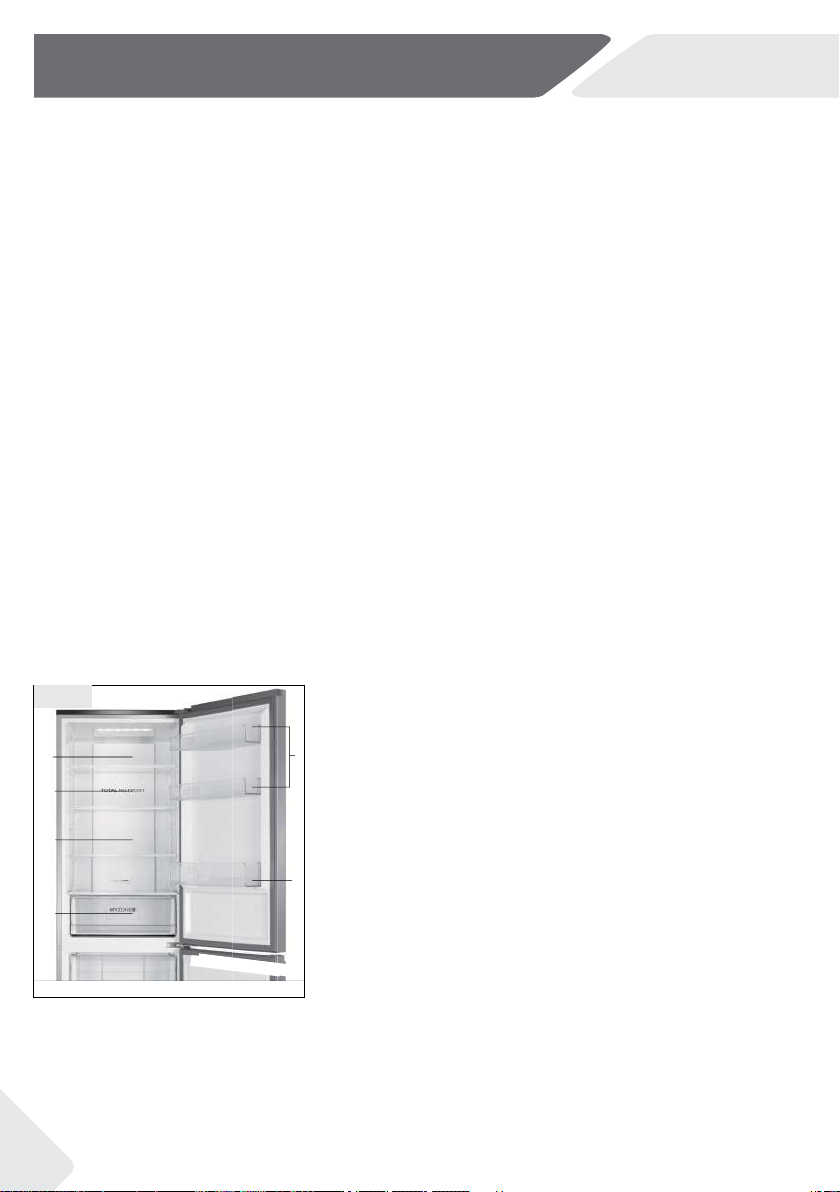

GB 3-Productdescription
Notice
11 Upper freezer storage drawer with pre-
freezing rack
12 Lower freezer storage drawer
13 Adjustable feet
B: Freezer compartment
14 Water dispenser
15 Water tank
Water dispenser (if available)
*= Colour code
A: Refrigerator compartment
1 Refrigerator LED lamp
2 Airductandsensor(behindpanel)
3 Rating plate
4 Glass shelves
5 O.K.-temperature indicator
6 Glass Shelve
7 Air Duct
8 My Zone box cover
9 My Zone box
10 Door rack
9
3.1.1 Pictures of appliances
A
1
3
6
8
7
11
12
13
9
2
410
5
B
14
15
Models:
HTR3619EN*
HTR3619FN*
Models:
HTR3619FW*
3.1.1
R3DF512DHJ
(HTR series Fig.3.1.1)

3- Product description GB
Notice
11 Upper Freezer Box
12 Middle Freezer Box
13 Lower Freezer Box
14 Adjustable feet
15 Water dispenser
16 Water tank
B: Freezer compartment
*= Colour code
A: Refrigerator compartment
1 Refrigerator LED lamp
2 Airductandsensor(behindpanel)
3 Rating plate
4 Glass shelves
5 O.K.-temperature indicator
6 Gass Shelve
7 Air Duct
8 My Zone box cover
9 My Zone box
10 Door rack
3.1.2 Pictures of appliances
15
Model: CFE735C*JW
16
5
6
8
4
11
13
14
B
A
12
10
1
7
2
9
3
Model:
HDR3619FN*
CFE735C*J
R2DF512DHJ
3.1.2
10
(HDR series Fig.3.1.2)

GB 3-Productdescription
3.2 Accessories
Check the accessories and literature in accordance with this list (Fig.:2.2):
Please keep the accessories and literature for installation and maintenance.
Energy-label
Covers
User manual
Warranty card
Door hingesIce cube tray
with cover
Egg trays
3.2
Door stopper
***
11

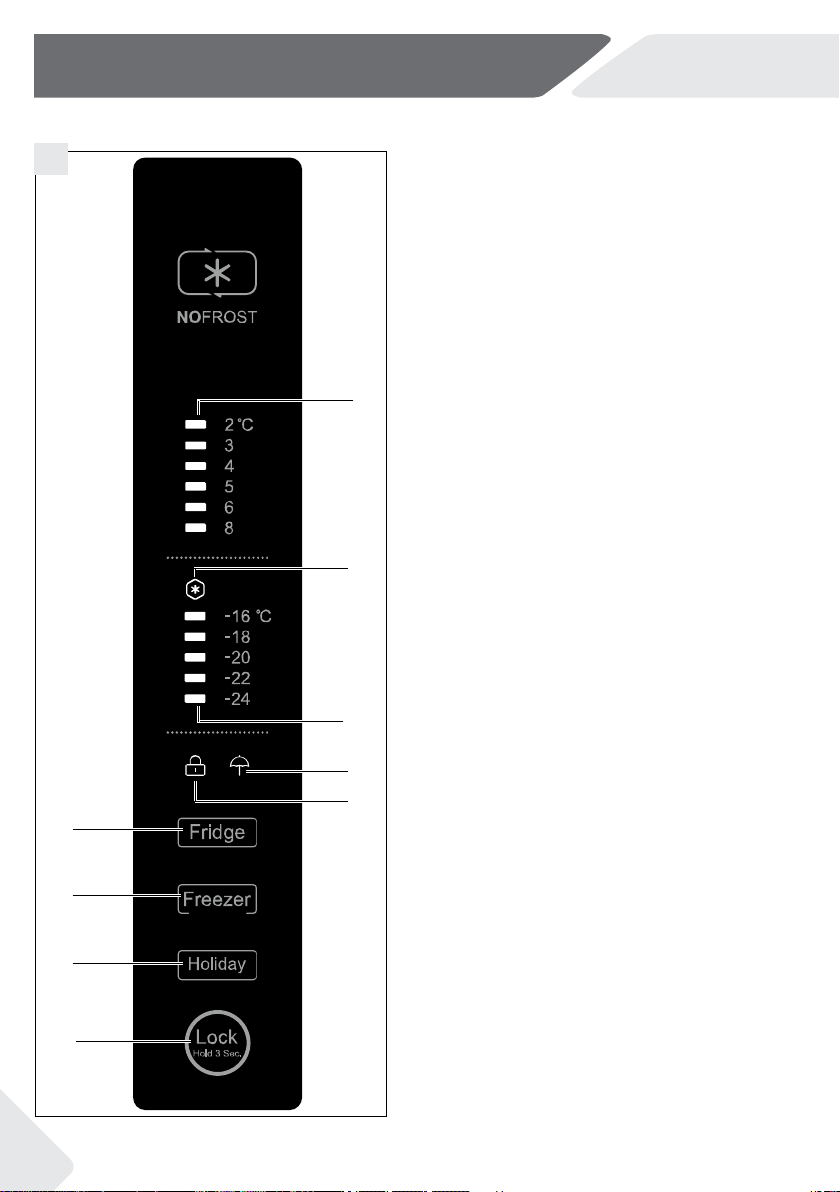

4- Control panel GB
Control panel (Fig. 4)
Super-Frz.
3 Sec. Super-Frz.
A
B
C
D
a
b1
c
d
b2
4
Keys:
A Refrigerator temperature setting
B Freezer temperature setting and
Super-Frz. function on/o
C Holiday function on/o
D Panel lock/unlock
Indicators:
a Temperature refrigerator compartment
b1 Temperature freezer compartment
b2 Super-Freeze function (“Super-Frz.”)
c Holiday function
d Panel lock
12

GB 5- Use
5.1 Before rst use
▶Remove all packaging materials, keep them out of children`s reach and dispose
them in an environmentally friendly manner.
▶Clean the inside and outside of the appliance with water and a mild detergent before
putting any food in it.
▶After the appliance has been levelled and cleaned, wait for at least 2 hours before
connecting it to the power supply. See Section INSTALLATION.
▶Precool the compartments at high settings before loading with food. The function
Super-Freeze helps to cool down the freezer compartment quickly.
▶The refrigerator temperature and freezer temperature are automatically set to 5° C
and -18° C respectively. These are the recommended settings. If desired, you can
change these temperatures manually. Please see ADJUST THE TEMPERATURE.
Notice: Presettings
▶The appliance is preset to the recommended temperature of 5°C (refrigerator) and
- 18°C (freezer). Under normal ambient condition you need not to set a temperature.
▶When the appliance is switched on after disconnection from the main power supply, it
may take up to 12 hours for the correct temperatures to be reached.
Empty the appliance before switching o. To switch o the appliance,pull the power cord
out o the power socket.
13
5.3 Switch on /o the appliance
The appliance is in operation as soon as it is connected to the power supply.
When the appliance is powered on for the rst time, temperature indicators “a” and
“b1”show the presetting values (refer to NOTICE ).
5.4 Standby-mode
The display screen turns o automatically 30 seconds after pressing a key. The display will
be automatically locked. It lights up automatically by touching any key or opening the door .
5.2 Sensor keys
The buttons on the control panel are sensor keys, which already respond when lightly
touched with the nger.
Notice: Panel lock
The control panel is automatically blocked against
activation if 30 seconds no key is touched. For any
settings the control panel must be unlocked.

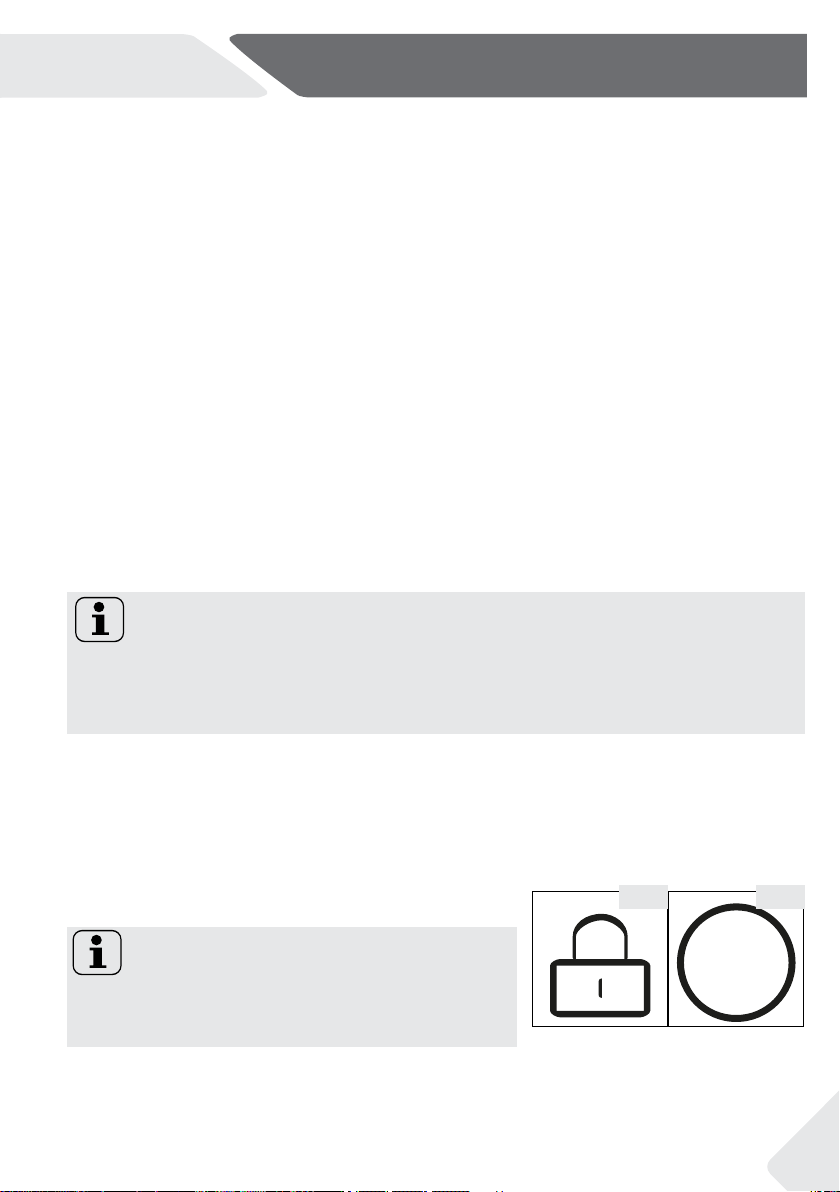

▶Touch key “D” for 3 seconds to block all panel ele-
ments against activation (Fig. 5.5.1).
▶Therelatedindicator“d”isnowdisplayed (Fig. 5.5.2).
▶For unlocking touch again the key.
5.5 Lock/unlock panel
Lock
Hold 3 Sec.
5.5.1
5.5.2

5- Use GB
Notice: Conict with other functions
The temperature in the corresponding compartment cannot be adjusted if any other
function (Super-Freeze or Holiday) is activated or the display is locked. The correspond-
ing indicator will ash accompanying .
14
5.7.1 Adjust the temperature for fridge
1. Unlock the panel by touching key “D” if it is locked
(Fig. 5.5.1).
2. Touch sequentially key “A” (Fridge) until the de-
sired value of temperature indicator “a” is ashing
(Fig. 5.7.1).
The optimum temperature in the refrigerator is
5 °C. Colder temperatures mean unnecessary en-
ergy consumption.
3. After a few seconds temperature indicator “a” will
shine permanently and the setting is conrmed.
Fridge
4
2
3
5
6
8
°C
5.7.1
5.6 Door opening alarm
When the refrigerator door is opened for more than
1minute, the door opening alarm will sound (Fig. 5.6).
The alarm can be silenced by closing the door. If the
door is left open for more than 7 minutes, the light in-
side the refrigerator and control panel illumination will
automatically switch o.
5.6
The indoor temperatures are inuenced by the follow-
ing factors:
▶Ambient temperature
▶Frequency of door opening
▶Amount of stored foods
▶Installation of the appliance
5.7 Adjust the temperature
5.7.2 Adjust the temperature for freezer
1. Unlock the panel by touching key “D” if it is locked
(Fig. 5.5.1).
2. Touch sequentially key “B” (Freezer) until the de-
sired value of temperature indicator “b1” is ash-
ing. (Fig. 5.7.2).
The optimum temperature in the freezer is -18°C.
Colder temperatures mean unnecessary energy
consumption.
3. After a few seconds temperature indicator “b1” will
shine permanently and the setting is conrmed.
-18
-16
-20
-22
-24
°C
3 Sec. Super-Frz.
Freezer
5.7.2

GB 5- Use
5.8 Super-Freeze function
Fresh food should be frozen as quickly as possible to
the core. This preserved the best nutritional value, ap-
pearance and taste. The Super-Freeze function ac-
celerates the freezing of fresh food and protects the
goods already stored from undesirable warming. If
you need to freeze a large amount of food once, it is
recommended to set the Super-Freeze function on
ahead for 24h before the usage of frozen room.
1. Unlock the panel by touching key “D” if it is locked
(Fig. 5.5.1).

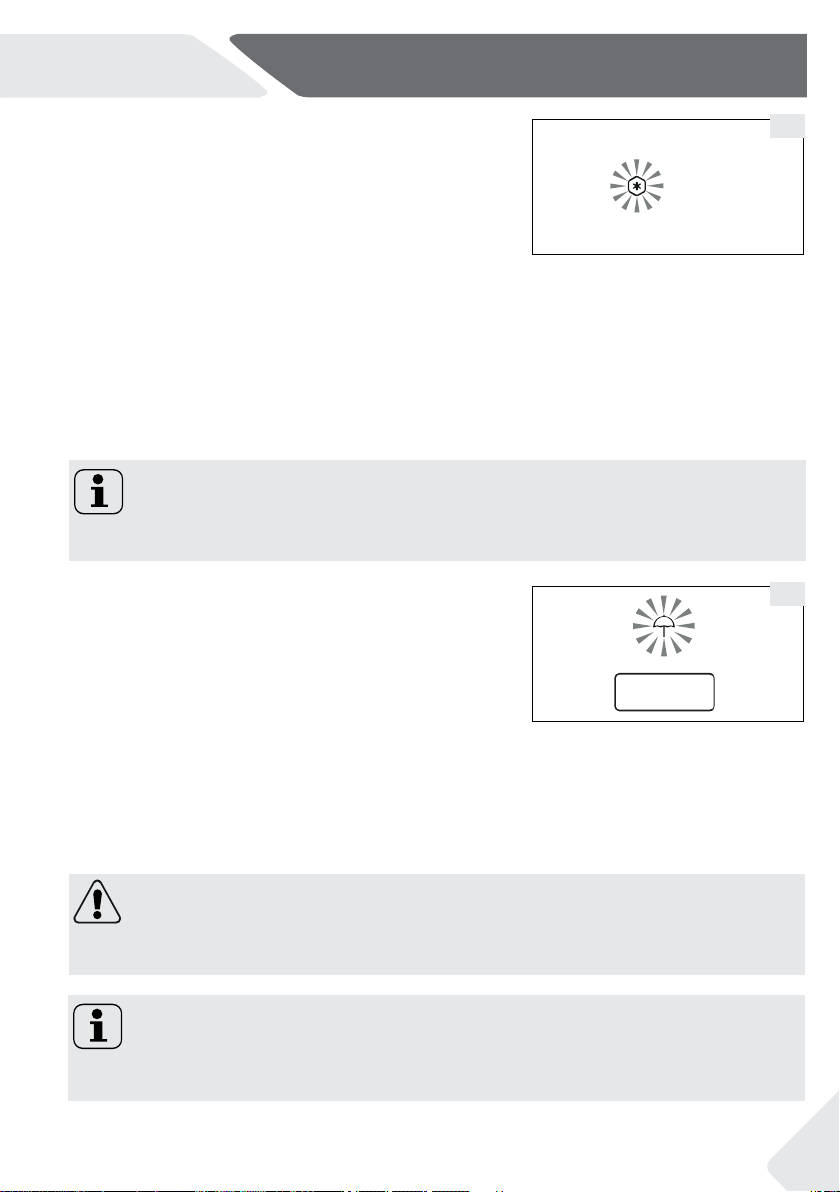

2. Touch key „B“ (Freezer) for 3 seconds; indicator
„b2“ illuminates and the function is activated (Fig.
5.8).
3. The same operation can exit Super-Freeze function.
Super-Frz.
5.8
Notice: Automatically switch o
The Super-Freeze function will automatically switch o after 56 hours. The appliance is
then operated at the previously set temperature.
Notice: Automatic fault display
When Indicator “a” or “b1” keep blinking due to fault, Please contact professional after
sales service personnel as soon as possible.
WARNING!
During the Holiday function no goods must be stored in the refrigerator compartment.
The temperature of + 17 ° C is too high for storing food.
15
5.9 Holiday function
This function sets the refrigerator temperature per-
manently to 17°C.
This allows to keep the door of the empty refrigera-
tor closed without causing an odour or mold - during
a long absence (e.g. during holiday). The freezer com-
partment is free for your setting.
1. Unlock the panel by touching key “D” if it is locked
(Fig. 5.5.1).
2. Touch key “C” (Holiday); indicator “c” illuminates
and the function is activated (Fig. 5.9).
3. The same operation can exit Holiday function.
Holiday
5.9

5- Use GB
16

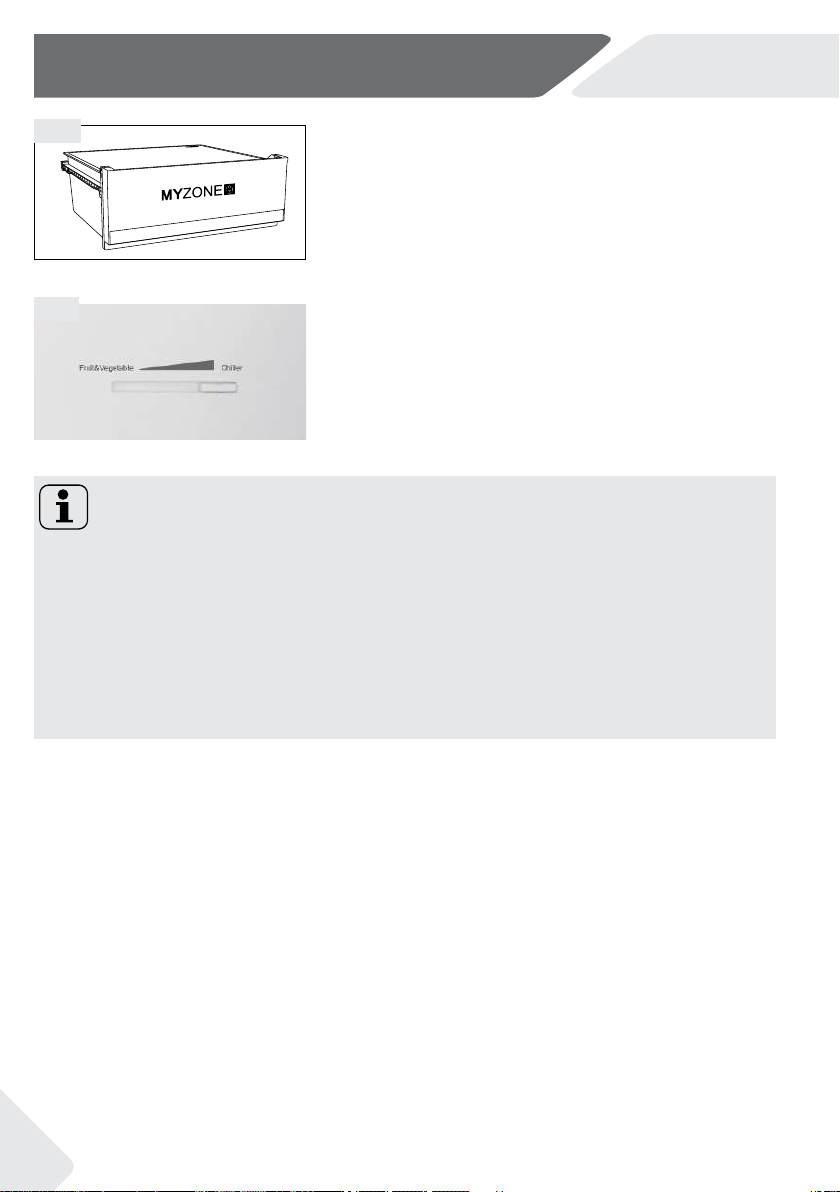

5.10 MyZone box
The fridge compartment is equipped with a MyZone
box (Fig.5.10).In accordance with the food’s storage
demands,the most suitable temperature can be se-
lected to get the optimal nutritional value of the food
from Chiller to Fruit&Vegetable.(Fig.5.11.)
5.11 Adjusting MyZone box function
This Myzone box can be used as Chill compartment
and Fresh-food storage compartment and also can be
preserved for dierent kinds of food which achieved
by the control of the fridge air duct pick.
Notice: MyZone box
▶The temperature in this box is from Chill compartment to Fresh-food storage com-
partment.
▶When the fridge air duct pick locates in the right Chiller position, the box will get the
lowest temperature.While the fridge air duct pick locates in the left Fruit&Vegetable
position,the box will get the highest temperature.
▶It may be slightly changed due to the dierent ambient temperature or refrigerator
working style.
▶Sometime the temperature in this box may dip below zero, so before you put fruit &
vegetable into it, please make right setting.
5.10
5.11

GB 5- Use
17
5.12 Water dispenser
With the water dispenser cool drinking water can be tapped.
The water tank should be cleaned before rst use (see CARE AND CLEANING)

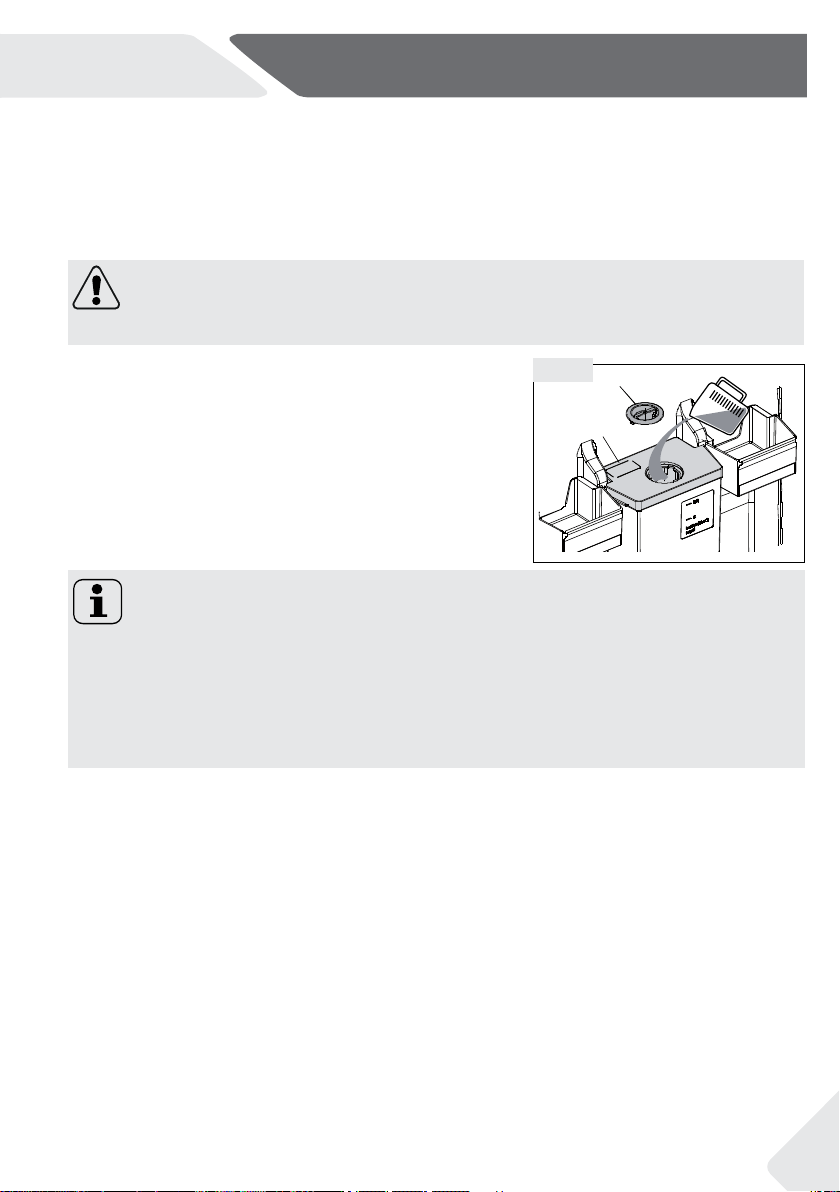

5.12.1 Filling the water tank
WARNING!
Use drinking water only.
Ensure that the water tank is properly inserted (see
EQUIPMENT) Rotate and lift the round lid (A) and pour
fresh drinking water into the water tank (Fig.5.12.1).
Fill water only up to the mark (2.5 I); as it could over ow
when the door opens and closes.
Close the round lid (A) until it clicks into place.
Notice: Water dispenser
▶Before relling dispose residual water and clean the water tank.
▶When you don’t need water for a long time, please empty the water tank and insert
the cleaned tank.
▶The cover (C) on the water tank (Fig.5.12.1) is additionally used to save energy. If you
do not want to get water from the water dispenser for a long period , please still install
the cover because of better insulating and saving energy.
A
C
5.12.1

5- Use GB
18
5.13 Tips on storing fresh food
5.13.1 Storing into the refrigerator compartment
▶Keep your fridge temperature below 5°C.
▶Hot food must be cooled to room temperature before storing in the appliance.
▶Foods stored in the refrigerator should be washed and dried before storing
▶Food to be stored should be properly sealed to avoid odour or taste alterations.
▶Do not store excessive quantities of food. Leave spaces between foods to allow cold
air owing around them, for a better and more homogeneous cooling.
▶Foods eaten daily should be stored at the front of the shelf.
▶Leave a gap between foods and the inner walls, allowing air owing. In special way
don’t store foods against the rear wall: foods could freeze against rear wall. Avoid di-
rect contact of food (especially oily or acidic food) with the inner liner, as oil/acid can
erode the inner liner. Clean away oily/acid dirt whenever it is found.
▶Frozen food can be gently defreezed in the refrigerator compartmentor with defrost
function in the MyZone box. This saves energy.
▶The ageing process of fruit and vegetables such as courgettes, melons, papaya, ba-
nana, pineapple, etc. can be accelerated in the refrigerator. Therefore, it is not advis-
able to store them in the refrigerator. However, the ripening of strongly green fruits
can be promoted for a certain period. Onions, garlic, ginger and other root vegeta-
bles should also be stored at room temperature.
▶Unpleasant odours inside the fridge are a sign that something has spilled and clean-
ing is required. See CARE AND CLEANING.
▶Dierent foods should be placed in dierent areas according to their properties (Fig.:
5.13.1).
1 Butter, cheese, eggs, spices, etc.
Jam, cheese, tomato sauce, etc
2 Drinks and bottled foods.
3 Pickled foods, canned food, etc.
4 Meat products, snack foods, pasta, milk , tofu,
dairy, etc.
5 Cooked meat, sausages, etc.
6 MyZone box: Fruit, vegetables, salad, etc.
5
4
3
6
1
2
5.13.1

GB 5- Use
When storing commercially frozen foods, please follow these guidelines:
▶Always follow manufacturers’ guidelines for the length of time you should store food
for. Do not exceed these guidelines!
▶Try to keep the length of time between purchase and storage as short as possible to
preserve food quality.
▶Buy frozen foods, which have been stored at a temperature of –18 °C or below.
▶Avoid buying food which has ice or frost on the packaging – This indicates that the
products might have been partially defrosted and refrozen at some point – temper-
ature rises aect the quality of food.
5.13.2 Storage into the freezer compartment
▶Keep the freezer temperature at- 18°C.
▶24 hours before freezing switch on the Super-Freeze function; -for small quantities
of food 4-6 hours are sucient.
▶Hot food must be cooled to room temperature before storing in the freezer com-
partment.
▶Food cut into small portions will freeze faster and be easier to defrost and cook. The
recommended weight for each portion is less than 2.5 kg
▶It is better to pack food before putting it into the freezer. The outside of the pack-
aging must be dry to avoid bags sticking together. Packaging materials should be
odour-free, airtight, non-poisonous and nontoxic.
▶In order to avoid expiration of storage periods, please note the freezing date, time
limit and name of the food on the packaging according to the storage periods of dif-
ferent foods.
▶WARNING!: Acid, alkali and salt etc. could erode the internal surface of the freezer.
Do not place the food having these substances (e.g. sea sh) directly on the internal
surface. Salt water in the freezer should be cleaned up immediately.
▶Do not exceed the food storage times recommended by the manufacturers. Only
take the required amount of food out of the freezer.
▶Consume defrosted food quickly. Defrosted food cannot be re-frozen unless it is
rst cooked, otherwise it may bless edible.
▶Do not load excessive quantities of fresh food in the freezer compartment. Refer
to the freezing capacity of the freezer – See TECHNICAL DATA or data at the type
plate.
▶Food can be stored in the freezer at a temperature of at least -18°C for 2 to 12
months, depending on its properties (e.g., meat: 3-12 months, vegetables: 6-12
months)
▶When freezing fresh food, avoid bringing it in contact with already frozen food. Risk
of thawing!
19

6- Energy saving tips GB
20
Energy saving tips
▶Make sure the appliance is properly ventilated (see INSTALLATION).
▶Do not install the appliance in direct sunlight or in the near of heat sources(e.g. stoves,
heaters).
▶Avoid unnecessarily low temperature in the appliance. The energy consumption in-
creases the lower the temperature in the appliance is set.
▶Functions like SUPER-FREEZE consume more energy.
▶Allow warm food to cool down before placing it in the appliance.
▶Open the appliance door as little and as briey as possible.
▶Do not overll the appliance to avoid obstructing the air ow.
▶Avoid air within the food packaging.
▶Keep door seals clean so that the door always closes correctly.
▶Defreeze frozen food in the fridge storage compartment
The most energy-saving c ration requires drawer, food box and shelves to be
positioned in the appliance on factory-fresh condition, and food to be placed without
blocking the air outlet of the duct
▶onfigu
