USER'S MANUAL
LCD TV RECEIVER
Please read thismanual carefully before
using your televisionand keep thismanual
In a goodplace for futurereference.
MODEL:
L1510A-C, L1510B-C, L1910A-C,
L1910B-C, L1911W-C, L2011W-C

To users:
Thank you for using our LCD-TV.
Before connecting the LCD-TV and turning the power on, please
read this book carefully. Please keep this book for later use. When it
was loss of function by electrostatic shock, please switch the on/off
button for restoring the function.
CONTENT
Safety Notice Items...................................................................................
Front Panel Controls..................................................................................
Connection Options...................................................................................
Remote Control Key Functions...................................................................
Remote Control ......................................................................................
Installing Batteries..................................................................................
Connection Instructions.............................................................................
Grounding..............................................................................................
External equipment Connections..............................................................
Antenna Connection.............................................................................
PC Setup.............................................................................................
DVD Setup.............................................................................................
VCR Setup...........................................................................................
Cable TV Setup....................................................................................
External AV Source Setup......................................................................
Basic Operating Instructions.......................................................................
Turn on the LCD-TV.................................................................................
Audio Control..........................................................................................
Mute......................................................................................................
Select the TV Channel You Want...............................................................
Picture Mode...........................................................................................
Program Swap.........................................................................................
Program Scan.........................................................................................
Menu Operations.......................................................................................
Picture Menu Options...............................................................................
Picture Menu Options Continued...............................................................
Audio Menu Options................................................................................
Audio Menu Options Continued................................................................
Function Menu Options.............................................................................
Function Menu Options Continued.............................................................
Adjust Menu Options................................................................................
Tuning Menu Options..............................................................................
Tuning Menu Options Continued..............................................................
TELE TEXT...............................................................................................
Basic Playback..........................................................................................
Advanced Playback...................................................................................
Special Function Playback.........................................................................
JPEG DISC PLAYBACK............................................................................
MP3 PLAYBACK......................................................................................
SCREEN SAVER FUNCTION....................................................................
DVD System SETUP...................................................................................
General Setup Process.............................................................................
General Setup Page.................................................................................
Preferencel Page.....................................................................................
Playable Discs..........................................................................................
Disc Protection and DVD Characteristics.....................................................
Troubleshooting Guide...............................................................................
Specifications...........................................................................................
1
2
3
4
5
5
6
6
6
6
7
7
8
9
9
10
10
10
10
11
11
11
11
12
12
13
13
14
15
16
16
17
18
19
21
22
23
23
23
23
24
24
24
26
28
29
30
31

Safety Notice Items
Incorrect usage will cause fire or electric shock. To prevent this, please do
as required when you are installing, using and cleaning this machine. To insure
your safety and extend the life-span of LCD-TV, please read the following items
carefully before using:
lPlease read and understand all the instructions before operation;
lPlease keep the book for later use;
lPlease comply with the warning instructions on the machine and in this book
strictly;
lPlease comply with the instructions provided;
lPlease do not use additional devices that are not recommended by
manufacturer:
lBefore operation, please make sure that the operating voltage of your unit is
normal;
lDo not placethe unit on unstable, dusty and humid places;
lNever put theunit in direct sunlight or near heat sources;
lAllow enough space for proper ventilation;
lPlease keep water away from the LCD-TV . If water comes in contact with the
LCD-TV, disconnect the power cord from the power source, then wipe the set
with a dry soft cloth;
lDo not remove the back cover. If services were need, please refer to qualified
Personnel

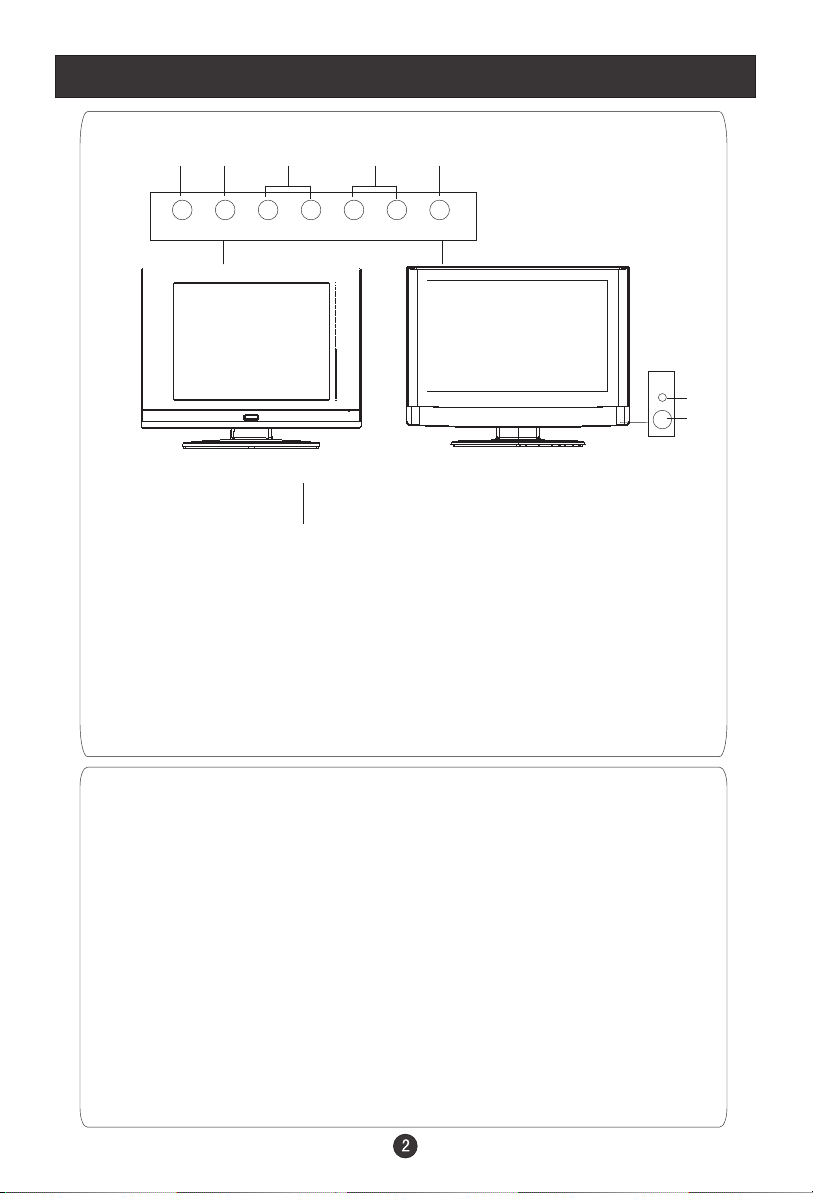

Front Panel Controls
Control Panel Function
TV/AV MENU VOL- VOL+ CH- CH+ POWER
2345
1. Power supplyswitch
2.TV/AV Select the inputsignals: COMPONENT/PC/AV/SV/TV/DVD
3. MENU Press to select the main menu
4. VOL- Volume down/ Left orientation to adjust the item inthe OSD
VOL+ Volume up / Right orientation to adjust the item/Press to enter
5. CH- TV channel down / to select the item in the menu
CH+ TV channel up / to select the item in the menu
6. Power indicator
Illuminates red in standby mode, illuminates green when the display is
turned on
7.Remote Sensor Receivingremote control sends the infrared remote
signal.
1
6
7
L1911W-C,L2011W-C
67

Connection Options
ANT IN AUDIO
R L
VIDEO IN S-VIDEO VGA IN

Remote Control Key Functions
When using the remote control, aim it
towards the remotesensor on the TV
Stand By
DVD Open/close
DVD 10+
Scan
Zoom(
Mute
Swap
Call Screen Display
Program Number
TV/AV and some other source Exchange
Digital Selector
TV/DVD
Volume/Channel Selection
MENU
DVD Audio
Picture Mode
DVD STOP
Tune Menu Button
DVD SETUP
DVD PAUSE/STEP
DVD FAST REVERSE
DVD FAST FORWARD
DVD MENU
DVD NEXT
DVD PREVIOUS
DVD REPEAT
DVD PLAY/ENTER
DVD A-B REPEAT
DVD Cursor Move button
DVD SLOW
DVD ANGLE
DVD SEARCH
DVD PROGRAM
DVD TITLE/PBC
DVD SUBTITLE
DVD CALL
TELETEXT BUTTONS
Exit Screen Display
Fast text coloured buttons
Only be adjustable in the DVD mode)
/

Remote Control Key Functions
Installing Batteries
3
2
1
1.Slide open thecover of the battery compartment onthe back ofthe remote
control.
2.Load two 5#alkaline batteries in the compartment. (plusand minus polesto
respective mark)
3.Replace the coverof the battery compartment.

Connection Instructions
Ensure that you connect the grounding / earth wire to prevent possible
electric shock. If grounding methods are not possible, have a qualified
electrician install a separate circuit breaker. Do not try to ground the
unit by connectingit to telephone wires, lighteningrods, or gaspipes.
Grounding
External Equipment Connections
Antenna Connection
- Antenna or Cable Service with a Cable Box Connections
- For optimum picture quality, adjust antenna direction if needed.
Multi-family Dwellings/Apartments
(Connect to wallantenna socket)
wall antenna
socket
VHF antenna
UHF antenna
outdoor
antenna
Single-family Dwellings /Houses
(Connect to walljack for outdoorantenna)
Be careful notto bend thebronze
wire when connectingthe antenna.

Connection Instructions
You can use your LCD-TV as a monitor for your personal computer using a VGA
cable (not supplied).
PC Setup
Connection and use steps:
1.Read the userguide supplied with
your computer and ensure that it has
a VGAconnector;
2.Make sure that the power of the LCD
-TV and thePC are off;
3.Connect a Dtype 15-pin VGAinterface
cable ( not supplied ) to the VGA video
interface connector on the PC. Then
connect the other end to the VGA video
interface connector on the back of the
LCD-TV.Tighten the screwson the VGA
connectors once they are firmly
connected;
4.Turn on the power ofthe LCD-TV first ,
and then turn on the power of the PC;
5.Press the TV/AV button to set the video
input mode ofthe LCD-TV to PC-RGB;
6.Check the image on your TV. There may be noise associated with the resolution,
vertical pattern, contrast or brightness in PC mode. If noise is present, change
the PC mode to another resolution, change the refresh rate to another rate or
adjust the brightness and contrast on the menu until the picture is clear. If the
refresh rate of the PC graphic card can not be changed,change the PC graphic
card or consult the manufacturer of the PC graphic card.

Connection Instructions
VCR Setup
Connection and use steps:
1.Read the user guide supplied with your AV devices and ensure that it has
Composite or S-Video connectors;
2.Make sure that the power of the LCD-TV and the AV device are off;
.Turn on the power of the LCD-TV first ;
and then turn on the power of the AV
device;
4.Press the TV/AV button to set the video
input mode of the LCD-TV to S-VIDEO
mode or AV mode.
Connection Option 1
Set VCR output switch to 3 or 4 and then
tune TV to the same channel number.
Connection Option 2
1. Connect the audio and video cables from
the VCR's output jacks to the TV input jacks,
as shown in the figure.
When connecting the TV to VCR, match
the jack colors (Video = yellow, Audio
Left = white,and Audio Right = red).
If you connect an S-VIDEO output from
VCR to the S-VIDEO input, the picture
quality is improved; compared to conne-
cting a regular VCR to the Video input.
2. Insert a video tape into the VCR and press
PLAY on the VCR. (Refer to the VCR owner s
manual.)
3
- To avoid picture noise (interference), leave an adequate distance between the
VCR and TV
.

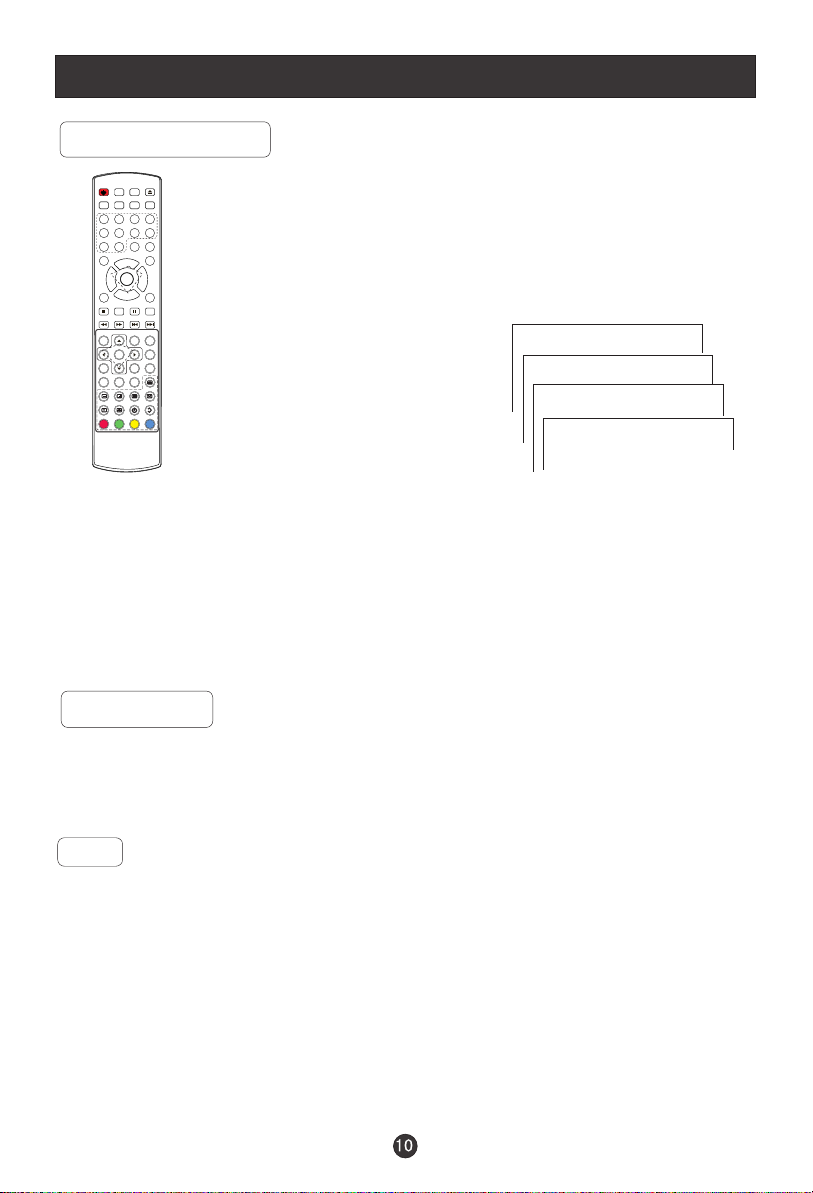

Basic Operating Instructions
Turn on the LCD-TV
Switch on the power button on the back of the set and the TV
will in standby mode. When the POWER button on the remote
control is pressed and the LCD-TV is turned on, the indicator
light on the front of the LCD-TV changes from red to green.
When the LCD-TV is turned off using the POWER button, the
LCD-TVwill go into standby mode and the indicator light turns
red.
Note:
The display of the input mode
will disappear in3 seconds.
Switch AmongDifferent Inputs: TV / COMPONENT/ PC / AV / SV/DVD
Each time you press the TV/AV button, TV, COMPONENT , PC, AV, SV
will appear on the screen in the order.
Each time you press the TV/DVD button, TV, DVD will appear on the
screen in the order.
.Note:
The display of the input mode will disappear in 3 seconds.
Audio Control
1.Press the V+ button to increase the volume. Anumber will appear on
screen indicating the volume level.
2.Press the V- button to decrease the volume. A number will appear on
screen indicating the volume level.
Mute
1.Press the MUTE button to mute the sound temporarily. A mute icon
appears on the screen.
2.Press the MUTE button or V+/V- again to restore the sound.
The mute icon disappears.
POWER ZOOM OPEN/CLOSE
SCAN SWAP CALL MUTE
1234
5678
9900-/---/--
TV/AV
TV/DVD
P+
P-
V- V+
MENU
AUDIO P.STD
STOP SETUP PAUSE/STEP
REV FWD .PREV NEXT
D.MENU REPEAT A-B
PLAY/ENTER SLOW
ANGLE TITLE/PBC SEARCH
SUBTITLE D.CALL
10+
PROGRAM
TUNE
PICTURE SOUND TIME FUNCTION
EXIT

Basic Operating Instructions
Select the TV Channel You Want
You can use the number keys on the remote control to directly select TV
channels.
The LCD-TV can store up to 100 channels , and you can press the keys on the
remote control or on the panel to make a selection.

Menu Operations
Picture Menu Options
1. Press MENU button to display the main menu, and V+/V-to select the
main menu .
2. Press P+/P- to scroll through the parameters
3. Press V+/V- buttons to make changes to the parameters
4. Press the EXIT button to exit the menu
* In thismanual, the OSD (On Screen Display) may be different from your TV s
because it isjust an example to help youwith the TV operation.
Press TV/AV or TV/DVDto select the input source, and the menu inthe different
source is different.
Picture quality can be adjusted for any input separately .
The picture qualityon the screen can be adjusted as follows:
1. Press MENU button and V+/V- until the followingmenu appears
on the screen.
PC/COMPONENT MENU
TV/AV/SV/DVD MENU
BRIGHTNESS
CONTRAST
SHARPNESS
SATURATION
HUE
BRIGHTNESS
CONTRAST
SHARPNESS
COLOR TEMP.
SATURATION
30
Note: Sign ontop of themenu in thismanual may bedifferent from the real
30
30
2
COLD
50
50
2
50
50 Only available inNTSC system
Only available inPC mode
0Only available inCOMPONENT mode

Menu Operations
2. Press P+/P- button to enterthe picture menu and to go up and downto
select the desired option .
3.Press V+/V- button to increase and decrease the level to adjust the
selected option toyour preference .
4. Repeat step 2 and step 3 until desired picture quality has been achieved .
Function:
BRIGHTNESS :Adjust the brightness of the picture . By increasing the level, it
will add more light to dark parts of the picture and by decreasing the level ,it will
add more dark to light parts of the picture.
CONTRAST : Adjust the contrast of the picture . The image becomes higher as
the number increase.
SHARPNESS : Adjust the amount of the detail enhancement , the image
sharpness rises as the number increases (By increasing the level, it will show
cleaner and clearerimages and by decreasing the level, it will makepicture
smoother).
SATURATION : Press V+/V- to adjust the color
HUE :Adjust the tone of the picture . Appearand be adjustedonly under NTSC
mode
COLOR TEMP. : Press to select the color temperature from WARM/NORMAL/
COLD .
Picture Menu Options continued
Audio Menu Options
Sound can beadjusted for any input as follows:
1. Press MENU and V+/V- button until the following menu appears on
the screen
VOLUME
BALANCE
BASS
TREBLE
AUDIO MODE
AVL
AUDIO
50
50
50
50
VOICE
OFF

Menu Operations
Audio Menu Options continued
You can adjust sound options to the levels you prefer.
2. Press P+/P- button to enterthe audio menuand to go up and downto
select the desired option .
3.Press V+/V- button to increase and decrease the level to adjust the
selected option toyour preference .
4. Repeat step2 and step 3 until desired sound quality hasbeen achieved ..
Function :
VOLUME :Adjust the volume of your TV
BALANCE : Adjust the balance of the audio output from left to right . When
indication value of balance increases toward +50 , sound of the left speaker
becomes weaker . When indication value of balance decreases toward -50 ,
sound of the right speaker become weaker .
BASS : Adjust the bass of the sound . Can only be adjust under PERSONAL mode .
TREBLE : Adjust the treble of thesound . Can only be adjustunder PERSONAL
mode .
AUDIO MODE : Press V+/V- to select among PERSONAL, VOICE, MUSIC and
THEATRE .
AVL: Automatic Volume Limit Control reduces the effect of the large volume by
the same volume of all the channels .

Menu Operations
Function Menu Options
Menu Language Selection:
The menus canbe shown on the screen in the selected language.First select
your language.
1.
2. Press P+/P- button to selectLANGUAGE.
3. Press V+/V- button to select your desired language.
From this point on, the on-screen menus will be shown in the language of your
choice.
Press MENU and V+/V- button until the following menu appears on the screen
INPUT SOURCE TV
LANGUAGE ENGLISH
TXT LANGUAGE PAN EUROPEAN
TXT EAST/WEST EAST
DISPLAY MODE 4:3
BLUE SCREEN ON
RESET
FUNCTION
1. Press MENU button and V+/V- until the followingmenu appears
on the screen.
2. Press P+/P- button to enterthe sound menu and to go up and downto
select the desired option .
3.Press V+/V- button to increase and decrease the level to adjust the
selected option toyour preference .
4. Repeat step 2 and step 3 until desired picture quality has been achieved .
Functions:
1. INPUT SOURCE : Displaycurrent mode . There are PC , AV , SV ,TV,
COMPONENT, DVD to display .
Only available in11W series
INPUT SOURCE TV
LANGUAGE ENGLISH
TXT LANGUAGE PAN EUROPEAN
TXT EAST/WEST EAST
DISPLAY MODE 4:3
BLUE SCREEN ON
RESET
FUNCTION
Only available in11W series

Menu Operations
Function Menu Options Continued
2. TXT LANGUAGE: To switch the teletext languages.
3. TXT EAST/WEST: To select EASTor WEST
4. DISPLAY MODE:To select the display mode between4:3 and FULLSCREEN..
5.BLUE SCREEN:To set On, the screen will be in blue screen after 3 seconds
if there is no signal.
6. RESET : Press V+ to reset some settings to the factory default .
Note: The TXT LANGUAGE and TXTEAST/WEST have relation to the inputs.
Adjust Menu Options
1. Press MENU and V+/V- button until the following menu appears on the
screen
ADJUST
AUTO SYNC
PHASE
CLOCK
H POSITION
V POSITION
Note: This menuis only appears in PC mode .
2. Press P+/P- button to enterthe adjust menu and to go up and downto
select the desired option .
3.Press V+/V- button to increase and decrease the level to adjust the
selected option toyour preference .
4. Repeat step2 and step 3 until desiredquality has beenachieved ..
Functions:
AUTO SYNC : Is opted for adjustment of picture locationfrequency and phase
parameters .
PHASE : Removes any horizontal distortion and clears or sharpness the displayed
characters .
CLOCK :Adjust the TFT-LCD to match the PCinput source
H-POSITION : Picture horizontal adjust
V-POSITION : Picture vertical position adjust .
50
50
50
50

Menu Operations
Tuning Menu Options
CHANNEL 1
COLOR SYSTEM AUTO
SOUND SYSTEM DK
SKIP OFF
AFC ON
FINE TUNE
EXCHANGE
MANUAL SEARCH
AUTO SEARCH
1. Press MENU and V+/V- button until the following menu appears on the
screen
Note: This menuis only appears in TV mode .
2. Press P+/P- button to enterthe tuning menu and to go up and downto
select the desired option .
3.Press V+/V- button to increase and decrease the level to adjust the
selected option toyour preference .
4. Repeat step2 and step 3 until desired quality has beenachieved ..
Functions:
1. CHANNEL : Press V+/V- to change the TV channel .
2.COLOR SYSTEM :Select the TV color system from AUTO,PAL,SECAM..
3.SOUND SYSTEM : Select the TV standard systemfrom DK,I,BG
4. SKIP : If you want skip a channel ,press V+/V- to select ON , and this
channel will beskip next time when you press P+/P- . But you can press
digits button toselect the channel . If you want to restore the channel , select
OFF.
5. AFC: Auto frequence control . Select ON toimprove the imagequality .
6. FINE TUNE : If the image received isnot very good , you can press P+/P-
to select FINE TURN item in menu. Then , press V+/V- button to adjust
and improve theimage quality .

Menu Operations
Tuning Menu Options Continued
7. EXCHANGE :Press V+ to display themenu as follows:
Press P+/- to select the item and then V+/- to adjust the channel and V+
to confirm.( For example: pressP+/- to select FROM item, and thenpress
V+/- to adjust thechannel number to 1 and the current channel willchange with
thechannel number changed;then Press P+/- to select TO item,and V+/- to
adjust the channelnumber to 9 and the current channel will notchange; press
P+/- to select EXCHANGE item,and then V+ to confirm. The two channels will
be exchanged)
8. MANUAL SEARCH : PressV+ to start to search the channel . The following menu
will display on the screen:
Press V+/- to select UP or DOWN, and then press MENU to confirm.
(If you select DOWN, the search will search the lower frequency channel and UP
will search the higher frequency channel)
9. AUTO SEARCH :Auto searchand save the channel .Press the V+ button to
start to search the channel and the following menu will appears on the screen:
All channels now playing program will be automatically preset in order .After the
search has finished, the first program number will display on the screen.
Press V+/- to select YES or NO, and menu to confirm.
You could press MENU to stop the search.
NOTE: If you want to search the channels in L or L'system, you need to set the sound
system to L in OSD
FROM : 1
TO : 9
EXCHANGE
EXCHANGE
MANUAL SEARCH?
UP DOWN
AUTO SEARCH?
YES NO
