Haier 21F6D User manual

Digital Curtain
218 Preset Channel
Multiple Picture and Sound Mode
On/Off Timer
Child Lock
Soft Channel Change Function
Personalized Channel Timer Function
DVD Video Component Input Terminals
COLOR TV RECEIVER
OWNER'S MANUAL
21F6D-Slim
Please read this manual carefully before operating
the unit, and keep it for future reference.
MAIN FEATURES

CONTENTS
Warning and cautions....................................................................................1
Basic feature..................................................................................................2
Technical specification...................................................................................2
Preparing for operations................................................................................3
Function buttons and external sockets..........................................................4
AV connections.............................................................................................5
Remote controller guide................................................................................6
Power supply.................................................................................................7
Tuning procedure..........................................................................................7
Picture and audio adjustment function ........................................................11
Time function...............................................................................................14
Setting function ...........................................................................................17
Game...........................................................................................................22
Trouble shooting guide................................................................................23

WARNING AND CAUTIONS
1. When you clean the TV set, please
pull out the power plug from AC outlet.
Or may result in electric shock, fire or
damage to the TV set. Don't clean the
cabinet and the screen with benzene,
petrol and other chemicals.
4. Do not place the TV set near rain
or moisture as it may cause an electric
shock, or the TV set to catch fire. The
TV set must only be
Used in dry indoor
location.
2. In order to prolong the using life of
the TV set, please place it at a well
ventilated location.
5. The back cover must only be
removed by a registered electrical
service person. Removing the back
cover may result in electric shock, fire
or damage to
the TV set.
3. Don't place the TV
set in direct sunlight
or near heat source.
6. If the TV set is not going to be
used for a long time, or there is a
severe thunder & lightening storm, it
is recommended that the TV set be
disconnected from the AC.
Explanation on the display tube
When the picture tube requires cleaning, please disconnect the power and use
a dry soft cotton cloth. Do not use any cleaner or abrasive cloth.
1

2
BASIC FEATURE
TECHNICAL SPECIFICATION
Digital Curtain
218 Preset Channel
Multiple Picture and Sound Modes
On/Off Timer
Child Lock
Soft Channel Change Function
Count
Appointment
DVD Video Component Input Terminals
1.CRT: 21"
2.COLOUR SYSTEM: PAL NTSC3.58/4.43(AV)
3.AUDIO SYSTEM: BG
4.POWER SUPPLY: ~220V 50Hz
5.POWER SUPPLY VOLTAGE RANGE: ~160V -250V 50/60Hz
5.POWER CONSUMPTION: 80W
6.ANTENNA INPUT IMPEDANCE : 75
7.VIDEO INPUT: 1.0Vp-p( 75 )
8.VIDEO OUTPUT: 1.0Vp-p( 75 )
9.AUDIO INPUT: 400Vrms( 40k )
10.AUDIO OUTPUT: 400Vrms( 600k )
11.SOUND OUTPUT POWER: 10W+10W
Supplied accessories:
Infrared remote control handset 1
Battery(AA) 2
Owner s Manual 1
Design and specifications are subject to change without notice.

3
Antenna connection
Connect an antenna to the antenna socket on
the TV set, we recommend using a Cable TV
system for better picture and audio quality.
1.If you use a coaxial cable(75 ),insert the
antenna plug (see figure C) into 75 socket
(see figure A).
2.If you use a twin-lead cable(300 ),please
shape the cable as figure D, and connect the
leads to antenna adapter and then insert the
antenna adapter into the 75 socket (see
figure B).
Power source wire connection
Insert the power plug into AC outlet.
Install and replace batteries of the
remote control unit:
1.Place the remote control unit with the face
down, then open the battery cover of the
unit.
2.Place the two"AA"size batteries, matching
the + and - signs on each battery to the +
and -signs of the battery compartment.
3.Close the cover of the battery compartment.
NOTE:
(1)Don't drop or wet or dismantle the unit.
(2)If you don't intend to use the unit for a
long period or the electricity of the
batteries is used up, remove the batteries
to prevent batteries acid from leaking
into the battery compartment.
(3)Replace the two old batteries at the
same time.
(4)Don't use charge battery (Ni-cd )and
don't mix battery type.
(5)Don't throw your batteries into a fire.
Dispose of your batteries in a required
place.
PREPARING FOR OPERATIONS
Figure A Figure B
Antenna cable
with a plug
Figure C Figure D
Antenna feeder
Antenna adapter
75-300¦¸
Coaxial cable(75 ) twin-lead cable(300 )
Antenna

(5)S-video input
(2)AV input socket
(1)DVD component input
(3)Audio/Video output socket
(4)Antenna socket
(1)Remote sensor: let the remote
controller aim here the set can
receive remote control signal.
(2)Power switch: press the button
to turn on the TV set . Press
the button again to turn off
the TV set.
(3)Power indicator: the indicator
lights in standby status ,the
indicator lights in sleep status.
The indicator glints when you
use remote controller.
(4)Menu button
(5)Program up/down button
(6)Volume up/down button
(7)TV/AV
1.Front Panel
FUNCTION BUTTONS AND EXTERNAL SOCKETS
2.Rear Panel and
Side Panel
(5)
(2) (4)
Remote sensor
Power switch
Power indicator
MENU Volume down/up Program down/upTV/AV
(input select
(3)(1)
4

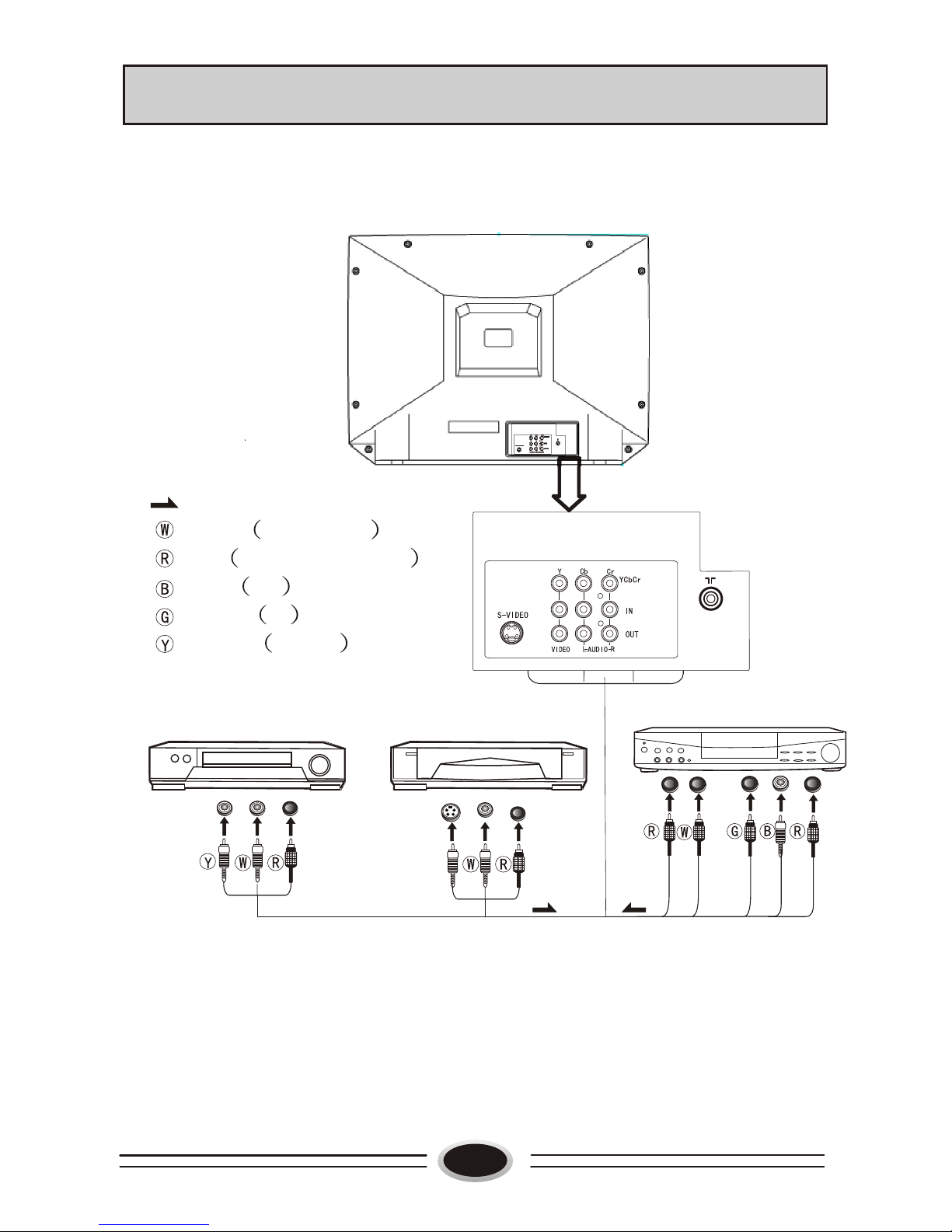

You can connect DVD VCD LD to the TV set to watch the high quality picture.
The connections are as follows:
AV CONNECTIONS
Direction of signal
white left audio
red C /right audio
blue C
green
video
Y
yellow
r
b
DVD(with DVD component)
VCR (without S-VIDEO terminalL)
To audio out
VCR (with S-VIDEO terminal)
To s-videooutput
Toaudio output
To component out
To audioout
To video output
Note:
1.S-VIDEO terminal and VIDEO input terminal can not be used at the same
time.
2.Video2 in the menu is not useful.
5

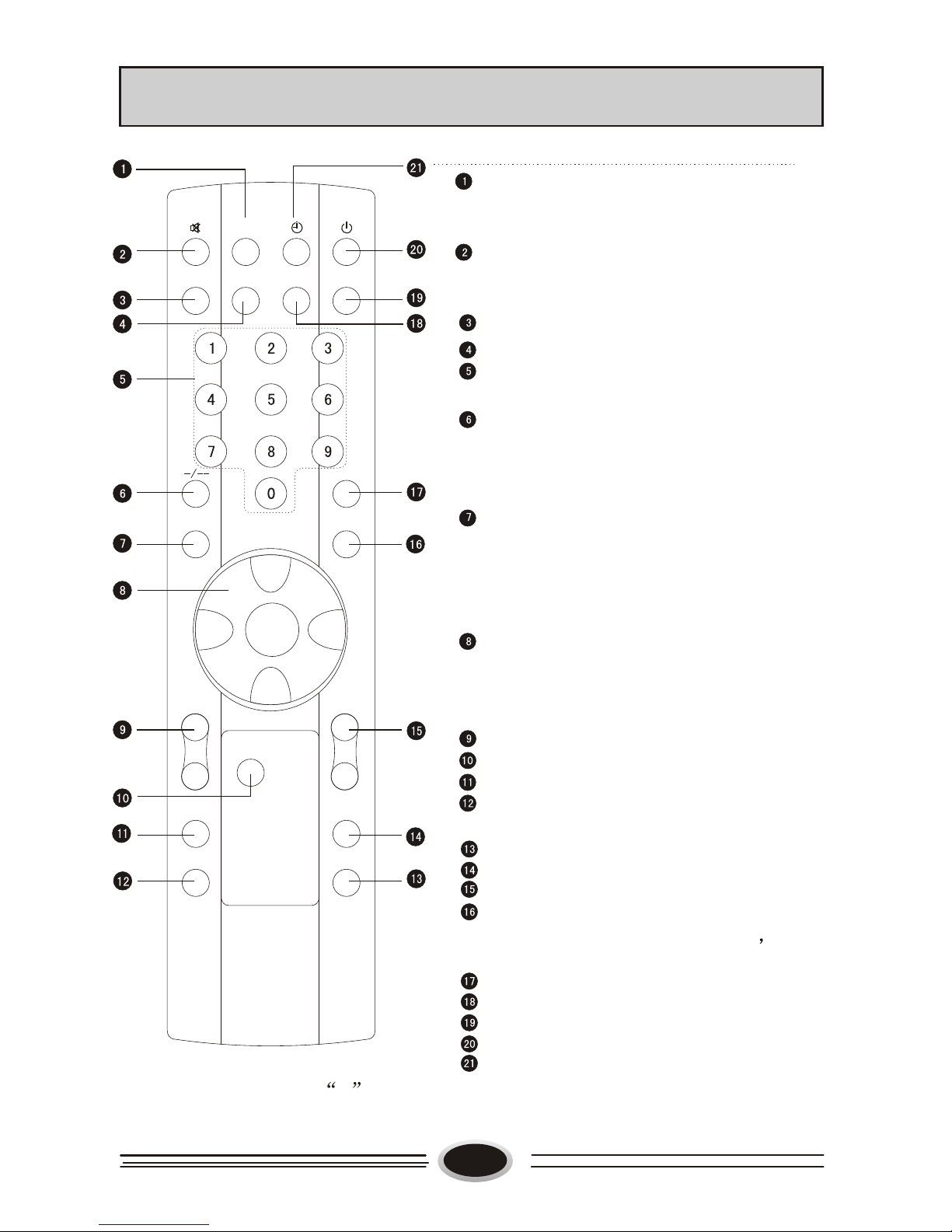

REMOTE CONTROLLER GUIDE
6
Remote controller functions
Intelligent button:
The numeric button 1 has intelligent function,
press it for 6s, then the TV set will search and store
the program automatically.
TV/AV
DISP SYSTEM SCAN
S.STD
P.STD
LOCK
PRE BACK
CALENDAR
LIGHT
EXIT
MODE
TV and AV Exchange Button
To exchanger between TV and
other available video inputs
Mute Button
Press to conceal the sound of
programs.
Screen Display Button
System AdjustButton
Direct-digit Choosing Button
Directly select channel numbers
Lock Setting button
Menu Select/ Adjust Button
Use this button to adjust the menu,
the volume and the channels, as
well as to control the game.
Program Play-forward Button
Calendar
Game Background Select Button
Background Lamp Control Button
(The model no including)
Start/Restart Game Button
Game Exit Button
Program Play-backward Button
Sound Mode Select Button
Include THEATER, NEWS
MUSIC and PERSONAL modes.
Digit Select Button
Change the channel position
number between one digit, two-
digits andthree -digits.
Picture Mode Select Button
There are DYNAMIC, STANDARD,
MILD,MEMORY, PICTURE MUTE
andCOLOR MUTE six modes of
picture.
Program Scan Button
DC Standby Button
Sleep TimerButton
GAME
CH+
CH-
VOL+
VOL- MENU
I/II
Stereo Button

POWER SUPPLY
7
Power supply (switch on/off to set main power supply).
1.Press power switch button to switch on AC power supply. The red power
indicator will light.
2. Press the power switch button on the remote controller to enter normal
receiving condition when the TV set is in standby condition.
There are Auto-search, Semi-Auto search and
Fine tuning method.
Auto-search
1.Press [MENU] button to let TUNING menu display
on the screen, then press [-CH+] buttons to select
AUTO MEMORY.
2. Press [VOL+] button to make the AUTO
MEMORY mode work, the TV set will begin to
search programs from program number 0.
After the search is finished, program number
0 will display on the screen.
Note: During auto-search, if you want to stop
searching, press [VOL-] button.
TUNING PROCEDURE
ASM VL 0
STOP
TUNING
SELECT ADJUST
POSITION 01
BAND V L
SKIP OFF
SEARCH DOWN
MFT UP
AUTO MEMORY
49.87 MHZ
49.87 MHZ

TUNING PROCEDURE
Press [MENU] button to let TUNING menu
display on the screen,
3.Press [-VOL+] buttons to start searching.
Search
1.Press [-CH+] buttons or numeric button (0~9) to
select the channel number you need.
(For example: channel 1).
2.
Then press [-CH+]
buttons to select SEARCH item.
[VOL+] button is to search the program from
low FC. [VOL-] button is to search the program
from high FC. Repeat above procedure until
you find the channel you need.
4.When you intend to memory another channel in
another position, press [-CH+] buttons to select
POSITION, and use [-VOL+] buttons to select a
number you need, then press [-CH+] buttons to
select SEARCH, and repeat forth procedure.
8
TUNING
SELECT ADJUST
POSITION 01
BAND V L
SKIP OFF
SEARCH DOWN
MFT UP
AUTO MEMORY
49.87 MHZ
TUNING
SELECT ADJUST
POSITION 01
BAND V L
SKIP OFF
SEARCH DOWN
MFT UP
AUTO MEMORY
49.87 MHZ
TUNING
SELECT ADJUST
POSITION 01
BAND V L
SKIP OFF
SEARCH DOWN
MFT UP
AUTO MEMORY
49.87 MHZ
