Haier HWD1050AN1 User manual

HWD9050AN1
Washer-dryer
HWD1050AN1
Washer-dryer
NZ AU

Thank You NZ AU
2
Legend
Warning – Important Safety information
General information and tips
Environmental information
Disposal
Help protect the environment and human health. Put
the packaging in applicable containers to recycle it.
Help to recycle waste of electrical and electronic ap-
pliances. Do not dispose appliances marked with this
symbol with the household waste. Return the product
to your local recycling facility or contact your municipal
Thank you for purchasing a Haier Product.
Please read these instructions carefully before using this appliance. The instructions con-
tain important information which will help you get the best out of the appliance and ensure
safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper
use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure
you also pass this manual so that the new owner can become familiar with the appliance
and safety warnings.
WARNING!
of it. Remove the door catch to prevent children and pets to get closed in the appliance.

Content
3
NZ AU
1-Safety information........................................................................................................................... 4
2-Product description......................................................................................................................... 9
3-Control panel
............................................................................................................................... .10
5-Programmes...................................................................................................................................15
6-Consumption..................................................................................................................................16
7-Daily use ...........................................................................................................................................17
8-Eco-friendly washing ....................................................................................................................22
9-Care and cleaning ..........................................................................................................................23
10-Troubleshooting ............................................................................................................................ .26
11-Installation.....................................................................................................................................30
12-Technical data...............................................................................................................................34
13-Customer service........................................................................................................................35

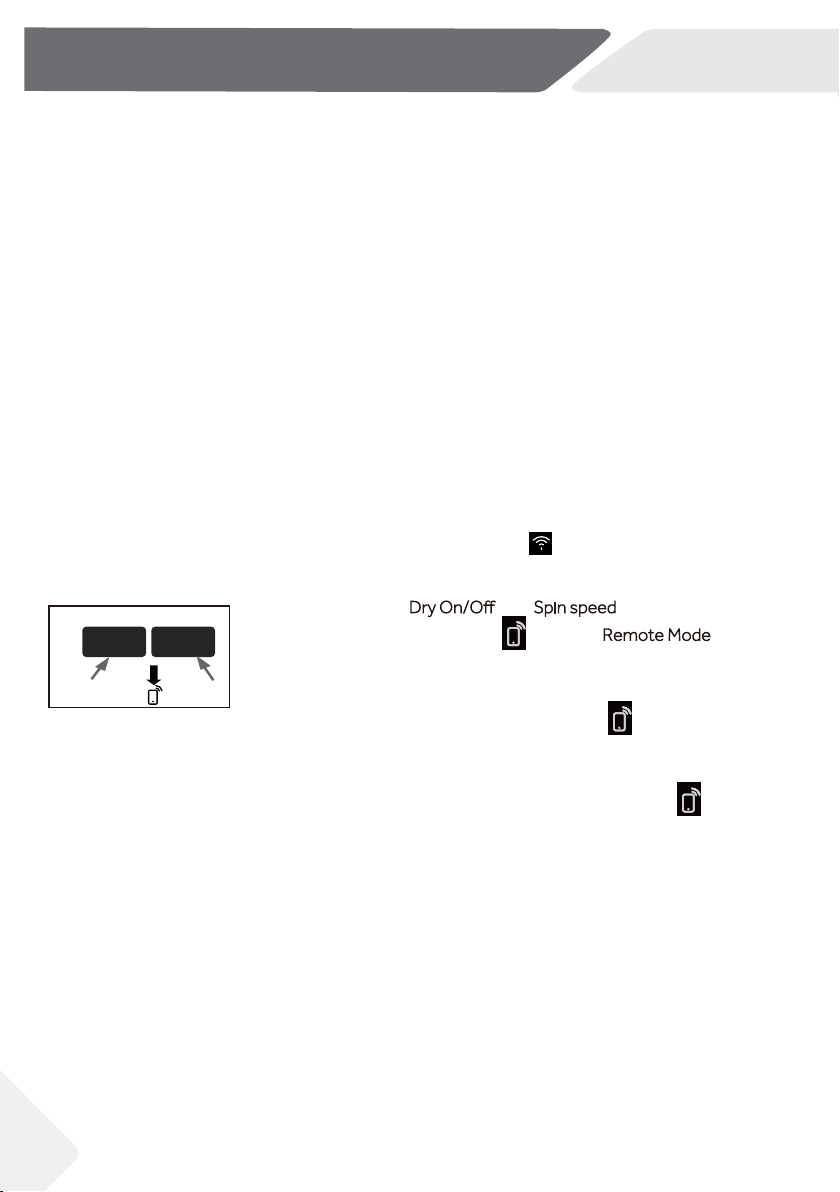

4-Wi-Fi connection & Remote mode
...............................................................................................................................
14

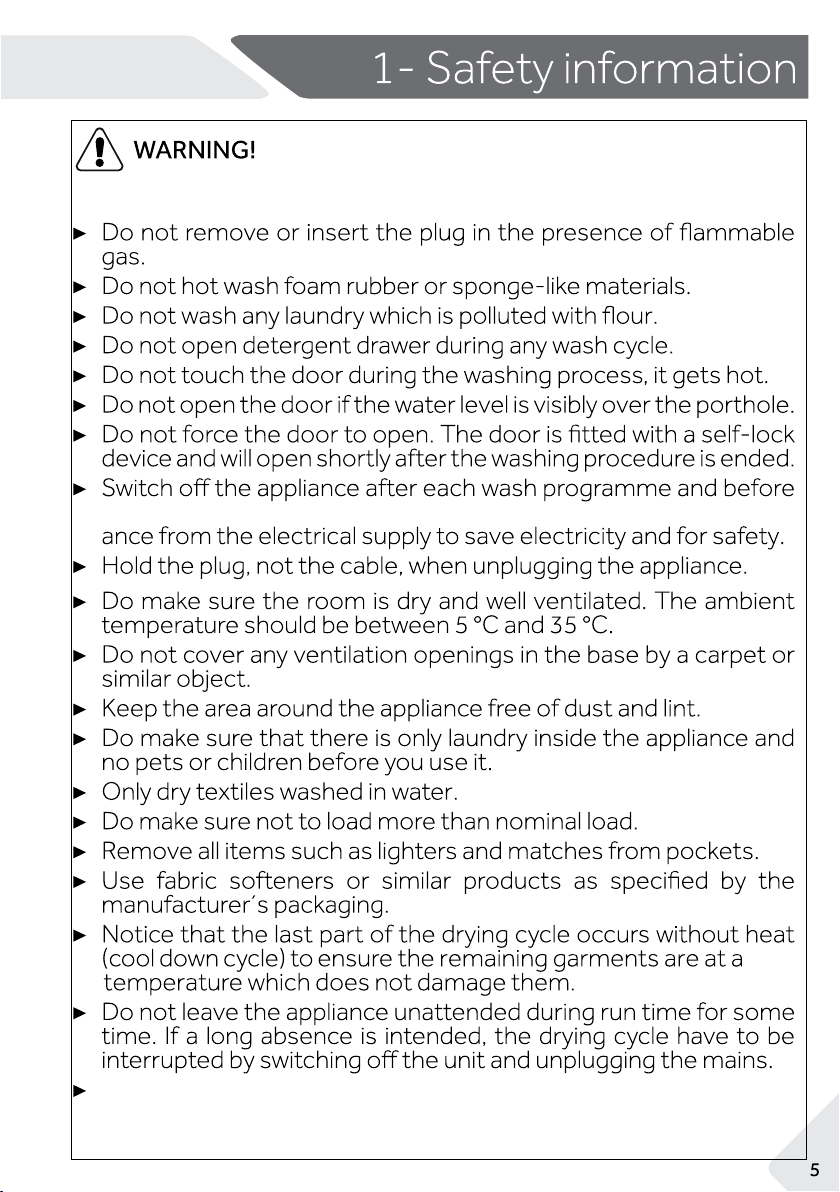

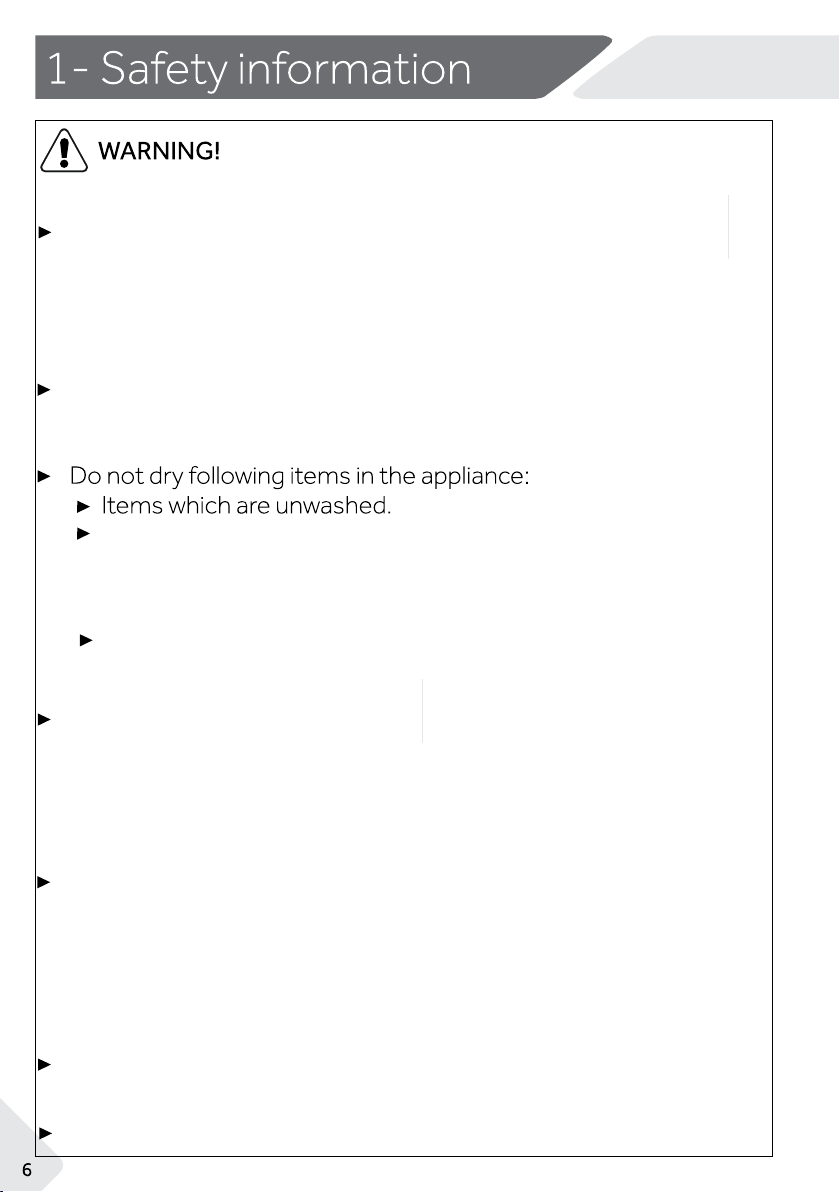

1-Safety information
4
WARNING!
▶Do not operate this machine if it has been damaged during
transport. Contact your dealer or Haier service technician.
▶
Ensure all transport bolts are removed before running the applinace.
▶Remove all packaging and keep out of reach of children.
▶This appliance is heavy, we recommend 2 people to move and
install the appliance.
Daily Use
▶This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they are supervised
or given instructions on how to use the washer by someone
responsible for their safety.
▶
▶Store washing agents out of reach of children.
▶
bag or net.
▶
Do not touch or operate the machine with wet hands or with
bare-feet.
▶
to allow any moisture or dampness to evaporate.
▶Do not place dripping wet clothing on top of the appliance as it
may create an electrical hazard
▶Do not use or store detergent or dry cleaning agent in
close vicinity to the appliance.
▶Do not use any sprays in close vicinity to the appliance.
▶Do not wash any garments treated with solvents in the appliance
without having dried them previously in the air.
NZ AU
Pull up zips, fix loose threads an take care for small item to prevent
laundry from being entangled. If necessary, use an appropriate
Do not cover or encase the appliance during operation or afterwards
Supervise children to ensure they do not play with the appliance or
climb inside the drum.
Before switching on your applinace for the first time, read and save
this guide.
Before First Use
Do not use the appliance if industrial chemicals have been used
for cleaning
▶

NZ AU
undertaking ant routine maintenance and disconnect the appliance
Never stop a tumble dryer before the end of the drying cycle
unless all items are quickly removed and spread out so that the
heat is dissipated.
Daliy Use

NZ AU
Oil-affected items can ignite spontaneously, especially when exposed
to heat sources such as a tumble appliance. The items become warm
causing an oxidation reaction in the oil. This oxidation creates heat. If
the heat cannot escape the items can become hot enough to catch
fire. Piling, stacking or storing oil-affected items can prevent heat from
escaping creating a fire hazard.
Do not overload the appliance beyond its rated capacity
MAXIMUM WASH CAPACITY: 10 (KG)
MAXIMUM DRY CAPACITY: 5 (KG)
*Capacity refers to the maximum dry weight of items the appliance
can dry at any one time
Never stop a tumble clothes appliance before the end of the cool
down/ airing phase of the cycle unless all items are removed and
spread out in order to dissipate the heat.
Items that have been soiled with substances such as cooking oil,
acetone, alcohol, petrol, kerosene, spot removers, turpentine,
waxes and wax removers should be washed in hot water with ab
extra amount of detergent before being dried in the appliance.
Items such as foam rubber (latex foam), shower caps, waterproof
textiles, rubber backed articles and clothes or pillows fitted with
foam rubber pads should not be dried in the appliance.
If it is unavoidable that fabrics that contain vegetable oil, cooking oil or
have been contaminated by hair care products be placed in the
appliance,they should first be washed in hot water with extra
detergent – this will reduce, but not eliminate the fire hazard. The
cool down cycle of the appliance should be used to reduce the
temperature of these items. They should not be removed from the
tumble appliance and piled or stacked while hot.
Fabric softeners, or similar products, should be used as specified
by the fabric softener instructions.
Remove all objects from pockets such as lighters and matches.
Daliy Use

NZ AU
Remove all foreign objects such as metal objects, chemicals, fragile
goods, lighted candles, lighted cigarettes, etc. from the appliance.
Disconnect the appliance from the electrical supply before
un
Keep the lower part of the porthole clean and opendoor and
de
Children should be supervised to ensure they do not play
with the washer dryer.
WARNING: The appliance must not be supplied through an external
switching device, such as a timer, or connected to a circuit that is
regularly switched on and off by a utility.
Install the appliance in a well-ventilated, dust-free environment.
Make sure that the electrical information on the rating plate agrees
with the power supply. If it does not, contact an electrician
(e.g
The appliance must not be installed behind a lockable door, sliding
door, or a door with a hinge on the opposite side to the of the
appliance, in such a way that a full opening of the appliance door
could be restricted
Do not install the appliance in a location where the ambient
temperature drops below 5°C.
Do not install the appliance outdoors, in a damp location, ir in an area
which is prone to water leaks. In the event of a water leak, unplug the
appliance and allow it to dry naturally.

Make sure the hose joints and connections are firm and there is no
leakage
Make sure not to damage the electric cable and the plug. If damaged
have it replaced by an electrician
Install the appliance on a solid and level surface ensuring it has 20mm
clearance on each side. The appliance must not be installed on any
textured floor coverings (eg carpet, rugs).
New hose sets provided with the appliance should be used to connect
the washer to the water mains. Old hose sets should not be re-used.
We recommend the inlet hose(s) are changed every 5 years.
WARNING:
Failure to do so may result in a flood and damage to property.

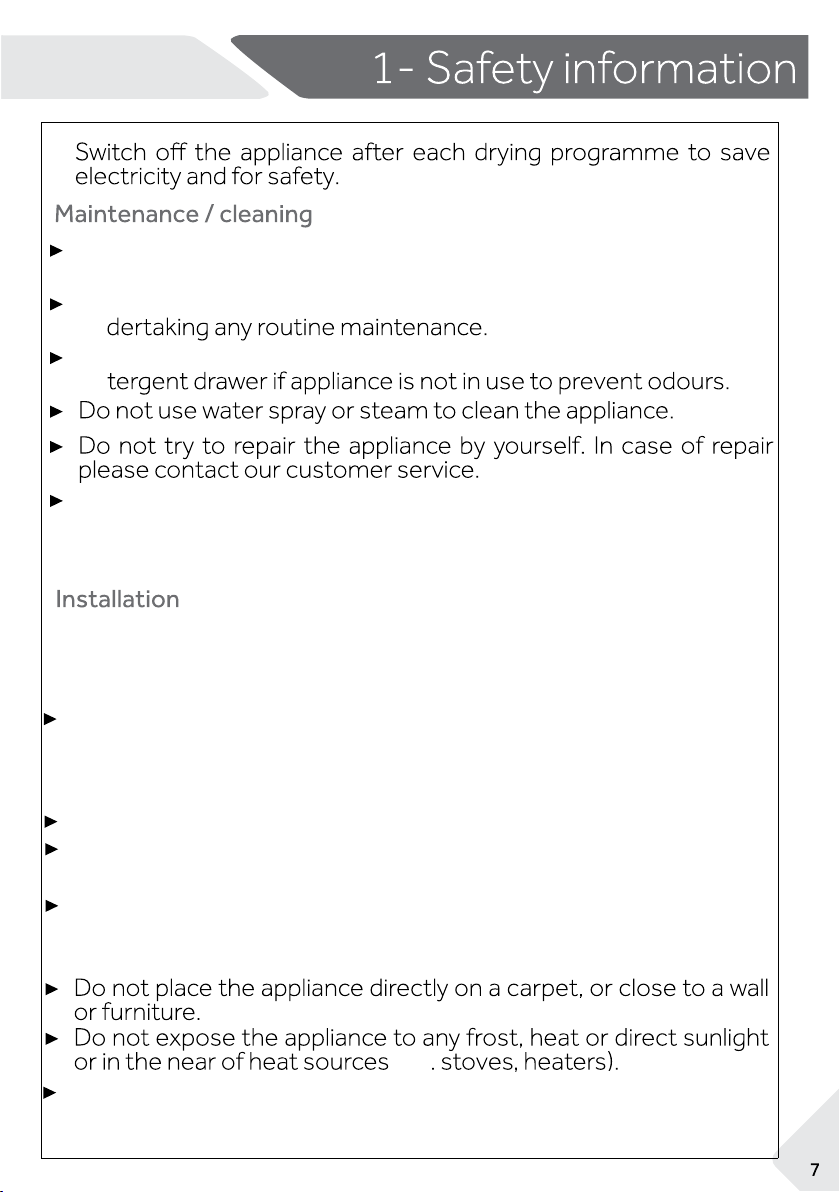

Servicing & Disposal
A damaged electrical cable must be replaced by a Haier service
technician or similarly qualified person. Do not use the appliance until
it has been repaired.
Water supply requirements:
Inlet water pressure: Max. 1MPa (Xpsi), Min. 0.05MPa (Xpsi)
Inlet water flow rate: Min. 0.15 litres/minute
A pressure-reducing valve must be installed if pressure is higher
than 1 MPa.
For optimum wash performance check the supply pressure is
within the recommendedrange.
When disposing of the washer, it is recommended that the door is
removed to avoidchildren getting trapped inside, and that the electrical
cable is cut off close to thewasher.
NZ AU
8

2-Product description
NZ AU
9

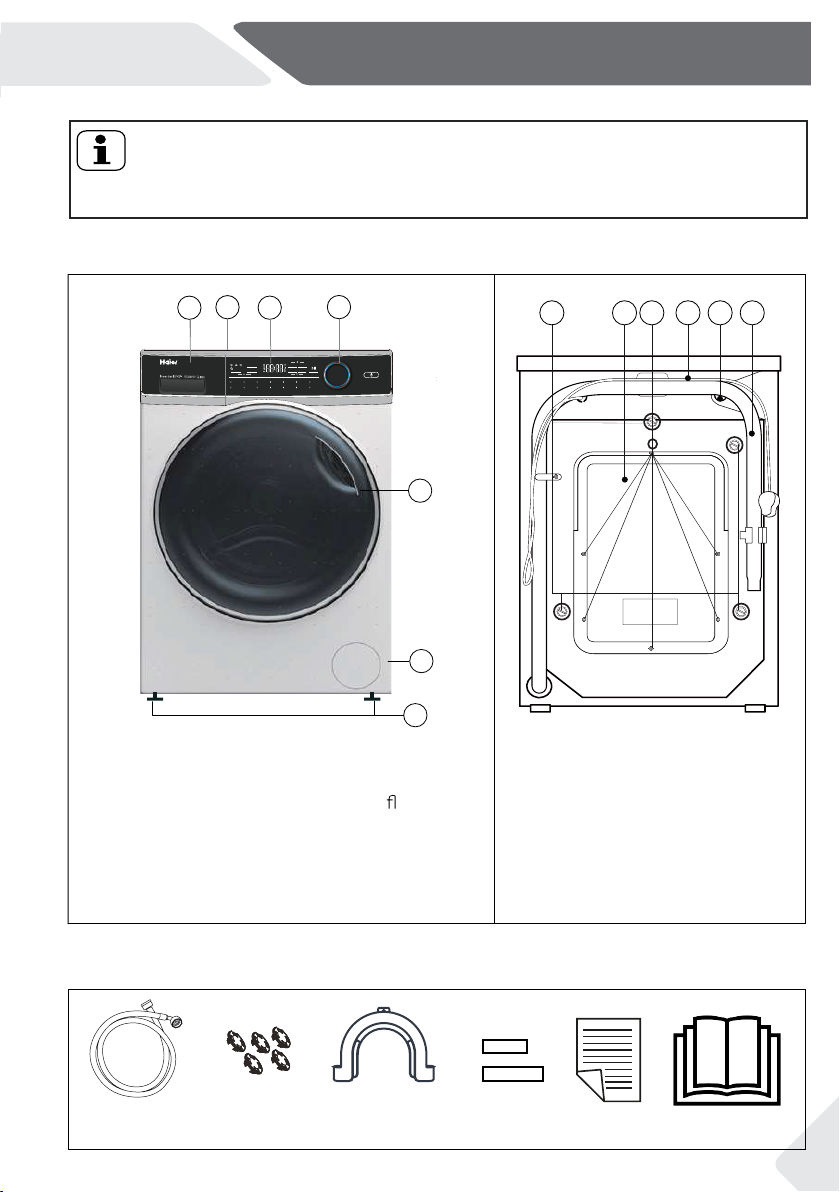

2.1 Picture of appliance
Front (Fig. 2-1): Rear side (Fig. 2-2):
2.2 Accessories
Check the accessories and literature in accordance with this list (Fig. 2-3):
Note:
2-3
1 Detergent /
Softener drawer
2 Work top
3 Programme selector
4 Panel
5 Washer door
6 Service ap
7 Adjustable feet
2-1 2-2
Inlet hose-
assembly 5 Blanking
plugs
Drain hose
bracket User manual
Warranty
card
Noise reduc-
tion pads
2x
2x
7
6
T1 T2
T3
S1
S2 S6
S4
T4
134
265
1 Transportation bolts (T1-T4)
2 Back cover
3 Back cover screws (S1-S6)
4 Power cord
5 Water inlet valve
6 Drain hose
S3 S5
3
14
2
5
Durable
WoolWash
Delicate
Synthetic
Cotton Bulky Allergy
Express15 Rinse& Spin DrumClean Sense Dry Time Dry 30 Care +
Options
SpinSpeed
DryLevel
Temp.
DryOn/Off
SmartDose
UVSanitise
Refresh
Due to technical changes and different models, the illustrations in the following
chapters may differ from your model.

10
3-1
3-2
3-3
3-4
By turning the knob(Fig. 3-3), one of 14 programmes
can be selected, related LED will light up, its default
settings will be displayed.
Touch this button (Fig. 3-2) gently to switch on, the
display is ON, the indicator of the “Start/Pause” button
is flashing. Press to turn the washer ON/OFF. Press
and hold the Power button for five seconds until the
Power is turned on and the APP will be displayed on the
screen to turn on the network function.

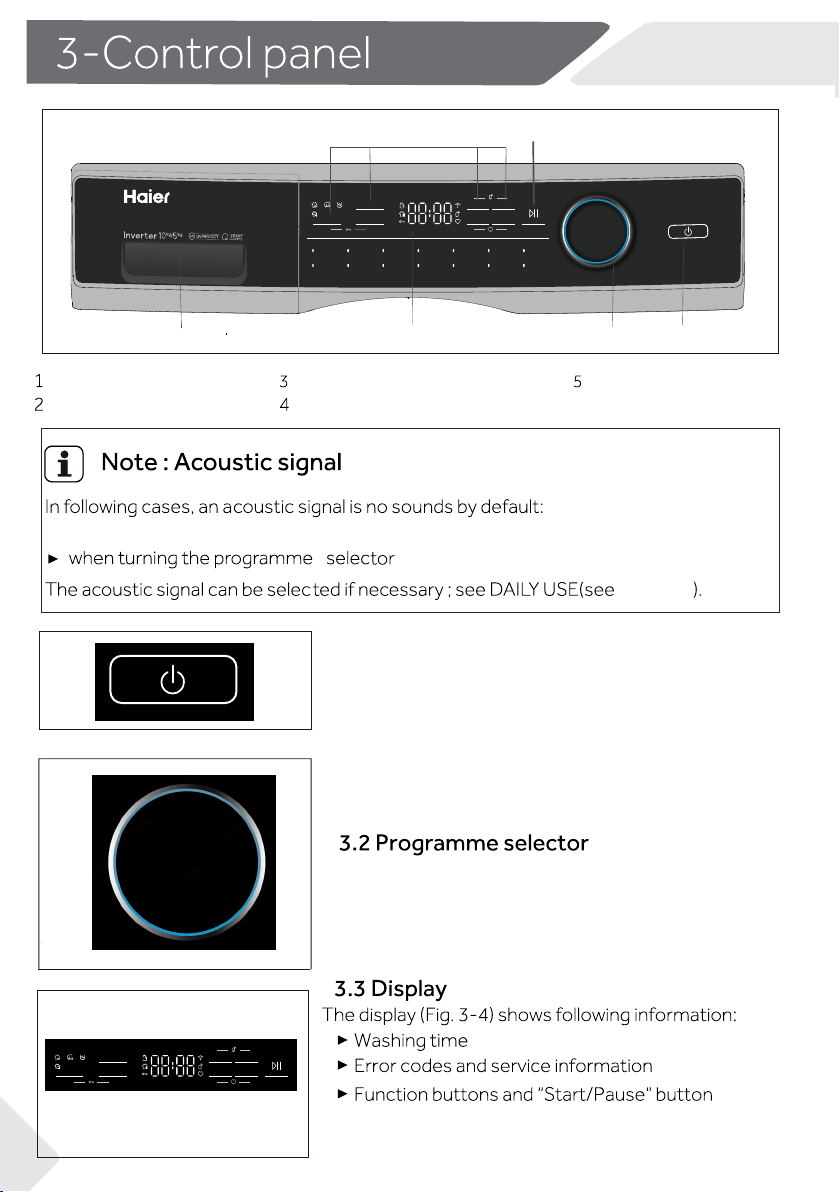

3.1 “Power” button
Eco 40-60
Refresh
Cotton 20°C
Delicate
Dry
Baby Care
Shirt
Quick 15’
Self clean
Wool
1
6
5
432
“Power” button
Programme selector
Display
Detergent /softener drawer
Function buttons
“Start /Pause” button6
Durable
Wool Wash
Delicate
Synthetic
Cotton Bulky Allergy
Express 15 Rinse & Spin Drum Clean Sense Dry Time Dry 30 Care +
Options
Spin Speed
Dry Level
Temp.
Dry On/Off
Smart Dose
UV Sanitise
Refresh
Options
Spin Speed
Dry Level
Temp.
Dry On/Off
Smart Dose
UV Sanitise
P20 7.13
NZ AU

11
3.5.1-Function button “Smart Dose“
Note: Factory settings
settings. If there is no special requirement, default settings are recommended.

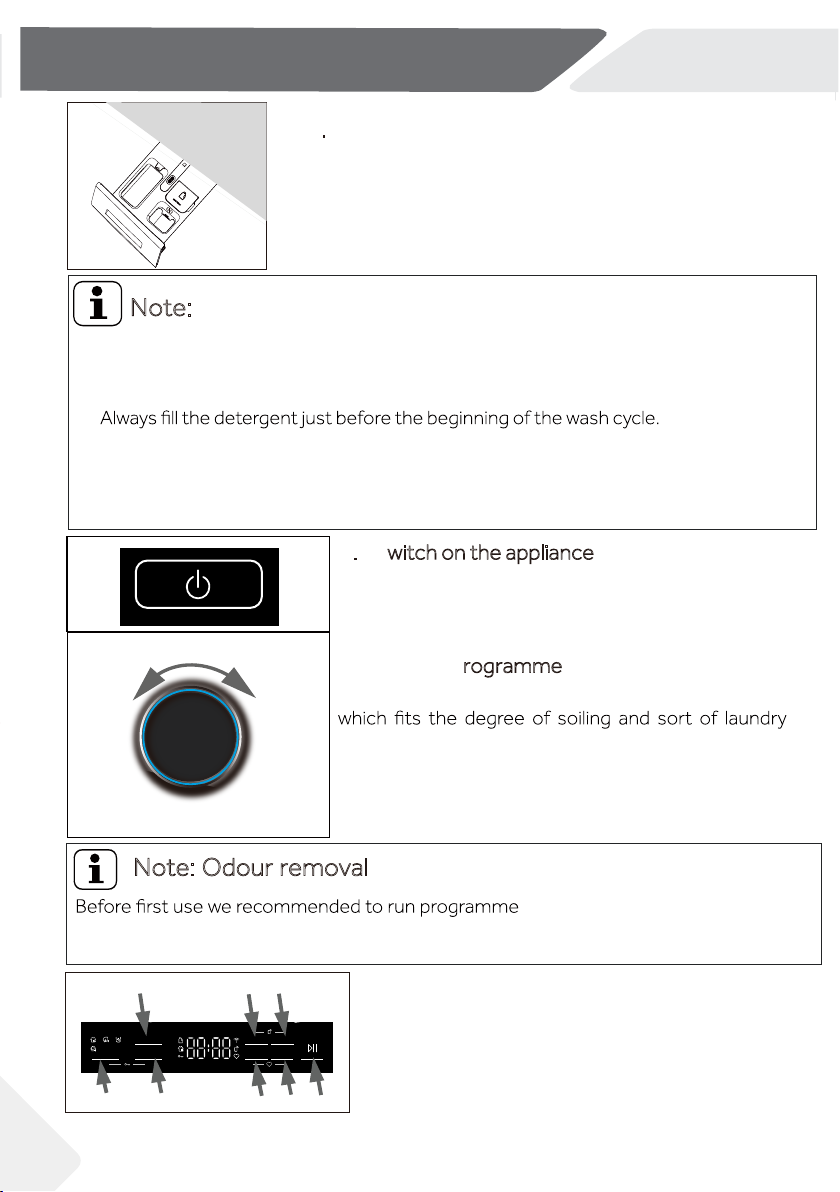

3.4 Detergent drawer
Open dispenser drawer, the following components can
be seen (Fig. 3-5):
1: compartment for powder detergent.
2:compartment for liquid detergent.
This compartment is intended for liquid detergent to be used
with the Smart-dose function. Reservoir capacity is 750ml.
3: compartment for softener.
4: lock tab, press it down to pull out dispenser drawer.
The recommendation on the type of the detergents
is suitable for the various washing temperatures.
Please refer to the manual of detergent.
3-5
3-7
3.5 Function buttons
The related indicators are displayed.
all options are disabled.
If a button has multiple options, the desired option can
be selected by pressing the button sequentially.
By pressing the buttons, the function is selected.
3-6
Wool
3.5.4
3.5.1
3.5.73.5.6
3.5.2
3.5.5
1
2
3
4
Options
Spin Speed
Dry Level
Temp.
Dry On/Off
Smart Dose
UV Sanitise
3.5.3
Smart Dose
Touch this button (Fig. 3-7) gently to select the Smart dose function
for liquid detergent, panel display . If the liquid detergent is not
enough to complete the cycle, will flash every second.
To set up level detergent:
The Smart Dose function dispenses the right amount of detergent for the clothes
according to the weigh and load type. The default setting is”D-3”, which is the average
amount of detergent needed to launder a medium soiled load. There are 3 additional
levels that allow to change the way the washer calculates the volume of liquid detergent;
this enables a personalized experience according to the laundry needs. For lightly soiled
clothes, use level “D-1” or level ”D-2” and for heavily soiled clothes we recommend setting
the washer to level ”D-4”. Similarly, for sensitive skin, we recommend using the lower
setting “D-1”, to minimize possible residual detergent in the clothes.
To change the Smart Dose setting: Press the “Smart Dose” button for 3s to enter the
program setting mode. The program indicator light will turn on and the default position
“D-3” will be displayed. Rotate the knob to switch between levels and select the desired
setting. Press the “Smart Dose” button again to save the selection and exit the mode.
Note: Liquid detergent
If using liquid detergent, it is not recommended to adding more than 750ml.
The function buttons(Fig. 3-6) enable additional options
in the selected programme before the programme starts.
By switching off the appliance or setting up a new programme,
NZ AU

12
3.5.2 Function button“Dry On/Off “
Knob is in the "Dry+Wash" area, Perform default settings;
Touch "Dry On/Off " button (Fig. 3-10),dry function will be
switched off and only perform wash function.
3.5.3 “Spin Speed” button
Touch this button (Fig. 3-11) to change the spin speed
of the programme. If “ ” is selected, the laundry will
not spin.
3-10
3-11
Dry On/Off
Spin Speed
Options
3-12
3.5.4 “Options“ button
Touch this button (Fig. 3-12) to choose special functions
for programmes. The symbols are explained as follow:
Speed up
ECO
Soak
This function reduces washing time.Use for light soiled items.
Avaliable for the following cycles: Cotton, Synthetic, Delicate,
Durable,Bulky, Care +.
Use the ECO option to save water and energy. The cycles
of this function available for is the same as Speed up.
Use
the Soak option to
add deep cleaning soak for
your mixed
daily loads in a normal wash action.
Use the Extra Rinse to rinse the laundry more
intense with fresh water. This is recommended for people
with sensitive skin.
Extra Rinse
UV Sanitise
3-13
3.5.5 “UV Sanitise”button
Touch this button (Fig. 3-13) , the ultraviolet light turns on during
wash and rinses. UV Sanitisation is by default ON in the Allergy
programme.
Temp.
3-14
3.5.6 “Temp”button
Press this button (Fig. 3-14) to change the washing
temperature of the programme. If no value is illuminated
(the display“--°C”) the water will not be heated.
Dry Level
3-15
Press this button (Fig.3-15) to change or deselect the dry level of the
programme according to the needs.
L1 :Press Dry level button, the display L1,it means that clothes
will be good for ironing after drying.
L2 (Default):Press Dry level button, the display L2,it means that
clothes can be directly worn after drying.
L3 :Press Dry level button, the display L3,it means that clothes
can be stored directly after drying.
3.5.7 “Dry Level”button
NZ AU

13
3.8 Favourite
Choose a program and the desirable modifiers, then start
the cycle. Press “Temp.” and “Dry Level” (Fig. 3-19) for 3
seconds simultaneously to save personalised options for
available programme, panel displays . For restoring the
default parameters for all programmes please select
Express 15 programme and then touch button “Smart Dose”,
”Temp.” and “Dry Level” for 3 seconds simultaneausly, the display
shows (Fig. 3-20).
3-19
3-20
3.7 “ Key lock”
Choosing a programme and then start, press button“ Options”
and ”UV Sanitise” ( Fig .3-17) for 3 seconds simultaneously
to block all panel elements against activation,panel display .
For unlocking please press again the two buttons.The Key
lock indicator lights up when the Key lock works. Feature
is optional when the machine is running.
The display shows   (Fig. 3-18) if a button will be
pressed, when the Key lock is activated. The change
is not running.
3-17
3-18
3.6 “Start/Pause“ button
Press this button (Fig. 3-16) gently to start or inter-
rupt the current programme. During pro gramme
setting and during programme run the LED above the
button is shining, or if interrupted blinking.
3-16
This function drying time can not be selected 30,60,90,120.
3-18
3.9 Add clothes halfway
When the program is running, long press the start/stop button
for 3S, the "Add" will be displayed, and the door will open if the
conditions are met 
”Cotton”, “synthetics” ,”Delicate”, “Durable”, “Bulky”, “ Allergy ”After
selecting these six blue programs, the default drying function is selected.
If you don't need it, touch the “Dry On/Off” function key to cancel.Do only
wash cycles.
”Refresh”, “Express 15” ,”Wool Wash”, “Rinse & Spin”, “Drum Clean”only
wash cycles are supported. “Sense Dry”, “Time Dry 30” , only dry cycles
are supported.
Select “care+” program drying function to start by default, press
Dry function key to cancel.
3.10 Program introduction
3-19
Durable
Wool Wash
Delicate
Synthetic
Cotton Bulky Allergy
Express 15 Rinse & Spin Drum Clean SenseDry Time Dry 30 Care +
Options
Spin Speed
Dry Level
Temp.
Dry On/Off
Smart Dose
UV Sanitise
Refresh
NZ AU

4-Wi-Fi connection & Remote mode
14
Your appliance can be connected to your home wireless network and operated remotely using the app.
Getting started
Ensure your home Wi-Fi network is turned on.
You will be given step by step guidance on both your appliance and mobile device.
It may take up to 10 minutes to connect your appliance.
On your mobile device:
1. Your product is Wi-Fi connectable. Please visit the webpage below to download the app and find out more:
Australia https://www.haier.com.au/smart
New Zealand https://www.haier.co.nz/smart
2. Register and create an account.
3. Add your appliance and set up the Wi-Fi connection
Connecting to your home Wi-Fi
When your machine is connected to Wi-Fi successfully, the icon lights up.
4-1
Dry On/Off Spin Speed
1. Press and hold Dry On/Off f and Spin speed combination keys for
three seconds and the icon lights up. Remote Mode
is now enabled certain functions that your washer can now
be accessed via the app . For disabling remote mode please
touch again the two buttons, and the icon goes out .
2. When turning off the washer, the Remote Mode will be automatically released. When the
washer runs the programme in Remote Mode via app, the Remote Mode indicator flashes
every second.
NZ AU
4-Wi-Fi connection & Remote mode

NZ AU 5-Programmes
15
Water is not heated up.
*
1)Choose 90°C wash temperature only for special hygienic requirements.
2) Reduce detergent amount because programme duration is short.
3)Liquid Detergent only be used for smart dose.
4)After using the Refresh program, clothes need to be dried because they are using steam to remove
odors.Make sure the water pressure is up to standard and don't add washing powder or detergent.
Max. load Temperature Preset
spin
speed
in rpm
Function
in °C 1)
Preset
Smart Dose
UV Sanitise
Programme selectable
range 1 2
Fabrics type
Dry level
HWD1050AN1
Yes, º
Optional, / No
Cotton
10 5
3
5
/
5
* to 90 20 Cotton 1400
Synthetic or mixed
fabric 1400
Synthetics * to 60 30
10
* to 90 30
Delicate laundry and
silk
1400
10 Durable
Bulky
1000
/
/
Cotton / Synthetic
// / / /
Cotton / Synthetic
Rinse & Spin
Delicate
2.5
600
* to 30 30
1000
1
Machine-washable
fabric made of wool
or with wool content
Wool Wash 800 /
5
Time Dry 30
Sense Dry
10
Non-fragile fabric
/
/
/
/
/
1.5
Cotton / Synthetic
5
10
* to 60 40
Cotton / Synthetic
1000
4) //
//
1 Refresh / / /
Cotton / Synthetic
/
/
2)
Cotton / Synthetic
1 * to 40 *
Express 15
* to 40 *
/
/
/
/// / / / /
/
Care + 1400
Cotton / Synthetic
/
/
/
3
/
/
* to 90 40
5
/
Temp.
/
/
/
3)
Detergent compartment for:
1
2
Powder Detergent
Liquid Detergent
Softener or care product
1
2
3
3
Options
Allergy
5
10
* to 90 60
Towel
1400
Drum Clean
/
/
/
/Non-fragile fabric /
/
/
/
/
/
/
/
/
/
/
3
5)

NZ AU
6-Consumption
16
Note: Auto Weight
The appliance is equipped with a loading recognition. At low loading, energy, water and
washing time will be reduced automatically in some progr ammes. The display shows“ ”.
Check the energy label for energy consumption information.
The actual energy consumption may differ from the declared one according to local
conditions.
General information and tips:
Standard programme for the Energy and Water Labelling according to AS/N ZS
2040.2
Detergent dissolvent method: Dissolve the detergengt first and pour the dissolved
detergent into the machine when the main wash starts. The washing operation starts
at the end of the first water filling.
The warm wash eco cycle (Cotton, Dry :Off and Smart Dose :Off ,40℃,1400rpm , others
are default setting. ) is the recommended cycle for a normally soiled load equal to the
rated load capacity (10kg). Actual water temperature may differ from declared cycle
temperature.
Cotton, Dry :Off , Smart Dose :Off ,40℃,1400rpm, others are default setting.
When using standard program washing ,please use 80％standard detergent
Standard programme for the Energy saving cycle for drying labelling according to
AS/NZS 2442.1
Sense Dry , 1400rpm, Dry Level: L3, others are default setting.

17

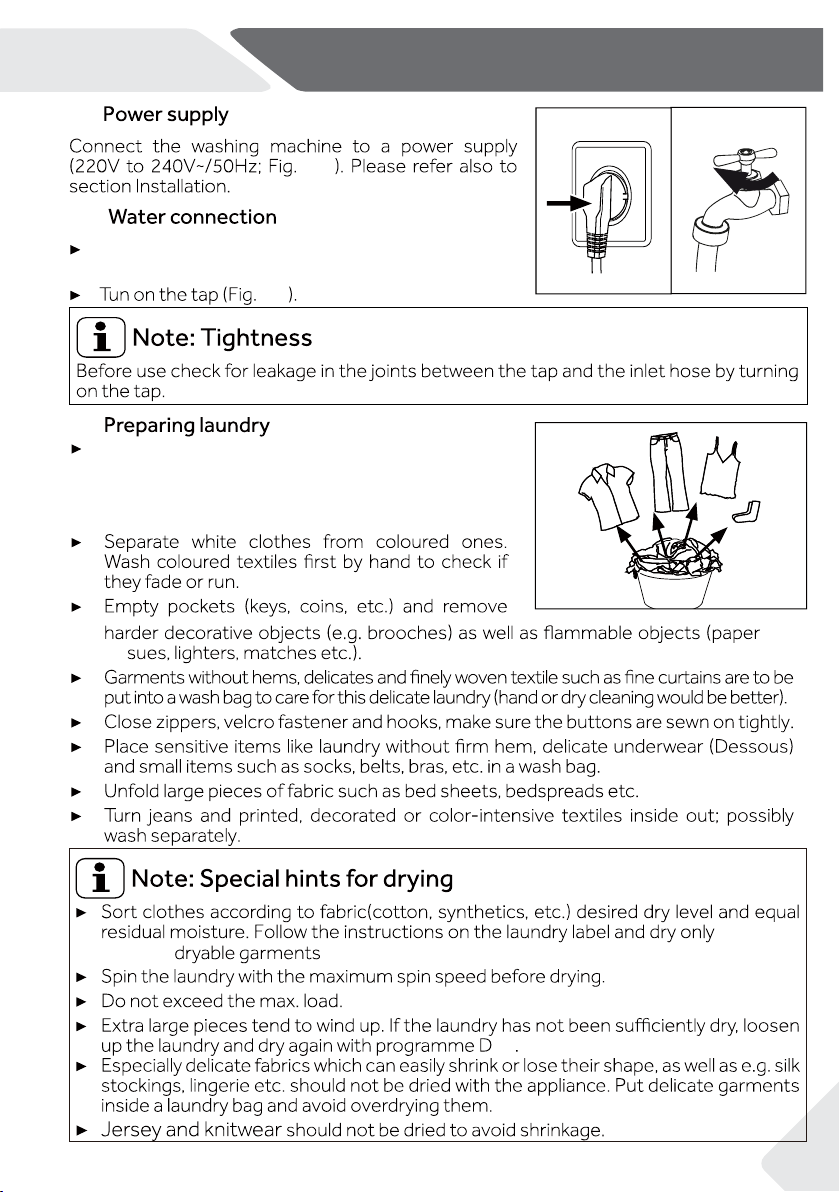

NZ AU 7-Daily use
ry
7-1 7-2
7.1.
7.2.
7.3. 7-3
7-2
7-1
Before connecting check the cleanliness and clarity
of the water inlet.
Sort out clothes according to fabric （cotton,synthetics,
wool or silk etc.）and how to dirty they are (Fig.7-3).
Pay attention to the care labelling of washing labels.
tis
machine

18
NZ AU
7-Daily use
Care chart
Washing
Washable up to 95°C
normal process
Washable up to 60°C
normal process
Washable up to 60°C
mild process
Washable up to 40°C
normal process
Washable up to 40°C
mild process
Washable up to 40°C
very mild process
Washable up to 30°C
normal process
Washable up to 30°C
mild process
Washable up to 30°C
very mild process
Wash by hand
max. 40°C
Do not wash
Bleaching
Any bleaching allowed Only oxygen/
non-chlorine
Do not bleach
Drying
Tumbledryingpossible
normal temperature
Tumbledryingpossible
lower temperature
Do not tumble dry
Line drying Flat drying
Ironing
Iron at a maximum
temperature
up to 200 °C
Iron at a medial tem-
perature
up to 150°C
Iron at a low temper-
ature up to 110 °C;
without steam (steam
ironing may cause irre-
versible damage)
Do not iron
Professional Textile Care
Dry cleaning in tetra-
chloroethene
Dry cleaning in hy-
drocarbons
Do not dry clean
Professional wet clean Do not professional
wet clean
7.4 Loading the appliance
▶Put in the laundry piece by piece.
▶
thumb for maximum load: Keep six inches between load and drum top.
▶Close the door carefully. Make sure that no pieces of laundry are pinched.

19
NZ AU 7-Daily use
7.5 Selecting detergent
▶
▶Use only machine wash approved detergent.
▶
▶See tips for countertop detergent stickers.
.
▶Do not use dry cleaning agents such as trichloroethylene and similar products.
Choose the best detergent
Programme
Kind of detergent
Universal Colour Delicate Special Softener
Cotton L/P L/P - -
Synthetics --
L/P -
Bulky P L/P - o
o
Refresh - -
- L - -
- -
- - -
L/P - -
Care +
Wool Wash
- - L/P L/P
Sense Dry - - -
Rinse & Spin - - - -
L = gel-/liquid detergent P = powder detergent O = optional _= no
If using liquid detergent, it is not recommended to activate the time delay.
We recomment by using:
▶Laundry powder: 20°C to 90°C* (best use: 40-60°C)
▶Color detergent: 20°C to 60°C (best use: 30-60°C)
▶Wool/delicate detergent: 20°C to 30°C (best use: 20-30°C)
* Choose 90 °C wash temperature only for special hygienic requirements.
If you choose the water temperature 60°C or above, we would like to advise you to use
less detergent. Please kindly use the special disinfectant, which is suitable for cotton or
synthetic cloth.
*
* It is better to use less or free suds detergent powder.
-
L/P
Delicate
Express 15′
- -
Time Dry 30
- L/P o
Durable
- -
L/P L/P
- -
Allergy
Drum Clean
- -
L/P L/P
-
- - -
L/P
o
o
o
o
o
o
o
o
L-

20
NZ AU
7-Daily use
7.7 Switch on the appliance
7.6 Add detergent
1. Slide out the detergent drawer.
2. Put the required chemicals into corresponding
compartments (Fig. 7-4),
3. Push back the drawer gently.
Note:
▶Remove detergent residues before next wash cycle from the detergent drawer.
▶Do not overuse detergent or softener.
▶Please follow the instruction on the detergent package.
▶
▶Concentrated liquid detergent should be diluted before adding.
▶Do not use liquid detergent if function “Delay“ is selected.
▶
7.8 Select a programme
To get the best washing results, select a programme
type.
Turn the programme knob (Fig. 7-6) to select the right
programme. Related programme LED lights up and
the default settings are displayed.
7-5
7-6
Note: Odour removal
amount of detergent in washing agent compartment (2)
or special
“Cotton+90° C+600rpm”
cleaner to remove possib
machine ly corruptive residues.
7-7
Touch the “Power” button to switch on the appliance
(Fig.7-5). The LED of the “Start/Pause” button is
flashing.
with no load and small
7.9 Add individual selections
Select required options and settings (Fig. 7-7); refer to
Control Panel.
7-4
Options
Spin Speed
Dry Level
Temp.
Dry On/Off
Smart Dose
UV Sanitise
Carefully choose the programme settings according to the care symbols on all laundry
labels and according to the programme table
