Haier HWD100-BP14636N User manual

EN
User manual
●
Washer-dryer
HWD100-BP14636N
●

Thank You EN
2
Legend
●
General information and tips
Environmental information
Disposal
●
Help
●
protect the environment and human health. Put
the packaging in applicable containers to recycle it.
Help to recycle waste of electrical and electronic ap-
pliances. Do not dispose appliances marked with this
symbol with the household waste. Return the product
to your local recycling facility or contact your municipal
Thank you for purchasing a Haier Product.
Please read these instructions carefully before using this appliance. The instructions con-
tain important information which will help you get the best out of the appliance and ensure
safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper
use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure
you also pass this manual so that the new owner can become familiar with the appliance
and safety warnings.
WARNING!
●
of it. Remove the door
●
catch to prevent children and pets to get closed in the appliance.
The appliance must not be supplied through an external switching device, such as a ti-
WARNING!
W arning-Important S afety information

EN Content
3
1- Safety information ........................................................................................................................... 4
2- Productdescription .........................................................................................................................8
3- Control panel ..................................................................................................................................... 9
4- Programmes ...................................................................................................................................13
5- Consumption
●
..................................................................................................................................14
6- Daily use ...........................................................................................................................................15
7- Eco-friendly use .............................................................................................................................20
8- Care and cleaning ..........................................................................................................................21
9- Troubleshooting
●
.............................................................................................................................24
10- Installation .....................................................................................................................................28
11- Technical data ..............................................................................................................................32
12- Customer servi
●
ce ........................................................................................................................33

1- Safety information EN
4
-
ing safety hints:
WARNING!
Make sure there is no transport damage.
Make sure all transport bolts are removed.
●
Remove all packaging and keep out of children´s reach.
Handle the appliance always with at least two persons because it
is heavy.
Daily use
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental ca-
pabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
● Keep away children under 3 years of age from the appliance un-
less they are constantly supervised.
Children shall not play with the appliance.
Do not let children or pets come close to the appliance when the
door is open.
Store washing agents out of reach of children.
● -
●
vent laundry from being entangled. If necessary, use an appropri
●
-
ate bag or net.
Do not touch or use the appliance when barefoot or with wet or
damp hands or feet.
Do not cover or encase the appliance during operation or after-
wards to allow any moisture or dampness to evaporate.
Do not place heavy objects or sources of heat or damp on top of
the appliance.
Do not wash any garments treated with solvents in the appliance
without having dried them previously in the air.

EN 1- Safety information
5
WARNING!
Daily use
gas.
Do not hot wash foam rubber or sponge-like materials.
Do not open detergent drawer during any wash cycle.
● Do not touch the door during the washing process, it gets hot.
Do not open the door if the water level is visibly over the porthole.
device and will open shortly after the washing procedure is ended.
undertaking any routine maintenance and disconnect the appli-
ance from the electrical supply to save electricity and for safety.
Hold the plug, not the cable, when unplugging the appliance.
Do make sure the room is dry and well ventilated. The ambient
●
temperature should be between 5 °C and 35 °C.
Do not cover any ventilation openings in the base by a carpet or
similar object.
Keep the area around the appliance free of dust and lint.
●
Do make sure that there is only laundry inside the appliance and
●
no pets or children before you use it.
Only dry textiles washed in water.
● Do make sure not to load more than nominal load.
Remove all items such as lighters and matches from pockets.
manufacturer´s packaging.
Notice that the last part of the drying cycle occurs without heat
(cool down cycle) to ensure remaining the garments at a temper-
ature which does not damage them.
Do not leave the appliance unattended during run time for some
time. If a long absence is intended, the drying cycle have to be
unless all items are quickly removed and spread out that the heat
can be released.

1- Safety information EN
6
WARNING!
Daily use
Do not dry following items in the appliance:
Items which are unwashed.
-
stances such as cooking oil, acetone, alcohol, benzine, petrol,
●
kerosene, spot removers, turpentine, waxes, wax removers
-
ter with an extra amount of detergent and then be dried in the
open air before drying in the appliance.
Items which contain a large proportion of rubber, foam rubber
(latex foam) or rubber like materials such as shower caps, wa-
terproof textiles, rubberised articles and items of clothing and
electricity and for safety.
●
Maintenance / cleaning
●
Make sure children are supervised if they carry out cleaning and
●
maintenance.
●
Disconnect the appliance from the electrical supply before un-
dertaking any routine maintenance.
Keep the lower part of the porthole clean and open door and de-
tergent drawer if appliance is not in use to prevent odours.
Do not use water spray or steam to clean the appliance.
Replace a damaged supply cord only by the manufacturer, its ser-
Do not try to repair the appliance by yourself. In case of repair
please contact our customer service.

EN 1- Safety information
7
Installation
Ensure a location which allows opening the door fully. Do not in-
stall the appliance behind a lockable door, a sliding door or a door
with hinges on the opposite side of the appliance door as this lim-
its the full opening of the appliance door.
The appliance should be placed in a well-ventilated place. Ensure
a location which allows opening the door fully.
Never install the appliance outdoors in a damp place, or in an area
●
which may be prone to water leaks such as under or near a sink
unit. In the event of a water leak cut power supply and allow the
machine to dry naturally.
Install or use the appliance only where the temperature is above 5 °C.
Do not place the appliance directly on a carpet, or close to a wall
or furniture.
Do not expose the appliance to any frost, heat or direct sunlight
or in the near of heat sources(e.g. stoves, heaters).
Make sure that the electrical information on the rating plate
agrees with the power supply. If it does not, contact an electri
●
-
cian.
Do not use multi-plug adapters and extension cables.
Make sure only the delivered electric cable and hose set are used.
Make sure not to damage the electric cable and the plug. If dam
●
-
aged have it replaced by an electrician.
●
Use a separate earthed socket for the power supply which is easy
●
accessible after installation. The appliance must be earthed.
Only for UK:
-
pliance is installed, the plug should be accessible.
no leakage.
Intended use
This appliance is intended for washing and drying machine-washable
each garment label. It is designed exclusively for domestic use inside
the house. It is not intended for commercial or industrial use.
use may cause hazards and loss of of all warranty and liability claims.

2- Product description EN
8

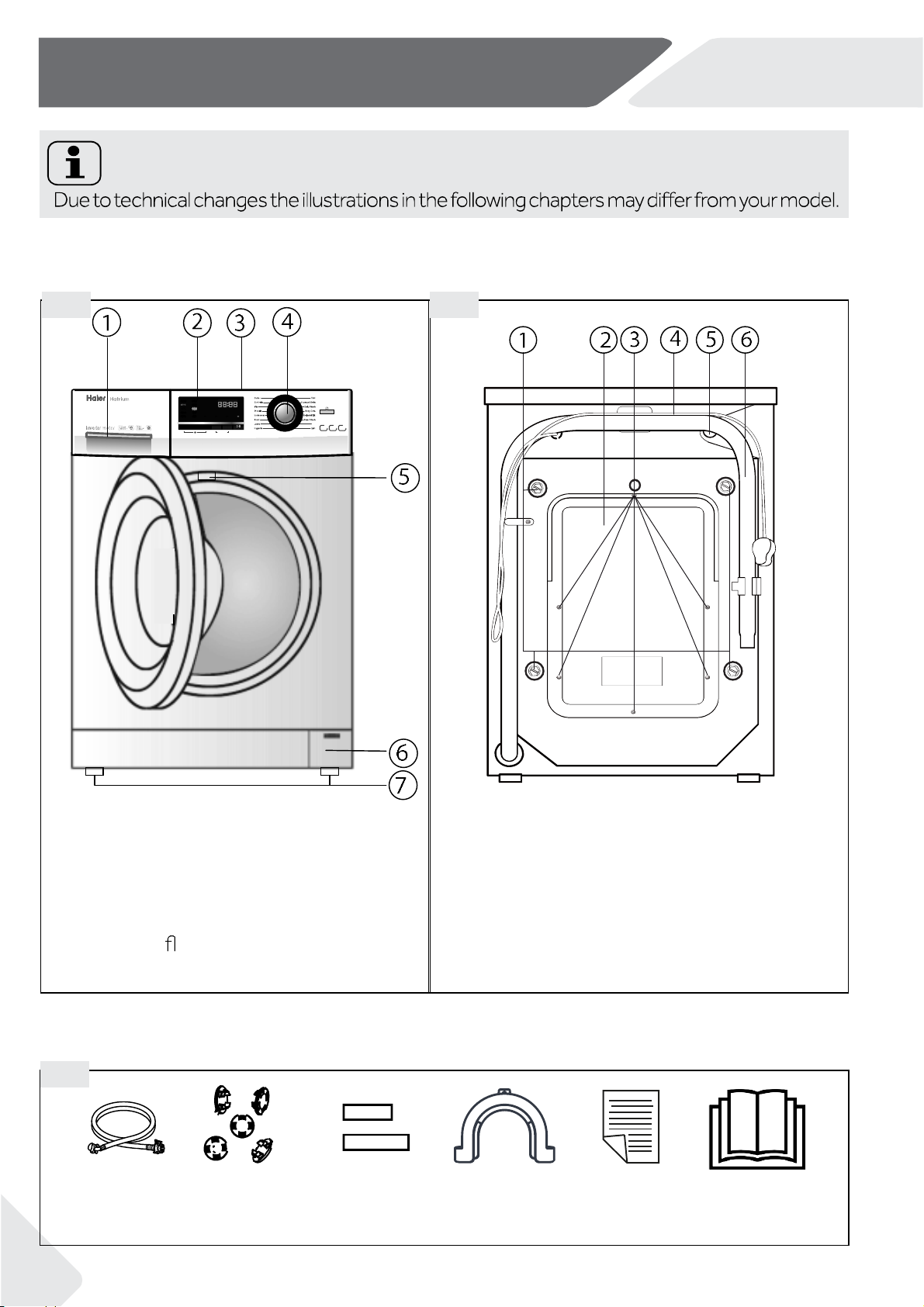

2.1 Picture of appliance
Front (Fig. 2-1): Rear side (Fig. 2-2):
2.2 Accessories
Check the accessories and li
●
terature in accordance with this list (Fig.2-3):
Inlet hose-
assembly
5 Blanking
plugs
Drain hose
bracket
User
manual
Warranty
card
Noise
pads
Note:
Temp Speed Intense Delay Start/PauseExtra rinse
HW80 -BP14 636
BLDC motor
+++
A
Auto weightCapacityEnergy
8kg
Self Clean
Temp Speed Intense Delay Start/PauseExtra rinse
R
+++
A
Energy Cap acity
7kg
rpm
1400
HW70-BP14636
Temp Sp eed Intense Delay S tar t/Paus e5+5kg
Dry
A
capacitySpin speedEnergy
1400 8/5kg
HWD 80-B1 463 6
Speed up
2-1
T1 T2
T3 S1
S2 S4
S3
T4
2-2
1 Detergent /Softener drawer
2 Display
3 Worktop
4 Programme selector
5 Rating plate
6 Service ap
7 Adjustable feet
1 Transportation bolts (T1-T4)
2 Back cover
3 Back cover screws (S1-S6)
4 Power cord
5 Water inlet valve
6 Drain hose
2-3
2x
2x
S5 S6

EN 3- Control panel
9
1 “
2 Programme selec
●
tor
3 Display
4 Detergent /Softener drawer
5 Function buttons
6 “Delay” button
7 “Start/Pause“ button
Note : A
●
coustic signal
In following cases an acoustic signal sounds:
when pressing a bu
●
tton
when turning the programme selector
at the end of programme
in case of failures
Press this button
●
(Fig. 3-1) gently to switch on, the dis-
play is shining, the indicator of the “Start/Pause” button
is ashing. Press it again for about 2 seconds to switch
-
ter a while machine will shut down automatically.
3-1
Temp Speed Steam Delay Start/Pause
6+6kg
Speed up
4
12
5 6 7
3
3-0

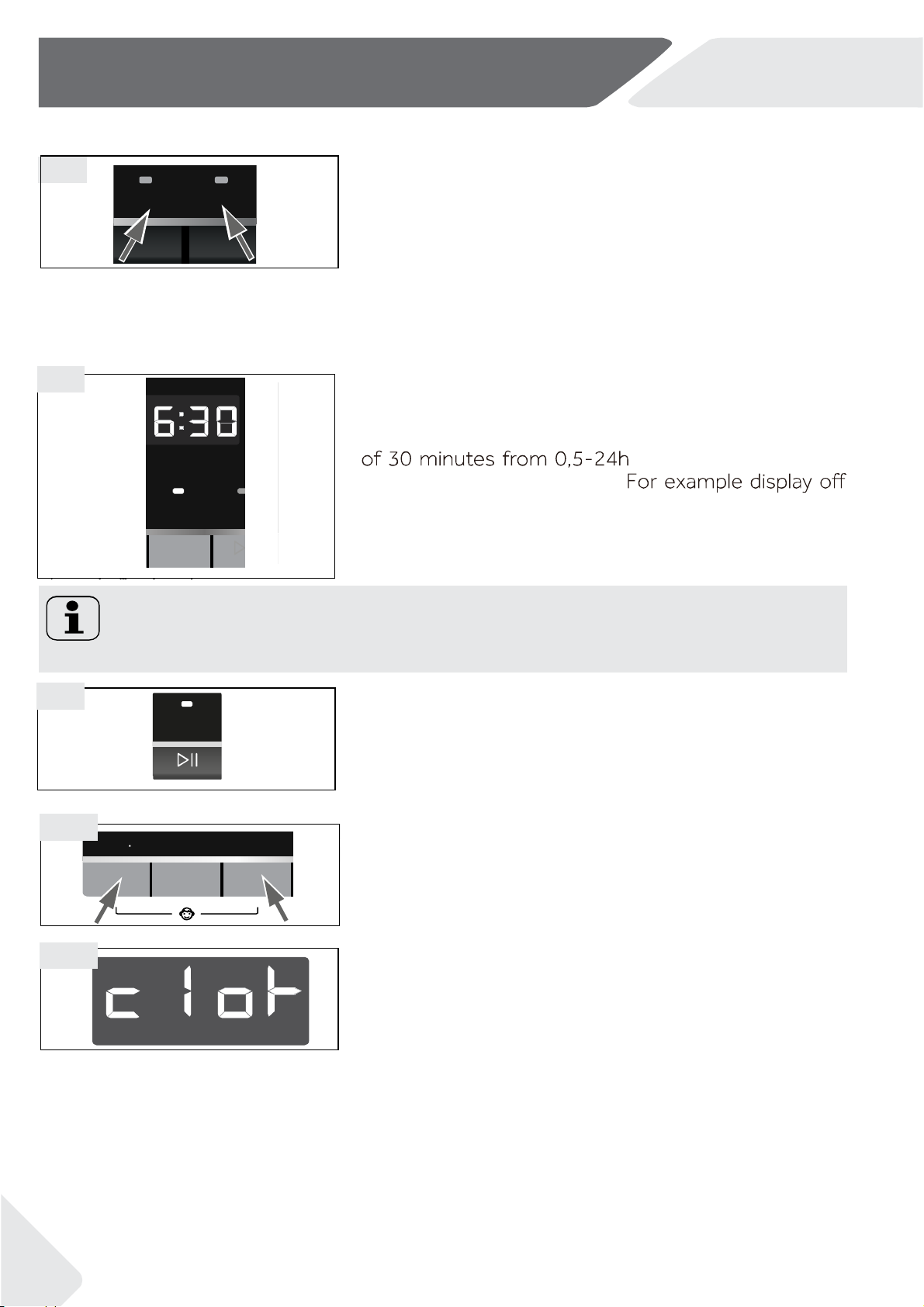

The acoustic signal can be deselected if necessary:
1. Switch on the appliance.
2. Select the SPIN programme.
3. Press the “Delay “button and “6+6 kg” button at the same time for about 3 seconds.
“” will be displayed and the buzzer will be deactivated.
For activating the buzzer press these two buttons at the same time again. “” will
be displayed.
Dry
Cotton
Synthetic
Mix
Baby Care
Eco 40-60
Cotton 20°C
Hygiene
Underwear
Wool
Delicate
Wash and Dry
Spin
Fast
Express 15 min
Self clean
rpm Capacity
9/6kg1400
HWD90-BP14636N
1) “5+5kg” for HWD80-BP14636N.
1)

3- Control panel EN
10

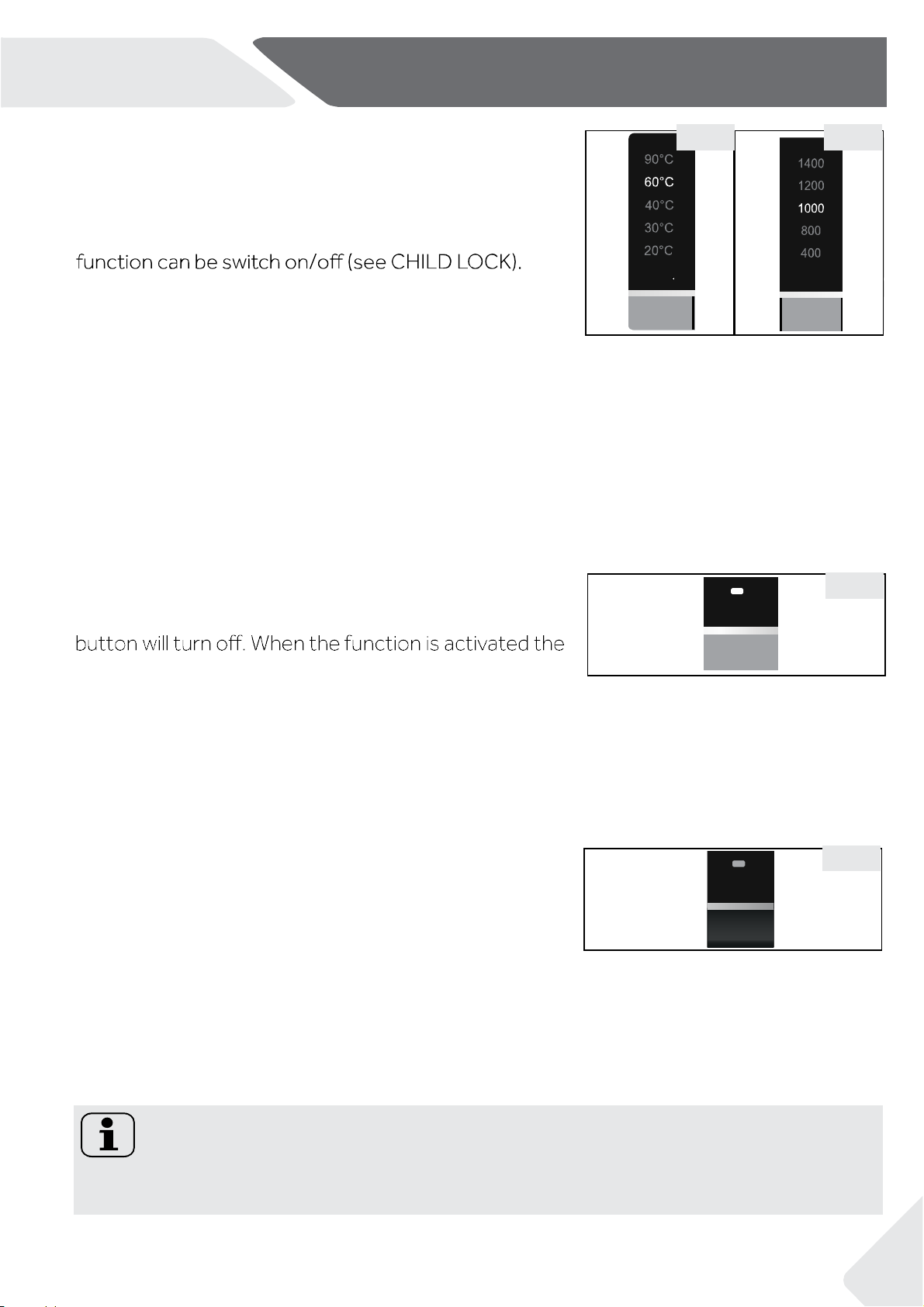

3.5-Function bu
●
ttons
The function buttons (Fig. 3-5) enables additional op-
tions in the selected programme before programme
start. The related indicators are displayed.
-
●
g
●
ramme, all options are disabled.
If a button has multiple options, the desired option can
be selected by pressing the button sequentially.
To delete the setting or to cancel the setting process,
press the function button until the desired LED lights
Temp Speed Steam Delay
Start/Pause
6+6kg
3.5.1 3.5.2 3.5.3 3.5.4 3.5.5
3-5
3.4-Detergent drawer
Open the drawer (Fig. 3-4), three compart
can be seen:
Compartment 1 : Water inlet only, no detergent
Compartment 2 : Detergent for programme
Compartment : Softener, Conditioning agent etc.
The recommendation on the type of detergents is
suitable for the various washing temperatures, please
refer to the manual of detergent.
3-4
Note: Fact
●
ory settings
there is no special requirement default settings are recommended.
3.2-Programme selector
By turning the knob (Fig. 3-2) one of 16 programmes
can be selected, related LED will light up, its default
settings will be displayed.
3-2
3.3- Display
The display (Fig. 3-3) shows following information:
Washing time
Drying time
End time delay
Error codes and service information
3-3
Dry
Cotton
Synthetic
Mix
Baby Care
Eco 40-60
Cotton 20°C
Hygiene
Underwear
Wool
Delicate
Wash and Dry
Spin
Fast
Express 15 min
Self clean
ompartments

EN 3- Control panel
11
3.5.4-Function bu
●
tton“6+6 kg“
Press this button (Fig. 3-5.4) in order to activate /de-
activate the drying function. This allows washing and
drying of maximum 6 kg laundry without interruption.
By
●
pressing the button sequentially, drying time can be
set( 30, 60, or
●
150 minutes for Model HWD100 ;

Drying function is not applicable to all programmes
(see PROGRAMMES).
6+6kg
3-5.4
Note: 6+6 kg
Do not overload. Combination of washing and drying cycle only allows a maximum loading
of 6 kg.
3.5.1-Function button ” Temp.“
Press this button (Fig. 3-5.1) to change the washing
temperature of the programme.
In conjunction with the “Steam” button, the child lock
3.5.2-Function button “Speed”
Press this button (Fig. 3-5.2) to change or deselect
the spin of the programme. If no value is illuminated
the laundry will not spun.
Temp
Schleudern
Temp Speed
Intensiv
3-5.1 3-5.2
3.5.3-Function button “Steam“
Temp
Speed Steam
Zeitvorwahl
5+5 kg
3-5.3
90,120
30,60, 90 or 120 minutes for Model HWD80 and HWD90). If
Press this button (Fig. 3-5.3) to activate the steam fu-
nction. When this function is activated the default tem-
perature is the maximum temperature of the progra-
mme selected. This function can be activated only with
the following programmes: Cotton, Synthetic, Mix, Baby
Care, Hygiene.When the function is activated the led
above the button will light up. Pushing again this button
the function can be deactivated and the led above the
temperature of the programme cannot be changed.
If “Temp.” is activated, “Steam” function cannot be sel-
ected. Users can only activate “Steam” function before
starting programmes. You cannot activate “Steam”
function while the appliance is already executing a prog-
ramme.
If not selected, the default normal temperature state.
the display shows or no value, the drying function is de-
activated. In combination with programme DRY this fu-
nction sets the drying time.

3- Control panel EN
12
3.8 Child lock
●
Press button “ Temp.“ and ”Steam“ for 3 seconds si-
multaneously (Fig. 3-8.1) to block all panel elements
against activation. For unlocking please press again
the two buttons.
T
●
he display shows  (Fig. 3-8.2) if a button will be
pressed, when the child lock is activated. The change
is n
●
ot running.
Temp Speed Steam
5+5 kg
Speed up
3-8.1
3-8.2
3.7- “Start/Pause“ button
Press this button (Fig. 3-7) gently to start or inter-
rupt the currently displayed programme. During pro-
gramme setting and during programme run the LED
above the button is shining, or if interrupted blinking.
Start/Pause
3-7
3.6- “Delay” button
Intense
Delay Start/Pause5+5 kg
Speed up
3-6
Note: Liquid detergent
If using liquid detergent, it is not recommended to activate the end time delay.
3.5.5-Function “Speed up“
This function saves time and energy. It is preferable if
clothes is slightly wetted.
Press simultaneously button
“6+6 kg“ and ”Delay” (Fig. 3-5.5) for about 3 seconds
to activate the “Speed up” function;   is dis-
played. This function is not available in all programmes
(see PROGRAMMES).
Delay
6+6kg
3-5.5
Touch amme rgorp eht trats ot)6-3 .giF(nottub siht
with a delay. End time delay could be increased in steps
6:30 means end of programme
(End time will longer th-
programme time).
cycle will be in 6 hours
and 30
min utes. Touch “Start/Pause” button to activate
delay.the time
an original

EN 4- Programmes
13
1) Relating to dry laundry.
●
2) *: water will not heated (no value is iluminated).
3) Choose 90 °C wash temperature only for special hygienic requirements.
4) Reduce detergent amount because programme duration is short.
5) Drying time must be set with function button “6+6 kg”.
Max. load Temperature Preset
spin
speed
in rpm
Function
washing
in kg
drying
in kg in °C
Programme
seletable
range 2 1 type
Cotton 10 * to 90 40 º/Cotton 1400
Synthetic 5* to 60 40 º/Synthetic or mixed
fabric 1200
Mix 10 * to 60 30 º/
Lightly soiled mixed-
laundry of cotton
and synthetic
1000
Wool 2.5 / * to 40 * º/
Machine-washable
fabric made of wool
or with wool content
800 / / /
Underwear 5* to 60 40 º/Underwear 1000
Cotton 20°C * to 20 20 º/1400
Eco 40-60 / / / º//
Hygienic 53 90 90 º/Cotton 1000
Fast 4) 5* to 40 40 º/
Lightly soiled laundry
made of cotton or
synthetic
1000 / /
Express
15 min 4) 2.5 1.0 * to 40 * º/Cotton / Synthetic 1000 / /
Baby Care 53 * to 90 40 º/Cotton/Synthetic 1000
Delicate 2.5 / * to 30 30 º/Delicate laundry
and silk 800 / / /
Self clean // 90 90 /Cleaning of the drum
with special detergent 800 / / /
Dry 5) // / / / / Cotton, synthetic,
underwear, jeans // /
Spin 6/ / / / / 1000 / /
1)
2)
3)
3)
Yes, º
Optional, / No
Detergent compartment for:
1Water inlet only,
no detergent
2Detergent
Softener or care product
10
Wash and Dry /º/// / /Cotton, synthetic,
underwear, jeans
Cotton
// /
10
/
10
10
6
6
4
6
6
3
3
3
/
/
Fabric
Non-fragile fabric
/

5- Consumption EN
14
Note: Aut
●
o Weight
The appliance is equipped with a loading recognition. At low loading, energy, water and
washing time will be reduced automatically in some programs.
Scan QR code on energy label for energy consumption information.
The actual energy consumption ma rom the declared one according to local
conditions.
Enter the European standard test procedure:
1 :Select Eco 40-60, then press the start button.
2 :Select Wash and Dry, then press the start button.

EN 6- Daily use
15

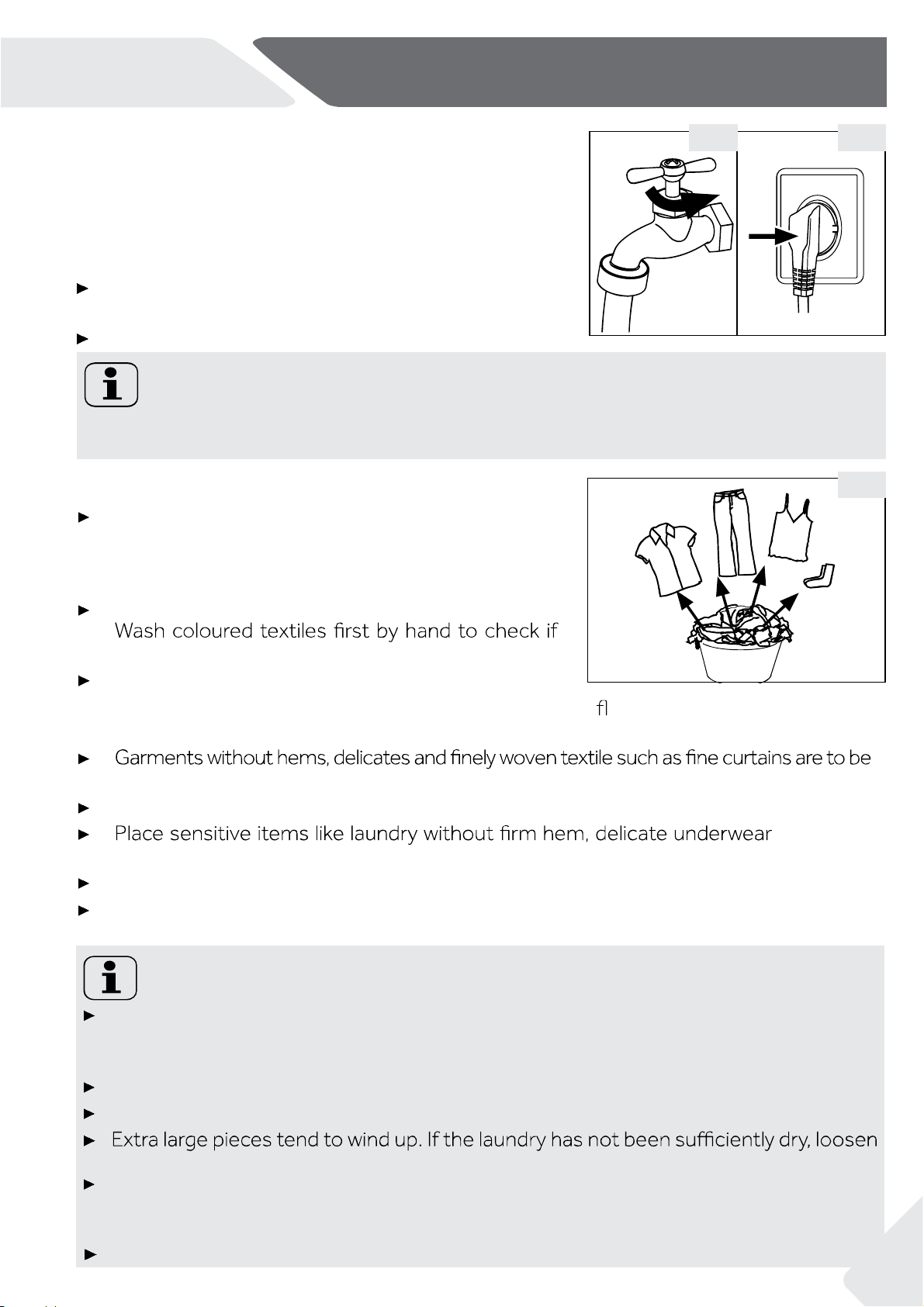

6.1 Power supply
Connect the washing machine to a power supply
(220V to 240V~/50Hz; Fig. 6-1). Please refer also to
section INSTALL
●
ATION.
6.2. Water connection
Before connecting check the cleanliness and clar-
ity of the water inlet.
T
●
un on the tap (Fig.6-2).
6-2 6-1
6.3 P
●
reparing laundry
Sort out clothes according to fabric (cotton, syn-
thetics, wool, silk etc.) and how dirty they are (Fig.
6-3). Pay at
●
tention to the care labelling of wash-
ing labels.
Separate white clothes from coloured ones.
they fade or run.
Empty pockets (keys, coins, etc.) and remove
6-3
Note: Tightness
Before use check for leakage in the joints between the tap and the inlet hose by turning
on the tap.
harder decorative objects (e.g. brooches) as well as ammable objects (paper tis-
sues, lighter
●
s, matches etc.).
put into a wash bag to care for this delicate laundry (hand or dry cleaning would be better).
Close zippers, velcro fastener and hooks, make sure the buttons are sewn on tightly.
and small i-
tems such as socks, belts, bras, etc. in a wash bag.
Unfold large pieces of fabric such as bed sheets, bedspreads etc.
Turn jeans and printed, decorated or color-intensive textiles inside out; possibly
wash separately.
Note: Special hints for drying
Sort clothes according to fabric(cotton, synthetics, etc.) desired dry level and equal
residual moisture. Follow the instructions on the laundry label and dry only machine-
dryable garments
Spin the laundry with the maximum spin speed before drying.
Do not exceed the max. load of 6 kg(5kg for HWD80-BP14636N).
up the laundry and dry again with programme DRY.
Especially delicate fabrics which can easily shrink or lose their shape, as well as e.g. silk
stockings, lingerie etc. should not be dried with the appliance. Put delicate garments
inside a laundry bag and avoid overdrying them.
Jersey and knitwear should not be dried to avoid shrinkage.

6- Daily use EN
16
CAUTION!
Non-textile, as well as small, loose or sharp-edged items may cause malfunctions and
damage of clothes and appliance.
Care chart
Washing
Washable up to 95 °C
normal process
●
Washable up to 60 °C
normal process
Washable up to 60 °C
mild process
Washable up to 40 °C
normal process
Washable up to 40 °C
mild process
Washable up to 40 °C
very mild process
Washable up to 30 °C
normal process
●
Washable up to 30 °C
mild process
Washable up to 30 °C
very mild process
Wash by hand
max. 40 °C
Do not wash
Bleaching
Only oxygen/
non-chlorine
●
Do not bleach
Drying
Tumble drying possible
●
normal temperature
Tumble drying possible
lower temperature
Do not tumble dry
Line drying Flat drying
Ironing
Iron at a maximum
temperature
up to 200 °C
Iron at a medial tem-
perature
● up to 150 °C
Iron at a low temper-
ature up to 110 °C;
without steam (steam
ironing may cause irre-
versible damage)
Do not iron
Professional Textile Care
Dry cleaning in tetra-
chloroethene
Dry cleaning in hy-
drocarbons
Do not dry clean
Professional wet clean Do not professional
wet clean
6.4 Loading the appliance
Put in the laundry piece by piece.
thumb for maximum load: Check if you can put a hand upright on top of load.
Close the door carefully. Make sure that no pieces of laundry are pinched.

EN 6- Daily use
17
6.5 Selecting detergent
Use only machine wash approved detergent.
Mind always de
●
tergent manufacturer recommendations.
Do not use dry cleaning agents such as trichloroethylene and similar products.
L = gel-/liquid de
●
tergent P = powder detergent O = optional _ = no
If using liquid detergent, it is not recommended to activate the time delay.
We recomment by using:
Laundry powder: 20 °C to 90 °C* (best use: 40-60 °C)
Color detergent: 20 °C to 60 °C (best use: 30-60 °C)
Wool/delicate detergent: 20 °C to 30 °C (= best use: 20-30 ¡ã°C)
Choose the best detergent
Programme
Kind of detergent
Universal Colour Delicate Special Softener
Cotton L/P L/P - - o
Synthetic - L/P - - o
Mix L L/P - - o
Baby Care - - L/P L/P o
Hygiene L/P L/P - - o
Underwear - - L/P L/P o
Cotton 20°C L/P L/P - - o
Eco 40-60 L/P L/P - - o
Fast L/P L - - o
Express 15 min L L - - o
Delicate - - L/P L/P o
Wool - - L/P L/P o
Self clean - - - L -
Wash and Dry
* Choose 90 °C w
●
ash temperature only for special hygienic requirements.
Dry
Spin
- - - - -
L/P - - - o
- - - - -
synthetic and woolen fabric.

6- Daily use EN
18
6.7
●
Switch on the appliance
(Fig. 6-7). The LED of the Start/Pause“ button is as-
hing.
6-7 6-8
6.6 Adding detergent
1. Slide out the detergent drawer.
2. Put the required chemicals into corresponding
compartments(Fig. 6-6).
3. Push back the drawer gently.
Note:
Remove detergent residues before next wash cycle from the detergent drawer.
Do not overuse detergent or softener.
Please follow the instruction on the detergent package.
Concentrated liquid detergent should be diluted before adding into compartment 2.
The best use of liquid detergent is by using a dosing ball, which is given with the laun-
dry into the washing machine.
Do not use liquid detergent if end time delay“ is selected.
Carefully choose the programme settings according to the care symbols on all laun-
dry labels and according to the programme table.
6.8 Select a p
●
rogramme
T
●
o get the best washing results, select a programme
type.
Turn the programme knob (Fig. 6-8). to select the right
programme. Related programme LED and the default
se
●
ttings are displayed.
6.9 Add individual selections
●
Select required options and settings (Fig. 6-9) ;refer to
CONTROL PANEL.
Temp Speed Steam Delay
Start/Pause
6+6kg
6-9
Note: Odour removal
amount of detergent in washing agent compartment (2) or special machine cleaner to
remove possibly corruptive residues.
6-6
“
“
“

EN 6- Daily use
19
6.11 Interrupt - cancel
●
wash programme
To interrupt a running programme press gently “Start/Pause“. The LED above the button
is ashing. Press it again to resume operation.
To cancel a running programme and all its individual settings
N
●
ote: Standby mode / energy-saving mode
The switched on appliance will go into standby mode if Pause-button is pressed. This
Pause“ button.
6.10 Start wash programme
Press “Start/Pause“ button (Fig. 6-10) to start. Appli-
ance operates according to present settings. Changes
are only possible by cancelling the programme.
Start/Pause
6-10
Note: Door lock
For safety reasons the door is locked partially during the washing /drying cycle. It is
only possible to open the door at the end of the programme or after the programme
was cancelled correctly (see description above).
In case of high water level, high water temperature and during spinning it is not pos-
sible to open the door;is displayed.
6.12 After washing
1. At programme cycle end  is displayed.
2.
3. Remove laundry as soon as possible to go easy on it and to prevent more wrinkling.
4.
5. Unplug the power cord.
6. Open the door to prevent formation of moisture and odours. Let it open while not used.
Note: Cool down cycle for drying cycle
The last part of the drying cycle occurs without heat to ensure remaining the garments
at a temperature which does not damage them.
1. Press “Start/Pause” button to interrupt the running programme.
2.
3.
4. After closing the programme to restart the appliance, select a new programme and s-
Spin and then se-
in the water.
tart it.

7-Eco-friendly use EN
20
Environmentally responsible use
Washing
To achieve best use of ene
●
rgy, water, detergent and time you should use the recom-
mended maximum load size.
Do not overload (hand width clearance above laundry).
For slightly soiled laundry select the Quick Wash programme.
Apply exact dosages of each washing agent.
Choose the lowest adequate washing temperature - modern detergents are efficie-
Raise default settings only due to heavy staining.
Spin the laundry with the maximum spin speed if you want to use a drying program-
me afterwards.
Drying
Loosen up the laundry be
●
fore starting the drying programme.
Do not use softener when washing, because the laundry will become
the dryer programme.
5/6/6
ntly cleaning below 60
°C.
