Haier XQG50-11 User manual

Haier
What The World Comes Home To TM
Front Load
C_othesWasher &
Dryer Combo
LaveoLingeSechanta
Char§ementFrontaJ
LavadoraySecadora
deCargaFronta_
UserManualo Model#
Guide de FUtilisateuro
Modele
M_nu_ de_ U$U_O- Modelo#

IMPORTANTSAFETYINSTRUCTIONS
Warning - To reduce the risk of fire, electric shock, or injury
to persons when using your appliance, follow basic
precautions, including the following:
1. Read all instructions before using the appliance.
2, Use this appliance only for its intended purpose as described in this use and
care guide.
3, Use only detergents or softeners recommended for use in this appliance and
keep them out of the reach of children,
4, This appliance must be properly installed in accordance with the installation
instructions before it is used,
5, Never unplug your appliance by pulling on the power cord. Always grasp the
plug firmly and pull straight out from the outlet.
6. Replace immediately worn power cords, loose plugs/power outlets,
7. Unplug your appliance before cleaning or before making any repairs.
8, If your old appliance is not being used, we recommend that you
remove the door, This will reduce the possibility of danger to children,
9, Do not operate your appliance in the presence of explosive fumes.
10, Do not use this appliance to wash clothes soaked, spotted or washed in
gasoline, dry cleaning solvents or any other explosive or flammable substances
that could ignite and explode.
11, Clothes or rags used to clean flammable or explosive materials should not be
washed in this appliance till all traces of this material has been removed, to
avoid an accident,
12, Do not add or mix any flammable or explosive substances to the wash.
13. Do not try to remove clothes while the tub is moving. Let it come to a complete
stop before use.
14. The appliance loading door must be closed when tub is spinning.
15. Do not operate your appliance when parts are missing or parts are broken,
16. Do not use this appliance for commercial clothes washing,
17, Do not operate this appliance unless all enclosure panels are properly in place,
18, Do not tamper with controls,
19. To reduce risk of injury do not allow children to play in or on the appliance.
Close supervision of children is necessary when the appliance is used
near children.

20.Thisappliancemustbeconnectedtoproperelectricaloutletwiththecorrect
electricalsupply,
21.Propergroundingmustbeensuredtoreducetheriskofshockandfire.DO
NOTCUTORREMOVETHEGROUNDINGPLUG.Ifyoudonothavea
three-prongelectricreceptacleoutletinthewall,haveacertifiedelectrician
installtheproperreceptacle,ThewallreceptacleMUSTbeproperlygrounded,
22,Hydrogengasmaybeproducedifthewaterheaterhasnotbeenusedinmore
then2weeks,Thiscouldbeexplosiveandcanexplodeundercertain
circumstances,Ifthisisthecase,beforeusingthisapplianceturnonallthehot
faucetsandletthehotwaterrunforafewminutes.Thiswillletthetrapped
hydrogenescape.Duringthisprocessdonotturnonanelectricappliance,
smoke,lightamatch/lighteroruseaflametoavoidanaccident,ashydrogen
gasisflammableandcanexplode.
23.Donotdryarticlesthathavebeenpreviouslycleanedin,washedin,soakedin,
orspottedwithgasoline,dry-cleaningsolvents,orotherflammableorexplosive
substances,astheygiveoffvaporsthatcouldigniteorexplode.
24,Donotrepairorreplaceanypartoftheapplianceorattemptanyservicing
unlessspecificallyrecommendedintheuser-repairinstructionsthatyou
understandandhaveskillstocarryout.
25.Donotuseheatdrytoarticlescontainingfoamrubberorsimilarlytextured
rubber-likematerials,
26,Cleanlinttrapbeforeandaftereachload.
27.Donotplaceitemsexposedtocookingoilsinyourdryer.Itemscontaminated
withcookingoilsmaycontributetoachemicalreactionthatcouldcauseaload
tocatchfire,
28.Toreducetheriskorelectricshockorfire,donotuseextensioncordsor
adapterstoconnecttheunittoelectricalpowersource.
SAVETHESEINSTRUCTIONS
ForFutureUse

DANGER
Risk of child entrapment. Before you throw away your old
appliance, take off the door so that children may
not easily get trapped inside.
Thank you for purchasing our Haler
product. This easy-to-use manual will
guide you in getting the best use of
your washer & dryer combo unit.
Remember to record the model and
serial number, They are on a label in
back of the unit.
Model number
Serial number
Date of purchase
Staple your receipt to your manual. You will need it to obtain
warranty service.

PAGE
SAFETY INSTRUCTIONS .................................................................... 1
OPERATING INSTRUCTIONS ............................................................4
Parts and Features.................................................................................. 5
Operations ............................................................................................ 7
Normal Operating Sounds .................................................................... 16
Care and Cleaning Guide ............................................................ 16
Cleaning and Maintenance .................................................................. 16
Moving and Vacationing ...................................................................... 17
Storage of Your Washer ...................................................................... 17
Troubleshooting .............................................................................. 18
INSTALLATION INSTRUCTIONS ....................................................21
Tools and Materials Required ................................................................ 21
Unpacking Your Washer ...................................................................... 22
Leveling Your Washer .......................................................................... 23
Steps for Installation ............................................................................ 23
Electrical Connections .................................................................... 26
Grounding Instructions .......................................................................... 26
Power Interruptions .............................................................................. 26
Warranty ........................................................................................ 27
4

Parts amd Features
1. Wash Cycle Selector Knob
2, Dry Cycle Select Knob
3, Power "On" Indicator Light
4, Power "On/OFF" Button
5. No Spin Selector Button
6, Water Saver Button
7. Detergent/Softener Dispenser
8, See Through Glass
Window Door
9. Front Adjustable Leveling Legs
(Not Shown)
10. Caster Release Levers
11, Button Trap

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!!i
1. Water Inlets (Hot/Cold)
2. Power Cord (115 V /60 Hz)
3. Drain Hose
4. Rear Adjustable Leveling Legs
5. "U" Clamp
6. Hose Retainer Clips

"$ront Lead" _#asher
This style of washing is gentle on your laundry because it has a tumble wash action,
Here there is no agitator to damage your clothes. Since there is no agitator in this
style of washer, the washer runs quietly. This style of washer saves you money as it
uses less water and detergent to clean your laundry.
Power Button:
• Push the button in to have your washer "ON". The light will turn on
indicating that power is "ON". Push the button out to have your washer
"OFF". The light will go off indicating that power is "OFF". 0
ON'OFF
Spin Cycle Selector Button:
• If you want to extract more water from your clothes during the wash
cycle, leave the button in the out position. Clothes will be drier when this LU
option is selected,
• If you do not want to extract water from your clothes using the spin I
cycle, push the button in. If this option is selected, only the excess water I
NO
in the tub will drain leaving the clothes wet. The "No Spin" button when sP_N
pushed in will not activate the spin cycle,
Advantages of No-Spin Cycle:
• The spin cycle may cause excessive creasing and wrinkling in some fabrics.
• High speed spin might be too strong for delicate garments. It could result in
stretching or excessive wear.
Note: When the No Spin is pressed in, the machine will not automatically go to
the spin dry function.
Water Saver:
• To activate this option press in the "Water Saver" button. If you are washing a
small or a medium load you may want to use this option, This will reduce the
water in the rinse cycle.

Wash Cycme
Wash cycle
Turn the knob CLOCKWISE only to your desired setting when selecting the cycle.
Cotton Cycle Synthetics Wool
1-Pre-wash A-Intense I-Delicate
2-Intense B-Normal II-Rinse
3-Normal C-Delicate Ill-Softening
4-Delicate D-Rinse IV-Spin
5-Rinse E-Softening V-Draining
6-Softening F-Spin VI-Off
7-Spin G-Dry/Off
8-Dry/Off
Below is the cycle reference chart for your clothes,
Follow the steps below to select the proper cycle:
1. Select proper cycle.
2, Turn the knob clockwise. Make sure to line up the symbol indicator on the control
panel.
3, Push the power "ON" button,

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii¸ i ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii i
Cotton Cycle:
Pre-Wash Cycle: The purpose of this cycle is that if you want to pre-wash heavily
soiled clothes before the actual wash cycle begins, This cycle is configured in such a
manner that it will go through Intense_ Normal _ Delicate wash cycles time
mode and then the rinse and spin cycles automatically to complete the wash. The
total time for this cycle is approximately 147 minutes when selected,
Intense Wash Cycle: This is used for work & play, household linens, heavily
soiled and cotton clothes. This cycle is approximately 120 minutes.
Normal Wash Cycle: This is used for normal to lightly soiled items that needs to
be washed, This cycle is approximately 80 minutes.
Delicate Wash Cycle: This is also used for load of soiled items that needs to be
washed delicately. This cycle is approximately 60 minutes.
Synthetics Cycle:
Intense Wash Cycle: This cycle is used for heavily soiled permanent press, silks,
woolens, nylon and acrylic fabrics. This cycle is approximately 59 minutes.
Normal Wash Cycle: This is used for a small load of lightly soiled items that
needs to be washed, This cycle is approximately 42 minutes.
Delicate Wash Cycle: This cycle is used for loads of soiled items that need to be
washed delicately, This cycle is approximately 33 minutes.
•If you set the machine to automatically dry after the wash cycle, the machine will
wash and then dry without interruption. However if you press "No Spin" button
the machine will drain and shut-off after the wash cycle is complete. It will not
spin or advance to the dry cycle.
• If you do not set the machine for automatic drying and do not depress the "No
Spin" button after the wash portion of the cycle is complete (at "Soak/Pause"
indication on control panel) the machine will stop. You must either:
A) Drain Only: Prevent spinning by pressing the On/Off switch, advance the
"Cycle Selector Knob" to "Drain" and again press the "On/Off" switch.
B) Drain and Spin: Press the On/Off switch, advance the "Cycle Selector Knob"
to "Spin" and again press the "On/Off" switch,
9

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii i
Wool Cycle:
Delicate Wash Cycle: This cycle is used for delicate fabrics that are often
washed by hand. This cycle is approximately 32 minutes.
• After the wash position of the cycle is complete (at "Soak" indication on control
panel) the machine will stop. You must either:
A) Drain Only: Prevent spinning by pressing the On/Off switch, advance the
"Cycle Selector Knob" to "Drain" and again press the "On/Off" switch.
B) Drain and Spin: Press the On/Off switch, advance the "Cycle Selector Knob"
to "Spin" and again press the "On/Off" switch. Please note that if you press
the "Spin Cancel" button before starting the Wool cycle, the machine will
automatically drain and shut-off. Here you do not have to touch the control
panel. The machine will not automatically switch over to the dryer function.
Note: If the Spin Cycle is at "OFF" position before starting a cycle, the machine
will automatically switch to drain and shut off. The machine will not
automatically switch over to the dryer function.
lO

Temperature
The water temperature is preset so when you select wash cycle it will set the proper
temperature for that wash load,
Please see the chart below to understand the proper temperature for each cycle:
Type of Cycle Type of Temperature
Cotton Cycle
Pre-Wash Cold
Intense Hot
Normal Warm
Delicate Cold
Rinse Cold
Synthetic Cycle
Intense Hot
Normal Warm
Delicate Cold
Rinse Cold
Wool Cycle
Delicate Cold
Rinse Cold
Note: Hot water needs to be at a temperature of at least 120 degree F 140
Degree F (49 Degree C - 60 Degree C) for the soap to dissolve and to avoid
soap residue remaining on clothes. If your water temperature is not at above
described level when washing your clothes, you need to regulate your water
heater to maintain that temperature.
Loading the Washer:
•Load each item loosely,
• Separate the white and colored clothes. Separate heavy clothes from light clothes,
• Carefully check all pockets and cuffs for small items. They can easily slide in to the
tub and may damage the tub.
• Pre-treat all stains and heavily soiled areas for best results.
• Do not overload your washer.
• Close the door properly after loading the clothes.
11

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii !i
Proper Use of Dispenser:
The detergent/softener dispenser is located on the upper left corner of the washer.
Open the dispenser by pulling it out. You will see that there are four compartments,
"1" Compartment- This is used for liquid detergent for pre-wash. This is used
when you want to pre-wash heavily soiled dirty clothes before going to actual wash
cycle.
"2" Compartment: This is used for liquid detergent for actual wash cycle.
"A" Compartment: This is used for liquid fabric softener.
"C" Compartment- This is used for bleach,
("1" Compartment-
For pre-wash liquid detergent)
/
("A" Compartment-
("2" Compartment-
For liquid detergent)
J _
\ '_==:2==2=
For liquid fabric softener)
Proper Use of Fabric Softener:
• Pour in liquid fabric softener into the compartment as recommended by the
ma nufacturer.
• Do not exceed the level in the compartment to avoid overflow.
12

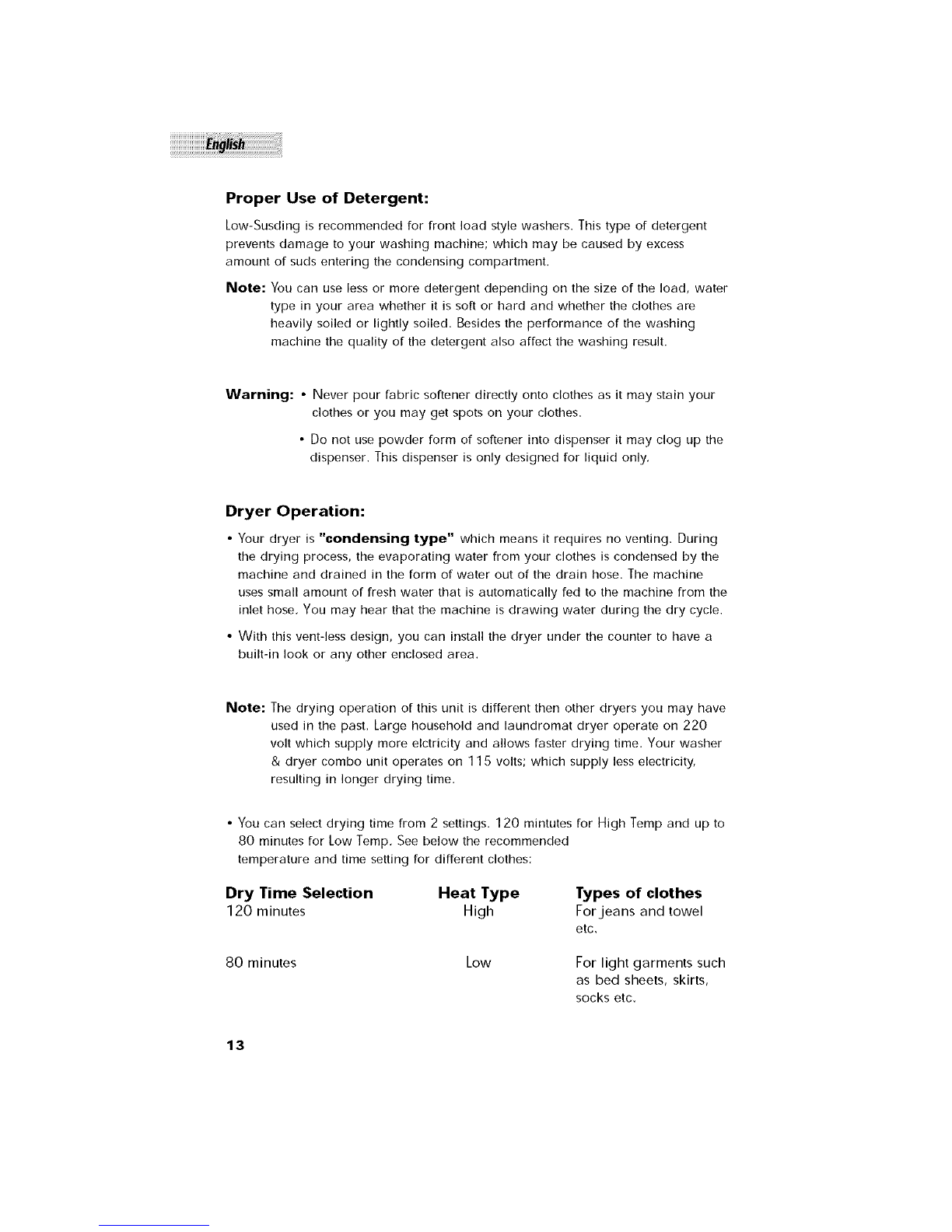

Proper Use of Detergent:
Low-Susding is recommended for front load style washers. This type of detergent
prevents damage to your washing machine; which may be caused by excess
amount of suds entering the condensing compartment.
Note: You can use less or more detergent depending on the size of the load, water
type in your area whether it is soft or hard and whether the clothes are
heavily soiled or lightly soiled. Besides the performance of the washing
machine the quality of the detergent also affect the washing result.
Warning: • Never pour fabric softener directly onto clothes as it may stain your
clothes or you may get spots on your clothes.
• Do not use powder form of softener into dispenser it may clog up the
dispenser. This dispenser is only designed for liquid only.
Dryer Operation:
• Your dryer is "condensing type" which means it requires no venting. During
the drying process, the evaporating water from your clothes is condensed by the
machine and drained in the form of water out of the drain hose. The machine
uses small amount of fresh water that is automatically fed to the machine from the
inlet hose, You may hear that the machine is drawing water during the dry cycle.
• With this vent-less design, you can install the dryer under the counter to have a
built-in look or any other enclosed area.
Note: The drying operation of this unit is different then other dryers you may have
used in the past. Large household and laundromat dryer operate on 220
volt which supply more elctricity and allows faster drying time. Your washer
& dryer combo unit operates on 115 volts; which supply less electricity,
resulting in longer drying time,
• You can select drying time from 2 settings. 120 mintutes for High Temp and up to
80 minutes for Low Temp, See below the recommended
temperature and time setting for different clothes:
Dry Time Selection Heat Type
120 minutes High Types of clothes For jeans and towel
etc,
80 minutes Low For light garments such
as bed sheets, skirts,
socks etc.
13

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii¸ i ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii
Note: For full loads, you may want to remove 1/3 to 1/2 of the load and dry the
remaining clothes seperately. This will be an efficient way to dry your clothes
and will not take as long to dry. For less than full loads, you may want to
reduce drying time. This will prevent over drying of your clothes.
Manual Operation of the Dryer:
•Tooperate the dryer manually, simply load machine with wet clothes, turn the
"Dryer Selector Knob" to the desired time and push the power button "ON",
Note: When operating the dryer, you must keep "Wash Cycle Selector" knob in
the "OFF" position.
Automatic Operation of the Dryer:
• For the automatic operation, simply set the Dry Cycle Selector Knob to the desired
time at the beginning of the wash cycle. When the wash cycle is finished, the
dryer will turn on automatically,
Note: The dryer will not turn on automatically if the "No Spin" button is pushed in,
You must keep the "No Spin" button in an out position in order to go from
wash function to dryer function automatically, The dryer will not come on
automatically after the wool cycle,
Note: When washing full load, we recommend that you keep the spin cycle in the
"OFF" position to prevent the unit from going to dry mode automatically at
the end of cycle if the spin cycle was in "ON" position. This will give you the
flexibility to take out 1/3 to 1/2 of the load and dry the remainder. The
advantage is that your clothes will dry evenly and more quickly.
Loading the Dryer:
1, Sort clothes for drying. Seperate dark and light colored items, like you do for
washing. Check for stains that have not been removed in washing. Dryer heat
may permanently set some stains, Properly dried clothes will need minimum of
care when removed from dryer.
2, I_oad up dryer with washed clothes, For optimum result, use dryer load of similar
weight, fabric and construction. Place small items in a mesh bag to prevent from
tangling. Do not overload the dryer, Add fabric softener sheet if desired.
3, Select the drying time depending on the fabric type and load size.
4, Wait for the drying cycle to finish before opening the door.
Note: Do not over dry your clothes, over drying can cause shrinkage,
harshness and wrinkling of fabric,
14

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii i!'¸¸¸
Button Trap
•Button Trap is designed to collect small objects such as button, coins, etc. As this
may happen very rarely, we recommend to check trap no more than twice a year.
• Button trap is located on the bottom front right corner behind the small door
cover. Push on the bottom to open the door cover. To remove the trap, turn the
knob to counter clockwise position, This will unlock the trap, To put it back, turn
the knob to clockwise position, This will lock the trap.
Casters
For your convenience, your machine comes with casters. Casters are located on the
bottom front right and left side of the machine, Pull the caster levers out towards you
to unlock the casters. When the machine is placed in the appropriate location push
caster levers back into position.
15

NormaM Operating Sounds
The following sounds are normally heard during the
operation of the washer:
• Tumbling sounds: This is normal as the heavy wet clothes in the Washer are
continuously being tossed around.
• Air rushing noise: This happens when the Washer tub spins at very high RPM.
• Wash and Rinse cycles going on and off will also make clicking sounds.
Warning: Always unplug your appliance to avoid electric shock before cleaning,
Ignoring this warning may result in death or injury. Before using
cleaning products, always read and follow manufacturer's instructions
and warnings to avoid personal injury or product damage,
CMeaning and Maintenance
Use only damp or sudsy cloth for cleaning control panel.
• To avoid any kind of damage to cabinet finish, wipe appliance cabinet as
needed. If you spill liquid/powdered softener, bleach or detergent on the cabinet,
wipe cabinet immediately because it can damage the finish.
• Do not use any abrasive, harsh chemicals, ammonia, chlorine bleach,
concentrated detergent, solvents or metal scouring pads. Some of these chemicals
may dissolve, damage and/or discolor your appliance.
• Remove pins or other sharp objects from clothes to prevent scratching of the
interior parts.
• You should check the button trap at least twice a year. Do not use the washer
without the button trap in place.
• The Detergent Dispenser Compartment is removable. Over time, this compartment
may accumulate dried detergent, dirt and debris. You must remove it, then rinse in
a sink or remove debris with a soft brush.
16

Moving & Vacationing
•Turn off water supply faucets and disconnect hoses. Drain water from all hoses.
This will prevent from damaging due to water leakage if the hoses accidentally get
ruptured or they become loose.
• Disconnect electrical plug.
• Dry inner wash tub. if moving washer, disconnect drain hose,
• Turn the leveling legs clockwise all the way in.
• Reinstall both shipping bolts and metal brackets in the back to prevent internal
part from shaking when appliance is moving to another location,
• To prevent mold or mildew, leave door open so moisture inside machine
can evaporate,
Storage of Your Appliance in Cold Environment
• This appliance must be stored at room temperature,
• if you just got delivery of this appliance when outside temperature is below
freezing, do not operate until this appliance has warmed to room temperature.
• Do not install or operate this appliance in the area where room temperature is
below freezing.
17

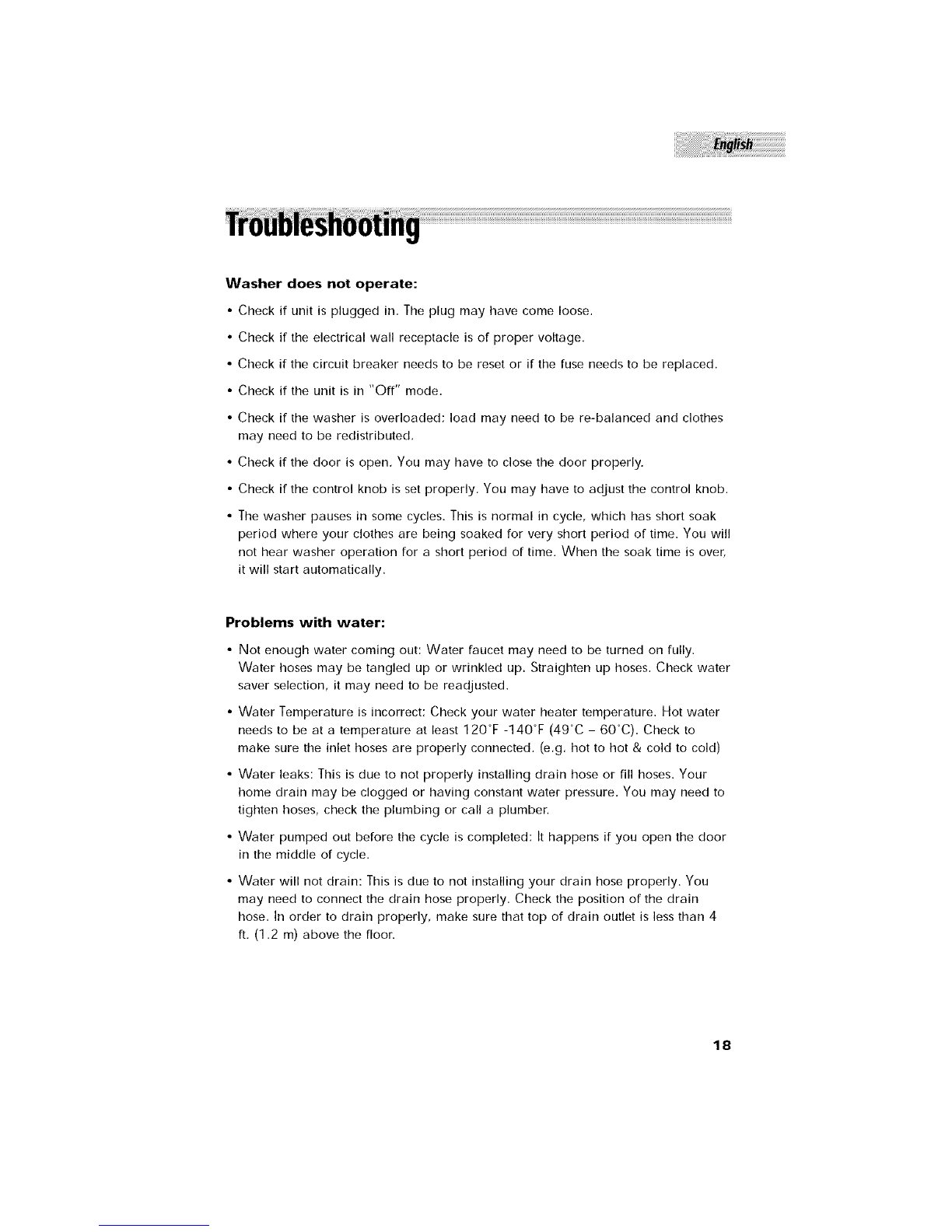

Washer does not operate:
• Check if unit is plugged in. The plug may have come loose.
•Check if the electrical wall receptacle is of proper voltage.
• Check if the circuit breaker needs to be reset or if the fuse needs to be replaced.
• Check if the unit is in "Off" mode.
• Check if the washer is overloaded: load may need to be re-balanced and clothes
may need to be redistributed,
• Check if the door is open, You may have to close the door properly.
• Check if the control knob is set properly, You may have to adjust the control knob.
• The washer pauses in some cycles. This is normal in cycle, which has short soak
period where your clothes are being soaked for very short period of time. You will
not hear washer operation for a short period of time. When the soak time is over,
it will start automatically.
Problems with water:
• Not enough water coming out: Water faucet may need to be turned on fully.
Water hoses may be tangled up or wrinkled up, Straighten up hoses. Check water
saver selection, it may need to be readjusted.
• Water Temperature is incorrect: Check your water heater temperature. Hot water
needs to be at a temperature at least 120°F -140°F (49°C - 60°C). Check to
make sure the inlet hoses are properly connected. (e,g, hot to hot & cold to cold)
• Water leaks: This is due to not properly installing drain hose or fill hoses. Your
home drain may be clogged or having constant water pressure. You may need to
tighten hoses, check the plumbing or call a plumber.
• Water pumped out before the cycle is completed: It happens if you open the door
in the middle of cycle,
• Water will not drain: This is due to not installing your drain hose properly. You
may need to connect the drain hose properly. Check the position of the drain
hose, In order to drain properly, make sure that top of drain outlet is less than 4
ft, (1,2 m) above the floor.
18

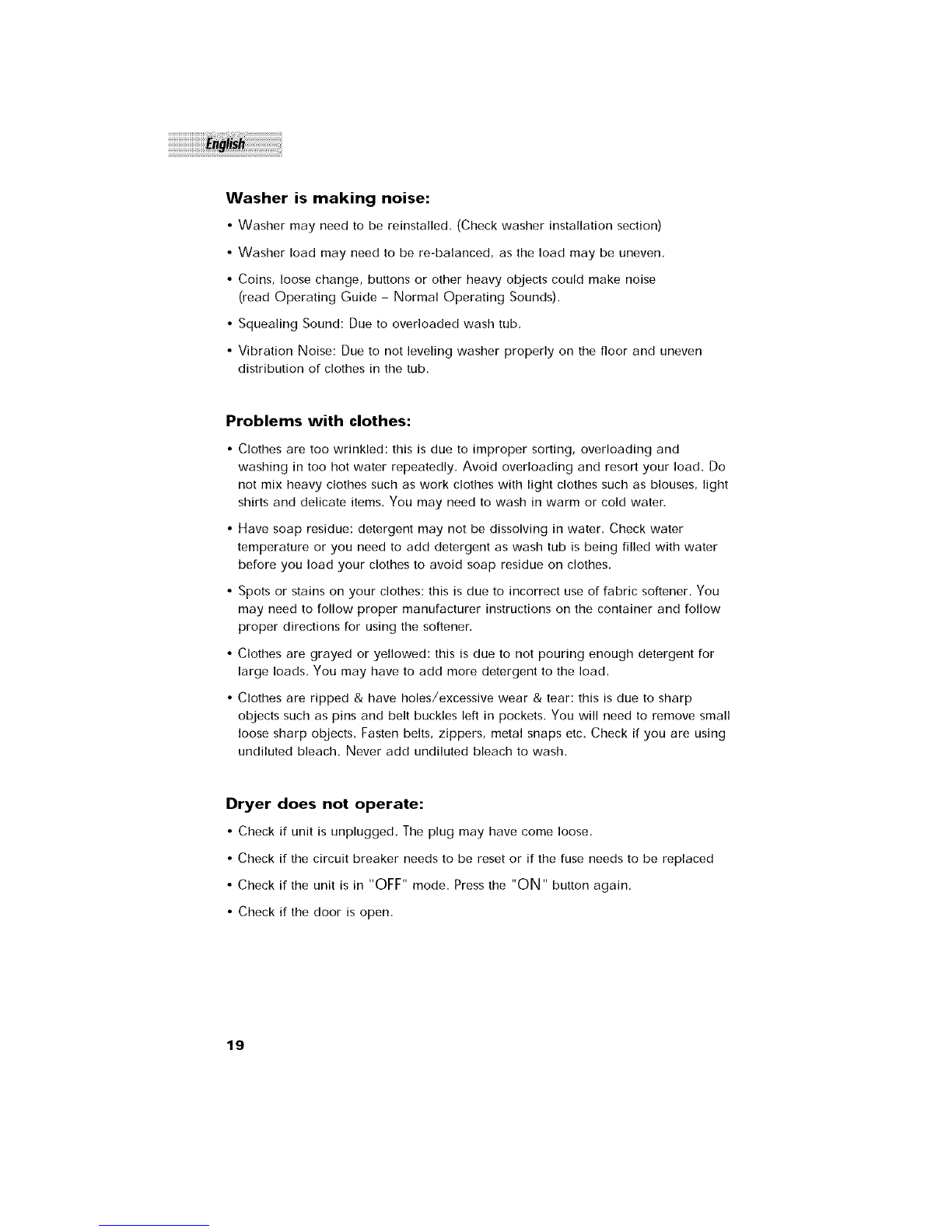

Washer is making noise:
• Washer may need to be reinstalled, (Check washer installation section)
• Washer load may need to be re-balanced, as the load may be uneven,
• Coins, loose change, buttons or other heavy objects could make noise
(read Operating Guide - Normal Operating Sounds).
• Squealing Sound: Due to overloaded wash tub,
• Vibration Noise: Due to not leveling washer properly on the floor and uneven
distribution of clothes in the tub.
Problems with clothes:
• Clothes are too wrinkled: this is due to improper sorting, overloading and
washing in too hot water repeatedly, Avoid overloading and resort your load. Do
not mix heavy clothes such as work clothes with light clothes such as blouses, light
shirts and delicate items, You may need to wash in warm or cold water.
• Have soap residue: detergent may not be dissolving in water, Check water
temperature or you need to add detergent as wash tub is being filled with water
before you load your clothes to avoid soap residue on clothes,
• Spots or stains on your clothes: this is due to incorrect use of fabric softener. You
may need to follow proper manufacturer instructions on the container and follow
proper directions for using the softener.
• Clothes are grayed or yellowed: this is due to not pouring enough detergent for
large loads, You may have to add more detergent to the load,
• Clothes are ripped & have holes/excessive wear & tear: this is due to sharp
objects such as pins and belt buckles left in pockets. You will need to remove small
loose sharp objects. Fasten belts, zippers, metal snaps etc. Check if you are using
undiluted bleach. Never add undiluted bleach to wash.
Dryer does not operate:
• Check if unit is unplugged. The plug may have come loose,
• Check if the circuit breaker needs to be reset or if the fuse needs to be replaced
• Check if the unit is in "OFF" mode. Press the "ON" button again.
• Check if the door is open,
19
