Haier HWD120-B1558 User manual

User manual
Washing machine
GB
User manual
Washer-dryer
HWD120-B1558

GB
2
Legend
Warning – Important Safety information
General information and tips
Environmental information
Disposal
Help protect the environment and human health. Put
the packaging in applicable containers to recycle it.
Help to recycle waste of electrical and electronic ap-
pliances. Do not dispose appliances marked with this
symbol with the household waste. Return the product
to your local recycling facility or contact your municipal
Thank you for purchasing a Haier Product.
Please read these instructions carefully before using this appliance. The instructions con-
tain important information which will help you get the best out of the appliance and ensure
safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper
use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure
you also pass this manual so that the new owner can become familiar with the appliance
and safety warnings.
WARNING!
of it. Remove the door catch to prevent children and pets to get closed in the appliance.
Thanks
Disconnect the appliance from the mains supply.Cut off the mains cable and dispose

GB Thanks
3
1- Safety information............................................................................................ 4
2- Product description.......................................................................................... 9
3- Control panel .................................................................................................. 11
4- Consumption.................................................................................................. 15
5- Programmes....................................................................................................18
6- Eco-friendly washing...................................................................................... 19
7- Daily use.......................................................................................................... 20
8- Care and cleaning ........................................................................................... 29
9-Troubleshooting .............................................................................................32
10- Installation .................................................................................................... 37
11- Technical data............................................................................................... 40
12- Customer service......................................................................................... 42

GB
4
1- Safety information
WARNING!
Make sure there is no transport damage.
Make sure all transportation bolts and packaging screws are re-
moved.
Remove all packaging and keep out of children´s reach.
Handle the appliance always with at least two persons because it
is heavy.
Daily use
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental ca-
pabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
Keep away children under 3 years of age from the appliance un-
less they are constantly supervised.
Children shall not play with the appliance.
Do not let children or pets come close to the appliance when the
door is open.
Store washing agents out of reach of children.
-
vent laundry from being entangled. If necessary, use an appropri-
ate bag or net.
Do not touch or use the appliance when barefoot or with wet or
damp hands or feet.
Do not cover or encase the appliance during operation or after-
wards to allow any moisture or dampness to evaporate.
Do not place heavy objects or sources of heat or damp on top of
the appliance.
Do not use or store flammable detergent or dry cleaning agent in
close vicinity to the appliance.
Do not use any flammable sprays in close vicinity to the appliance.

WARNING!
Daily use
Do not wash any garments treated with solvents in the appliance
without having dried them previously in the air.
Do not remove or insert the plug in the presence of flammable gas.
Do not hot wash foam rubber or sponge-like materials.
Do not wash any laundry which is polluted with flour.
Do not open detergent drawer during any wash cycle.
Do not touch the door during the washing process, it gets hot.
Do not open the door if the water level is visibly over the porthole.
Do not force the door to open. The door is t with a self-lock de-
vice and will open shortly after the washing procedure is ended.
washing programmes.
Do not touch the inner drum, metal parts, door, control panel or
metal buttons on the clothing shortly after washing programme
at high temperature or the water outlet hose when draining out
hot water.
undertaking any routine maintenance and disconnect the appli-
ance from the electrical supply to save electricity and for safety.
Hold the plug, not the cable, when unplugging the appliance.
Do make sure the room is dry and well ventilated. The ambient
temperature should be between 5 °C and 35 °C.
Do not cover any ventilation openings in the base by a carpet or
similar object.
Keep the area around the appliance free of dust and lint.
Do make sure that there is only laundry inside the appliance and
no pets or children before you use it.
Only dry textiles washed in water.
Do make sure not to load more than nominal load.
Remove all items such as lighters and matches from pockets.
manufacturer´s packaging.
GB
5
1- Safety information

WARNING!
Daily use
Do not dry following items in the appliance:
Items which are unwashed.
Items which have been contaminated with inflammable sub-
stances such as cooking oil, acetone, alcohol, benzine, petrol,
kerosene, spot removers, turpentine, waxes, wax removers
-
ter with an extra amount of detergent and then be dried in the
open air before drying in the appliance.
Items which contain padding or llings (e.g. pillows, jackets), as
the lling can get out with the risk of igniting in the dryer.
Items which contain a large proportion of rubber, foam rubber
(latex foam) or rubber like materials such as shower caps, wa-
terproof textiles, rubberised articles and items of clothing and
pillows with foam rubber lling.
Notice that the last part of the drying cycle occurs without heat
(cool down cycle) to ensure remaining the garments at a temper-
ature which does not damage them.
Do not leave the appliance unattended during run time for long-
er periods of time. If a long absence is intended, the drying cycle
mains.
nished, unless all items can be quickly removed and spread out
so that the heat can be released.
electricity and for safety.
GB
6
1- Safety information

WARNING!
Maintenance / cleaning
Make sure children are supervised if they carry out cleaning and
maintenance.
Disconnect the appliance from the electrical supply before under-
taking any routine maintenance.
Keep the lower part of the porthole clean and open door and de-
tergent drawer if appliance is not in use to prevent odours.
Do not use water spray or steam to clean the appliance.
Replace a damaged supply cord only by the manufacturer, its ser-
Do not try to repair the appliance by yourself. In case of repair,
please contact our customer service.
Installation
Ensure a location which allows opening the door fully. Do not in-
stall the tumble dryer behind a lockable door, a sliding door or a
door with hinges on the opposite side of the tumble dryer door as
this limits the full opening of the tumble dryer door.
The appliance should be placed in a well-ventilated place. Ensure a
location which allows opening the door fully.
Never install the appliance outdoors in a damp place, or in an area
which may be prone to water leaks such as under or near a sink
unit. In the event of a water leak, cut the power supply and allow
the machine to dry naturally.
Install and use the appliance only in places where the temperature
is above 5 °C.
Do not place the appliance directly on a carpet, or close to a wall
or furniture.
Do not install the appliance in direct sunlight or near heat sources
(e.g. stoves, heaters).
Make sure that the electrical information on the rating plate agrees
with the power supply. If it does not, contact an electrician.
Do not use multi-plug adapters and extension cables.
Make sure only the delivered electric cable and hose set are used.
GB 1- Safety information
7

1-
WARNING!
Installation
Make sure not to damage the electric cable and the plug. If dam-
aged, have it replaced by an electrician.
For the power supply, use a separate earthed socket which is ea-
syly accessible after installation. The appliance must be earthed.
no leakage.
1- Safety information GB
8

2- Product description
2.2 Picture of appliance
2.2.1 Front (Fig. 2.2.1)
1 Detergent drawer for upper drum
2 Softener drawer for upper drum
3 Softener drawer for lower drum
4 Detergent drawer for lower drum
5 Side panel
6 Upper door handle
7 Upper door
8 Lower door handle
9 Lower door
10 Adjustable feet (4 in all)
11 Worktop
12 Power button
13 Touch screen display
14 Upper drum
15 Upper sealing
16 Rating plate
17 Lower drum
18 Lower sealing
19 Service
2.1 Intended use
This appliance is intended for washing machine-washable and dryable laundry only. Always
follow the instructions given on the label of each garment label. The appliance is designed
exclusively for domestic use inside the house. It is not intended for commercial or indus-
trial use.
-
ards and loss of all warranty and liability claims.
Note: Deviations
3
2
3
1
4
5
6
7
8
9
10
11
12
13
14
15
17
18
19
16
2.2.1
fl
GB 2- Product description
9

2.2.2 Back (Fig. 2.2.2)
2.3 Accessories
Check the accessories and literature in accordance with this list (Fig. 2.3):
1 Power cord plug
2 Power cord
3 Packaging screws (S1-S2)
4 Blanking plugs (7 in all)
5 Water outlet connector
6 Filter B
7 Water inlet connection point
8 Upper rear cover
9 Lower rear cover
10 Transportation bolts (T1-T5)
11 Adjustable feet (4 in all)
Spanner *
Hose
* attached on back of appliance
1
2
3
4
5
10
9
8
1
7
S1
T4 T5
S2
T3
T1T2
6
11
2.2.2
Drain hose
bracket
User manual
Warranty-card
2.3
2- Product description GB
10

1 Drum selector
2 Programme selector
3.2 Programme selector
After choosing the drum, a programme can be selected by touching one of the screens.
12 programmes for the upper and 20 programmes for the lower drum are available. In ad-
dition, the 12 kg Standard programme exists for simultaneous use of both drums. Slide
sidewise in order to see further programmes. The selected programme lights up on full
screen and its default settings will be displayed.
This appliance is operated through a full touch screen display (Fig. 3.0). The touch screen
clearly shows how to choose between upper and lower drums, programmes and settings.
The user gets access to all functions with one slight touch.
3 Submenu
4 Power button
3.1 Drum selector
Touch this area to switch between the drums.
5 Quick-Start button
Note: Select the language
Before using the appliance, refer to section “3-Submenue; System settings” on next
page and choose the required language.
Note: Default settings
The default settings of each programme can be found on the display.
If you change the settings, they will be saved for the next use if the programme runs
completely.
1 3
4
2
5
3.0
GB 3- Control panel
11

3.3 Submenu
Touch the symbols to get following information or further settings:
Symbol Meaning
Opens operation guide videos.
Setting mode for child lock function, sound, language, brightness, WIFI set-
ting and remote control.
3.4 Power button
Touch this button for 3 seconds to switch on the ap-
pliance; the display lights up. Touch it again for about 3
the machine shuts down automatically after a while.
3.5 Quick-Start button
runs with the default settings. Otherwise it runs with the previous settings.
1. Touch on right edge of the display to enter
settings (Fig. 3.0).
2. Child lock, sound, language, brightness and WIFI
setting and remote control can set separately (Fig.
3.3.2-1).
3.3.2 System settings 3.3.2-1
3. Open next level menu of “Language“ to select the
language (Fig. 3.3.2-2).
3.3.2-2
3.3.1 Operation guide
Touch on right edge of the display (Fig. 3.0) to
enter the page for videos (Fig. 3.3.1). Here a brief and
clear information guide can be found to use the appli-
ance better and more safely.
Note: Symbol
By touching the return icon you will return to last menu.
3.3.1
3- Control panel GB
12

3.7 Special functions
3.7.1 Child Lock
This option blocks all panel elements against activa-
tion.
Turn on the function in “Setting”-menu (Fig. 3.7.1-
1).
After starting a programme, the lock symbol is dis-
played after 1 minute (Fig. 3.7.1-2).
When child lock is in operation, press its symbol on
the screen for 3 seconds to stop this function.
3.7.1-1
3.7.1-2
3.6 Programme status indicators
A Upper drum
B Lower drum
1 Selected programme
2 Remaining operation time
3 Washing process indicator
4 Start/Pause button
5 Door is locked
6 Programme progress
indicator
A
B
12
3
5
6
4
5
2
3
6
4
1
3.6
GB 3- Control panel
13

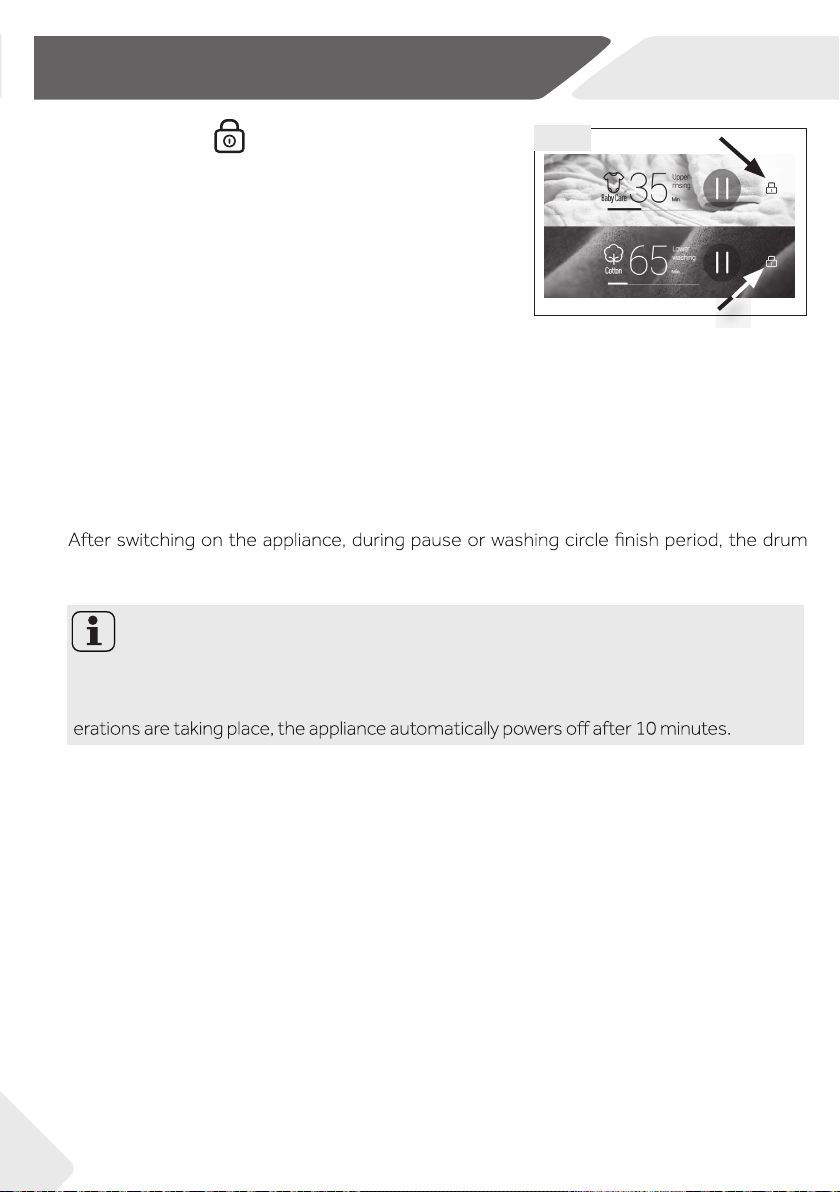

3.7.2 Door lock
For safety reasons the appliance door is normally
locked during the washing circles. The door lock signal
is shown on the screen; when both drums are operat-
ing, both signals are shown (Fig. 3.7.2).
To unlock the door during the washing circles touch
the pause signal on the screen and open the door
after the signal fades out.
Under some conditions, e.g. when the water level
or temperature in the drum is too high or the drum
is still rolling, the door can not be opened even
when the programme is paused. Please note that
this is a normal situation.
You also need to unlock the door to open it during
the “delay” period.
3.7.2
3.7.3 Drum lamp
lamp lights up.
Note: Standby mode / energy-saving mode
The switched-on appliance goes into standby-mode if it is not activated within 2 minutes
before starting the programme or at the end of programme. The display turns grey. This
saves energy. To interrupt the standby-mode, touch the display at any position. If no op-
·
·
·
3- Control panel GB
14

C
Parameter Programme
12 kg Standard *Dry
Temperature in °C 60 °C -
Max. load
in kg
Drum Upper Lower Lower
Washing 4 8 -
Drying - - 4 1)
Energy
in kWh
Washing, spinning and drying 8.14
Only for washing and spinning 0.95
Water
in L
Washing, spinning and drying 138
Only for washing and spinning 64
Time
in h:min Washing and drying 12:46 1)
Spin drying performance in % 53
1) For whole capaci ty of 12 kg, 3 drying c ycles a re ne cessary.
* Standard programme for the Energy Labelling according to 96/60 EU:
Washing: “12 kg Standard” programme with max. spin speed and 60 °C temperature
setting. Both drums work simultaneously.
Drying: Reduce the load to 4 kg. Select “Dry” programme, then touch “Dry” setting
screen (Fig. 5.0) for 6 seconds (Fig. 4.0) until the time switches to 147 min-
utes. Repeat twice for rest of washing load.
4.0
The standard 60 °C cotton washing programme is
suitable to clean normally soiled cotton laundry. It is
energy and water consumption for cotton laundry. The
-
cle temperature.
GB
15
4- Consumption

Following programmes are available for the upper and lower drum:
Presorted laundry
Fabric
care
symbol Programme
Fibre type / descrip-
tion
Drum
U: Upper L: Lower
Insensitive white
laundry, heavily soiled
or with special hy-
gienic requirements
Intensive
Allergy Care Baby clothes; washable at
high temperature U
Hygiene Cotton and linen; washable
at high temperature L
Insensitive white or
coloured laundry
Normal
12 kg Standard 1) Cotton and linen U+L
Baby Care Baby clothes U
Kids´Wear Children’s clothing U
Cotton Cotton and linen L
Underwear Underwear U
Bedding Bedclothes L
Towels Towels and bath towels U
Casual Small amount of laundry U
Bulky Heavily soiled cotton
laundry L
Mix L
Jeans Jeans L
Shirts Shirts L
Sensitive white or
coloured laundry
Delicate
Down L
Synthetic Synthetic L
Curtain Curtains & co L
Outdoor Care Outdoor clothes L
Silk Washable silk U
Sports Wear Sportswear L
Wool Woolen clothing L
Color Wear Dark colored laundry U
Quick Wash 2) Lightly soiled laundry of
cotton or synthetic U/L
Delicates Handwashing or delicate
laundry L
All kinds of laundry
Special
Rinse & Spin Rinsing without detergent U/L
Spin Spinning only U/L
Dry All laundry suitable for dryer L
Dry laundry Refresh Refreshing (no drying!) of
cotton or synthetic. L
Without any laundry Tub Clean Self-cleaning of drum U/L
1) Both drums are working simultaneously. Don´t forget to load both drums!
2) Do not overdose de tergent to avoid too much foam.
GB
16
5- Programmes

why not availbal? is stil
in discussion
Max. load
in kg
Presetting Available temperature
washing drying
Programme
runtime 3)
in min
„Wash“
in min
„Rinse“
cycles
„Speed“
in rpm OFF 20 30 40 60 90
2 - 131 30 2 1000 P
4 3 161 30 2 1000 P
4+8 - 226/203 - - Max P •
3 - 85 10 3 1000 • • • P• •
3 - 90 15 3 1000 • • • P• •
8 4 118 60 2 1500 • • P•••
2 - 63 10 2 1000 • • • P•
5 3 97 15 3 1000 • • • P•
2 - 68 5 2 1200 • • • • P
4 - 51 10 2 1000 • • P• •
5 3 92 20 3 1000 • • P• •
4 3 67 15 2 1000 • • P• •
4 2 72 20 2 1000 • • P• •
4 2 70 10 3 1000 • • • P
2 - 72 25 2 600 • • • P
4 2 93 40 2 1200 • • P• •
4 - 58 5 2 800 • • P• •
4 2 55 15 2 800 • • P•
1 - 41 10 2 600 • • P
4 2 25 5 1 800 •P• •
2 - 46 15 1 800 •P• •
3 - 59 25 2 600 P • •
1/3 -/1 15 3 1 1000 P •••
3 - 41 10 2 600 • • P
3/6 -/3 26 - 2 1000
3/6 -/4 7 - - 1000
4 4 150 - - -
- 1 30 - - -
-/- -/- 70/90 - - -
in °C
3) Due to multiple distribution, inlet waiting, spin
waiting and drainage waiting, the displayed
time does not match with the actual runtime. (P: Presetting; •: available)
GB
17
5- Programmes

list
Programme
Drum Max.load
in kg
Available functions
U: Upper L: Lower washing drying
Dry Delay Stains Water Plus Night wash Eco wash Intensive Soak wash Easy Ironing
Intensive
Allergy Care U 2 • • • •
Hygiene L 4 3 • • • • •
Normal
12 kg Standard U+L 4+8
Baby Care U 3 • ••••••
Kids´Wear U 3 ••••••••
Cotton L 8 4 • ••••••••
Underwear U 2 • ••••••
Bedding L 5 3 • • ••••••
Towels U 2 • ••••••
Casual U 4 ••••••••
Bulky L 5 3 • • ••••••
Mix L 4 3 • ••••••••
Jeans L 4 2 • • • • • • •
Shirts L 4 2 • • ••••••
Delicate
Down L 2 • • • • •
Synthetic L 4 2 • ••••••••
Curtain L 4 • ••••••
Outdoor Care L 4 2 • • ••••••
Silk U 1 • • •
Sports Wear L 4 2 • • • • • •
Wool L 2 • • •
Color Wear U 3 • • • • •
Quick Wash 2) U/L 1/3 -/1 -/ • • • •
Delicates L 3 - -• • •
Special
Rinse & Spin U/L 3/6 -/3 -/ • • • • •
Spin U/L 3/6 -/4 -/ • •
Dry L 4 • •
Refresh L 1 •
Tub Clean U/L •
•: available
Following functions are available for the programms:
GB
18
5- Programmes

Environmentally responsible use
Washing
To achieve the best use of energy, water, detergent and time you should use the
recommended maximum load size.
Do not overload (hand width clearance above laundry).
For slightly soiled laundry, select the Quick Wash programme.
Apply exact dosages of each washing agent.
Choose the lowest adequate washing temperature - modern detergents clean ef-
Raise default settings only to get rid of heavy staining.
Spin the laundry with the maximum spin speed if you want to use a drying pro-
gramme afterwards .
Drying
Loosen up the laundry before starting the drying programme.
Do not use softener when washing - the laundry will become fl
dryer programme.
GB 6- Eco-friendly washing
19

7.0 Quick Guide
7.1 Put the electrical plug into the socket.
7.2 Open the water tap.
7.3 Switch the appliance on by touching the power on symbol for 3 seconds.
7.4 Prepare the laundry.
7.5 Select the washing drum according to the laundry.
7.6 Load the laundry and close the door.
7.7 Select the detergent.
7.8 Add the detergent.
7.9 Select the washing/drying programme for the loaded drum on the display
the degree of soiling and sort of laundry type.
7.10 Maybe add individual selections and/or a start delay time.
7.11 Touch
▲
to start the programme.
7.12 After the programme ends, take out the laundry, Close the water tap, pull out the
electrical plug.
Select a
drum
Select a
programme
Add individual
selections
Upper
drum
Lower
drum
e.g. Baby
Care
e.g. Cotton
Switch
on
Quick start
Quick start
5. 9. 10.
3.
11.
Settings
Dry
Stains
Additional
functions
Start pro-
gramme
Delay
7.0.1
7- Daily use GB
20
