Haier HWD100-B14876U1 User manual

User manual
●
Washer & Dryer
HWD100-B14876U1
●
HWD120-B14876U1

Thank You
2
Legend
●
W
●
arning – Important Safety information
Gene
●
ral information and tips
Envi
●
ronmental information
Disposal
Help protect the environment and human health. Put
the packaging in applicable containers to recycle it.
Help to recycle waste of electrical and electronic ap-
pliances. Do not dispose appliances marked with this
symbol with the household waste. Return the product
to your local recycling facility or contact your municipal
office.
Thank you for purchasing this product.
Please read these instructions carefully before using this appliance. The instructions
contain important information which will help you get the best out of the appliance and
ensure safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and
proper use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make
sure you also pass this manual so that the new owner can become familiar with the
appliance and safety warnings.
WARNING!
Disconnect the appliance from the mains supply. Cut off the mains cable and
●
dispose of it. Remove the door catch to prevent children and pets to get closed
in the appliance.

Wisdom content couplet
Scan the instruction page QR code with your mobile phone to download and install Haier
●
Smart APP client.
●
Registration is required only the first time you use the APP, For further use,you only
●
have to enter the user name and passward to use the APP when successfully regi-
stered.
Download and Install Haier Smart APP
Connect to home Wi-Fi,Register to log in to the APP.Plug in the washing machine power,
long touch the power button until the washing machine is turned on and display C5 to enter
the configuration mode,Choose the right mode, add the device according to the binding gu-
idelines of the APP.
Registration and Login
Function of APP
equipment control:Select program mode, set program parameters,start program mode,
pause, shutdown, etc.
●
Status View: View the running status of the device in real time.
Information reception: receiving various prompts such as fault alarm,etc.
●
The APP function will be updated continuously with the upgrade of the version,
which is subject to the actual function of the corresponding version.
During operation, press “Temp.” and “Speed” at the same time, the display will
show U OFF, indicating that Wi-Fi is off, press “Temp.” and “Speed” again, U ON
is displayed, indicating Wi-Fi is on.
3

Content
1-Safety information
●
5
2-P
●
roduct description 8
3-Control panel 9
4-Programmes 13
●
14
5-Daily use
6-Eco-friendly washing 19
7-Care and cleaning 20
8-Troubleshooting 23
9-Installation 27
●
10-Technical data
●
31
4

1-Safety information
-
ing safety hints!
WARNING!
●
Ma
●
ke sure there is no transport damage.
Make sure all t
●
ransport bolts are removed.
Remove all packaging and keep it out of children’s reach.
Handle the appliance always with at least two persons because
it is heavy.
Daily use
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision
●
or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Keep away child
●
ren under 3 years of age from the appliance
unless they are constantly supervised.
Children shall not play with the appliance.
Do not let children or pets come close to the appliance when the
door is open.
Store washing agents out of reach of children.
Pull up zips, fix loose threads and take care of small item to
Do not touch or use the appliance when barefoot or with wet or
damp hands or feet.
Do not cover or encase the appliance during operation or after-
wards to allow any moisture or dampness to evaporate.
Do not place heavy objects or sources of heat or damp on top of
the appliance.
Do not use or store detergent or dry cleaning agent in
close vicinity to the appliance.
Do not use any sprays in close vicinity to the appliance.
Do not wash any garments treated with solvents in the appliance
without having dried them previously in the air.
prevent laundry from being entangled. If necessary, use an appro-
priate bag or net.
5

1-Safety information
W
●
ARNING!
Daily use
Maintenance / cleaning
●
Installation
●
Do not remove or insert the plug in the presence of flammable
gas.
Do not hot wash foam rubber or sponge-like materials.
Do not wash any laundry which is polluted with flour.
Do not open detergent drawer during any washing cycle.
Do not press the door during the washing process,it gets hot.
Do not open the door if the water level is visibly over the porthole.
Do not force the door to open.The door is fitted with a self-lock
device and will open shortly after the washing procedure is ended.
Switch off the appliance after each washing programme and be-
fore undertaking any routine maintenance and disconnect the ap-
pliance from the electrical supply to save electricity and for safety.
Hold the plug,not the cable,when unplugging the appliance.
Make sure children are supervised if they carry out cleaning and
maintenance.
Disconnect the appliance from the electrical supply before under-
taking any routine maintenance.
Keep the lower part of the porthole clean and door and detergent
drawer open if appliance is not in use, to prevent odours.
Do not use water spray or steam to clean the appliance.
Replace a damaged supply cord only by the manufacturer,its ser-
vice agent or similarly qualified persons in order to avoid a hazard.
Do not try to repair the appliance by yourself.In case of repair is
needed please contact our customer service.
The appliance should be placed
●
in a well-ventilated place.Ensure
a location where allows to ope
●
n the door fully.
Never install the appliance outdoors in a damp place or in an area
which may be prone to water leaks, such as under or near a sink
unit.In the event of a water leak, cut off power supply and let the
machine dry naturally.
6

1-Safety information
This appliance is intended for was
●
hing machine-washable laun-
dry only.Anytime the instructions given on the label of each garment
label should be followed.It is designed exclusively for domestic use
inside the house.It is not intended for commercial or industrial use.
WARNING!
Installation
Install or use the appliance only in where the temperatuer is
above 5 °C.
Do not place the appliance directly on a carpet or close to a
wall or furniture.
Do not install the appliance in direct sunlight or near heat
sources(e.g. sloves,heaters).
Make sure that the electrical information on the rating plate
agrees with the power supply.If it does not,contact an
electrician.
Do not use multi-plug adapters and extension cables.
Make sure only the delivered electric cable and hose set are
used.
Make sure the electric cable and plug are not damaged.If
damaged,have it replaced by an electrician.
Use a separate earthed socket for the power supply which is
easily accessible after installation.The appliance must be
earthed.
Make sure the hose joints and connections are firm and
without leakage.
Intended use
Changes or modifications to the device are not allowed.Unintended
use may cause hazards and loss of all warranty and liability claims.
●
7

rpm ●
1400
capacity
10kgABT
99% HWD100-B14876U1
Disinfection
Delicate
Bedding
Steam Cycle
Kids Wear
Refresh Dry
Dry
Spin
Disinfection
Mix
Quick 15
Wool
Shirts
Duvet
Intense
Self Clean
2-Product description

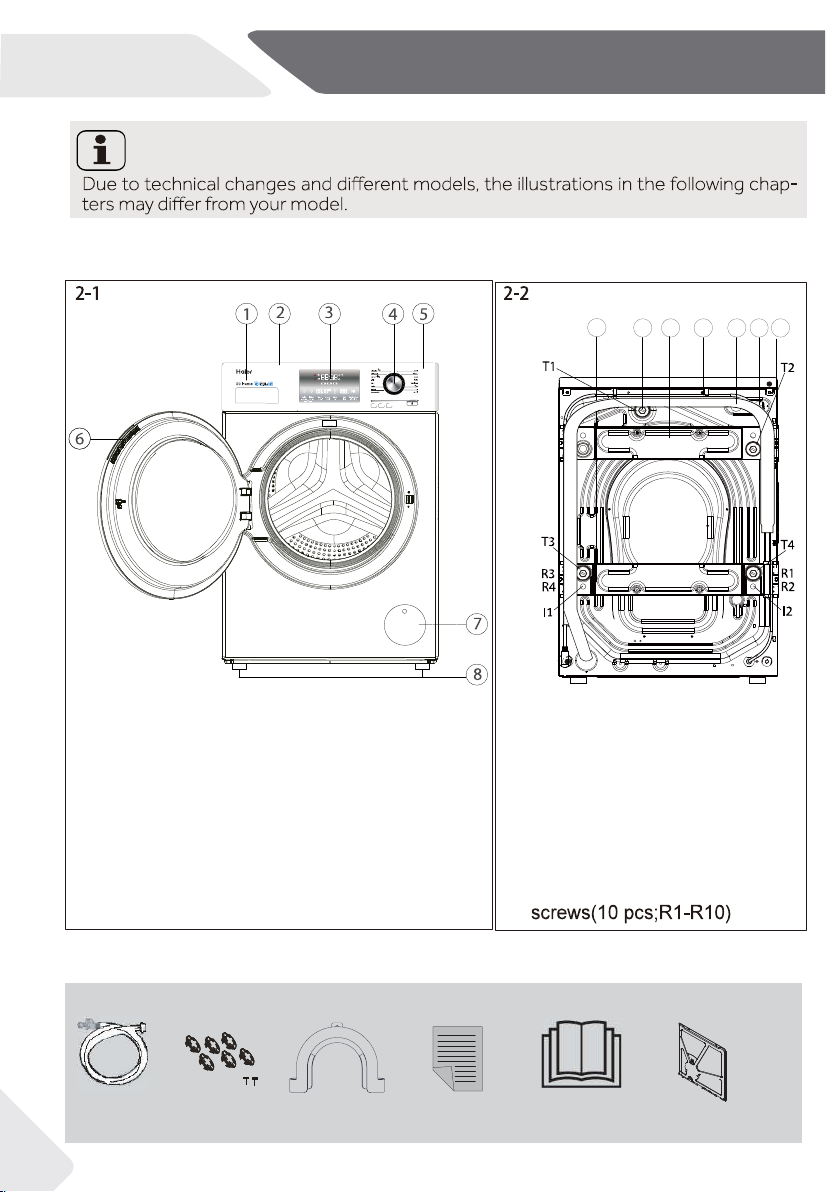

2.1 Picture of appliance
Front (Fig. 2-1): Rear side (Fig. 2-2):
2.2 Accessories
●
Check the accessories and literature in accordance with this list (Fig.2-3):
Inlet hose
assembly 6 Blanking
plugs and 2 Bolts Drain hose
bracket User manual
Warranty-card
Note:
2-3
21 3 4 5 6 7
1 Detergent / Softener
drawer
2 Worktop
3 Display
4 Programme selector
1 Iron bar (I1-I2)
2 Transportation bolts (T1 -T4)
3 Rearward reinforcement
4 Power cord
5
Water inlet valve6
Drain hose
7
5 Panel
6
7 Sevice flap
8 Adjustable feet
Door
(Picture is schematic, please refer to actual product)
R5
R6
Bottom plate
R7
R8 R9 R10
Rearward reinforcement
8

rpm
●
1400
capacity
10kg
ABT
99% HWD100-B14876U1
Disinfection
Delicate
Bedding
Steam Cycle
Kids Wear
Refresh Dry
Dry
Spin
Disinfection
Mix
Quick 15
Wool
Shirts
Duvet
Intense
Self Clean
3-Control panel
3.1 Dete
●
rgent drawer
Open the drawer, three compartments can be seen
(Fig. 3-2).
1
●
Compartment : Disinfector for programme
2
Compartment : Liquid detergent for programme
3
Compartment : Softener, Conditioning agent etc.
4
Compartment : Powder detergent for programme
T
●
he recommendation on the type of detergents is
suitable for the various washing temperatures, please
refer to the manual of detergent.
3-2
3-1
Note : Acoustic signal
In following cases an acoustic signal sounds:
when pressing a button
when turning the programme selector
at the end of programme
in case of failures
The acoustic signal can be deselected if necessary; see DAILY USE.
1 Detergent / Softener drawer
2 Display
3 Programme selector
4
5 Start/Pause
6 Dry
7 Rinse
8 Speed
9 Temp.
10 I-time
11
Child lock (Delay+I-time)
12
Delay
3.2 Display
If
●
the appliance is on Display will light up the actual-
washing time, spin speed, temperature, etc. will appear
(Fig. 3-3).

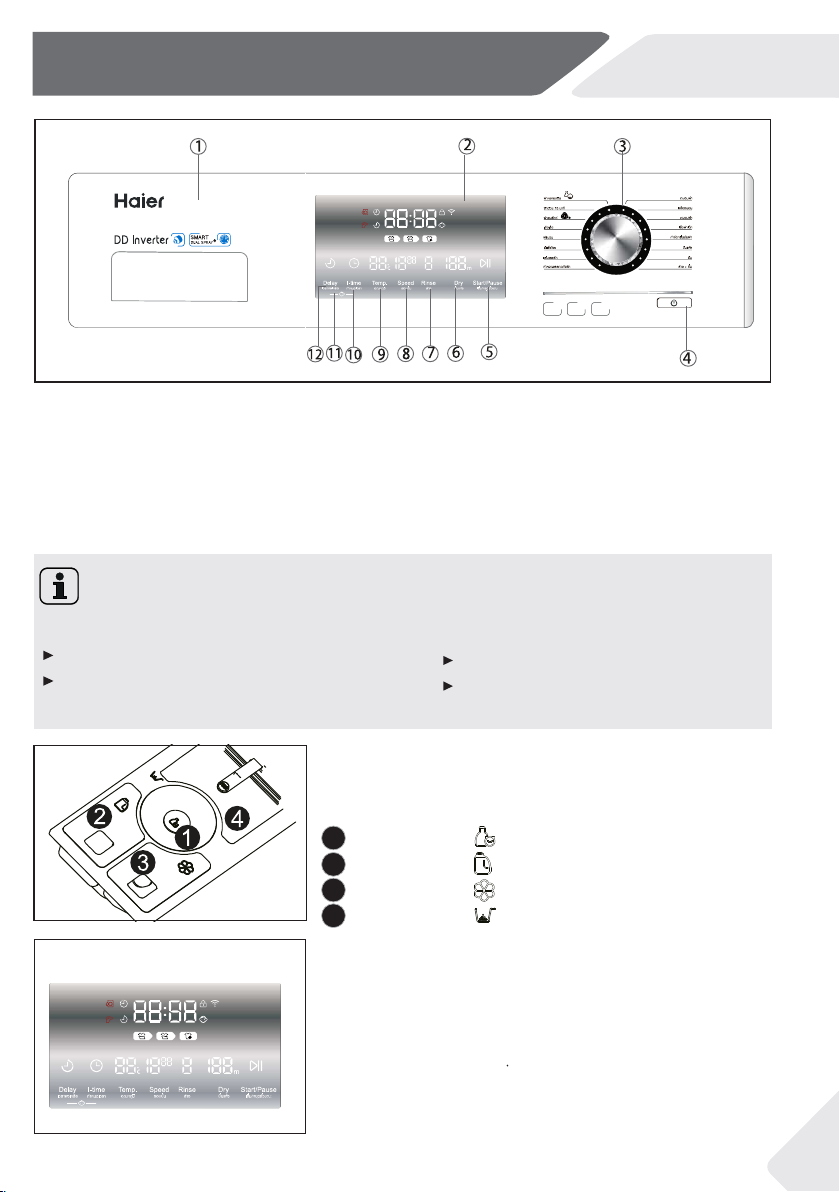

Function buttons:
3-3
“Power” button
status on different sections. The information including
9

3-Control panel
Display symbols:
Programme stat
●
us indication Programme cycle indication
Control panel
is locked
Door is locked
(in operation)
Display for washing time, end time
delay as well as error codes and
service information.
Remaining opera
tion time
Remaining delay
time
Rinse cycle
No water Door is open Wash cycle Spin/drainage cycle
3.5 “Start/Pause” but
●
ton
Press this
or interrupt the currently displayed programme.
During programme
●
run the colon in the displayed
washing time is blinking. During a pause also the
time display is blinking.
3.3 Programme selector
By turning the knob (Fig. 3-4) one of 16
programmes can be selected, related LED
will light up, and its corresponding settings
will be displayed.
3-4
Press this button (Fig. 3-5) to switch on,
if no panel element or programme is activated after
a while machine will shut down automatically.
3-6
3-5
Press it again for about 2 seconds to switch off,
3.4 “On/Off” button
Disinfection
Delicate
Bedding
Steam Cycle
Kids Wear
Refresh Dry
Dry
Spin
Disinfection
Mix
Quick 15
Wool
Shirts
Duvet
Intense
Self Clean
10
supply

3-Control panel
Note: Liquid detergent
If using liquid detergent, it is not recommended to activate the end time delay.
3.6.1 Function “Dela
●
y”
Press this button (Fig. 3-8) to start the programme
with a delay. End time delay could be increased in a st-
means end of programme cycle will be in 6 hours
and 30 minutes. Press “Start/Pause” button to activate
the time del
●
ay.
The time delay must be longer than the programme run
time. Otherwise the programme will start immediately.
For deactivating the time delay; rotate programme se
lec
●
tor.
3-8
3.6 Function buttons
The function buttons (Fig. 3-7) enable additional op-
tions in the selected programme before programme
start. The related indicators are displayed.
all options are disabled.
If a button has multiple options, the desired option can
be selected by pressing the button sequentially.
To delete the setting or cancel the setting process,
press the function button until the desired LED lights
Not all functions are available
for all programmes (see “Programmes”).
3-7
Note: Factory settings
settings. If there is no special requirement, default settings are recommended.
By switching off the appliance or a programme running
or the LED switches off
ep of 30 minutes from 0.5-24h. For example, display off
To get best results in each programme we have well defined specific default
3-9
3.6.2 Function “I-time”
Press the“I-time” button (Fig. 3-9) to select or cancel
“I-time” function,washing time can be increased or
reduced by pressing the button sequentially.
●
Not all functions are available for all programmes
(see “Programmes”).
-
11

3-14
●
3-Control panel
3.6.3 Function “Child lock”
This option blocks all panel elements against
activation. After programme start press button
“ Delay” and “I-time” (Fig. 3-10) simultaneously
for 3 seconds; child lock symbol is displayed.
For unlocking, press again the two buttons.
3.6.5 Function “Speed”
Press this button (Fig. 3-12) to change or deselect
the spin of the programme. If no value is illuminated
the laundry will not spin.
3.6.4 Function “Temp.”
Press this button (Fig. 3-11) to change
the washing temperature of the programme.
If no value is illuminated water will not be heated.
3-10
3-11
3-12
3.6.6 Function “Rinse”
3-13
3.6.7 Function “Dry”
Press this button (Fig. 3-13) to change or deselect
rinse time. By pressing the button several times one
to three cycles can be selected.
Press this button (Fig. 3-14) in order to activate/de-
activate the drying function.
By pressing the button sequentially, drying time can
be seen in combination with programme Dry this f-
●
unction sets the drying time.
12

4-Programmes
*: Water is not heated up.
Choose 90 wash temperature only for special hygienic requirements.
Reduce detergent amount because programme duration is short.
Max.
load
in kg
Tempera-
ture Preset
Spin
speed
in rpm
Function
in °C
Programme Recommended
clothing type
max
●
Preset
10/12 60 30
º º
1000
º
Mix
40 *
º
Mixed-laundry of
cotton and synthetic
1000
º
º
/Machine-washable 800
Shirts 40 40
º
/
º
Suitable for shirts 1000
Duvet 40 40
º
/Machine-washable
duvet 800
90
º
Disinfection for the
clothes suitable 1000
Steam Cycle
90 30
º
Cotton 1000
Dry
/ 90 90 /600 /
2/2.4
2/2.4
2/2.4 30 30
º
/
Lightly soiled cotton
600
º
Disinfection
7/8.4 60 30
º
/Suitable for bedding 1000
Self Clean
5/6
5/6
5/6
5/6
60 40
º
/Underwear 1000
90 40
º
/1000
Delicate
H3 H1
º
Casual wear
Intense
/
●
///
//Cotton
●
/
●
// / 1000 /
Rinse+Spin / / / / / all fabrics 1000 / /
1)
2)
2)
2)
Detergent compartment for:
1
Disinfector
Liquid detergent
Softener, Conditioning agent etc.
Powder detergent
2
3
4
Yes
º
Optional,
/
No
1/1.2
1/1.2
40 *
30
Quick 15
Bedding
Refresh Dry
Spin
2)
2)
and synthetic
woolens fabric
all fabrics
/
/
º
º
º
º
º
º
/
/
/
/ /
/
/
/
/
º
º º
º º
º º
º º
º º
/
º º
º
º º
Delicate laundry and
silk
º
1)
º
º
º
Do not use detergent instead of use a special machine cleaner.
º
º
º
º
º
º
º
/
º
º
º
º
º
º
//
/
/
/
º
Child laundry
HWD100-
B14876U
1/HWD12
0-B14876
U1
Kids Wear
C
o
10/12
10/12
10/12
10/12
13

5-Daily use
5.3 P
●
reparing laundry
Sort out clothes according to fabric (cotton, syn-
thetics, wool or silk) and how dirty they are (Fig.
5-3). Pay attention to the care labelling of wash-
ing labels.
Separate white clothes from coloured ones.
they fade or run.
Empty pockets (keys, coins, etc.) and remove
harder decorative objects (e.g. brooches).
a
●
wash bag to care for this delicate laundry (hand
or dry cleaning would be better).
Close zippers, velco fastener and hooks, make
sure the buttons are sewn on tightly.
hem,
●
delicate underwear (Dessous) and small
i
●
tems such as socks, belts, bras, etc. in a wash
bag.
Unfold large pieces of fabrics such as bed sheets,
bedspreads etc.
pick out jeans and printed, decorated or color
intensive textiles; possibly wash separately.
5-3
5.1 Power supply
Connect the washing machine to a power supply
(220V /50Hz; Fig. 5-1). Please refer also to section
“Installation”.
5.2 Water connection
Before connecting check the cleanliness and clar-
ity of the water inlet.
Turn on the tap (Fig.5-2).
5-1 5-2
Note: Tightness
Before use check for leakage in the joints between the tap and the inlet hose by
turning on the tap.
CAUTION!
Non-textile, as well as small, loose or sharp-edged items may cause malfunctions
and damage of clothes and appliance.
Wash coloured textiles first by hand to check if
Place sensitive items like laundry without firm
Garments without hems,delicates and finely wowen
textile such as fine curtains are to be put into
14

5-Dai y use
Care chart
Washing
Washable up to 95°C
normal process
Washable up to 60°C
normal process
Washable up to 60°C
mild process
normal process
Washable up to 40°C
mild process
Washable up to 40°C
very mild process
Washable up to 30°C
normal pr
●
ocess
Washable up to 30°C
mild process
Washable up to 30°C
very mild process
Wash by hand
max. 40°C
Do not wash
Bleaching
Any bleaching allowed Only oxygen/
non -chlorine
Do not bleach
Drying
Tumble drying possible
normal temperature
Tumble drying possible
lower temperature
Do not tumble dry
Line drying
●
Flat drying
Ironing
ron at a maximum
●
temperature
up to 200 °C
ron at a medial tem-
perature
up to 150°C
I ron at a low temper-
ature up to 110 °C;
without steam (steam
ironing may cause irre-
versible damage)
Do not iron
Professional Textile Care
Dry cleaning in tetra-
chloroethene
Dry cleaning in hy-
drocarbons
Do not dry clean
Professional wet clean Do not professional
wet clean
5.4 Loading the appliance
Put in the laundry pie
●
ce by piece
of thumb for maximum load: Keep six inches between load and drum top.
Close the door ca
●
refully. Make sure that no pieces of laundry are pinched.
Washable up to 40°C
Don’t overload.Note the different maximum load according to programmes!Rule
15

5-Daily use
5.5 Selecting detergent
Use only machine wash approved detergent.
Always follow detergent manufacturer’s recommendations.
Do not use dry cleaning agents such as
●
trichloroethylene and similar products.
Choose the best dete
●
rgent
Programme
Kind of detergent
Universal Colour Delicate Special Softener
L/P L/P oMix
L o
L L o
Shirts L/P
●
L/P L o
Disinfection
L/P L/P o
Wool
L/P L/P L o
Intense o
Delicate L/P L/P
L/P L/P
o
L/P L/P o
Quick 15
L/P L/P L
L
L
o
L o
oRefresh Dry
oDry
Duvet
L = gel-/liquid detergent P = p
●
owder detergent O = optional
If using liquid detergent, it is not recommended to activate the time delay.
We recomment by using:
Laundry powder: 20°C to 90°C* (best use:40-60°C)
Color detergent: 20°C to 60°C (best use:30-60°C)
Wool/delicate detergent: 20°C to 30°C (best use:20-30°C)
* Choose 90 °C wash
●
temperature only for special hygienic requirements.
Washing efficiency and performance is determined by the using detergent quality.
If needed use specific detergents,e.g. for synthetic and woolen fabric.
* It is better to use less or free suds detergent powder.
It is better to use less or free suds detergent powder.
16

5-Daily use
5.7 Switch on the appliance
●
on the appliance (Fig. 5-5).
●
5.6 Adding detergent
Slide out the detergent drawer.
Put the required chemicals into corresponding
compartments (Fig. 5-4), refer to section 3.1 De-
tergent drawer.
Push back the drawer gently.
Note:
Remove detergent residues before next wash cycle from the detergent drawer.
Do not overuse detergent or softener.
Please follow the instruction on the detergent package.
Concentrated liquid detergent should be diluted before adding.
Do not use liquid detergent if function “Delay” is selected.
Carefully choose the programme settings according to the care symbols on
all laundry labels and according to the programme table.
5.8 Select a programme
To get the best washing results, select a programme
type.
Turn the programme
●
knob (Fig. 5-6) to select the right
programme. Related programme LED lights up and
the default se
●
ttings are displayed.
5.9 Add individual selections
●
Select required options and settings
(Fig. 5-7);
refer to CONTROL PANEL.
Note: Self Clean
Press the “Power” button for two seconds to switch
Always fill the detergent just before the beginning of the wash cycle.
which fits the degree of soiling and sort of laundry
For regular maintenance we recommend to run programme Self Clean with no
load in order to remove possible corruptive residues from time to time. Add a
special machine cleaner.
17

5-Daily use
5.12 After washing
●
At programme cycle end “End” is displayed.
Remove laundry as soon as possible
●
to go easy on it and to prevent more wrinkling.
Unplug the power cord.
Open the door to prevent formation of moisture and odours. Let it open while not used.
5.13 Activate or deactivate the b
●
uzzer
The acoustic signal can be deselected if necessary:
Switch on the applian
●
ce.
Select the Spin
●
programme.
Press the “I-time” button and “Speed” button at the same time for about three
seconds. “ bEEP OFF ”
“ bEEP On ”
will be displayed and the buzzer will be deactivated.
For activating the buzzer press these two buttons at the same time again.
will be displayed.
5.11 Interrupt/cancel wash programme
To interrupt a running programme press gently “Start/Pause”. Programme run-time is
flashing. Press it again to resume operation.
To cancel a running programme and all its individual settings:
Press “Start/Pause” button to interrupt the running programme.
Run programme Spin to drain the water.
Select a new programme and start it.
Note: Door lock
For safety reasons the door is locked partially during the washing cycle. It is only
possible to open the door at the end of the programme or after the programme was
cancelled correctly (see description above).
In case of high water level, high water temperature and during spinning it is not
possible to open the door; the “lock” symbol is displayed.
Note: Standby mode / energy-saving mode
The switched on appliance will go into standby mode if it will not be activated within
two minutes before starting the programme or at the end of programme. The display
5.10 Start wash programme
Press “Start/Pause” button (Fig. 5-8) to start; appli-
ance operates according to present settings. Changes
are only possible by cancelling the programme.
Press “Power” button for about three seconds to switch the appliance off.
The appliance switches off automatically.
Turn off the water supply.
switches off.This saves energy.To interrupt the standby-mode push “Power” button.
18

6-Eco-friendly washing
Environmentally responsible use
To achieve best use of energy, water, detergent and time you should use the
recommended maximum load size.
Do not overload (hand width clearance above laundry).
For slightly soiled laundry select the Quick Wash programme.
Apply exact dosages of each
●
washing agent.
ciently cleaning below 60°C.
Raise default settings only due to heavy staining.
Select max. spinning speed if a domestic dryer is used.
Choose the lowest adequate washing temperature - modern detergents are effi-
19

7-Care and cleaning
7.1 Cleaning the detergent drawer
Take always care there are no detergent residues.

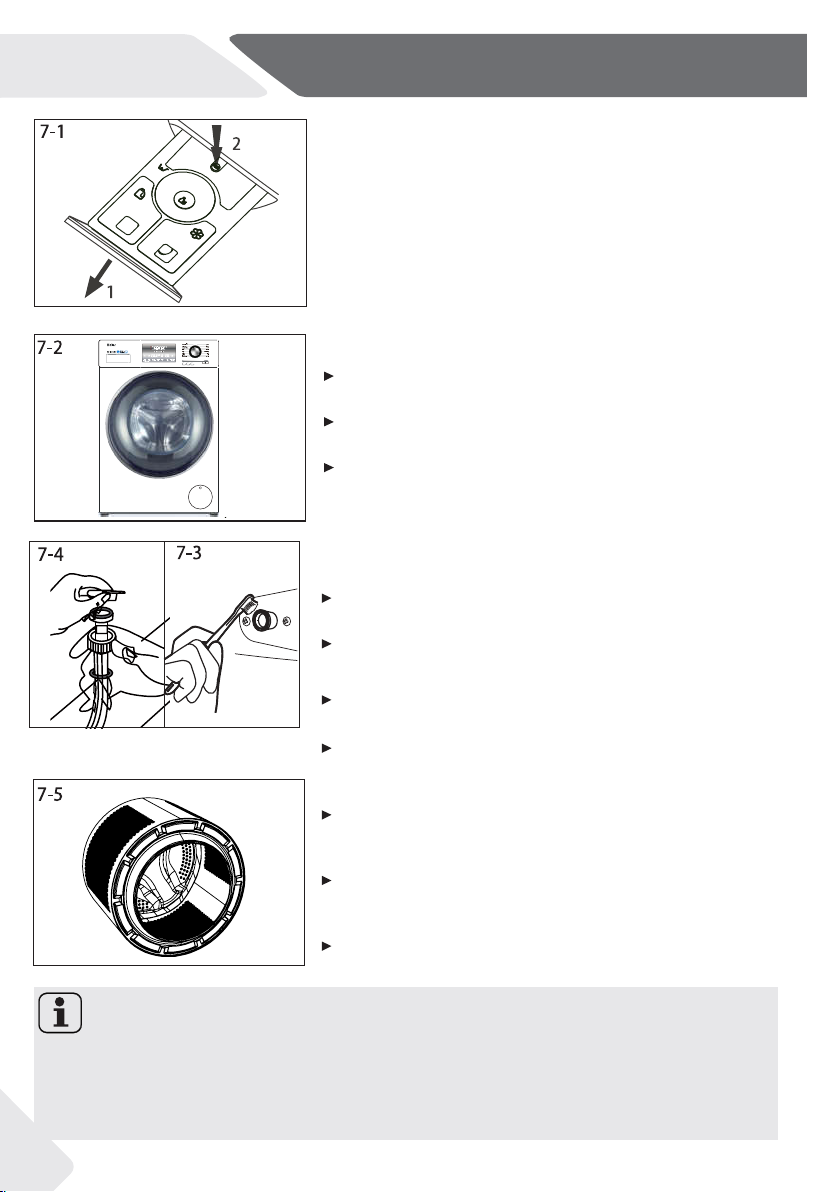

Clean the drawer regular ly (Fig. 7-1):
1. Pull out the drawer until it stops.
2. Press the release button and remove the drawer.
3. Flush the drawer with water until it is clean and
insert the d
●
rawer back in the appliance.
7.2 Cleaning the machine
Unplug the machine during cleaning and mainte-
nance.
Use a soft cloth with soap liquid to clean the
machine case (Fig. 7-2) and rubber components.
Do not use organic chemicals or corrosive
solvents.
Note: Self Clean
●
For regular maintenance we recommend to run programme Self Clean with no
load in order to remove possible corruptive residues from time to time. Add a
special machine cleaner.Each 50 working cycles, the Self Clean LED will blink in
standby statue, after running Self Clean programme, the LED will turn off.
To prevent blockage of water supply by solid substanc-
supply.
Unscrew the water inlet hose at the back (Fig.
7-3)of the appliance as well as on the tap(Fig.7-4) .
7.4 Cleaning the drum
Remove accidentally washed metal parts such as
pins, coins, etc. from the drum (Fig. 7-5) because
they cause rust stains and damage.
Use a non-chloride cleaner for removing rust stains.
Observe the warning hints of the cleaning agent
manufacturer.
Do not use any hard objects or steel wool for clean-
ing.
7.3 Water inlet valve and inlet valve filter
es like lime clean regularly the inlet valve filter.
Unplug the power cord and turn off the water
Remove the filters and flush them with water and
a brush.
Insert the filter and install the inlet hose.
rpm
1400
capacity
10kg
ABT
99% HWD100-B14876U1
Disinfection
Delicate
Bedding
Steam Cycle
Kids Wear
Refresh Dry
Dry
Spin
Disinfection
Mix
Quick 15
Wool
Shirts
Duvet
Intense
Self Clean
20
