Haier HWM20-0701 User manual

Mini Washing Machine User's manual
This manual is for
HWM20-0701
Please read this manual
carefully before using.
Retain it for future reference. 0030807846A

Contents
Names of the parts................................................................................................1
Safety precautions .............................................................................................2
Installation and adjustment ...................................................................................4
Preparation before washing .................................................................................5
The musts in washing ..............................................................................................6
Usage of the detergent.........................................................................................6
Process washing...................................................................................................7
Disposal after washing .......................................................................................8
Trouble shooting .............................................................9
Packing list *Specification.....................................................................................10

Meaning and description of the symbols
Warning sign
Forbidding sign
Contents marked with that symbol are related
to the safety of the product and the personal
safety of the users. Please operate in strict
conformity to the contents, otherwise it may
cause damage of the machine or injure the
personal safety of the user.
Contents marked with that symbol are actions
forbidden to perform. Performing of those
actions may result in damage of the machine
or injure the personal safety of the user.
Please check if the power receptacle has good earthing condition
before using to guarantee your safety.
Names of the parts
Base frame
Cabinet
Panel support
Pulsator
Back cover
Top lid
Control panel
Water inlet
Timer knob
Drain hose
1

Safety precautions
Please insert the power cord into
special receptacle with rated vol-
tage. Be sure to use single-phase
three pins receptacle. The earthing
terminal of the receptacle must be
earthed reliably. If possible, please
adopt electric leakage protector.
When the machine is normally
using, please put the power plug
at the location easily to be insert-
ed and extracted by hand. Be sure
to pull the plug off when there's
power failure, or the machine is
being moved, cleaned or when it
is idle.
If the power cord is bad, to avoid risk it is required to replace it by the
technicians of our special shop or the after-sale service department.
Keep the pin of the power plug clean.
Do not put the machine at damp
place like the bathroom . Never
wash it with water. Do not place
wet laundries on the control panel.
Do not use water hotter than 50 C .
In case the washing machine is installed
on ground with carpet , do not block the
ventilation hole with carpet.
Do not wash water-proof laundries like
the raincoat, bike covers etc. to avoid
abnormal vibrations in spinning.
Do not let the machine share one receptacle
with other electric appliances. If the power
plug is damaged, or the plugging into the
receptacle is loose, do not use the plug any
more.
The ventilation holes
at the bottom
2
Carpet

Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children.
Safety precautions
Do not put any hot or heavy items
( such as the kettle with hot water )
on the washing machine.
Do not decompose, repair or alter the
machine by yourself.
Handicapped or children without care
shall not use the machine.
Keep the machine away from direct
sunlight and heat source like the
heater.
Do not wash laundries with volatile
materials (such as thinner, petrol etc.).
Petrol
Thinner
To protect your laundries and wash-
ing machine, please take out all of the
coins, buttons, sand, hairpin and
other foreign materials before washing.
Please check if the water faucet is open,
and if the connection of the water inlet
pipe is proper.
It is suggested to use foamless washing
powder.
3

Please install and adjust the machine according to the requirement of the manual.
It is very important to your security and correct operating the machine.
Usage of the drain hose
Installation and adjustment
4
When washing, the drain hose must be hung up, if you want to drain,
please refer to the below mention.
The drainage shall be smooth with the drain hose.
1.The height of the drain hose shall be
less than 10cm , or the drainage will
not be smooth enough and cause
incomplete drainage.
2.Do not step on or press the drain hose.
3.Suggest do not lengthen or shorten the drain
hose.
<10cm
Adjust the installation position
The largest permitted slope of the bearing surface of the washing machine is
2 . Slanting or uneven ground will cause unstable operation of the machine.
Please check withfollowing methods:
Hang a becket with weight to confirm if the washing machine is horizontal.

5

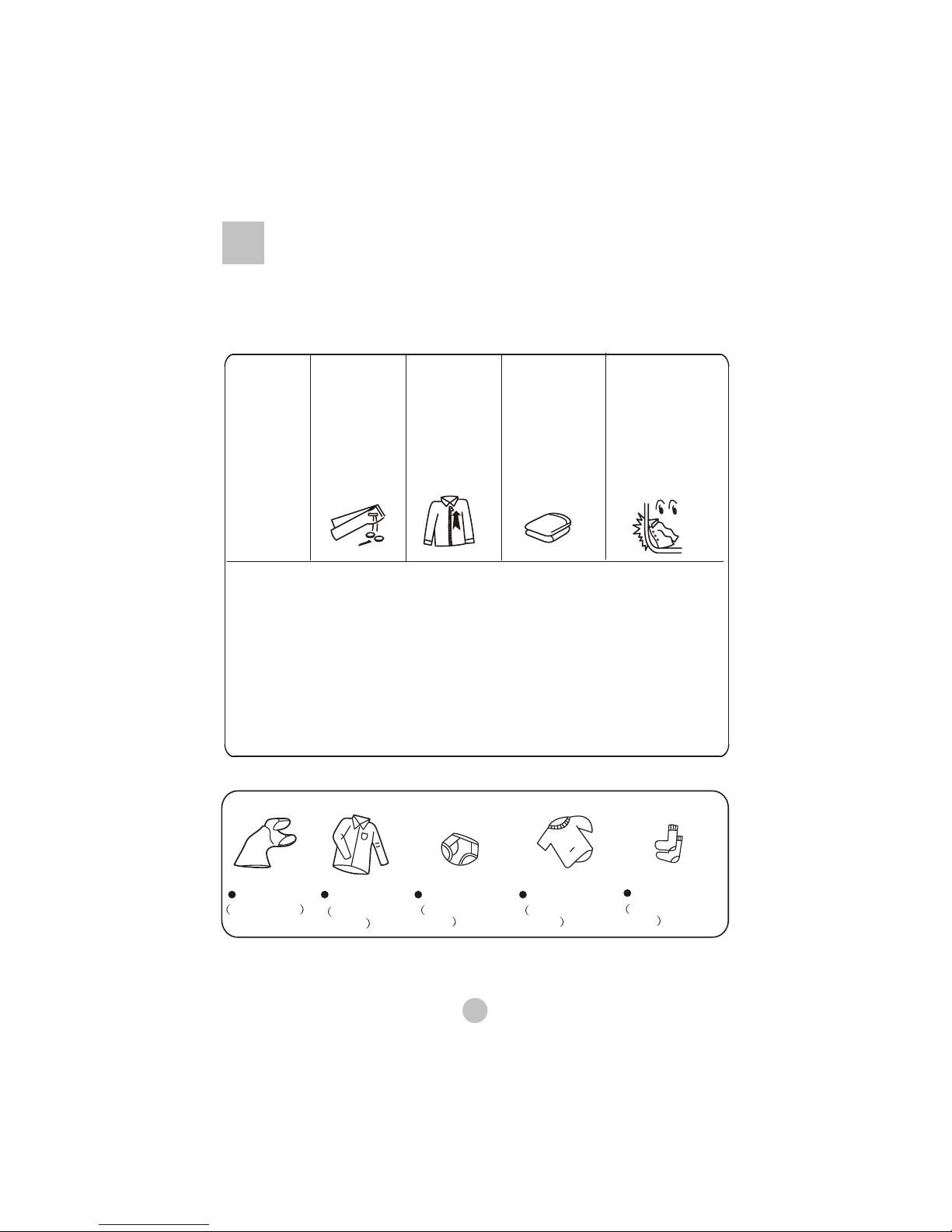

Preparation before washing
Pay attention to followings before washing the laundries
Check if
the laundries
has special
requirement
on washing
Clear the
pocket. Take
out the coins,
sand, hairpins
etc.
Tie the long
strips; fasten
the buttons;
close zippers.
When the pulsator
is running , the
buttons of the
laundries may
cause noise. For
the sake of
discretion, please
put the laundries
with buttons into
other laundries.
The quantity of
the laundries
shall not be too
large. Stretch
and loosen the
laundries before
putting them in
the tub.
a.Please check if the laundries are applicable for washing.
b.Please mend seedyclothes before washing.
c.Separate those not colorfast from other laundries.
d.For laundries not water absorbing, please put them into water with hands.
e.For laundries with much soil, lease remove the soil first. You can add detergent
on the part with serious soil directly. It is much easier to remove the soil by that
mean.
f.For laundries likely to get lint ball or with long fiber, please first turn the inside out
before putting them into the water.
g.Do not put the laundries polluted with chemicals directly into the washing
machine.
Reference weight of the laundries:
shirt Socks
underpants undershirt
pajamas
cotton, about
300g
blending, about
50g
cotton, about
70g cotton, about
180g
about 200g

6
The capacity of washing of the machine refers to the
largest weight of the standard laundries under dry
condition that can be washed in one time. Laundries
quantity in one washing cycle shall be lower than
the rated capacity.
The thickness ,size , type of the cloth will influence the
actual washing capacity. It is suitable to put in reasonable
amount of laundries and the laundries can be turned round
in washing for one time washing.
How to use the whitener
Fill water to decided level. Dilute the whitener with container. Pour it slowly into
the washing tub.
Avoid using whitener on laundries with color or pattern as they are prone to
lose color.
The whitener shall not touch the laundries directly.
Refer to the user's manual for the usage and quantity of the whitener.
For powder whitener,please dissolve it before using.
Usage of the detergent
The musts in washing
How to use the washing powder
Direct dissolved in the machine
1.Fill water to "1" water level.
2.Add the power. Runfor 30 seconds to dissolve it completely.
3.Put in the laundries. Select suitable water level.
The instant dissolvingof the washingpowder:
1.Prepare warm water of 30 and a container.
2.Add the powderwhile stirring tofully dissolve it.
Put in the proper quantities detergent according to the water level and the
laundries quantities .
It is suggestednot to usehigh sudsing detergent.
Washing powder with poor quality or long time storage maybe caked.

7

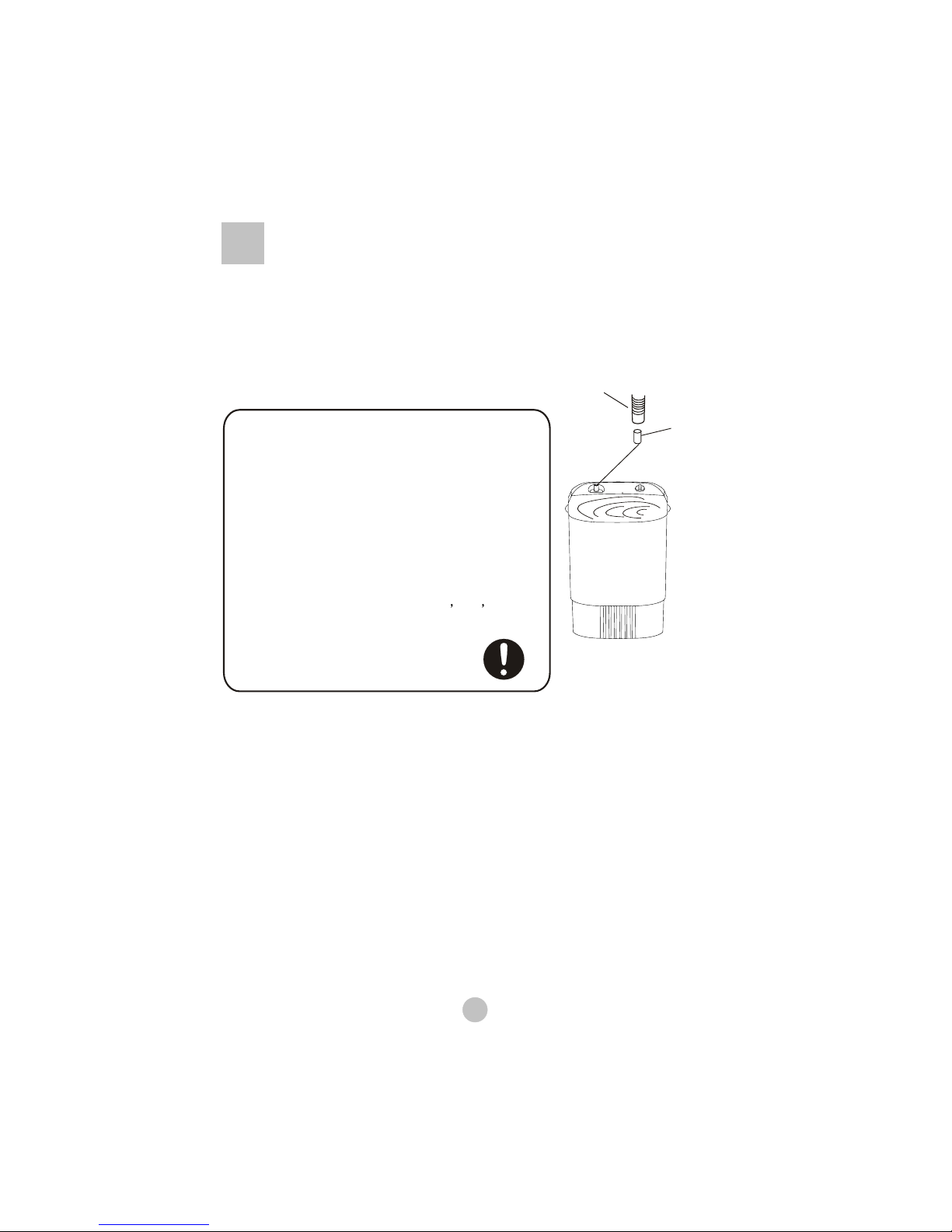

Process washing
1.Put into thelaundry and detergent, then fill the
water needed.
Install the water inlet hose
Insert the water inlet hose into the water-filling
entrance on the control panel.
The appliance is to be connected to the water
mains using new hose-set and old hose-set
should not be reused.
Water inlet hose
Water-filling
entrance
2.Close the toplid
3.Connect the power line
Confirm that the washing machine is
earthed reliably. Then insert the power
plug into the receptacle. Do not connect
the earth terminal to the gas pipe and
tap water pipe.
1.Confirm that the drain hose is properly
hanged before fill water, or the water will
flow through the drain hose.
2.Inside the washing machine tubbiness, It be
marker reference water line"1" "2" "3"and
the top water line"MAX".Not to a certainty
over the mark"MAX".
NOTE

8
About ~36
About7~8
About8~10
About2 4~
4.Washing duration reference
Select washing duration depending on the laundry
Laundry Washing Duration(min)
Silk fabric(thin laundry)
Knitted fabric/chemical fabric
Bed sheet
Cotton, blending or linen fabrics
Very dirty or heavy laundry About10~15
5.Finish washing
The tumbler stops revolving. Level the draining hose
down to let the waste water out.
If the cabinetis dirty, wipe it with
wet cloth
Do not flushit directly withwater.
Wipe it withneutral detergent.
Do not wipeit with thinner, petrol,
alcohol etc.
Disposal after washing
After washing, close the water faucet. ( If needed,
you can dismantle the water inlet hose).
Hang up the power cord and drain hose.
Be sure to pull off the power plug before maintenance.
Do not store water in the washing machine for a long
period. Drain the water completely after each using.
Wipe off the water drops on the surface of the
machine and inside the tub. Open the top lid for
some time (about 1 hour), then close the top lid.
Thinner
Alcohol
Petrol
(To set to below 2 minute,
first set to 6 minute then
turn it back. it can increase
the service life of the timer).

Phenomena How to check
Is the power plug inserted tightly?
Is there power failure?
Is the machine slanting?
Is there metal item inside the tub?
The washing machine
does not act
There's abnormal sound
inside the machine.
Trouble shooting
The following phenomena are not breakdowns sometimes. Please confirm again
before sending it to repair.
9

Packing list
10
User's manual
Name
One piece
One piece
One set
Quantity
Water inlet hose
Mini washing machine
Specification
Water level/Water quantity (about)
1/7L 2/12L 3/18L
Injection pressure(MPa)0.02 0.2
Rated washing capacity(kg)
2.0
